2-05A — CLUTCH PIPING (#76985) — 70 parça

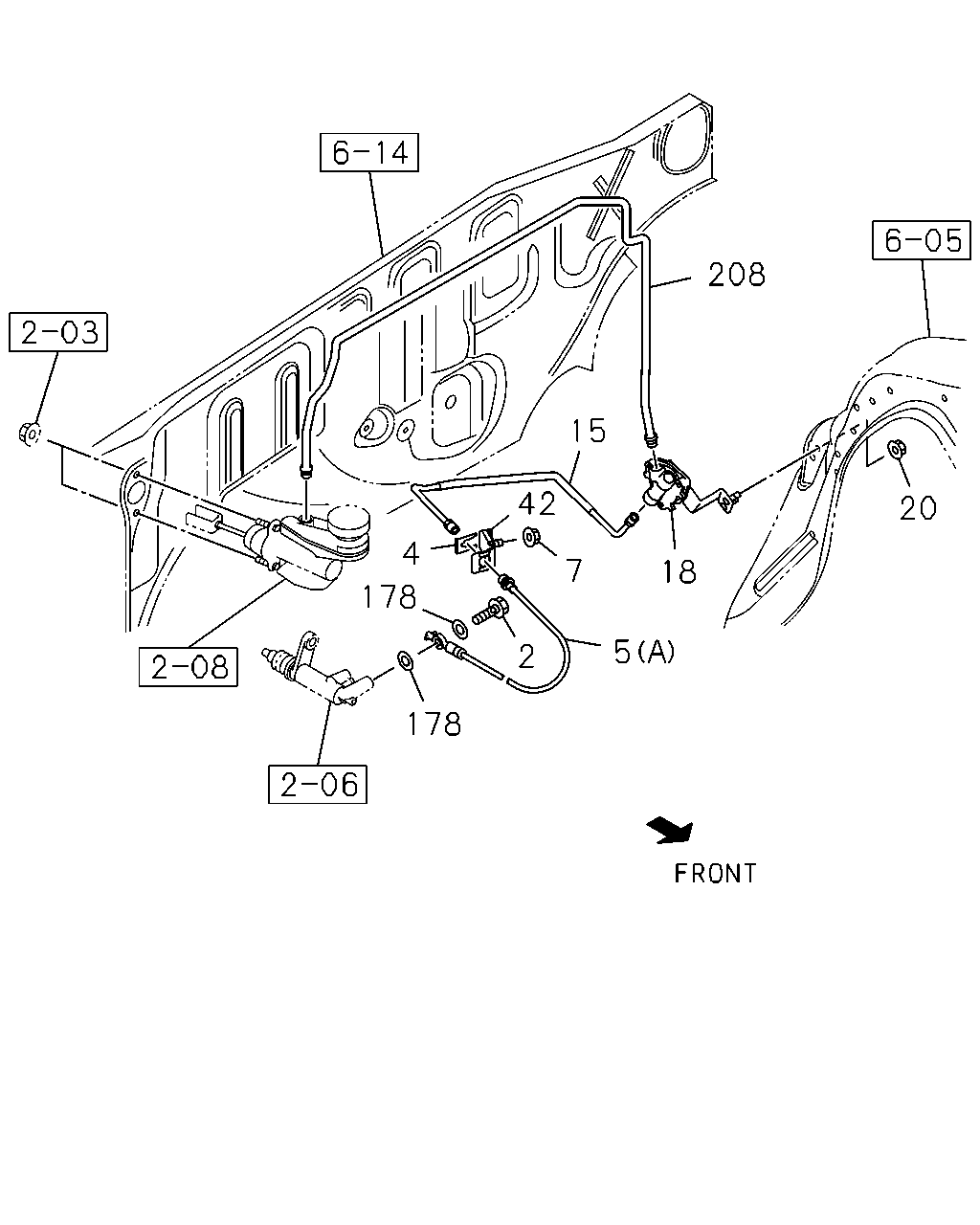

çizim 101804
208 15 42 20 4 7 18 178 5 2 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0808-0809 ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0810- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0810- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 0808-0809 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 0810-1003 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 1004-1007 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 1008- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 0810-1003 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 1004-1007 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 1008- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0) (A) 		8-97942-498-0 01 1 0810- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (B) 		8-97942-605-0 01 1 0810- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCX ENG(LS0) (A) 		8-97944-870-0 01 1 0808- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0808-0809 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-1003 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1004-1007 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1008- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97944-805-0 01 1 0810-1007 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97944-805-0 01 1 1008- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0) 		8-97944-803-0 01 1 0810- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCX ENG(LS0) 		8-97944-806-0 01 1 0808- ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 0810- ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 0808-0809 ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 0810-1003 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 1004-1007 ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 1008- ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0810- ● ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 		8-97943-835-0 01 1 0810-1003 ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 		8-97943-835-0 01 1 1004-1007 ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 		8-97943-835-0 01 1 1008- ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCX ENG(LS0) 		8-97944-508-0 01 1 0808- ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0808-0809 ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0810- ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-794-0 01 1 0810-1003 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-794-0 01 1 1004-1007 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-794-0 01 1 1008- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 0808-0809 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 0810-1003 ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 1004-1007 ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 1008- ● ● ● ●

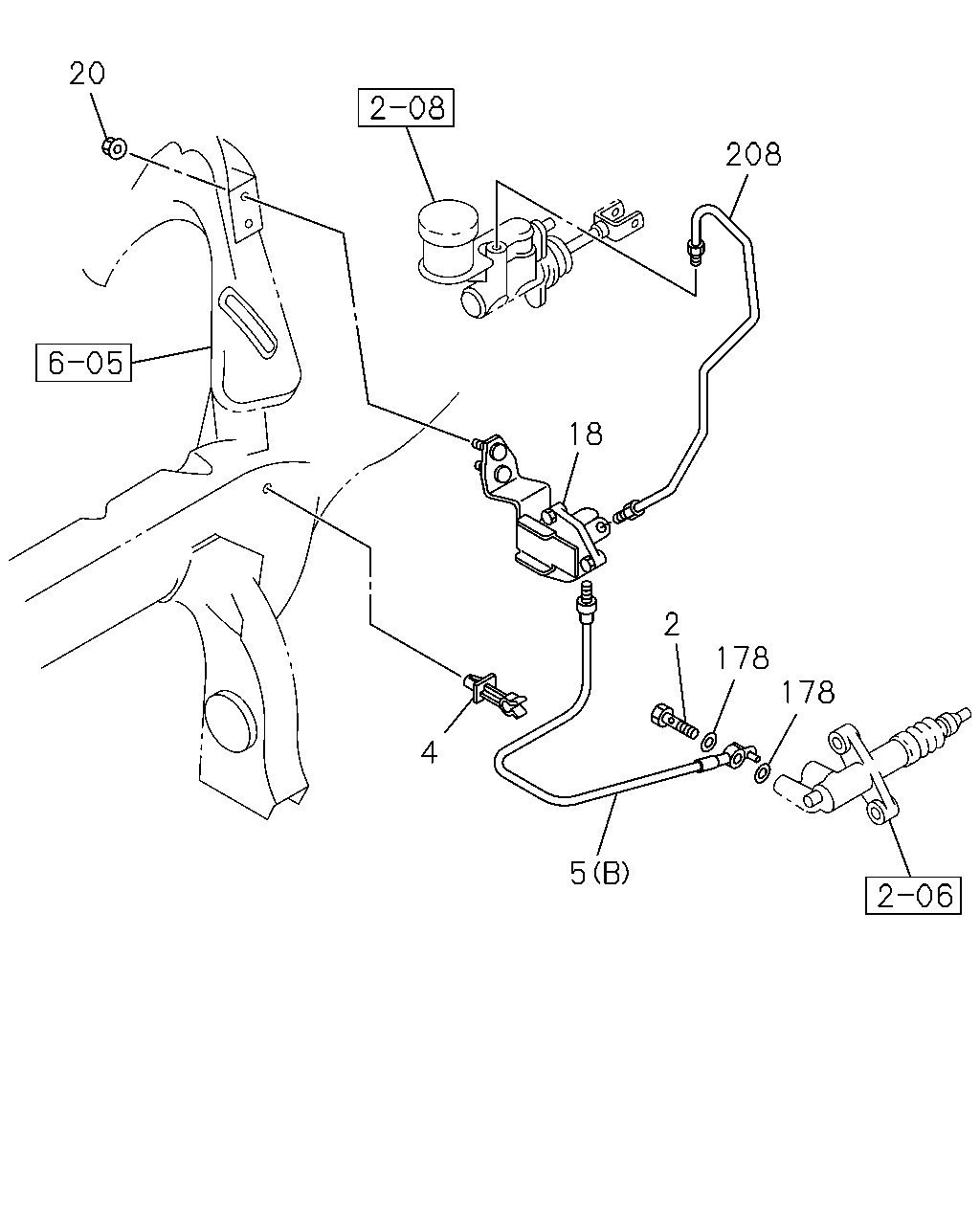

çizim 186254
20 208 18 2 178 178 4 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0808-0809 ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0810- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0810- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 0808-0809 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 0810-1003 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 1004-1007 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 1008- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 0810-1003 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 1004-1007 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 1008- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0) (A) 		8-97942-498-0 01 1 0810- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (B) 		8-97942-605-0 01 1 0810- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCX ENG(LS0) (A) 		8-97944-870-0 01 1 0808- ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 0810- ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 0808-0809 ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 0810-1003 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 1004-1007 ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97945-174-0 01 1 1008- ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0810- ● ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0808-0809 ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0810- ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-794-0 01 1 0810-1003 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-794-0 01 1 1004-1007 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-794-0 01 1 1008- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 0808-0809 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 0810-1003 ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 1004-1007 ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 1008- ● ● ● ●
