1 |

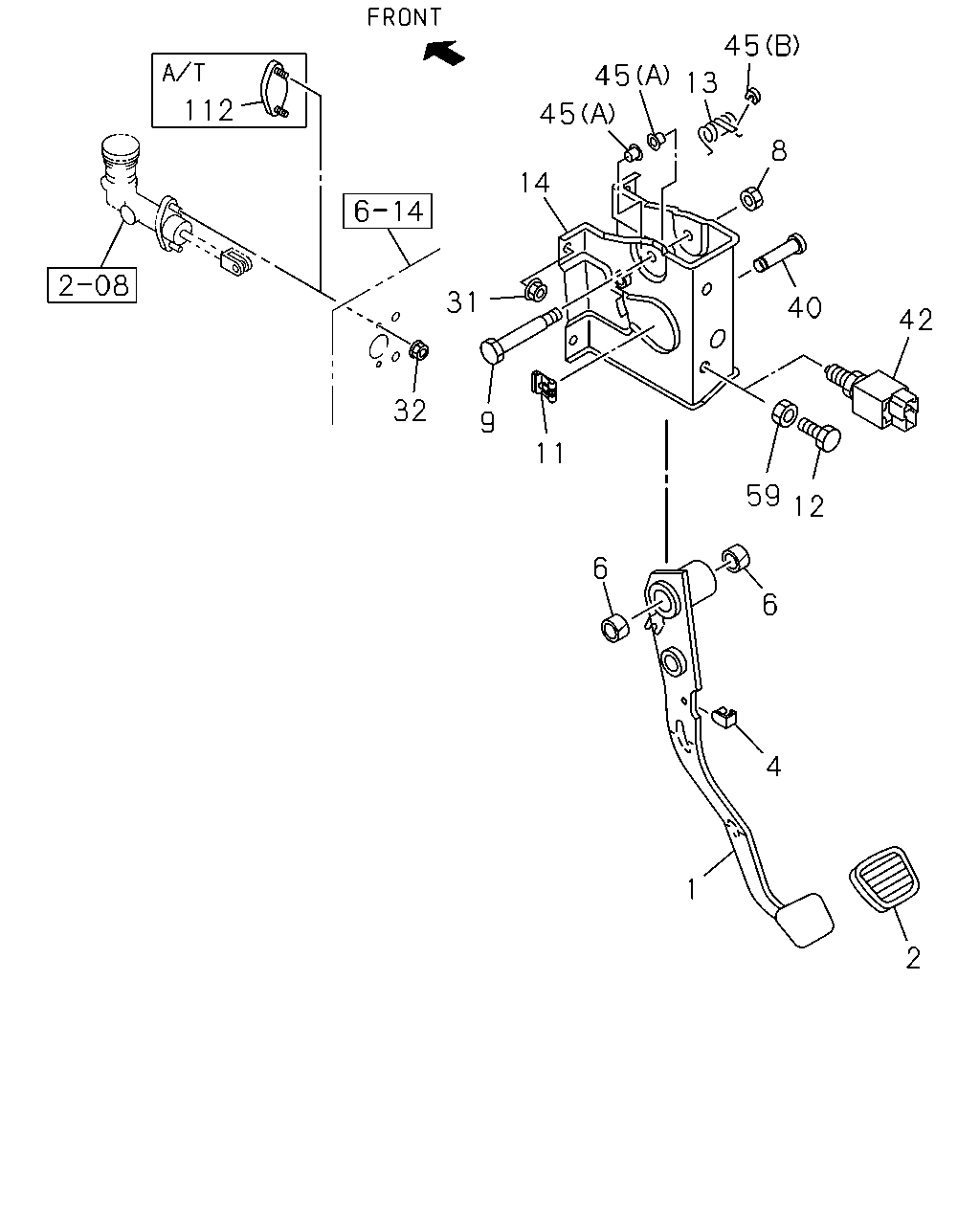

00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T
MUA 5 SPEED 5S(RSQ)
|
8-97942-311-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
|
| |
1 |
00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
|
8-97942-311-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
|
| |
1 |
00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T
MUA 5 SPEED 5S(RSQ)
|
8-97942-311-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
|
| |
1 |
00.830 PEDAL; CLU
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-97942-742-0 |
01 |
1 |
0808- |
|
|
● |
● |
● |
● |
● |
| |
2 |
04.630 COVER; CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-97318-799-0 |
01 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
2 |
04.630 COVER; CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
|
8-97318-799-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
04.630 COVER; CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP)
|
8-97318-799-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
04.630 COVER; CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
|
8-97318-799-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
4 |
00.829 STOPPER; CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
00.785
|
8-94463-258-0 |
01 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
4 |
00.829 STOPPER; CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
00.785
|
8-94463-258-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
4 |
00.829 STOPPER; CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP)
00.785
|
8-94463-258-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
4 |
00.829 STOPPER; CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
00.785
|
8-94463-258-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
6 |
00.831 BUSHING; CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
04.634
|
8-97301-688-0 |
02 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
6 |
00.831 BUSHING; CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
04.634
|
8-97301-688-0 |
02 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
6 |
00.831 BUSHING; CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP)
04.634
|
8-97301-688-0 |
02 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
00.833 NUT; PIN TO PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
04.634
M10 LOCK NUT FLANGE
|
0-91380-010-0 |
01 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
8 |
00.833 NUT; PIN TO PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
04.634
M10 LOCK NUT FLANGE
|
0-91380-010-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
00.833 NUT; PIN TO PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP)
04.634
M10 LOCK NUT FLANGE
|
0-91380-010-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
00.833 NUT; PIN TO PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
04.634
M10 LOCK NUT FLANGE
|
0-91380-010-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
9 |
00.833 PIN; CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-97942-315-0 |
01 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
9 |
00.833 PIN; CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
|
8-97942-315-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
9 |
00.833 PIN; CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP)
|
8-97942-315-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
9 |
00.833 PIN; CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
|
8-97942-315-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
11 |
00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUX 5 SPEED 5S(MZJ)
|
8-98007-161-0 |
01 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
11 |
00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),
M/TMUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
|
8-98007-161-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
11 |
00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),
M/TMUA 5 SPEED 5G(RSP)
|
8-98007-161-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
11 |
00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),
M/TMUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
|
8-98007-161-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
00.841 BOLT; CLU PEDAL ADJ
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
EXC. AUTO CRUISE CONT<K30>
02.277
M10X35 FLANGE
|
0-28651-035-0 |
01 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
12 |
00.841 BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
EXC. AUTO CRUISE CONT<K30>
02.277
M10X35 FLANGE
|
0-28651-035-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
00.841 BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP)
EXC. AUTO CRUISE CONT<K30>
02.277
M10X35 FLANGE
|
0-28651-035-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
00.841 BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
EXC. AUTO CRUISE CONT<K30>
02.277
M10X35 FLANGE
|
0-28651-035-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-97942-312-0 |
01 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
|
8-97942-312-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP)
|
8-97942-312-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
|
8-97942-312-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
14 |
00.829 BRACKET ASM; CLU PEDAL MTG
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-97942-310-0 |
01 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
14 |
00.829 BRACKET ASM; CLU PEDAL MTG
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
|
8-97942-310-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
14 |
00.829 BRACKET ASM; CLU PEDAL MTG
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP)
|
8-97942-310-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
14 |
00.829 BRACKET ASM; CLU PEDAL MTG
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
|
8-97942-310-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
31 |
01.153 NUT; MTG BRKT TO BODY
M/T MUX 5 SPEED 5S(MZJ)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
31 |
01.153 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),
M/TMUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
31 |
01.153 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),
M/TMUA 5 SPEED 5G(RSP)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
31 |
01.153 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),
M/TMUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
32 |
00.777 NUT; BRKT TO CLU M/CYL
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
32 |
00.777 NUT; BRKT TO CLU M/CYL
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
40 |
00.833 PIN; JOINT,CLU DAMPER
M/T MUX 5 SPEED 5S(MZJ)
OD=7.9 L=27.5
|
8-97312-338-0 |
01 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
40 |
00.833 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),
M/TMUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
OD=7.9 L=27.5
|
8-97312-338-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
40 |
00.833 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),
M/TMUA 5 SPEED 5G(RSP)
OD=7.9 L=27.5
|
8-97312-338-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
40 |
00.833 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),
M/TMUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
OD=7.9 L=27.5
|
8-97312-338-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
42 |
04.054 SWITCH; CLU
M/T MUX 5 SPEED 5S(MZJ)
AUTO CRUISE CONT<K30>
03.636
|
8-97358-315-0 |
01 |
1 |
0808-0809 |
|
|
● |
|
|
● |
|
| |
42 |
04.054 SWITCH; CLU
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP)
AUTO CRUISE CONT<K30>
03.636
|
8-97358-315-0 |
01 |
1 |
0810- |
|
|
● |
|
|
● |
|
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
(A)
|
8-97942-313-0 |
02 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
(A)
|
8-97942-313-0 |
02 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP)
(A)
|
8-97942-313-0 |
02 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
(A)
|
8-97942-313-0 |
02 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
(B)
|
8-97942-314-0 |
01 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
(B)
|
8-97942-314-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP)
(B)
|
8-97942-314-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
(B)
|
8-97942-314-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
59 |
00.833 NUT; CLU PEDAL ADJ
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
EXC. AUTO CRUISE CONT<K30>
M10
|
0-91110-510-0 |
01 |
1 |
0808-0809 |
|
|
● |
● |
● |
● |
● |
| |
59 |
00.833 NUT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
EXC. AUTO CRUISE CONT<K30>
M10
|
0-91110-510-0 |
01 |
1 |
0810-1003 |
● |
● |
● |
● |
● |
● |
● |
| |
59 |
00.833 NUT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP)
EXC. AUTO CRUISE CONT<K30>
M10
|
0-91110-510-0 |
01 |
1 |
1004-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
59 |
00.833 NUT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),C24SE ENG(LG1),
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED
5S(RSQ)
EXC. AUTO CRUISE CONT<K30>
M10
|
0-91110-510-0 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
112 |
00.785 PLUG; METAL,M/CYL
A/T AISIN(RMD)
|
8-97259-210-0 |
01 |
1 |
0808-0809 |
|
|
● |
|
|
● |
|
| |
112 |
00.785 PLUG; METAL,M/CYL
A/T AISIN(RMD),A/T 4
SPEED-JATCO(RMK)
|
8-97259-210-0 |
01 |
1 |
0810- |
● |
● |
● |
|
|
● |
|
