2-01A — CLUTCH (#76983) — 77 parça

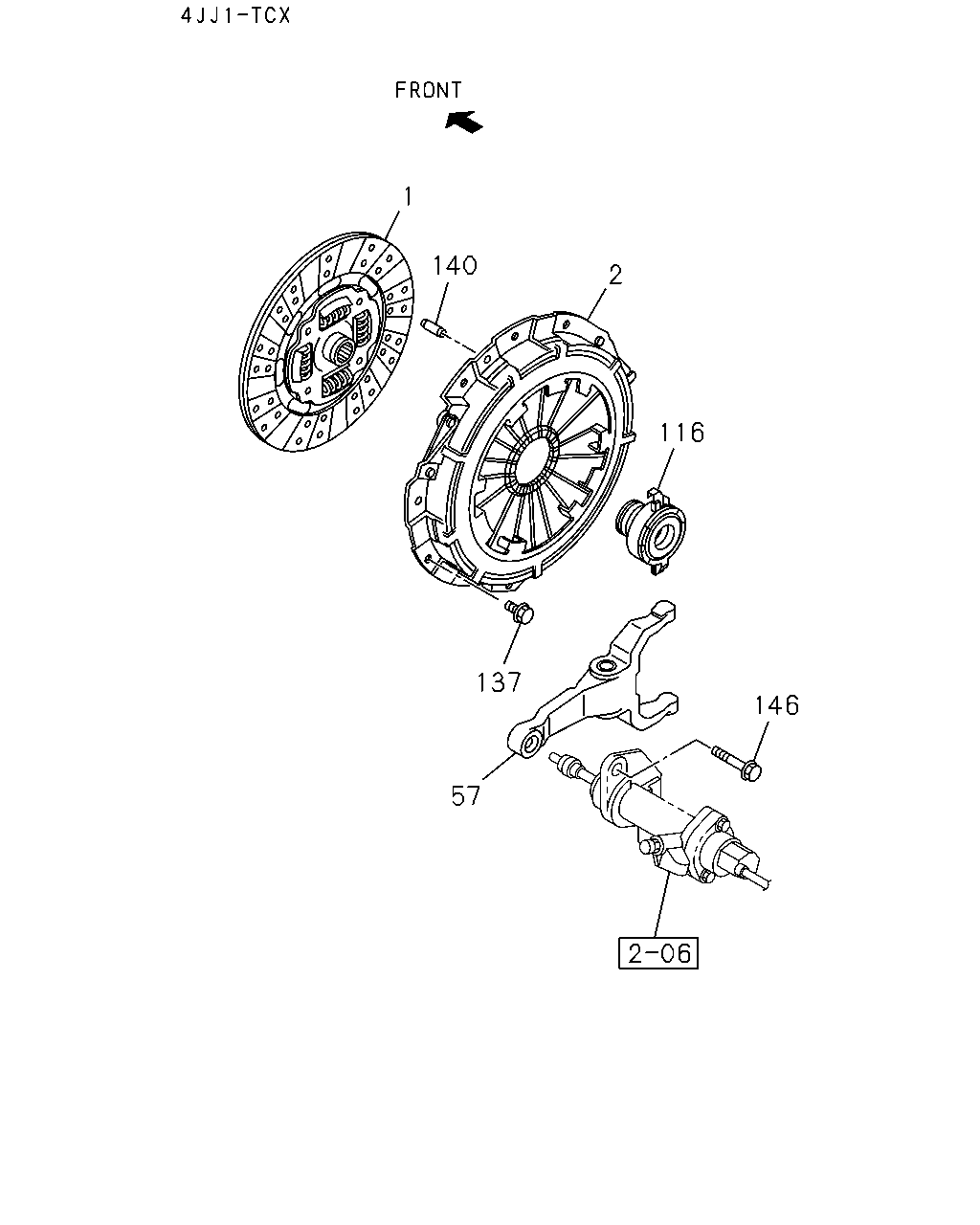

çizim 97731
1 140 2 116 137 146 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.886 DISC; CLUTCH
4JA1-T ENG(LP0) 		8-97941-521-0 01 1 0810- ● ●
1 00.886 DISC; CLUTCH
C24SE ENG(LG1) 		8-97941-527-0 01 1 0810- ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB) EURO3 SPECIFICATION<NT3> 		8-97947-166-0 01 1 0810-1007 ●
1 00.886 DISC; CLUTCH
4JK1-TCS ENG(LKZ) EURO2 SPECIFICATION<NT2> 		8-97947-166-0 01 1 1008- ●
1 00.886 DISC; CLUTCH
4JJ1-TCX ENG(LS0) EURO3 SPECIFICATION<NT3> 		8-97945-774-0 01 1 0810-1007 ●
1 00.886 DISC; CLUTCH
4JK1-TCX ENG(LR0) 		8-97945-679-0 01 1 0810- ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97945-679-0 01 1 0810- ●
1 00.886 DISC; CLUTCH
4JJ1-TCX ENG(LS0) 		8-97946-171-0 01 1 0808- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JA1-T ENG(LP0) 		8-97943-331-0 01 1 0810- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
C24SE ENG(LG1) 		8-97941-526-1 01 1 0810- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97941-522-0 01 1 0810-1007 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97941-522-0 01 1 1008- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCX ENG(LS0) 		8-97944-507-2 01 1 0808- ●
57 00.795 FORK; SHIFT,CLU
4JA1-T ENG(LP0) 		8-94167-751-0 01 1 0810- ●
57 00.795 FORK; SHIFT,CLU
C24SE ENG(LG1) 		8-94457-209-1 01 1 0810- ● ●
57 00.795 FORK; SHIFT,CLU
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 		8-97365-654-0 01 1 0810-1007 ● ●
57 00.795 FORK; SHIFT,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 		8-97365-654-0 01 1 1008- ● ●
57 00.795 FORK; SHIFT,CLU
4JJ1-TCX ENG(LS0) 		8-98086-423-0 01 1 0808- ●
116 00.799 BLOCK; SHIFT,CLU
4JJ1-TCX ENG(LS0) 		8-94377-417-1 01 1 0808- ●
137 00.862 BOLT; CLU COVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 02.343 M8X16 FLANGE 		0-28050-816-0 06 1 0810-1003 ● ● ● ●
137 00.862 BOLT; CLU COVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1004-1007 ● ● ●
137 00.862 BOLT; CLU COVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1008- ● ● ● ●
137 00.862 BOLT; CLU COVER
4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE 		0-28050-816-0 09 1 0808- ●
140 00.862 PIN; STRAIGHT
4JJ1-TCS ENG(LFB) OD=6 L=24 		9-09878-532-0 02 1 1008- ●
140 00.862 PIN; STRAIGHT
4JA1-T ENG(LP0) OD=6 L=24 		9-09878-532-0 03 1 0810- ● ●
140 00.862 PIN; STRAIGHT
4JJ1-TCS ENG(LFB) OD=6 L=24 		9-09878-532-0 02 1 0810-1003 ●
140 00.862 PIN; STRAIGHT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) OD=6 L=27 		8-97945-592-0 02 1 0810-1007 ●
140 00.862 PIN; STRAIGHT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) OD=6 L=27 		8-97945-592-0 02 1 1008- ●
140 00.862 PIN; STRAIGHT
4JJ1-TCX ENG(LS0) OD=6 L=27 		8-97945-592-0 03 1 0808- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M12X90 FLANGE 		0-28051-290-0 02 1 0810-1003 ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M12X90 FLANGE 		0-28051-290-0 02 1 1004-1007 ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M12X90 FLANGE 		0-28051-290-0 02 1 1008- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
C24SE ENG(LG1) 00.029 M10X40 FLANGE 		0-28751-040-0 02 1 0810- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
4JJ1-TCX ENG(LS0) 00.683 M10X60 FLANGE 		0-28151-060-0 02 1 0808- ●

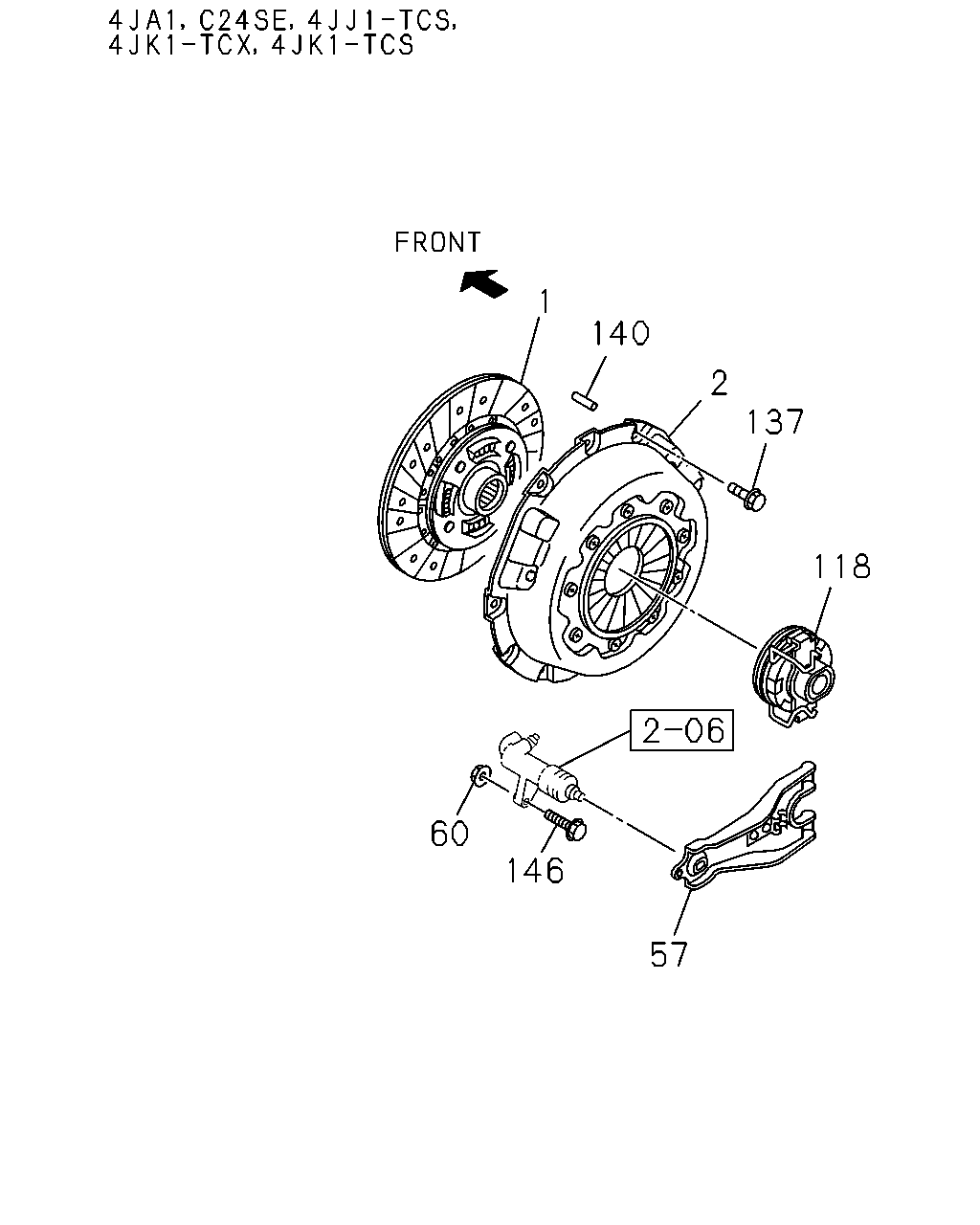

çizim 186144
1 140 2 137 118 60 146 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.886 DISC; CLUTCH
4JA1-T ENG(LP0) 		8-97941-521-0 01 1 0810- ● ●
1 00.886 DISC; CLUTCH
C24SE ENG(LG1) 		8-97941-527-0 01 1 0810- ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB) EURO3 SPECIFICATION<NT3> 		8-97947-166-0 01 1 0810-1007 ●
1 00.886 DISC; CLUTCH
4JK1-TCS ENG(LKZ) EURO2 SPECIFICATION<NT2> 		8-97947-166-0 01 1 1008- ●
1 00.886 DISC; CLUTCH
4JJ1-TCX ENG(LS0) EURO3 SPECIFICATION<NT3> 		8-97945-774-0 01 1 0810-1007 ●
1 00.886 DISC; CLUTCH
4JK1-TCX ENG(LR0) 		8-97945-679-0 01 1 0810- ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97945-679-0 01 1 0810- ●
1 00.886 DISC; CLUTCH
4JJ1-TCX ENG(LS0) 		8-97946-171-0 01 1 0808- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JA1-T ENG(LP0) 		8-97943-331-0 01 1 0810- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
C24SE ENG(LG1) 		8-97941-526-1 01 1 0810- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97941-522-0 01 1 0810-1007 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97941-522-0 01 1 1008- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCX ENG(LS0) 		8-97944-507-2 01 1 0808- ●
57 00.795 FORK; SHIFT,CLU
4JA1-T ENG(LP0) 		8-94167-751-0 01 1 0810- ●
57 00.795 FORK; SHIFT,CLU
C24SE ENG(LG1) 		8-94457-209-1 01 1 0810- ● ●
57 00.795 FORK; SHIFT,CLU
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 		8-97365-654-0 01 1 0810-1007 ● ●
57 00.795 FORK; SHIFT,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 		8-97365-654-0 01 1 1008- ● ●
57 00.795 FORK; SHIFT,CLU
4JJ1-TCX ENG(LS0) 		8-98086-423-0 01 1 0808- ●
60 00.780 NUT; SLAVE CYL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 02.042 M12 FLANGE 		0-91180-112-0 01 1 0810-1003 ● ● ● ●
60 00.780 NUT; SLAVE CYL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 02.042 M12 FLANGE 		0-91180-112-0 01 1 1004-1007 ● ● ●
60 00.780 NUT; SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 02.042 M12 FLANGE 		0-91180-112-0 01 1 1008- ● ● ●
118 00.799 BEARING; CLU RELEASE
4JA1-T ENG(LP0) NSK ID=56 OD=71.7 		8-97209-197-0 01 1 0810- ●
118 00.799 BEARING; CLU RELEASE
4X4(TFS***) 4JA1-T ENG(LP0) NSK ID=56 OD=71.7 		8-97333-487-0 01 1 0810- ●
118 00.799 BEARING; CLU RELEASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0) NSK 		8-97316-591-0 01 1 0810-1003 ● ● ●
118 00.799 BEARING; CLU RELEASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0) NSK 		8-97316-591-0 01 1 1004-1007 ● ●
118 00.799 BEARING; CLU RELEASE
4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) NSK 		8-97316-591-0 01 1 1008- ●
118 00.799 BEARING; CLU RELEASE
4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) NSK 		8-97316-591-0 01 1 1008- ●
118 00.799 BEARING; CLU RELEASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) NSK 		8-97316-591-0 01 1 1008- ● ●
137 00.862 BOLT; CLU COVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 02.343 M8X16 FLANGE 		0-28050-816-0 06 1 0810-1003 ● ● ● ●
137 00.862 BOLT; CLU COVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1004-1007 ● ● ●
137 00.862 BOLT; CLU COVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1008- ● ● ● ●
137 00.862 BOLT; CLU COVER
4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE 		0-28050-816-0 09 1 0808- ●
140 00.862 PIN; STRAIGHT
4JJ1-TCS ENG(LFB) OD=6 L=24 		9-09878-532-0 02 1 1008- ●
140 00.862 PIN; STRAIGHT
4JA1-T ENG(LP0) OD=6 L=24 		9-09878-532-0 03 1 0810- ● ●
140 00.862 PIN; STRAIGHT
4JJ1-TCS ENG(LFB) OD=6 L=24 		9-09878-532-0 02 1 0810-1003 ●
140 00.862 PIN; STRAIGHT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) OD=6 L=27 		8-97945-592-0 02 1 0810-1007 ●
140 00.862 PIN; STRAIGHT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) OD=6 L=27 		8-97945-592-0 02 1 1008- ●
140 00.862 PIN; STRAIGHT
4JJ1-TCX ENG(LS0) OD=6 L=27 		8-97945-592-0 03 1 0808- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M12X90 FLANGE 		0-28051-290-0 02 1 0810-1003 ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M12X90 FLANGE 		0-28051-290-0 02 1 1004-1007 ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M12X90 FLANGE 		0-28051-290-0 02 1 1008- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
C24SE ENG(LG1) 00.029 M10X40 FLANGE 		0-28751-040-0 02 1 0810- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
4JJ1-TCX ENG(LS0) 00.683 M10X60 FLANGE 		0-28151-060-0 02 1 0808- ●
