◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#76982) — 905 parça

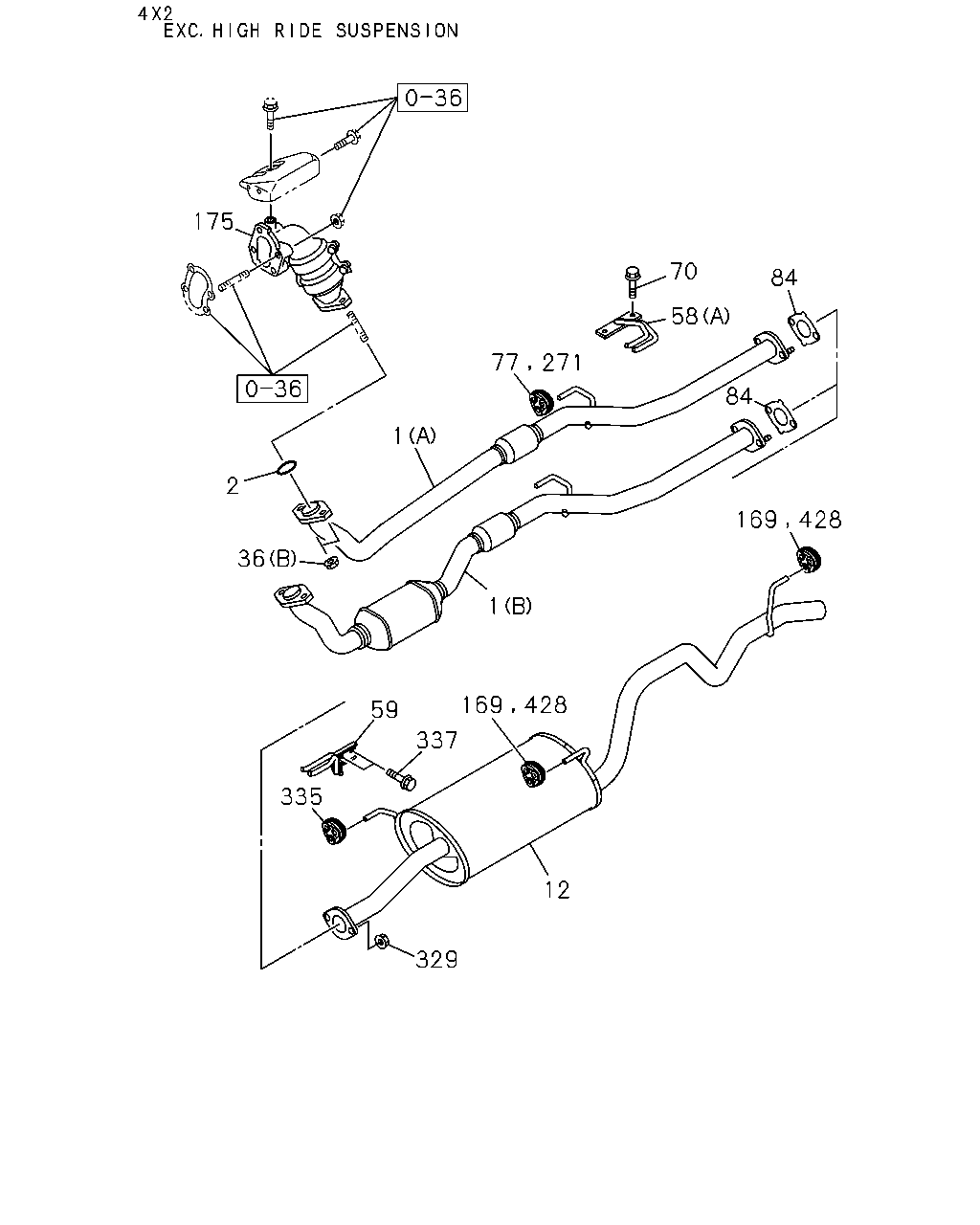

çizim 96578
175 70 84 58 84 1 2 36 1 59 337 335 12 329 169 428 169 428 77 271
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 0810-1202 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 1203- ● ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75> (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-078-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97235-500-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO3 SPECIFICATION<NT3> (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98008-407-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-498-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98032-079-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97329-644-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO3 SPECIFICATION<NT3> (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) EMISSION SYSTEM R15-04<K75> (H) 		8-97235-501-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-099-0 01 1 0911- ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-98155-099-0 01 1 0911- ● ●
2 03.611 GASKET; PIPE TO MANIF 8-97166-290-1 01 1 0810- ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0808-0809 ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0810-1007 ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 1008- ● ● ● ● ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98082-821-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98082-821-0 01 1 1008- ● ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) EMISSION SYSTEM R15-04<K75> 		8-97363-081-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75> 		8-97235-529-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97235-528-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2> 		8-97235-528-0 01 1 1008- ●
12 03.701 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> 		8-97308-922-2 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EXTRA LONG(TF***K) 		8-97381-441-1 01 1 0808- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) 		8-97380-266-1 01 1 0808-0809 ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) 		8-97380-266-1 01 1 0810- ● ●
36 03.613 NUT; EXH PIPE
(C) M8 FLANGE 		8-97061-401-1 04 1 0810- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ●
58 03.613 BRACKET; EXH PIPE,RR
(B) 		8-97368-508-0 01 1 0810- ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0808-0809 ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0810-1007 ● ● ● ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 1008- ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0808-1007 ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1008- ● ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-0809 ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0810-1007 ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
77 03.613 RUBBER; CUSHION,BRKT 8-97330-412-0 01 1 0810-1007 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0808-0809 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0808-0809 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0808-1007 ● ● ● ● ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98005-182-1 01 1 0810-1007 ●
175 03.685 CONVERTER; CATALYST 8-98005-183-2 01 1 1008- ●
175 03.685 CONVERTER; CATALYST
EURO2 SPECIFICATION<NT2> 		8-97306-532-2 01 1 0810- ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98038-426-0 01 1 0810-0911 ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98153-894-0 01 1 0912-1007 ●
175 03.685 CONVERTER; CATALYST 8-98038-425-0 01 1 0808-0809 ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98038-425-0 01 1 0810-0909 ● ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98153-895-0 01 1 0910-1007 ● ●
175 03.685 CONVERTER; CATALYST 8-98156-386-0 01 1 1008- ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.613 		8-97330-412-0 01 1 1008- ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0808-1007 ● ● ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0808-1007 ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-1007 ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ● ●

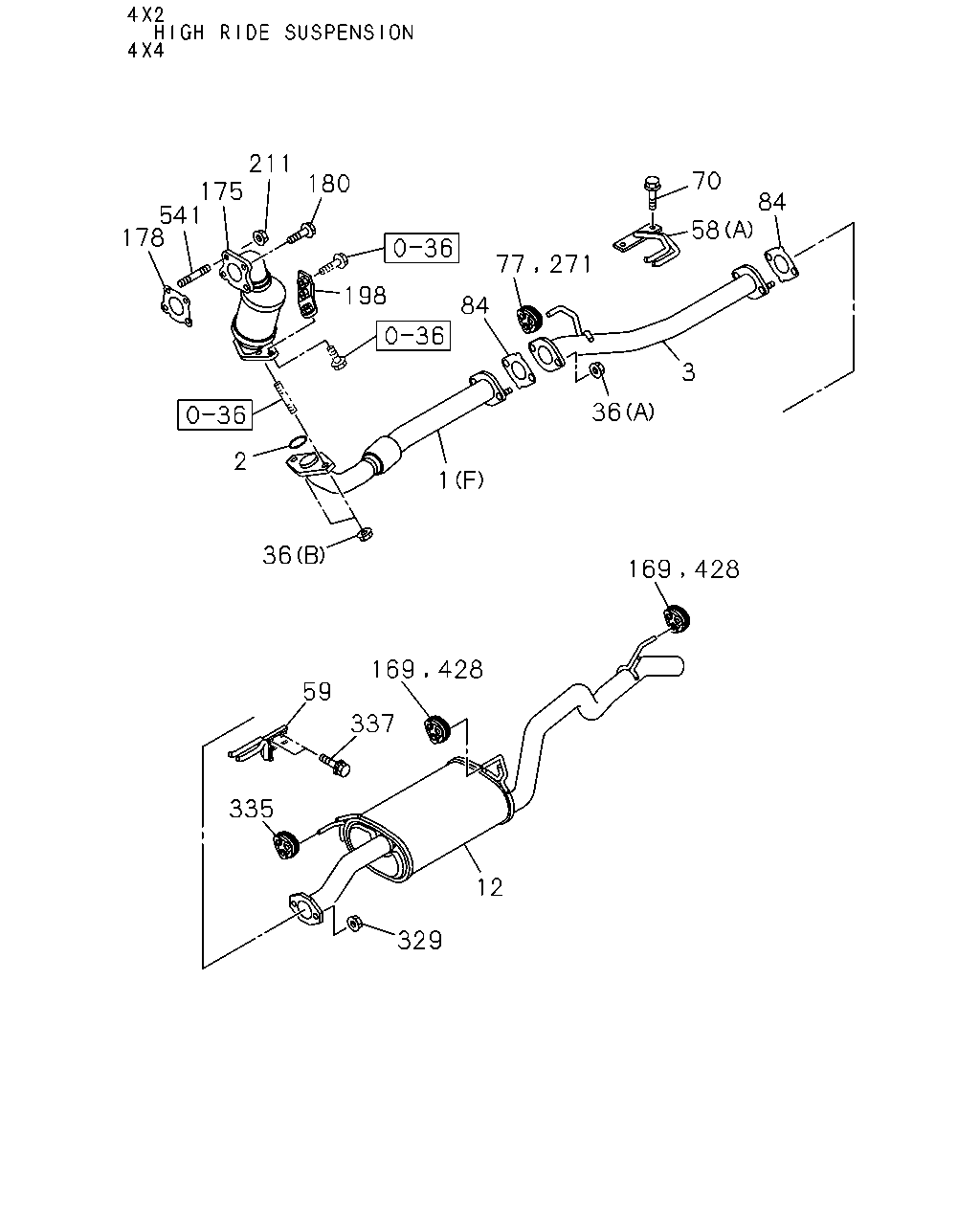

çizim 97065
211 175 541 178 70 180 84 58 198 84 3 36 2 1 36 59 337 335 12 329 77 271 169 428 169 428
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 0810-1202 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 1203- ● ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75> (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-078-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97235-500-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO3 SPECIFICATION<NT3> (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98008-407-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-498-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98032-079-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97329-644-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO3 SPECIFICATION<NT3> (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) EMISSION SYSTEM R15-04<K75> (H) 		8-97235-501-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-099-0 01 1 0911- ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-98155-099-0 01 1 0911- ● ●
2 03.611 GASKET; PIPE TO MANIF 8-97166-290-1 01 1 0810- ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0808-0809 ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0810-1007 ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 1008- ● ● ● ● ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) 		8-97363-080-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75> 		8-97363-080-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
LONG(TF***F) EMISSION SYSTEM R15-04<K75> 		8-97352-926-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97352-924-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2> 		8-97352-924-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) 		8-97308-920-3 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> 		8-97308-920-3 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 0808-0809 ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) 		8-98029-203-0 01 1 0808-0809 ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 0810-1007 ● ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98029-203-0 01 1 0810-1007 ● ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 1008- ● ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO4 SPECIFICATION<NT4> 		8-98029-203-0 01 1 1008- ● ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98082-821-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98082-821-0 01 1 1008- ● ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) EMISSION SYSTEM R15-04<K75> 		8-97363-081-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75> 		8-97235-529-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97235-528-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2> 		8-97235-528-0 01 1 1008- ●
12 03.701 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> 		8-97308-922-2 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EXTRA LONG(TF***K) 		8-97381-441-1 01 1 0808- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) 		8-97380-266-1 01 1 0808-0809 ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) 		8-97380-266-1 01 1 0810- ● ●
36 03.613 NUT; EXH PIPE
(C) M8 FLANGE 		8-97061-401-1 04 1 0810- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ●
58 03.613 BRACKET; EXH PIPE,RR
(B) 		8-97368-508-0 01 1 0810- ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0808-0809 ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0810-1007 ● ● ● ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 1008- ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0808-1007 ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1008- ● ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-0809 ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0810-1007 ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
77 03.613 RUBBER; CUSHION,BRKT 8-97330-412-0 01 1 0810-1007 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0808-0809 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0808-0809 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0808-1007 ● ● ● ● ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98005-182-1 01 1 0810-1007 ●
175 03.685 CONVERTER; CATALYST 8-98005-183-2 01 1 1008- ●
175 03.685 CONVERTER; CATALYST
EURO2 SPECIFICATION<NT2> 		8-97306-532-2 01 1 0810- ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98038-426-0 01 1 0810-0911 ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98153-894-0 01 1 0912-1007 ●
175 03.685 CONVERTER; CATALYST 8-98038-425-0 01 1 0808-0809 ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98038-425-0 01 1 0810-0909 ● ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98153-895-0 01 1 0910-1007 ● ●
175 03.685 CONVERTER; CATALYST 8-98156-386-0 01 1 1008- ● ●
178 03.611 GASKET; CONV TO MANIF 8-97312-284-1 01 1 0810-1007 ●
178 03.611 GASKET; CONV TO MANIF 8-97312-284-1 01 1 1008- ● ●
178 03.611 GASKET; CONV TO MANIF 8-98011-532-0 01 1 0808-0809 ●
178 03.611 GASKET; CONV TO MANIF 8-98011-532-0 01 1 0810-1007 ● ●
178 03.611 GASKET; CONV TO MANIF 8-98132-538-0 01 1 1008- ● ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1008- ● ●
198 03.685 BRACKET; CONV MTG 8-98020-516-1 01 1 0808-0809 ●
198 03.685 BRACKET; CONV MTG 8-98020-516-1 01 1 0810- ● ●
211 03.685 NUT; CONV
KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
211 03.685 NUT; CONV
EXC. KENYA EQUIPMENT(CL1) 03.342 M8 FLANGE 		8-97379-384-0 04 1 1008- ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 1008- ●
211 03.685 NUT; CONV
KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0810-1003 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 0808-0809 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 0810-1007 ● ●
211 03.685 NUT; CONV
EXC. KENYA EQUIPMENT(CL1) 03.342 M8 FLANGE 		8-97379-384-0 04 1 0810-1007 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1008- ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.613 		8-97330-412-0 01 1 1008- ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0808-1007 ● ● ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0808-1007 ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-1007 ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 1008- ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 0808-0809 ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 0810-1007 ● ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●

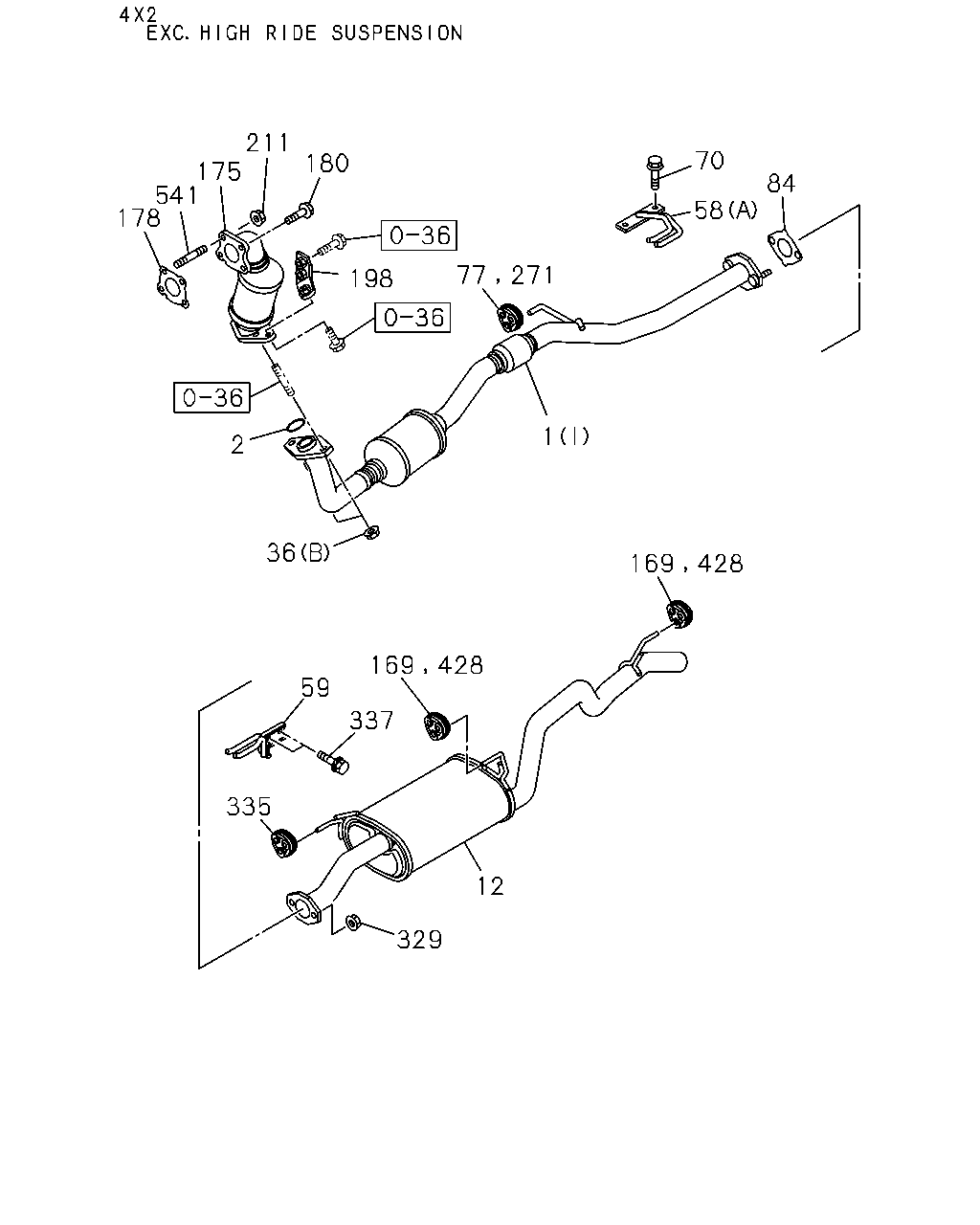

çizim 97114
211 175 541 178 70 180 84 58 198 1 2 36 59 337 335 12 329 77 271 169 428 169 428
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 0810-1202 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 1203- ● ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75> (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-078-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97235-500-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO3 SPECIFICATION<NT3> (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98008-407-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-498-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98032-079-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97329-644-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO3 SPECIFICATION<NT3> (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) EMISSION SYSTEM R15-04<K75> (H) 		8-97235-501-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-099-0 01 1 0911- ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-98155-099-0 01 1 0911- ● ●
2 03.611 GASKET; PIPE TO MANIF 8-97166-290-1 01 1 0810- ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0808-0809 ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0810-1007 ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 1008- ● ● ● ● ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98082-821-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98082-821-0 01 1 1008- ● ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) EMISSION SYSTEM R15-04<K75> 		8-97363-081-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75> 		8-97235-529-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97235-528-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2> 		8-97235-528-0 01 1 1008- ●
12 03.701 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> 		8-97308-922-2 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EXTRA LONG(TF***K) 		8-97381-441-1 01 1 0808- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) 		8-97380-266-1 01 1 0808-0809 ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) 		8-97380-266-1 01 1 0810- ● ●
36 03.613 NUT; EXH PIPE
(C) M8 FLANGE 		8-97061-401-1 04 1 0810- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ●
58 03.613 BRACKET; EXH PIPE,RR
(B) 		8-97368-508-0 01 1 0810- ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0808-0809 ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0810-1007 ● ● ● ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 1008- ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0808-1007 ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1008- ● ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-0809 ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0810-1007 ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
77 03.613 RUBBER; CUSHION,BRKT 8-97330-412-0 01 1 0810-1007 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0808-0809 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0808-0809 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0808-1007 ● ● ● ● ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98005-182-1 01 1 0810-1007 ●
175 03.685 CONVERTER; CATALYST 8-98005-183-2 01 1 1008- ●
175 03.685 CONVERTER; CATALYST
EURO2 SPECIFICATION<NT2> 		8-97306-532-2 01 1 0810- ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98038-426-0 01 1 0810-0911 ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98153-894-0 01 1 0912-1007 ●
175 03.685 CONVERTER; CATALYST 8-98038-425-0 01 1 0808-0809 ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98038-425-0 01 1 0810-0909 ● ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98153-895-0 01 1 0910-1007 ● ●
175 03.685 CONVERTER; CATALYST 8-98156-386-0 01 1 1008- ● ●
178 03.611 GASKET; CONV TO MANIF 8-97312-284-1 01 1 0810-1007 ●
178 03.611 GASKET; CONV TO MANIF 8-97312-284-1 01 1 1008- ● ●
178 03.611 GASKET; CONV TO MANIF 8-98011-532-0 01 1 0808-0809 ●
178 03.611 GASKET; CONV TO MANIF 8-98011-532-0 01 1 0810-1007 ● ●
178 03.611 GASKET; CONV TO MANIF 8-98132-538-0 01 1 1008- ● ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1008- ● ●
198 03.685 BRACKET; CONV MTG 8-98020-516-1 01 1 0808-0809 ●
198 03.685 BRACKET; CONV MTG 8-98020-516-1 01 1 0810- ● ●
211 03.685 NUT; CONV
KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
211 03.685 NUT; CONV
EXC. KENYA EQUIPMENT(CL1) 03.342 M8 FLANGE 		8-97379-384-0 04 1 1008- ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 1008- ●
211 03.685 NUT; CONV
KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0810-1003 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 0808-0809 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 0810-1007 ● ●
211 03.685 NUT; CONV
EXC. KENYA EQUIPMENT(CL1) 03.342 M8 FLANGE 		8-97379-384-0 04 1 0810-1007 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1008- ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.613 		8-97330-412-0 01 1 1008- ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0808-1007 ● ● ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0808-1007 ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-1007 ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 1008- ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 0808-0809 ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 0810-1007 ● ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●

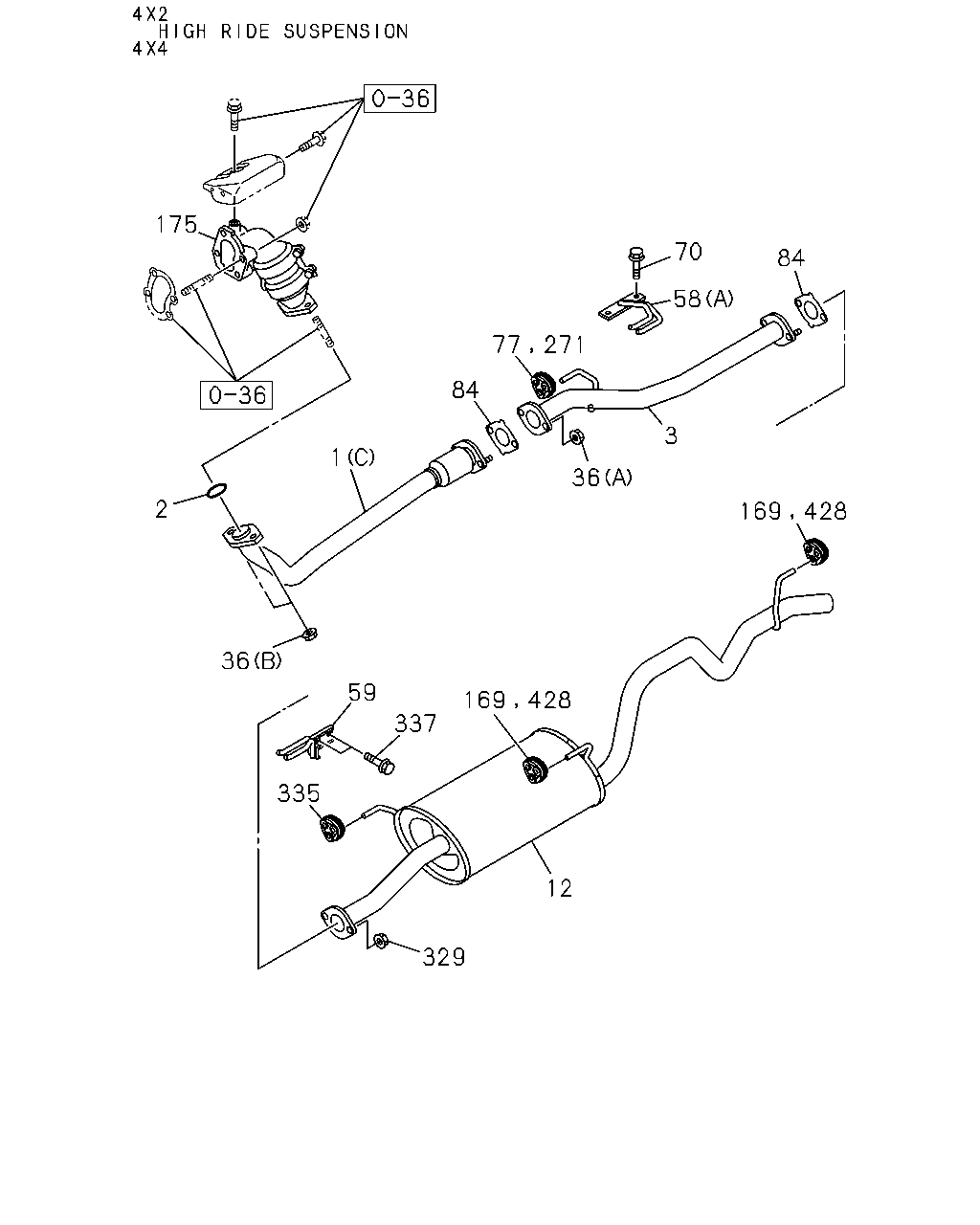

çizim 97186
175 70 84 58 84 3 1 36 2 36 59 337 335 12 329 77 271 169 428 169 428
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 0810-1202 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 1203- ● ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75> (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-078-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97235-500-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO3 SPECIFICATION<NT3> (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98008-407-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-498-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98032-079-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97329-644-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO3 SPECIFICATION<NT3> (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) EMISSION SYSTEM R15-04<K75> (H) 		8-97235-501-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-099-0 01 1 0911- ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-98155-099-0 01 1 0911- ● ●
2 03.611 GASKET; PIPE TO MANIF 8-97166-290-1 01 1 0810- ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0808-0809 ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0810-1007 ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 1008- ● ● ● ● ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) 		8-97363-080-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75> 		8-97363-080-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
LONG(TF***F) EMISSION SYSTEM R15-04<K75> 		8-97352-926-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97352-924-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2> 		8-97352-924-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) 		8-97308-920-3 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> 		8-97308-920-3 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 0808-0809 ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) 		8-98029-203-0 01 1 0808-0809 ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 0810-1007 ● ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98029-203-0 01 1 0810-1007 ● ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 1008- ● ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO4 SPECIFICATION<NT4> 		8-98029-203-0 01 1 1008- ● ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98082-821-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98082-821-0 01 1 1008- ● ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) EMISSION SYSTEM R15-04<K75> 		8-97363-081-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75> 		8-97235-529-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97235-528-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2> 		8-97235-528-0 01 1 1008- ●
12 03.701 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> 		8-97308-922-2 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EXTRA LONG(TF***K) 		8-97381-441-1 01 1 0808- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) 		8-97380-266-1 01 1 0808-0809 ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) 		8-97380-266-1 01 1 0810- ● ●
36 03.613 NUT; EXH PIPE
(C) M8 FLANGE 		8-97061-401-1 04 1 0810- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ●
58 03.613 BRACKET; EXH PIPE,RR
(B) 		8-97368-508-0 01 1 0810- ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0808-0809 ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0810-1007 ● ● ● ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 1008- ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0808-1007 ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1008- ● ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-0809 ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0810-1007 ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
77 03.613 RUBBER; CUSHION,BRKT 8-97330-412-0 01 1 0810-1007 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0808-0809 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0808-0809 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0808-1007 ● ● ● ● ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98005-182-1 01 1 0810-1007 ●
175 03.685 CONVERTER; CATALYST 8-98005-183-2 01 1 1008- ●
175 03.685 CONVERTER; CATALYST
EURO2 SPECIFICATION<NT2> 		8-97306-532-2 01 1 0810- ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98038-426-0 01 1 0810-0911 ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98153-894-0 01 1 0912-1007 ●
175 03.685 CONVERTER; CATALYST 8-98038-425-0 01 1 0808-0809 ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98038-425-0 01 1 0810-0909 ● ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98153-895-0 01 1 0910-1007 ● ●
175 03.685 CONVERTER; CATALYST 8-98156-386-0 01 1 1008- ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.613 		8-97330-412-0 01 1 1008- ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0808-1007 ● ● ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0808-1007 ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-1007 ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ● ●
çizim 97195
70 211 175 541 178 58 84 1 2 36 59 337 335 12 329 77 271 169 428 169 428
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 0810-1202 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 1203- ● ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75> (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-078-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97235-500-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO3 SPECIFICATION<NT3> (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98008-407-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-498-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98032-079-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97329-644-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO3 SPECIFICATION<NT3> (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) EMISSION SYSTEM R15-04<K75> (H) 		8-97235-501-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-099-0 01 1 0911- ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-98155-099-0 01 1 0911- ● ●
2 03.611 GASKET; PIPE TO MANIF 8-97166-290-1 01 1 0810- ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0808-0809 ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0810-1007 ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 1008- ● ● ● ● ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98082-821-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98082-821-0 01 1 1008- ● ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) EMISSION SYSTEM R15-04<K75> 		8-97363-081-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75> 		8-97235-529-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97235-528-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2> 		8-97235-528-0 01 1 1008- ●
12 03.701 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> 		8-97308-922-2 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EXTRA LONG(TF***K) 		8-97381-441-1 01 1 0808- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) 		8-97380-266-1 01 1 0808-0809 ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) 		8-97380-266-1 01 1 0810- ● ●
36 03.613 NUT; EXH PIPE
(C) M8 FLANGE 		8-97061-401-1 04 1 0810- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ●
58 03.613 BRACKET; EXH PIPE,RR
(B) 		8-97368-508-0 01 1 0810- ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0808-0809 ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0810-1007 ● ● ● ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 1008- ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0808-1007 ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1008- ● ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-0809 ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0810-1007 ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
77 03.613 RUBBER; CUSHION,BRKT 8-97330-412-0 01 1 0810-1007 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0808-0809 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0808-0809 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0808-1007 ● ● ● ● ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98005-182-1 01 1 0810-1007 ●
175 03.685 CONVERTER; CATALYST 8-98005-183-2 01 1 1008- ●
175 03.685 CONVERTER; CATALYST
EURO2 SPECIFICATION<NT2> 		8-97306-532-2 01 1 0810- ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98038-426-0 01 1 0810-0911 ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98153-894-0 01 1 0912-1007 ●
175 03.685 CONVERTER; CATALYST 8-98038-425-0 01 1 0808-0809 ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98038-425-0 01 1 0810-0909 ● ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98153-895-0 01 1 0910-1007 ● ●
175 03.685 CONVERTER; CATALYST 8-98156-386-0 01 1 1008- ● ●
178 03.611 GASKET; CONV TO MANIF 8-97312-284-1 01 1 0810-1007 ●
178 03.611 GASKET; CONV TO MANIF 8-97312-284-1 01 1 1008- ● ●
178 03.611 GASKET; CONV TO MANIF 8-98011-532-0 01 1 0808-0809 ●
178 03.611 GASKET; CONV TO MANIF 8-98011-532-0 01 1 0810-1007 ● ●
178 03.611 GASKET; CONV TO MANIF 8-98132-538-0 01 1 1008- ● ●
211 03.685 NUT; CONV
KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
211 03.685 NUT; CONV
EXC. KENYA EQUIPMENT(CL1) 03.342 M8 FLANGE 		8-97379-384-0 04 1 1008- ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 1008- ●
211 03.685 NUT; CONV
KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0810-1003 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 0808-0809 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 0810-1007 ● ●
211 03.685 NUT; CONV
EXC. KENYA EQUIPMENT(CL1) 03.342 M8 FLANGE 		8-97379-384-0 04 1 0810-1007 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1008- ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.613 		8-97330-412-0 01 1 1008- ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0808-1007 ● ● ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0808-1007 ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-1007 ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 1008- ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 0808-0809 ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 0810-1007 ● ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●
çizim 97234
70 211 175 541 178 84 58 84 1 3 36 2 36 59 337 335 12 329 77 271 169 428 169 428
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 0810-1202 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 1203- ● ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75> (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-078-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97235-500-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO3 SPECIFICATION<NT3> (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98008-407-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-498-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98032-079-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97329-644-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO3 SPECIFICATION<NT3> (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) EMISSION SYSTEM R15-04<K75> (H) 		8-97235-501-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-099-0 01 1 0911- ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-98155-099-0 01 1 0911- ● ●
2 03.611 GASKET; PIPE TO MANIF 8-97166-290-1 01 1 0810- ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0808-0809 ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0810-1007 ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 1008- ● ● ● ● ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) 		8-97363-080-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75> 		8-97363-080-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
LONG(TF***F) EMISSION SYSTEM R15-04<K75> 		8-97352-926-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97352-924-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2> 		8-97352-924-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) 		8-97308-920-3 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> 		8-97308-920-3 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 0808-0809 ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) 		8-98029-203-0 01 1 0808-0809 ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 0810-1007 ● ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98029-203-0 01 1 0810-1007 ● ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 1008- ● ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO4 SPECIFICATION<NT4> 		8-98029-203-0 01 1 1008- ● ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98082-821-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98082-821-0 01 1 1008- ● ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) EMISSION SYSTEM R15-04<K75> 		8-97363-081-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75> 		8-97235-529-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97235-528-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2> 		8-97235-528-0 01 1 1008- ●
12 03.701 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> 		8-97308-922-2 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EXTRA LONG(TF***K) 		8-97381-441-1 01 1 0808- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) 		8-97380-266-1 01 1 0808-0809 ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) 		8-97380-266-1 01 1 0810- ● ●
36 03.613 NUT; EXH PIPE
(C) M8 FLANGE 		8-97061-401-1 04 1 0810- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ●
58 03.613 BRACKET; EXH PIPE,RR
(B) 		8-97368-508-0 01 1 0810- ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0808-0809 ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0810-1007 ● ● ● ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 1008- ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0808-1007 ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1008- ● ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-0809 ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0810-1007 ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
77 03.613 RUBBER; CUSHION,BRKT 8-97330-412-0 01 1 0810-1007 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0808-0809 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0808-0809 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0808-1007 ● ● ● ● ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98005-182-1 01 1 0810-1007 ●
175 03.685 CONVERTER; CATALYST 8-98005-183-2 01 1 1008- ●
175 03.685 CONVERTER; CATALYST
EURO2 SPECIFICATION<NT2> 		8-97306-532-2 01 1 0810- ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98038-426-0 01 1 0810-0911 ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION<NT3> 		8-98153-894-0 01 1 0912-1007 ●
175 03.685 CONVERTER; CATALYST 8-98038-425-0 01 1 0808-0809 ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98038-425-0 01 1 0810-0909 ● ●
175 03.685 CONVERTER; CATALYST
EURO4 SPECIFICATION<NT4> 		8-98153-895-0 01 1 0910-1007 ● ●
175 03.685 CONVERTER; CATALYST 8-98156-386-0 01 1 1008- ● ●
178 03.611 GASKET; CONV TO MANIF 8-97312-284-1 01 1 0810-1007 ●
178 03.611 GASKET; CONV TO MANIF 8-97312-284-1 01 1 1008- ● ●
178 03.611 GASKET; CONV TO MANIF 8-98011-532-0 01 1 0808-0809 ●
178 03.611 GASKET; CONV TO MANIF 8-98011-532-0 01 1 0810-1007 ● ●
178 03.611 GASKET; CONV TO MANIF 8-98132-538-0 01 1 1008- ● ●
211 03.685 NUT; CONV
KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
211 03.685 NUT; CONV
EXC. KENYA EQUIPMENT(CL1) 03.342 M8 FLANGE 		8-97379-384-0 04 1 1008- ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 1008- ●
211 03.685 NUT; CONV
KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0810-1003 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 0808-0809 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 0810-1007 ● ●
211 03.685 NUT; CONV
EXC. KENYA EQUIPMENT(CL1) 03.342 M8 FLANGE 		8-97379-384-0 04 1 0810-1007 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1008- ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.613 		8-97330-412-0 01 1 1008- ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0808-1007 ● ● ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0808-1007 ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-1007 ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 1008- ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 0808-0809 ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 0810-1007 ● ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●
çizim 97388
59 337 335 12 329 84 3 84 70 2 36 1 58 36 1 169 428 169 428 77 271
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-98036-427-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 0810-1202 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98036-426-0 01 1 1203- ● ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75> (C) 		8-97363-079-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-078-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97235-500-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO3 SPECIFICATION<NT3> (D) 		8-98008-408-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> (D) 		8-98008-408-0 01 1 1008- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98008-407-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (G) 		8-97235-499-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (G) 		8-97235-498-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98032-079-0 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> (C) 		8-97329-645-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97329-644-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 CREW CAB LONG(TFS*WF) EURO3 SPECIFICATION<NT3> (F) 		8-97380-258-1 01 1 0810-1007 ●
1 03.609 PIPE; EXH
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) EMISSION SYSTEM R15-04<K75> (H) 		8-97235-501-0 01 1 0810- ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-97380-259-1 01 1 0810-0910 ●
1 03.609 PIPE; EXH
4X2 EXTRA LONG(TFB**K) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B) 		8-97380-260-1 01 1 0808-0809 ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-97380-260-1 01 1 0810-0910 ● ●
1 03.609 PIPE; EXH
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-099-0 01 1 0911- ● ●
1 03.609 PIPE; EXH
4X4(TFS***) EURO4 SPECIFICATION<NT4> (B) 		8-98155-099-0 01 1 0911- ● ●
2 03.611 GASKET; PIPE TO MANIF 8-97166-290-1 01 1 0810- ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0808-0809 ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0810-1007 ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 1008- ● ● ● ● ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO3 SPECIFICATION<NT3> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> 		8-98008-409-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2 LONG(TFB**F) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) 		8-97363-080-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X4 LONG(TFS**F) EMISSION SYSTEM R15-04<K75> 		8-97363-080-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
LONG(TF***F) EMISSION SYSTEM R15-04<K75> 		8-97352-926-0 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97352-924-0 01 1 0810-1007 ●
3 03.609 PIPE; EXH,CENTER
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2> 		8-97352-924-0 01 1 1008- ●
3 03.609 PIPE; EXH,CENTER
4X2 CREW CAB(TFB*W*) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) 		8-97308-920-3 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X4 CREW CAB LONG(TFS*WF) EURO2 SPECIFICATION<NT2> 		8-97308-920-3 01 1 0810- ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 0808-0809 ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) 		8-98029-203-0 01 1 0808-0809 ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 0810-1007 ● ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98029-203-0 01 1 0810-1007 ● ●
3 03.609 PIPE; EXH,CENTER
4X2(TFB***) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 1008- ● ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) EURO4 SPECIFICATION<NT4> 		8-98029-203-0 01 1 1008- ● ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98082-821-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98082-821-0 01 1 1008- ● ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) EMISSION SYSTEM R15-04<K75> 		8-97363-081-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04<K75> 		8-97235-529-0 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97235-528-0 01 1 0810-1007 ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) EURO2 SPECIFICATION<NT2> 		8-97235-528-0 01 1 1008- ●
12 03.701 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> 		8-97308-922-2 01 1 0810- ●
12 03.701 SILENCER ASM; EXH
EXTRA LONG(TF***K) 		8-97381-441-1 01 1 0808- ●
12 03.701 SILENCER ASM; EXH
CREW CAB LONG(TF**WF) 		8-97380-266-1 01 1 0808-0809 ●
12 03.701 SILENCER ASM; EXH
LONG(TF***F) 		8-97380-266-1 01 1 0810- ● ●
36 03.613 NUT; EXH PIPE
(C) M8 FLANGE 		8-97061-401-1 04 1 0810- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0808-0809 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0810-1007 ●
36 03.613 NUT; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1008- ●
58 03.613 BRACKET; EXH PIPE,RR
(B) 		8-97368-508-0 01 1 0810- ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0808-0809 ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0810-1007 ● ● ● ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 1008- ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0808-1007 ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1008- ● ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-0809 ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0810-1007 ● ● ● ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
77 03.613 RUBBER; CUSHION,BRKT 8-97330-412-0 01 1 0810-1007 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0808-0809 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0808-0809 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0808-0809 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0810-1007 ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0810-1007 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 1008- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1008- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0808-1007 ● ● ● ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.613 		8-97330-412-0 01 1 1008- ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0808-1007 ● ● ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0808-1007 ● ● ● ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 1008- ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0808-1007 ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1008-1508 ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ● ● ● ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE
03.706 		8-97289-169-0 01 1 1008- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
