Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#7698) — 512 parça

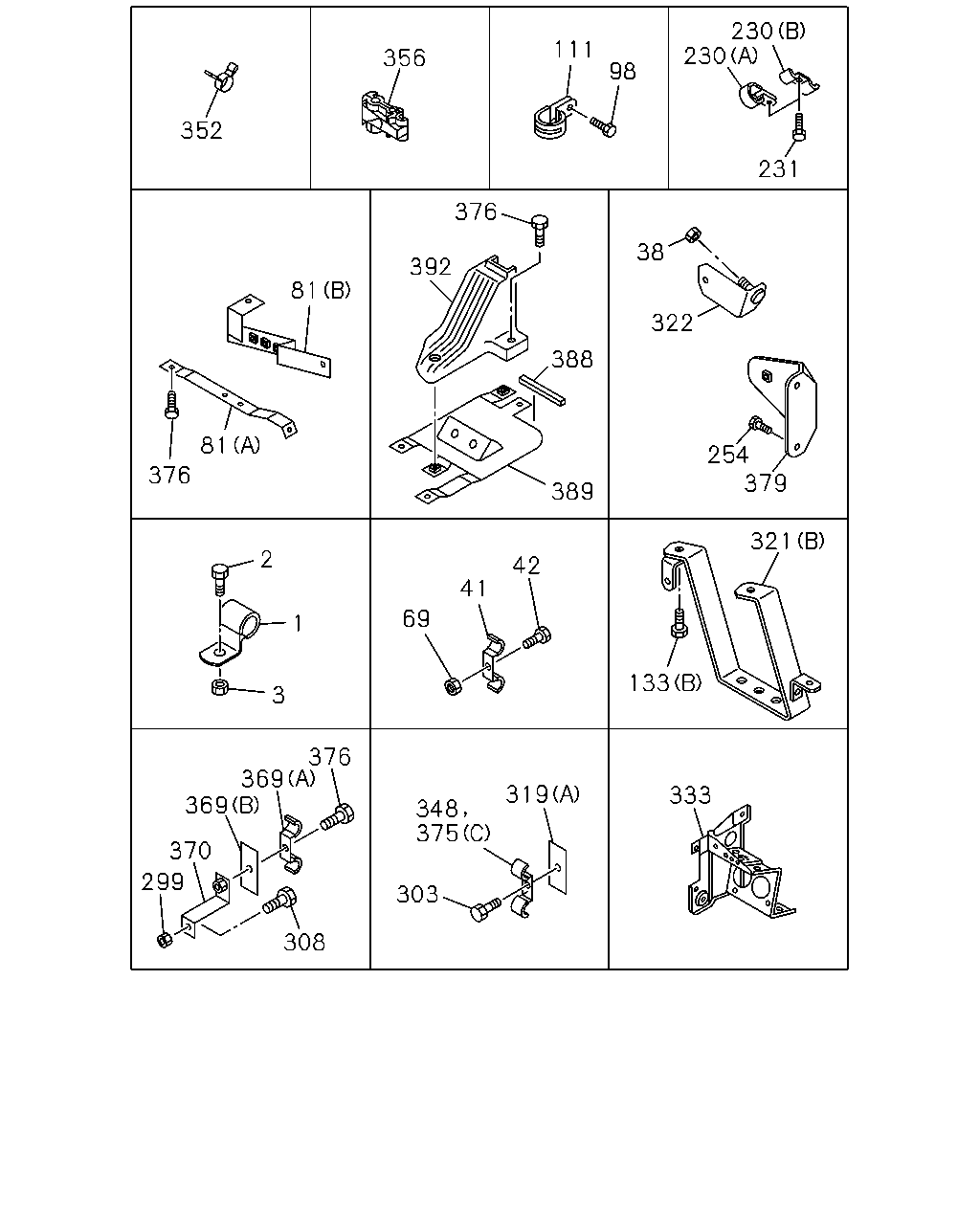

230 230 111 356 98 352 231 376 38 392 81 322 388 81 254 379 376 389 321 2 42 41 69 1 133 3 376 369 369 319 333 348 375 370 299 303 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	9902-9910	●
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0004-	●	●
1	CLIP; AIR PIPE ID=7 L=20	9-09524-635-0	01	1	9911-0003	●
1	CLIP; AIR PIPE ID=7 L=20	9-09524-635-0	01	1	0004-	●	●
2	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9902-9903	●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	9904-0003	●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0004-		●
41	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9902-0003	●
41	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0004-	●	●
42	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
42	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	9904-0003	●
42	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	0004-	●	●
69	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
69	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	9902-	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	9902-	●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0004-		●
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●
111	CLIP; AIR PIPE ID=32 L=35	1-09701-244-0	01	1	9902-9911	●
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	9912-0003	●
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	0004-	●	●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-9912	●
133	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-9912	●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0001-0003	●
133	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0001-0003	●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
133	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
133	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-0003	●
133	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●
230	CLIP; PIPE,AIR PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=9 L=16	9-09524-822-0	03	1	9902-	●
230	CLIP; PIPE,AIR (B) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0004-		●
230	CLIP; PIPE,AIR (A) ID=9 L=16	9-09524-822-0	02	1	0004-		●
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-		●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-0003	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0004-	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	0004-		●
299	NUT; CLIP WHEEL BASE 3500MM(35W) M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
299	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
299	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9902-	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-		●
308	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X35 FLANGE	0-28680-835-0	01	1	9902-	●
319	BRACKET; CLIP WHEEL BASE 3200MM(32W) (B) L=100 H=30	1-47477-645-2	01	1	9905-0003	●
319	BRACKET; CLIP WHEEL BASE 3200MM(32W) (B) L=100 H=30	1-47477-645-2	01	1	0004-	●	●
319	BRACKET; CLIP WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG> (A) L=50	1-47475-299-2	01	1	9910-	●
321	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	01	1	9902-9907	●
321	BRACKET; CLIP (C)	1-47477-746-0	01	1	9902-	●
321	BRACKET; CLIP CAB UP +110MM<TGG> (B)	1-47477-472-1	01	1	9902-0003	●
321	BRACKET; CLIP CAB UP +110MM<TGG> (B)	1-47477-472-1	01	1	0004-	●
321	BRACKET; CLIP (B)	1-47477-472-1	01	1	0004-		●
321	BRACKET; CLIP WHEEL BASE 3200MM(32W) (A) L=100 H=30	1-47477-645-2	03	1	9905-9907	●
321	BRACKET; CLIP WHEEL BASE 3200MM(32W) (A) L=100 H=30	1-47477-645-2	03	1	9908-0003	●
321	BRACKET; CLIP WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (A) L=100 H=30	1-47477-645-2	03	1	9908-0003	●
321	BRACKET; CLIP WHEEL BASE 3200MM(32W) (A) L=100 H=30	1-47477-645-2	03	1	0004-	●	●
321	BRACKET; CLIP WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (A) L=100 H=30	1-47477-645-2	03	1	0004-	●
321	BRACKET; CLIP WHEEL BASE 3500MM(35W) (A) L=100 H=30	1-47477-645-2	02	1	9902-	●
321	BRACKET; CLIP WHEEL BASE 3500MM(35W) (A) L=60 H=30	1-47477-716-1	01	1	9902-	●
321	BRACKET; CLIP (A)	1-47477-810-0	01	1	0004-		●
322	BRACKET; CLIP	1-79996-360-0	01	1	0004-		●
333	BRACKET; BRK AIR PIPE	1-79997-360-6	01	1	0004-		●
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> ID=13 L=28	9-09525-252-0	03	1	9902-	●
348	CLIP; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	9905-	●
348	CLIP; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> ID=13X2 L=16	9-09535-225-0	03	1	9905-	●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0004-		●
348	CLIP; AIR PIPE ID=13X2 L=16	9-09535-225-0	02	1	0004-		●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9902-0003	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0004-	●	●
356	CLIP; AIR PIPE BLACK	8-94222-876-0	01	1	0004-		●
369	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9902-	●
369	CLIP; AIR PIPE AIR DRYER<PS7> (B) L=50	1-47475-299-2	01	1	9902-	●
370	BRACKET; PIPE CLIP AIR DRYER<PS7>	1-46147-101-0	01	1	9902-	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG> (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9910-	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> (A) ID=7 L=16	9-09524-625-0	01	1	9902-	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9902-9904	●
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-R(75L) WHEEL BASE 3200MM(32W) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0003	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0003	●
375	CLIP; AIR PIPE WHEEL BASE 3200MM(32W) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-	●	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-	●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	9902-0003	●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0004-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9902-0003	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0004-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9904	●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	9902-0003	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0004-	●	●
388	SEAL L=215	1-79738-794-1	01	1	9902-	●
389	BRACKET; UNION	1-79738-790-1	01	1	9902-9904	●
389	BRACKET; UNION DUAL AIR GAUGE<UG2>	1-79738-790-1	01	1	9905-	●
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2>	1-79738-795-1	01	1	9905-	●
392	COVER; BRKT	1-73996-264-1	01	1	9902-9904	●
392	COVER; BRKT DUAL AIR GAUGE<UG2>	1-73996-264-1	01	1	9905-	●

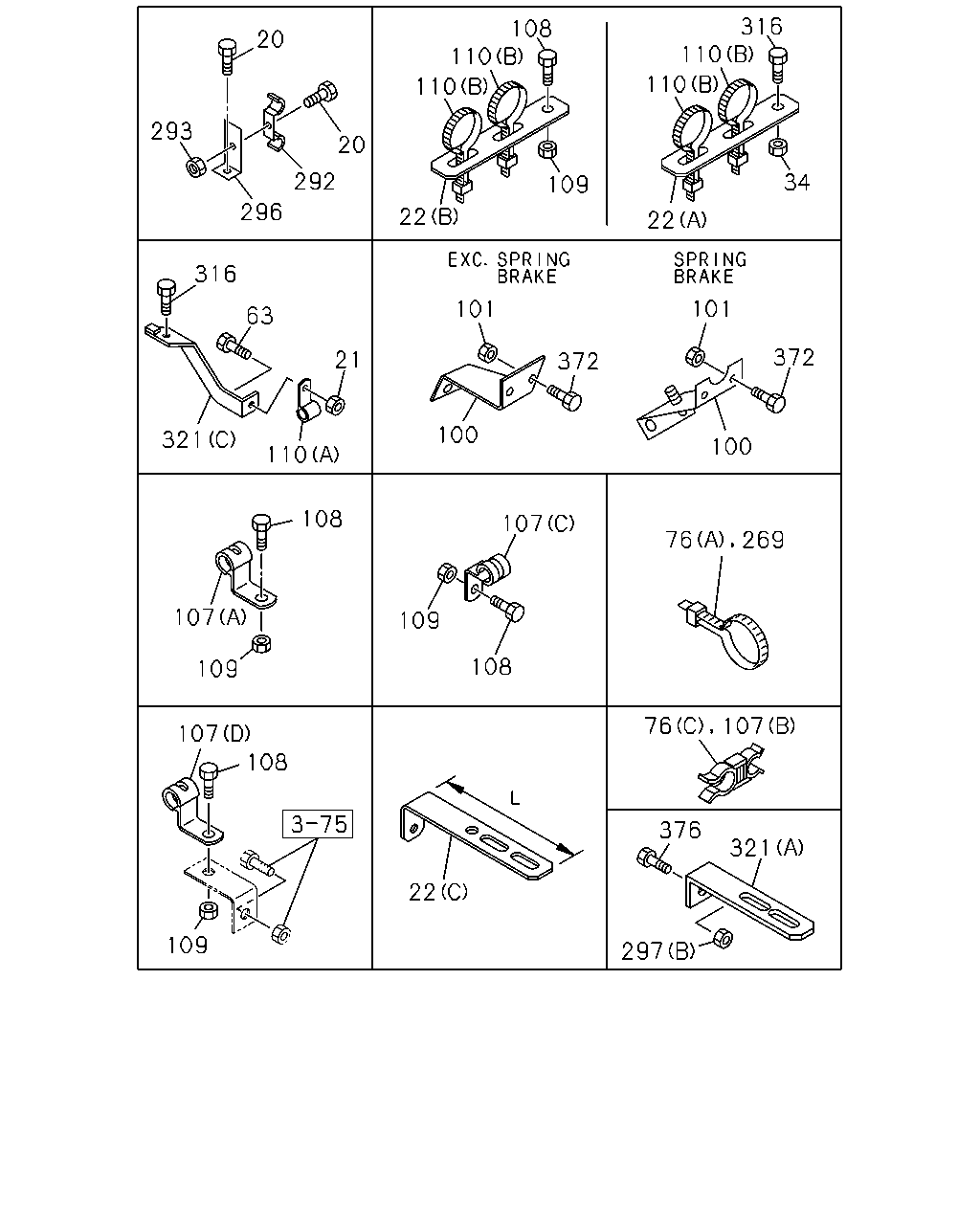

316 110 108 110 20 110 110 293 20 292 34 109 296 22 22 316 101 101 63 372 21 372 100 321 100 110 108 107 76 269 107 109 108 109 76 107 107 108 376 321 22 109 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT; CLIP WHEEL BASE 3200MM(32W) M8X20 FLANGE	0-28680-820-0	01	1	9905-0003	●
20	BOLT; CLIP WHEEL BASE 3200MM(32W) M8X20 FLANGE	0-28680-820-0	01	1	0004-	●	●
20	BOLT; CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	9905-0003	●
20	BOLT; CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
21	NUT; CLIP WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
21	NUT; CLIP WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
22	BRACKET; CLIP (A) REAR L=125	1-47477-975-0	02	1	9902-0003	●
22	BRACKET; CLIP (A) REAR L=125	1-47477-975-0	02	1	0004-	●	●
22	BRACKET; CLIP ISUZU M/T<X9A> (B) FRONT	1-47477-514-3	02	1	9902-	●
22	BRACKET; CLIP WHEEL BASE 3500MM(35W) (C) L=150 L=150 H=30	1-47477-629-2	01	1	9908-	●
22	BRACKET; CLIP WHEEL BASE 3500MM(35W) (C) L=225 L=225	1-47477-646-3	01	1	9908-	●
22	BRACKET; CLIP ZF M/T<X9E> (B) FRONT	1-47477-514-3	01	1	9902-0003	●
22	BRACKET; CLIP ZF M/T<X9E> (B) FRONT	1-47477-514-3	01	1	0004-	●
22	BRACKET; CLIP (B) FRONT	1-47477-514-3	01	1	0004-		●
34	NUT; BRKT WHEEL BASE 3500MM(35W) M8 FLANGE	0-91150-108-0	01	1	9902-9907	●
34	NUT; BRKT WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	03	1	9908-	●
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	03	1	9902-9904	●
76	CLIP; NYLON TUBE WHEEL BASE 3500MM(35W) (A) L=250	1-09707-126-0	07	1	9905-	●
76	CLIP; NYLON TUBE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	9902-9904	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=350	8-94152-256-0	01	1	9905-9905	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	06	1	9905-0003	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	03	1	0004-0004	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	03	1	0004-	●	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=350	1-09707-183-0	03	1	0004-0004	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=350	1-09707-183-0	03	1	0004-	●	●
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	02	1	0004-		●
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-452-0	01	1	9902-	●
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-481-0	01	1	9902-	●
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-770-0	01	1	9905-0003	●
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-770-0	01	1	0004-	●
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	0004-		●
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-365-0	01	1	9905-0003	●
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-365-0	01	1	0004-	●
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	0004-		●
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	9902-0003	●
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0004-	●	●
107	CLIP; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9902-9902	●
107	CLIP; NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9903-9904	●
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE CONTROL<J91> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-	●
107	CLIP; NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) (F) ID=35 L=33	1-09700-945-0	01	1	0003-0003	●
107	CLIP; NYLON TUBE (F) ID=35 L=33	1-09700-945-0	01	1	0004-0006	●	●
107	CLIP; NYLON TUBE FULL FLOATING CAB<W16> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	9902-0003	●
107	CLIP; NYLON TUBE FULL FLOATING CAB<W16> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	0004-	●	●
107	CLIP; NYLON TUBE MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=31.5 H=23 L=25	1-09701-017-0	03	1	9902-9902	●
107	CLIP; NYLON TUBE MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9903-9904	●
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0005	●
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0006-	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	9902-9902	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	03	1	9903-0003	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	03	1	0004-	●	●
107	CLIP; NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-0003	●
107	CLIP; NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0004-	●
107	CLIP; NYLON TUBE (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0004-		●
107	CLIP; NYLON TUBE ZF M/T<X9E> (E) ID=40	1-09700-973-0	01	1	9902-0003	●
107	CLIP; NYLON TUBE ZF M/T<X9E> (E) ID=40	1-09700-973-0	01	1	0004-	●
107	CLIP; NYLON TUBE (E) ID=40	1-09700-973-0	01	1	0004-		●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	09	1	9902-0003	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	09	1	0004-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	05	1	9902-	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	07	1	0004-		●
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	30	1	9902-0003	●
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	30	1	0004-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION ECE<TDV> (C) ID=28 L=40	1-09701-261-0	01	1	9902-9902	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) (C) ID=28 L=40	1-09701-261-0	01	1	9903-9904	●
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE CONTROL<J91> (C) ID=28 L=40	1-09701-261-0	01	1	9905-	●
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=35 L=33	1-09700-945-0	01	1	9905-0003	●
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=35 L=33	1-09700-945-0	01	1	0004-	●
110	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	0004-		●
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	15	1	9902-0003	●
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	15	1	0004-0004	●	●
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	15	1	0005-		●
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	14	1	0005-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 3200MM(32W) L=250	1-09707-126-0	03	1	9905-0003	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 3200MM(32W) L=250	1-09707-126-0	03	1	0004-	●	●
292	CLIP; AIR PIPE WHEEL BASE 3200MM(32W) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-0003	●
292	CLIP; AIR PIPE WHEEL BASE 3200MM(32W) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0004-	●	●
293	NUT; CLIP WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
293	NUT; CLIP WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
296	BRACKET; CLIP WHEEL BASE 3200MM(32W) L=55	1-47475-304-0	01	1	9905-0003	●
296	BRACKET; CLIP WHEEL BASE 3200MM(32W) L=55	1-47475-304-0	01	1	0004-	●	●
297	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	03	1	9902-0003	●
297	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	03	1	0004-	●	●
297	NUT; BRKT ISUZU M/T<X9A> (C) M10 FLANGE	0-91150-210-0	02	1	9902-	●
297	NUT; BRKT WHEEL BASE 3200MM(32W) (A) M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
297	NUT; BRKT WHEEL BASE 3200MM(32W) (A) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
316	BOLT; CLIP BRAKE SYSTEM SPRING BRAKE(BCR) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●
316	BOLT; CLIP WHEEL BASE 3500MM(35W) M8X30 FLANGE	0-28680-830-0	01	1	9902-9907	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-9907	●
316	BOLT; CLIP WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28680-830-0	03	1	9908-	●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0004-		●
321	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	01	1	9902-9907	●
321	BRACKET; CLIP (C)	1-47477-746-0	01	1	9902-	●
321	BRACKET; CLIP CAB UP +110MM<TGG> (B)	1-47477-472-1	01	1	9902-0003	●
321	BRACKET; CLIP CAB UP +110MM<TGG> (B)	1-47477-472-1	01	1	0004-	●
321	BRACKET; CLIP (B)	1-47477-472-1	01	1	0004-		●
321	BRACKET; CLIP WHEEL BASE 3200MM(32W) (A) L=100 H=30	1-47477-645-2	03	1	9905-9907	●
321	BRACKET; CLIP WHEEL BASE 3200MM(32W) (A) L=100 H=30	1-47477-645-2	03	1	9908-0003	●
321	BRACKET; CLIP WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (A) L=100 H=30	1-47477-645-2	03	1	9908-0003	●
321	BRACKET; CLIP WHEEL BASE 3200MM(32W) (A) L=100 H=30	1-47477-645-2	03	1	0004-	●	●
321	BRACKET; CLIP WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (A) L=100 H=30	1-47477-645-2	03	1	0004-	●
321	BRACKET; CLIP WHEEL BASE 3500MM(35W) (A) L=100 H=30	1-47477-645-2	02	1	9902-	●
321	BRACKET; CLIP WHEEL BASE 3500MM(35W) (A) L=60 H=30	1-47477-716-1	01	1	9902-	●
321	BRACKET; CLIP (A)	1-47477-810-0	01	1	0004-		●
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	9902-0003	●
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0004-	●	●
372	BOLT; CLIP BRKT AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9902-	●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	9902-0003	●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0004-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9902-0003	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0004-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9904	●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-	●

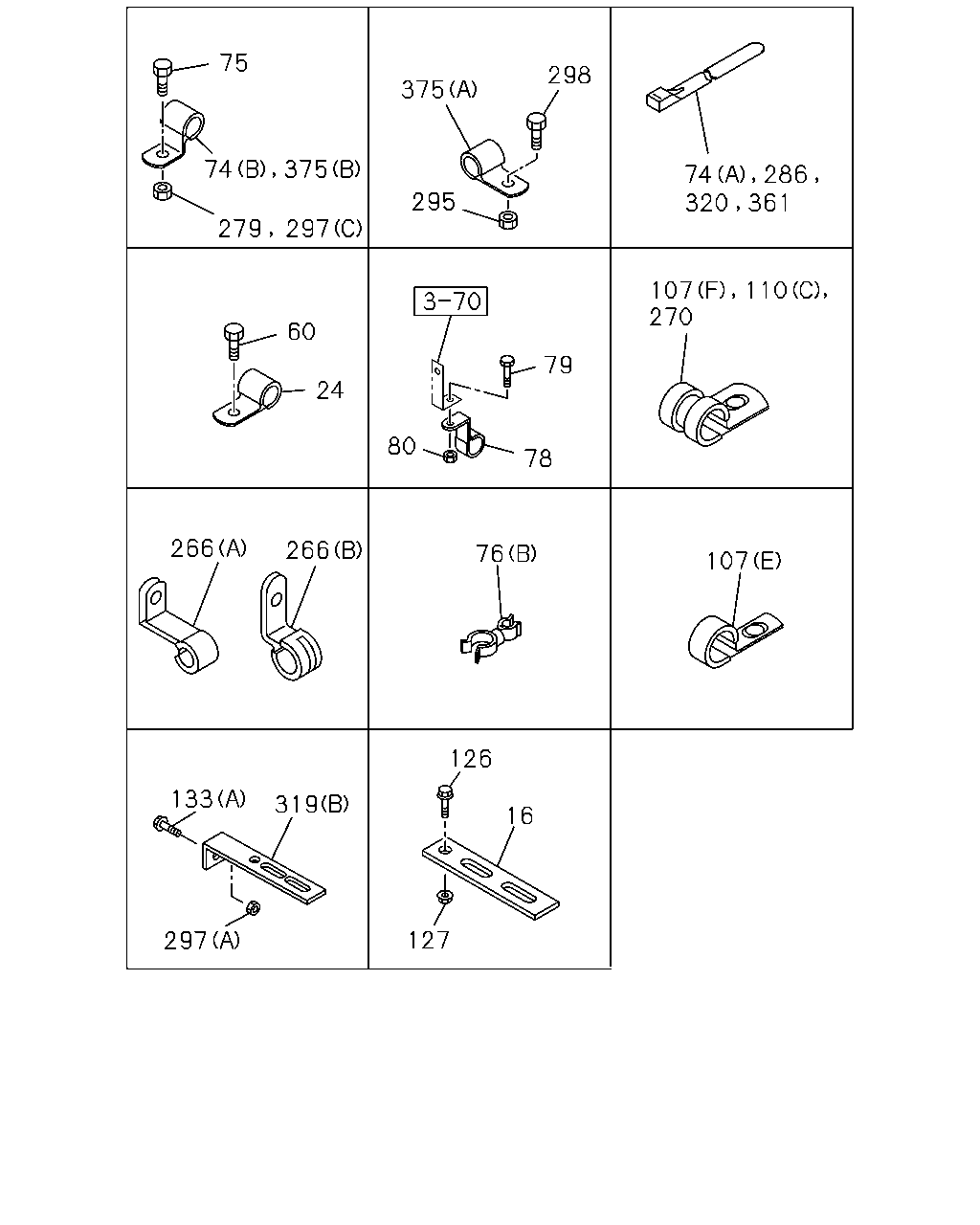

75 298 375 74 286 74 375 361 295 320 279 297 107 110 60 79 24 80 78 266 266 76 107 126 133 319 16 127 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP ANTILOCK BRAKE SYSTEM(BFA)	1-47477-514-3	02	1	9906-	●
24	CLIP; PIPE ISUZU M/T<X9A> ID=16 L=20	9-09525-535-0	02	1	9902-	●
24	CLIP; PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=18 L=28	1-09701-067-0	01	1	9910-0003	●
24	CLIP; PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=18 L=28	1-09701-067-0	01	1	0004-	●
24	CLIP; PIPE ID=18 L=28	1-09701-067-0	01	1	0004-		●
24	CLIP; PIPE ZF M/T<X9E> ID=16 L=20	9-09525-535-0	01	1	9902-9905	●
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) ID=16 L=20	9-09525-535-0	01	1	9906-0003	●
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) ID=16 L=20	9-09525-535-0	01	1	0004-	●
60	BOLT; CLIP FIX ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	02	1	9902-	●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X20 FLANGE	0-28680-820-0	01	1	9902-0003	●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X20 FLANGE	0-28680-820-0	01	1	0004-	●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S221 OD(Y1U) M8X25 FLANGE	0-28680-825-0	01	1	9910-0003	●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S221 OD(Y1U) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	01	1	0004-		●
74	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	01	1	9905-0003	●
74	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	01	1	0004-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	9905-0003	●
74	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0004-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7> (B) ID=14.5 H=23 L=30	1-09700-859-0	01	1	9905-	●
75	BOLT; CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	9905-0003	●
75	BOLT; CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	03	1	9902-9904	●
76	CLIP; NYLON TUBE WHEEL BASE 3500MM(35W) (A) L=250	1-09707-126-0	07	1	9905-	●
76	CLIP; NYLON TUBE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	9902-9904	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=350	8-94152-256-0	01	1	9905-9905	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	06	1	9905-0003	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	03	1	0004-0004	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	03	1	0004-	●	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=350	1-09707-183-0	03	1	0004-0004	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=350	1-09707-183-0	03	1	0004-	●	●
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	02	1	0004-		●
78	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	9902-9904	●
78	CLIP; AIR PIPE WHEEL BASE 3200MM(32W) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-0003	●
78	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	9905-0003	●
78	CLIP; AIR PIPE WHEEL BASE 3200MM(32W) ID=15 H=24 L=20	1-09700-606-0	01	1	0004-	●	●
78	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	0004-	●
79	BOLT; PIPE CLIP WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9902-9904	●
79	BOLT; PIPE CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	9905-0003	●
79	BOLT; PIPE CLIP WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9905-0003	●
79	BOLT; PIPE CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
79	BOLT; PIPE CLIP WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	0004-	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0004-	●
107	CLIP; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9902-9902	●
107	CLIP; NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9903-9904	●
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE CONTROL<J91> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-	●
107	CLIP; NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) (F) ID=35 L=33	1-09700-945-0	01	1	0003-0003	●
107	CLIP; NYLON TUBE (F) ID=35 L=33	1-09700-945-0	01	1	0004-0006	●	●
107	CLIP; NYLON TUBE FULL FLOATING CAB<W16> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	9902-0003	●
107	CLIP; NYLON TUBE FULL FLOATING CAB<W16> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	0004-	●	●
107	CLIP; NYLON TUBE MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=31.5 H=23 L=25	1-09701-017-0	03	1	9902-9902	●
107	CLIP; NYLON TUBE MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9903-9904	●
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0005	●
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0006-	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	9902-9902	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	03	1	9903-0003	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	03	1	0004-	●	●
107	CLIP; NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-0003	●
107	CLIP; NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0004-	●
107	CLIP; NYLON TUBE (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0004-		●
107	CLIP; NYLON TUBE ZF M/T<X9E> (E) ID=40	1-09700-973-0	01	1	9902-0003	●
107	CLIP; NYLON TUBE ZF M/T<X9E> (E) ID=40	1-09700-973-0	01	1	0004-	●
107	CLIP; NYLON TUBE (E) ID=40	1-09700-973-0	01	1	0004-		●
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	30	1	9902-0003	●
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	30	1	0004-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION ECE<TDV> (C) ID=28 L=40	1-09701-261-0	01	1	9902-9902	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) (C) ID=28 L=40	1-09701-261-0	01	1	9903-9904	●
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE CONTROL<J91> (C) ID=28 L=40	1-09701-261-0	01	1	9905-	●
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=35 L=33	1-09700-945-0	01	1	9905-0003	●
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=35 L=33	1-09700-945-0	01	1	0004-	●
110	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	0004-		●
126	BOLT; CLIP BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●
127	NUT; CLIP BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	9906-	●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-9912	●
133	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-9912	●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0001-0003	●
133	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0001-0003	●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
133	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
133	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-0003	●
133	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●
266	CLIP; NYLON TUBE AIR DRYER<PS7> (A) ID=14 H=50 L=20	1-09700-843-0	01	1	9902-9904	●
266	CLIP; NYLON TUBE AIR DRYER<PS7> (B) ID=18 H=23 L=28	1-09700-860-0	01	1	9905-	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9902-	●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> L=250	5-09707-030-1	01	1	9902-	●
286	CLIP; NYLON TUBE ZF M/T<X9E> L=250	1-09707-126-0	05	1	9902-0003	●
286	CLIP; NYLON TUBE ZF M/T<X9E> L=250	1-09707-126-0	05	1	0004-	●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	05	1	0004-		●
295	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9902-	●
297	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	03	1	9902-0003	●
297	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	03	1	0004-	●	●
297	NUT; BRKT ISUZU M/T<X9A> (C) M10 FLANGE	0-91150-210-0	02	1	9902-	●
297	NUT; BRKT WHEEL BASE 3200MM(32W) (A) M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
297	NUT; BRKT WHEEL BASE 3200MM(32W) (A) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28680-820-0	01	1	9902-9909	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28680-820-0	01	1	9910-0003	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	01	1	9910-0003	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28680-820-0	01	1	0004-	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	01	1	9902-9904	●
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-R(75L) WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	9905-0003	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	01	1	9905-0003	●
298	BOLT; CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	01	1	0004-	●
319	BRACKET; CLIP WHEEL BASE 3200MM(32W) (B) L=100 H=30	1-47477-645-2	01	1	9905-0003	●
319	BRACKET; CLIP WHEEL BASE 3200MM(32W) (B) L=100 H=30	1-47477-645-2	01	1	0004-	●	●
319	BRACKET; CLIP WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG> (A) L=50	1-47475-299-2	01	1	9910-	●
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9902-0003	●
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	0004-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	9902-9904	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=250	5-09707-030-1	01	1	9905-	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG> (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9910-	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> (A) ID=7 L=16	9-09524-625-0	01	1	9902-	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9902-9904	●
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-R(75L) WHEEL BASE 3200MM(32W) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0003	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0003	●
375	CLIP; AIR PIPE WHEEL BASE 3200MM(32W) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-	●	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-	●

75 298 375 295 279 297 107 270 110 60 79 24 80 78 266 266 76 107 126 133 16 127 297 74 286 320 361 319 74 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP ANTILOCK BRAKE SYSTEM(BFA)	1-47477-514-3	02	1	9906-	●
24	CLIP; PIPE ISUZU M/T<X9A> ID=16 L=20	9-09525-535-0	02	1	9902-	●
24	CLIP; PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=18 L=28	1-09701-067-0	01	1	9910-0003	●
24	CLIP; PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=18 L=28	1-09701-067-0	01	1	0004-	●
24	CLIP; PIPE ID=18 L=28	1-09701-067-0	01	1	0004-		●
24	CLIP; PIPE ZF M/T<X9E> ID=16 L=20	9-09525-535-0	01	1	9902-9905	●
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) ID=16 L=20	9-09525-535-0	01	1	9906-0003	●
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) ID=16 L=20	9-09525-535-0	01	1	0004-	●
60	BOLT; CLIP FIX ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	02	1	9902-	●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X20 FLANGE	0-28680-820-0	01	1	9902-0003	●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X20 FLANGE	0-28680-820-0	01	1	0004-	●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S221 OD(Y1U) M8X25 FLANGE	0-28680-825-0	01	1	9910-0003	●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S221 OD(Y1U) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	01	1	0004-		●
74	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	01	1	9905-0003	●
74	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	01	1	0004-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	9905-0003	●
74	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0004-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7> (B) ID=14.5 H=23 L=30	1-09700-859-0	01	1	9905-	●
75	BOLT; CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	9905-0003	●
75	BOLT; CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	03	1	9902-9904	●
76	CLIP; NYLON TUBE WHEEL BASE 3500MM(35W) (A) L=250	1-09707-126-0	07	1	9905-	●
76	CLIP; NYLON TUBE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	9902-9904	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=350	8-94152-256-0	01	1	9905-9905	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	06	1	9905-0003	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	03	1	0004-0004	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	03	1	0004-	●	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=350	1-09707-183-0	03	1	0004-0004	●
76	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=350	1-09707-183-0	03	1	0004-	●	●
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	02	1	0004-		●
78	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	9902-9904	●
78	CLIP; AIR PIPE WHEEL BASE 3200MM(32W) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-0003	●
78	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	9905-0003	●
78	CLIP; AIR PIPE WHEEL BASE 3200MM(32W) ID=15 H=24 L=20	1-09700-606-0	01	1	0004-	●	●
78	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	0004-	●
79	BOLT; PIPE CLIP WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9902-9904	●
79	BOLT; PIPE CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	9905-0003	●
79	BOLT; PIPE CLIP WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9905-0003	●
79	BOLT; PIPE CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
79	BOLT; PIPE CLIP WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	0004-	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
80	NUT; CLIP,AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0004-	●
107	CLIP; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9902-9902	●
107	CLIP; NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9903-9904	●
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE CONTROL<J91> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-	●
107	CLIP; NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) (F) ID=35 L=33	1-09700-945-0	01	1	0003-0003	●
107	CLIP; NYLON TUBE (F) ID=35 L=33	1-09700-945-0	01	1	0004-0006	●	●
107	CLIP; NYLON TUBE FULL FLOATING CAB<W16> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	9902-0003	●
107	CLIP; NYLON TUBE FULL FLOATING CAB<W16> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	0004-	●	●
107	CLIP; NYLON TUBE MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=31.5 H=23 L=25	1-09701-017-0	03	1	9902-9902	●
107	CLIP; NYLON TUBE MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9903-9904	●
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0005	●
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0006-	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	9902-9902	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	03	1	9903-0003	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	03	1	0004-	●	●
107	CLIP; NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-0003	●
107	CLIP; NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0004-	●
107	CLIP; NYLON TUBE (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0004-		●
107	CLIP; NYLON TUBE ZF M/T<X9E> (E) ID=40	1-09700-973-0	01	1	9902-0003	●
107	CLIP; NYLON TUBE ZF M/T<X9E> (E) ID=40	1-09700-973-0	01	1	0004-	●
107	CLIP; NYLON TUBE (E) ID=40	1-09700-973-0	01	1	0004-		●
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	30	1	9902-0003	●
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	30	1	0004-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION ECE<TDV> (C) ID=28 L=40	1-09701-261-0	01	1	9902-9902	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) (C) ID=28 L=40	1-09701-261-0	01	1	9903-9904	●
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE CONTROL<J91> (C) ID=28 L=40	1-09701-261-0	01	1	9905-	●
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=35 L=33	1-09700-945-0	01	1	9905-0003	●
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=35 L=33	1-09700-945-0	01	1	0004-	●
110	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	0004-		●
126	BOLT; CLIP BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●
127	NUT; CLIP BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	9906-	●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-9912	●
133	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-9912	●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0001-0003	●
133	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0001-0003	●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
133	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
133	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-0003	●
133	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●
266	CLIP; NYLON TUBE AIR DRYER<PS7> (A) ID=14 H=50 L=20	1-09700-843-0	01	1	9902-9904	●
266	CLIP; NYLON TUBE AIR DRYER<PS7> (B) ID=18 H=23 L=28	1-09700-860-0	01	1	9905-	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=35 L=33	1-09700-945-0	03	1	9902-	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=26 L=26	1-09701-236-0	01	1	9902-	●
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=28 L=32	1-09701-107-1	04	1	9905-	●
270	CLIP; NYLON TUBE ID=35 L=33	1-09700-945-0	02	1	0004-		●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9902-	●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> L=250	5-09707-030-1	01	1	9902-	●
286	CLIP; NYLON TUBE ZF M/T<X9E> L=250	1-09707-126-0	05	1	9902-0003	●
286	CLIP; NYLON TUBE ZF M/T<X9E> L=250	1-09707-126-0	05	1	0004-	●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	05	1	0004-		●
295	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9902-	●
297	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	03	1	9902-0003	●
297	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	03	1	0004-	●	●
297	NUT; BRKT ISUZU M/T<X9A> (C) M10 FLANGE	0-91150-210-0	02	1	9902-	●
297	NUT; BRKT WHEEL BASE 3200MM(32W) (A) M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
297	NUT; BRKT WHEEL BASE 3200MM(32W) (A) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28680-820-0	01	1	9902-9909	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28680-820-0	01	1	9910-0003	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	01	1	9910-0003	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28680-820-0	01	1	0004-	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	01	1	9902-9904	●
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-R(75L) WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	9905-0003	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	01	1	9905-0003	●
298	BOLT; CLIP WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
298	BOLT; CLIP WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	01	1	0004-	●
319	BRACKET; CLIP WHEEL BASE 3200MM(32W) (B) L=100 H=30	1-47477-645-2	01	1	9905-0003	●
319	BRACKET; CLIP WHEEL BASE 3200MM(32W) (B) L=100 H=30	1-47477-645-2	01	1	0004-	●	●
319	BRACKET; CLIP WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG> (A) L=50	1-47475-299-2	01	1	9910-	●
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9902-0003	●
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	0004-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	9902-9904	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=250	5-09707-030-1	01	1	9905-	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG> (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9910-	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> (A) ID=7 L=16	9-09524-625-0	01	1	9902-	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9902-9904	●
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-R(75L) WHEEL BASE 3200MM(32W) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0003	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0003	●
375	CLIP; AIR PIPE WHEEL BASE 3200MM(32W) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-	●	●
375	CLIP; AIR PIPE WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-	●

348 352 270 303 270 81 110 230 81 254 376 376 98 111 376 392 379 388 254 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	9902-	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	9902-	●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0004-		●
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	30	1	9902-0003	●
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	30	1	0004-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION ECE<TDV> (C) ID=28 L=40	1-09701-261-0	01	1	9902-9902	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) (C) ID=28 L=40	1-09701-261-0	01	1	9903-9904	●
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE CONTROL<J91> (C) ID=28 L=40	1-09701-261-0	01	1	9905-	●
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=35 L=33	1-09700-945-0	01	1	9905-0003	●
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=35 L=33	1-09700-945-0	01	1	0004-	●
110	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	0004-		●
111	CLIP; AIR PIPE ID=32 L=35	1-09701-244-0	01	1	9902-9911	●
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	9912-0003	●
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	0004-	●	●
230	CLIP; PIPE,AIR PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=9 L=16	9-09524-822-0	03	1	9902-	●
230	CLIP; PIPE,AIR (B) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0004-		●
230	CLIP; PIPE,AIR (A) ID=9 L=16	9-09524-822-0	02	1	0004-		●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-0003	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0004-	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	0004-		●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=35 L=33	1-09700-945-0	03	1	9902-	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=26 L=26	1-09701-236-0	01	1	9902-	●
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=28 L=32	1-09701-107-1	04	1	9905-	●
270	CLIP; NYLON TUBE ID=35 L=33	1-09700-945-0	02	1	0004-		●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9902-	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-		●
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> ID=13 L=28	9-09525-252-0	03	1	9902-	●
348	CLIP; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	9905-	●
348	CLIP; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> ID=13X2 L=16	9-09535-225-0	03	1	9905-	●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0004-		●
348	CLIP; AIR PIPE ID=13X2 L=16	9-09535-225-0	02	1	0004-		●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9902-0003	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0004-	●	●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	9902-0003	●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0004-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9902-0003	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0004-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9904	●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	9902-0003	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0004-	●	●
388	SEAL L=215	1-79738-794-1	01	1	9902-	●
389	BRACKET; UNION	1-79738-790-1	01	1	9902-9904	●
389	BRACKET; UNION DUAL AIR GAUGE<UG2>	1-79738-790-1	01	1	9905-	●
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2>	1-79738-795-1	01	1	9905-	●
392	COVER; BRKT	1-73996-264-1	01	1	9902-9904	●
392	COVER; BRKT DUAL AIR GAUGE<UG2>	1-73996-264-1	01	1	9905-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
