Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#76979) — 558 parça

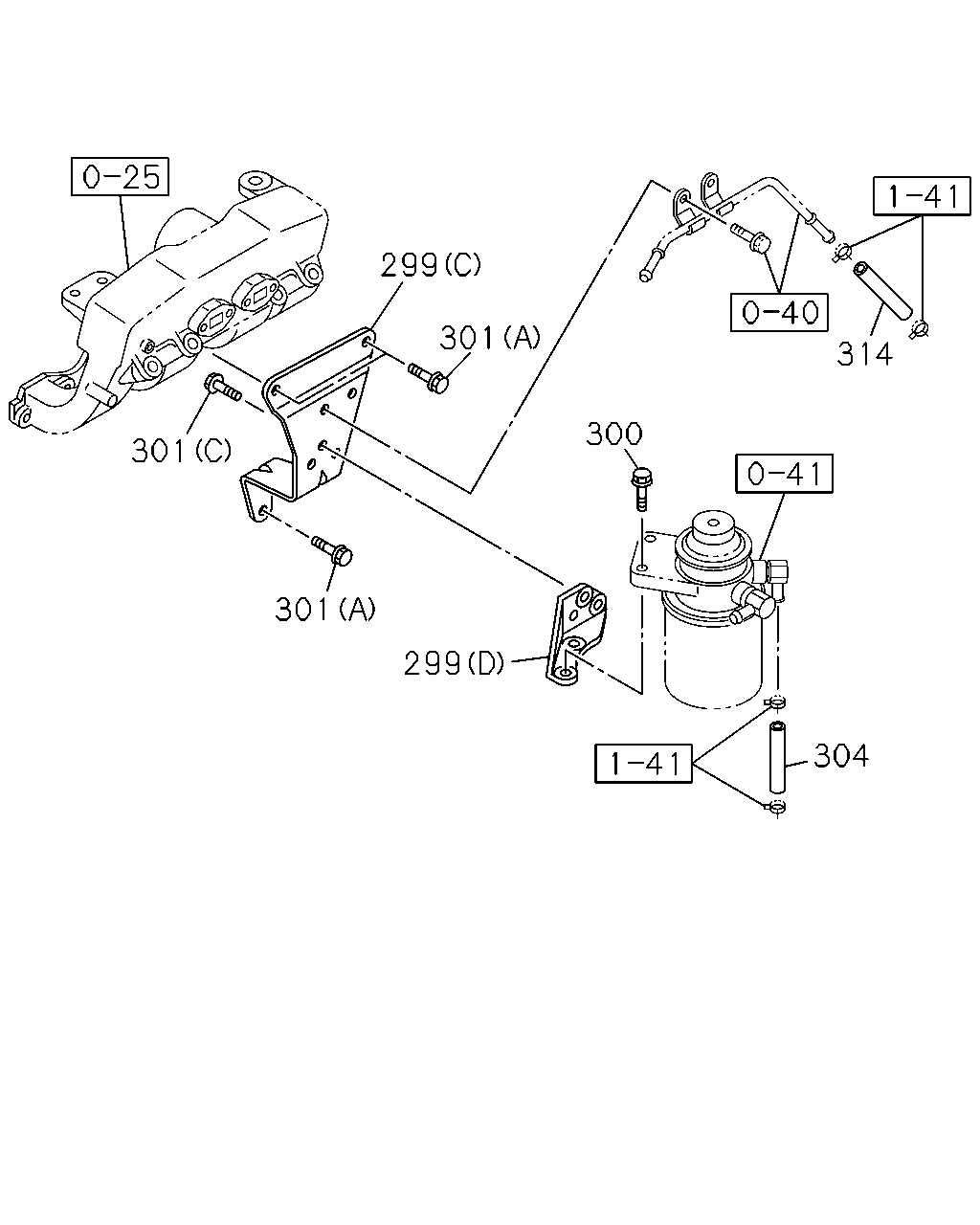

299 301 314 300 301 301 299 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
299	03.162 BRACKET; FUEL FILTER (A)	8-97945-165-0	01	1	0810-	●
299	03.162 BRACKET; FUEL FILTER (D)	8-97313-696-1	01	1	0810-	●
299	03.162 BRACKET; FUEL FILTER (C)	8-97328-533-0	01	1	0810-	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97945-336-0	01	1	0808-0809		●
299	03.162 BRACKET; FUEL FILTER (B)	8-97945-336-0	01	1	0810-1007		●	●	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97945-336-0	01	1	1008-		●	●	●	●
300	03.162 BOLT; BRKT TO BODY 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0810-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	03	1	0810-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0808-0809		●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0810-1007	●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	1008-	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97357-920-0	01	1	0810-	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97944-783-0	01	1	0808-0809		●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97944-783-0	01	1	0810-1007		●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97944-783-0	01	1	1008-		●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97351-312-0	01	1	0810-	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97944-784-2	01	1	0808-0809		●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97944-784-2	01	1	0810-1007		●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97944-784-2	01	1	1008-		●	●	●	●

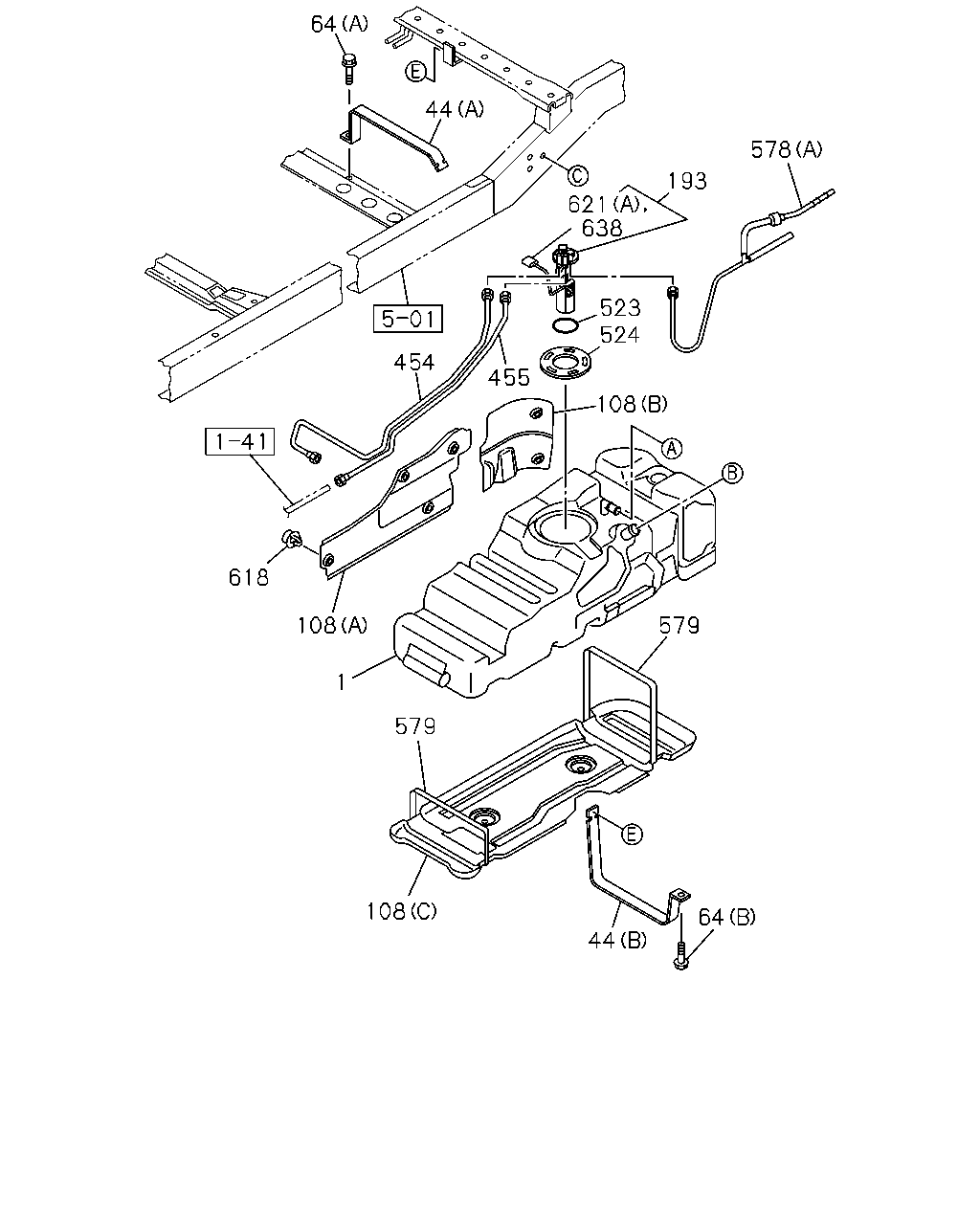

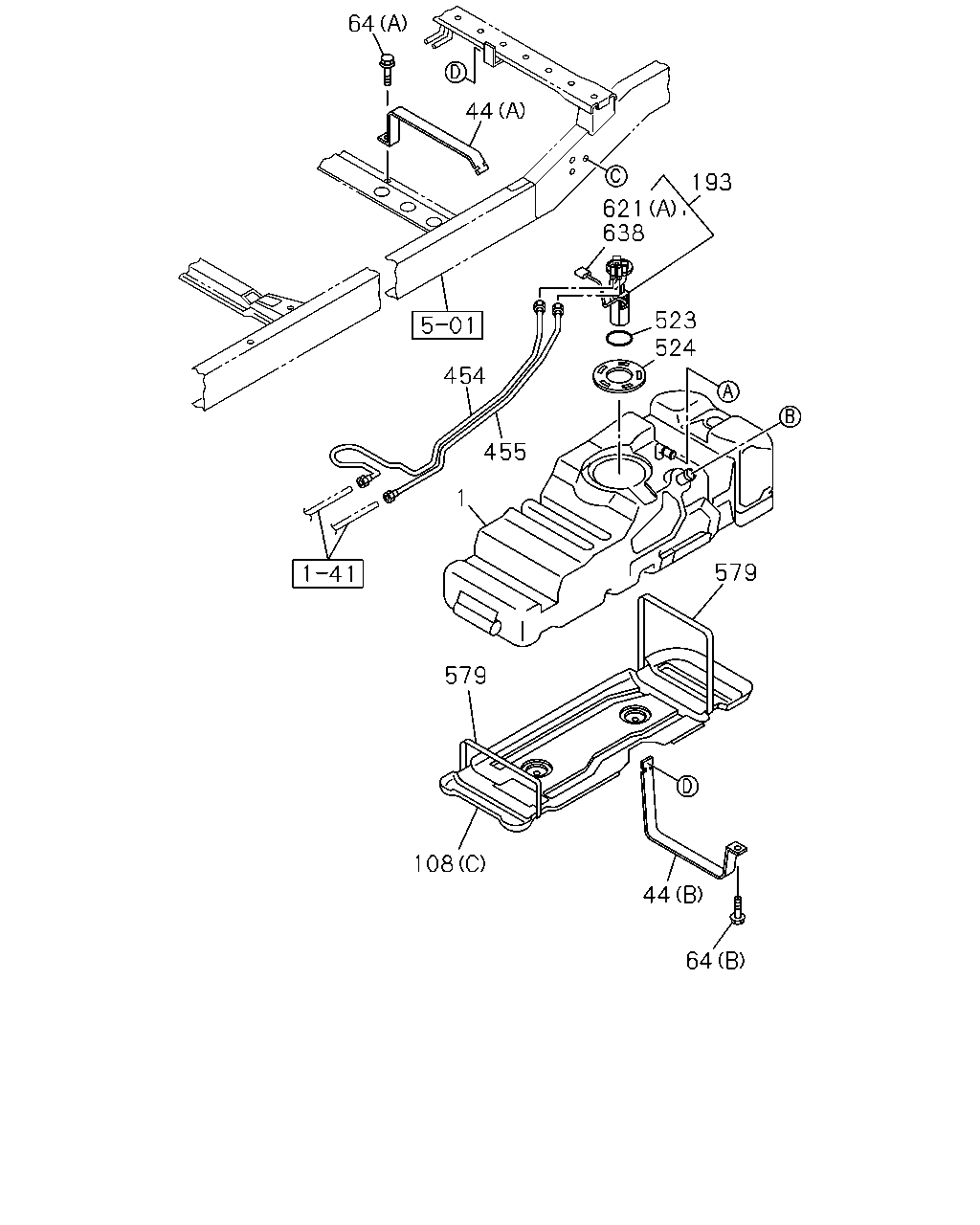

64 44 578 193 621 638 523 524 454 455 108 618 108 579 1 579 108 64 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL	8-97943-902-0	01	1	0810-	●
1	03.001 TANK; FUEL EXC. FUEL TANK SHIELD<NY1>	8-97943-900-0	01	1	0810-0905						●
1	03.001 TANK; FUEL	8-97943-900-0	01	1	0906-						●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0808-0809		●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0810-1007		●	●	●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	1008-		●	●	●	●
44	03.023 BAND; FUEL TANK 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) (B)	8-97944-282-0	01	1	0808-0809	●	●	●	●	●	●
44	03.023 BAND; FUEL TANK 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-282-0	01	1	0808-0809		●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0810-0910		●	●		●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	0810-0910		●	●
44	03.023 BAND; FUEL TANK 4X4 EXTRA LONG(TFS**K) M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-282-0	01	1	0810-0910		●
44	03.023 BAND; FUEL TANK 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	0810-0910			●
44	03.023 BAND; FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) (B)	8-97944-282-0	01	1	0810-0910				●		●
44	03.023 BAND; FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) (B)	8-97944-282-0	01	1	0810-0910	●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0911-1007		●	●		●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	0911-1007		●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0911-1007	●			●		●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	1008-		●	●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	1008-		●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	1008-	●			●	●	●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0808-1007	●	●	●	●		●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	1008-	●	●	●	●	●	●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) (B)	8-97944-283-0	01	1	0808-0809		●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (B)	8-97944-283-0	01	1	0810-		●	●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0808-1007	●	●	●	●		●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	1008-	●	●	●	●	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0808-1007	●	●	●	●		●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	1008-	●	●	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK EXC. FUEL TANK SHIELD<NY1> (B)	8-97329-243-2	01	1	0810-0905						●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	0906-						●
108	03.015 PROTECTOR; FUEL TANK EXC. FUEL TANK SHIELD<NY1> (A)	8-97943-299-0	01	1	0810-0905						●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	0906-						●
108	03.015 PROTECTOR; FUEL TANK 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (C)	8-97943-300-0	01	1	0808-0809		●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> (C)	8-97943-300-0	01	1	0810-1007	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK 4X4 EXTRA LONG(TFS**K) (C)	8-97943-300-0	01	1	0810-1007		●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-97943-300-0	01	1	0810-1007						●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> (C)	8-97943-300-0	01	1	1008-	●	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK 4X4 EXTRA LONG(TFS**K) (C)	8-97943-300-0	01	1	1008-		●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-97943-300-0	01	1	1008-						●
193	03.107 PUMP; FUEL CREW CAB LONG(TF**WF) EXC. AUSTRALIA EQUIPMENT(B13)	8-97945-524-0	01	1	0810-1002		●	●	●
193	03.107 PUMP; FUEL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF)	8-97945-524-0	01	1	0810-1002			●
193	03.107 PUMP; FUEL LONG(TF***F)	8-97945-524-0	01	1	0810-1002				●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0810-1002	●
193	03.107 PUMP; FUEL	8-97945-260-0	01	1	1003-	●
193	03.107 PUMP; FUEL EXC. AUSTRALIA EQUIPMENT(B13)	8-97945-605-0	01	1	0810-1002						●
193	03.107 PUMP; FUEL CREW CAB LONG(TF**WF) AUSTRALIA EQUIPMENT(B13) EXC. FUEL TANK SHIELD<NY1>	8-97945-604-0	01	1	0810-1002						●
193	03.107 PUMP; FUEL	8-97945-604-0	01	1	1003-						●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	0808-0809		●
193	03.107 PUMP; FUEL CREW CAB LONG(TF**WF) AUSTRALIA EQUIPMENT(B13)	8-97945-713-0	01	1	0810-1002		●	●	●
193	03.107 PUMP; FUEL EXTRA LONG(TF***K)	8-97945-713-0	01	1	0810-1002		●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	1003-1007		●	●	●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	1008-		●	●	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0810-	●
454	03.163 PIPE; FUEL,DELIVERY EXC. FUEL TANK SHIELD<NY1>	8-97329-239-0	01	1	0810-0905						●
454	03.163 PIPE; FUEL,DELIVERY	8-97329-239-0	01	1	0906-						●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	0808-0809		●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	0810-1007		●	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	1008-		●	●	●	●
455	03.163 PIPE; FUEL,RETURN 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) EXC. FUEL TANK SHIELD<NY1>	8-97943-512-0	01	1	0810-0905						●
455	03.163 PIPE; FUEL,RETURN LONG(TF***F)	8-97943-512-0	01	1	0810-0905	●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0906-	●					●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	0808-0809		●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	0810-1007		●	●	●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	1008-		●	●	●	●
523	03.008 SEAL; FUEL SENSOR EXC. FUEL TANK SHIELD<NY1>	8-97942-307-0	01	1	0810-0905						●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	0906-						●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0808-0809		●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0810-1007	●	●	●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	1008-	●	●	●	●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0808-0809		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0810-0905	●	●	●	●
524	03.028 RING; RETAINER LONG(TF***F) EXC. FUEL TANK SHIELD<NY1>	8-97942-306-0	01	1	0810-0905						●
524	03.028 RING; RETAINER LONG(TF***F)	8-97942-306-0	01	1	0810-0905	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0906-1007	●	●	●	●		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	1008-1209	●	●	●	●	●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	1210-	●	●	●	●	●
524	03.028 RING; RETAINER EXC. FUEL TANK SHIELD<NY1>	8-97942-306-0	01	1	1210-						●
578	03.001 TUBE; FUEL,EVAPO REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97946-642-0	01	1	0810-	●		●	●
578	03.001 TUBE; FUEL,EVAPO EXC. FUEL TANK SHIELD<NY1> (A)	8-97943-142-0	01	1	0810-0905						●
578	03.001 TUBE; FUEL,EVAPO (A)	8-97943-142-0	01	1	0906-						●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK)	8-97329-245-0	02	1	0808-0809		●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1>	8-97329-245-0	02	1	0810-1007	●	●	●	●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 EXTRA LONG(TFS**K)	8-97329-245-0	02	1	0810-1007		●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13)	8-97329-245-0	02	1	0810-1007						●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1>	8-97329-245-0	02	1	1008-	●	●	●	●	●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 EXTRA LONG(TFS**K)	8-97329-245-0	02	1	1008-		●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13)	8-97329-245-0	02	1	1008-						●
618	03.107 RETAINER; FUEL TANK EXC. FUEL TANK SHIELD<NY1>	8-97329-244-1	04	1	0810-0905						●
618	03.107 RETAINER; FUEL TANK	8-97329-244-1	04	1	0906-						●

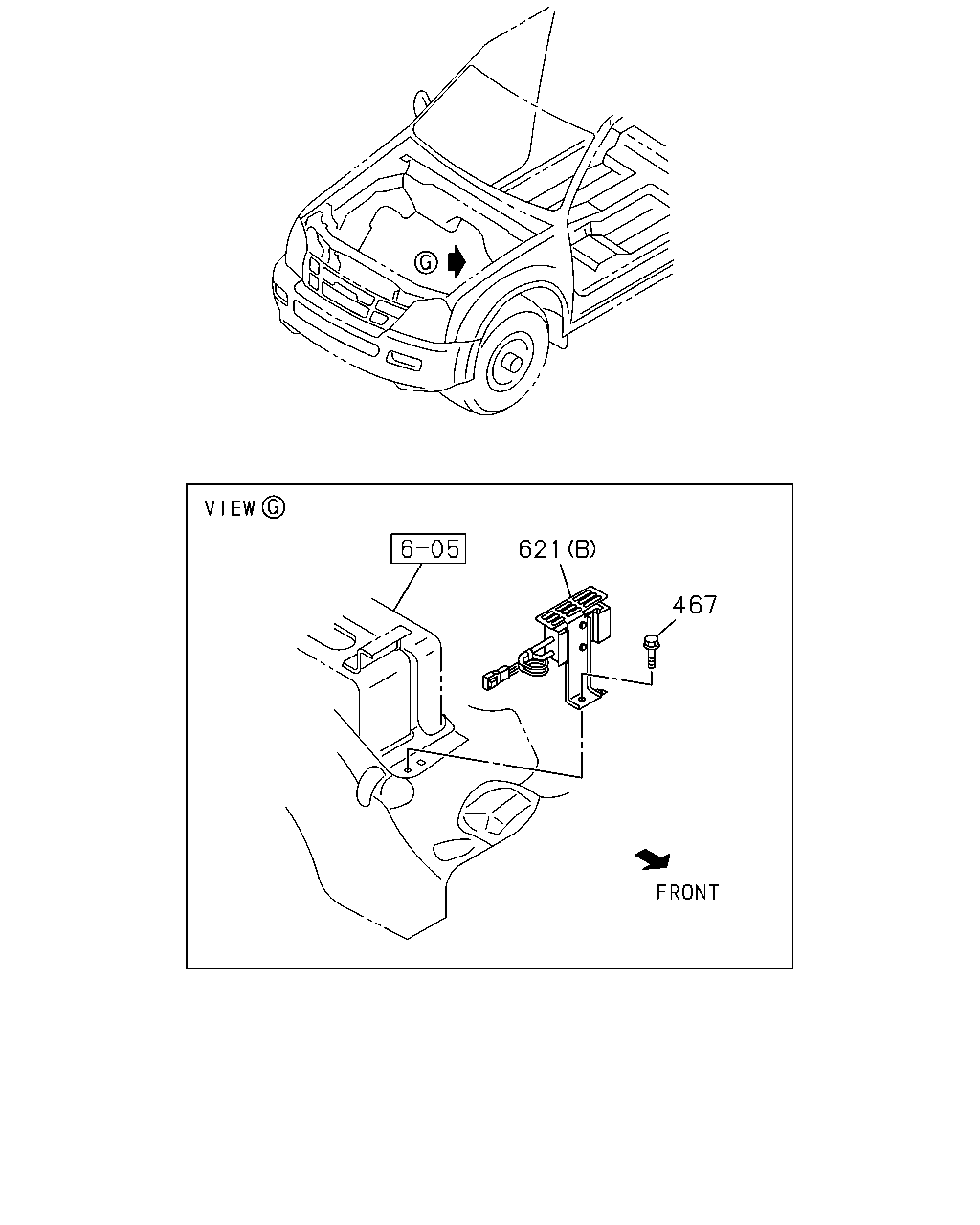

621	03.118 RESISTOR ASM; FUEL PUMP EXC. AUSTRALIA EQUIPMENT(B13) 08.131 (A)	8-97943-178-0	01	1	0810-0910		●	●	●		●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-178-0	01	1	0810-0910	●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	0808-0809		●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	0810-1007		●	●	●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	1008-		●	●	●	●
638	08.131 SENSOR; FUEL LEVEL EXC. AUSTRALIA EQUIPMENT(B13)	8-97943-178-0	01	1	0911-1002		●	●	●	●	●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0911-1002	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	0808-0809		●
638	08.131 SENSOR; FUEL LEVEL AUSTRALIA EQUIPMENT(B13) 03.118	8-97945-259-0	01	1	0810-1002		●	●	●		●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1003-1007	●	●	●	●		●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1008-1209	●	●	●	●	●	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1210-	●	●	●	●	●
638	08.131 SENSOR; FUEL LEVEL EXC. FUEL TANK SHIELD<NY1> 03.118	8-97945-259-0	01	1	1210-						●

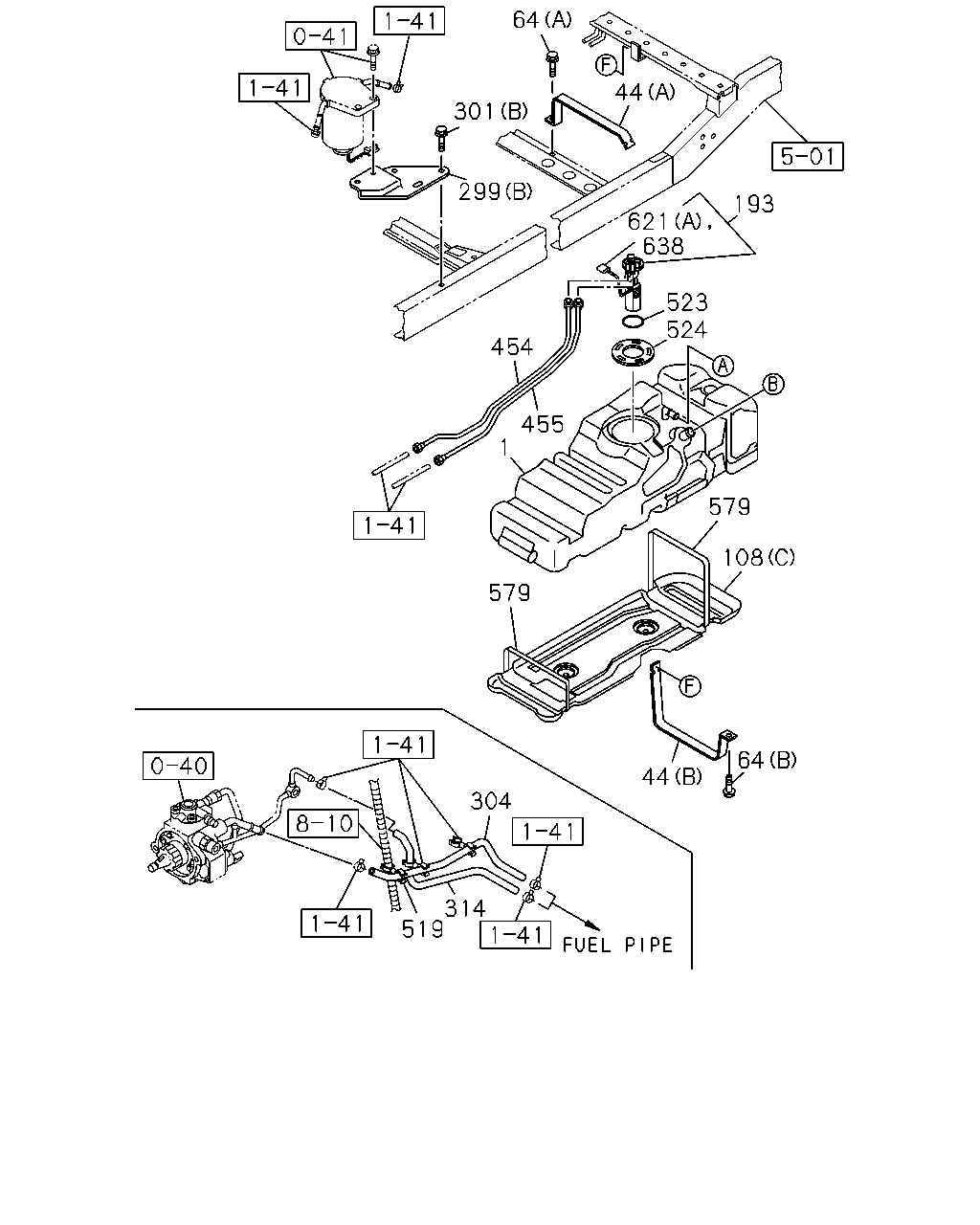

64 44 301 299 193 621 638 523 524 454 455 1 579 108 579 64 44 304 314 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL	8-97943-902-0	01	1	0810-	●
1	03.001 TANK; FUEL EXC. FUEL TANK SHIELD<NY1>	8-97943-900-0	01	1	0810-0905						●
1	03.001 TANK; FUEL	8-97943-900-0	01	1	0906-						●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0808-0809		●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0810-1007		●	●	●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	1008-		●	●	●	●
44	03.023 BAND; FUEL TANK 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) (B)	8-97944-282-0	01	1	0808-0809	●	●	●	●	●	●
44	03.023 BAND; FUEL TANK 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-282-0	01	1	0808-0809		●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0810-0910		●	●		●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	0810-0910		●	●
44	03.023 BAND; FUEL TANK 4X4 EXTRA LONG(TFS**K) M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-282-0	01	1	0810-0910		●
44	03.023 BAND; FUEL TANK 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	0810-0910			●
44	03.023 BAND; FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) (B)	8-97944-282-0	01	1	0810-0910				●		●
44	03.023 BAND; FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) (B)	8-97944-282-0	01	1	0810-0910	●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0911-1007		●	●		●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	0911-1007		●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0911-1007	●			●		●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	1008-		●	●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	1008-		●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	1008-	●			●	●	●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0808-1007	●	●	●	●		●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	1008-	●	●	●	●	●	●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) (B)	8-97944-283-0	01	1	0808-0809		●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (B)	8-97944-283-0	01	1	0810-		●	●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0808-1007	●	●	●	●		●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	1008-	●	●	●	●	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0808-1007	●	●	●	●		●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	1008-	●	●	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK EXC. FUEL TANK SHIELD<NY1> (B)	8-97329-243-2	01	1	0810-0905						●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	0906-						●
108	03.015 PROTECTOR; FUEL TANK EXC. FUEL TANK SHIELD<NY1> (A)	8-97943-299-0	01	1	0810-0905						●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	0906-						●
108	03.015 PROTECTOR; FUEL TANK 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (C)	8-97943-300-0	01	1	0808-0809		●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> (C)	8-97943-300-0	01	1	0810-1007	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK 4X4 EXTRA LONG(TFS**K) (C)	8-97943-300-0	01	1	0810-1007		●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-97943-300-0	01	1	0810-1007						●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> (C)	8-97943-300-0	01	1	1008-	●	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK 4X4 EXTRA LONG(TFS**K) (C)	8-97943-300-0	01	1	1008-		●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-97943-300-0	01	1	1008-						●
193	03.107 PUMP; FUEL CREW CAB LONG(TF**WF) EXC. AUSTRALIA EQUIPMENT(B13)	8-97945-524-0	01	1	0810-1002		●	●	●
193	03.107 PUMP; FUEL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF)	8-97945-524-0	01	1	0810-1002			●
193	03.107 PUMP; FUEL LONG(TF***F)	8-97945-524-0	01	1	0810-1002				●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0810-1002	●
193	03.107 PUMP; FUEL	8-97945-260-0	01	1	1003-	●
193	03.107 PUMP; FUEL EXC. AUSTRALIA EQUIPMENT(B13)	8-97945-605-0	01	1	0810-1002						●
193	03.107 PUMP; FUEL CREW CAB LONG(TF**WF) AUSTRALIA EQUIPMENT(B13) EXC. FUEL TANK SHIELD<NY1>	8-97945-604-0	01	1	0810-1002						●
193	03.107 PUMP; FUEL	8-97945-604-0	01	1	1003-						●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	0808-0809		●
193	03.107 PUMP; FUEL CREW CAB LONG(TF**WF) AUSTRALIA EQUIPMENT(B13)	8-97945-713-0	01	1	0810-1002		●	●	●
193	03.107 PUMP; FUEL EXTRA LONG(TF***K)	8-97945-713-0	01	1	0810-1002		●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	1003-1007		●	●	●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	1008-		●	●	●	●
299	03.162 BRACKET; FUEL FILTER (A)	8-97945-165-0	01	1	0810-	●
299	03.162 BRACKET; FUEL FILTER (D)	8-97313-696-1	01	1	0810-	●
299	03.162 BRACKET; FUEL FILTER (C)	8-97328-533-0	01	1	0810-	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97945-336-0	01	1	0808-0809		●
299	03.162 BRACKET; FUEL FILTER (B)	8-97945-336-0	01	1	0810-1007		●	●	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97945-336-0	01	1	1008-		●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	03	1	0810-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0808-0809		●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0810-1007	●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	1008-	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97357-920-0	01	1	0810-	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97944-783-0	01	1	0808-0809		●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97944-783-0	01	1	0810-1007		●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97944-783-0	01	1	1008-		●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97351-312-0	01	1	0810-	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97944-784-2	01	1	0808-0809		●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97944-784-2	01	1	0810-1007		●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97944-784-2	01	1	1008-		●	●	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0810-	●
454	03.163 PIPE; FUEL,DELIVERY EXC. FUEL TANK SHIELD<NY1>	8-97329-239-0	01	1	0810-0905						●
454	03.163 PIPE; FUEL,DELIVERY	8-97329-239-0	01	1	0906-						●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	0808-0809		●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	0810-1007		●	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	1008-		●	●	●	●
455	03.163 PIPE; FUEL,RETURN 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) EXC. FUEL TANK SHIELD<NY1>	8-97943-512-0	01	1	0810-0905						●
455	03.163 PIPE; FUEL,RETURN LONG(TF***F)	8-97943-512-0	01	1	0810-0905	●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0906-	●					●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	0808-0809		●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	0810-1007		●	●	●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	1008-		●	●	●	●
519	03.107 RETAINER; FUEL PUMP 03.890 ID=20 & 16.5	8-94486-835-0	01	1	0808-0809		●
519	03.107 RETAINER; FUEL PUMP 03.890 ID=20 & 16.5	8-94486-835-0	01	1	0810-1007		●	●	●
519	03.107 RETAINER; FUEL PUMP 03.890 ID=20 & 16.5	8-94486-835-0	01	1	1008-		●	●	●	●
523	03.008 SEAL; FUEL SENSOR EXC. FUEL TANK SHIELD<NY1>	8-97942-307-0	01	1	0810-0905						●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	0906-						●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0808-0809		●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0810-1007	●	●	●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	1008-	●	●	●	●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0808-0809		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0810-0905	●	●	●	●
524	03.028 RING; RETAINER LONG(TF***F) EXC. FUEL TANK SHIELD<NY1>	8-97942-306-0	01	1	0810-0905						●
524	03.028 RING; RETAINER LONG(TF***F)	8-97942-306-0	01	1	0810-0905	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0906-1007	●	●	●	●		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	1008-1209	●	●	●	●	●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	1210-	●	●	●	●	●
524	03.028 RING; RETAINER EXC. FUEL TANK SHIELD<NY1>	8-97942-306-0	01	1	1210-						●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK)	8-97329-245-0	02	1	0808-0809		●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1>	8-97329-245-0	02	1	0810-1007	●	●	●	●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 EXTRA LONG(TFS**K)	8-97329-245-0	02	1	0810-1007		●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13)	8-97329-245-0	02	1	0810-1007						●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1>	8-97329-245-0	02	1	1008-	●	●	●	●	●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 EXTRA LONG(TFS**K)	8-97329-245-0	02	1	1008-		●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13)	8-97329-245-0	02	1	1008-						●
621	03.118 RESISTOR ASM; FUEL PUMP EXC. AUSTRALIA EQUIPMENT(B13) 08.131 (A)	8-97943-178-0	01	1	0810-0910		●	●	●		●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-178-0	01	1	0810-0910	●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	0808-0809		●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	0810-1007		●	●	●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	1008-		●	●	●	●
638	08.131 SENSOR; FUEL LEVEL EXC. AUSTRALIA EQUIPMENT(B13)	8-97943-178-0	01	1	0911-1002		●	●	●	●	●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0911-1002	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	0808-0809		●
638	08.131 SENSOR; FUEL LEVEL AUSTRALIA EQUIPMENT(B13) 03.118	8-97945-259-0	01	1	0810-1002		●	●	●		●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1003-1007	●	●	●	●		●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1008-1209	●	●	●	●	●	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1210-	●	●	●	●	●
638	08.131 SENSOR; FUEL LEVEL EXC. FUEL TANK SHIELD<NY1> 03.118	8-97945-259-0	01	1	1210-						●

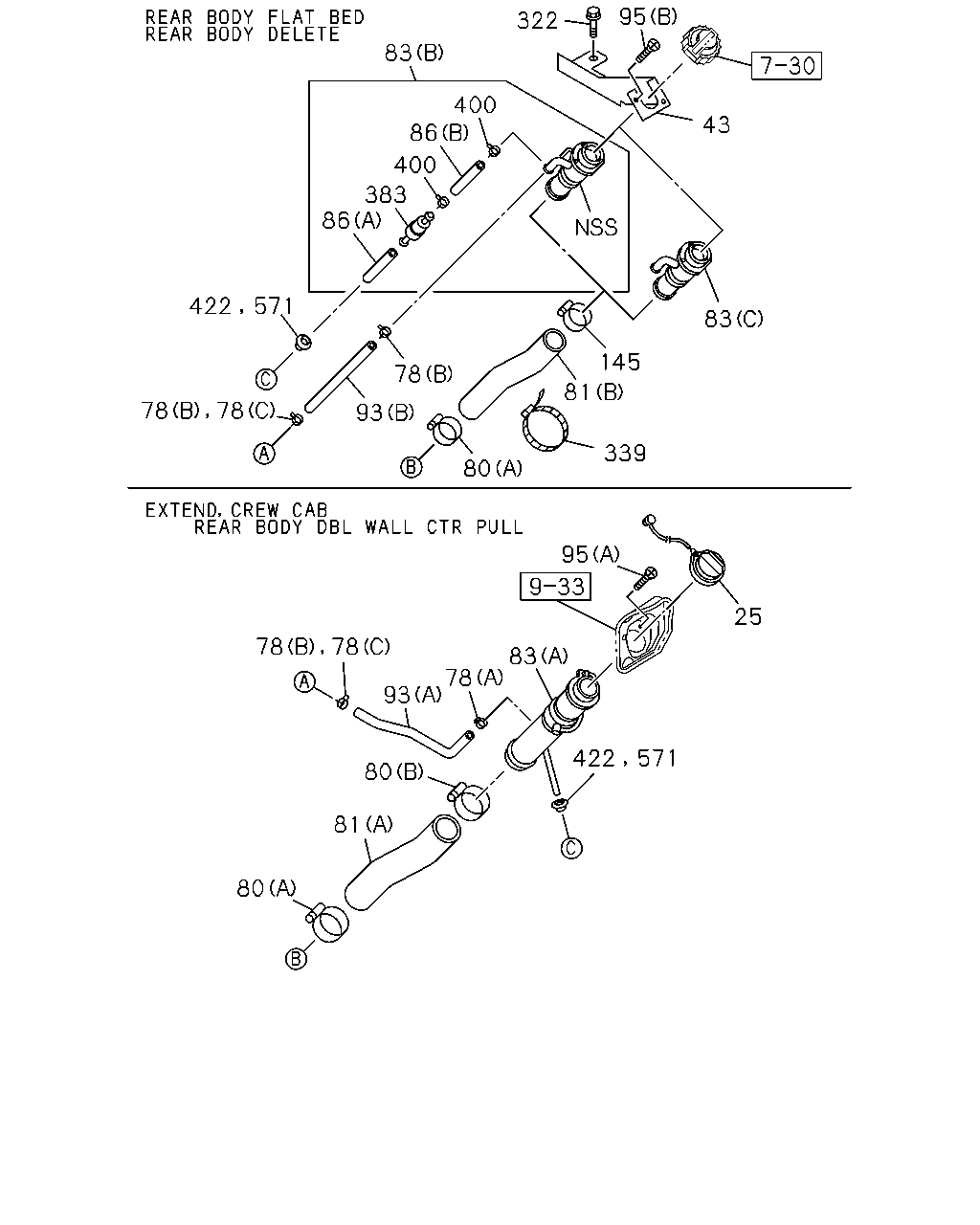

95 322 83 400 86 43 400 383 86 422 571 83 145 78 81 93 339 80 95 25 83 78 93 422 571 80 81 80 78 78 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

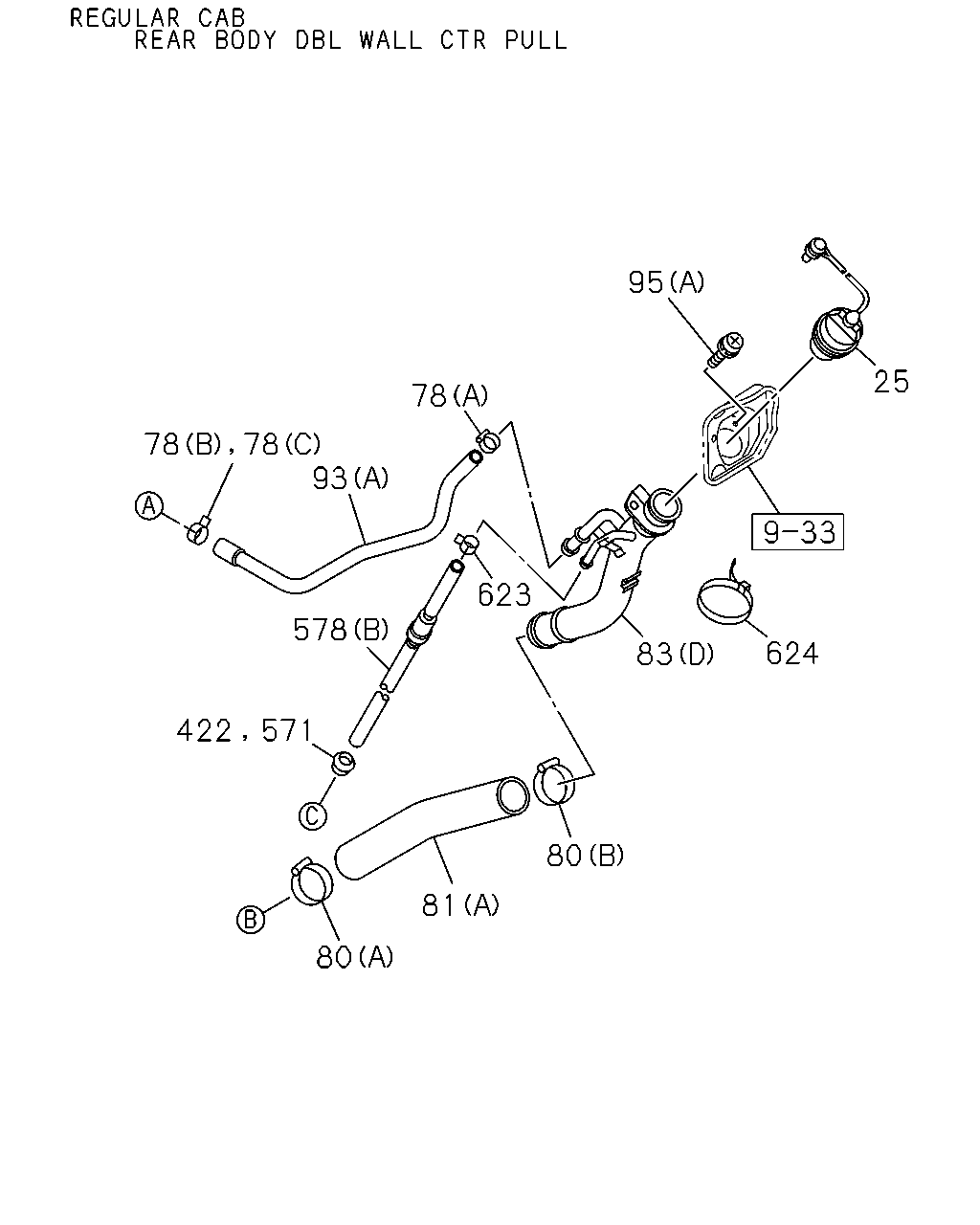

25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0810-	●		●	●		●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0808-0809		●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0810-1007	●	●	●	●		●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	1008-	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	1008-						●
43	03.015 BRACKET; FUEL TANK EXTRA LONG(TF***K)	8-97941-908-1	01	1	0808-0809	●	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH)	8-97941-908-1	01	1	0810-	●	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK EXTRA LONG(TF***K)	8-97941-908-1	01	1	0810-	●	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH)	8-97943-444-0	01	1	0808-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-945-0	01	1	0810-	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) 08.846 (A) ID=20.8	8-97944-127-0	01	1	0810-	●		●	●		●
78	03.003 CLIP; BREATHER HOSE EXTRA LONG(TF***K) 01.166 (B) ID=28	9-09915-421-1	01	1	0808-0809	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0808-0809	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0810-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 4X2 REGULAR CAB LONG(TFB*SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0810-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE EXTRA LONG(TF***K) 01.166 (B) ID=28	9-09915-421-1	01	1	0810-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0808-1007	●	●	●	●		●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	1008-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0808-0809		●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0810-1007	●	●	●	●		●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	1008-	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98097-946-0	01	1	1008-						●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0808-1007	●	●	●	●		●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	1008-	●	●	●	●	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	0808-0809		●
80	03.008 CLIP; FILLER HOSE LONG(TF***F) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	0810-1007	●	●	●	●		●
80	03.008 CLIP; FILLER HOSE LONG(TF***F) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1008-	●	●	●	●	●
80	03.008 CLIP; FILLER HOSE REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1008-						●
80	03.008 CLIP; FILLER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98097-947-0	01	1	1008-						●
81	03.003 HOSE; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0810-	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0810-	●		●	●		●
81	03.003 HOSE; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97944-449-0	01	1	0808-0809	●	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	0810-	●	●	●	●		●
81	03.003 HOSE; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97944-449-0	01	1	0810-	●	●	●	●		●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0808-0809		●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0810-1007	●	●	●	●		●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	1008-	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97942-301-0	01	1	1008-						●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97944-450-0	01	1	0808-	●	●	●	●	●	●
83	03.003 NECK; FUEL FILLER EXTRA LONG(TF***K) (B)	8-98024-000-0	01	1	0808-0809		●
83	03.003 NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-98024-000-0	01	1	0810-1007	●	●	●	●
83	03.003 NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-98024-000-0	01	1	1008-	●	●	●	●	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	0808-0809		●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	0810-1007	●	●	●	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	1008-	●	●	●	●	●
83	03.003 NECK; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-403-0	01	1	0810-	●		●
83	03.003 NECK; FUEL FILLER REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97945-349-0	01	1	0810-	●		●	●
83	03.003 NECK; FUEL FILLER LONG(TF***F) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-98023-999-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER REGULAR CAB LONG(TF**SF) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97945-350-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER LONG(TF***F) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) (C)	8-98024-001-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) (D)	8-97945-351-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-203-0	01	1	0810-1007						●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-476-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) (A)	8-97945-477-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0808-0809		●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0810-1007	●	●	●	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	1008-	●	●	●	●	●
86	03.163 HOSE; EVAP EXTRA LONG(TF***K) (B) L=80 SERVICED BY L=3000	8-94128-826-0	01	1	0808-0809		●
86	03.163 HOSE; EVAP CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B) L=80 SERVICED BY L=3000	8-94128-826-0	01	1	0808-0809		●
86	03.163 HOSE; EVAP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B) L=80 SERVICED BY L=3000	8-94128-826-0	01	1	0810-1007	●	●	●	●
86	03.163 HOSE; EVAP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B) L=80 SERVICED BY L=3000	8-94128-826-0	01	1	1008-	●	●	●	●	●
86	03.163 HOSE; EVAP EXTRA LONG(TF***K) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0808-0809		●
86	03.163 HOSE; EVAP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0810-1007	●	●	●	●
86	03.163 HOSE; EVAP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	1008-	●	●	●	●	●
86	03.163 HOSE; EVAP CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (A) L=360 SERVICED BY L=3000	8-94128-826-0	01	1	0808-0809		●
86	03.163 HOSE; EVAP CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (A) L=360 SERVICED BY L=3000	8-94128-826-0	01	1	0810-1007	●	●	●	●
86	03.163 HOSE; EVAP CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (A) L=360 SERVICED BY L=3000	8-94128-826-0	01	1	1008-	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0810-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0810-	●		●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK EXTRA LONG(TF***K) (B)	8-97305-696-1	01	1	0808-0809	●	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	0810-	●	●	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK EXTRA LONG(TF***K) (B)	8-97305-696-1	01	1	0810-	●	●	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0808-0809		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0810-1007	●	●	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	1008-	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97942-303-0	01	1	1008-						●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97943-446-0	01	1	0808-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK 4X2 REGULAR CAB LONG(TFB*SF) REAR BODY FLAT BED(E39) (B) M6X16	8-98022-271-0	03	1	0810-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98022-272-0	01	1	0810-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK EXTRA LONG(TF***K) (B) M6X16	8-98022-271-0	02	1	0808-0809	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0808-0809	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK LONG(TF***F) REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0810-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK EXTRA LONG(TF***K) (B) M6X16	8-98022-271-0	02	1	0810-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0808-0809	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0810-	●	●	●	●		●
145	03.162 CLIP; HOSE,FILLER NECK EXTRA LONG(TF***K) 03.609 ID=57	9-09915-036-1	01	1	0808-0809	●	●	●	●	●	●
145	03.162 CLIP; HOSE,FILLER NECK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) 03.609 ID=57	9-09915-036-1	01	1	0808-0809	●	●	●	●	●	●
145	03.162 CLIP; HOSE,FILLER NECK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DELETE(8HH) 03.609 ID=57	9-09915-036-1	01	1	0810-	●	●	●	●	●	●
145	03.162 CLIP; HOSE,FILLER NECK 4X2 REGULAR CAB LONG(TFB*SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 03.609 ID=57	9-09915-036-1	01	1	0810-	●	●	●	●	●	●
145	03.162 CLIP; HOSE,FILLER NECK EXTRA LONG(TF***K) 03.609 ID=57	9-09915-036-1	01	1	0810-	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX EXTRA LONG(TF***K) M12X25 FLANGE	0-28651-225-0	01	1	0808-0809	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) M12X25 FLANGE	0-28651-225-0	01	1	0808-0809	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX LONG(TF***F) REAR BODY DELETE(8HH) M12X25 FLANGE	0-28651-225-0	01	1	0810-	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX EXTRA LONG(TF***K) M12X25 FLANGE	0-28651-225-0	01	1	0810-	●	●	●	●	●	●
339	03.162 CLIP; BAND,FUEL HOSE EXTRA LONG(TF***K) 03.008 L=330	5-09709-118-0	02	1	0808-0809	●	●	●	●	●	●
339	03.162 CLIP; BAND,FUEL HOSE CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	02	1	0808-0809	●	●	●	●	●	●
339	03.162 CLIP; BAND,FUEL HOSE 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	02	1	0810-	●	●	●	●	●	●
339	03.162 CLIP; BAND,FUEL HOSE 4X2 REGULAR CAB LONG(TFB*SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	02	1	0810-	●	●	●	●	●	●
339	03.162 CLIP; BAND,FUEL HOSE EXTRA LONG(TF***K) 03.008 L=330	5-09709-118-0	02	1	0810-	●	●	●	●	●	●
383	03.162 VALVE; 2 WAY EXTRA LONG(TF***K)	8-97178-373-0	01	1	0808-0809		●
383	03.162 VALVE; 2 WAY CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH)	8-97178-373-0	01	1	0808-0809		●
383	03.162 VALVE; 2 WAY REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH)	8-97178-373-0	01	1	0810-1007	●	●	●	●
383	03.162 VALVE; 2 WAY REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH)	8-97178-373-0	01	1	1008-	●	●	●	●	●
400	03.162 CLIP; HOSE,EVAP EXTRA LONG(TF***K) ID=8.5	8-94166-071-0	02	1	0808-0809		●
400	03.162 CLIP; HOSE,EVAP CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) ID=8.5	8-94166-071-0	02	1	0808-0809		●
400	03.162 CLIP; HOSE,EVAP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) ID=8.5	8-94166-071-0	02	1	0810-1007	●	●	●	●
400	03.162 CLIP; HOSE,EVAP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) ID=8.5	8-94166-071-0	02	1	1008-	●	●	●	●	●
422	03.023 PLUG; FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) 07.068	8-97313-474-0	01	1	0808-0809		●
422	03.023 PLUG; FUEL TANK LONG(TF***F) 07.068	8-97313-474-0	01	1	0810-1007	●	●	●	●
422	03.023 PLUG; FUEL TANK LONG(TF***F) REAR BODY DBL WALL CTR PULL(E63) 07.068	8-97313-474-0	01	1	1008-	●	●	●	●	●
571	03.001 GROMMET EXTRA LONG(TF***K) 07.068	8-97313-474-0	01	1	0808-0809		●
571	03.001 GROMMET CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) 07.068	8-97313-474-0	01	1	0808-0809		●
571	03.001 GROMMET REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 07.068	8-97313-474-0	01	1	0810-1007	●	●	●	●
571	03.001 GROMMET REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 07.068	8-97313-474-0	01	1	1008-	●	●	●	●	●

95 25 78 93 623 578 624 83 571 422 80 81 80 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0810-	●		●	●		●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0808-0809		●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0810-1007	●	●	●	●		●
25	03.028 CAP; FILLER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	1008-	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	1008-						●
78	03.003 CLIP; BREATHER HOSE EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-945-0	01	1	0810-	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) 08.846 (A) ID=20.8	8-97944-127-0	01	1	0810-	●		●	●		●
78	03.003 CLIP; BREATHER HOSE EXTRA LONG(TF***K) 01.166 (B) ID=28	9-09915-421-1	01	1	0808-0809	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0808-0809	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0810-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 4X2 REGULAR CAB LONG(TFB*SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0810-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE EXTRA LONG(TF***K) 01.166 (B) ID=28	9-09915-421-1	01	1	0810-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0808-1007	●	●	●	●		●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	1008-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0808-0809		●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0810-1007	●	●	●	●		●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	1008-	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98097-946-0	01	1	1008-						●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0808-1007	●	●	●	●		●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	1008-	●	●	●	●	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	0808-0809		●
80	03.008 CLIP; FILLER HOSE LONG(TF***F) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	0810-1007	●	●	●	●		●
80	03.008 CLIP; FILLER HOSE LONG(TF***F) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1008-	●	●	●	●	●
80	03.008 CLIP; FILLER HOSE REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1008-						●
80	03.008 CLIP; FILLER HOSE CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98097-947-0	01	1	1008-						●
81	03.003 HOSE; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0810-	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0810-	●		●	●		●
81	03.003 HOSE; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97944-449-0	01	1	0808-0809	●	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	0810-	●	●	●	●		●
81	03.003 HOSE; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97944-449-0	01	1	0810-	●	●	●	●		●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0808-0809		●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0810-1007	●	●	●	●		●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	1008-	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97942-301-0	01	1	1008-						●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97944-450-0	01	1	0808-	●	●	●	●	●	●
83	03.003 NECK; FUEL FILLER EXTRA LONG(TF***K) (B)	8-98024-000-0	01	1	0808-0809		●
83	03.003 NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-98024-000-0	01	1	0810-1007	●	●	●	●
83	03.003 NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-98024-000-0	01	1	1008-	●	●	●	●	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	0808-0809		●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	0810-1007	●	●	●	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	1008-	●	●	●	●	●
83	03.003 NECK; FUEL FILLER EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-403-0	01	1	0810-	●		●
83	03.003 NECK; FUEL FILLER REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97945-349-0	01	1	0810-	●		●	●
83	03.003 NECK; FUEL FILLER LONG(TF***F) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-98023-999-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER REGULAR CAB LONG(TF**SF) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97945-350-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER LONG(TF***F) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) (C)	8-98024-001-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) (D)	8-97945-351-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-203-0	01	1	0810-1007						●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-476-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) (A)	8-97945-477-0	01	1	0810-						●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0808-0809		●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0810-1007	●	●	●	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	1008-	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTEND CAB LONG(TF**CF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0810-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0810-	●		●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK EXTRA LONG(TF***K) (B)	8-97305-696-1	01	1	0808-0809	●	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	0810-	●	●	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK EXTRA LONG(TF***K) (B)	8-97305-696-1	01	1	0810-	●	●	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0808-0809		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0810-1007	●	●	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	1008-	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97942-303-0	01	1	1008-						●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B)	8-97943-446-0	01	1	0808-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK 4X2 REGULAR CAB LONG(TFB*SF) REAR BODY FLAT BED(E39) (B) M6X16	8-98022-271-0	03	1	0810-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98022-272-0	01	1	0810-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK EXTRA LONG(TF***K) (B) M6X16	8-98022-271-0	02	1	0808-0809	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0808-0809	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK LONG(TF***F) REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0810-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK EXTRA LONG(TF***K) (B) M6X16	8-98022-271-0	02	1	0810-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0808-0809	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0810-	●	●	●	●		●
422	03.023 PLUG; FUEL TANK CREW CAB LONG(TF**WF) REAR BODY DBL WALL CTR PULL(E63) 07.068	8-97313-474-0	01	1	0808-0809		●
422	03.023 PLUG; FUEL TANK LONG(TF***F) 07.068	8-97313-474-0	01	1	0810-1007	●	●	●	●
422	03.023 PLUG; FUEL TANK LONG(TF***F) REAR BODY DBL WALL CTR PULL(E63) 07.068	8-97313-474-0	01	1	1008-	●	●	●	●	●
571	03.001 GROMMET EXTRA LONG(TF***K) 07.068	8-97313-474-0	01	1	0808-0809		●
571	03.001 GROMMET CREW CAB LONG(TF**WF) REAR BODY DELETE(8HH) 07.068	8-97313-474-0	01	1	0808-0809		●
571	03.001 GROMMET REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 07.068	8-97313-474-0	01	1	0810-1007	●	●	●	●
571	03.001 GROMMET REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 07.068	8-97313-474-0	01	1	1008-	●	●	●	●	●
578	03.001 TUBE; FUEL,EVAPO REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97946-642-0	01	1	0810-	●		●	●
578	03.001 TUBE; FUEL,EVAPO EXC. FUEL TANK SHIELD<NY1> (A)	8-97943-142-0	01	1	0810-0905						●
578	03.001 TUBE; FUEL,EVAPO (A)	8-97943-142-0	01	1	0906-						●
623	03.003 CLAMP; EVAPO TUBE REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63)	8-97945-723-0	01	1	0810-	●		●	●
624	03.162 CLIP; BAND REGULAR CAB LONG(TF**SF) REAR BODY DBL WALL CTR PULL(E63)	8-97942-789-0	01	1	0810-	●		●	●		●

64 44 193 621 638 523 524 454 455 1 579 579 108 44 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL	8-97943-902-0	01	1	0810-	●
1	03.001 TANK; FUEL EXC. FUEL TANK SHIELD<NY1>	8-97943-900-0	01	1	0810-0905						●
1	03.001 TANK; FUEL	8-97943-900-0	01	1	0906-						●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0808-0809		●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0810-1007		●	●	●
1	03.001 TANK; FUEL	8-97945-481-0	01	1	1008-		●	●	●	●
44	03.023 BAND; FUEL TANK 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) (B)	8-97944-282-0	01	1	0808-0809	●	●	●	●	●	●
44	03.023 BAND; FUEL TANK 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-282-0	01	1	0808-0809		●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0810-0910		●	●		●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	0810-0910		●	●
44	03.023 BAND; FUEL TANK 4X4 EXTRA LONG(TFS**K) M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-282-0	01	1	0810-0910		●
44	03.023 BAND; FUEL TANK 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	0810-0910			●
44	03.023 BAND; FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) (B)	8-97944-282-0	01	1	0810-0910				●		●
44	03.023 BAND; FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) (B)	8-97944-282-0	01	1	0810-0910	●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0911-1007		●	●		●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	0911-1007		●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0911-1007	●			●		●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	1008-		●	●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-282-0	01	1	1008-		●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	1008-	●			●	●	●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0808-1007	●	●	●	●		●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	1008-	●	●	●	●	●	●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) (B)	8-97944-283-0	01	1	0808-0809		●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (B)	8-97944-283-0	01	1	0810-		●	●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0808-1007	●	●	●	●		●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	1008-	●	●	●	●	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0808-1007	●	●	●	●		●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	1008-	●	●	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK EXC. FUEL TANK SHIELD<NY1> (B)	8-97329-243-2	01	1	0810-0905						●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	0906-						●
108	03.015 PROTECTOR; FUEL TANK EXC. FUEL TANK SHIELD<NY1> (A)	8-97943-299-0	01	1	0810-0905						●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	0906-						●
108	03.015 PROTECTOR; FUEL TANK 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (C)	8-97943-300-0	01	1	0808-0809		●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> (C)	8-97943-300-0	01	1	0810-1007	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK 4X4 EXTRA LONG(TFS**K) (C)	8-97943-300-0	01	1	0810-1007		●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-97943-300-0	01	1	0810-1007						●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> (C)	8-97943-300-0	01	1	1008-	●	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK 4X4 EXTRA LONG(TFS**K) (C)	8-97943-300-0	01	1	1008-		●
108	03.015 PROTECTOR; FUEL TANK 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-97943-300-0	01	1	1008-						●
193	03.107 PUMP; FUEL CREW CAB LONG(TF**WF) EXC. AUSTRALIA EQUIPMENT(B13)	8-97945-524-0	01	1	0810-1002		●	●	●
193	03.107 PUMP; FUEL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF)	8-97945-524-0	01	1	0810-1002			●
193	03.107 PUMP; FUEL LONG(TF***F)	8-97945-524-0	01	1	0810-1002				●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0810-1002	●
193	03.107 PUMP; FUEL	8-97945-260-0	01	1	1003-	●
193	03.107 PUMP; FUEL EXC. AUSTRALIA EQUIPMENT(B13)	8-97945-605-0	01	1	0810-1002						●
193	03.107 PUMP; FUEL CREW CAB LONG(TF**WF) AUSTRALIA EQUIPMENT(B13) EXC. FUEL TANK SHIELD<NY1>	8-97945-604-0	01	1	0810-1002						●
193	03.107 PUMP; FUEL	8-97945-604-0	01	1	1003-						●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	0808-0809		●
193	03.107 PUMP; FUEL CREW CAB LONG(TF**WF) AUSTRALIA EQUIPMENT(B13)	8-97945-713-0	01	1	0810-1002		●	●	●
193	03.107 PUMP; FUEL EXTRA LONG(TF***K)	8-97945-713-0	01	1	0810-1002		●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	1003-1007		●	●	●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	1008-		●	●	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0810-	●
454	03.163 PIPE; FUEL,DELIVERY EXC. FUEL TANK SHIELD<NY1>	8-97329-239-0	01	1	0810-0905						●
454	03.163 PIPE; FUEL,DELIVERY	8-97329-239-0	01	1	0906-						●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	0808-0809		●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	0810-1007		●	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	1008-		●	●	●	●
455	03.163 PIPE; FUEL,RETURN 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) EXC. FUEL TANK SHIELD<NY1>	8-97943-512-0	01	1	0810-0905						●
455	03.163 PIPE; FUEL,RETURN LONG(TF***F)	8-97943-512-0	01	1	0810-0905	●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0906-	●					●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	0808-0809		●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	0810-1007		●	●	●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	1008-		●	●	●	●
523	03.008 SEAL; FUEL SENSOR EXC. FUEL TANK SHIELD<NY1>	8-97942-307-0	01	1	0810-0905						●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	0906-						●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0808-0809		●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0810-1007	●	●	●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	1008-	●	●	●	●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0808-0809		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0810-0905	●	●	●	●
524	03.028 RING; RETAINER LONG(TF***F) EXC. FUEL TANK SHIELD<NY1>	8-97942-306-0	01	1	0810-0905						●
524	03.028 RING; RETAINER LONG(TF***F)	8-97942-306-0	01	1	0810-0905	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0906-1007	●	●	●	●		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	1008-1209	●	●	●	●	●	●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	1210-	●	●	●	●	●
524	03.028 RING; RETAINER EXC. FUEL TANK SHIELD<NY1>	8-97942-306-0	01	1	1210-						●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 EXTEND CAB EXTRA LONG(TFS5CK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK)	8-97329-245-0	02	1	0808-0809		●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1>	8-97329-245-0	02	1	0810-1007	●	●	●	●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 EXTRA LONG(TFS**K)	8-97329-245-0	02	1	0810-1007		●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13)	8-97329-245-0	02	1	0810-1007						●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1>	8-97329-245-0	02	1	1008-	●	●	●	●	●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 EXTRA LONG(TFS**K)	8-97329-245-0	02	1	1008-		●
579	03.022 BAND; FUEL TANK TO PROTECTOR 4X4 CREW CAB LONG(TFS*WF) FUEL TANK SHIELD<NY1> EXC. AUSTRALIA EQUIPMENT(B13)	8-97329-245-0	02	1	1008-						●
621	03.118 RESISTOR ASM; FUEL PUMP EXC. AUSTRALIA EQUIPMENT(B13) 08.131 (A)	8-97943-178-0	01	1	0810-0910		●	●	●		●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-178-0	01	1	0810-0910	●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	0808-0809		●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	0810-1007		●	●	●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	1008-		●	●	●	●
638	08.131 SENSOR; FUEL LEVEL EXC. AUSTRALIA EQUIPMENT(B13)	8-97943-178-0	01	1	0911-1002		●	●	●	●	●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0911-1002	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	0808-0809		●
638	08.131 SENSOR; FUEL LEVEL AUSTRALIA EQUIPMENT(B13) 03.118	8-97945-259-0	01	1	0810-1002		●	●	●		●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1003-1007	●	●	●	●		●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1008-1209	●	●	●	●	●	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1210-	●	●	●	●	●
638	08.131 SENSOR; FUEL LEVEL EXC. FUEL TANK SHIELD<NY1> 03.118	8-97945-259-0	01	1	1210-						●

621 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
467	03.163 BOLT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0808-0809		●
467	03.163 BOLT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0810-1007		●	●	●
467	03.163 BOLT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1008-		●	●	●	●
621	03.118 RESISTOR ASM; FUEL PUMP EXC. AUSTRALIA EQUIPMENT(B13) 08.131 (A)	8-97943-178-0	01	1	0810-0910		●	●	●		●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 (A)	8-97943-178-0	01	1	0810-0910	●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	0808-0809		●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	0810-1007		●	●	●
621	03.118 RESISTOR ASM; FUEL PUMP (B)	8-98041-186-0	01	1	1008-		●	●	●	●

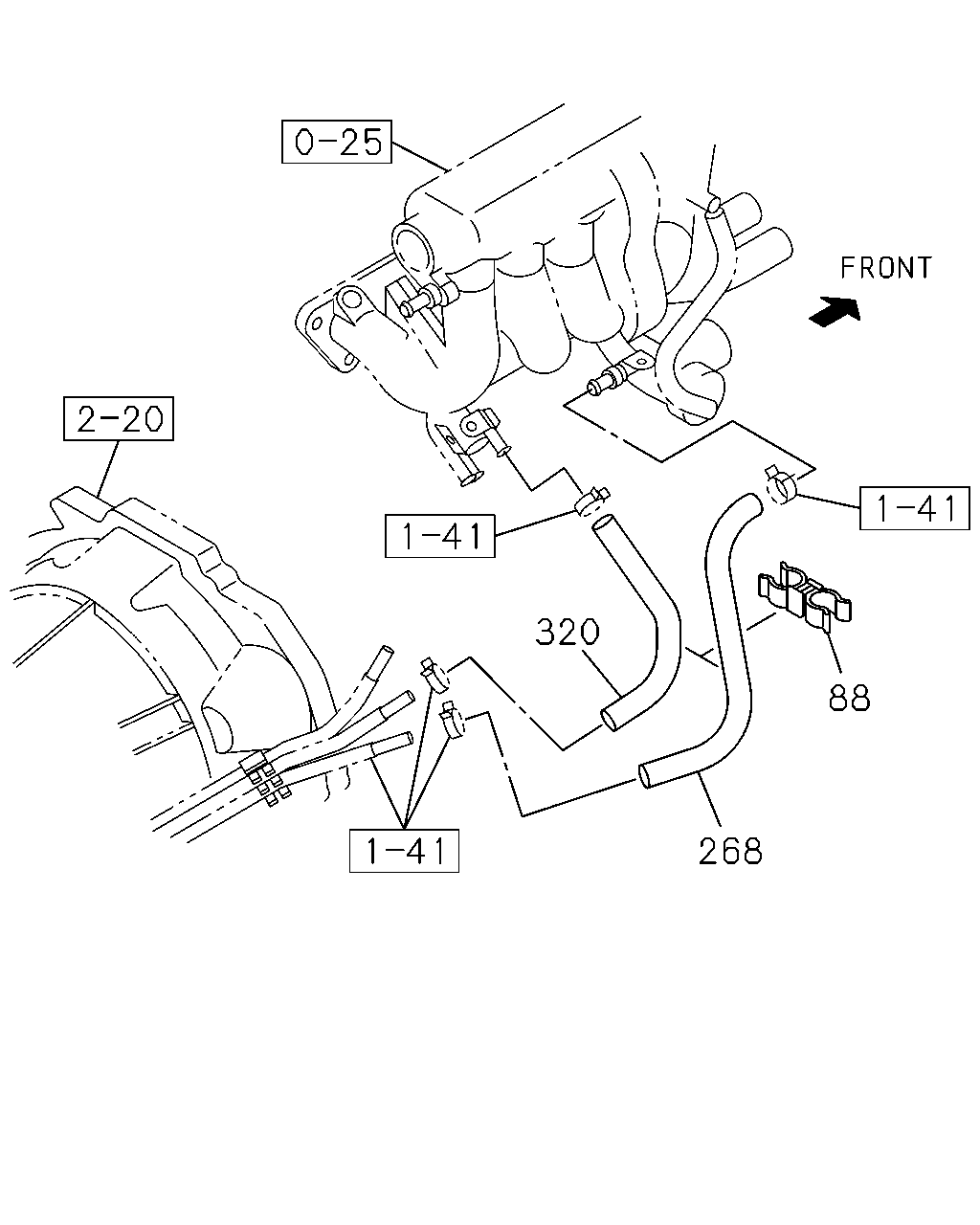

320 88 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	F
88	03.162 CLIP; FUEL HOSE ID=13.2 & 11.5	8-97230-081-0	01	1	0810-	●
268	03.163 HOSE; FUEL,DELIVERY	8-97351-788-0	01	1	0810-	●
320	03.163 HOSE ASM; FUEL,RETURN	8-97351-789-0	01	1	0810-	●

301 299 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
299	03.162 BRACKET; FUEL FILTER (A)	8-97945-165-0	01	1	0810-	●
299	03.162 BRACKET; FUEL FILTER (D)	8-97313-696-1	01	1	0810-	●
299	03.162 BRACKET; FUEL FILTER (C)	8-97328-533-0	01	1	0810-	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97945-336-0	01	1	0808-0809		●
299	03.162 BRACKET; FUEL FILTER (B)	8-97945-336-0	01	1	0810-1007		●	●	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97945-336-0	01	1	1008-		●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	03	1	0810-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0808-0809		●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0810-1007	●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	1008-	●	●	●	●	●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	0810-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
