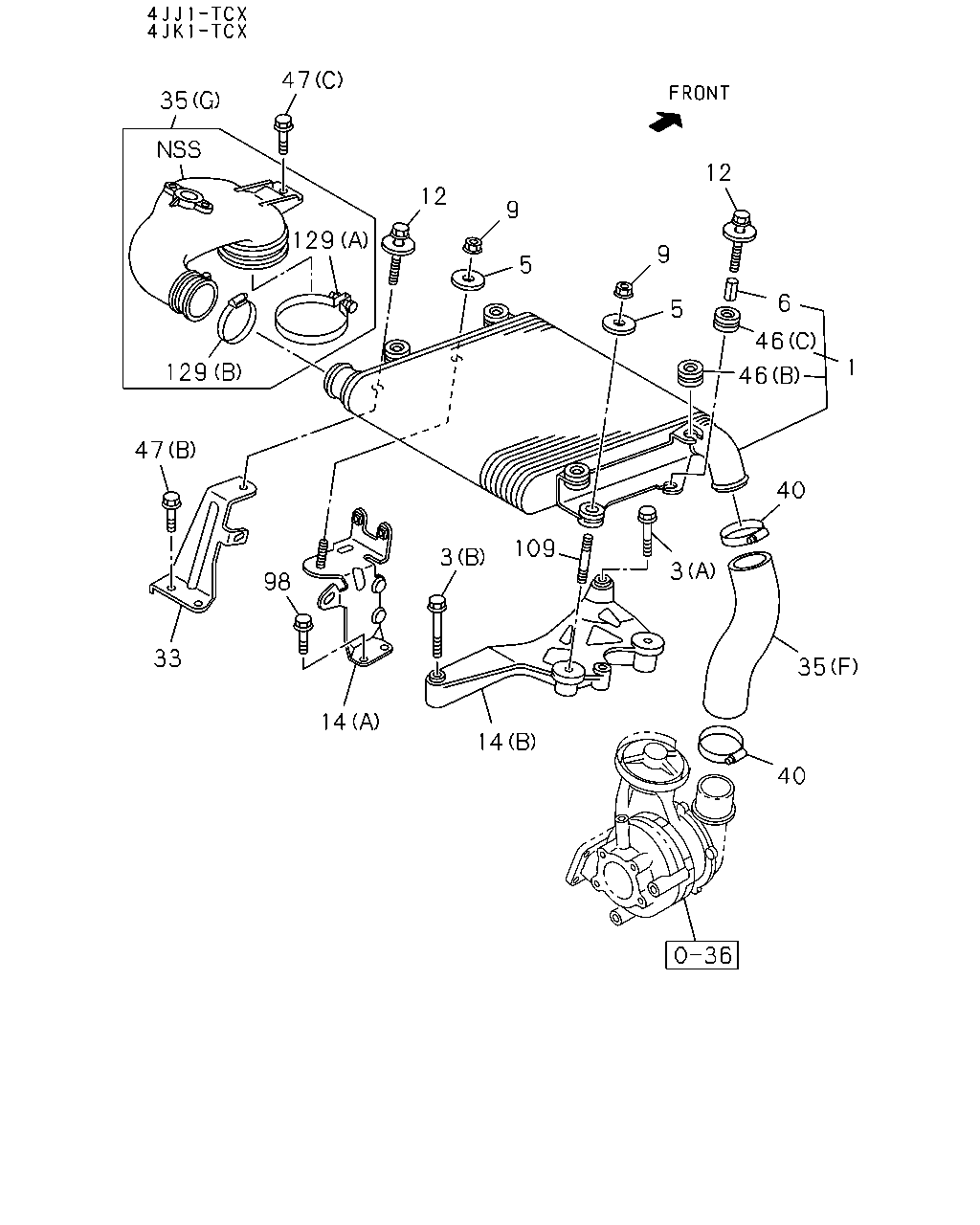

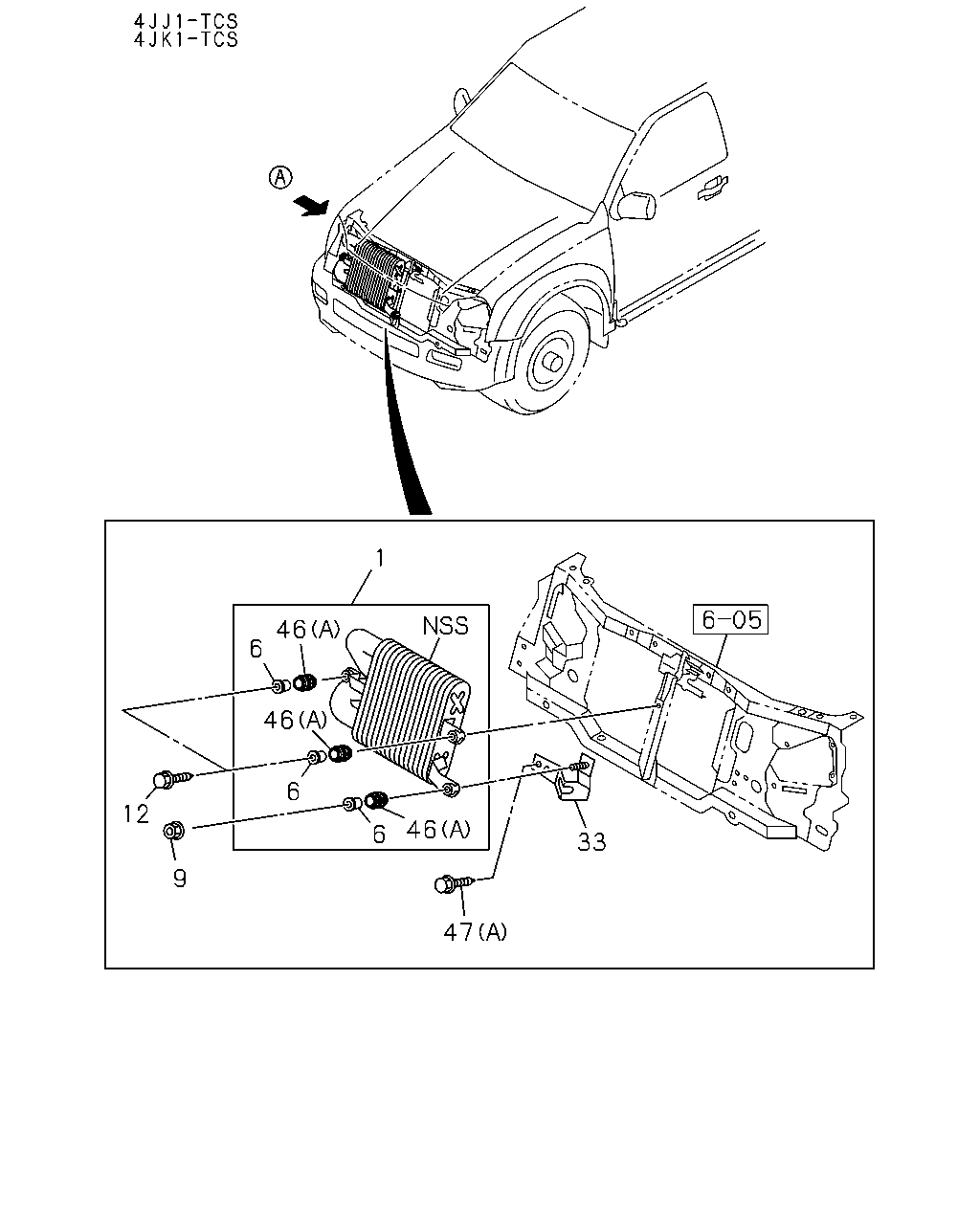

1-35 — CHARGE AIR COOLER (#76978) — 144 parça

1 46 6 46 6 12 46 6 33 9 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.374 COOLER; CHARGE AIR	8-98088-684-0	01	1	0810-1007	●
1	03.374 COOLER; CHARGE AIR	8-98088-684-0	01	1	1008-	●	●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	0808-0809			●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	0810-			●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405	8-97942-932-0	03	1	0810-1007	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405	8-97942-932-0	03	1	1008-	●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER	8-97107-898-0	04	1	0808-0809			●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER	8-97107-898-0	04	1	0810-			●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-1007	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	02	1	0808-0809			●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-			●	●
12	01.540 BOLT; CHARGE AIR COOLER	8-97943-079-0	02	1	0810-0812	●
12	01.540 BOLT; CHARGE AIR COOLER M8X32.5 W/PL WASHER	8-98136-077-0	02	1	0901-1007	●
12	01.540 BOLT; CHARGE AIR COOLER M8X32.5 W/PL WASHER	8-98136-077-0	02	1	1008-	●	●
12	01.540 BOLT; CHARGE AIR COOLER	8-98044-006-0	02	1	0808-0809			●
12	01.540 BOLT; CHARGE AIR COOLER	8-98044-006-0	02	1	0810-			●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97326-994-0	01	1	0810-1007	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97326-994-0	01	1	1008-	●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97389-214-2	01	1	0808-0809			●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97389-214-2	01	1	0810-			●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A)	8-97942-930-0	03	1	0810-1007	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A)	8-97942-930-0	03	1	1008-	●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (B)	8-97181-886-0	04	1	0808-0809			●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (B)	8-97181-886-0	04	1	0810-			●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C)	8-97232-774-0	04	1	0808-0809			●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C)	8-97232-774-0	04	1	0810-			●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0810-1007	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0808-0809			●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0810-			●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0808-0809			●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0810-			●	●

47 35 12 12 9 129 9 5 6 5 46 1 129 46 47 40 109 3 3 98 33 35 14 14 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.374 COOLER; CHARGE AIR	8-98088-684-0	01	1	0810-1007	●
1	03.374 COOLER; CHARGE AIR	8-98088-684-0	01	1	1008-	●	●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	0808-0809			●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	0810-			●	●
3	01.540 BOLT; CHARGE AIR COOLER 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	0808-0809			●
3	01.540 BOLT; CHARGE AIR COOLER 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	0810-			●	●
3	01.540 BOLT; CHARGE AIR COOLER 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	0808-0809			●
3	01.540 BOLT; CHARGE AIR COOLER 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	0810-			●	●
5	01.540 WASHER; PL,CHARGE AIR COOLER 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	0808-0809			●
5	01.540 WASHER; PL,CHARGE AIR COOLER 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	0810-			●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405	8-97942-932-0	03	1	0810-1007	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405	8-97942-932-0	03	1	1008-	●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER	8-97107-898-0	04	1	0808-0809			●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER	8-97107-898-0	04	1	0810-			●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-1007	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	02	1	0808-0809			●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-			●	●
12	01.540 BOLT; CHARGE AIR COOLER	8-97943-079-0	02	1	0810-0812	●
12	01.540 BOLT; CHARGE AIR COOLER M8X32.5 W/PL WASHER	8-98136-077-0	02	1	0901-1007	●
12	01.540 BOLT; CHARGE AIR COOLER M8X32.5 W/PL WASHER	8-98136-077-0	02	1	1008-	●	●
12	01.540 BOLT; CHARGE AIR COOLER	8-98044-006-0	02	1	0808-0809			●
12	01.540 BOLT; CHARGE AIR COOLER	8-98044-006-0	02	1	0810-			●	●
14	01.540 BRACKET; CHARGE AIR COOLER (A)	8-98012-016-3	01	1	0808-0809			●
14	01.540 BRACKET; CHARGE AIR COOLER (A)	8-98012-016-3	01	1	0810-			●	●
14	01.540 BRACKET; CHARGE AIR COOLER (B)	8-98039-405-0	01	1	0808-0809			●
14	01.540 BRACKET; CHARGE AIR COOLER (B)	8-98039-405-0	01	1	0810-			●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97326-994-0	01	1	0810-1007	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97326-994-0	01	1	1008-	●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97389-214-2	01	1	0808-0809			●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97389-214-2	01	1	0810-			●	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0810-1007	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	1008-	●	●
35	01.540 HOSE; CONNECTING (D)	8-97370-563-1	01	1	0810-1007	●
35	01.540 HOSE; CONNECTING (D)	8-97370-563-1	01	1	1008-	●	●
35	01.540 HOSE; CONNECTING (E)	8-97385-978-0	01	1	0810-1007	●
35	01.540 HOSE; CONNECTING (E)	8-97385-978-0	01	1	1008-	●	●
35	01.540 HOSE; CONNECTING (B)	8-98002-516-0	01	1	0810-1007	●
35	01.540 HOSE; CONNECTING (B)	8-98002-516-0	01	1	1008-	●	●
35	01.540 HOSE; CONNECTING (A)	8-98092-322-0	01	1	0810-1007	●
35	01.540 HOSE; CONNECTING (A)	8-98092-322-0	01	1	1008-	●	●
35	01.540 HOSE; CONNECTING (F)	8-98003-588-2	01	1	0808-0808			●
35	01.540 HOSE; CONNECTING (F)	8-98099-947-0	01	1	0808-0809			●
35	01.540 HOSE; CONNECTING (F)	8-98099-947-0	01	1	0810-1007			●	●
35	01.540 HOSE; CONNECTING (F)	8-98160-197-0	01	1	1008-			●	●
35	01.540 HOSE; CONNECTING (G)	8-98076-084-0	01	1	0808-0809			●
35	01.540 HOSE; CONNECTING (G)	8-98076-084-0	01	1	0810-			●	●
40	03.162 CLIP; RUBBER HOSE ID=55-75	8-98141-459-0	01	1	0903-0911	●
40	03.162 CLIP; RUBBER HOSE ID=50-70	8-98141-460-0	04	1	0912-1007	●
40	03.162 CLIP; RUBBER HOSE ID=50-70	8-98141-460-0	02	1	1008-	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65	8-98000-117-0	02	1	0810-0902	●
40	03.162 CLIP; RUBBER HOSE ID=45-65	8-98133-396-0	01	1	0903-1007	●
40	03.162 CLIP; RUBBER HOSE ID=45-65	8-98133-396-0	01	1	1008-	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65	8-98000-117-0	05	1	0810-0902	●
40	03.162 CLIP; RUBBER HOSE ID=45-65	8-98133-396-0	05	1	0903-0911	●
40	03.162 CLIP; RUBBER HOSE ID=50-70	8-98141-460-0	02	1	0912-1007	●
40	03.162 CLIP; RUBBER HOSE ID=50-70	8-98141-460-0	04	1	1008-	●	●
40	03.162 CLIP; RUBBER HOSE 03.407 ID=60-65	8-98096-418-0	02	1	0808-0809			●
40	03.162 CLIP; RUBBER HOSE 03.407 ID=60-65	8-98096-418-0	02	1	0810-			●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A)	8-97942-930-0	03	1	0810-1007	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A)	8-97942-930-0	03	1	1008-	●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (B)	8-97181-886-0	04	1	0808-0809			●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (B)	8-97181-886-0	04	1	0810-			●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C)	8-97232-774-0	04	1	0808-0809			●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C)	8-97232-774-0	04	1	0810-			●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0810-1007	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0808-0809			●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0810-			●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0808-0809			●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0810-			●	●
98	01.540 BOLT; BRKT TO CHARGE AIR COOLER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0808-0809			●
98	01.540 BOLT; BRKT TO CHARGE AIR COOLER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0810-			●	●
109	01.540 STUD; BRKT M8X40 L=52	0-41010-840-0	01	1	0808-0809			●
109	01.540 STUD; BRKT M8X40 L=52	0-41010-840-0	01	1	0810-			●	●
129	01.159 CLAMP; HOSE (A)	8-98080-783-0	01	1	0808-0809			●
129	01.159 CLAMP; HOSE (A)	8-98080-783-0	01	1	0810-			●	●
129	01.159 CLAMP; HOSE (B)	8-98080-785-0	01	1	0808-0809			●
129	01.159 CLAMP; HOSE (B)	8-98080-785-0	01	1	0810-			●	●

1 40 35 40 35 35 40 40 40 40 35 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.374 COOLER; CHARGE AIR	8-98088-684-0	01	1	0810-1007	●
1	03.374 COOLER; CHARGE AIR	8-98088-684-0	01	1	1008-	●	●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	0808-0809			●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	0810-			●	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0810-1007	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	1008-	●	●
35	01.540 HOSE; CONNECTING (D)	8-97370-563-1	01	1	0810-1007	●
35	01.540 HOSE; CONNECTING (D)	8-97370-563-1	01	1	1008-	●	●
35	01.540 HOSE; CONNECTING (E)	8-97385-978-0	01	1	0810-1007	●
35	01.540 HOSE; CONNECTING (E)	8-97385-978-0	01	1	1008-	●	●
35	01.540 HOSE; CONNECTING (B)	8-98002-516-0	01	1	0810-1007	●
35	01.540 HOSE; CONNECTING (B)	8-98002-516-0	01	1	1008-	●	●
35	01.540 HOSE; CONNECTING (A)	8-98092-322-0	01	1	0810-1007	●
35	01.540 HOSE; CONNECTING (A)	8-98092-322-0	01	1	1008-	●	●
35	01.540 HOSE; CONNECTING (F)	8-98003-588-2	01	1	0808-0808			●
35	01.540 HOSE; CONNECTING (F)	8-98099-947-0	01	1	0808-0809			●
35	01.540 HOSE; CONNECTING (F)	8-98099-947-0	01	1	0810-1007			●	●
35	01.540 HOSE; CONNECTING (F)	8-98160-197-0	01	1	1008-			●	●
35	01.540 HOSE; CONNECTING (G)	8-98076-084-0	01	1	0808-0809			●
35	01.540 HOSE; CONNECTING (G)	8-98076-084-0	01	1	0810-			●	●
40	03.162 CLIP; RUBBER HOSE ID=55-75	8-98141-459-0	01	1	0903-0911	●
40	03.162 CLIP; RUBBER HOSE ID=50-70	8-98141-460-0	04	1	0912-1007	●
40	03.162 CLIP; RUBBER HOSE ID=50-70	8-98141-460-0	02	1	1008-	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65	8-98000-117-0	02	1	0810-0902	●
40	03.162 CLIP; RUBBER HOSE ID=45-65	8-98133-396-0	01	1	0903-1007	●
40	03.162 CLIP; RUBBER HOSE ID=45-65	8-98133-396-0	01	1	1008-	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65	8-98000-117-0	05	1	0810-0902	●
40	03.162 CLIP; RUBBER HOSE ID=45-65	8-98133-396-0	05	1	0903-0911	●
40	03.162 CLIP; RUBBER HOSE ID=50-70	8-98141-460-0	02	1	0912-1007	●
40	03.162 CLIP; RUBBER HOSE ID=50-70	8-98141-460-0	04	1	1008-	●	●
40	03.162 CLIP; RUBBER HOSE 03.407 ID=60-65	8-98096-418-0	02	1	0808-0809			●
40	03.162 CLIP; RUBBER HOSE 03.407 ID=60-65	8-98096-418-0	02	1	0810-			●	●
