Sayfa 1-30 - Isuzu EPC

1-30 — AIR CLEANER (#76976) — 212 parça

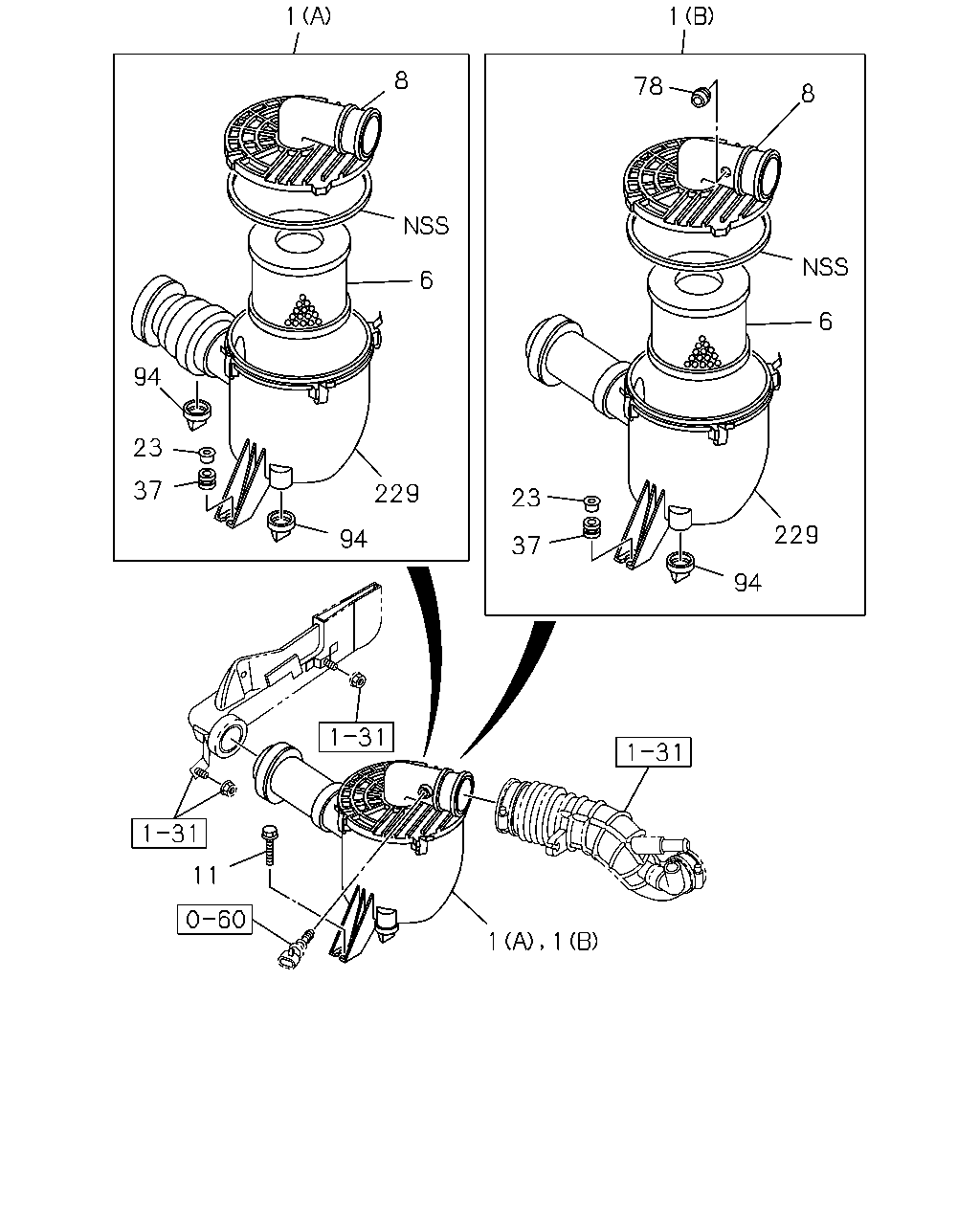

1 1 8 78 8 6 6 94 23 37 229 23 229 94 37 94 11 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	0810-1202	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	1203-1204	●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	1205-	●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (F)	8-97368-828-4	01	1	0810-1007	●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (F)	8-97368-828-4	01	1	1008-	●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97353-103-0	01	1	0810-			●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97942-410-3	01	1	0810-			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98004-959-0	01	1	0810-				●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (E)	8-97234-241-2	01	1	0810-				●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (D)	8-98008-888-2	01	1	0810-					●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98008-889-2	01	1	0808-1007						●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98008-889-2	01	1	1008-					●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	0810-1007	●		●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	1008-	●	●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97369-293-0	01	1	0810-				●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97251-943-0	01	1	0810-				●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-98027-480-0	01	1	0808-0809						●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-98027-480-0	01	1	0810-					●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-902-1	01	1	0810-1007	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-902-1	01	1	1008-	●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97942-927-0	01	1	0810-			●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97329-271-0	01	1	0810-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97324-500-1	01	1	0810-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-124-1	01	1	0810-					●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	0808-1007						●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	1008-					●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0808-0809						●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0810-1007	●		●		●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	1008-	●	●	●		●	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-920-0	03	1	0810-1007	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-920-0	03	1	1008-	●	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97942-932-0	03	1	0810-			●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>	8-98036-127-0	03	1	0808-0809						●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-98036-127-0	03	1	0810-					●	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-919-0	03	1	0810-1007	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-919-0	03	1	1008-	●	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97942-930-0	03	1	0810-			●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>	8-98036-126-0	03	1	0808-0809						●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-98036-126-0	03	1	0810-					●	●
78	03.403 GROMMET; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97213-787-0	01	1	0810-			●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0810-1007	●		●		●	●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	1008-	●	●	●		●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0808-0809						●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0810-1007	●		●			●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1008-1202	●	●	●			●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1203-1204	●	●	●		●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1205-	●	●	●			●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	0810-1202	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	1203-1204	●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	1205-	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97377-903-0	01	1	0810-1007	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97377-903-0	01	1	1008-	●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-102-0	01	1	0810-			●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97942-929-0	01	1	0810-			●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-125-0	01	1	0810-					●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98037-310-0	01	1	0808-1007						●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98037-310-0	01	1	1008-					●	●

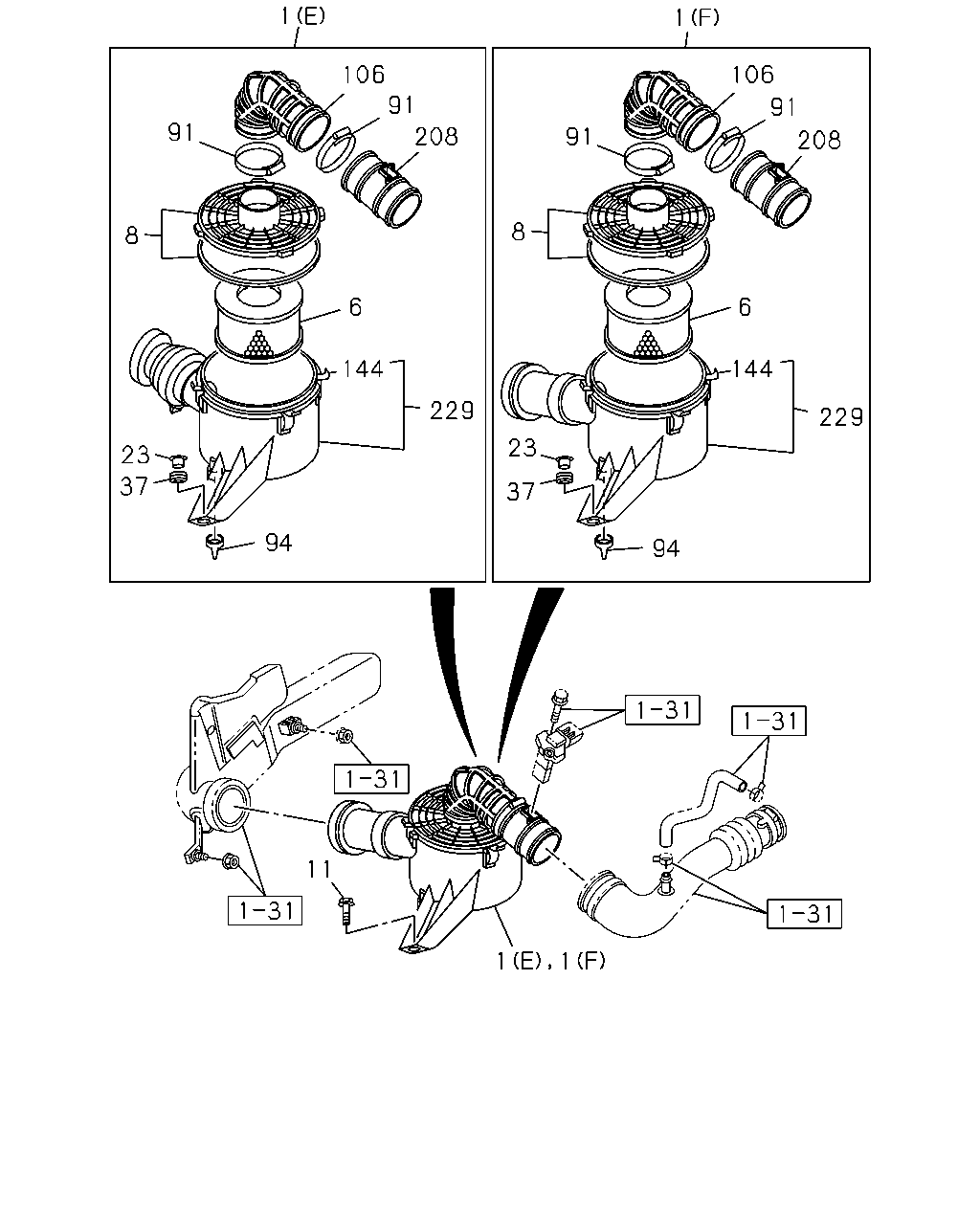

1 1 106 106 91 91 91 208 91 208 8 8 6 6 144 144 229 229 23 23 37 37 94 94 11 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	0810-1202	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	1203-1204	●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	1205-	●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (F)	8-97368-828-4	01	1	0810-1007	●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (F)	8-97368-828-4	01	1	1008-	●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97353-103-0	01	1	0810-			●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97942-410-3	01	1	0810-			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98004-959-0	01	1	0810-				●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (E)	8-97234-241-2	01	1	0810-				●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (D)	8-98008-888-2	01	1	0810-					●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98008-889-2	01	1	0808-1007						●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98008-889-2	01	1	1008-					●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	0810-1007	●		●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	1008-	●	●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97369-293-0	01	1	0810-				●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97251-943-0	01	1	0810-				●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-98027-480-0	01	1	0808-0809						●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-98027-480-0	01	1	0810-					●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-902-1	01	1	0810-1007	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-902-1	01	1	1008-	●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97942-927-0	01	1	0810-			●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97329-271-0	01	1	0810-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97324-500-1	01	1	0810-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-124-1	01	1	0810-					●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	0808-1007						●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	1008-					●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0808-0809						●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0810-1007	●		●		●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	1008-	●	●	●		●	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-920-0	03	1	0810-1007	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-920-0	03	1	1008-	●	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97942-932-0	03	1	0810-			●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>	8-98036-127-0	03	1	0808-0809						●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-98036-127-0	03	1	0810-					●	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-919-0	03	1	0810-1007	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-919-0	03	1	1008-	●	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97942-930-0	03	1	0810-			●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>	8-98036-126-0	03	1	0808-0809						●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-98036-126-0	03	1	0810-					●	●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97357-105-0	02	1	0810-1007	●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97357-105-0	02	1	1008-	●	●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0810-1007	●		●		●	●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	1008-	●	●	●		●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0808-0809						●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0810-1007	●		●			●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1008-1202	●	●	●			●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1203-1204	●	●	●		●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1205-	●	●	●			●
106	03.417 HOSE; CONN,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-905-0	01	1	0810-1007	●
106	03.417 HOSE; CONN,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-905-0	01	1	1008-	●	●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97324-624-0	04	1	1008-	●	●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97324-624-0	02	1	1008-					●	●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97354-199-0	02	1	0810-1007					●	●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>	8-97354-199-0	02	1	0808-0809						●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97354-199-0	04	1	0810-1007	●
208	03.407 DUCT; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-904-0	01	1	0810-1007	●
208	03.407 DUCT; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-904-0	01	1	1008-	●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	0810-1202	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	1203-1204	●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	1205-	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97377-903-0	01	1	0810-1007	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97377-903-0	01	1	1008-	●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-102-0	01	1	0810-			●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97942-929-0	01	1	0810-			●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-125-0	01	1	0810-					●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98037-310-0	01	1	0808-1007						●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98037-310-0	01	1	1008-					●	●

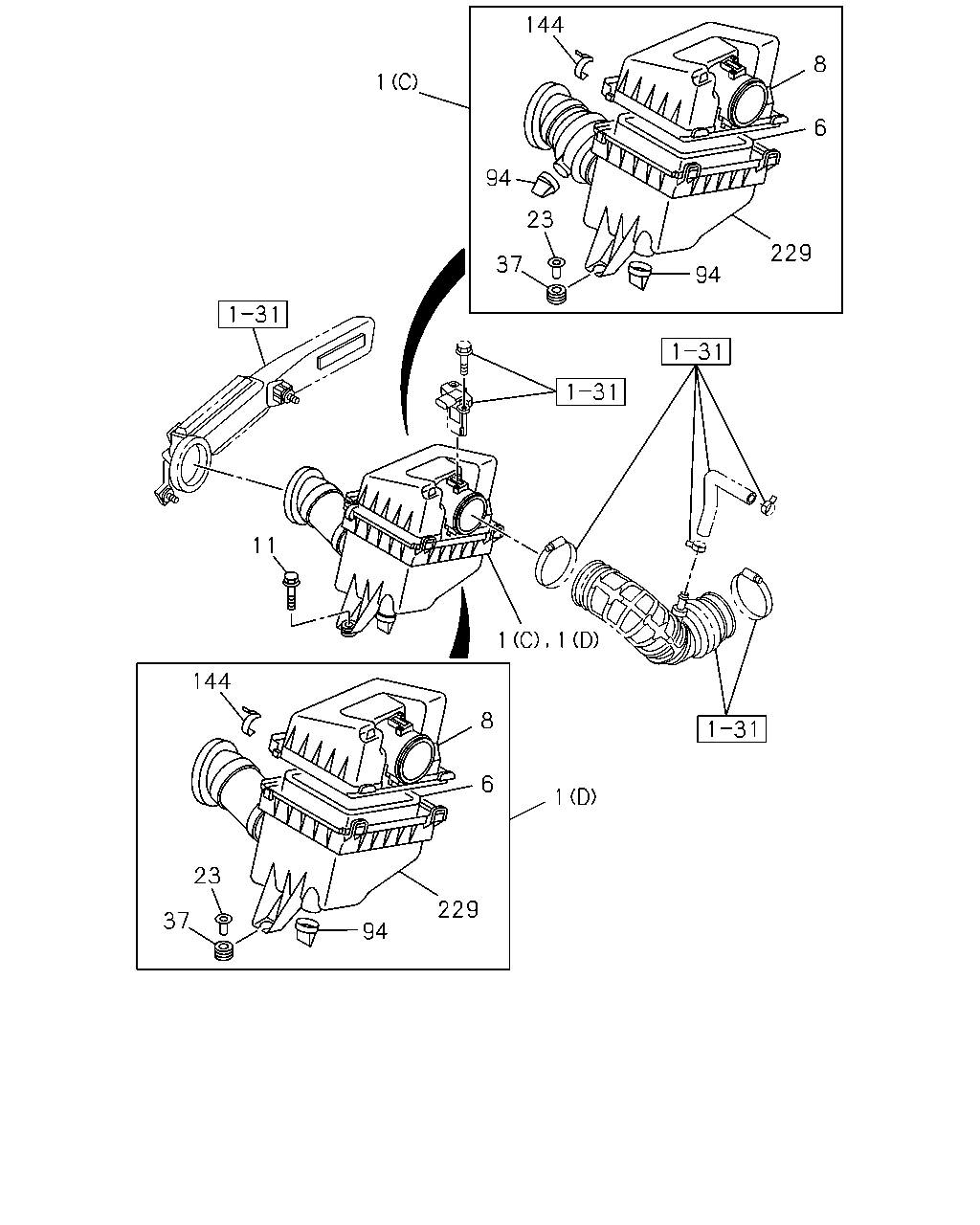

144 8 1 6 94 23 229 37 94 11 1 1 144 8 6 1 23 229 37 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	0810-1202	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	1203-1204	●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	1205-	●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (F)	8-97368-828-4	01	1	0810-1007	●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (F)	8-97368-828-4	01	1	1008-	●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97353-103-0	01	1	0810-			●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97942-410-3	01	1	0810-			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98004-959-0	01	1	0810-				●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (E)	8-97234-241-2	01	1	0810-				●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (D)	8-98008-888-2	01	1	0810-					●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98008-889-2	01	1	0808-1007						●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98008-889-2	01	1	1008-					●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	0810-1007	●		●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	1008-	●	●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97369-293-0	01	1	0810-				●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97251-943-0	01	1	0810-				●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-98027-480-0	01	1	0808-0809						●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-98027-480-0	01	1	0810-					●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-902-1	01	1	0810-1007	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-902-1	01	1	1008-	●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97942-927-0	01	1	0810-			●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97329-271-0	01	1	0810-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97324-500-1	01	1	0810-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-124-1	01	1	0810-					●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	0808-1007						●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	1008-					●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0808-0809						●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0810-1007	●		●		●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	1008-	●	●	●		●	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-920-0	03	1	0810-1007	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-920-0	03	1	1008-	●	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97942-932-0	03	1	0810-			●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>	8-98036-127-0	03	1	0808-0809						●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-98036-127-0	03	1	0810-					●	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-919-0	03	1	0810-1007	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97376-919-0	03	1	1008-	●	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97942-930-0	03	1	0810-			●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>	8-98036-126-0	03	1	0808-0809						●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-98036-126-0	03	1	0810-					●	●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0810-1007	●		●		●	●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	1008-	●	●	●		●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0808-0809						●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0810-1007	●		●			●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1008-1202	●	●	●			●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1203-1204	●	●	●		●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1205-	●	●	●			●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97324-624-0	04	1	1008-	●	●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97324-624-0	02	1	1008-					●	●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97354-199-0	02	1	0810-1007					●	●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>	8-97354-199-0	02	1	0808-0809						●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97354-199-0	04	1	0810-1007	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	0810-1202	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	1203-1204	●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	1205-	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97377-903-0	01	1	0810-1007	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97377-903-0	01	1	1008-	●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-102-0	01	1	0810-			●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97942-929-0	01	1	0810-			●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-125-0	01	1	0810-					●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98037-310-0	01	1	0808-1007						●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98037-310-0	01	1	1008-					●	●

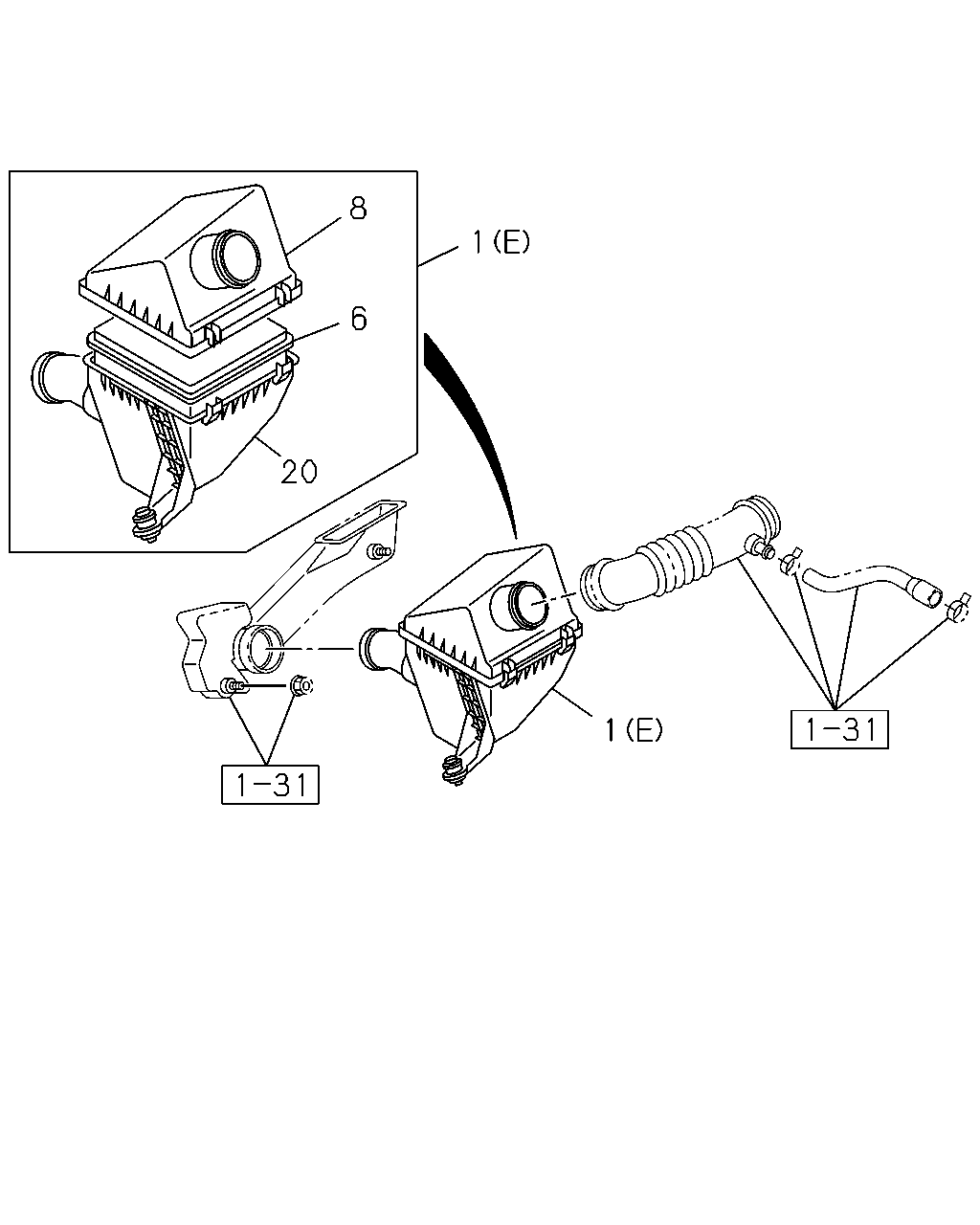

8 1 6 20 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	0810-1202	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	1203-1204	●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98027-483-0	01	1	1205-	●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (F)	8-97368-828-4	01	1	0810-1007	●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (F)	8-97368-828-4	01	1	1008-	●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97353-103-0	01	1	0810-			●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97942-410-3	01	1	0810-			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (E)	8-98004-959-0	01	1	0810-				●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (E)	8-97234-241-2	01	1	0810-				●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (D)	8-98008-888-2	01	1	0810-					●	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98008-889-2	01	1	0808-1007						●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98008-889-2	01	1	1008-					●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	0810-1007	●		●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	1008-	●	●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97369-293-0	01	1	0810-				●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97251-943-0	01	1	0810-				●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-98027-480-0	01	1	0808-0809						●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-98027-480-0	01	1	0810-					●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-902-1	01	1	0810-1007	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97377-902-1	01	1	1008-	●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R>	8-97942-927-0	01	1	0810-			●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97329-271-0	01	1	0810-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97324-500-1	01	1	0810-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-98036-124-1	01	1	0810-					●	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	0808-1007						●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98053-566-0	01	1	1008-					●	●
20	03.406 CASE ASM; ACL	8-97324-499-2	01	1	0810-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
