1-11 — RADIATOR HOSE AND SUB TANK (#76975) — 80 parça

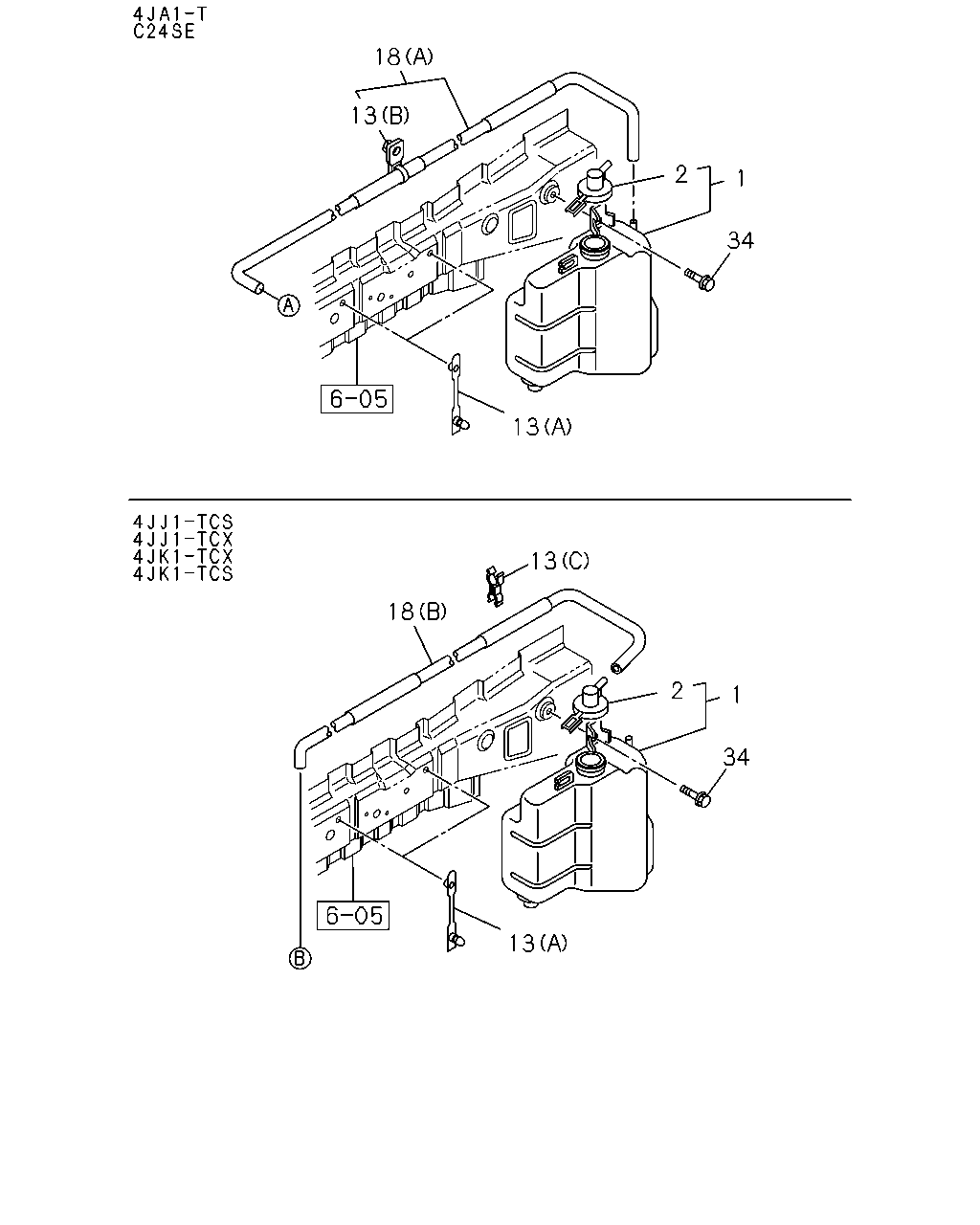

çizim 89157
18 13 2 1 34 13 13 18 2 1 34 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD 8-97941-501-3 01 1 0808-1007 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-97941-501-3 01 1 1008- ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97333-354-0 01 1 0808-1007 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97333-354-0 01 1 1008- ● ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) 		8-94373-241-0 01 1 0810- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 		8-94239-338-0 02 1 0808-0809 ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 		8-94239-338-0 02 1 0810-1007 ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 		8-94239-338-0 02 1 1008- ● ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
03.145 (C) ID=25 & 11 		8-97068-799-0 01 1 0808-0809 ●
13 01.240 CLIP; HOSE,SURGE TANK
03.145 (C) ID=25 & 11 		8-97068-799-0 01 1 0810-1007 ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
03.145 (C) ID=25 & 11 		8-97068-799-0 01 1 1008- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
(A) 		8-97362-955-0 01 1 0810- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
(B) 		8-97373-405-0 01 1 0808-0809 ●
18 01.240 HOSE; RAD TO SURGE TANK
(B) 		8-97373-405-0 01 1 0810-1007 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
(B) 		8-97373-405-0 01 1 1008- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 01 1 0808-1007 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 01 1 1008- ● ● ● ● ● ●

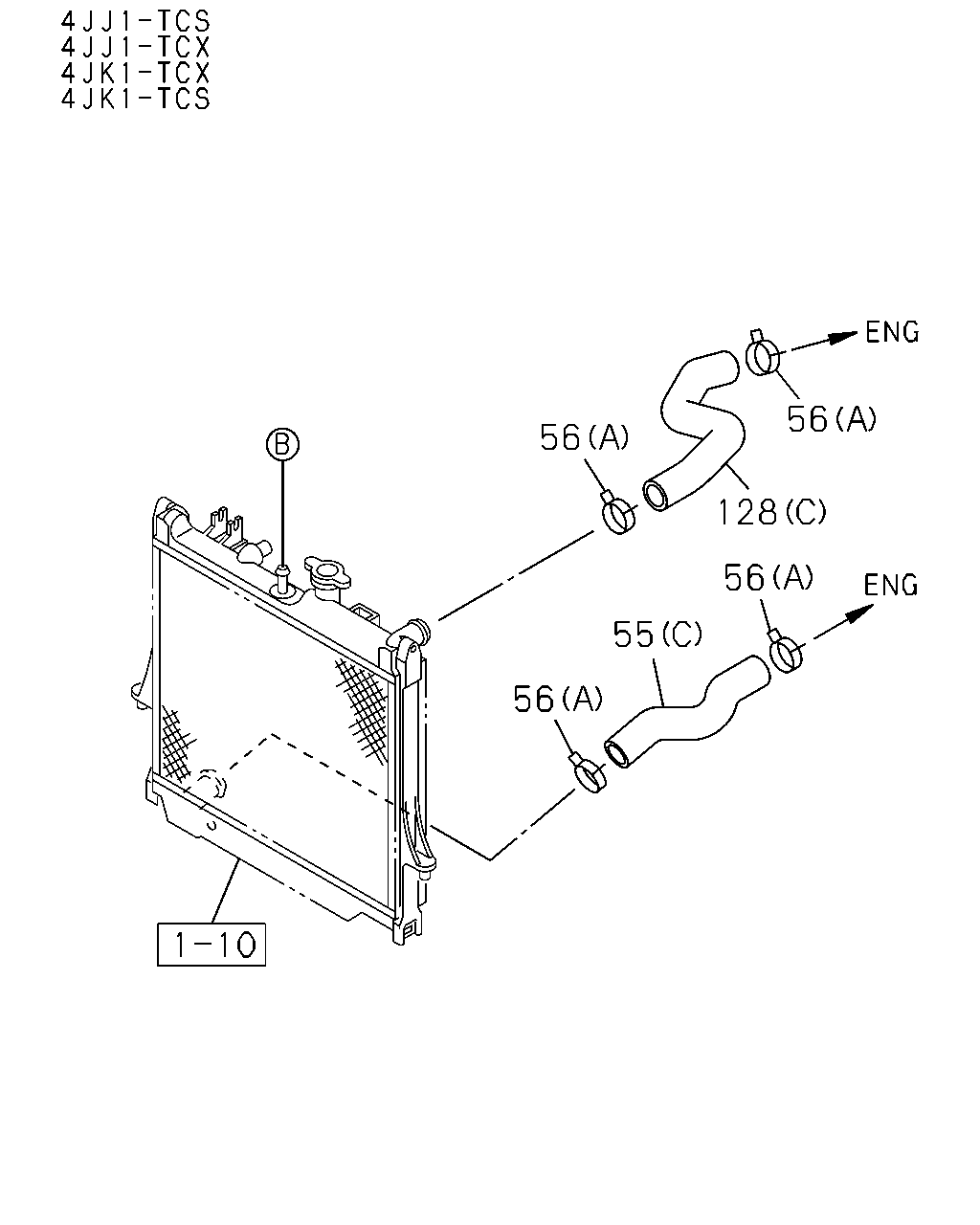

çizim 90574
56 56 128 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98003-995-0 01 1 0810- ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-97248-431-3 01 1 0810- ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-0 01 1 0808-0809 ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-1 01 1 0810-1007 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-1 01 1 1008- ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 01 1 1411- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 01 1 1411- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=36.5 		8-97135-907-1 01 1 0810- ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=36 		8-97262-976-0 01 1 0810- ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0808-0809 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0808-0809 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0810-1007 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0810-1007 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1008-1410 ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1008-1410 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1411- ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98003-996-0 01 1 0810- ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-97248-428-2 01 1 0810- ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-0 01 1 0808-0809 ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-1 01 1 0810-1007 ● ● ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-1 01 1 1008- ● ● ● ●

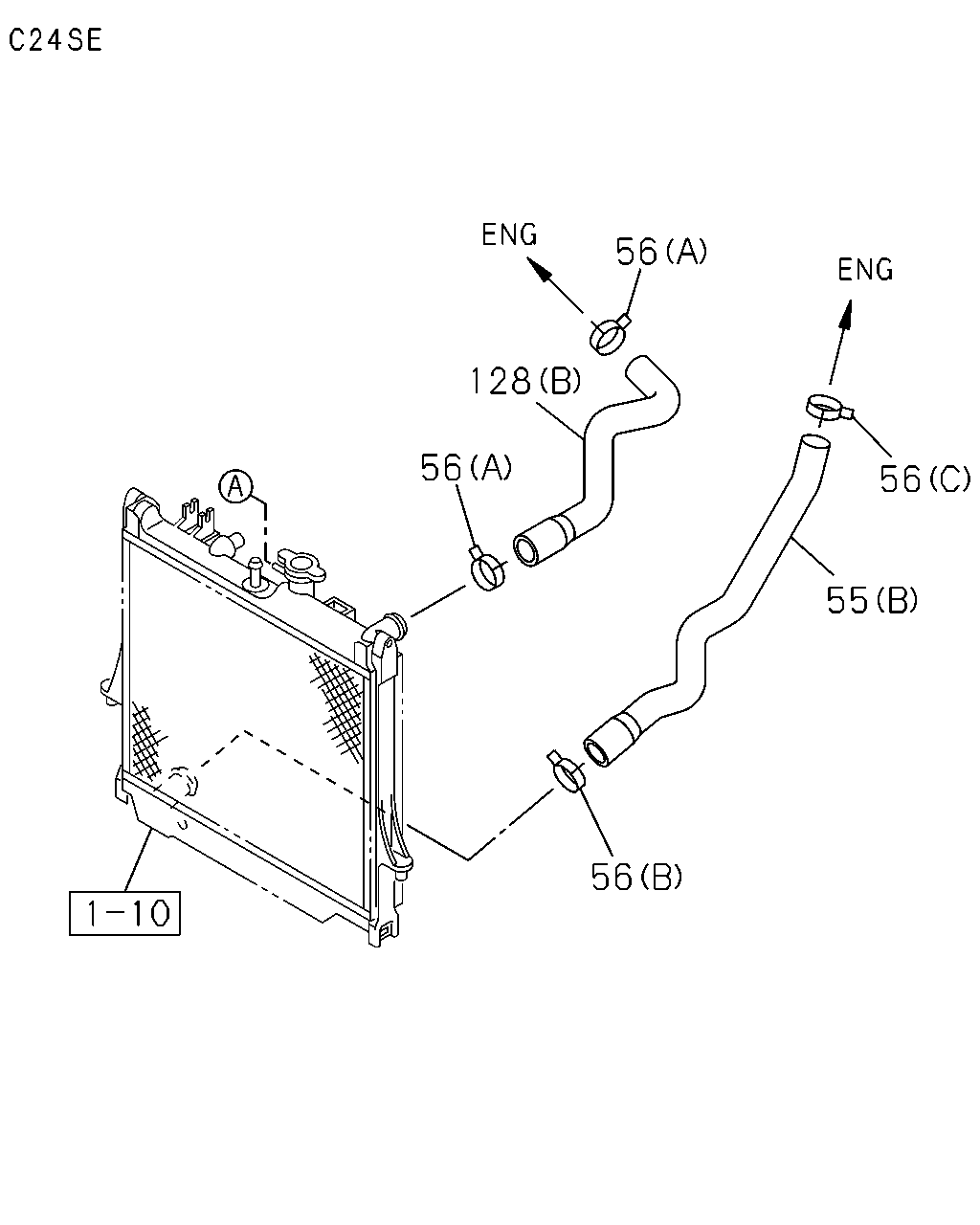

çizim 90586
56 128 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98003-995-0 01 1 0810- ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-97248-431-3 01 1 0810- ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-0 01 1 0808-0809 ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-1 01 1 0810-1007 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-1 01 1 1008- ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 01 1 1411- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 01 1 1411- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=36.5 		8-97135-907-1 01 1 0810- ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=36 		8-97262-976-0 01 1 0810- ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0808-0809 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0808-0809 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0810-1007 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0810-1007 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1008-1410 ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1008-1410 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1411- ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98003-996-0 01 1 0810- ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-97248-428-2 01 1 0810- ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-0 01 1 0808-0809 ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-1 01 1 0810-1007 ● ● ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-1 01 1 1008- ● ● ● ●
çizim 186142
56 128 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98003-995-0 01 1 0810- ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-97248-431-3 01 1 0810- ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-0 01 1 0808-0809 ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-1 01 1 0810-1007 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-1 01 1 1008- ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 01 1 1411- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 01 1 1411- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=36.5 		8-97135-907-1 01 1 0810- ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=36 		8-97262-976-0 01 1 0810- ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0808-0809 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0808-0809 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0810-1007 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0810-1007 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1008-1410 ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1008-1410 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1411- ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98003-996-0 01 1 0810- ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-97248-428-2 01 1 0810- ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-0 01 1 0808-0809 ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-1 01 1 0810-1007 ● ● ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-1 01 1 1008- ● ● ● ●
