1-10 — RADIATOR (#76974) — 47 parça

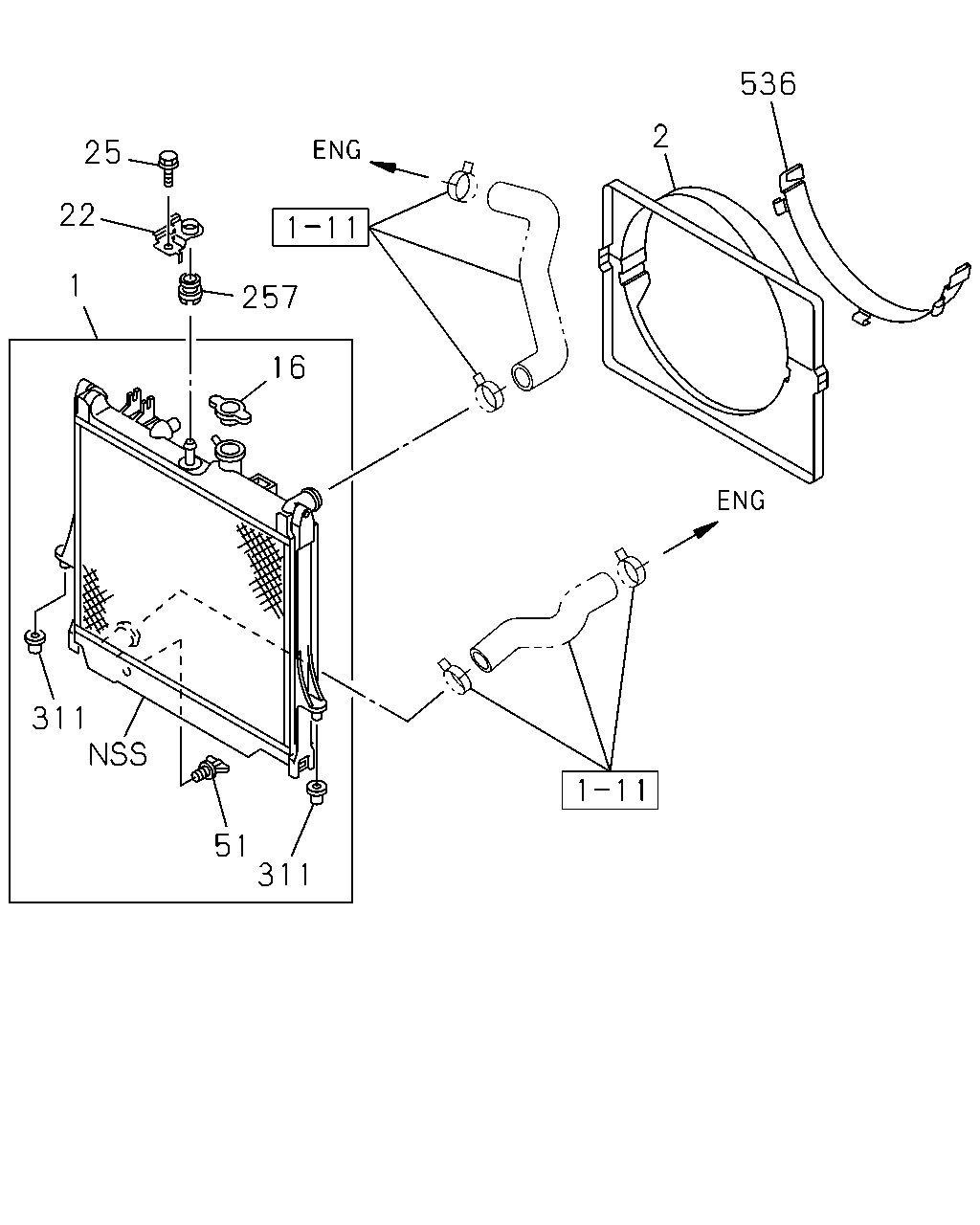

çizim 85511
536 2 25 22 1 257 16 311 51 311
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-98047-678-0 01 1 0810-1002 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-98164-746-0 01 1 1003- ●
1 01.219 RADIATOR ASM
A/T 4 SPEED-JATCO(RMK) 		8-98047-677-0 01 1 0810-1002 ●
1 01.219 RADIATOR ASM
A/T 4 SPEED-JATCO(RMK) 		8-98164-745-0 01 1 1003- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98047-676-0 01 1 0810-1002 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98164-751-0 01 1 1003- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98047-680-0 01 1 0810-1002 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98164-753-0 01 1 1003-1003 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-98164-753-0 01 1 1004-1007 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98164-753-0 01 1 1008- ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98047-674-0 01 1 0808-0809 ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98047-674-0 01 1 0810-1002 ● ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98164-748-0 01 1 1003-1007 ● ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98164-748-0 01 1 1008- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-98164-748-0 01 1 1008- ● ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-98047-679-0 01 1 0808-1002 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-98164-747-0 01 1 1003- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97333-348-1 01 1 0810- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97357-909-0 01 1 0810-1003 ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-97357-909-0 01 1 1004-1007 ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97357-909-0 01 1 1008- ●
2 01.277 GUIDE; FAN 8-97371-447-2 01 1 0808-0809 ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97371-447-2 01 1 0810-1007 ● ● ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97371-447-2 01 1 1008- ● ● ● ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 0808-0809 ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 0810-1007 ● ● ● ● ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 1008- ● ● ● ● ● ●
22 01.270 BRACKET; RAD MTG 8-97941-547-0 01 1 0808-0809 ●
22 01.270 BRACKET; RAD MTG 8-97941-547-0 01 1 0810-1007 ● ● ● ● ●
22 01.270 BRACKET; RAD MTG 8-97941-547-0 01 1 1008- ● ● ● ● ● ●
25 01.271 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0808-0809 ●
25 01.271 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0810-1007 ● ● ● ● ●
25 01.271 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0808-0809 ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0810-1007 ● ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1008- ● ● ● ● ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 01 1 0808-0809 ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 01 1 0810-1007 ● ● ● ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 01 1 1008- ● ● ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 0808-0809 ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 0810-1007 ● ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 1008- ● ● ● ● ● ●
536 01.020 SHROUD; FAN 8-97941-533-0 01 1 0810- ●
536 01.020 SHROUD; FAN 8-97941-531-0 01 1 0810- ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 0808-0809 ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 0810-1007 ● ● ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 1008- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
