Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#7697) — 418 parça

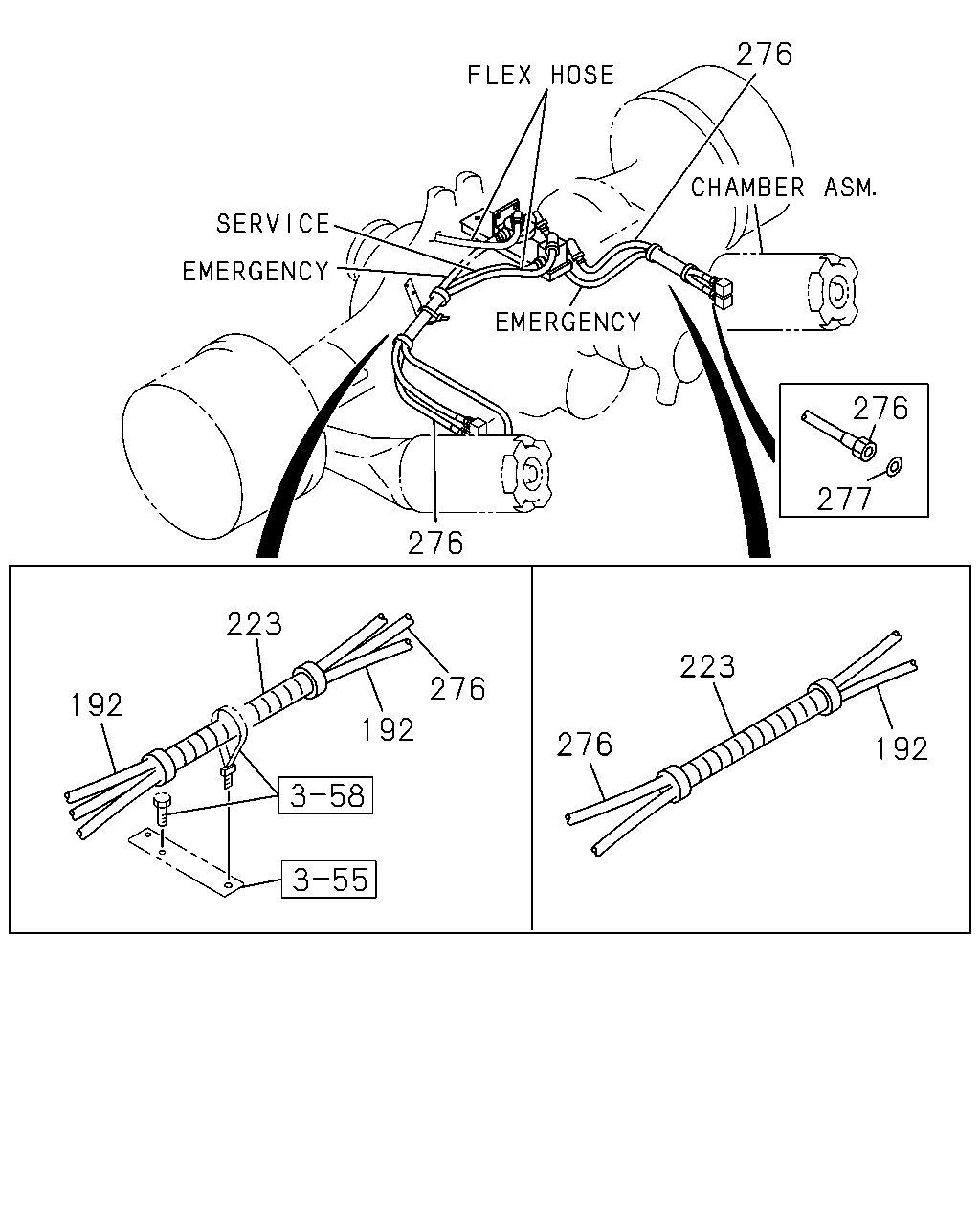

276 276 277 276 223 223 276 192 192 276 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0004-	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003		●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9905-0003		●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9905-0003		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0004-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9902-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9902-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9905-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE CAB UP +110MM<TGG> PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> SERVICED BY L=4000 ID=22	1-87410-097-0	01	1	9905-		●
276	HOSE; SERVO BRAKE SYSTEM RETARDER<RE2> L=490	0-07846-490-1	01	1	9902-0003		●
276	HOSE; SERVO BRAKE SYSTEM RETARDER<RE2> L=490	0-07846-490-1	01	1	0004-	●	●
276	HOSE; SERVO BRAKE SYSTEM RETARDER<RE2>	0-07846-750-1	01	1	9902-9904		●
276	HOSE; SERVO BRAKE SYSTEM RETARDER<RE2> L=770	0-07846-770-1	01	1	9905-0003		●
276	HOSE; SERVO BRAKE SYSTEM RETARDER<RE2> L=770	0-07846-770-1	01	1	0004-	●	●
277	GASKET; HOSE SERVO BRAKE SYSTEM RETARDER<RE2> ID=11 OD=18	9-09572-510-0	04	1	9902-0003		●
277	GASKET; HOSE SERVO BRAKE SYSTEM RETARDER<RE2> ID=11 OD=18	9-09572-510-0	04	1	0004-	●	●

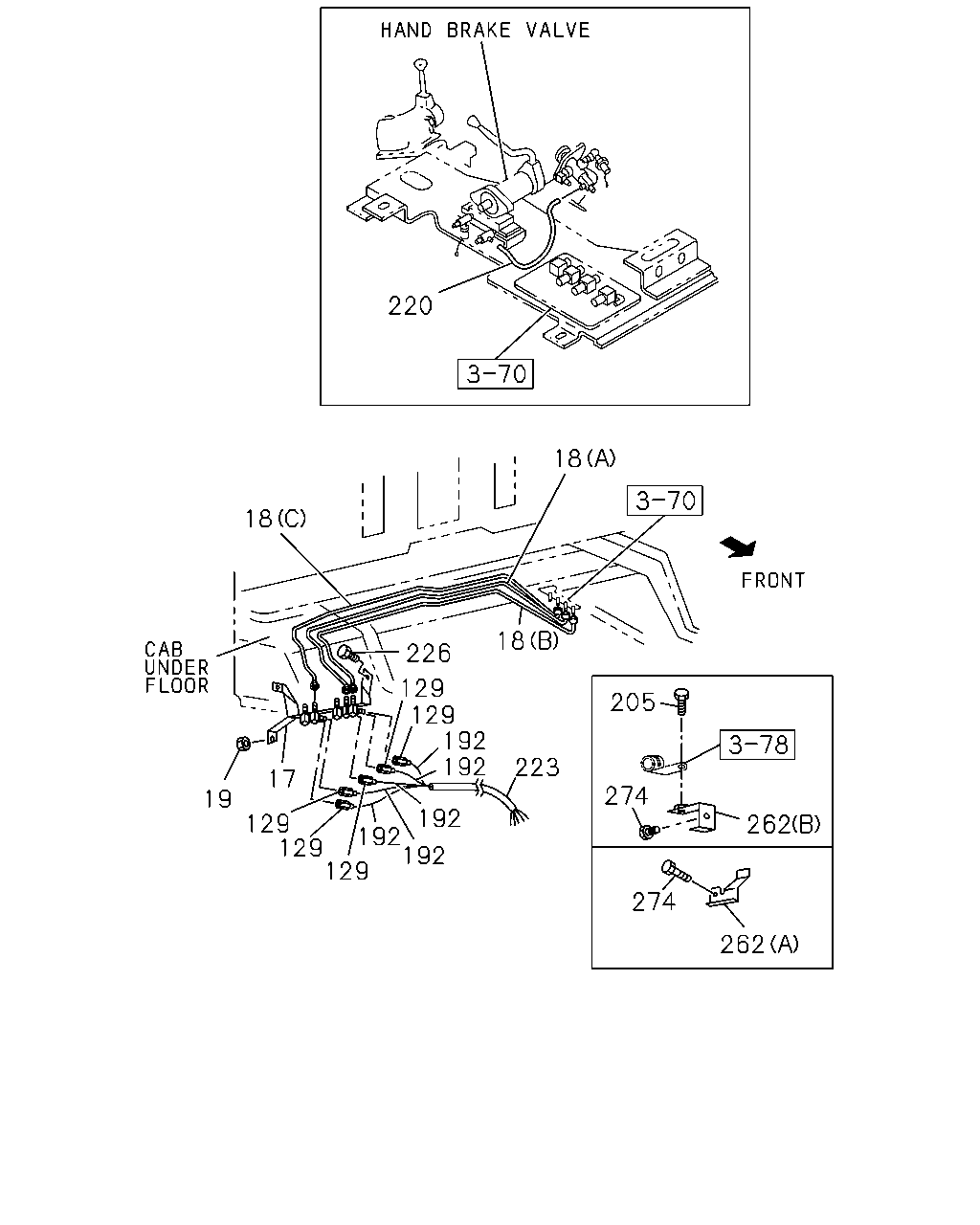

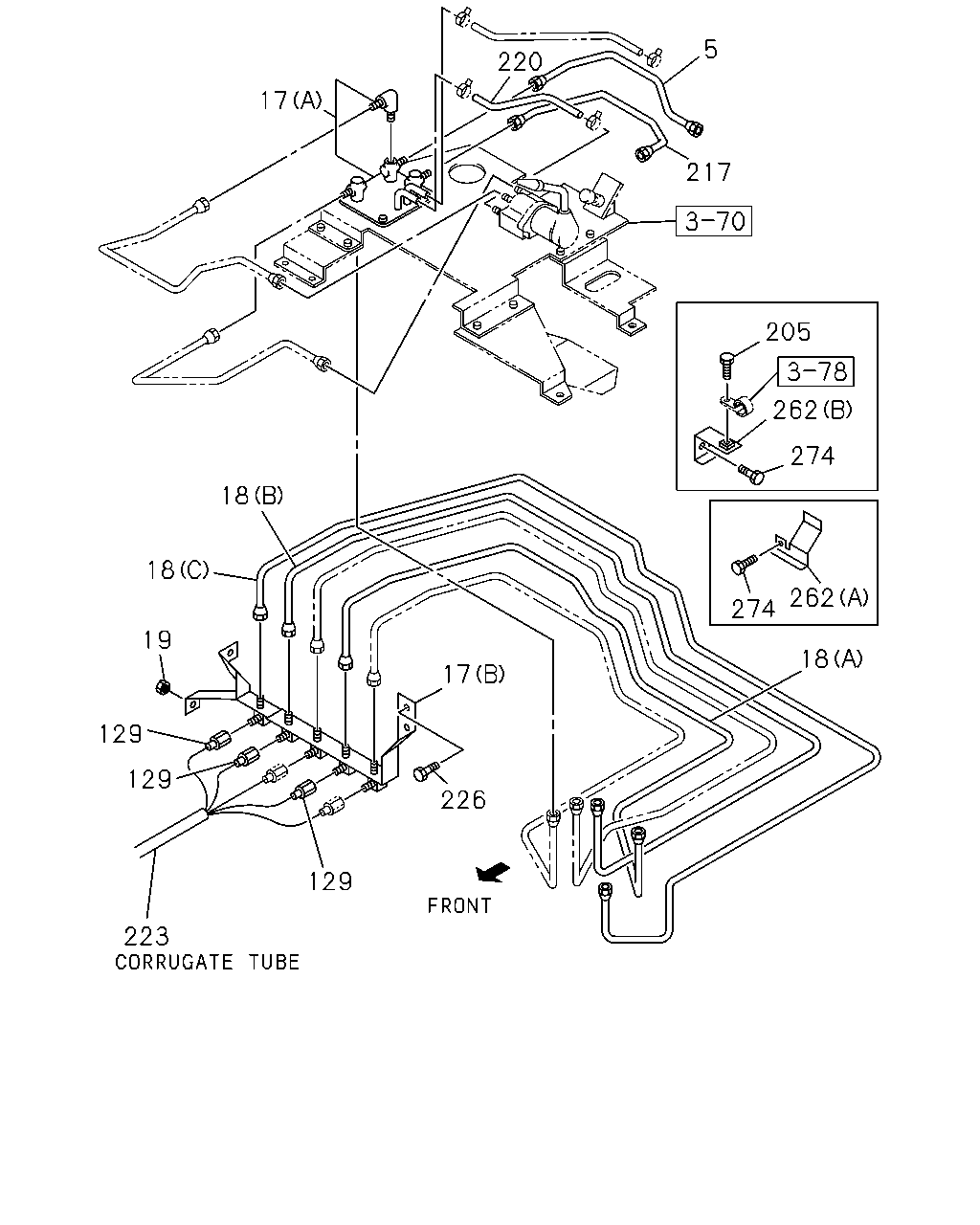

220 18 18 18 226 129 129 192 192 205 223 17 274 19 192 129 129 129 262 192 192 274 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> (A)	1-47470-557-0	01	1	9902-		●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> (B)	1-47470-558-0	01	1	9902-		●
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-443-2	01	1	9905-		●
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-469-3	01	1	9905-		●
17	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-490-2	01	1	9905-		●
17	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-493-1	01	1	9905-		●
17	UNION; AIR PIPE	1-47470-453-2	01	1	0004-	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=2332 SERVICED BY L=2400	1-47426-395-0	01	1	9902-		●
18	PIPE; AIR,UNION TO UNION TRAILER BRAKE CONTROL<J91> (A) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION TRAILER BRAKE CONTROL<J91> (B) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION (A) L=1800	1-49121-052-0	01	1	0004-	●
18	PIPE; AIR,UNION TO UNION (B) L=1854	1-49121-053-0	01	1	0004-	●
18	PIPE; AIR,UNION TO UNION (C) L=1982	1-49121-055-1	01	1	0004-	●
19	NUT; PIPE UNION M8 FLANGE	0-91150-108-0	02	1	9902-		●
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	9902-0003		●
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	0004-	●	●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9902-0007		●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-		●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0003		●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0004-0007	●	●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0004-0007	●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9902-0007		●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0008-		●
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0008-	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9912-0007		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9905-0007		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0003		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	0004-0007		●
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	0004-0007	●
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	0004-0007	●
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0004-	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003		●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9905-0003		●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9905-0003		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0004-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0004-	●	●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9902-		●
205	BOLT; TUBE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9902-		●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0004-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV TRAILER BRAKE CONTROL<J91> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9905-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0004-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9902-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9902-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9905-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE CAB UP +110MM<TGG> PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> SERVICED BY L=4000 ID=22	1-87410-097-0	01	1	9905-		●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-		●
226	BOLT; UNION EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9902-9907		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9908-0003		●
226	BOLT; UNION WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9908-0003		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	0004-		●
226	BOLT; UNION WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	0004-		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) M8X20 FLANGE	0-28080-820-0	01	1	0004-	●
226	BOLT; UNION WHEEL BASE 3500MM(35W) M8X20 FLANGE	0-28680-820-0	01	1	9902-		●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0004-	●
262	BRACKET (B)	1-79996-143-0	01	1	9902-0003		●
262	BRACKET (B)	1-79996-143-0	01	1	0004-	●	●
262	BRACKET (A)	1-79996-258-1	01	1	9902-		●
262	BRACKET ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47478-212-0	01	1	9906-		●
262	BRACKET (A)	1-79996-144-0	01	1	0004-	●
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9902-0003		●
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0004-	●	●
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	9902-0003		●
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	0004-	●	●

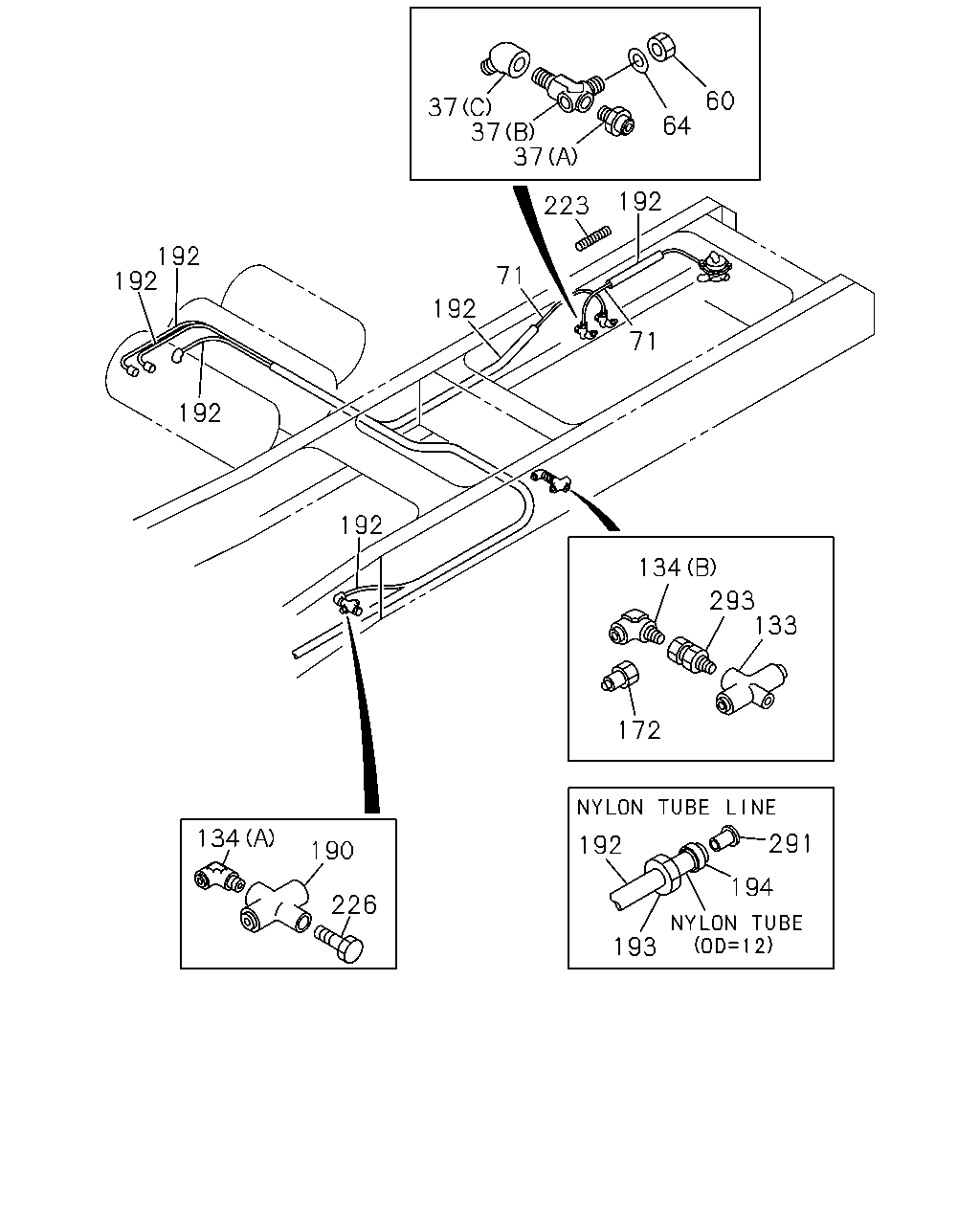

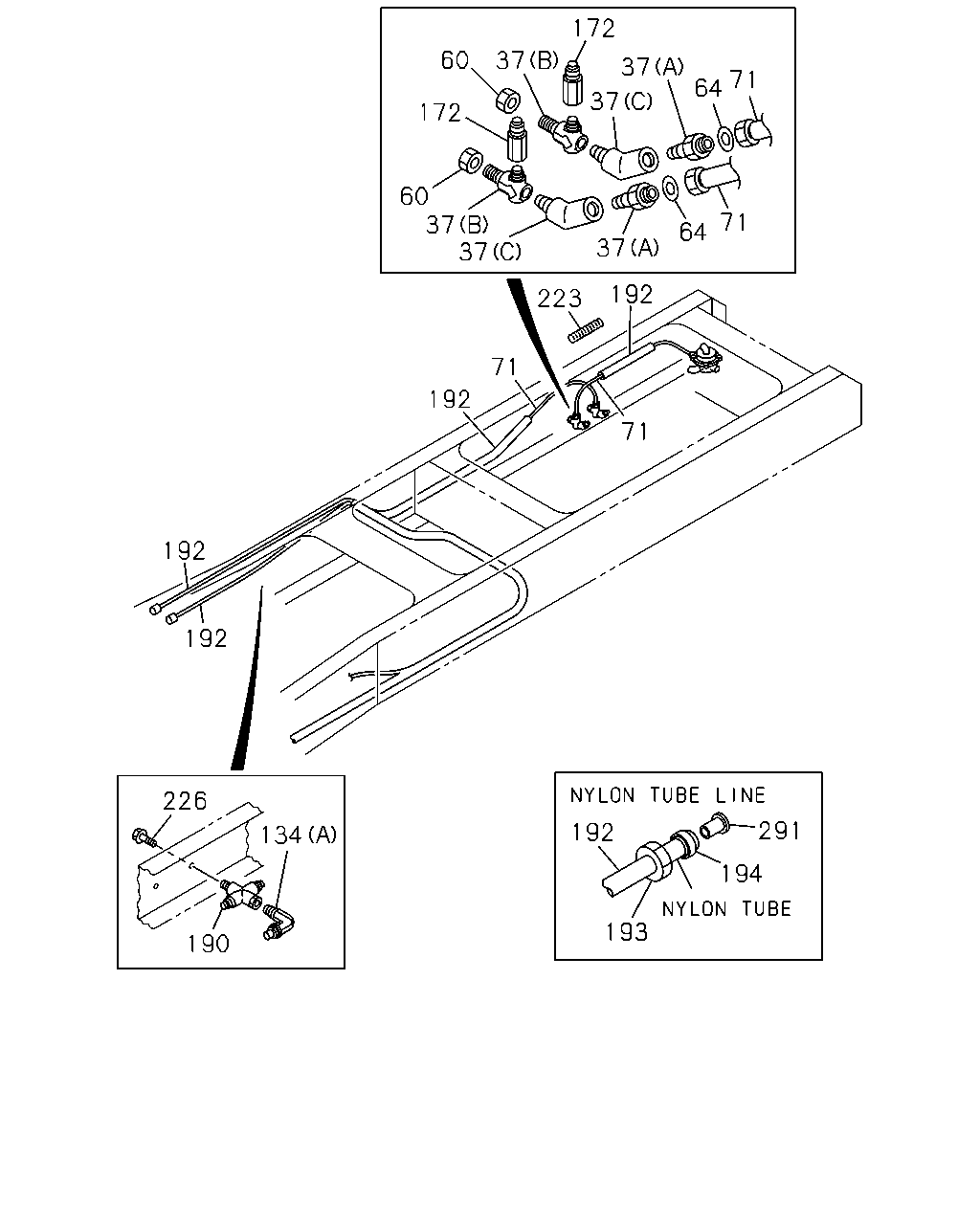

60 37 37 37 64 192 223 192 192 71 192 71 192 192 134 293 133 172 134 291 192 190 194 226 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9902-9905		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9906-0003		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	0004-		●
37	UNION; AIR PIPE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	0004-	●
37	UNION; AIR PIPE (B)	1-09650-251-1	02	1	9902-9905		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-09650-251-1	02	1	9906-0003		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-09650-251-1	02	1	0004-		●
37	UNION; AIR PIPE (B)	1-09650-251-1	02	1	0004-	●
37	UNION; AIR PIPE (C)	1-09664-209-0	02	1	9902-9905		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09664-209-0	02	1	9906-0003		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09664-209-0	02	1	0004-		●
37	UNION; AIR PIPE (C)	1-09664-209-0	02	1	0004-	●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	02	1	9902-9905		●
60	NUT; NIPPLE,AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) M20	9-99111-420-0	02	1	9906-0003		●
60	NUT; NIPPLE,AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) M20	9-99111-420-0	02	1	0004-		●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	02	1	0004-	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	9902-9905		●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	9902-9905		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	9906-0003		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	9906-0003		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	0004-		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	0004-		●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	0004-	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	0004-	●
64	GASKET; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	02	1	9906-		●
64	GASKET; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	04	1	9906-		●
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	02	1	9902-9904		●
71	HOSE; FLEX,RWD RR EXC. DUMP TRUCK<RA1> L=550	0-07909-550-0	02	1	9905-9905		●
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),DUMP TRUCK<RA1> L=550	0-07909-550-0	02	1	9906-0003		●
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),DUMP TRUCK<RA1> L=550	0-07909-550-0	02	1	0004-		●
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	02	1	0004-	●
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=630	0-07847-630-1	01	1	9906-		●
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=680	0-07847-680-1	02	1	9906-		●
71	HOSE; FLEX,RWD RR DUMP TRUCK<RA1> L=580	0-07909-580-0	02	1	9905-9905		●
71	HOSE; FLEX,RWD RR DUMP TRUCK<RA1> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=580	0-07909-580-0	02	1	9906-		●
133	UNION; NIPPLE WHEEL BASE 3500MM(35W) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9902-		●
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007		●
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-		●
134	CONNECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9907		●
134	CONNECTOR WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-0003		●
134	CONNECTOR WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-0003		●
134	CONNECTOR WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
134	CONNECTOR WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
134	CONNECTOR WHEEL BASE 3200MM(32W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-	●
134	CONNECTOR WHEEL BASE 3500MM(35W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-		●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9902-9905		●
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9906-0003		●
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0004-0007		●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0004-0007	●
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-		●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●
190	UNION; 3 WAY EXC. SILENCER SINGLE VERTICAL<N28> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9902-9907		●
190	UNION; 3 WAY WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9908-0003		●
190	UNION; 3 WAY WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9908-0003		●
190	UNION; 3 WAY WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0004-		●
190	UNION; 3 WAY WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0004-		●
190	UNION; 3 WAY WHEEL BASE 3200MM(32W) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0004-	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0004-	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003		●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9905-0003		●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9905-0003		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0004-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0004-	●	●
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	9902-0003		●
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	0004-		●
193	NUT; SLEEVE M18	1-09660-213-0	01	1	0004-	●
194	SLEEVE; TUBE BRAKE SYSTEM RETARDER<RE2> ID=23 OD=27 L=40	1-09337-015-0	03	1	9902-0003		●
194	SLEEVE; TUBE BRAKE SYSTEM RETARDER<RE2> ID=23 OD=27 L=40	1-09337-015-0	03	1	0004-	●	●
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9902-0003		●
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0004-		●
194	SLEEVE; TUBE ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0004-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9902-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9902-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9905-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE CAB UP +110MM<TGG> PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> SERVICED BY L=4000 ID=22	1-87410-097-0	01	1	9905-		●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-		●
226	BOLT; UNION EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9902-9907		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9908-0003		●
226	BOLT; UNION WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9908-0003		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	0004-		●
226	BOLT; UNION WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	0004-		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) M8X20 FLANGE	0-28080-820-0	01	1	0004-	●
226	BOLT; UNION WHEEL BASE 3500MM(35W) M8X20 FLANGE	0-28680-820-0	01	1	9902-		●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0004-	●
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	9902-0003		●
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0004-		●
291	INSERT ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0004-	●
293	VALVE; CHECK WHEEL BASE 3500MM(35W)	1-48320-013-2	01	1	9902-		●

5 220 17 217 205 262 274 18 18 262 274 19 18 17 129 129 226 129 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-638-1	01	1	9905-		●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> (A)	1-47470-557-0	01	1	9902-		●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> (B)	1-47470-558-0	01	1	9902-		●
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-443-2	01	1	9905-		●
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-469-3	01	1	9905-		●
17	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-490-2	01	1	9905-		●
17	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-493-1	01	1	9905-		●
17	UNION; AIR PIPE	1-47470-453-2	01	1	0004-	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=2332 SERVICED BY L=2400	1-47426-395-0	01	1	9902-		●
18	PIPE; AIR,UNION TO UNION TRAILER BRAKE CONTROL<J91> (A) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION TRAILER BRAKE CONTROL<J91> (B) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION (A) L=1800	1-49121-052-0	01	1	0004-	●
18	PIPE; AIR,UNION TO UNION (B) L=1854	1-49121-053-0	01	1	0004-	●
18	PIPE; AIR,UNION TO UNION (C) L=1982	1-49121-055-1	01	1	0004-	●
19	NUT; PIPE UNION M8 FLANGE	0-91150-108-0	02	1	9902-		●
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	9902-0003		●
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	0004-	●	●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9902-0007		●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-		●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0003		●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0004-0007	●	●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0004-0007	●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9902-0007		●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0008-		●
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0008-	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9912-0007		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9905-0007		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0003		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	0004-0007		●
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	0004-0007	●
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	0004-0007	●
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-	●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9902-		●
205	BOLT; TUBE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9902-		●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0004-	●
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-639-0	01	1	9905-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV TRAILER BRAKE CONTROL<J91> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9905-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0004-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9902-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9902-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9905-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE CAB UP +110MM<TGG> PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> SERVICED BY L=4000 ID=22	1-87410-097-0	01	1	9905-		●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-		●
226	BOLT; UNION EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9902-9907		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9908-0003		●
226	BOLT; UNION WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9908-0003		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	0004-		●
226	BOLT; UNION WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	0004-		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) M8X20 FLANGE	0-28080-820-0	01	1	0004-	●
226	BOLT; UNION WHEEL BASE 3500MM(35W) M8X20 FLANGE	0-28680-820-0	01	1	9902-		●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0004-	●
262	BRACKET (B)	1-79996-143-0	01	1	9902-0003		●
262	BRACKET (B)	1-79996-143-0	01	1	0004-	●	●
262	BRACKET (A)	1-79996-258-1	01	1	9902-		●
262	BRACKET ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47478-212-0	01	1	9906-		●
262	BRACKET (A)	1-79996-144-0	01	1	0004-	●
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9902-0003		●
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0004-	●	●
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	9902-0003		●
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	0004-	●	●

172 60 37 37 71 64 37 172 60 37 37 71 64 37 192 223 71 192 71 192 192 226 291 192 134 194 193 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9902-9905		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9906-0003		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	0004-		●
37	UNION; AIR PIPE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	0004-	●
37	UNION; AIR PIPE (B)	1-09650-251-1	02	1	9902-9905		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-09650-251-1	02	1	9906-0003		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-09650-251-1	02	1	0004-		●
37	UNION; AIR PIPE (B)	1-09650-251-1	02	1	0004-	●
37	UNION; AIR PIPE (C)	1-09664-209-0	02	1	9902-9905		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09664-209-0	02	1	9906-0003		●
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09664-209-0	02	1	0004-		●
37	UNION; AIR PIPE (C)	1-09664-209-0	02	1	0004-	●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	02	1	9902-9905		●
60	NUT; NIPPLE,AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) M20	9-99111-420-0	02	1	9906-0003		●
60	NUT; NIPPLE,AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) M20	9-99111-420-0	02	1	0004-		●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	02	1	0004-	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	9902-9905		●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	9902-9905		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	9906-0003		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	9906-0003		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	0004-		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	0004-		●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	0004-	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	0004-	●
64	GASKET; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	02	1	9906-		●
64	GASKET; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	04	1	9906-		●
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	02	1	9902-9904		●
71	HOSE; FLEX,RWD RR EXC. DUMP TRUCK<RA1> L=550	0-07909-550-0	02	1	9905-9905		●
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),DUMP TRUCK<RA1> L=550	0-07909-550-0	02	1	9906-0003		●
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),DUMP TRUCK<RA1> L=550	0-07909-550-0	02	1	0004-		●
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	02	1	0004-	●
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=630	0-07847-630-1	01	1	9906-		●
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=680	0-07847-680-1	02	1	9906-		●
71	HOSE; FLEX,RWD RR DUMP TRUCK<RA1> L=580	0-07909-580-0	02	1	9905-9905		●
71	HOSE; FLEX,RWD RR DUMP TRUCK<RA1> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=580	0-07909-580-0	02	1	9906-		●
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007		●
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-		●
134	CONNECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9907		●
134	CONNECTOR WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-0003		●
134	CONNECTOR WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-0003		●
134	CONNECTOR WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
134	CONNECTOR WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
134	CONNECTOR WHEEL BASE 3200MM(32W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-	●
134	CONNECTOR WHEEL BASE 3500MM(35W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-		●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9902-9905		●
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9906-0003		●
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0004-0007		●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0004-0007	●
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-		●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●
190	UNION; 3 WAY EXC. SILENCER SINGLE VERTICAL<N28> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9902-9907		●
190	UNION; 3 WAY WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9908-0003		●
190	UNION; 3 WAY WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9908-0003		●
190	UNION; 3 WAY WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0004-		●
190	UNION; 3 WAY WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0004-		●
190	UNION; 3 WAY WHEEL BASE 3200MM(32W) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0004-	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0004-	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003		●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9905-0003		●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9905-0003		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0004-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0004-	●	●
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	9902-0003		●
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	0004-		●
193	NUT; SLEEVE M18	1-09660-213-0	01	1	0004-	●
194	SLEEVE; TUBE BRAKE SYSTEM RETARDER<RE2> ID=23 OD=27 L=40	1-09337-015-0	03	1	9902-0003		●
194	SLEEVE; TUBE BRAKE SYSTEM RETARDER<RE2> ID=23 OD=27 L=40	1-09337-015-0	03	1	0004-	●	●
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9902-0003		●
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0004-		●
194	SLEEVE; TUBE ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0004-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9902-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9902-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9902-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9905-0003		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0004-	●	●
223	TUBE; CORRUGATE CAB UP +110MM<TGG> PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> SERVICED BY L=4000 ID=22	1-87410-097-0	01	1	9905-		●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-		●
226	BOLT; UNION EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9902-9907		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9908-0003		●
226	BOLT; UNION WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	9908-0003		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	0004-		●
226	BOLT; UNION WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28080-820-0	01	1	0004-		●
226	BOLT; UNION WHEEL BASE 3200MM(32W) M8X20 FLANGE	0-28080-820-0	01	1	0004-	●
226	BOLT; UNION WHEEL BASE 3500MM(35W) M8X20 FLANGE	0-28680-820-0	01	1	9902-		●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0004-	●
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	9902-0003		●
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0004-		●
291	INSERT ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0004-	●

50 50 79 90 46 10 10 67 46 71 71 64 64 64 71 100 262 175 134 330 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	CONNECTOR; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA)	1-09650-360-1	02	1	9906-		●
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9906-0007		●
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-		●
50	NUT; UNION BRKT ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE	0-91150-114-0	02	1	9906-		●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	9902-9905		●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	9902-9905		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	9906-0003		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	9906-0003		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	0004-		●
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	02	1	0004-		●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	0004-	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	0004-	●
64	GASKET; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	02	1	9906-		●
64	GASKET; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	04	1	9906-		●
67	NUT; HOSE BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	9906-		●
67	NUT; HOSE BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	9906-		●
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	02	1	9902-9904		●
71	HOSE; FLEX,RWD RR EXC. DUMP TRUCK<RA1> L=550	0-07909-550-0	02	1	9905-9905		●
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),DUMP TRUCK<RA1> L=550	0-07909-550-0	02	1	9906-0003		●
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),DUMP TRUCK<RA1> L=550	0-07909-550-0	02	1	0004-		●
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	02	1	0004-	●
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=630	0-07847-630-1	01	1	9906-		●
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=680	0-07847-680-1	02	1	9906-		●
71	HOSE; FLEX,RWD RR DUMP TRUCK<RA1> L=580	0-07909-580-0	02	1	9905-9905		●
71	HOSE; FLEX,RWD RR DUMP TRUCK<RA1> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=580	0-07909-580-0	02	1	9906-		●
79	BOLT; HOSE BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28680-825-0	02	1	9906-		●
90	BRACKET; PIPE UNION ANTILOCK BRAKE SYSTEM(BFA)	1-47475-611-4	01	1	9906-		●
100	NUT; UNION ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE	0-91150-114-0	01	1	9906-		●
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007		●
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-		●
134	CONNECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9907		●
134	CONNECTOR WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-0003		●
134	CONNECTOR WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-0003		●
134	CONNECTOR WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
134	CONNECTOR WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
134	CONNECTOR WHEEL BASE 3200MM(32W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-	●
134	CONNECTOR WHEEL BASE 3500MM(35W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-		●
175	BOLT; HOSE BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28680-825-0	02	1	9906-		●
262	BRACKET (B)	1-79996-143-0	01	1	9902-0003		●
262	BRACKET (B)	1-79996-143-0	01	1	0004-	●	●
262	BRACKET (A)	1-79996-258-1	01	1	9902-		●
262	BRACKET ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47478-212-0	01	1	9906-		●
262	BRACKET (A)	1-79996-144-0	01	1	0004-	●
330	UNION; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA)	1-09650-360-1	01	1	9906-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
