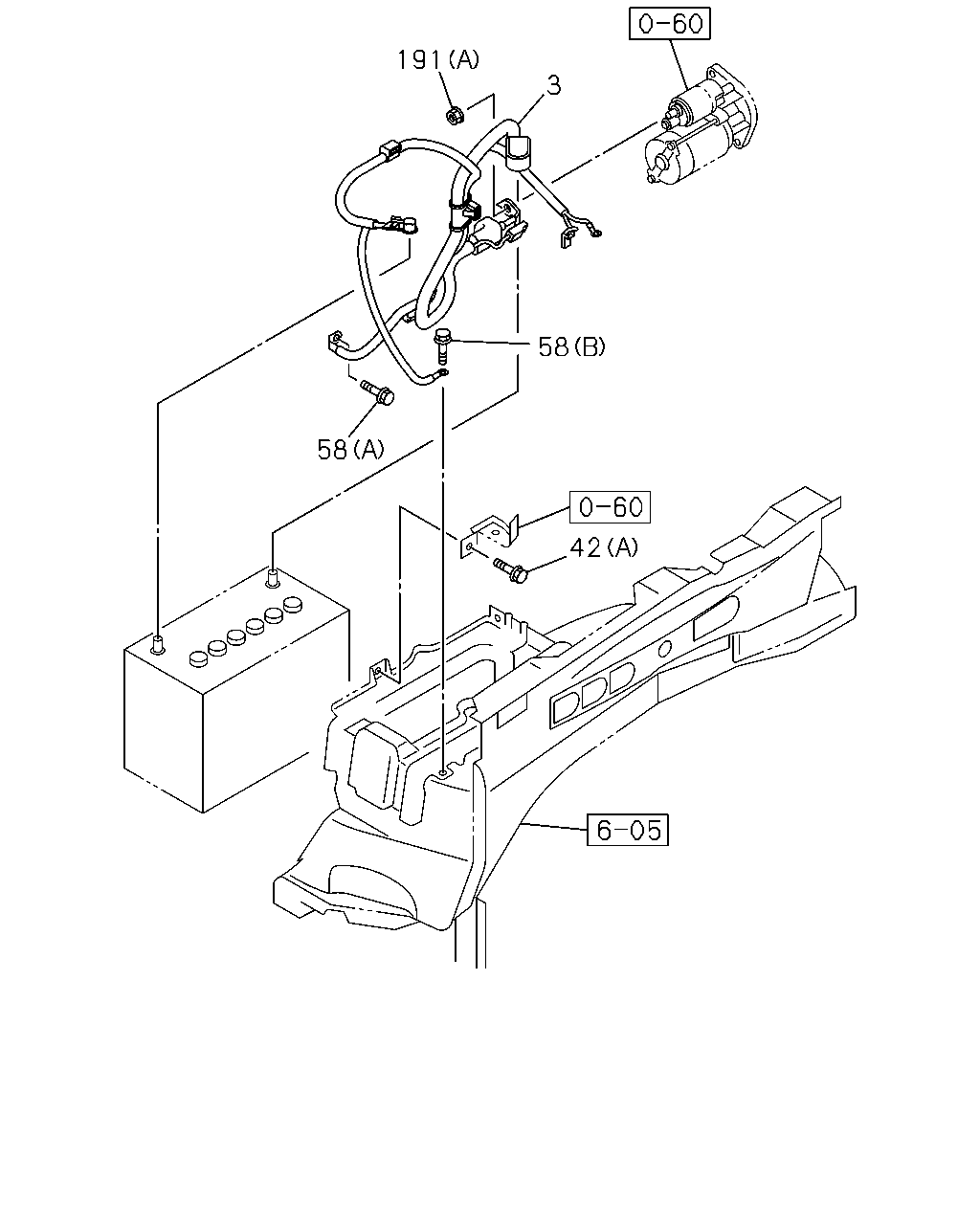

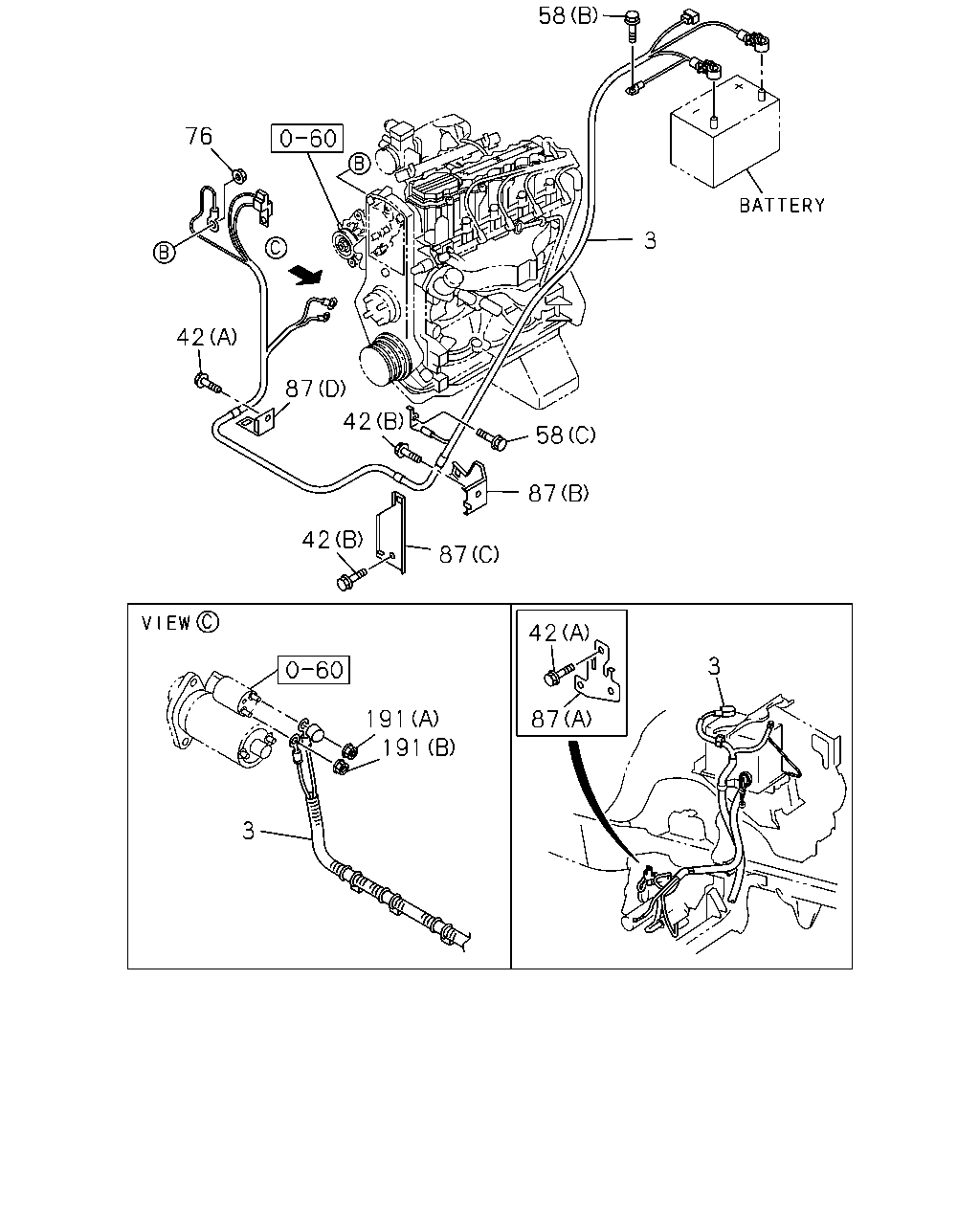

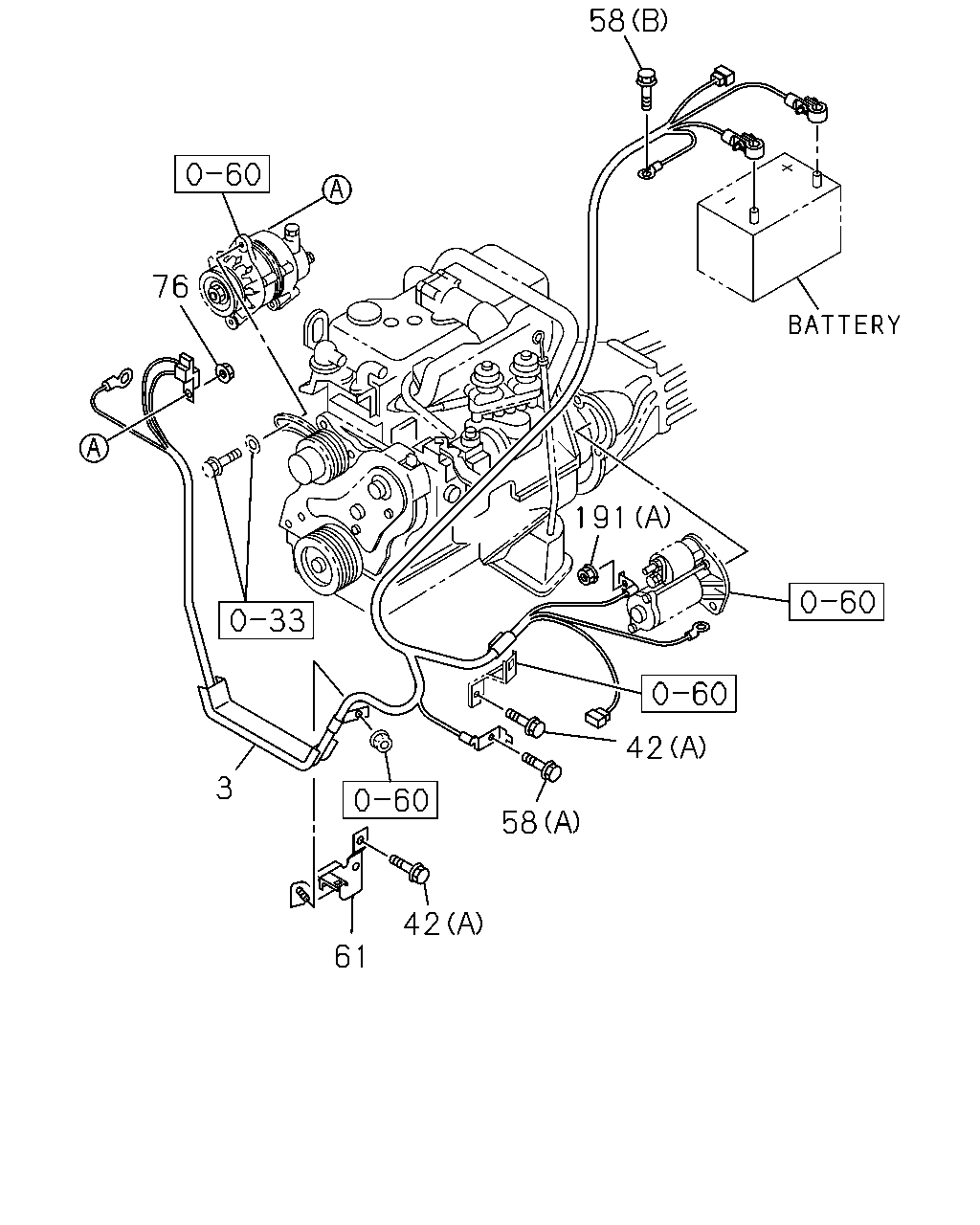

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#76965) — 70 parça

58 76 3 42 87 42 58 87 42 87 42 3 191 191 87 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98005-201-0	01	1	0810-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY<NR4>	8-98005-199-0	01	1	0810-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY<NR4>	8-98005-200-0	01	1	0810-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98007-622-1	01	1	0808-0809			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98007-622-1	01	1	0810-1007			●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98007-622-1	01	1	1008-			●	●	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	02	1	0810-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE (B) M8X12 FLANGE	0-28050-812-0	02	1	0810-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	01	1	0808-0809			●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	01	1	0810-1007			●	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	01	1	1008-			●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (C) M10X20 FLANGE	0-28751-020-0	01	1	0810-		●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	0808-0809			●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	0810-1007	●		●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1008-	●		●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0808-1007	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1008-	●	●	●	●	●	●
76	02.343 NUT; BATTERY CABLE 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-	●	●
87	02.343 BRACKET; HARNESS (C)	8-97236-166-0	01	1	0810-		●
87	02.343 BRACKET; HARNESS (D)	8-97241-141-0	01	1	0810-		●
87	02.343 BRACKET; HARNESS (B)	8-97307-629-0	01	1	0810-		●
87	02.343 BRACKET; HARNESS SHIFT ON THE FLY<NR4> (A)	8-98044-184-0	01	1	0810-		●
191	08.155 NUT; STARTER 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0810-		●
191	08.155 NUT; STARTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0808-0809			●
191	08.155 NUT; STARTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0810-1007	●	●	●	●	●
191	08.155 NUT; STARTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●	●	●	●	●

58 76 191 42 3 58 42 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98005-201-0	01	1	0810-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY<NR4>	8-98005-199-0	01	1	0810-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY<NR4>	8-98005-200-0	01	1	0810-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98007-622-1	01	1	0808-0809			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98007-622-1	01	1	0810-1007			●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98007-622-1	01	1	1008-			●	●	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	02	1	0810-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE (B) M8X12 FLANGE	0-28050-812-0	02	1	0810-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	01	1	0808-0809			●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	01	1	0810-1007			●	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	01	1	1008-			●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (C) M10X20 FLANGE	0-28751-020-0	01	1	0810-		●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	0808-0809			●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	0810-1007	●		●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1008-	●		●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0808-1007	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1008-	●	●	●	●	●	●
61	02.333 BRACKET; BATTERY CABLE	8-97260-935-2	01	1	0810-	●
76	02.343 NUT; BATTERY CABLE 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-	●	●
191	08.155 NUT; STARTER 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0810-		●
191	08.155 NUT; STARTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0808-0809			●
191	08.155 NUT; STARTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0810-1007	●	●	●	●	●
191	08.155 NUT; STARTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●	●	●	●	●

191 3 58 58 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98005-201-0	01	1	0810-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY<NR4>	8-98005-199-0	01	1	0810-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY<NR4>	8-98005-200-0	01	1	0810-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98007-622-1	01	1	0808-0809			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98007-622-1	01	1	0810-1007			●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-98007-622-1	01	1	1008-			●	●	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	02	1	0810-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE (B) M8X12 FLANGE	0-28050-812-0	02	1	0810-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	01	1	0808-0809			●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	01	1	0810-1007			●	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	01	1	1008-			●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (C) M10X20 FLANGE	0-28751-020-0	01	1	0810-		●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	0808-0809			●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	0810-1007	●		●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1008-	●		●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0808-1007	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1008-	●	●	●	●	●	●
191	08.155 NUT; STARTER 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0810-		●
191	08.155 NUT; STARTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0808-0809			●
191	08.155 NUT; STARTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0810-1007	●	●	●	●	●
191	08.155 NUT; STARTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●	●	●	●	●
