◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#76964) — 636 parça

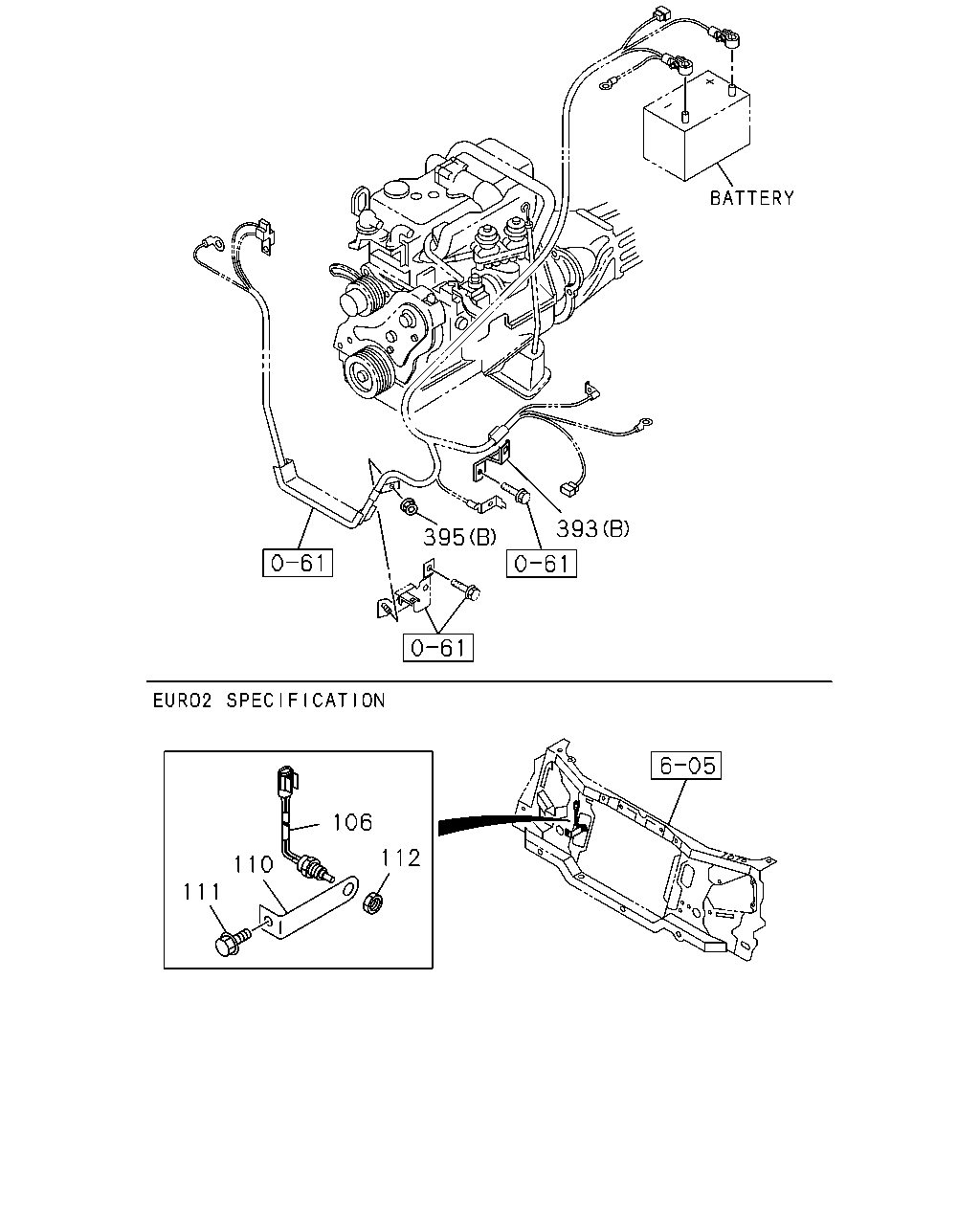

çizim 72642
393 395 106 112 110 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
106 01.150 SWITCH; THERMO,AIR
EURO2 SPECIFICATION<NT2> 		8-97043-749-0 01 1 0810- ●
110 01.251 BRACKET; THERMO SW CONNECTOR
EURO2 SPECIFICATION<NT2> 		8-97351-380-0 01 1 0810- ●
111 01.251 BOLT; SWITCH BRKT
EURO2 SPECIFICATION<NT2> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0810- ●
112 01.251 NUT; SWITCH BRKT
EURO2 SPECIFICATION<NT2> 00.785 M16 		0-91111-516-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-167-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-829-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0808-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0810-1007 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 1008- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0808-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0810-1007 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 1008- ● ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0810- ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0808-0809 ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0810-1007 ● ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●

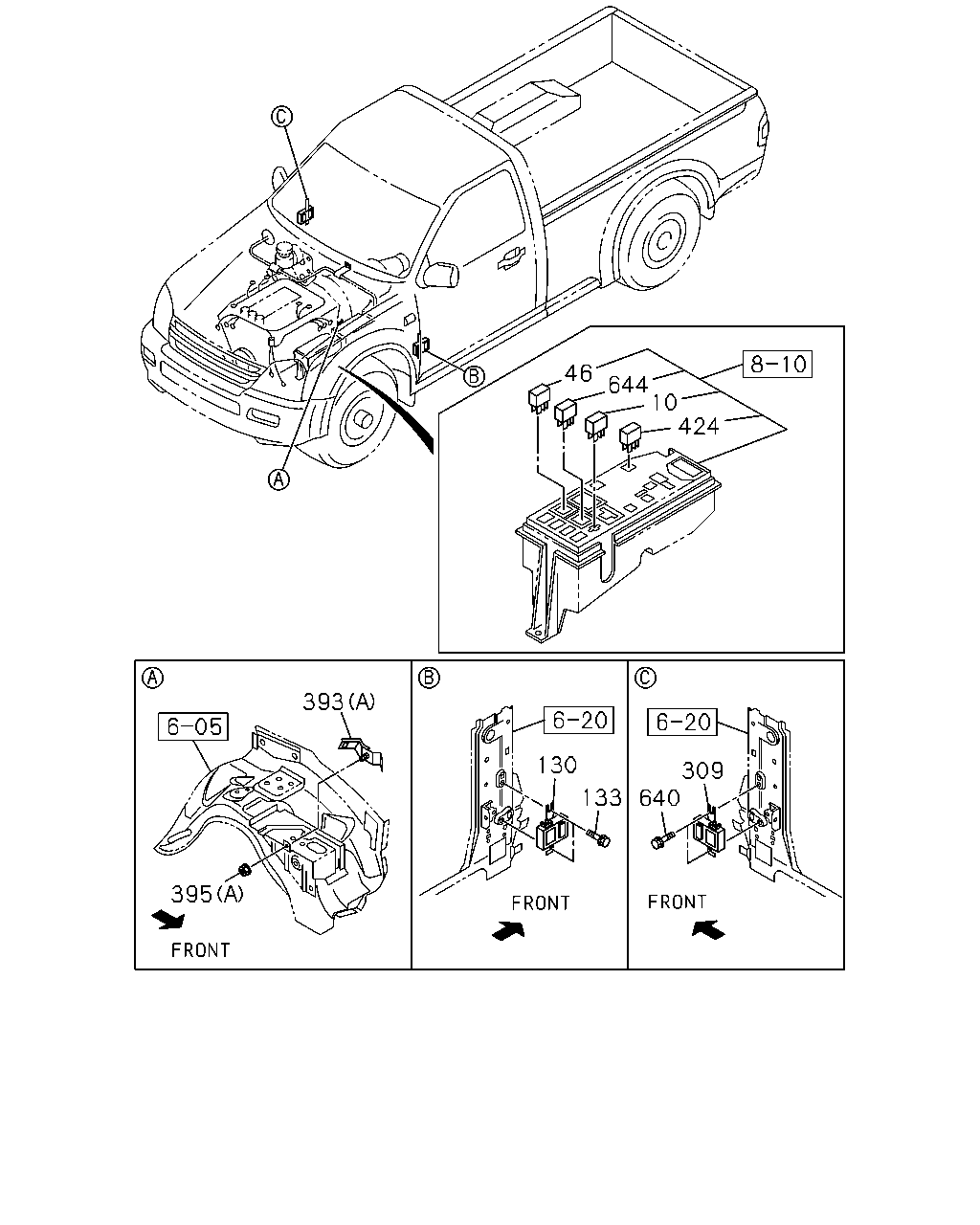

çizim 72704
46 644 10 424 393 130 309 640 133 395
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0911-1007 ● ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 1008- ● ● ● ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0810- ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0808-0809 ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0810-0910 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 0911-1007 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 1008- ● ● ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0808-0809 ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0810-0910 ● ● ● ●
130 02.510 CONTROLLER; EGR
EURO2 SPECIFICATION<NT2> 		8-97332-298-1 01 1 0810- ●
133 02.500 BOLT; EGR CONTROLLER
EURO2 SPECIFICATION<NT2> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 0810- ●
309 02.510 TIMER; AFTER GLOW,QOS 8-97361-319-3 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-167-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-829-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0808-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0810-1007 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 1008- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0808-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0810-1007 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 1008- ● ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0810- ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0808-0809 ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0810-1007 ● ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0810- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0808-0809 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0810-1003 ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1004-1007 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1008- ● ● ● ● ●
640 02.510 BOLT; BRKT,QOS GLOW TIMER
09.171 M6X16 FLANGE 		0-28450-616-0 02 1 0810- ●
644 02.510 RELAY; COLD START DEVICE
02.485 12V YAZAKI 		8-97309-292-0 01 1 0810- ●

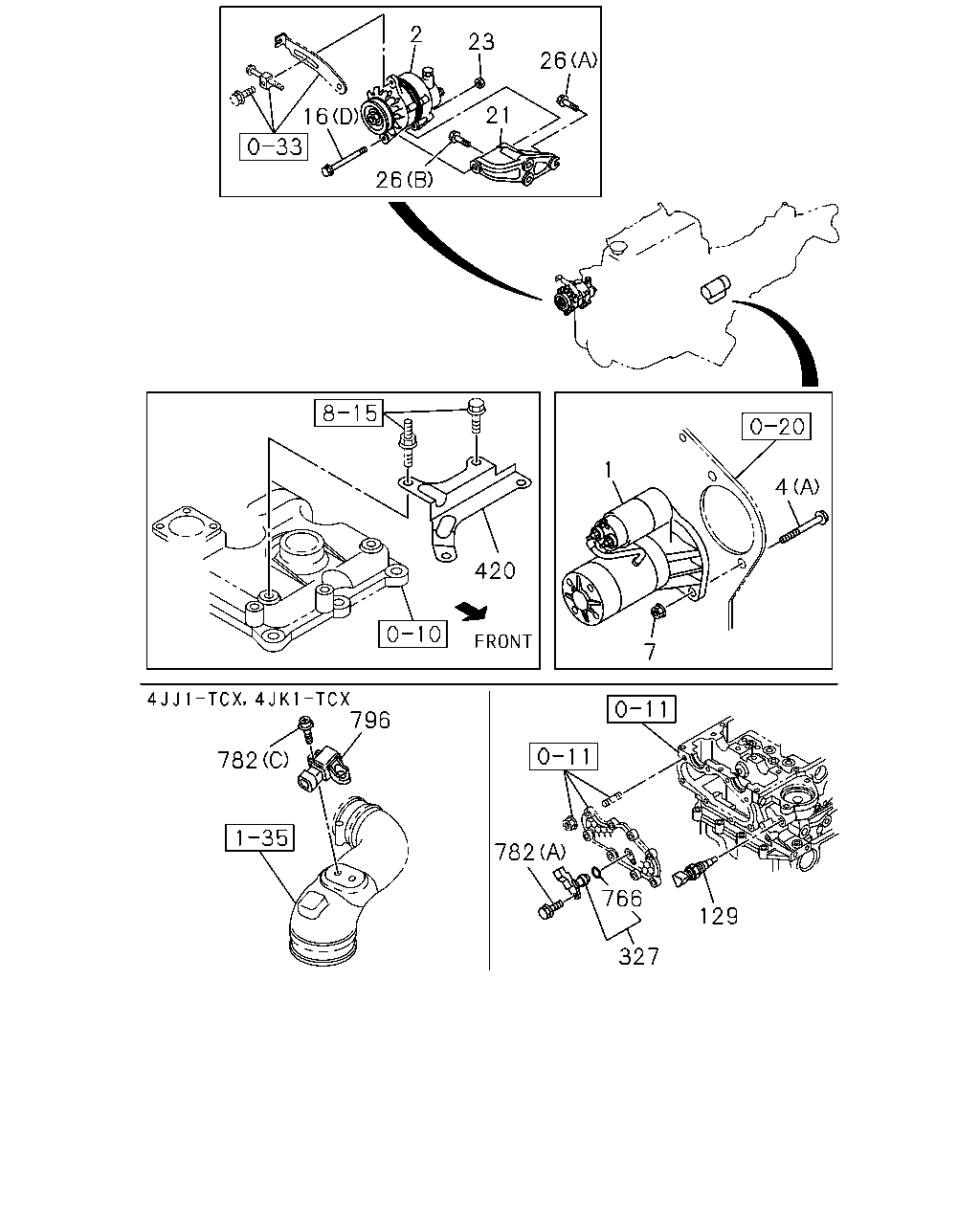

çizim 73061
2 23 26 21 16 26 1 4 420 7 796 782 782 766 129 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0810- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0810-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0808-0809 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0810-1003 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98028-199-0 01 1 1004-1007 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 2.3KW 		8-98028-199-0 01 1 1004-1007 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1008- ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98290-323-0 01 1 1408-1502 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98290-323-0 01 1 1503- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98290-323-0 01 1 1503- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98229-071-0 01 1 1210-1211 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212-1402 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1403-1502 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98229-071-1 01 1 1403-1502 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98196-585-0 01 1 1107-1108 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 90A 		8-98196-585-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1109-1209 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98196-585-0 01 1 1210-1211 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 90A 		8-98196-585-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0810- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0810- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97360-782-1 01 1 0810- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0810-1011 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98153-004-0 01 1 1012-1012 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98153-004-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. MALAYSIA EQUIPMENT(B10),KENYA EQUIPMENT(CL1) 12V 90A 		8-98153-004-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98153-004-0 01 1 1107-1108 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0808-0809 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97369-716-1 01 1 0810-1004 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1005-1007 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1008-1011 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98006-084-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 90A 		8-98006-084-0 01 1 1012-1012 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S (RSQ) KENYA EQUIPMENT(CL1) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0810-1003 ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0810-1003 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1004-1007 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S (RSQ) KENYA EQUIPMENT(CL1) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ● ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ●
4 02.042 BOLT; STARTER
(B) M10X25 FLANGE 		0-28151-025-0 01 1 0810- ●
4 02.042 BOLT; STARTER
(C) 		8-11073-352-0 01 1 0810- ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 0808-0809 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 0810-1007 ● ●
4 02.042 BOLT; STARTER
EXC. KENYA EQUIPMENT(CL1) (A) M12X60 		8-97161-846-1 02 1 0810-1007 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1008-1402 ● ● ●
4 02.042 BOLT; STARTER
EXC. KENYA EQUIPMENT(CL1) (A) M12X60 		8-97161-846-1 02 1 1008-1402 ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M12X60 		8-97161-846-1 02 1 1403- ● ● ●
4 02.042 BOLT; STARTER
EXC. KENYA EQUIPMENT(CL1) (A) M12X60 		8-97161-846-1 02 1 1403- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0810-0905 ● ● ●
7 02.042 NUT; STARTER
EXC. KENYA EQUIPMENT(CL1) M12 FLANGE 		0-91180-112-0 02 1 0810-0905 ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0808-0809 ●
7 02.042 NUT; STARTER
KENYA EQUIPMENT(CL1) M12 FLANGE 		0-91180-112-0 01 1 0810-0905 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0906-1007 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1008- ● ● ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0810- ●
16 02.277 BOLT; GEN
(B) 		8-11098-091-0 01 1 0810- ●
16 02.277 BOLT; GEN
(C) 		8-92138-526-0 01 1 0810- ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 0808-0809 ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 0810-1003 ● ● ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 1004-1007 ● ●
16 02.277 BOLT; GEN
EXC. KENYA EQUIPMENT(CL1) (D) M10X125 FLANGE 		8-97226-470-1 01 1 1004-1007 ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 1008- ● ● ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 0810- ●
21 02.277 BRACKET; GEN 8-97356-020-1 01 1 0808-0809 ●
21 02.277 BRACKET; GEN 8-97356-020-1 01 1 0810-1007 ● ● ●
21 02.277 BRACKET; GEN 8-97356-020-1 01 1 1008- ● ● ● ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0810- ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0808-0809 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0810-1007 ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1008- ● ● ● ● ●
26 02.277 BOLT; GEN BRKT
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0808-0809 ●
26 02.277 BOLT; GEN BRKT
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0810-1007 ● ● ●
26 02.277 BOLT; GEN BRKT
(A) M10X35 FLANGE 		0-28651-035-0 01 1 1008- ● ● ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0808-0809 ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0810-1007 ● ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1008- ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0808-0809 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0810-1007 ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ● ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0808-0809 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0810-1007 ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1008- ● ● ● ●
420 02.183 BRACKET; HARNESS 8-98011-538-0 01 1 0808-0809 ●
420 02.183 BRACKET; HARNESS 8-98011-538-0 01 1 0810-1007 ● ● ●
420 02.183 BRACKET; HARNESS 8-98011-538-0 01 1 1008- ● ● ● ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0810- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0808-0809 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0810-1007 ● ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1008- ● ● ● ●
782 02.510 BOLT; SENSOR
(B) 		8-11093-881-0 01 1 0810- ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0808-0809 ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0810-1007 ● ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 1008- ● ● ● ●
782 02.510 BOLT; SENSOR
(C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0808-0809 ●
782 02.510 BOLT; SENSOR
(C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0810- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0808-0809 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0810- ● ●

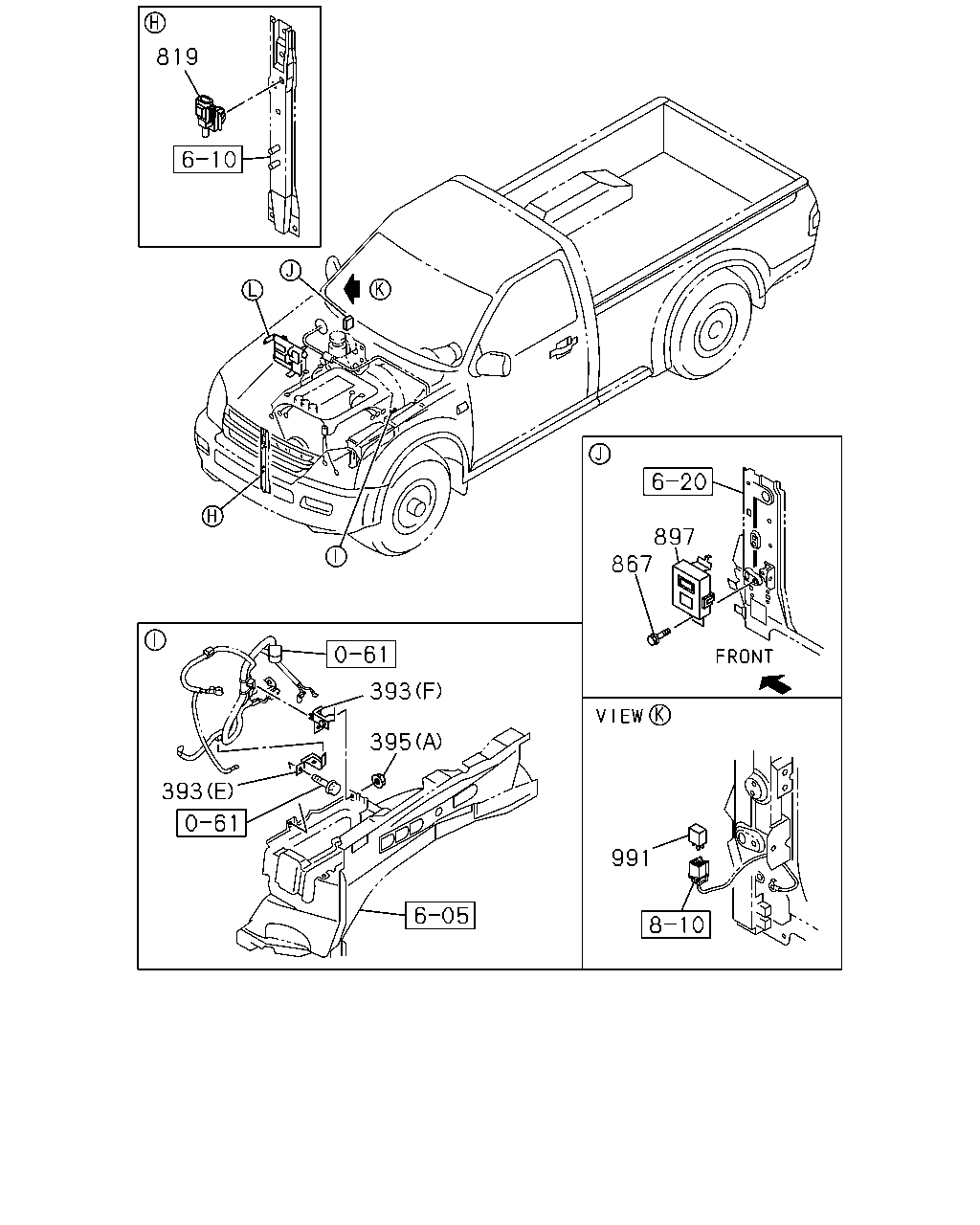

çizim 73062
819 897 867 393 395 393 991
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-167-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-829-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0808-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0810-1007 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 1008- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0808-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0810-1007 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 1008- ● ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0810- ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0808-0809 ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0810-1007 ● ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98008-687-0 01 1 0808-0809 ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98008-687-0 01 1 0810- ● ● ●
867 02.559 BOLT
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION<NT4> ISUZU BRAND<7WL> 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0810- ● ●
897 02.510 DRM
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION<NT4> ISUZU BRAND<7WL> 		8-98090-009-0 01 1 0810-1002 ● ●
897 02.510 DRM
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION<NT4> ISUZU BRAND<7WL> 		8-98166-134-4 01 1 1003- ● ●
991 02.100 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 0808-0809 ●
991 02.100 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 0810-1007 ● ● ●
991 02.100 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 1008- ● ● ● ●

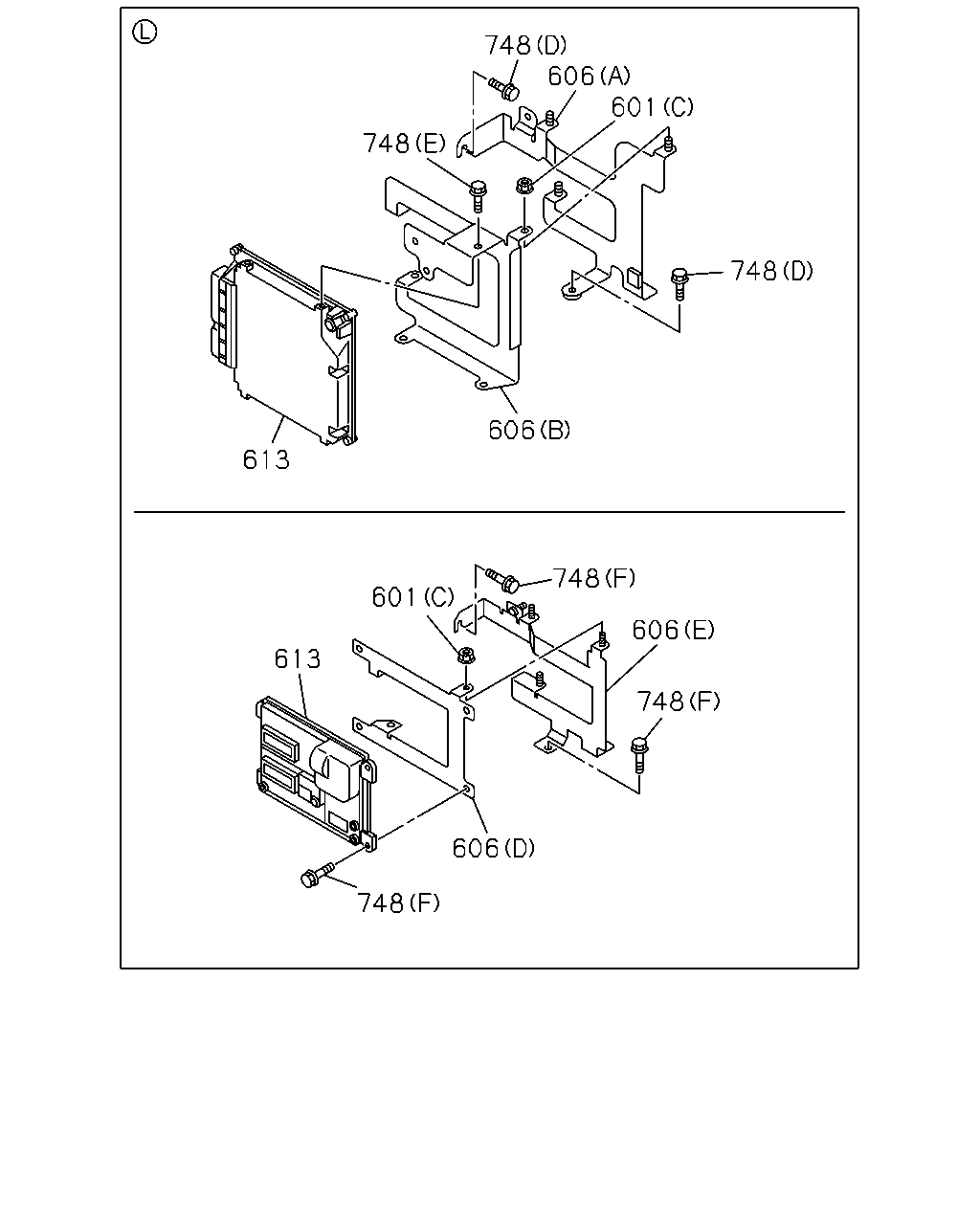

çizim 73216
748 606 601 748 748 606 613 748 601 606 613 748 606 748
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
601 03.670 NUT; UNIT
03.901 (A) 		8-11013-127-0 02 1 0810- ●
601 03.670 NUT; UNIT
EXC. AUSTRALIA EQUIPMENT(B13) 02.042 (B) M6 		8-11094-425-0 04 1 0810- ●
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0808-0809 ●
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0810-1007 ● ● ●
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 1008- ● ● ● ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (D) 		8-97364-729-2 01 1 1110- ● ● ● ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (E) 		8-97364-731-2 01 1 1110- ● ● ● ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-92066-169-0 01 1 0810- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98064-202-0 01 1 0808-0809 ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98064-202-0 01 1 0810-1007 ● ● ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98064-202-0 01 1 1008-1109 ● ● ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (A) 		8-98064-202-0 01 1 1110- ● ● ● ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98113-306-0 01 1 0808-0809 ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98113-306-0 01 1 0810-1007 ● ● ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98113-306-0 01 1 1008-1109 ● ● ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (B) 		8-98113-306-0 01 1 1110- ● ● ● ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98126-978-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98135-370-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98152-106-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-106-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98170-820-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98170-820-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98126-979-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98135-374-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98152-107-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-107-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98170-825-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98170-825-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98126-980-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-981-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-372-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-109-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-823-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-823-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-982-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-376-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-110-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-827-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-827-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. AUSTRALIA EQUIPMENT(B13), IMMOBILIZER SYSTEM<7KC> 		8-09387-539-0 01 1 0810- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-965-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-093-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-145-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-145-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98126-966-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-094-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98160-146-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98160-146-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-951-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-350-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-079-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) MALAYSIA EQUIPMENT(B10) COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-816-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) MALAYSIA EQUIPMENT(B10) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-816-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98126-952-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98135-351-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-080-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-953-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-352-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-081-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98126-954-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98135-353-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-082-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-92187-517-0 01 1 0810-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-955-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-354-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-083-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98126-984-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98135-355-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-112-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-957-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-357-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-085-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-406-3 01 1 0808-0808 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-962-0 01 1 0808-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-962-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-090-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-142-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-142-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> IMMOBILIZER SYSTEM<7KC> 		8-98057-405-3 01 1 0808-0808 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> IMMOBILIZER SYSTEM<7KC> 		8-98126-961-0 01 1 0808-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98126-961-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98152-089-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98160-141-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98160-141-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98057-407-3 01 1 0808-0808 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98126-963-0 01 1 0808-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98126-963-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98152-091-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98160-143-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98160-143-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98057-408-3 01 1 0808-0808 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98126-964-0 01 1 0808-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-964-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-092-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-144-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-144-2 01 1 1110- ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (F) M6X25 HEX SOCKET 		0-58330-625-0 04 1 1110- ● ● ● ●
748 02.500 BOLT; CONT UNIT
(B) 		8-98064-521-0 02 1 0810- ●
748 02.500 BOLT; CONT UNIT
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-92065-435-0 04 1 0810- ●
748 02.500 BOLT; CONT UNIT
AUSTRALIA EQUIPMENT(B13) 04.866 (A) M6X40 FLANGE 		0-28050-640-0 04 1 0810-1007 ●
748 02.500 BOLT; CONT UNIT
AUSTRALIA EQUIPMENT(B13) 02.343 (D) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0810-1007 ●
748 02.500 BOLT; CONT UNIT
02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 0808-0809 ●
748 02.500 BOLT; CONT UNIT
02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 0810-1007 ● ● ●
748 02.500 BOLT; CONT UNIT
02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 1008-1109 ● ● ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 1110- ● ● ● ●
748 02.500 BOLT; CONT UNIT
03.162 (D) M6X20 FLANGE 		0-28650-620-0 03 1 0808-0809 ●
748 02.500 BOLT; CONT UNIT
03.162 (D) M6X20 FLANGE 		0-28650-620-0 03 1 0810-1007 ● ● ●
748 02.500 BOLT; CONT UNIT
03.162 (D) M6X20 FLANGE 		0-28650-620-0 03 1 1008- ● ● ● ●

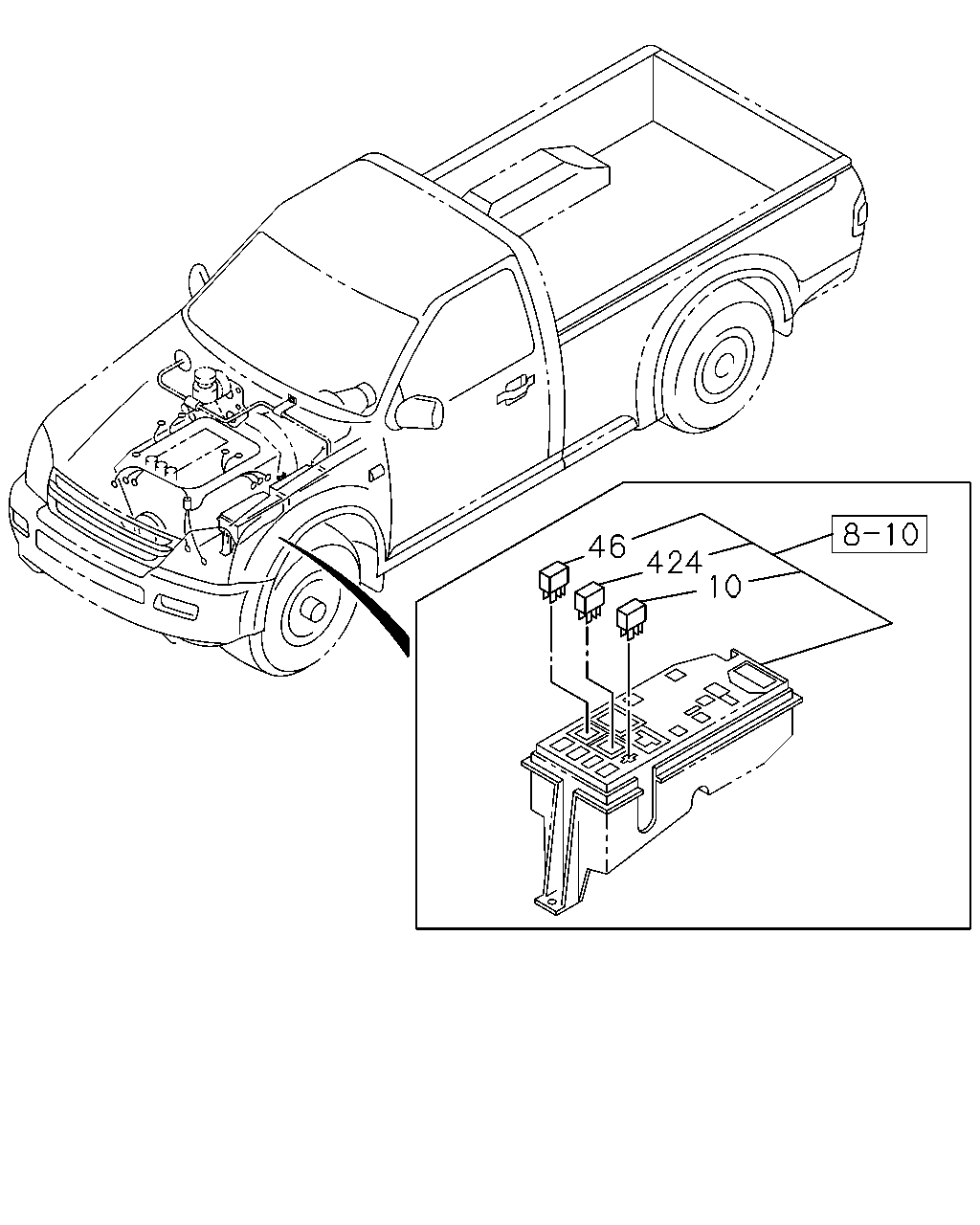

çizim 73219
46 424 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0911-1007 ● ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 1008- ● ● ● ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0810- ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0808-0809 ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0810-0910 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 0911-1007 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 1008- ● ● ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0808-0809 ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0810-0910 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0810- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0808-0809 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0810-1003 ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1004-1007 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1008- ● ● ● ● ●

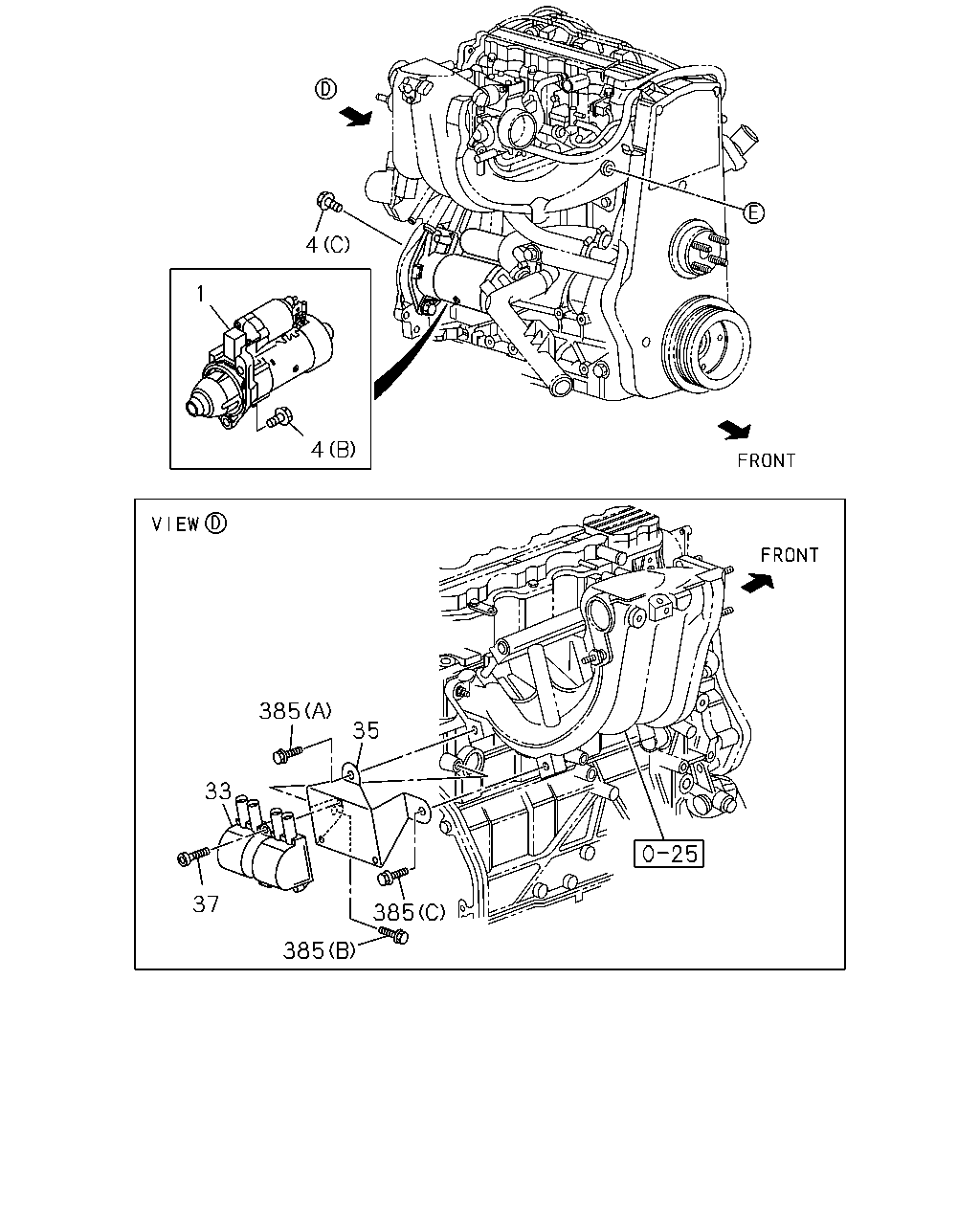

çizim 73421
4 1 4 385 35 33 37 385 385
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0810- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0810-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0808-0809 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0810-1003 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98028-199-0 01 1 1004-1007 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 2.3KW 		8-98028-199-0 01 1 1004-1007 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1008- ● ● ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S (RSQ) KENYA EQUIPMENT(CL1) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0810-1003 ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0810-1003 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1004-1007 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S (RSQ) KENYA EQUIPMENT(CL1) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ● ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ●
4 02.042 BOLT; STARTER
(B) M10X25 FLANGE 		0-28151-025-0 01 1 0810- ●
4 02.042 BOLT; STARTER
(C) 		8-11073-352-0 01 1 0810- ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 0808-0809 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 0810-1007 ● ●
4 02.042 BOLT; STARTER
EXC. KENYA EQUIPMENT(CL1) (A) M12X60 		8-97161-846-1 02 1 0810-1007 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1008-1402 ● ● ●
4 02.042 BOLT; STARTER
EXC. KENYA EQUIPMENT(CL1) (A) M12X60 		8-97161-846-1 02 1 1008-1402 ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M12X60 		8-97161-846-1 02 1 1403- ● ● ●
4 02.042 BOLT; STARTER
EXC. KENYA EQUIPMENT(CL1) (A) M12X60 		8-97161-846-1 02 1 1403- ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 0810-1009 ●
33 02.170 COIL ASM; IGN 8-93363-483-0 01 1 1010- ●
35 02.183 BRACKET; IGN COIL 8-92064-829-0 01 1 0810- ●
37 02.559 BOLT; IGN COIL
02.500 		8-92065-435-0 03 1 0810- ●
385 02.183 BOLT; BRKT,IGN COIL
03.670 (A) 		8-11041-103-0 01 1 0810-1009 ●
385 02.183 BOLT; BRKT,IGN COIL
(B) 		8-11094-881-0 01 1 0810- ●
385 02.183 BOLT; BRKT,IGN COIL
(C) 		8-92138-664-0 01 1 0810- ●

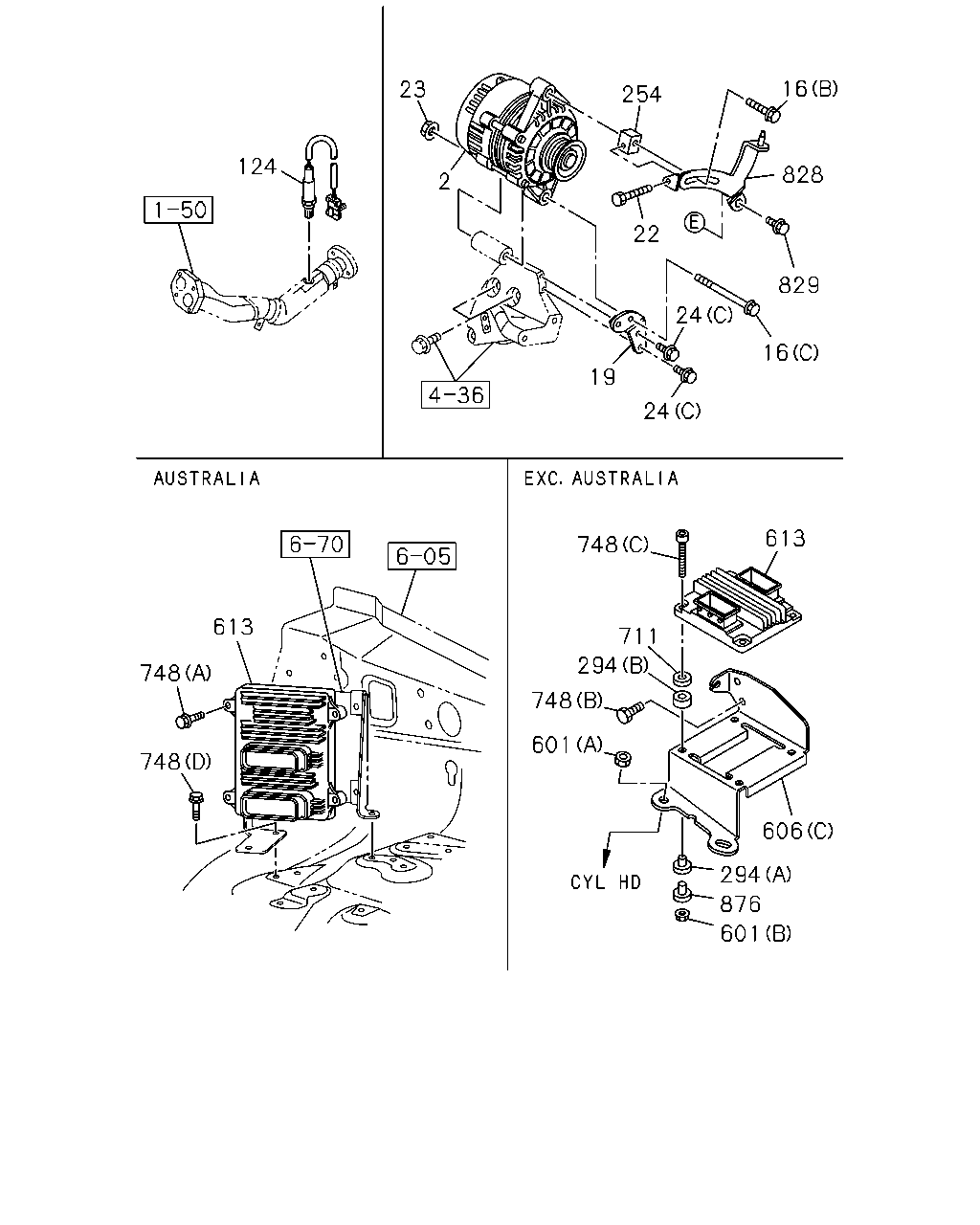

çizim 73501
16 23 254 124 828 2 22 829 24 16 19 24 613 748 613 711 294 748 748 601 748 606 294 876 601
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98290-323-0 01 1 1408-1502 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98290-323-0 01 1 1503- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98290-323-0 01 1 1503- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98229-071-0 01 1 1210-1211 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212-1402 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1403-1502 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98229-071-1 01 1 1403-1502 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98196-585-0 01 1 1107-1108 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 90A 		8-98196-585-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1109-1209 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98196-585-0 01 1 1210-1211 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 90A 		8-98196-585-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0810- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0810- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97360-782-1 01 1 0810- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0810-1011 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98153-004-0 01 1 1012-1012 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98153-004-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. MALAYSIA EQUIPMENT(B10),KENYA EQUIPMENT(CL1) 12V 90A 		8-98153-004-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98153-004-0 01 1 1107-1108 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0808-0809 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97369-716-1 01 1 0810-1004 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1005-1007 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1008-1011 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98006-084-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 90A 		8-98006-084-0 01 1 1012-1012 ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0810- ●
16 02.277 BOLT; GEN
(B) 		8-11098-091-0 01 1 0810- ●
16 02.277 BOLT; GEN
(C) 		8-92138-526-0 01 1 0810- ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 0808-0809 ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 0810-1003 ● ● ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 1004-1007 ● ●
16 02.277 BOLT; GEN
EXC. KENYA EQUIPMENT(CL1) (D) M10X125 FLANGE 		8-97226-470-1 01 1 1004-1007 ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 1008- ● ● ● ●
19 02.277 BRACKET; GEN 8-92063-352-0 01 1 0810- ●
22 09.008 BOLT; GEN 8-92066-080-0 01 1 0810- ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0810- ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0808-0809 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0810-1007 ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1008- ● ● ● ● ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0810-0909 ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 0910- ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0810- ●
24 02.277 BOLT; GEN BRKT
(C) 		8-11090-683-0 02 1 0810- ●
124 01.150 SENSOR; OXYGEN
EURO2 SPECIFICATION<NT2> 		8-25327-985-0 01 1 0810- ●
124 01.150 SENSOR; OXYGEN
EURO3 SPECIFICATION<NT3> 		8-25327-985-0 02 1 0810-1007 ●
254 02.277 NUT; GEN BRKT
02.275 		8-92066-081-1 01 1 0810- ●
294 02.042 INSULATOR; SPACER
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-92065-516-0 04 1 0810- ●
294 02.042 INSULATOR; SPACER
EXC. AUSTRALIA EQUIPMENT(B13) 02.510 (B) 		8-92065-517-0 04 1 0810- ●
601 03.670 NUT; UNIT
03.901 (A) 		8-11013-127-0 02 1 0810- ●
601 03.670 NUT; UNIT
EXC. AUSTRALIA EQUIPMENT(B13) 02.042 (B) M6 		8-11094-425-0 04 1 0810- ●
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0808-0809 ●
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0810-1007 ● ● ●
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 1008- ● ● ● ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (D) 		8-97364-729-2 01 1 1110- ● ● ● ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (E) 		8-97364-731-2 01 1 1110- ● ● ● ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-92066-169-0 01 1 0810- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98064-202-0 01 1 0808-0809 ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98064-202-0 01 1 0810-1007 ● ● ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98064-202-0 01 1 1008-1109 ● ● ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (A) 		8-98064-202-0 01 1 1110- ● ● ● ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98113-306-0 01 1 0808-0809 ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98113-306-0 01 1 0810-1007 ● ● ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98113-306-0 01 1 1008-1109 ● ● ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (B) 		8-98113-306-0 01 1 1110- ● ● ● ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98126-978-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98135-370-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98152-106-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-106-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98170-820-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98170-820-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98126-979-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98135-374-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98152-107-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-107-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98170-825-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1),AUTO CRUISECONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98170-825-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98126-980-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-981-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-372-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-109-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-823-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-823-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-982-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-376-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-110-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-827-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-827-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. AUSTRALIA EQUIPMENT(B13), IMMOBILIZER SYSTEM<7KC> 		8-09387-539-0 01 1 0810- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-965-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-093-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-145-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-145-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98126-966-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-094-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98160-146-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98160-146-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-951-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-350-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-079-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) MALAYSIA EQUIPMENT(B10) COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-816-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) MALAYSIA EQUIPMENT(B10) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-816-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98126-952-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98135-351-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-080-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-953-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-352-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-081-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98126-954-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98135-353-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-082-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-92187-517-0 01 1 0810-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-955-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-354-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-083-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98126-984-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98135-355-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-112-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-957-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98135-357-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-085-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-406-3 01 1 0808-0808 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-962-0 01 1 0808-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-962-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-090-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-142-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-142-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> IMMOBILIZER SYSTEM<7KC> 		8-98057-405-3 01 1 0808-0808 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> IMMOBILIZER SYSTEM<7KC> 		8-98126-961-0 01 1 0808-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98126-961-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98152-089-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98160-141-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98160-141-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98057-407-3 01 1 0808-0808 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98126-963-0 01 1 0808-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98126-963-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98152-091-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98160-143-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98160-143-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98057-408-3 01 1 0808-0808 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98126-964-0 01 1 0808-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98126-964-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-092-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-144-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98160-144-2 01 1 1110- ●
711 02.510 WASHER; PL,CONT UNIT
EXC. AUSTRALIA EQUIPMENT(B13) 00.206 		8-90220-983-0 04 1 0810- ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (F) M6X25 HEX SOCKET 		0-58330-625-0 04 1 1110- ● ● ● ●
748 02.500 BOLT; CONT UNIT
(B) 		8-98064-521-0 02 1 0810- ●
748 02.500 BOLT; CONT UNIT
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-92065-435-0 04 1 0810- ●
748 02.500 BOLT; CONT UNIT
AUSTRALIA EQUIPMENT(B13) 04.866 (A) M6X40 FLANGE 		0-28050-640-0 04 1 0810-1007 ●
748 02.500 BOLT; CONT UNIT
AUSTRALIA EQUIPMENT(B13) 02.343 (D) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0810-1007 ●
748 02.500 BOLT; CONT UNIT
02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 0808-0809 ●
748 02.500 BOLT; CONT UNIT
02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 0810-1007 ● ● ●
748 02.500 BOLT; CONT UNIT
02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 1008-1109 ● ● ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 1110- ● ● ● ●
748 02.500 BOLT; CONT UNIT
03.162 (D) M6X20 FLANGE 		0-28650-620-0 03 1 0808-0809 ●
748 02.500 BOLT; CONT UNIT
03.162 (D) M6X20 FLANGE 		0-28650-620-0 03 1 0810-1007 ● ● ●
748 02.500 BOLT; CONT UNIT
03.162 (D) M6X20 FLANGE 		0-28650-620-0 03 1 1008- ● ● ● ●
828 02.277 SHACKLE; GEN 8-92066-079-0 01 1 0810- ●
829 02.510 BOLT; SHACKLE
01.516 M8X20 FLANGE 		8-11097-731-0 01 1 0810-1009 ●
829 02.510 BOLT; SHACKLE
01.153 		8-11090-684-0 02 1 1010- ●
876 02.500 SPACER; CONT UNIT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-515-0 04 1 0810- ●

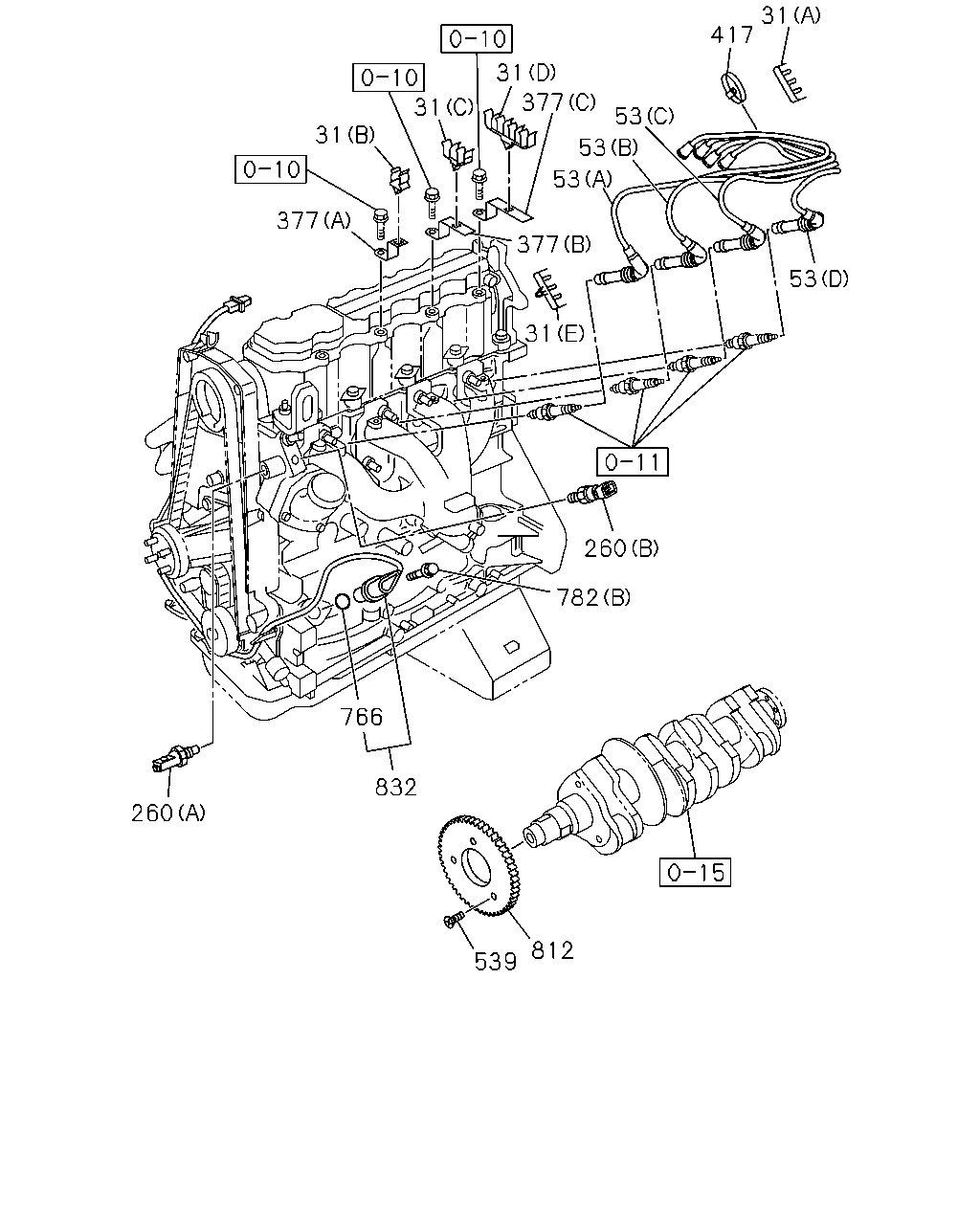

çizim 73532
31 417 31 377 31 53 31 53 53 377 377 53 31 260 782 766 832 260 812 539
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 02.251 CLIP; HIGH TENSION CABLE
(A) 		8-02965-736-0 01 1 0810-1009 ●
31 02.251 CLIP; HIGH TENSION CABLE
(B) 		8-90320-343-0 01 1 0810- ●
31 02.251 CLIP; HIGH TENSION CABLE
(C) 		8-90320-344-0 01 1 0810- ●
31 02.251 CLIP; HIGH TENSION CABLE
(D) 		8-90320-345-0 01 1 0810- ●
31 02.251 CLIP; HIGH TENSION CABLE
(E) 		8-90341-384-0 01 1 0810- ●
53 02.240 CABLE; IGN PLUG
(A) 		8-92066-027-0 01 1 0810- ●
53 02.240 CABLE; IGN PLUG
(B) 		8-92066-028-0 01 1 0810- ●
53 02.240 CABLE; IGN PLUG
(C) 		8-92066-029-0 01 1 0810- ●
53 02.240 CABLE; IGN PLUG
(D) 		8-92066-030-0 01 1 0810- ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 0810-1009 ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-15326-386-0 01 1 1010- ●
260 01.150 SENSOR; WATER TEMP
(A) 		8-92063-893-0 01 1 0810- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(A) 		8-90460-630-0 01 1 0810- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(B) 		8-90460-631-0 01 1 0810- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(C) 		8-90493-625-0 01 1 0810- ●
417 02.420 CLIP 8-92138-212-0 01 1 0810-1009 ●
417 02.420 CLIP 8-90044-312-0 01 1 1010- ●
539 02.510 SCREW; SENSOR 8-90280-051-0 03 1 0810- ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0810- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0808-0809 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0810-1007 ● ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1008- ● ● ● ●
782 02.510 BOLT; SENSOR
(B) 		8-11093-881-0 01 1 0810- ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0808-0809 ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0810-1007 ● ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 1008- ● ● ● ●
782 02.510 BOLT; SENSOR
(C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0808-0809 ●
782 02.510 BOLT; SENSOR
(C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0810- ● ●
812 02.510 ROTOR; SENSOR 8-90265-094-0 01 1 0810- ●
832 02.510 SENSOR; CRANK ANGLE & ENG SPD 8-10456-597-0 01 1 0810- ●
çizim 186141
2 1 23 24 24 4 16 21 7 105 83 97
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0810- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0810-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0808-0809 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0810-1003 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98028-199-0 01 1 1004-1007 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 2.3KW 		8-98028-199-0 01 1 1004-1007 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1008- ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98290-323-0 01 1 1408-1502 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98290-323-0 01 1 1503- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98290-323-0 01 1 1503- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98229-071-0 01 1 1210-1211 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212-1402 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1403-1502 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98229-071-1 01 1 1403-1502 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98196-585-0 01 1 1107-1108 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 90A 		8-98196-585-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1109-1209 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98196-585-0 01 1 1210-1211 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 90A 		8-98196-585-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0810- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0810- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97360-782-1 01 1 0810- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0810-1011 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98153-004-0 01 1 1012-1012 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98153-004-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. MALAYSIA EQUIPMENT(B10),KENYA EQUIPMENT(CL1) 12V 90A 		8-98153-004-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KENYA EQUIPMENT(CL1) 12V 90A 		8-98153-004-0 01 1 1107-1108 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0808-0809 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97369-716-1 01 1 0810-1004 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1005-1007 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1008-1011 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98006-084-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 90A 		8-98006-084-0 01 1 1012-1012 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S (RSQ) KENYA EQUIPMENT(CL1) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0810-1003 ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0810-1003 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1004-1007 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S (RSQ) KENYA EQUIPMENT(CL1) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ● ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ●
4 02.042 BOLT; STARTER
(B) M10X25 FLANGE 		0-28151-025-0 01 1 0810- ●
4 02.042 BOLT; STARTER
(C) 		8-11073-352-0 01 1 0810- ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 0808-0809 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 0810-1007 ● ●
4 02.042 BOLT; STARTER
EXC. KENYA EQUIPMENT(CL1) (A) M12X60 		8-97161-846-1 02 1 0810-1007 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1008-1402 ● ● ●
4 02.042 BOLT; STARTER
EXC. KENYA EQUIPMENT(CL1) (A) M12X60 		8-97161-846-1 02 1 1008-1402 ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M12X60 		8-97161-846-1 02 1 1403- ● ● ●
4 02.042 BOLT; STARTER
EXC. KENYA EQUIPMENT(CL1) (A) M12X60 		8-97161-846-1 02 1 1403- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0810-0905 ● ● ●
7 02.042 NUT; STARTER
EXC. KENYA EQUIPMENT(CL1) M12 FLANGE 		0-91180-112-0 02 1 0810-0905 ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0808-0809 ●
7 02.042 NUT; STARTER
KENYA EQUIPMENT(CL1) M12 FLANGE 		0-91180-112-0 01 1 0810-0905 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0906-1007 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1008- ● ● ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0810- ●
16 02.277 BOLT; GEN
(B) 		8-11098-091-0 01 1 0810- ●
16 02.277 BOLT; GEN
(C) 		8-92138-526-0 01 1 0810- ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 0808-0809 ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 0810-1003 ● ● ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 1004-1007 ● ●
16 02.277 BOLT; GEN
EXC. KENYA EQUIPMENT(CL1) (D) M10X125 FLANGE 		8-97226-470-1 01 1 1004-1007 ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 1008- ● ● ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 0810- ●
21 02.277 BRACKET; GEN 8-97356-020-1 01 1 0808-0809 ●
21 02.277 BRACKET; GEN 8-97356-020-1 01 1 0810-1007 ● ● ●
21 02.277 BRACKET; GEN 8-97356-020-1 01 1 1008- ● ● ● ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0810- ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0808-0809 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0810-1007 ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1008- ● ● ● ● ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0810-0909 ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 0910- ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0810- ●
24 02.277 BOLT; GEN BRKT
(C) 		8-11090-683-0 02 1 0810- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0810- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0810- ●
97 01.150 SWITCH; THERMO,EGR CONT
EURO2 SPECIFICATION<NT2> 		8-94457-511-0 01 1 0810- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0810- ●
çizim 186238
1 393
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0810- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0810-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0808-0809 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0810-1003 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98028-199-0 01 1 1004-1007 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. KENYA EQUIPMENT(CL1) 12V 2.3KW 		8-98028-199-0 01 1 1004-1007 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1008- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-167-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-829-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0808-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0810-1007 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 1008- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0808-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0810-1007 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 1008- ● ● ● ●
çizim 186242
393 424 10 395
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0911-1007 ● ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 1008- ● ● ● ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0810- ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0808-0809 ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0810-0910 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-167-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-829-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0808-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0810-1007 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 1008- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0808-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0810-1007 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 1008- ● ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0810- ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0808-0809 ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0810-1007 ● ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0810- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0808-0809 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0810-1003 ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1004-1007 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1008- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
