Sayfa 0-57 - Isuzu EPC

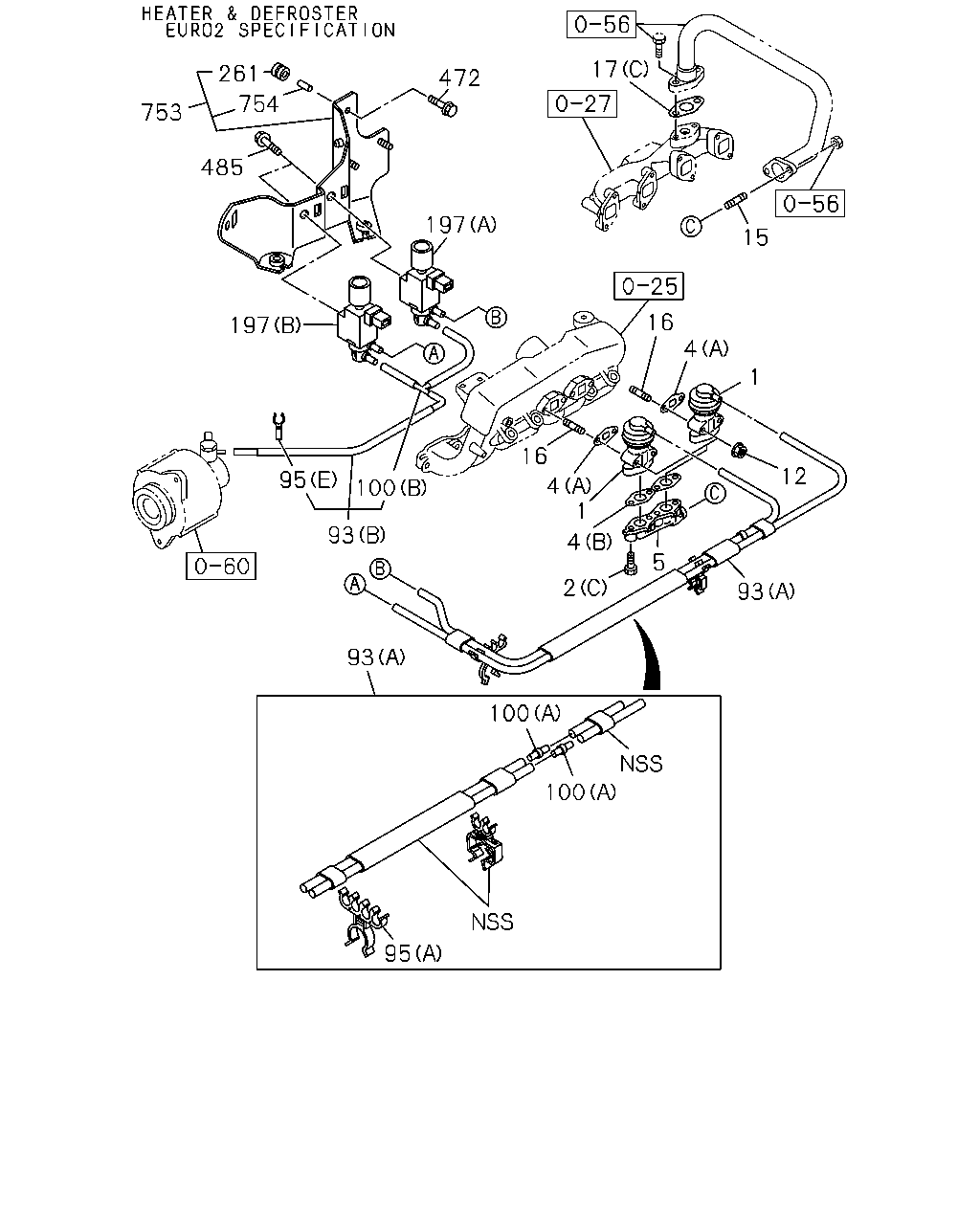

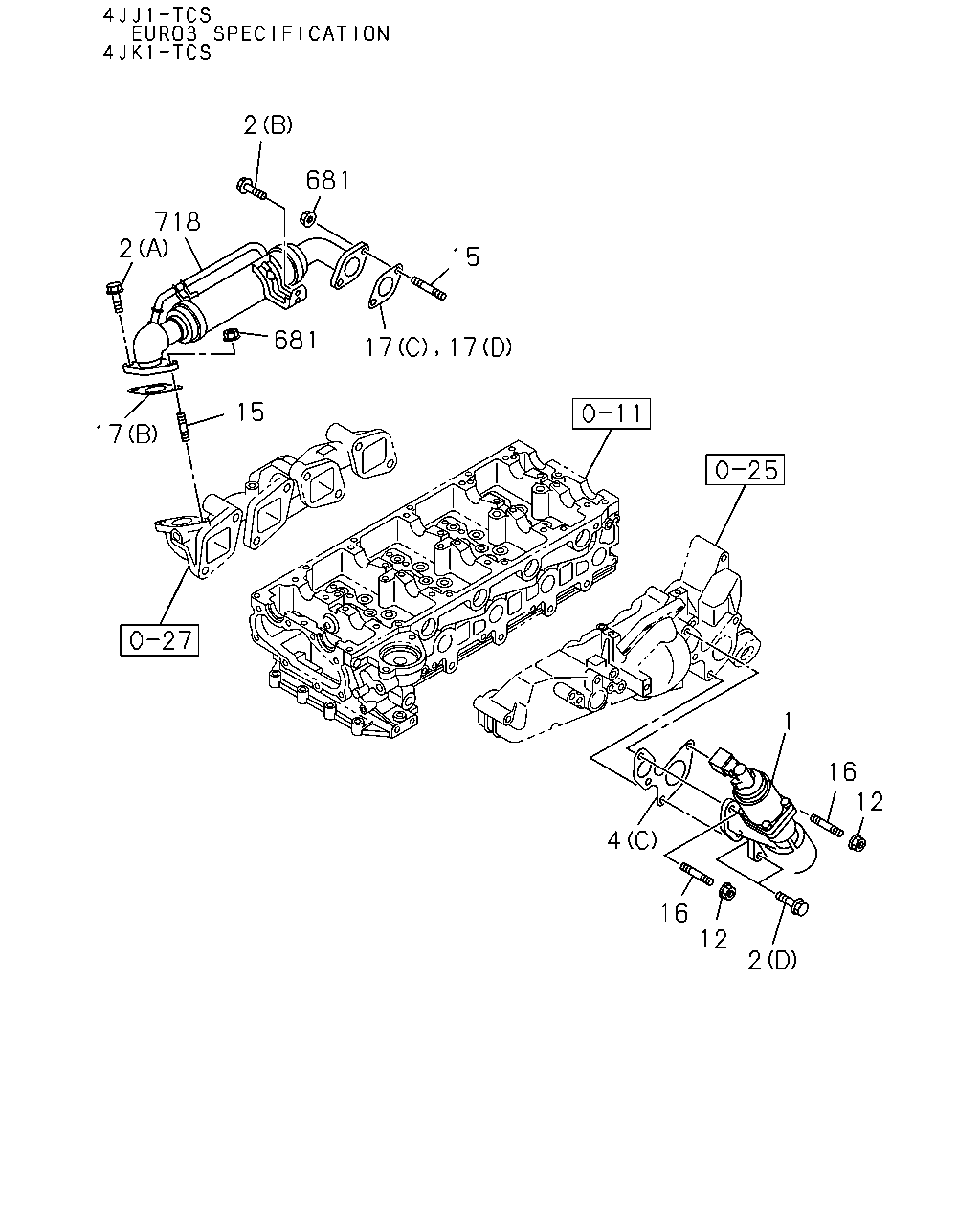

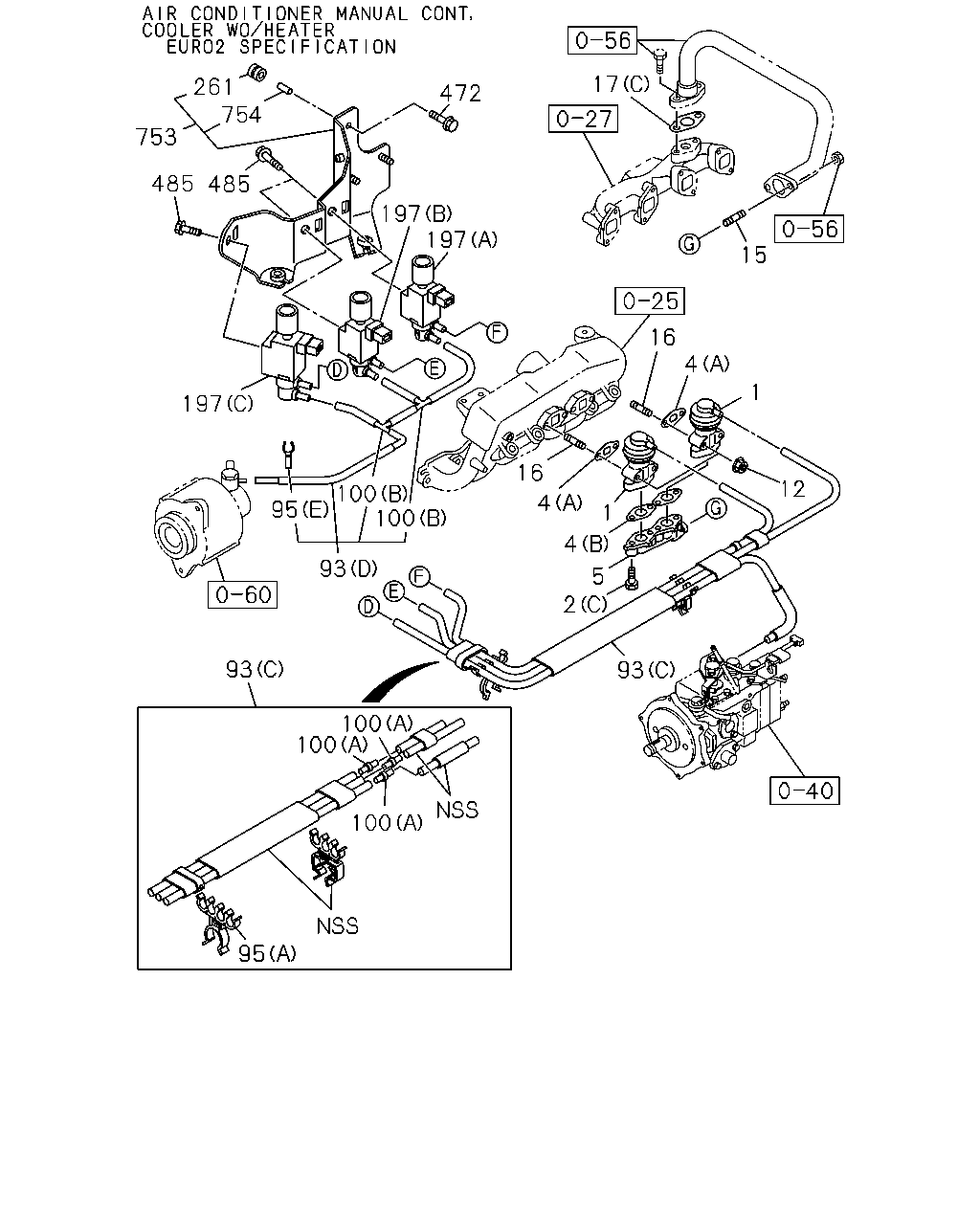

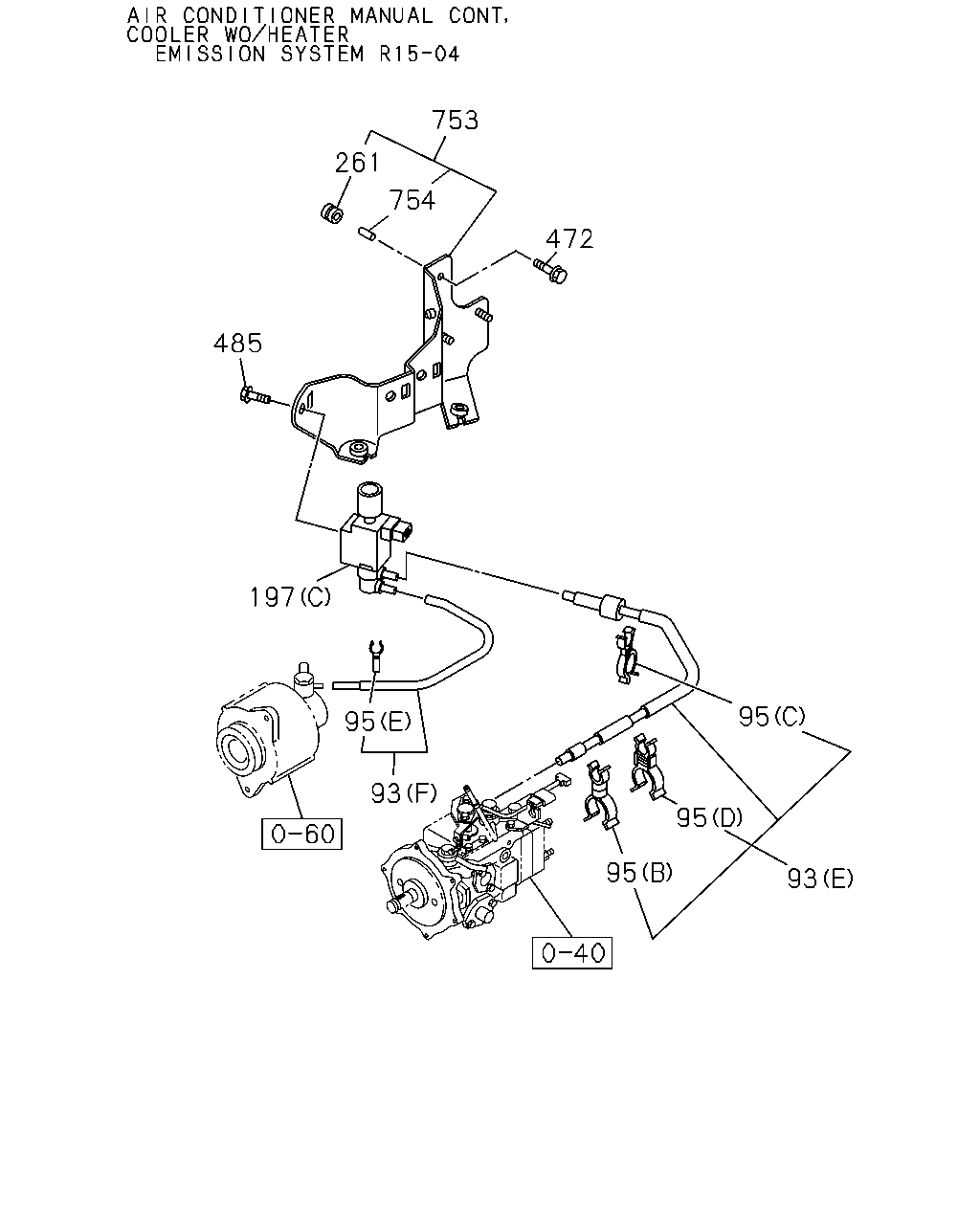

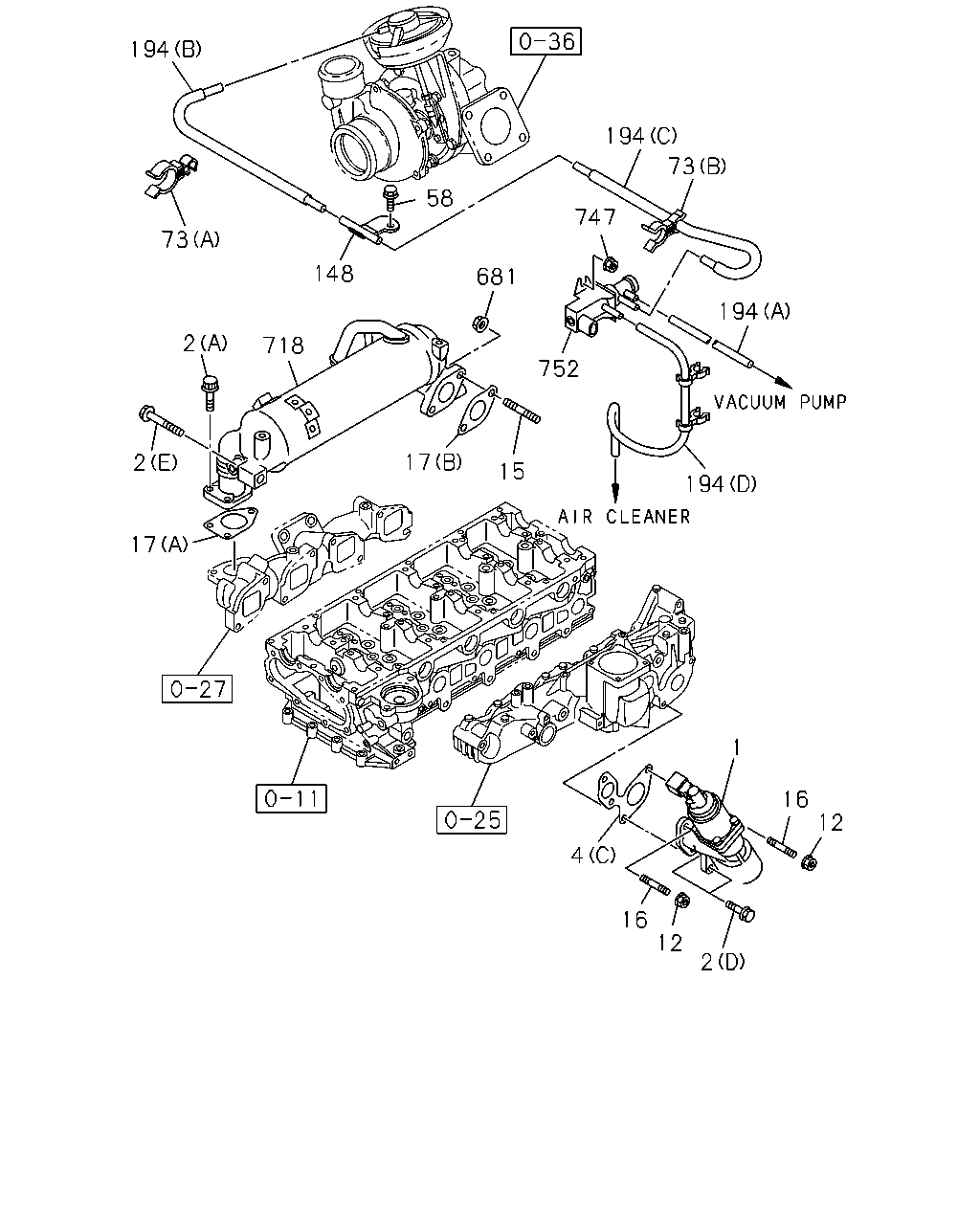

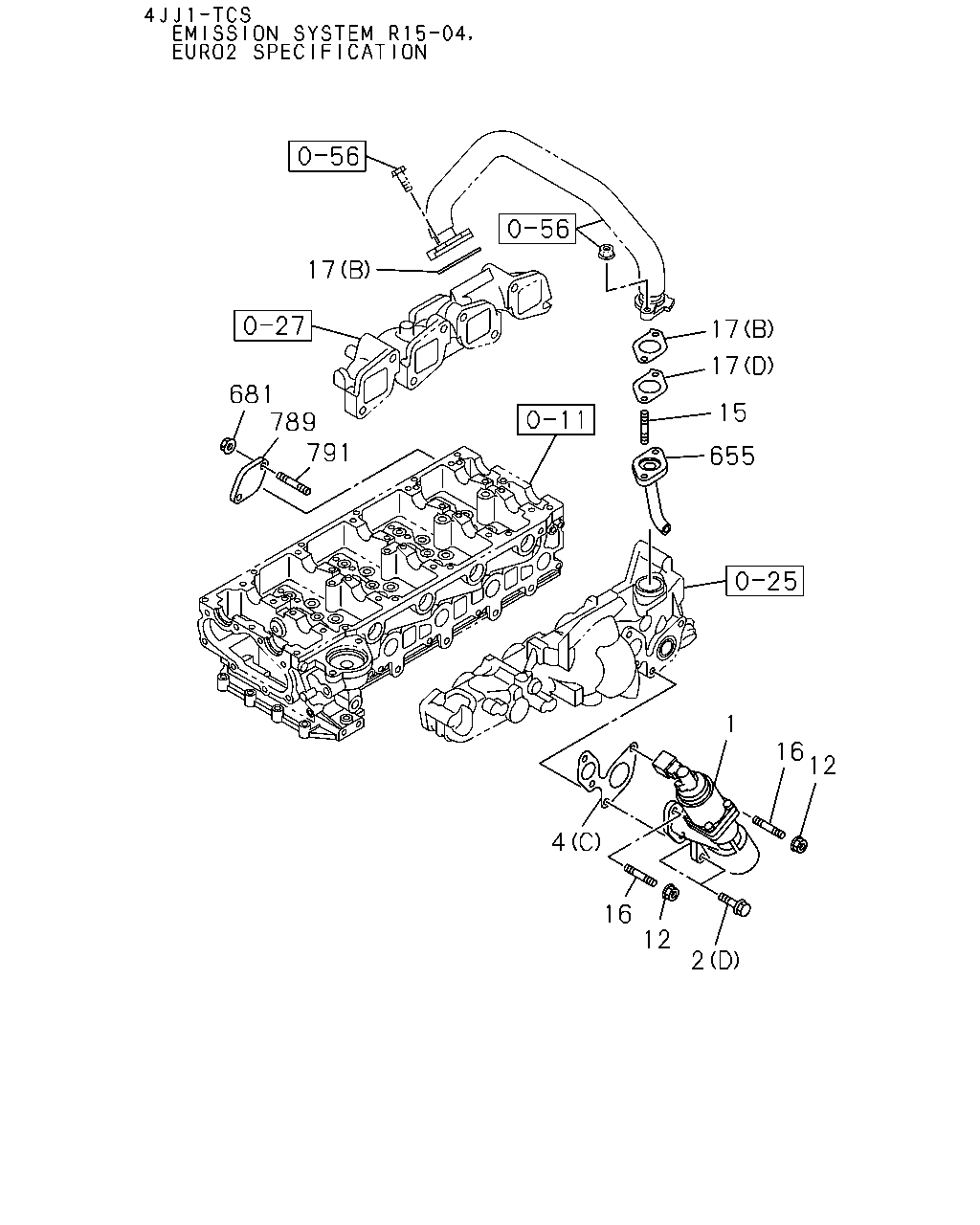

0-57 — EMISSION PIPING (#76963) — 482 parça

17 261 472 754 753 485 197 15 16 197 4 16 1 100 12 95 4 1 93 4 5 2 93 93 100 100 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.670 VALVE; EGR EURO2 SPECIFICATION<NT2>	8-97132-802-5	02	1	0810-	●
1	03.670 VALVE; EGR	8-98013-911-0	01	1	0808-0809		●
1	03.670 VALVE; EGR	8-98013-911-0	01	1	0810-1007		●	●	●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	1008-		●	●	●	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION<NT3> 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0810-1007			●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1008-					●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE	8-97378-077-0	01	1	0810-1007			●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	1008-		●		●
2	03.670 BOLT; EGR VLV EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE	0-28050-840-0	04	1	0810-	●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE	0-28151-045-0	01	1	0808-0809		●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE	0-28151-045-0	01	1	0810-		●		●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0808-0809		●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0810-1007		●	●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1008-		●	●	●	●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0808-0809		●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0810-1007		●		●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	01	1	1008-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92064-809-0	01	1	0810-1009						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92061-674-0	01	1	1010-						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A)	8-94334-338-1	02	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B)	8-94379-754-0	01	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0808-0809		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0810-1007		●	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-3	01	1	1008-		●	●	●	●
5	03.670 ADAPTER ASM EURO2 SPECIFICATION<NT2>	8-97306-490-0	01	1	0810-	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-1007		●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-		●	●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809		●
12	03.671 NUT; EGR VLV EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	04	1	0810-	●
15	03.670 STUD; EGR PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.540 M8X40 L=52	0-41010-840-0	02	1	0810-			●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33	8-94257-319-0	03	1	0810-1007			●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	1008-					●
15	03.670 STUD; EGR PIPE EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37	0-41010-825-0	02	1	0810-	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0808-0809		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-		●		●
16	03.275 STUD; EGR VLV KENYA EQUIPMENT(CL1) M8X25 L=41	0-40210-825-0	02	1	1008-			●
16	03.275 STUD; EGR VLV KENYA EQUIPMENT(CL1) M8X25 L=41	0-40210-825-0	02	1	0810-1003			●
16	03.275 STUD; EGR VLV EURO2 SPECIFICATION<NT2> 03.342 M8X49 L=63	8-97019-478-0	04	1	0810-	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0808-0809		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0810-1007		●		●
16	03.275 STUD; EGR VLV EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40	0-49140-822-0	02	1	0810-1007			●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	1008-		●		●	●
16	03.275 STUD; EGR VLV EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40	0-49140-822-0	02	1	1008-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C)	8-94340-670-0	02	1	1008-1205	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	1008-1205			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	1206-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C)	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	0907-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D)	8-97375-980-1	01	1	0810-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C)	8-97942-749-0	02	1	0810-0906			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	0907-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C)	8-97942-749-0	02	1	1004-1007			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	1008-1109			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	1110-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-2	01	1	0808-0809		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0810-0910		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0911-1003		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0911-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-2	01	1	1004-1007		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-2	01	1	1004-1007			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1008-1109		●		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-3	01	1	1008-1109					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1110-		●		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>. (B)	8-97357-684-3	01	1	1110-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-3	01	1	1110-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	0808-0809		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	0810-		●		●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (E)	8-97332-387-1	01	1	0810-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (F)	8-97943-451-0	01	1	0810-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (A)	8-97260-313-4	01	1	0810-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (B)	8-97943-450-0	01	1	0810-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (C)	8-97260-312-4	01	1	0810-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (D)	8-97943-449-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0810-	●
95	03.680 CLIP; HOSE EURO2 SPECIFICATION<NT2> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.430 (B) ID=6 & 16.5	8-94165-402-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 04.128 (C) ID=14.5 & 7.5	8-94315-424-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.483 (D) ID=21 & 7.5	8-97309-946-0	01	1	0810-	●
95	03.680 CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) ID=14.5 & 7X4	8-94368-499-0	01	1	0810-	●
100	03.680 JOINT; HOSE HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (B) 3WAY	8-94210-631-0	01	1	0810-	●
100	03.680 JOINT; HOSE HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (A) 2WAY	8-97165-694-0	02	1	0810-	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> (B) 3WAY	8-94210-631-0	02	1	0810-	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> (A) 2WAY	8-97165-694-0	03	1	0810-	●
197	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.130 (C)	8-94384-336-0	01	1	0810-	●
197	03.670 VALVE; VAC SWITCHING EURO2 SPECIFICATION<NT2> (A)	8-97043-750-0	01	1	0810-	●
197	03.670 VALVE; VAC SWITCHING EURO2 SPECIFICATION<NT2> 03.675 (B)	8-97171-030-0	01	1	0810-	●
261	03.671 GROMMET AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206	5-19389-002-0	03	1	0810-	●
261	03.671 GROMMET EURO2 SPECIFICATION<NT2> 00.206	5-19389-002-0	03	1	0810-	●
472	03.671 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-	●
472	03.671 BOLT; BRKT EURO2 SPECIFICATION<NT2> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-	●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0810-	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION<NT2> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0810-	●
753	03.670 BRACKET; VALVE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75>	8-97943-948-0	01	1	0810-	●
753	03.670 BRACKET; VALVE EURO2 SPECIFICATION<NT2>	8-97943-948-0	01	1	0810-	●
754	03.647 BUSHING; RUBBER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206	5-19389-009-0	03	1	0810-	●
754	03.647 BUSHING; RUBBER EURO2 SPECIFICATION<NT2> 00.206	5-19389-009-0	03	1	0810-	●

17 261 754 472 753 485 485 197 197 15 16 4 16 1 197 12 100 95 100 4 1 4 93 5 2 93 93 100 100 100 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.670 VALVE; EGR EURO2 SPECIFICATION<NT2>	8-97132-802-5	02	1	0810-	●
1	03.670 VALVE; EGR	8-98013-911-0	01	1	0808-0809		●
1	03.670 VALVE; EGR	8-98013-911-0	01	1	0810-1007		●	●	●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	1008-		●	●	●	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION<NT3> 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0810-1007			●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1008-					●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE	8-97378-077-0	01	1	0810-1007			●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	1008-		●		●
2	03.670 BOLT; EGR VLV EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE	0-28050-840-0	04	1	0810-	●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE	0-28151-045-0	01	1	0808-0809		●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE	0-28151-045-0	01	1	0810-		●		●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0808-0809		●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0810-1007		●	●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1008-		●	●	●	●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0808-0809		●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0810-1007		●		●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	01	1	1008-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92064-809-0	01	1	0810-1009						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92061-674-0	01	1	1010-						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A)	8-94334-338-1	02	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B)	8-94379-754-0	01	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0808-0809		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0810-1007		●	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-3	01	1	1008-		●	●	●	●
5	03.670 ADAPTER ASM EURO2 SPECIFICATION<NT2>	8-97306-490-0	01	1	0810-	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-1007		●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-		●	●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809		●
12	03.671 NUT; EGR VLV EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	04	1	0810-	●
15	03.670 STUD; EGR PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.540 M8X40 L=52	0-41010-840-0	02	1	0810-			●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33	8-94257-319-0	03	1	0810-1007			●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	1008-					●
15	03.670 STUD; EGR PIPE EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37	0-41010-825-0	02	1	0810-	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0808-0809		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-		●		●
16	03.275 STUD; EGR VLV KENYA EQUIPMENT(CL1) M8X25 L=41	0-40210-825-0	02	1	1008-			●
16	03.275 STUD; EGR VLV KENYA EQUIPMENT(CL1) M8X25 L=41	0-40210-825-0	02	1	0810-1003			●
16	03.275 STUD; EGR VLV EURO2 SPECIFICATION<NT2> 03.342 M8X49 L=63	8-97019-478-0	04	1	0810-	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0808-0809		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0810-1007		●		●
16	03.275 STUD; EGR VLV EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40	0-49140-822-0	02	1	0810-1007			●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	1008-		●		●	●
16	03.275 STUD; EGR VLV EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40	0-49140-822-0	02	1	1008-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C)	8-94340-670-0	02	1	1008-1205	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	1008-1205			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	1206-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C)	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	0907-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D)	8-97375-980-1	01	1	0810-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C)	8-97942-749-0	02	1	0810-0906			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	0907-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C)	8-97942-749-0	02	1	1004-1007			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	1008-1109			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	1110-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-2	01	1	0808-0809		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0810-0910		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0911-1003		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0911-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-2	01	1	1004-1007		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-2	01	1	1004-1007			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1008-1109		●		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-3	01	1	1008-1109					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1110-		●		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>. (B)	8-97357-684-3	01	1	1110-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-3	01	1	1110-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	0808-0809		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	0810-		●		●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (E)	8-97332-387-1	01	1	0810-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (F)	8-97943-451-0	01	1	0810-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (A)	8-97260-313-4	01	1	0810-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (B)	8-97943-450-0	01	1	0810-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (C)	8-97260-312-4	01	1	0810-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (D)	8-97943-449-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0810-	●
95	03.680 CLIP; HOSE EURO2 SPECIFICATION<NT2> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.430 (B) ID=6 & 16.5	8-94165-402-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 04.128 (C) ID=14.5 & 7.5	8-94315-424-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.483 (D) ID=21 & 7.5	8-97309-946-0	01	1	0810-	●
95	03.680 CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) ID=14.5 & 7X4	8-94368-499-0	01	1	0810-	●
100	03.680 JOINT; HOSE HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (B) 3WAY	8-94210-631-0	01	1	0810-	●
100	03.680 JOINT; HOSE HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (A) 2WAY	8-97165-694-0	02	1	0810-	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> (B) 3WAY	8-94210-631-0	02	1	0810-	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> (A) 2WAY	8-97165-694-0	03	1	0810-	●
197	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.130 (C)	8-94384-336-0	01	1	0810-	●
197	03.670 VALVE; VAC SWITCHING EURO2 SPECIFICATION<NT2> (A)	8-97043-750-0	01	1	0810-	●
197	03.670 VALVE; VAC SWITCHING EURO2 SPECIFICATION<NT2> 03.675 (B)	8-97171-030-0	01	1	0810-	●
261	03.671 GROMMET AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206	5-19389-002-0	03	1	0810-	●
261	03.671 GROMMET EURO2 SPECIFICATION<NT2> 00.206	5-19389-002-0	03	1	0810-	●
472	03.671 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-	●
472	03.671 BOLT; BRKT EURO2 SPECIFICATION<NT2> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-	●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0810-	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION<NT2> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0810-	●
753	03.670 BRACKET; VALVE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75>	8-97943-948-0	01	1	0810-	●
753	03.670 BRACKET; VALVE EURO2 SPECIFICATION<NT2>	8-97943-948-0	01	1	0810-	●
754	03.647 BUSHING; RUBBER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206	5-19389-009-0	03	1	0810-	●
754	03.647 BUSHING; RUBBER EURO2 SPECIFICATION<NT2> 00.206	5-19389-009-0	03	1	0810-	●

2 681 718 2 15 681 17 17 15 17 1 16 12 4 16 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.670 VALVE; EGR EURO2 SPECIFICATION<NT2>	8-97132-802-5	02	1	0810-	●
1	03.670 VALVE; EGR	8-98013-911-0	01	1	0808-0809		●
1	03.670 VALVE; EGR	8-98013-911-0	01	1	0810-1007		●	●	●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	1008-		●	●	●	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION<NT3> 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0810-1007			●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1008-					●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE	8-97378-077-0	01	1	0810-1007			●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	1008-		●		●
2	03.670 BOLT; EGR VLV EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE	0-28050-840-0	04	1	0810-	●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE	0-28151-045-0	01	1	0808-0809		●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE	0-28151-045-0	01	1	0810-		●		●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0808-0809		●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0810-1007		●	●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1008-		●	●	●	●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0808-0809		●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0810-1007		●		●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	01	1	1008-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92064-809-0	01	1	0810-1009						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92061-674-0	01	1	1010-						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A)	8-94334-338-1	02	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B)	8-94379-754-0	01	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0808-0809		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0810-1007		●	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-3	01	1	1008-		●	●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-1007		●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-		●	●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809		●
12	03.671 NUT; EGR VLV EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	04	1	0810-	●
15	03.670 STUD; EGR PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.540 M8X40 L=52	0-41010-840-0	02	1	0810-			●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33	8-94257-319-0	03	1	0810-1007			●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	1008-					●
15	03.670 STUD; EGR PIPE EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37	0-41010-825-0	02	1	0810-	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0808-0809		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-		●		●
16	03.275 STUD; EGR VLV KENYA EQUIPMENT(CL1) M8X25 L=41	0-40210-825-0	02	1	1008-			●
16	03.275 STUD; EGR VLV KENYA EQUIPMENT(CL1) M8X25 L=41	0-40210-825-0	02	1	0810-1003			●
16	03.275 STUD; EGR VLV EURO2 SPECIFICATION<NT2> 03.342 M8X49 L=63	8-97019-478-0	04	1	0810-	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0808-0809		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0810-1007		●		●
16	03.275 STUD; EGR VLV EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40	0-49140-822-0	02	1	0810-1007			●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	1008-		●		●	●
16	03.275 STUD; EGR VLV EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40	0-49140-822-0	02	1	1008-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C)	8-94340-670-0	02	1	1008-1205	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	1008-1205			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	1206-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C)	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	0907-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D)	8-97375-980-1	01	1	0810-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C)	8-97942-749-0	02	1	0810-0906			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	0907-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C)	8-97942-749-0	02	1	1004-1007			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	1008-1109			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	1110-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-2	01	1	0808-0809		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0810-0910		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0911-1003		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0911-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-2	01	1	1004-1007		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-2	01	1	1004-1007			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1008-1109		●		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-3	01	1	1008-1109					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1110-		●		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>. (B)	8-97357-684-3	01	1	1110-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-3	01	1	1110-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	0808-0809		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	0810-		●		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-		●	●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809		●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE	0-91180-208-0	03	1	0810-1007			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	03	1	1008-					●
718	03.337 COOLER; EGR EURO3 SPECIFICATION<NT3>	8-98031-836-0	01	1	0810-0907			●
718	03.337 COOLER; EGR EURO3 SPECIFICATION<NT3> 09.003	8-98150-750-0	01	1	0908-1007			●
718	03.337 COOLER; EGR 09.003	8-98150-750-2	01	1	1008-					●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0808-0809		●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0810-0907		●		●
718	03.337 COOLER; EGR	8-98150-749-1	01	1	0908-1007		●		●
718	03.337 COOLER; EGR	8-98152-122-1	01	1	1008-		●		●

194 194 73 58 747 73 148 681 194 2 718 752 17 2 15 194 17 1 16 12 4 16 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.670 VALVE; EGR EURO2 SPECIFICATION<NT2>	8-97132-802-5	02	1	0810-	●
1	03.670 VALVE; EGR	8-98013-911-0	01	1	0808-0809		●
1	03.670 VALVE; EGR	8-98013-911-0	01	1	0810-1007		●	●	●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	1008-		●	●	●	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION<NT3> 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0810-1007			●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1008-					●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE	8-97378-077-0	01	1	0810-1007			●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	1008-		●		●
2	03.670 BOLT; EGR VLV EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE	0-28050-840-0	04	1	0810-	●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE	0-28151-045-0	01	1	0808-0809		●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE	0-28151-045-0	01	1	0810-		●		●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0808-0809		●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0810-1007		●	●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1008-		●	●	●	●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0808-0809		●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0810-1007		●		●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	01	1	1008-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92064-809-0	01	1	0810-1009						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92061-674-0	01	1	1010-						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A)	8-94334-338-1	02	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B)	8-94379-754-0	01	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0808-0809		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0810-1007		●	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-3	01	1	1008-		●	●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-1007		●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-		●	●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809		●
12	03.671 NUT; EGR VLV EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	04	1	0810-	●
15	03.670 STUD; EGR PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.540 M8X40 L=52	0-41010-840-0	02	1	0810-			●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33	8-94257-319-0	03	1	0810-1007			●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	1008-					●
15	03.670 STUD; EGR PIPE EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37	0-41010-825-0	02	1	0810-	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0808-0809		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-		●		●
16	03.275 STUD; EGR VLV KENYA EQUIPMENT(CL1) M8X25 L=41	0-40210-825-0	02	1	1008-			●
16	03.275 STUD; EGR VLV KENYA EQUIPMENT(CL1) M8X25 L=41	0-40210-825-0	02	1	0810-1003			●
16	03.275 STUD; EGR VLV EURO2 SPECIFICATION<NT2> 03.342 M8X49 L=63	8-97019-478-0	04	1	0810-	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0808-0809		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0810-1007		●		●
16	03.275 STUD; EGR VLV EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40	0-49140-822-0	02	1	0810-1007			●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	1008-		●		●	●
16	03.275 STUD; EGR VLV EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40	0-49140-822-0	02	1	1008-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C)	8-94340-670-0	02	1	1008-1205	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	1008-1205			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	1206-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C)	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	0907-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D)	8-97375-980-1	01	1	0810-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C)	8-97942-749-0	02	1	0810-0906			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	0907-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C)	8-97942-749-0	02	1	1004-1007			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	1008-1109			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	1110-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-2	01	1	0808-0809		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0810-0910		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0911-1003		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0911-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-2	01	1	1004-1007		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-2	01	1	1004-1007			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1008-1109		●		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-3	01	1	1008-1109					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1110-		●		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>. (B)	8-97357-684-3	01	1	1110-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-3	01	1	1110-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	0808-0809		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	0810-		●		●
58	03.417 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0808-0809		●
58	03.417 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0810-		●		●
73	03.680 CLIP; VAC HOSE (A) ID=16.5 & 7	8-97226-171-0	01	1	0808-0809		●
73	03.680 CLIP; VAC HOSE (A) ID=16.5 & 7	8-97226-171-0	01	1	0810-		●		●
73	03.680 CLIP; VAC HOSE 03.483 (B) ID=21 & 7.5	8-97309-946-0	01	1	0808-0809		●
73	03.680 CLIP; VAC HOSE 03.483 (B) ID=21 & 7.5	8-97309-946-0	01	1	0810-		●		●
148	03.675 PIPE; VAC	8-98011-533-0	01	1	0808-0809		●
148	03.675 PIPE; VAC	8-98011-533-0	01	1	0810-		●		●
194	03.675 HOSE; VAC (A)	0-04420-430-0	01	1	0808-0809		●
194	03.675 HOSE; VAC (A)	0-04420-430-0	01	1	0810-		●		●
194	03.675 HOSE; VAC (B)	8-98011-635-1	01	1	0808-0809		●
194	03.675 HOSE; VAC (B)	8-98011-635-1	01	1	0810-		●		●
194	03.675 HOSE; VAC (C)	8-98011-637-1	01	1	0808-0809		●
194	03.675 HOSE; VAC (C)	8-98011-637-1	01	1	0810-		●		●
194	03.675 HOSE; VAC (D)	8-98037-352-1	01	1	0808-0809		●
194	03.675 HOSE; VAC (D)	8-98037-352-1	01	1	0810-		●		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-		●	●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809		●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE	0-91180-208-0	03	1	0810-1007			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	03	1	1008-					●
718	03.337 COOLER; EGR EURO3 SPECIFICATION<NT3>	8-98031-836-0	01	1	0810-0907			●
718	03.337 COOLER; EGR EURO3 SPECIFICATION<NT3> 09.003	8-98150-750-0	01	1	0908-1007			●
718	03.337 COOLER; EGR 09.003	8-98150-750-2	01	1	1008-					●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0808-0809		●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0810-0907		●		●
718	03.337 COOLER; EGR	8-98150-749-1	01	1	0908-1007		●		●
718	03.337 COOLER; EGR	8-98152-122-1	01	1	1008-		●		●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	0808-0809		●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-		●		●
752	03.670 VALVE; EVRV	8-98116-260-0	01	1	0808-0809		●
752	03.670 VALVE; EVRV	8-98116-260-0	01	1	0810-		●		●

17 17 17 681 789 791 15 655 1 16 12 4 16 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.670 VALVE; EGR EURO2 SPECIFICATION<NT2>	8-97132-802-5	02	1	0810-	●
1	03.670 VALVE; EGR	8-98013-911-0	01	1	0808-0809		●
1	03.670 VALVE; EGR	8-98013-911-0	01	1	0810-1007		●	●	●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	1008-		●	●	●	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION<NT3> 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0810-1007			●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1008-					●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE	8-97378-077-0	01	1	0810-1007			●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	1008-		●		●
2	03.670 BOLT; EGR VLV EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE	0-28050-840-0	04	1	0810-	●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE	0-28151-045-0	01	1	0808-0809		●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE	0-28151-045-0	01	1	0810-		●		●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0808-0809		●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0810-1007		●	●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1008-		●	●	●	●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0808-0809		●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	0810-1007		●		●
2	03.670 BOLT; EGR VLV 03.417 (A) M8X23 FLANGE	8-97378-077-0	01	1	1008-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92064-809-0	01	1	0810-1009						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92061-674-0	01	1	1010-						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A)	8-94334-338-1	02	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B)	8-94379-754-0	01	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0808-0809		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0810-1007		●	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-3	01	1	1008-		●	●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-1007		●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-		●	●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809		●
12	03.671 NUT; EGR VLV EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	04	1	0810-	●
15	03.670 STUD; EGR PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.540 M8X40 L=52	0-41010-840-0	02	1	0810-			●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33	8-94257-319-0	03	1	0810-1007			●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	1008-					●
15	03.670 STUD; EGR PIPE EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37	0-41010-825-0	02	1	0810-	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0808-0809		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-		●		●
16	03.275 STUD; EGR VLV KENYA EQUIPMENT(CL1) M8X25 L=41	0-40210-825-0	02	1	1008-			●
16	03.275 STUD; EGR VLV KENYA EQUIPMENT(CL1) M8X25 L=41	0-40210-825-0	02	1	0810-1003			●
16	03.275 STUD; EGR VLV EURO2 SPECIFICATION<NT2> 03.342 M8X49 L=63	8-97019-478-0	04	1	0810-	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0808-0809		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0810-1007		●		●
16	03.275 STUD; EGR VLV EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40	0-49140-822-0	02	1	0810-1007			●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	1008-		●		●	●
16	03.275 STUD; EGR VLV EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40	0-49140-822-0	02	1	1008-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C)	8-94340-670-0	02	1	1008-1205	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	1008-1205			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	1206-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C)	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (C)	8-97324-052-0	02	1	0907-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D)	8-97375-980-1	01	1	0810-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C)	8-97942-749-0	02	1	0810-0906			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	0907-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C)	8-97942-749-0	02	1	1004-1007			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	1008-1109			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (C)	8-97942-749-0	02	1	1110-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-2	01	1	0808-0809		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0810-0910		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0911-1003		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97357-684-2	01	1	0911-1003			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-2	01	1	1004-1007		●	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-2	01	1	1004-1007			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1008-1109		●		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-3	01	1	1008-1109					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1110-		●		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>. (B)	8-97357-684-3	01	1	1110-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97357-684-3	01	1	1110-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	0808-0809		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98017-551-0	01	1	0810-		●		●
655	03.675 PIPE; EGR VLV EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>	8-98096-267-1	01	1	0810-			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-		●	●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809		●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE	0-91180-208-0	03	1	0810-1007			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	03	1	1008-					●
789	03.670 COVER; COOLER,EGR EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>	8-98105-261-0	01	1	0810-			●
791	03.670 STUD; COVER EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 03.342 M8X22 L=33	8-94257-319-0	02	1	0810-			●

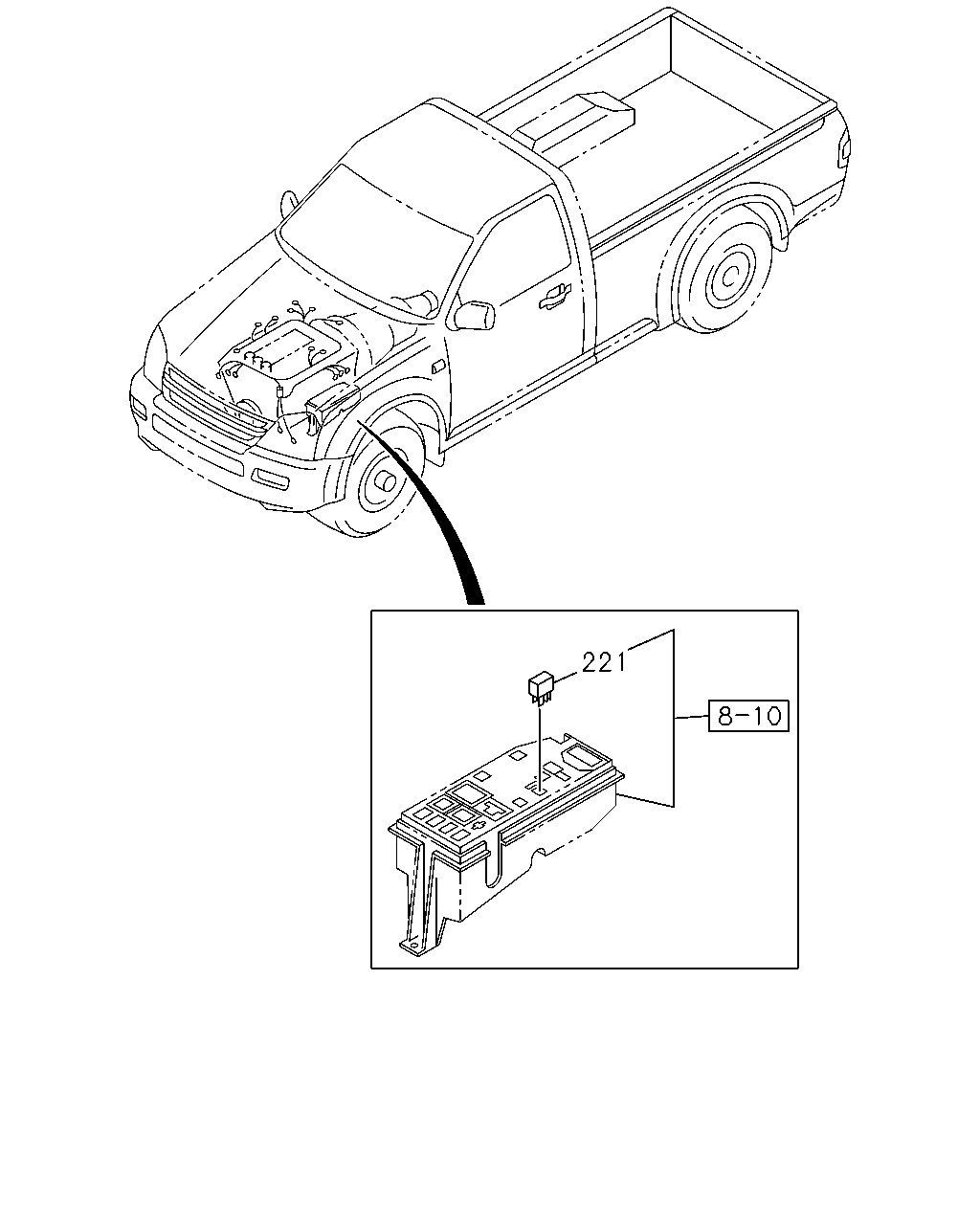

221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
221	03.670 RELAY; MAIN 12V YAZAKI	8-98146-834-0	01	1	0911-1007	●	●	●
221	03.670 RELAY; MAIN 12V YAZAKI	8-98146-834-0	01	1	1008-	●	●	●	●
221	03.670 RELAY; MAIN 02.510 12V OMRON	8-97125-441-1	01	1	0808-0809	●
221	03.670 RELAY; MAIN 02.510 12V OMRON	8-97125-441-1	01	1	0810-0910	●	●	●
221	03.670 RELAY; MAIN 02.485 12V YAZAKI	8-97309-294-0	01	1	0808-0809	●
221	03.670 RELAY; MAIN 02.485 12V YAZAKI	8-97309-294-0	01	1	0810-0910	●	●	●

753 261 754 472 485 197 95 95 93 95 95 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (E)	8-97332-387-1	01	1	0810-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (F)	8-97943-451-0	01	1	0810-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (A)	8-97260-313-4	01	1	0810-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (B)	8-97943-450-0	01	1	0810-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (C)	8-97260-312-4	01	1	0810-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (D)	8-97943-449-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0810-	●
95	03.680 CLIP; HOSE EURO2 SPECIFICATION<NT2> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.430 (B) ID=6 & 16.5	8-94165-402-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 04.128 (C) ID=14.5 & 7.5	8-94315-424-0	01	1	0810-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.483 (D) ID=21 & 7.5	8-97309-946-0	01	1	0810-	●
95	03.680 CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) ID=14.5 & 7X4	8-94368-499-0	01	1	0810-	●
197	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.130 (C)	8-94384-336-0	01	1	0810-	●
197	03.670 VALVE; VAC SWITCHING EURO2 SPECIFICATION<NT2> (A)	8-97043-750-0	01	1	0810-	●
197	03.670 VALVE; VAC SWITCHING EURO2 SPECIFICATION<NT2> 03.675 (B)	8-97171-030-0	01	1	0810-	●
261	03.671 GROMMET AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206	5-19389-002-0	03	1	0810-	●
261	03.671 GROMMET EURO2 SPECIFICATION<NT2> 00.206	5-19389-002-0	03	1	0810-	●
472	03.671 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-	●
472	03.671 BOLT; BRKT EURO2 SPECIFICATION<NT2> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-	●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0810-	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION<NT2> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0810-	●
753	03.670 BRACKET; VALVE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75>	8-97943-948-0	01	1	0810-	●
753	03.670 BRACKET; VALVE EURO2 SPECIFICATION<NT2>	8-97943-948-0	01	1	0810-	●
754	03.647 BUSHING; RUBBER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206	5-19389-009-0	03	1	0810-	●
754	03.647 BUSHING; RUBBER EURO2 SPECIFICATION<NT2> 00.206	5-19389-009-0	03	1	0810-	●

678 678 469 411 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92064-809-0	01	1	0810-1009						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-92061-674-0	01	1	1010-						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A)	8-94334-338-1	02	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B)	8-94379-754-0	01	1	0810-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0808-0809		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-2	01	1	0810-1007		●	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97356-711-3	01	1	1008-		●	●	●	●
411	03.417 HOSE; RUBBER,CYL HD COVER	8-92063-676-0	01	1	0810-						●
469	03.680 PLATE; EGR VLV	8-92065-430-0	01	1	0810-1009						●
469	03.680 PLATE; EGR VLV	8-92068-002-0	01	1	1010-						●
678	03.670 BOLT; PLATE	8-11041-103-0	02	1	0810-1009						●
678	03.670 BOLT; PLATE	8-92138-684-0	02	1	1010-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
