0-56 — EMISSION SYSTEM (#76962) — 12 parça

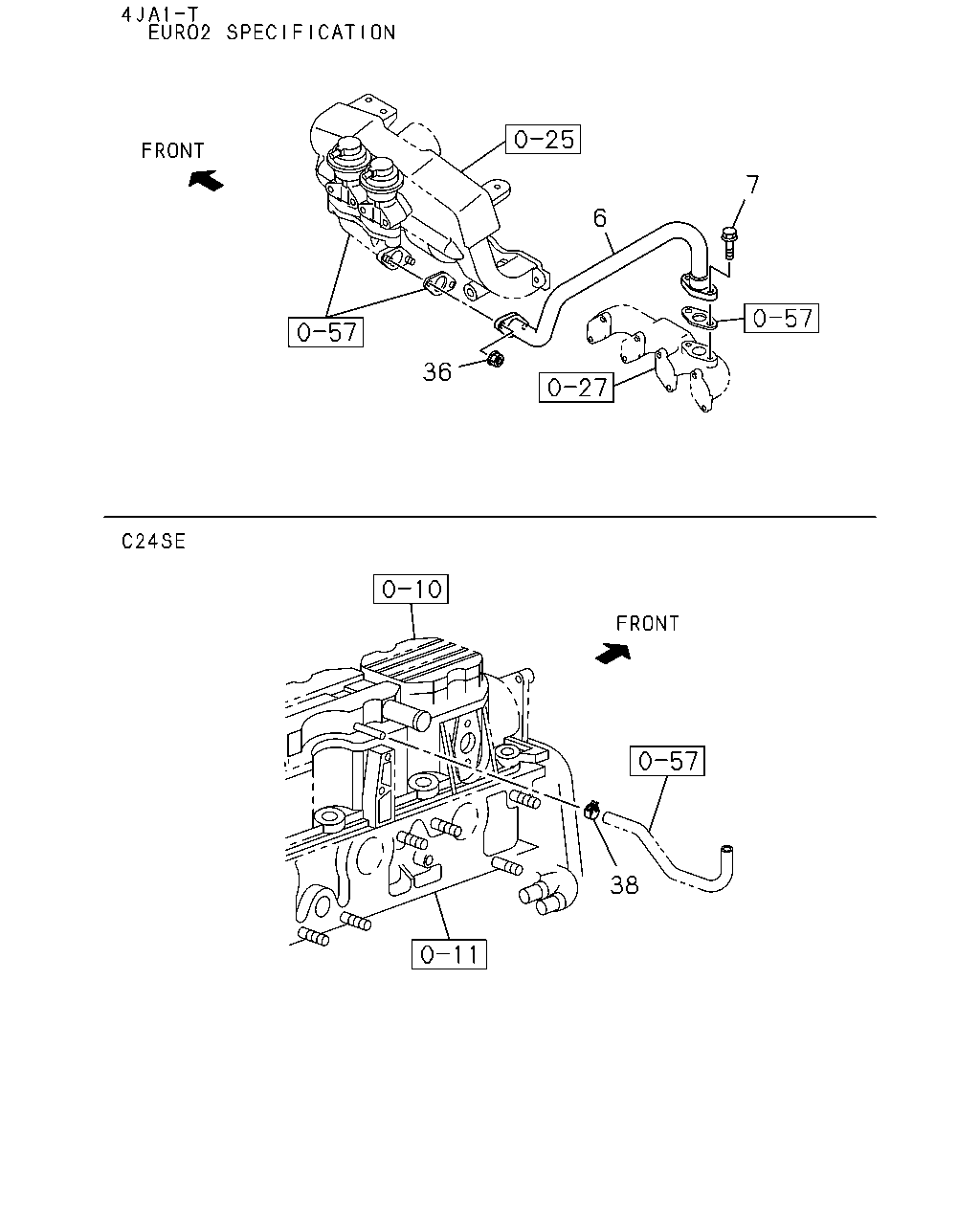

çizim 186236

7 6 36 38

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	6	03.675 PIPE; EGR EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>	8-98108-032-0	01	1	0810-	●
	6	03.675 PIPE; EGR EURO2 SPECIFICATION<NT2>	8-97118-378-1	01	1	0810-		●
	7	03.670 BOLT; BRKT,EGR PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M8X23 FLANGE	8-98048-437-0	02	1	0810-	●
	7	03.670 BOLT; BRKT,EGR PIPE EURO2 SPECIFICATION<NT2> 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0810-		●
	36	03.680 NUT; EGR PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-	●	●
	38	03.417 CLIP; VAC HOSE	8-90469-888-0	01	1	0810-1009			●
	38	03.417 CLIP; VAC HOSE	8-90469-888-0	04	1	1010-			●

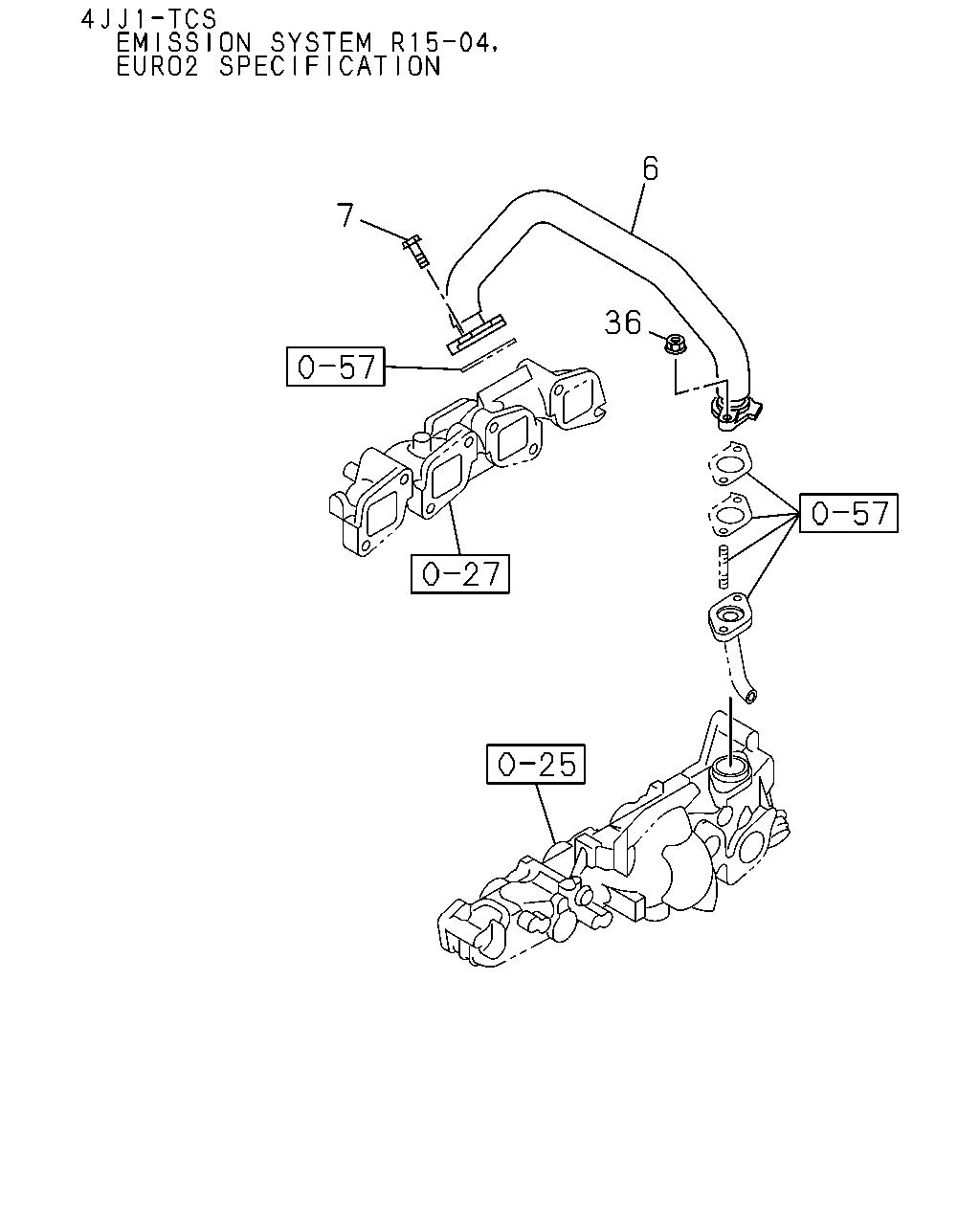

çizim 186292

6 7 36

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	6	03.675 PIPE; EGR EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>	8-98108-032-0	01	1	0810-	●
	6	03.675 PIPE; EGR EURO2 SPECIFICATION<NT2>	8-97118-378-1	01	1	0810-		●
	7	03.670 BOLT; BRKT,EGR PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M8X23 FLANGE	8-98048-437-0	02	1	0810-	●
	7	03.670 BOLT; BRKT,EGR PIPE EURO2 SPECIFICATION<NT2> 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0810-		●
	36	03.680 NUT; EGR PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-	●	●
