Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#76960) — 392 parça

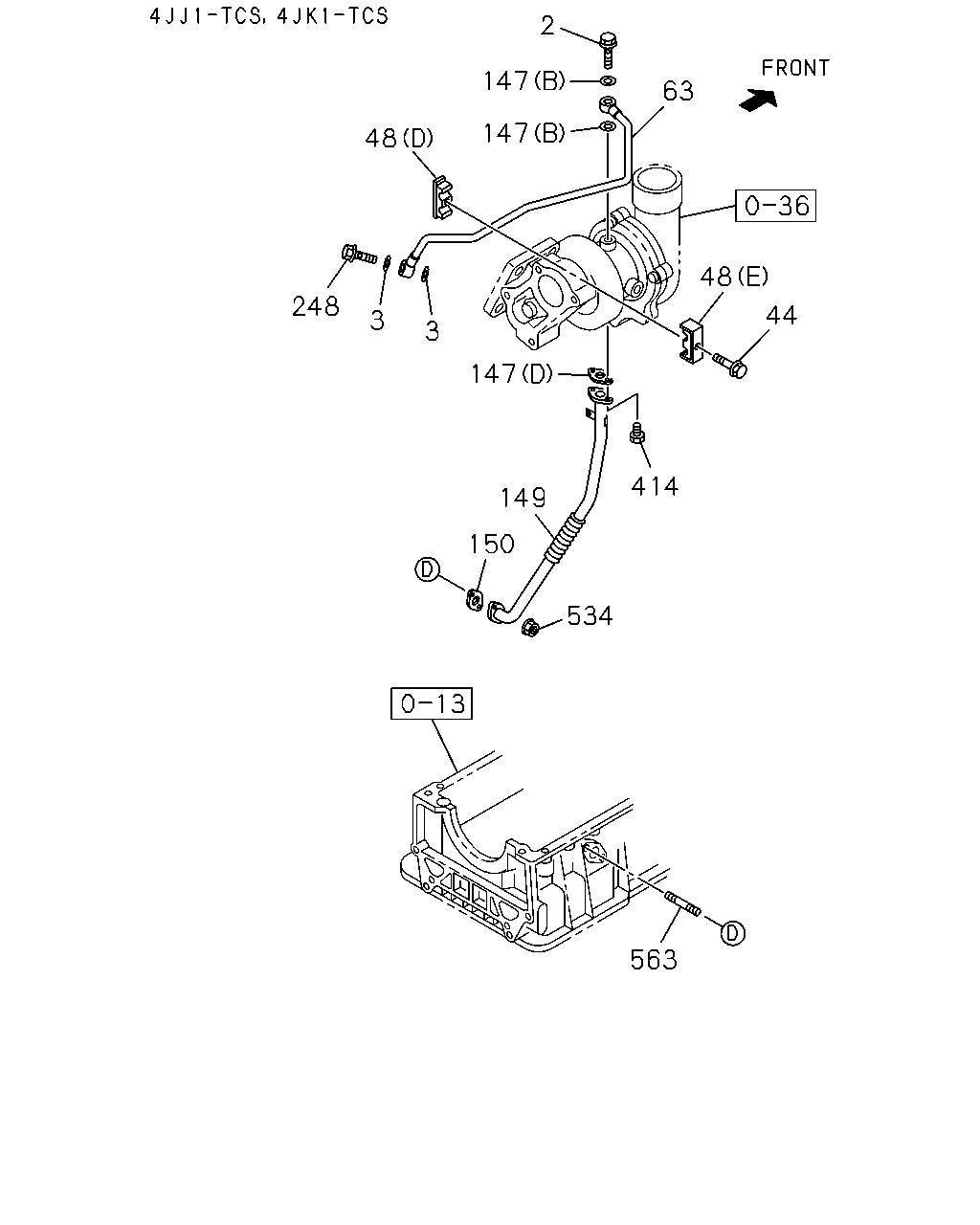

2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE M10X25 FLANGE	8-98151-063-1	01	1	1008-	●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0810-1007			●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	1008-			●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0810-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0808-0809		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0810-1007	●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-	●	●	●		●
44	01.531 BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0810-				●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	0808-0809		●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	0810-1007	●	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	1008-	●	●	●		●
48	01.531 CLIP; OIL PIPE (B)	8-97946-175-0	01	1	0808-0809		●
48	01.531 CLIP; OIL PIPE (B)	8-97946-175-0	01	1	0810-1007	●	●
48	01.531 CLIP; OIL PIPE (C)	8-97946-176-0	01	1	0808-0809		●
48	01.531 CLIP; OIL PIPE (C)	8-97946-176-0	01	1	0810-1007	●	●
48	01.531 CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	01	1	0810-				●
48	01.531 CLIP; OIL PIPE (D)	8-97389-843-1	01	1	0810-1007			●
48	01.531 CLIP; OIL PIPE (D)	8-97389-843-1	01	1	1008-	●	●	●		●
48	01.531 CLIP; OIL PIPE (E)	8-97389-844-0	01	1	0810-1007			●
48	01.531 CLIP; OIL PIPE (E)	8-97389-844-0	01	1	1008-	●	●	●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97350-308-0	01	1	0810-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-899-0	01	1	0810-1007			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-899-0	01	1	1008-			●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-504-1	01	1	0808-0809		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-504-1	01	1	0810-1007	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98156-380-0	01	1	1008-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-1	01	1	0810-				●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0810-1007			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-	●	●	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97354-056-0	01	1	0810-1007			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97354-056-0	01	1	1008-			●		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98011-505-1	01	1	0808-0809		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98011-505-1	01	1	0810-1007	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98132-017-0	01	1	1008-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER KENYA EQUIPMENT(CL1)	8-98126-827-0	01	1	1008-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98156-381-0	01	1	1008-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER KENYA EQUIPMENT(CL1)	8-98126-827-0	01	1	0812-1003			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97333-749-1	01	1	0810-				●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	0810-0811			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. KENYA EQUIPMENT(CL1)	8-98011-900-0	01	1	0812-1003			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	1004-1007			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. KENYA EQUIPMENT(CL1)	8-98011-900-0	01	1	1008-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	1008-					●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	0810-				●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97920-587-0	01	1	0808-0809		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97920-587-0	01	1	0810-1007	●	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1008-	●	●	●		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED KENYA EQUIPMENT(CL1) 03.280 M10X24	9-09906-205-1	01	1	1008-			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0810-				●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED KENYA EQUIPMENT(CL1) 03.280 M10X24	9-09906-205-1	01	1	0810-1003			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24	8-97944-505-1	01	1	0810-1003			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1004-1007			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24	8-97944-505-1	01	1	1008-			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1008-					●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0808-0809		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0810-	●	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1202-	●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0808-0809		●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0810-1007	●	●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1008-1201	●	●	●		●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1202-			●		●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809		●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-1007	●	●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-	●	●	●		●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	0808-0809		●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	0810-1007	●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1008-	●	●	●		●

58 29 29 57 26 28 28 118 313 48 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	0810-				●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	0810-				●
29	01.531 BOLT; OIL PIPE,OIL JET KENYA EQUIPMENT(CL1) (C) M6X20	8-97117-298-1	04	1	1008-			●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0810-				●
29	01.531 BOLT; OIL PIPE,OIL JET KENYA EQUIPMENT(CL1) (C) M6X20	8-97117-298-1	04	1	0810-1003			●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0808-0809		●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0810-1007	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1008-	●	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X20 FLANGE	8-97380-673-1	04	1	0808-0809		●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X20 FLANGE	8-97380-673-1	04	1	0810-1007	●	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. KENYA EQUIPMENT(CL1) (C) M6X20 FLANGE	8-97380-673-1	04	1	0810-1007			●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X20 FLANGE	8-97380-673-1	04	1	1008-	●	●			●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. KENYA EQUIPMENT(CL1) (C) M6X20 FLANGE	8-97380-673-1	04	1	1008-			●
48	01.531 CLIP; OIL PIPE (B)	8-97946-175-0	01	1	0808-0809		●
48	01.531 CLIP; OIL PIPE (B)	8-97946-175-0	01	1	0810-1007	●	●
48	01.531 CLIP; OIL PIPE (C)	8-97946-176-0	01	1	0808-0809		●
48	01.531 CLIP; OIL PIPE (C)	8-97946-176-0	01	1	0810-1007	●	●
48	01.531 CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	01	1	0810-				●
48	01.531 CLIP; OIL PIPE (D)	8-97389-843-1	01	1	0810-1007			●
48	01.531 CLIP; OIL PIPE (D)	8-97389-843-1	01	1	1008-	●	●	●		●
48	01.531 CLIP; OIL PIPE (E)	8-97389-844-0	01	1	0810-1007			●
48	01.531 CLIP; OIL PIPE (E)	8-97389-844-0	01	1	1008-	●	●	●		●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	0810-				●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	0808-0809		●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	0810-1007	●	●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1008-	●	●	●		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO KENYA EQUIPMENT(CL1)	8-97239-048-1	01	1	0810-1003			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0810-1003				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1004-1007				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO KENYA EQUIPMENT(CL1)	8-97239-048-1	01	1	1008-1407			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1008-1407				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO KENYA EQUIPMENT(CL1)	8-98285-334-0	01	1	1408-			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	0808-0809		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	0810-1007	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. KENYA EQUIPMENT(CL1)	8-97379-464-0	01	1	0810-1007			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1008-	●	●			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. KENYA EQUIPMENT(CL1)	8-97379-464-0	01	1	1008-			●
118	01.531 BRACKET; CLIP,OIL PIPE	8-97350-307-2	01	1	0810-				●
219	01.531 BOLT; CLIP FIX,OIL PIPE 03.162 M6X35 FLANGE	0-28650-635-0	01	1	0810-				●
313	01.540 BOLT; PIPE BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0810-				●

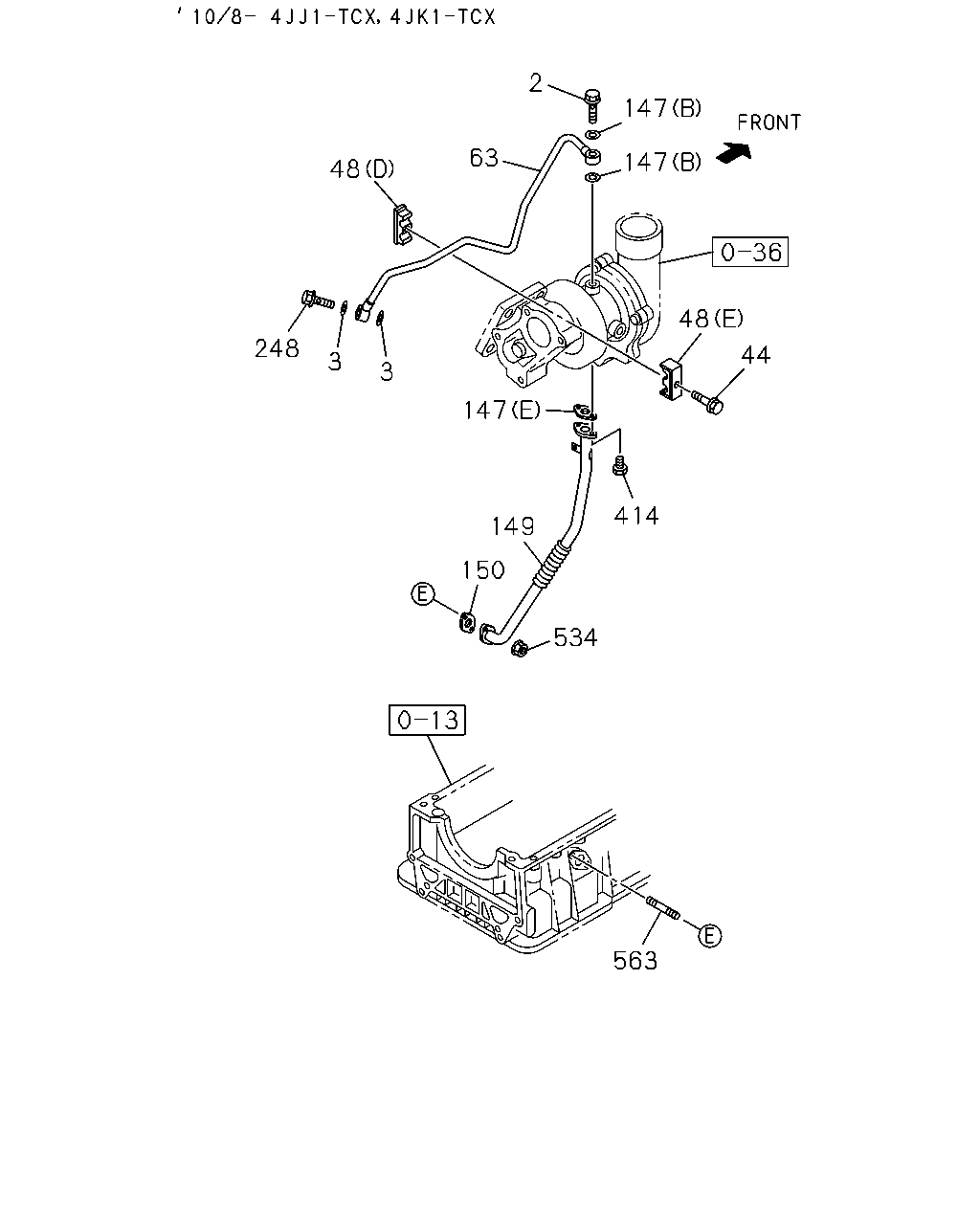

44 147 48 248 3 3 48 414 63 534 150 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0810-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0808-0809		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0810-1007	●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-	●	●	●		●
44	01.531 BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0810-				●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	0808-0809		●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	0810-1007	●	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	1008-	●	●	●		●
48	01.531 CLIP; OIL PIPE (B)	8-97946-175-0	01	1	0808-0809		●
48	01.531 CLIP; OIL PIPE (B)	8-97946-175-0	01	1	0810-1007	●	●
48	01.531 CLIP; OIL PIPE (C)	8-97946-176-0	01	1	0808-0809		●
48	01.531 CLIP; OIL PIPE (C)	8-97946-176-0	01	1	0810-1007	●	●
48	01.531 CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	01	1	0810-				●
48	01.531 CLIP; OIL PIPE (D)	8-97389-843-1	01	1	0810-1007			●
48	01.531 CLIP; OIL PIPE (D)	8-97389-843-1	01	1	1008-	●	●	●		●
48	01.531 CLIP; OIL PIPE (E)	8-97389-844-0	01	1	0810-1007			●
48	01.531 CLIP; OIL PIPE (E)	8-97389-844-0	01	1	1008-	●	●	●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97350-308-0	01	1	0810-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-899-0	01	1	0810-1007			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-899-0	01	1	1008-			●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-504-1	01	1	0808-0809		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-504-1	01	1	0810-1007	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98156-380-0	01	1	1008-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-1	01	1	0810-				●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0810-1007			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-	●	●	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97354-056-0	01	1	0810-1007			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97354-056-0	01	1	1008-			●		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98011-505-1	01	1	0808-0809		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98011-505-1	01	1	0810-1007	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98132-017-0	01	1	1008-	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	0810-				●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97920-587-0	01	1	0808-0809		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97920-587-0	01	1	0810-1007	●	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1008-	●	●	●		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED KENYA EQUIPMENT(CL1) 03.280 M10X24	9-09906-205-1	01	1	1008-			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0810-				●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED KENYA EQUIPMENT(CL1) 03.280 M10X24	9-09906-205-1	01	1	0810-1003			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24	8-97944-505-1	01	1	0810-1003			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1004-1007			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24	8-97944-505-1	01	1	1008-			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1008-					●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0808-0809		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0810-	●	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1202-	●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0808-0809		●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0810-1007	●	●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1008-1201	●	●	●		●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1202-			●		●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809		●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-1007	●	●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-	●	●	●		●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	0808-0809		●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	0810-1007	●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1008-	●	●	●		●

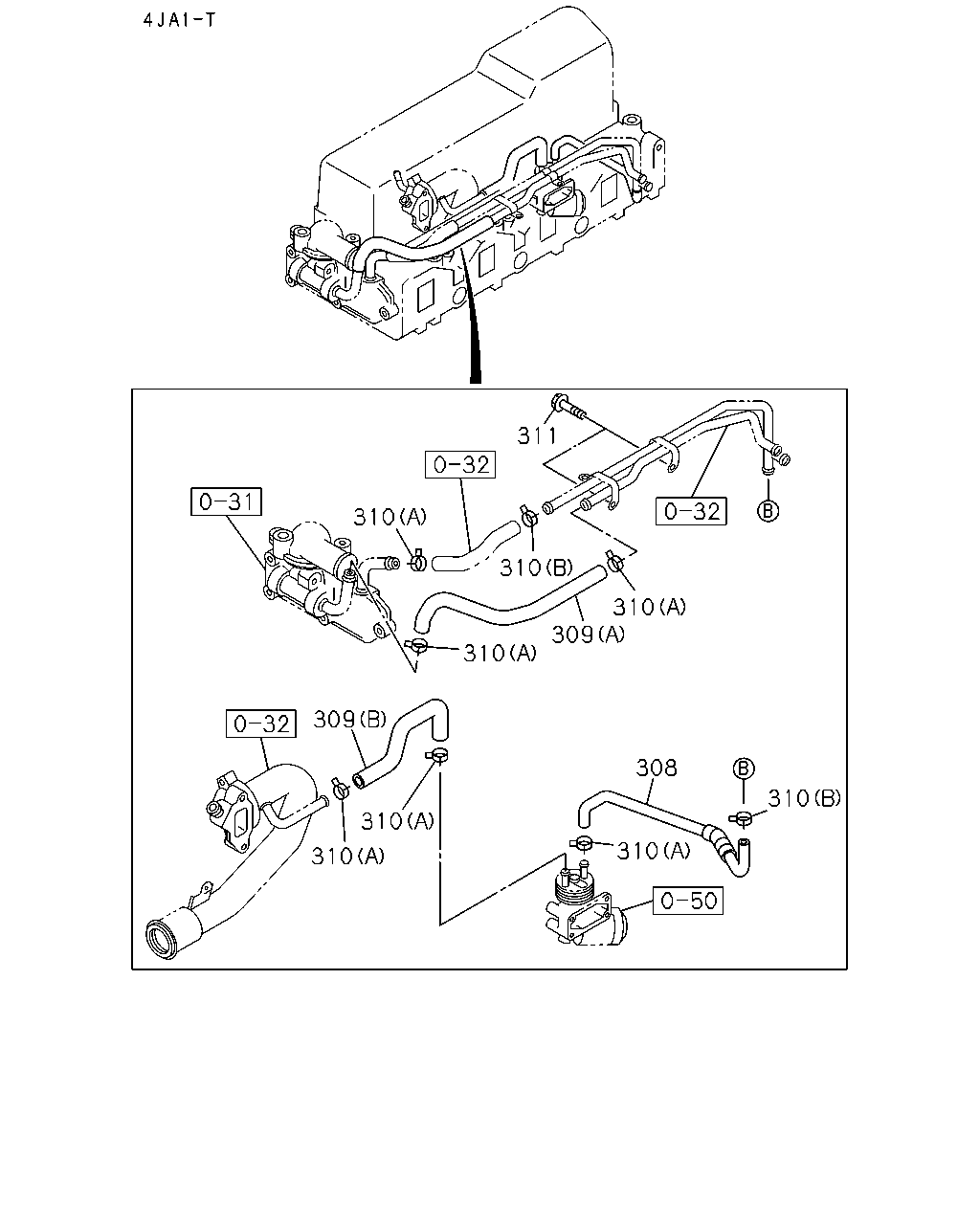

311 310 310 310 309 310 309 308 310 310 310 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
308	01.540 HOSE; OIL COOLER FEED	8-97362-329-3	01	1	0810-				●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97213-919-2	01	1	0810-				●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97256-047-1	01	1	0810-				●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	0810-				●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	0810-				●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0810-				●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0808-0809		●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0810-1007	●	●	●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1008-	●	●	●		●

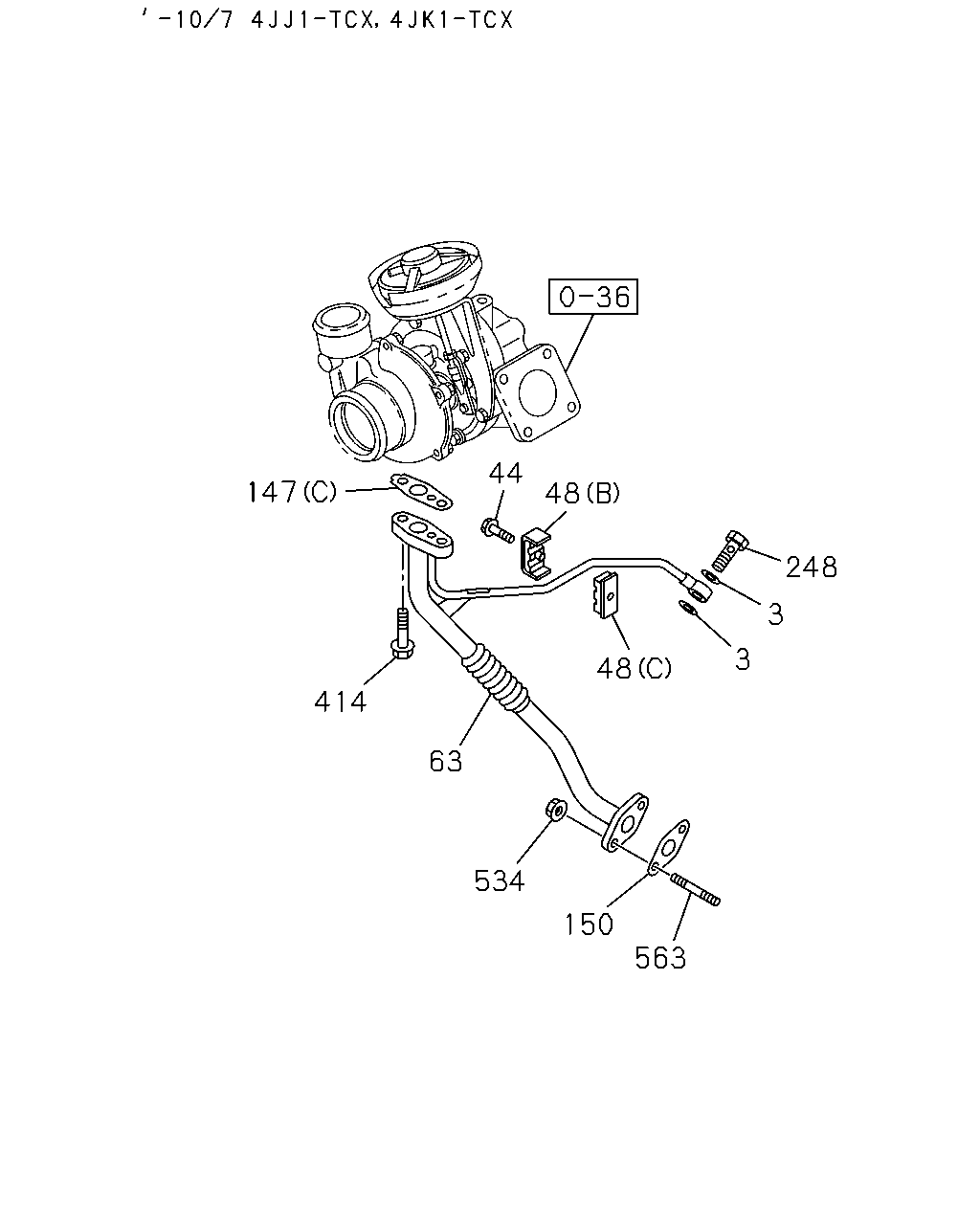

2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE M10X25 FLANGE	8-98151-063-1	01	1	1008-	●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0810-1007			●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	1008-			●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0810-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0808-0809		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0810-1007	●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-	●	●	●		●
44	01.531 BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0810-				●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	0808-0809		●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	0810-1007	●	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	1008-	●	●	●		●
48	01.531 CLIP; OIL PIPE (B)	8-97946-175-0	01	1	0808-0809		●
48	01.531 CLIP; OIL PIPE (B)	8-97946-175-0	01	1	0810-1007	●	●
48	01.531 CLIP; OIL PIPE (C)	8-97946-176-0	01	1	0808-0809		●
48	01.531 CLIP; OIL PIPE (C)	8-97946-176-0	01	1	0810-1007	●	●
48	01.531 CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	01	1	0810-				●
48	01.531 CLIP; OIL PIPE (D)	8-97389-843-1	01	1	0810-1007			●
48	01.531 CLIP; OIL PIPE (D)	8-97389-843-1	01	1	1008-	●	●	●		●
48	01.531 CLIP; OIL PIPE (E)	8-97389-844-0	01	1	0810-1007			●
48	01.531 CLIP; OIL PIPE (E)	8-97389-844-0	01	1	1008-	●	●	●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97350-308-0	01	1	0810-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-899-0	01	1	0810-1007			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-899-0	01	1	1008-			●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-504-1	01	1	0808-0809		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-504-1	01	1	0810-1007	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98156-380-0	01	1	1008-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-1	01	1	0810-				●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0810-1007			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-	●	●	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97354-056-0	01	1	0810-1007			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97354-056-0	01	1	1008-			●		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98011-505-1	01	1	0808-0809		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98011-505-1	01	1	0810-1007	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98132-017-0	01	1	1008-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER KENYA EQUIPMENT(CL1)	8-98126-827-0	01	1	1008-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98156-381-0	01	1	1008-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER KENYA EQUIPMENT(CL1)	8-98126-827-0	01	1	0812-1003			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97333-749-1	01	1	0810-				●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	0810-0811			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. KENYA EQUIPMENT(CL1)	8-98011-900-0	01	1	0812-1003			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	1004-1007			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. KENYA EQUIPMENT(CL1)	8-98011-900-0	01	1	1008-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	1008-					●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	0810-				●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97920-587-0	01	1	0808-0809		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97920-587-0	01	1	0810-1007	●	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1008-	●	●	●		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED KENYA EQUIPMENT(CL1) 03.280 M10X24	9-09906-205-1	01	1	1008-			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0810-				●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED KENYA EQUIPMENT(CL1) 03.280 M10X24	9-09906-205-1	01	1	0810-1003			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24	8-97944-505-1	01	1	0810-1003			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1004-1007			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24	8-97944-505-1	01	1	1008-			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1008-					●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0808-0809		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0810-	●	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1202-	●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0808-0809		●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0810-1007	●	●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1008-1201	●	●	●		●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1202-			●		●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809		●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-1007	●	●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-	●	●	●		●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	0808-0809		●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	0810-1007	●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1008-	●	●	●		●

500 580 581 500 499 311 339 338 339 332 339 339 338 339 89 499 339 339 338 332 338 500 138 567 29 57 58 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
29	01.531 BOLT; OIL PIPE,OIL JET KENYA EQUIPMENT(CL1) (C) M6X20	8-97117-298-1	04	1	1008-			●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0810-				●
29	01.531 BOLT; OIL PIPE,OIL JET KENYA EQUIPMENT(CL1) (C) M6X20	8-97117-298-1	04	1	0810-1003			●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0808-0809		●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0810-1007	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1008-	●	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X20 FLANGE	8-97380-673-1	04	1	0808-0809		●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X20 FLANGE	8-97380-673-1	04	1	0810-1007	●	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. KENYA EQUIPMENT(CL1) (C) M6X20 FLANGE	8-97380-673-1	04	1	0810-1007			●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X20 FLANGE	8-97380-673-1	04	1	1008-	●	●			●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. KENYA EQUIPMENT(CL1) (C) M6X20 FLANGE	8-97380-673-1	04	1	1008-			●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	0810-				●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	0808-0809		●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	0810-1007	●	●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1008-	●	●	●		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO KENYA EQUIPMENT(CL1)	8-97239-048-1	01	1	0810-1003			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0810-1003				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1004-1007				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO KENYA EQUIPMENT(CL1)	8-97239-048-1	01	1	1008-1407			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1008-1407				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO KENYA EQUIPMENT(CL1)	8-98285-334-0	01	1	1408-			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	0808-0809		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	0810-1007	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. KENYA EQUIPMENT(CL1)	8-97379-464-0	01	1	0810-1007			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1008-	●	●			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. KENYA EQUIPMENT(CL1)	8-97379-464-0	01	1	1008-			●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	0808-0809		●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	0810-1007	●	●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1008-	●	●	●		●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●	●		●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0810-				●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0808-0809		●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0810-1007	●	●	●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1008-	●	●	●		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP KENYA EQUIPMENT(CL1) (C)	8-98201-785-0	01	1	1301-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-97942-810-0	01	1	0810-				●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	0808-0809		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	0810-1007	●	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	1008-1212	●	●	●		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	1301-	●	●			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. KENYA EQUIPMENT(CL1) (A)	8-98038-929-0	01	1	1301-			●
338	01.531 BOLT; JOINT,OIL PIPE KENYA EQUIPMENT(CL1) M8X20 EYE-BOLT	5-09675-018-1	02	1	1008-			●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	0911-1007	●	●
338	01.531 BOLT; JOINT,OIL PIPE EXC. KENYA EQUIPMENT(CL1) M8X20 EYE-BOLT	8-97910-296-1	02	1	0911-1007			●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1008-	●	●			●
338	01.531 BOLT; JOINT,OIL PIPE EXC. KENYA EQUIPMENT(CL1) M8X20 EYE-BOLT	8-97910-296-1	02	1	1008-			●
338	01.531 BOLT; JOINT,OIL PIPE KENYA EQUIPMENT(CL1) M8X20 EYE-BOLT	5-09675-018-1	02	1	0810-1003			●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	0808-0809		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	0810-0910	●	●
338	01.531 BOLT; JOINT,OIL PIPE EXC. KENYA EQUIPMENT(CL1) M8X20 EYE-BOLT	8-97910-296-1	02	1	0810-0910			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-408-0	04	1	1301-	●	●			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1301-			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0808-0809		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0810-1007	●	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1008-1212	●	●	●		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302			●
499	04.681 PIPE; VACUUM (B)	8-98013-802-1	01	1	0810-1007			●
499	04.681 PIPE; VACUUM (B)	8-98013-802-1	01	1	1008-			●		●
499	04.681 PIPE; VACUUM (B)	8-98011-526-1	01	1	0808-0809		●
499	04.681 PIPE; VACUUM (B)	8-98011-526-1	01	1	0810-	●	●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	0808-0809		●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	0810-1007	●	●	●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1008-	●	●	●		●
500	04.681 HOSE; VACUUM (A)	0-04420-110-0	01	1	0808-0809		●
500	04.681 HOSE; VACUUM (A)	0-04420-110-0	01	1	0810-1007	●	●	●
500	04.681 HOSE; VACUUM (A)	0-04420-110-0	01	1	1008-	●	●	●		●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	0808-0809		●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	0810-1007	●	●	●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1008-	●	●	●		●
500	04.681 HOSE; VACUUM 03.675 (C)	8-97369-589-0	01	1	0808-0809		●
500	04.681 HOSE; VACUUM 03.675 (C)	8-97369-589-0	01	1	0810-1007	●	●	●
500	04.681 HOSE; VACUUM 03.675 (C)	8-97369-589-0	01	1	1008-	●	●	●		●
567	01.531 CLIP; PIPE EMISSION SYSTEM R15-04<K75> HEATER & DEFROSTER(C42) 03.145 ID=8	8-94107-762-0	01	1	0810-				●
567	01.531 CLIP; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0808-0809		●
567	01.531 CLIP; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0810-1007	●	●	●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	0808-0809		●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	0810-1007	●	●	●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	1008-	●	●	●		●
581	01.531 BOLT; VSV 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0808-0809		●
581	01.531 BOLT; VSV 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0810-1007	●	●	●
581	01.531 BOLT; VSV 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●	●		●

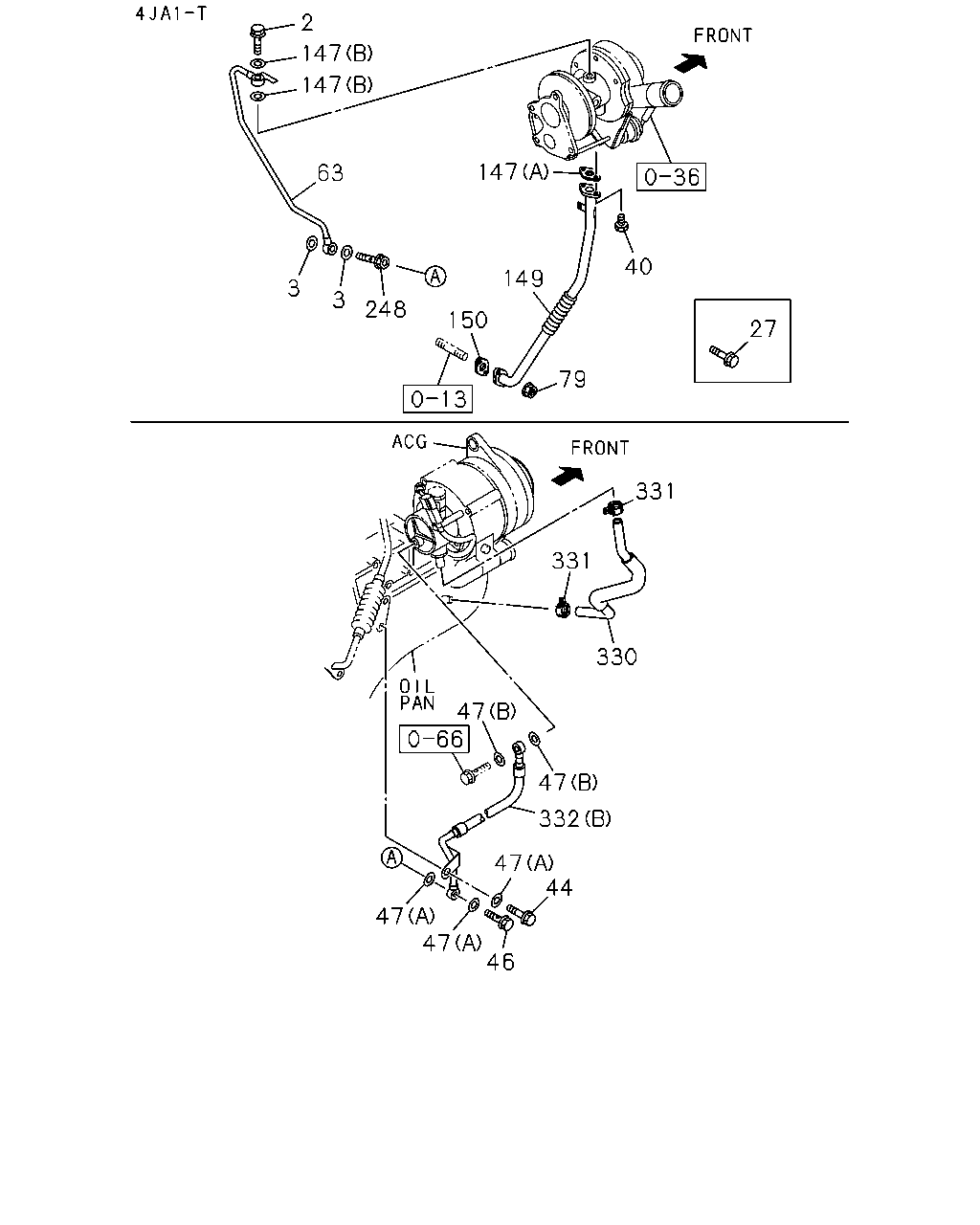

2 147 147 63 3 3 248 150 149 147 40 27 79 331 331 330 47 47 332 47 44 46 47 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE M10X25 FLANGE	8-98151-063-1	01	1	1008-	●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0810-1007			●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	1008-			●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0810-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0808-0809		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0810-1007	●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-	●	●	●		●
27	01.531 BOLT; OIL PIPE FIX 03.407 M8X10 FLANGE	0-28050-810-0	01	1	0810-				●
40	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	0810-				●
44	01.531 BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0810-				●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	0808-0809		●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	0810-1007	●	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	1008-	●	●	●		●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	0810-0906				●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 FLANGE	8-98137-710-0	01	1	0907-				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0810-				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0810-				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0810-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97350-308-0	01	1	0810-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-899-0	01	1	0810-1007			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-899-0	01	1	1008-			●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-504-1	01	1	0808-0809		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-504-1	01	1	0810-1007	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98156-380-0	01	1	1008-	●	●
79	01.531 NUT; OIL DRAIN PIPE 04.634 M8 FLANGE	8-97581-233-0	02	1	0810-				●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-1	01	1	0810-				●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0810-1007			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-	●	●	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97354-056-0	01	1	0810-1007			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97354-056-0	01	1	1008-			●		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98011-505-1	01	1	0808-0809		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98011-505-1	01	1	0810-1007	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98132-017-0	01	1	1008-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER KENYA EQUIPMENT(CL1)	8-98126-827-0	01	1	1008-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98156-381-0	01	1	1008-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER KENYA EQUIPMENT(CL1)	8-98126-827-0	01	1	0812-1003			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97333-749-1	01	1	0810-				●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	0810-0811			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. KENYA EQUIPMENT(CL1)	8-98011-900-0	01	1	0812-1003			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	1004-1007			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. KENYA EQUIPMENT(CL1)	8-98011-900-0	01	1	1008-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	1008-					●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	0810-				●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97920-587-0	01	1	0808-0809		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97920-587-0	01	1	0810-1007	●	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1008-	●	●	●		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED KENYA EQUIPMENT(CL1) 03.280 M10X24	9-09906-205-1	01	1	1008-			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0810-				●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED KENYA EQUIPMENT(CL1) 03.280 M10X24	9-09906-205-1	01	1	0810-1003			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24	8-97944-505-1	01	1	0810-1003			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1004-1007			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24	8-97944-505-1	01	1	1008-			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1008-					●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0808-0809		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0810-	●	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97353-830-0	01	1	0810-				●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	0810-				●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	0810-				●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP KENYA EQUIPMENT(CL1) (C)	8-98201-785-0	01	1	1301-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-97942-810-0	01	1	0810-				●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	0808-0809		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	0810-1007	●	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	1008-1212	●	●	●		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	1301-	●	●			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. KENYA EQUIPMENT(CL1) (A)	8-98038-929-0	01	1	1301-			●

567 458

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
458	01.426 CAP; RUBBER EMISSION SYSTEM R15-04<K75> HEATER & DEFROSTER(C42) 01.780 ID=4	8-94217-809-0	01	1	0810-				●
567	01.531 CLIP; PIPE EMISSION SYSTEM R15-04<K75> HEATER & DEFROSTER(C42) 03.145 ID=8	8-94107-762-0	01	1	0810-				●
567	01.531 CLIP; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0808-0809		●
567	01.531 CLIP; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0810-1007	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
