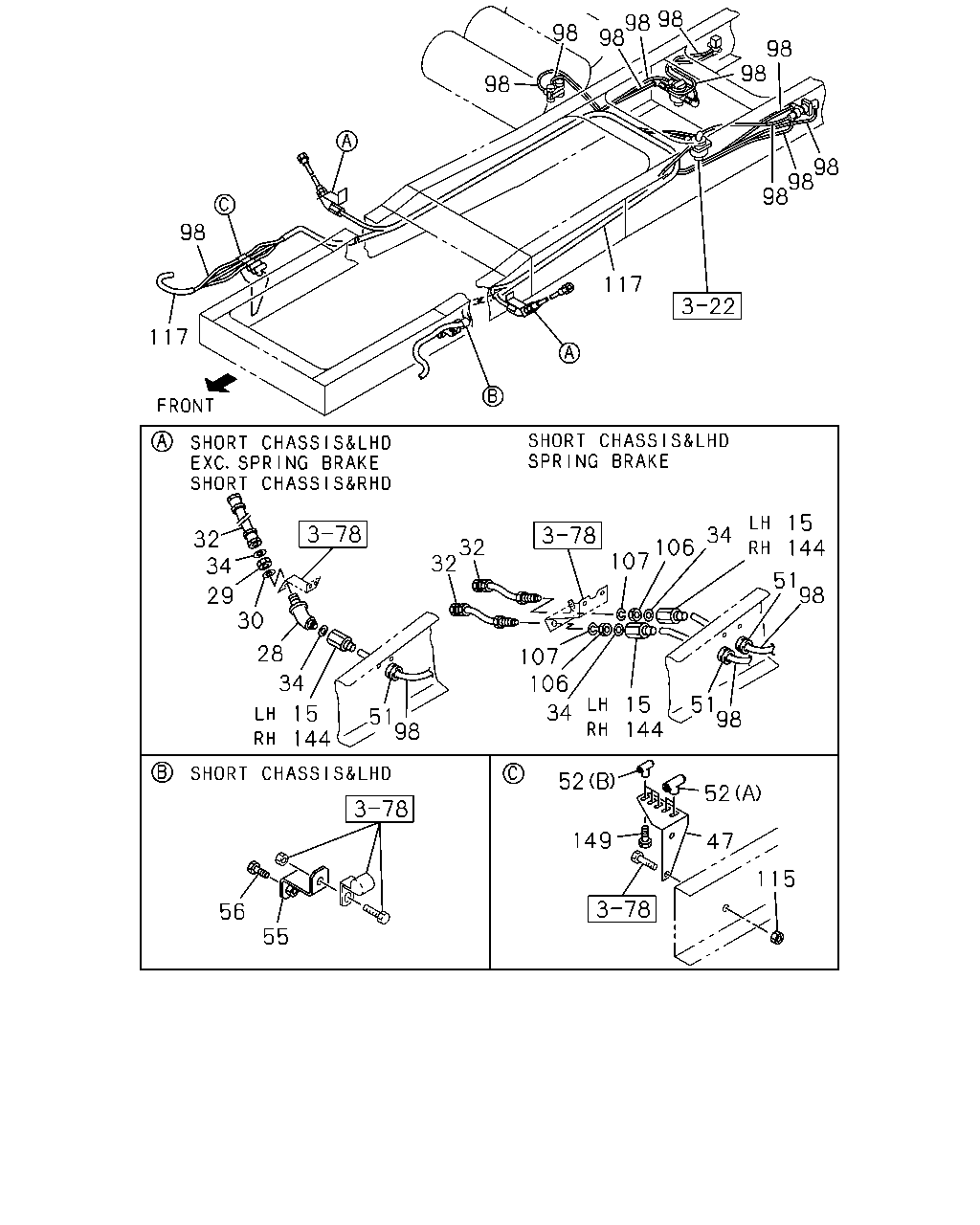

15 |
CONNECTOR; AIR PIPE
BRAKE SYSTEM SPRING BRAKE(BCR)
DIN12 & M12 STRAIGHT
|
1-09661-098-0 |
02 |
1 |
9902-0003 |
● |
|
| |
15 |
CONNECTOR; AIR PIPE
BRAKE SYSTEM SPRING BRAKE(BCR)
DIN12 & M12 STRAIGHT
|
1-09661-098-0 |
01 |
1 |
0004-0007 |
● |
|
| |
15 |
CONNECTOR; AIR PIPE
BRAKE SYSTEM SPRING BRAKE(BCR)
DIN12 & M12 STRAIGHT
|
1-09660-878-0 |
01 |
1 |
0008- |
● |
|
| |
15 |
CONNECTOR; AIR PIPE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
DIN12 & M20 STRAIGHT
|
1-09661-097-0 |
01 |
1 |
9905-0003 |
● |
|
| |
15 |
CONNECTOR; AIR PIPE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
DIN12 & M20 STRAIGHT
|
1-09661-097-0 |
01 |
1 |
0004-0007 |
● |
|
| |
15 |
CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT
|
1-09661-097-0 |
01 |
1 |
0004-0007 |
|
● |
| |
15 |
CONNECTOR; AIR PIPE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
01 |
1 |
0008- |
● |
|
| |
15 |
CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
01 |
1 |
0008- |
|
● |
| |
28 |
NIPPLE; AIR PIPE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
M20
|
1-09654-199-2 |
02 |
1 |
9905-0003 |
● |
|
| |
28 |
NIPPLE; AIR PIPE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
M20
|
1-09654-199-2 |
02 |
1 |
0004- |
● |
|
| |
28 |
NIPPLE; AIR PIPE
M20
|
1-09654-199-2 |
02 |
1 |
0004- |
|
● |
| |
29 |
NUT; NIPPLE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
M20
|
9-99111-420-0 |
02 |
1 |
9905-0003 |
● |
|
| |
29 |
NUT; NIPPLE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
M20
|
9-99111-420-0 |
02 |
1 |
0004- |
● |
|
| |
29 |
NUT; NIPPLE
M20
|
9-99111-420-0 |
02 |
1 |
0004- |
|
● |
| |
30 |
WASHER; LK,NIPPLE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
ID=20.2
|
9-09150-520-0 |
02 |
1 |
9905-0003 |
● |
|
| |
30 |
WASHER; LK,NIPPLE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
ID=20.2
|
9-09150-520-0 |
02 |
1 |
0004- |
● |
|
| |
30 |
WASHER; LK,NIPPLE
ID=20.2
|
9-09150-520-0 |
02 |
1 |
0004- |
|
● |
| |
32 |
HOSE; FLEX,FRT
FRONT
L=580
|
0-07807-580-1 |
02 |
1 |
9902-9904 |
● |
|
| |
32 |
HOSE; FLEX,FRT
BRAKE SYSTEM SPRING BRAKE(BCR)
FRONT
L=580
|
0-07807-580-1 |
02 |
1 |
9905-0003 |
● |
|
| |
32 |
HOSE; FLEX,FRT
BRAKE SYSTEM SPRING BRAKE(BCR)
FRONT
L=580
|
0-07807-580-1 |
02 |
1 |
0004- |
● |
|
| |
32 |
HOSE; FLEX,FRT
BRAKE SYSTEM SPRING BRAKE(BCR)
REAR
L=560
|
0-07817-560-1 |
02 |
1 |
9902- |
● |
|
| |
32 |
HOSE; FLEX,FRT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
L=500
|
0-07847-500-1 |
02 |
1 |
9905-0003 |
● |
|
| |
32 |
HOSE; FLEX,FRT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
L=500
|
0-07847-500-1 |
02 |
1 |
0004- |
● |
|
| |
32 |
HOSE; FLEX,FRT
L=500
|
0-07847-500-1 |
02 |
1 |
0004- |
|
● |
| |
34 |
GASKET; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR)
ID=11 OD=18
|
9-09572-510-0 |
02 |
1 |
9902- |
● |
|
| |
34 |
GASKET; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR)
ID=11 OD=18
|
9-09572-510-0 |
02 |
1 |
9902- |
● |
|
| |
34 |
GASKET; FLEX HOSE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
ID=11 OD=18
|
9-09572-510-0 |
04 |
1 |
9905-0003 |
● |
|
| |
34 |
GASKET; FLEX HOSE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
ID=11 OD=18
|
9-09572-510-0 |
04 |
1 |
0004- |
● |
|
| |
34 |
GASKET; FLEX HOSE
ID=11 OD=18
|
9-09572-510-0 |
04 |
1 |
0004- |
|
● |
| |
47 |
BRACKET; PIPE UNION
BRAKE REGULATION ECE<TDV>
|
1-47478-282-0 |
01 |
1 |
9902-9902 |
● |
|
| |
47 |
BRACKET; PIPE UNION
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-47478-282-0 |
01 |
1 |
9903- |
● |
|
| |
47 |
BRACKET; PIPE UNION
|
1-47478-283-0 |
01 |
1 |
0004- |
|
● |
| |
51 |
GROMMET; NYLON TUBE
BRAKE SYSTEM SPRING BRAKE(BCR)
ID=24 OD=30 T=17
|
9-09956-092-1 |
04 |
1 |
9902- |
● |
|
| |
51 |
GROMMET; NYLON TUBE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
ID=28 OD=35 T=25
|
1-09332-011-1 |
02 |
1 |
9905-0003 |
● |
|
| |
51 |
GROMMET; NYLON TUBE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
ID=28 OD=35 T=25
|
1-09332-011-1 |
02 |
1 |
0004- |
● |
|
| |
51 |
GROMMET; NYLON TUBE
ID=28 OD=35 T=25
|
1-09332-011-1 |
02 |
1 |
0004- |
|
● |
| |
52 |
CONNECTOR; NYLON TUBE
BRAKE REGULATION ECE<TDV>
(A)
|
1-09661-128-0 |
01 |
1 |
9902-9902 |
● |
|
| |
52 |
CONNECTOR; NYLON TUBE
BRAKE SYSTEM SPRING BRAKE(BCR)
(A)
|
1-09661-128-0 |
01 |
1 |
9903-9904 |
● |
|
| |
52 |
CONNECTOR; NYLON TUBE
EXC. TRAILER BRAKE CONTROL<J91>
(A)
|
1-09661-128-0 |
01 |
1 |
9905- |
● |
|
| |
52 |
CONNECTOR; NYLON TUBE
BRAKE REGULATION ECE<TDV>
(B)
|
1-09661-133-0 |
02 |
1 |
9902-9902 |
● |
|
| |
52 |
CONNECTOR; NYLON TUBE
BRAKE SYSTEM SPRING BRAKE(BCR)
(B)
|
1-09661-133-0 |
02 |
1 |
9903-9904 |
● |
|
| |
52 |
CONNECTOR; NYLON TUBE
EXC. TRAILER BRAKE CONTROL<J91>
(B)
|
1-09661-133-0 |
02 |
1 |
9905- |
● |
|
| |
52 |
CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91>
(A)
|
1-09661-128-0 |
02 |
1 |
9905-0003 |
● |
|
| |
52 |
CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91>
(A)
|
1-09661-128-0 |
02 |
1 |
0004- |
● |
|
| |
52 |
CONNECTOR; NYLON TUBE
(A)
|
1-09661-128-0 |
02 |
1 |
0004- |
|
● |
| |
52 |
CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91>
(B)
|
1-09661-133-0 |
03 |
1 |
9905-0003 |
● |
|
| |
52 |
CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91>
(B)
|
1-09661-133-0 |
03 |
1 |
0004- |
● |
|
| |
52 |
CONNECTOR; NYLON TUBE
(B)
|
1-09661-133-0 |
03 |
1 |
0004- |
|
● |
| |
55 |
BRACKET; TUBE UNION
|
1-47476-200-0 |
01 |
1 |
9902- |
● |
|
| |
56 |
BOLT; UNION BRKT
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9902- |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=2000 OD=12
|
1-87410-069-0 |
AR |
1 |
9902-0003 |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=4000 OD=12
|
1-87410-070-0 |
AR |
1 |
9902-0003 |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=6000 OD=12
|
1-87410-071-0 |
AR |
1 |
9902-0003 |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=8000 OD=12
|
1-87410-072-0 |
AR |
1 |
9902- |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=2000 OD=8
|
1-87410-073-0 |
AR |
1 |
9902-0003 |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=4000 OD=8
|
1-87410-074-0 |
AR |
1 |
9902-0003 |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=6000 OD=8
|
1-87410-075-0 |
AR |
1 |
9902-0003 |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=30000 OD=12
|
1-09369-544-0 |
AR |
1 |
9906-0001 |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=8000 OD=8
|
1-87410-076-0 |
AR |
1 |
9908- |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=4000 OD=6
|
1-87410-082-0 |
AR |
1 |
9908-0003 |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=8000 OD=6
|
1-87410-084-0 |
AR |
1 |
9908- |
● |
|
| |
98 |
TUBE; NYLON
SERVICED BY L=2000 OD=12
|
1-87410-069-0 |
AR |
1 |
0004- |
● |
● |
| |
98 |
TUBE; NYLON
SERVICED BY L=4000 OD=12
|
1-87410-070-0 |
AR |
1 |
0004- |
● |
● |
| |
98 |
TUBE; NYLON
SERVICED BY L=6000 OD=12
|
1-87410-071-0 |
AR |
1 |
0004- |
● |
● |
| |
98 |
TUBE; NYLON
SERVICED BY L=2000 OD=8
|
1-87410-073-0 |
AR |
1 |
0004- |
● |
● |
| |
98 |
TUBE; NYLON
SERVICED BY L=4000 OD=8
|
1-87410-074-0 |
AR |
1 |
0004- |
● |
● |
| |
98 |
TUBE; NYLON
SERVICED BY L=6000 OD=8
|
1-87410-075-0 |
AR |
1 |
0004- |
● |
● |
| |
98 |
TUBE; NYLON
SERVICED BY L=4000 OD=6
|
1-87410-082-0 |
AR |
1 |
0004- |
● |
● |
| |
98 |
TUBE; NYLON
L=1010 OD=12
|
1-49215-514-0 |
01 |
1 |
0005-0006 |
● |
● |
| |
106 |
NUT; FLEX HOSE
FRONT
M20
|
9-99111-420-0 |
02 |
1 |
9902-9904 |
● |
|
| |
106 |
NUT; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR)
FRONT
M20
|
9-99111-420-0 |
02 |
1 |
9905-0003 |
● |
|
| |
106 |
NUT; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR)
FRONT
M20
|
9-99111-420-0 |
02 |
1 |
0004- |
● |
|
| |
106 |
NUT; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR)
REAR
M22
|
9-09111-422-0 |
02 |
1 |
9902- |
● |
|
| |
107 |
WASHER; LK,FLEX HOSE
FRONT
ID=20.2
|
9-09150-520-0 |
02 |
1 |
9902-9904 |
● |
|
| |
107 |
WASHER; LK,FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR)
FRONT
ID=20.2
|
9-09150-520-0 |
02 |
1 |
9905-0003 |
● |
|
| |
107 |
WASHER; LK,FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR)
FRONT
ID=20.2
|
9-09150-520-0 |
02 |
1 |
0004- |
● |
|
| |
107 |
WASHER; LK,FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR)
REAR
ID=22.5
|
9-09150-522-0 |
02 |
1 |
9902- |
● |
|
| |
115 |
NUT; TUBE UNION
M12 FLANGE
|
0-91150-212-0 |
02 |
1 |
9902-0003 |
● |
|
| |
115 |
NUT; TUBE UNION
M12 FLANGE
|
0-91150-212-0 |
02 |
1 |
0004- |
● |
● |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
|
1-87410-088-0 |
AR |
1 |
9902-0003 |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
|
1-87410-091-0 |
AR |
1 |
9902- |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
|
1-87410-094-0 |
AR |
1 |
9902- |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
|
1-87410-096-0 |
AR |
1 |
9902- |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
|
1-87410-098-0 |
AR |
1 |
9902-0003 |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=4000 ID=28
|
1-87410-099-0 |
AR |
1 |
9902- |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
|
1-87410-100-0 |
AR |
1 |
9902-0003 |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=4000 ID=25
|
1-87410-101-0 |
AR |
1 |
9902- |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
|
1-87410-102-0 |
AR |
1 |
9902- |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
|
1-87410-104-0 |
AR |
1 |
9902-0003 |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=7
|
1-87410-085-0 |
AR |
1 |
9908- |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=4000 ID=22
|
1-87410-097-0 |
AR |
1 |
9908- |
● |
|
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
|
1-87410-088-0 |
AR |
1 |
0004- |
● |
● |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
|
1-87410-098-0 |
AR |
1 |
0004- |
● |
● |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
|
1-87410-100-0 |
AR |
1 |
0004- |
● |
● |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
|
1-87410-104-0 |
AR |
1 |
0004- |
● |
● |
| |
144 |
ADAPTER
FRONT
DIN12 & M20 STRAIGHT
|
1-09661-097-0 |
02 |
1 |
9902-9904 |
● |
|
| |
144 |
ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR)
FRONT
DIN12 & M20 STRAIGHT
|
1-09661-097-0 |
02 |
1 |
9905-0003 |
● |
|
| |
144 |
ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR)
FRONT
DIN12 & M20 STRAIGHT
|
1-09661-097-0 |
02 |
1 |
0004-0007 |
● |
|
| |
144 |
ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR)
FRONT
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
02 |
1 |
0008- |
● |
|
| |
144 |
ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR)
REAR
DIN12 & M12 STRAIGHT
|
1-09661-098-0 |
01 |
1 |
9902-0007 |
● |
|
| |
144 |
ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR)
REAR
DIN12 & M12 STRAIGHT
|
1-09660-878-0 |
01 |
1 |
0008- |
● |
|
| |
144 |
ADAPTER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
DIN12 & M20 STRAIGHT
|
1-09661-097-0 |
01 |
1 |
9905-0003 |
● |
|
| |
144 |
ADAPTER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
DIN12 & M20 STRAIGHT
|
1-09661-097-0 |
01 |
1 |
0004-0007 |
● |
|
| |
144 |
ADAPTER
DIN12 & M20 STRAIGHT
|
1-09661-097-0 |
01 |
1 |
0004-0007 |
|
● |
| |
144 |
ADAPTER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
01 |
1 |
0008- |
● |
|
| |
144 |
ADAPTER
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
01 |
1 |
0008- |
|
● |
| |
149 |
BOLT; UNION
BRAKE REGULATION ECE<TDV>
M8X16 FLANGE
|
0-28080-816-0 |
03 |
1 |
9902-9902 |
● |
|
| |
149 |
BOLT; UNION
BRAKE SYSTEM SPRING BRAKE(BCR)
M8X16 FLANGE
|
0-28080-816-0 |
03 |
1 |
9903-9904 |
● |
|
| |
149 |
BOLT; UNION
EXC. TRAILER BRAKE CONTROL<J91>
M8X16 FLANGE
|
0-28080-816-0 |
03 |
1 |
9905- |
● |
|
| |
149 |
BOLT; UNION
TRAILER BRAKE CONTROL<J91>
M8X16 FLANGE
|
0-28080-816-0 |
05 |
1 |
9905-0003 |
● |
|
| |
149 |
BOLT; UNION
TRAILER BRAKE CONTROL<J91>
M8X16 FLANGE
|
0-28080-816-0 |
05 |
1 |
0004- |
● |
|
| |
149 |
BOLT; UNION
M8X16 FLANGE
|
0-28080-816-0 |
05 |
1 |
0004- |
|
● |
