◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#76955) — 599 parça

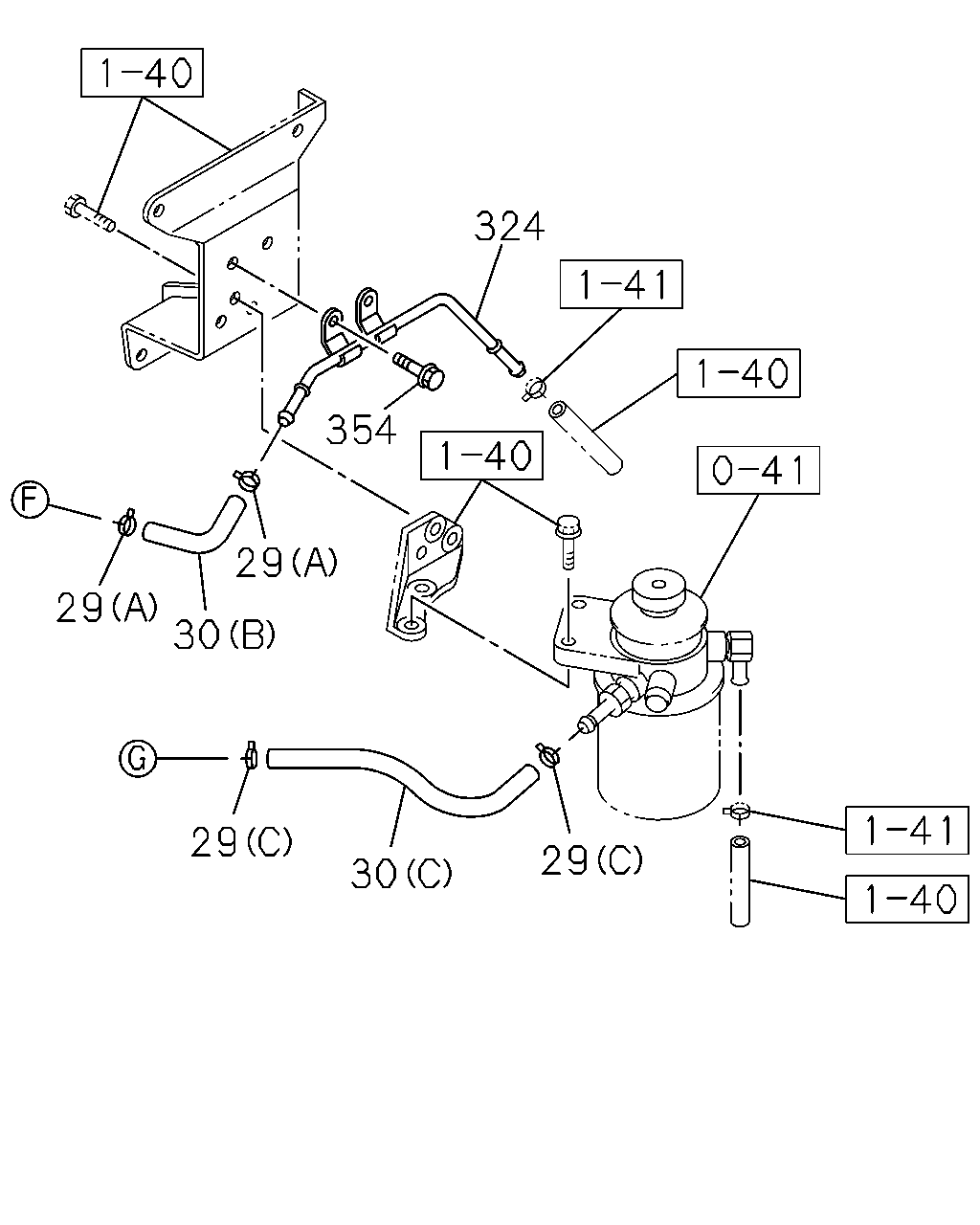

çizim 63260
324 354 29 29 30 29 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E
29 03.162 CLIP; HOSE
KENYA EQUIPMENT(CL1) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 1008- ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0810- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0810- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0810- ●
29 03.162 CLIP; HOSE
KENYA EQUIPMENT(CL1) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0810-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0808-0809 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0810-1007 ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0810-1007 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1008- ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (D) L=130 		0-01804-130-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (E) L=98 		8-97354-652-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (F) L=150 		8-97362-306-2 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) 		8-98112-034-0 01 1 0811-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) 		8-98112-034-0 01 1 0811-1007 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) 		8-98112-034-0 01 1 1008- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) 		8-98112-034-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0810- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0810- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0810-1211 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-98135-263-1 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (D) L=130 		0-01804-130-0 01 1 0810-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (E) L=98 		8-97354-652-0 03 1 0810-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=150 		8-97362-306-2 01 1 0808-0809 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=150 		8-97362-306-2 01 1 0810-0810 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (F) L=150 		8-97362-306-2 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		8-98053-692-0 01 1 0808-0809 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		8-98053-692-0 01 1 0810-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (D) L=130 		8-98053-692-0 01 1 0810-1007 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		8-98053-692-0 01 1 1008- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (D) L=130 		8-98053-692-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=96 		8-98053-693-0 03 1 0808-0809 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=96 		8-98053-693-0 03 1 0810-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=96 		8-98053-693-0 03 1 0810-1007 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=96 		8-98053-693-0 03 1 1008- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=96 		8-98053-693-0 03 1 1008- ●
324 03.330 PIPE; FUEL RETURN 8-97287-516-4 01 1 0810- ●
354 03.163 BOLT; FUEL PIPE
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0810- ●

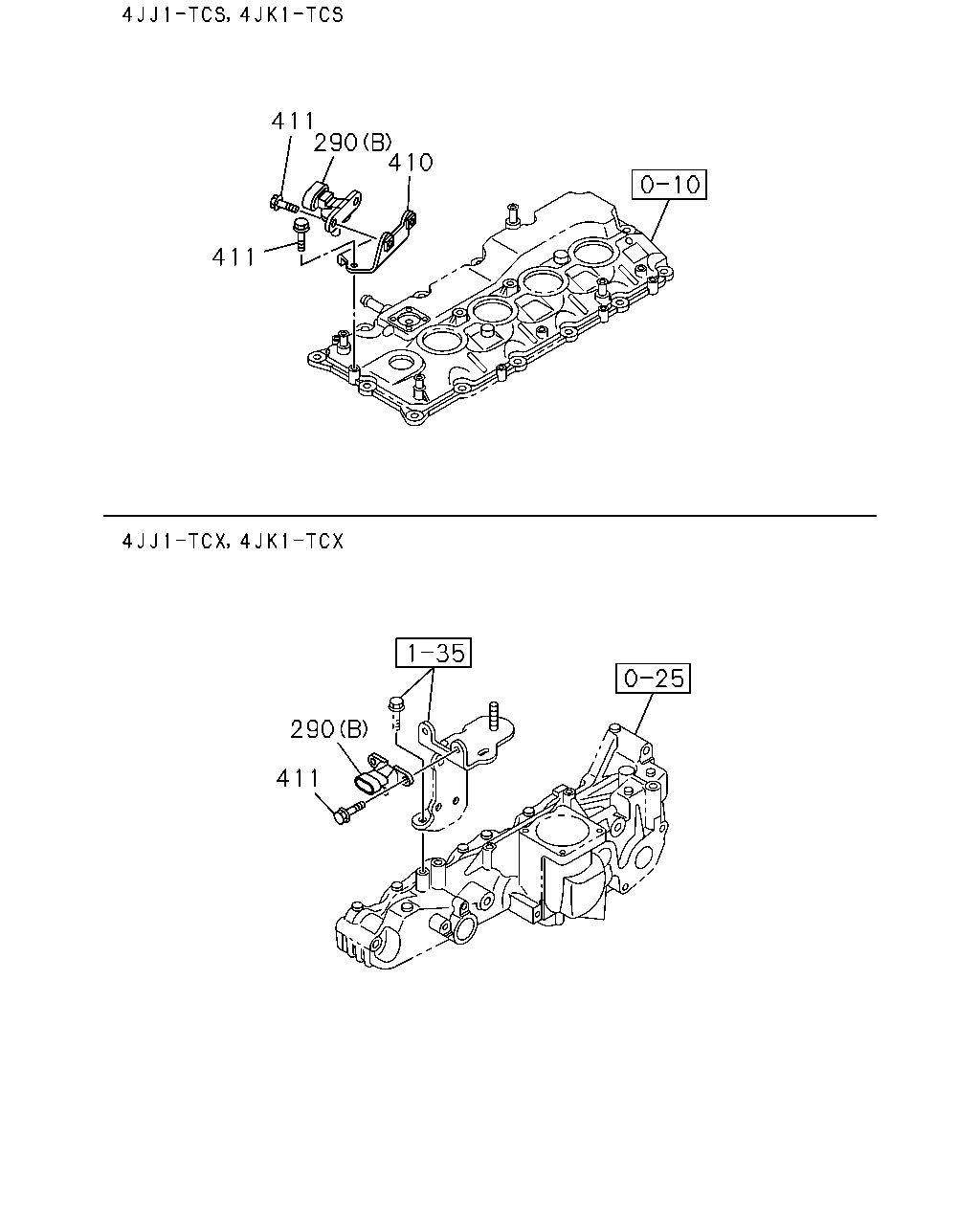

çizim 63275
411 290 410 411 290 411
BalonParca AdiParca NoAdetTipApplied Date A B C D E
290 03.331 SENSOR; PRESS
KENYA EQUIPMENT(CL1) (A) 		8-98119-790-0 01 1 1008- ●
290 03.331 SENSOR; PRESS
KENYA EQUIPMENT(CL1) (A) 		8-98119-790-0 01 1 0810-1003 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 0808-0809 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 0810-1007 ● ●
290 03.331 SENSOR; PRESS
EXC. KENYA EQUIPMENT(CL1) (A) 		8-98014-320-0 01 1 0810-1007 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 1008-1208 ● ● ●
290 03.331 SENSOR; PRESS
EXC. KENYA EQUIPMENT(CL1) (A) 		8-98014-320-0 01 1 1008-1208 ●
290 03.331 SENSOR; PRESS
(A) 		8-98181-616-0 01 1 1209- ● ● ●
290 03.331 SENSOR; PRESS
EXC. KENYA EQUIPMENT(CL1) (A) 		8-98181-616-0 01 1 1209- ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0808-0809 ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0810-1007 ● ● ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 1008- ● ● ● ●
410 03.331 BRACKET; SENSOR 8-98013-801-1 01 1 0810-1007 ●
410 03.331 BRACKET; SENSOR 8-98013-801-1 01 1 1008- ● ●
411 03.331 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1509- ● ● ●
411 03.331 BOLT; SENSOR
EXC. KENYA EQUIPMENT(CL1) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1509- ●
411 03.331 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0810-1007 ●
411 03.331 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1008- ● ●
411 03.331 BOLT; SENSOR
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0808-0809 ●
411 03.331 BOLT; SENSOR
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0810-1007 ● ● ●
411 03.331 BOLT; SENSOR
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1008-1508 ● ● ● ●
411 03.331 BOLT; SENSOR
KENYA EQUIPMENT(CL1) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1509- ●

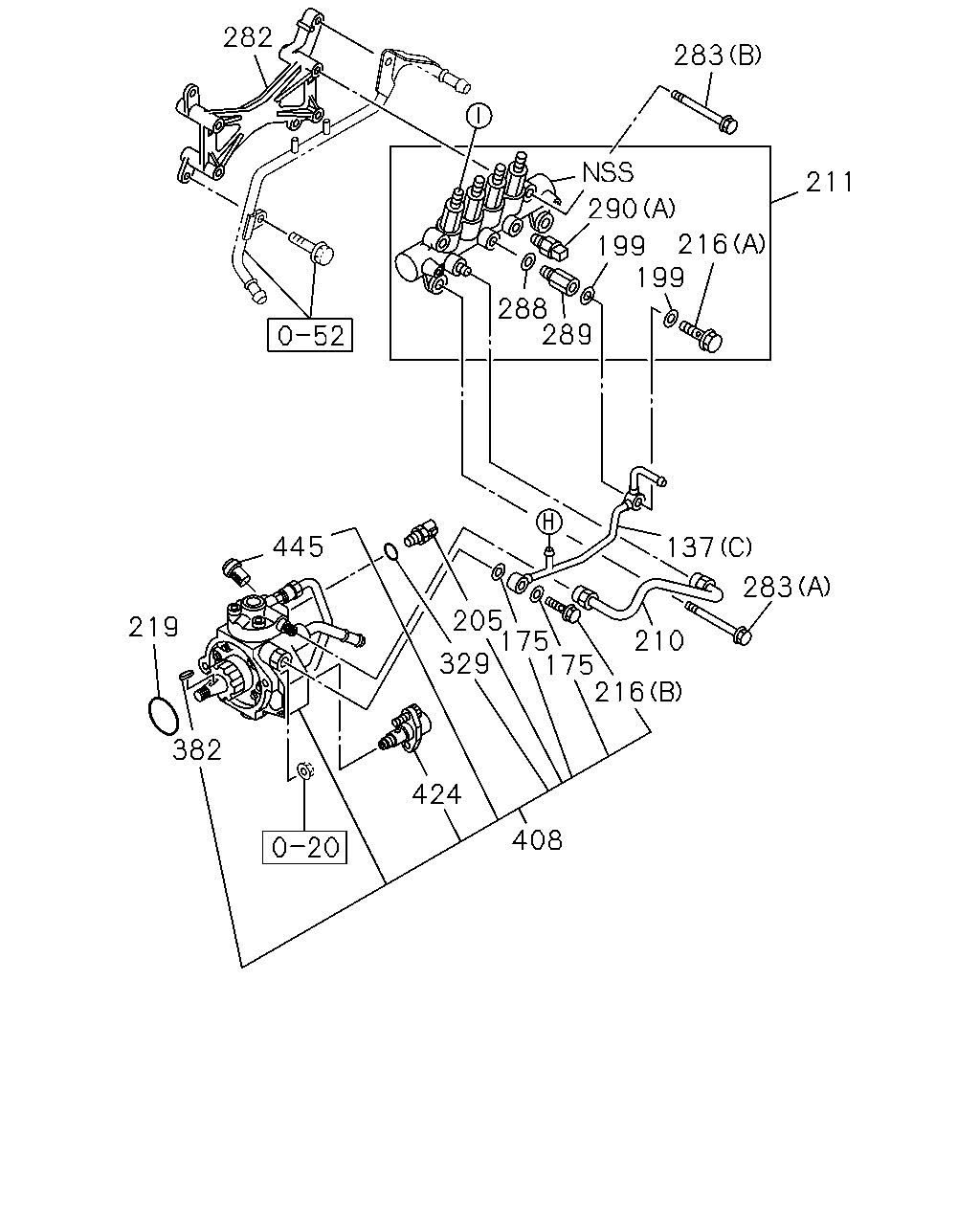

çizim 63299
282 288 290 199 199 216 211 283 137 283 210 216 408 424 382 219 445 175 175 329 205 289
BalonParca AdiParca NoAdetTipApplied Date A B C D E
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (D) 		8-98036-510-0 01 1 1008- ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (D) 		8-98036-510-0 01 1 0810-1003 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0808-0809 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0810-1007 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1008-1101 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1102- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97315-230-2 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0808-0809 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0810-1007 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1008-1101 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1102- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97315-231-2 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0808-0809 ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0810-1007 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 1008- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0808-0809 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0810-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-3 01 1 0810-1007 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1008- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-3 01 1 1008- ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1506-1509 ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
EXC. KENYA EQUIPMENT(CL1) 		1-15619-508-0 02 1 1506-1509 ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1510- ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0808-0809 ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0810-1007 ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1008-1402 ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1403-1505 ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
EXC. KENYA EQUIPMENT(CL1) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1403-1505 ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
KENYA EQUIPMENT(CL1) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1506-1509 ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 0808-0809 ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 0810-1007 ● ● ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 1008- ● ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0808-0809 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0810-1007 ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1008- ● ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0808-0809 ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0810-1007 ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1008- ● ● ● ●
211 03.331 RAIL ASM; COMMON
KENYA EQUIPMENT(CL1) 		8-98011-888-2 01 1 1008- ●
211 03.331 RAIL ASM; COMMON
KENYA EQUIPMENT(CL1) 		8-98011-888-1 01 1 0810-1003 ●
211 03.331 RAIL ASM; COMMON 8-98052-238-0 01 1 0808-0809 ●
211 03.331 RAIL ASM; COMMON 8-98052-238-0 01 1 0810-1007 ● ●
211 03.331 RAIL ASM; COMMON
EXC. KENYA EQUIPMENT(CL1) 		8-98052-238-0 01 1 0810-1007 ●
211 03.331 RAIL ASM; COMMON 8-98052-238-1 01 1 1008- ● ● ●
211 03.331 RAIL ASM; COMMON
EXC. KENYA EQUIPMENT(CL1) 		8-98052-238-1 01 1 1008- ●
216 03.162 BOLT; EYE
(B) 		8-98209-777-0 01 1 1410-1410 ● ● ●
216 03.162 BOLT; EYE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-98209-777-0 01 1 1410-1410 ●
216 03.162 BOLT; EYE
(B) 		8-98209-777-0 01 1 1411- ● ● ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 0808-0809 ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 0810-1007 ● ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1008-1409 ● ● ● ●
216 03.162 BOLT; EYE
KENYA EQUIPMENT(CL1) 03.280 (B) 		9-88130-088-0 01 1 1410-1410 ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 0808-0809 ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 0810-1007 ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1008- ● ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 0808-0809 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 0810-1007 ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1008- ● ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98011-890-1 01 1 0808-0809 ●
282 03.163 BRACKET; COMMON RAIL 8-98011-890-1 01 1 0810-1007 ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98011-890-1 01 1 1008- ● ● ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0808-0809 ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0810-1007 ● ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1008- ● ● ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0808-0809 ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0810-1007 ● ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1008- ● ● ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0808-0809 ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0810-1007 ● ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1008- ● ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0808-0809 ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0810-1007 ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1008- ● ● ● ●
290 03.331 SENSOR; PRESS
KENYA EQUIPMENT(CL1) (A) 		8-98119-790-0 01 1 1008- ●
290 03.331 SENSOR; PRESS
KENYA EQUIPMENT(CL1) (A) 		8-98119-790-0 01 1 0810-1003 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 0808-0809 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 0810-1007 ● ●
290 03.331 SENSOR; PRESS
EXC. KENYA EQUIPMENT(CL1) (A) 		8-98014-320-0 01 1 0810-1007 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 1008-1208 ● ● ●
290 03.331 SENSOR; PRESS
EXC. KENYA EQUIPMENT(CL1) (A) 		8-98014-320-0 01 1 1008-1208 ●
290 03.331 SENSOR; PRESS
(A) 		8-98181-616-0 01 1 1209- ● ● ●
290 03.331 SENSOR; PRESS
EXC. KENYA EQUIPMENT(CL1) (A) 		8-98181-616-0 01 1 1209- ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0808-0809 ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0810-1007 ● ● ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 1008- ● ● ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0808-0809 ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0810-1007 ● ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1008-1409 ● ● ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
KENYA EQUIPMENT(CL1) 03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1410-1410 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1410-1410 ● ● ●
382 03.162 KEY; DRIVE SHAFT
EXC. KENYA EQUIPMENT(CL1) 		8-98161-995-0 01 1 1410-1410 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1411- ● ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1008-1409 ● ● ● ●
382 03.162 KEY; DRIVE SHAFT
KENYA EQUIPMENT(CL1) 		8-97375-384-0 01 1 1410-1410 ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97311-373-8 01 1 0808-0809 ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97311-373-9 01 1 0810-1007 ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1008- ● ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-453-0 01 1 0808-0809 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-0 01 1 0810-0905 ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-0 01 1 0906-1007 ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1008- ● ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1008- ● ● ● ●

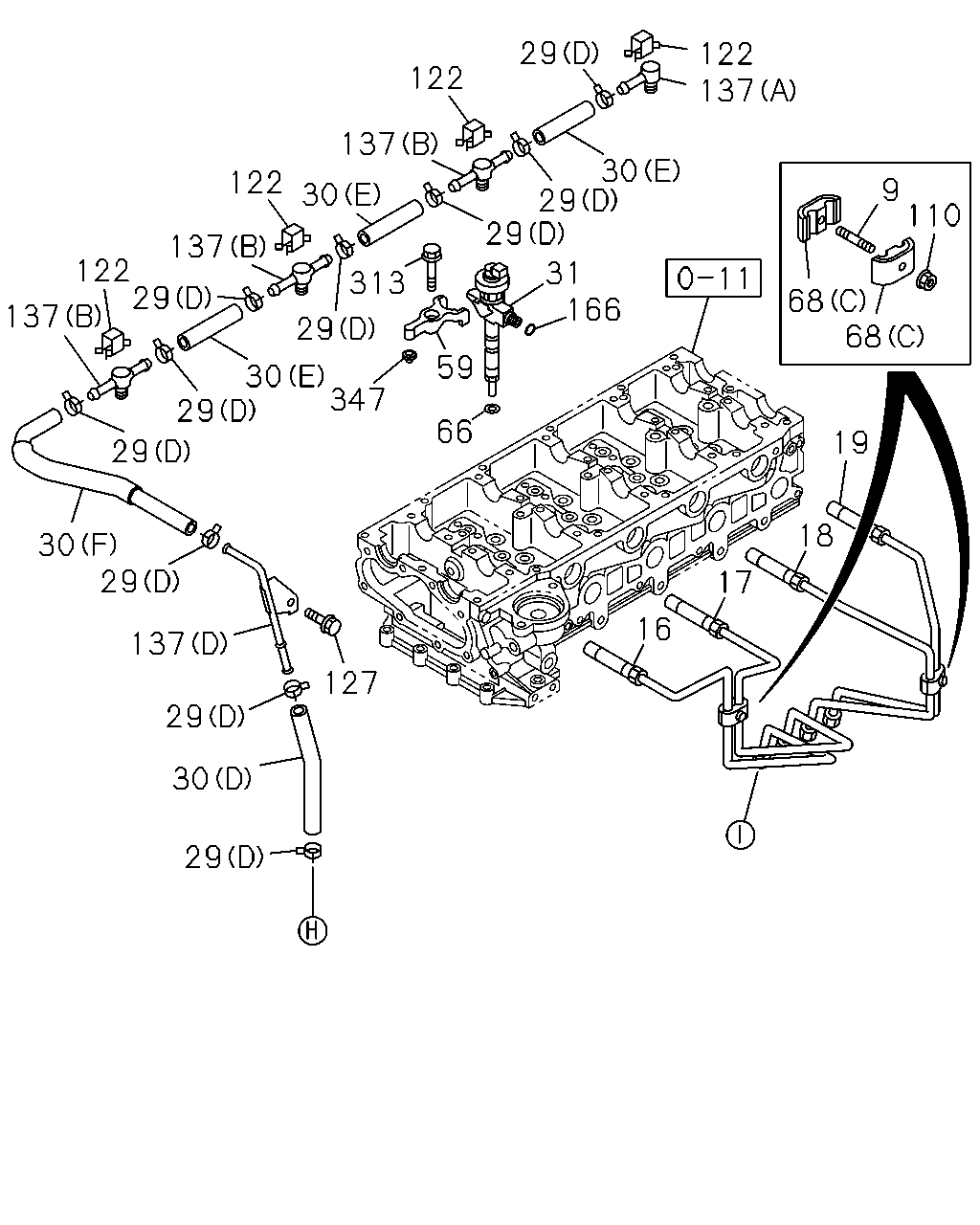

çizim 186137
29 122 137 122 137 30 29 29 122 9 110 30 137 122 29 31 166 313 68 68 137 29 59 30 347 29 66 19 29 18 30 29 17 16 137 127 29 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 03.340 STUD; CLIP
KENYA EQUIPMENT(CL1) 00.413 M6X30 L=38 		0-41010-630-0 02 1 1202- ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 0808-0809 ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 0810-1007 ● ● ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 1008-1201 ● ● ● ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 1202- ● ● ●
9 03.340 STUD; CLIP
EXC. KENYA EQUIPMENT(CL1) 03.162 M6X25 L=36 		8-97214-234-1 02 1 1202- ●
16 03.330 PIPE; INJ NO.1
KENYA EQUIPMENT(CL1) 		8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 0810- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0808-0809 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0810-1007 ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1008-1201 ● ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1202- ● ● ●
16 03.330 PIPE; INJ NO.1
EXC. KENYA EQUIPMENT(CL1) 		8-98011-606-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2
KENYA EQUIPMENT(CL1) 		8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 0810- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0808-0809 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0810-1007 ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1008-1201 ● ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1202- ● ● ●
17 03.330 PIPE; INJ NO.2
EXC. KENYA EQUIPMENT(CL1) 		8-98043-684-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3
KENYA EQUIPMENT(CL1) 		8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 0810- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0808-0809 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0810-1007 ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1008-1201 ● ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1202- ● ● ●
18 03.330 PIPE; INJ NO.3
EXC. KENYA EQUIPMENT(CL1) 		8-98011-608-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4
KENYA EQUIPMENT(CL1) 		8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 0810- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0808-0809 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0810-1007 ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1008-1201 ● ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1202- ● ● ●
19 03.330 PIPE; INJ NO.4
EXC. KENYA EQUIPMENT(CL1) 		8-98011-609-0 01 1 1202- ●
29 03.162 CLIP; HOSE
KENYA EQUIPMENT(CL1) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 1008- ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0810- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0810- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0810- ●
29 03.162 CLIP; HOSE
KENYA EQUIPMENT(CL1) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0810-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0808-0809 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0810-1007 ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0810-1007 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1008- ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (D) L=130 		0-01804-130-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (E) L=98 		8-97354-652-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (F) L=150 		8-97362-306-2 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) 		8-98112-034-0 01 1 0811-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) 		8-98112-034-0 01 1 0811-1007 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) 		8-98112-034-0 01 1 1008- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) 		8-98112-034-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0810- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0810- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0810-1211 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-98135-263-1 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (D) L=130 		0-01804-130-0 01 1 0810-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (E) L=98 		8-97354-652-0 03 1 0810-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=150 		8-97362-306-2 01 1 0808-0809 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=150 		8-97362-306-2 01 1 0810-0810 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (F) L=150 		8-97362-306-2 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		8-98053-692-0 01 1 0808-0809 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		8-98053-692-0 01 1 0810-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (D) L=130 		8-98053-692-0 01 1 0810-1007 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		8-98053-692-0 01 1 1008- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (D) L=130 		8-98053-692-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=96 		8-98053-693-0 03 1 0808-0809 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=96 		8-98053-693-0 03 1 0810-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=96 		8-98053-693-0 03 1 0810-1007 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=96 		8-98053-693-0 03 1 1008- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=96 		8-98053-693-0 03 1 1008- ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) EURO3 SPECIFICATION<NT3> 		8-98055-862-0 04 1 0810-0910 ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98055-862-0 04 1 0810-0910 ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-862-0 04 1 0911-1007 ● ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-862-3 04 1 1008-1306 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-1 04 1 0808-0809 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION<NT4> 		8-98011-604-1 04 1 0810-0910 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98011-604-1 04 1 0810-0910 ●
31 03.332 NOZZLE ASM; INJ
KENYA EQUIPMENT(CL1) 		8-98011-604-2 04 1 0911-1003 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-5 04 1 0911-1306 ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 1307- ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-5 04 1 0810-1306 ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-5 04 1 1307- ● ●
31 03.332 NOZZLE ASM; INJ 8-98055-863-3 04 1 1008-1306 ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 0810- ●
59 03.332 CLAMP; NOZZLE HOLDER
KENYA EQUIPMENT(CL1) 		8-98113-691-0 04 1 1008- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0810- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0808-0809 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0810-1007 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1008- ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. KENYA EQUIPMENT(CL1) 		8-98092-539-0 04 1 1008- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1101-1103 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) 		8-98181-540-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1104- ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0810- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98077-165-0 04 1 0808-0809 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98077-165-0 04 1 0810-1007 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98077-165-0 04 1 1008-1012 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) 		8-98077-165-0 04 1 1101-1103 ●
68 03.162 CLIP; INJ PIPE
KENYA EQUIPMENT(CL1) (C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
KENYA EQUIPMENT(CL1) (C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0810-1210 ●
68 03.162 CLIP; INJ PIPE
03.634 (A) 		1-09701-240-0 04 1 1211- ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0810-1212 ●
68 03.162 CLIP; INJ PIPE
(B) 		8-98227-926-0 01 1 1301- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0808-0809 ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0810-1007 ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1008-1201 ● ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1202- ● ● ●
68 03.162 CLIP; INJ PIPE
EXC. KENYA EQUIPMENT(CL1) (C) 		8-97213-481-0 04 1 1202- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0810-1007 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0808-0809 ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0810-1007 ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1008- ● ● ● ●
127 03.162 BOLT; CLIP LEAK OFF PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0808-0809 ●
127 03.162 BOLT; CLIP LEAK OFF PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0810-1007 ● ● ●
127 03.162 BOLT; CLIP LEAK OFF PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (D) 		8-98036-510-0 01 1 1008- ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (D) 		8-98036-510-0 01 1 0810-1003 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0808-0809 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0810-1007 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1008-1101 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1102- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97315-230-2 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0808-0809 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0810-1007 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1008-1101 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1102- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97315-231-2 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0808-0809 ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0810-1007 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 1008- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0808-0809 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0810-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-3 01 1 0810-1007 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1008- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-3 01 1 1008- ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 0808-0809 ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 0810-1007 ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1008- ● ● ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
KENYA EQUIPMENT(CL1) M8X50 W/WASHER 		8-97372-144-0 04 1 1008- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
KENYA EQUIPMENT(CL1) M8X50 W/WASHER 		8-97372-144-0 04 1 0810-1003 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 0808-0809 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 0810-1007 ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) M8X50 W/WASHER 		8-98095-575-0 04 1 0810-1007 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1008- ● ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) M8X50 W/WASHER 		8-98095-575-0 04 1 1008- ●
347 03.332 PIN
KENYA EQUIPMENT(CL1) 		8-98165-035-0 04 1 1012-1012 ●
347 03.332 PIN 8-98165-035-0 04 1 1101- ● ● ● ●
347 03.332 PIN 8-97383-286-0 04 1 0808-0809 ●
347 03.332 PIN 8-97383-286-0 04 1 0810-1007 ● ● ●
347 03.332 PIN 8-97383-286-0 04 1 1008-1011 ● ● ● ●
347 03.332 PIN 8-97383-286-0 04 1 1012-1012 ● ● ●
347 03.332 PIN
EXC. KENYA EQUIPMENT(CL1) 		8-97383-286-0 04 1 1012-1012 ●

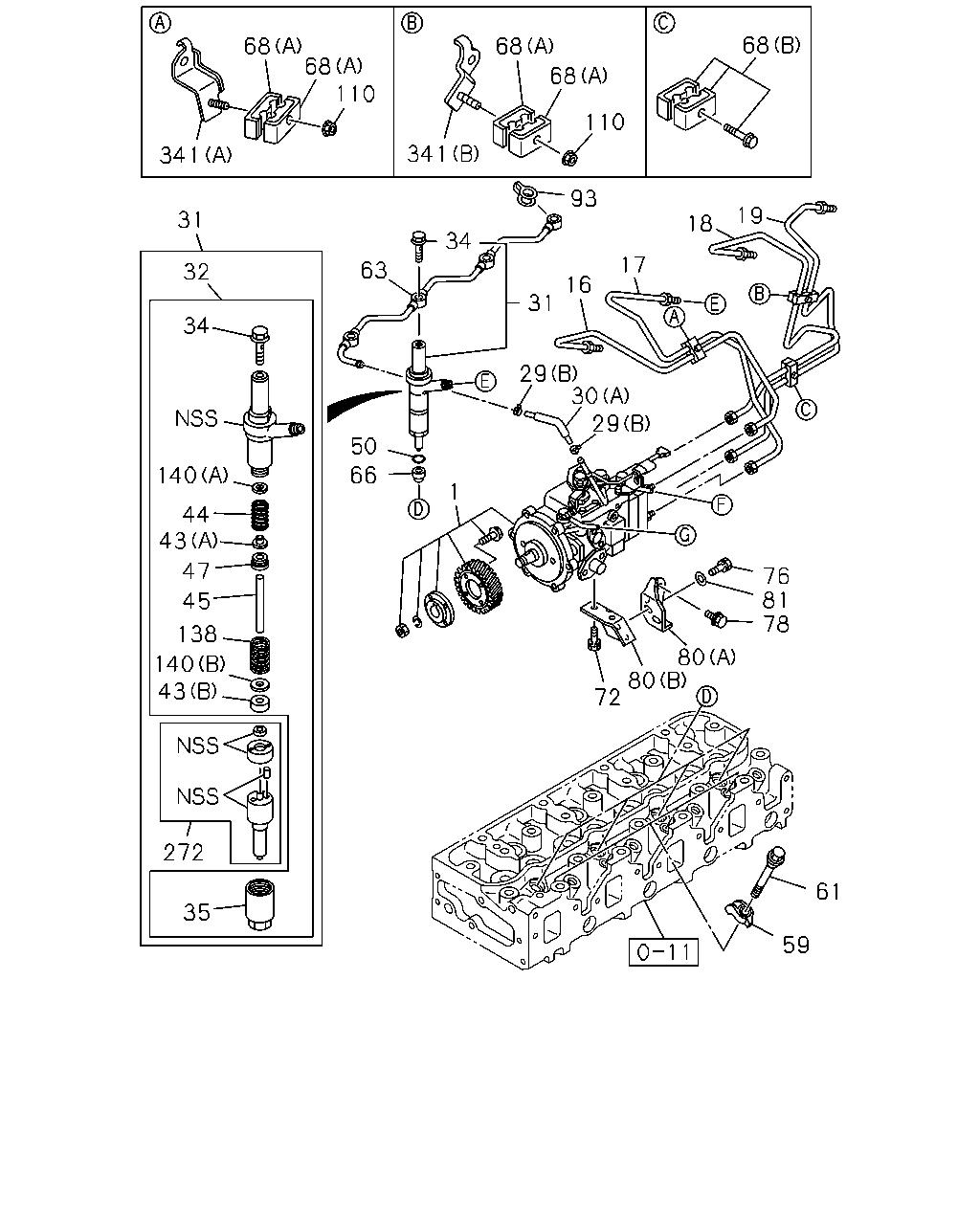

çizim 186140
68 68 68 68 110 68 110 341 341 93 19 31 18 34 17 63 32 16 31 34 29 30 29 50 66 140 1 44 43 47 76 81 78 45 138 80 80 72 140 43 272 61 35 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM R15-04<K75> HEATER & DEFROSTER(C42) EXC. TACHOMETER<U16> 		8-98180-718-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM R15-04<K75> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. TACHOMETER<U16> 		8-98180-717-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-394-3 01 1 0810-1109 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM R15-04<K75> HEATER & DEFROSTER(C42) TACHOMETER<U16> 		8-97350-394-3 01 1 1110- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-393-4 01 1 0810-1109 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM R15-04<K75> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) TACHOMETER<U16> 		8-97350-393-4 01 1 1110- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0810-1109 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> TACHOMETER<U16> 		8-97350-398-3 01 1 1110- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-396-4 01 1 0810-1109 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> TACHOMETER<U16> 		8-97350-396-4 01 1 1110- ●
16 03.330 PIPE; INJ NO.1
KENYA EQUIPMENT(CL1) 		8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 0810- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0808-0809 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0810-1007 ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1008-1201 ● ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1202- ● ● ●
16 03.330 PIPE; INJ NO.1
EXC. KENYA EQUIPMENT(CL1) 		8-98011-606-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2
KENYA EQUIPMENT(CL1) 		8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 0810- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0808-0809 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0810-1007 ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1008-1201 ● ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1202- ● ● ●
17 03.330 PIPE; INJ NO.2
EXC. KENYA EQUIPMENT(CL1) 		8-98043-684-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3
KENYA EQUIPMENT(CL1) 		8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 0810- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0808-0809 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0810-1007 ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1008-1201 ● ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1202- ● ● ●
18 03.330 PIPE; INJ NO.3
EXC. KENYA EQUIPMENT(CL1) 		8-98011-608-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4
KENYA EQUIPMENT(CL1) 		8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 0810- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0808-0809 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0810-1007 ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1008-1201 ● ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1202- ● ● ●
19 03.330 PIPE; INJ NO.4
EXC. KENYA EQUIPMENT(CL1) 		8-98011-609-0 01 1 1202- ●
29 03.162 CLIP; HOSE
KENYA EQUIPMENT(CL1) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 1008- ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0810- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0810- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0810- ●
29 03.162 CLIP; HOSE
KENYA EQUIPMENT(CL1) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0810-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0808-0809 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0810-1007 ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0810-1007 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1008- ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (D) L=130 		0-01804-130-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (E) L=98 		8-97354-652-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (F) L=150 		8-97362-306-2 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) 		8-98112-034-0 01 1 0811-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) 		8-98112-034-0 01 1 0811-1007 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) 		8-98112-034-0 01 1 1008- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) 		8-98112-034-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0810- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0810- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0810-1211 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-98135-263-1 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (D) L=130 		0-01804-130-0 01 1 0810-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (E) L=98 		8-97354-652-0 03 1 0810-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=150 		8-97362-306-2 01 1 0808-0809 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=150 		8-97362-306-2 01 1 0810-0810 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (F) L=150 		8-97362-306-2 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		8-98053-692-0 01 1 0808-0809 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		8-98053-692-0 01 1 0810-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (D) L=130 		8-98053-692-0 01 1 0810-1007 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		8-98053-692-0 01 1 1008- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (D) L=130 		8-98053-692-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=96 		8-98053-693-0 03 1 0808-0809 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=96 		8-98053-693-0 03 1 0810-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=96 		8-98053-693-0 03 1 0810-1007 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=96 		8-98053-693-0 03 1 1008- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=96 		8-98053-693-0 03 1 1008- ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) EURO3 SPECIFICATION<NT3> 		8-98055-862-0 04 1 0810-0910 ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98055-862-0 04 1 0810-0910 ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-862-0 04 1 0911-1007 ● ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-862-3 04 1 1008-1306 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-1 04 1 0808-0809 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION<NT4> 		8-98011-604-1 04 1 0810-0910 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98011-604-1 04 1 0810-0910 ●
31 03.332 NOZZLE ASM; INJ
KENYA EQUIPMENT(CL1) 		8-98011-604-2 04 1 0911-1003 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-5 04 1 0911-1306 ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 1307- ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-5 04 1 0810-1306 ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-5 04 1 1307- ● ●
31 03.332 NOZZLE ASM; INJ 8-98055-863-3 04 1 1008-1306 ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 0810- ●
32 03.332 HOLDER ASM; NOZZLE 8-97217-835-0 04 1 0810- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0810- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.00 		8-97223-343-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.02 		8-97223-344-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.04 		8-97223-345-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.06 		8-97223-346-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.08 		8-97223-347-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.10 		8-97223-348-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.12 		8-97223-349-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.14 		8-97223-350-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.16 		8-97223-351-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.18 		8-97223-352-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.20 		8-97223-353-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.22 		8-97223-354-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.24 		8-97223-355-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.26 		8-97223-356-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.28 		8-97223-357-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.30 		8-97223-358-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.32 		8-97223-359-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.34 		8-97223-360-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.36 		8-97223-361-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.38 		8-97223-362-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.40 		8-97223-363-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.42 		8-97223-364-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.44 		8-97223-365-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.46 		8-97223-366-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.48 		8-97223-367-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.50 		8-97223-368-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.52 		8-97223-369-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.54 		8-97223-370-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.56 		8-97223-371-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.58 		8-97223-372-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.60 		8-97223-373-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.62 		8-97223-374-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.64 		8-97223-375-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.66 		8-97223-376-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.68 		8-97223-377-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.70 		8-97223-378-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.72 		8-97223-379-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.74 		8-97223-380-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.76 		8-97223-381-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.78 		8-97223-382-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.80 		8-97223-383-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.82 		8-97223-384-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.84 		8-97223-385-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.86 		8-97223-386-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.88 		8-97223-387-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.90 		8-97223-388-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.92 		8-97223-389-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.94 		8-97223-390-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.96 		8-97223-391-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.98 		8-97223-392-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=3.00 		8-97223-393-0 04 1 0810- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-97361-697-0 04 1 0810- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.25 		8-97355-112-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.26 		8-97355-113-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.27 		8-97355-114-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.28 		8-97355-115-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.29 		8-97355-116-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.30 		8-97355-117-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.31 		8-97355-118-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.32 		8-97355-119-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.33 		8-97355-120-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.34 		8-97355-121-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.35 		8-97355-122-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.36 		8-97355-123-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.37 		8-97355-124-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.38 		8-97355-125-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.39 		8-97355-126-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.40 		8-97355-127-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.41 		8-97355-128-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.42 		8-97355-129-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.43 		8-97355-130-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.44 		8-97355-131-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.45 		8-97355-132-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.46 		8-97355-133-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.47 		8-97355-134-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.48 		8-97355-135-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.49 		8-97355-136-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.50 		8-97355-137-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.51 		8-97355-138-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.52 		8-97355-139-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.53 		8-97355-140-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.54 		8-97355-141-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.55 		8-97355-142-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.56 		8-97355-143-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.57 		8-97355-144-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.58 		8-97355-145-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.59 		8-97355-146-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.60 		8-97355-147-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.61 		8-97355-148-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.62 		8-97355-149-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.63 		8-97355-150-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.64 		8-97355-151-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.65 		8-97355-152-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.66 		8-97355-153-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.67 		8-97355-154-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.68 		8-97355-155-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.69 		8-97355-156-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.70 		8-97355-157-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.71 		8-97355-158-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.72 		8-97355-159-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.73 		8-97355-160-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.74 		8-97355-161-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.75 		8-97355-162-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.76 		8-97355-163-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.77 		8-97355-164-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.78 		8-97355-165-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.79 		8-97355-166-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.80 		8-97355-167-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.81 		8-97355-168-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.82 		8-97355-169-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.83 		8-97355-170-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.84 		8-97355-171-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.85 		8-97355-172-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.86 		8-97355-173-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.87 		8-97355-174-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.88 		8-97355-175-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.89 		8-97355-176-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.90 		8-97355-177-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.91 		8-97355-178-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.92 		8-97355-179-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.93 		8-97355-180-0 04 1 0810- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.94 		8-97355-182-0 04 1 0810- ●
47 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL 8-97223-340-0 04 1 0810- ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97287-402-2 04 1 0810- ●
59 03.332 CLAMP; NOZZLE HOLDER
KENYA EQUIPMENT(CL1) 		8-98113-691-0 04 1 1008- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0810- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0808-0809 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0810-1007 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1008- ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. KENYA EQUIPMENT(CL1) 		8-98092-539-0 04 1 1008- ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0810- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0810- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1101-1103 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) 		8-98181-540-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1104- ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0810- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98077-165-0 04 1 0808-0809 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98077-165-0 04 1 0810-1007 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98077-165-0 04 1 1008-1012 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) 		8-98077-165-0 04 1 1101-1103 ●
68 03.162 CLIP; INJ PIPE
KENYA EQUIPMENT(CL1) (C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
KENYA EQUIPMENT(CL1) (C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0810-1210 ●
68 03.162 CLIP; INJ PIPE
03.634 (A) 		1-09701-240-0 04 1 1211- ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0810-1212 ●
68 03.162 CLIP; INJ PIPE
(B) 		8-98227-926-0 01 1 1301- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0808-0809 ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0810-1007 ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1008-1201 ● ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1202- ● ● ●
68 03.162 CLIP; INJ PIPE
EXC. KENYA EQUIPMENT(CL1) (C) 		8-97213-481-0 04 1 1202- ●
72 03.330 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER 		0-50551-020-0 02 1 0810- ●
76 03.330 BOLT; BRKT TO BRKT
09.008 M8X25 W/LK WASHER 		0-50540-825-0 02 1 0810- ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0810- ●
80 03.306 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 0810- ●
80 03.306 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 0810- ●
81 03.330 WASHER; PL,BRKT TO PUMP
02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 0810- ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97375-236-0 04 1 0810- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0810-1007 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ● ● ● ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER 8-94174-141-0 04 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=1.20 		1-15349-004-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.52 		1-15349-044-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.54 		1-15349-045-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.56 		1-15349-046-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.58 		1-15349-047-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.60 		1-15349-048-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.70 		1-15349-049-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.10 		8-97116-029-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.20 		8-97116-032-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.30 		8-97116-033-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.40 		8-97116-034-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.50 		8-97116-035-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.51 		8-97116-036-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.52 		8-97116-037-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.53 		8-97116-038-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.54 		8-97116-039-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.55 		8-97116-040-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.56 		8-97116-041-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.57 		8-97116-042-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.58 		8-97116-043-0 AR 1 0810- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.59 		8-97116-044-0 AR 1 0810- ●
272 03.332 NOZZLE KIT; INJ 8-97362-572-0 04 1 0810- ●
341 03.330 BRACKET; CLIP,INJ PIPE
(B) 		8-97333-806-1 01 1 0810- ●
341 03.330 BRACKET; CLIP,INJ PIPE
(A) 		8-97365-211-1 01 1 0810- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
