Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#76953) — 315 parça

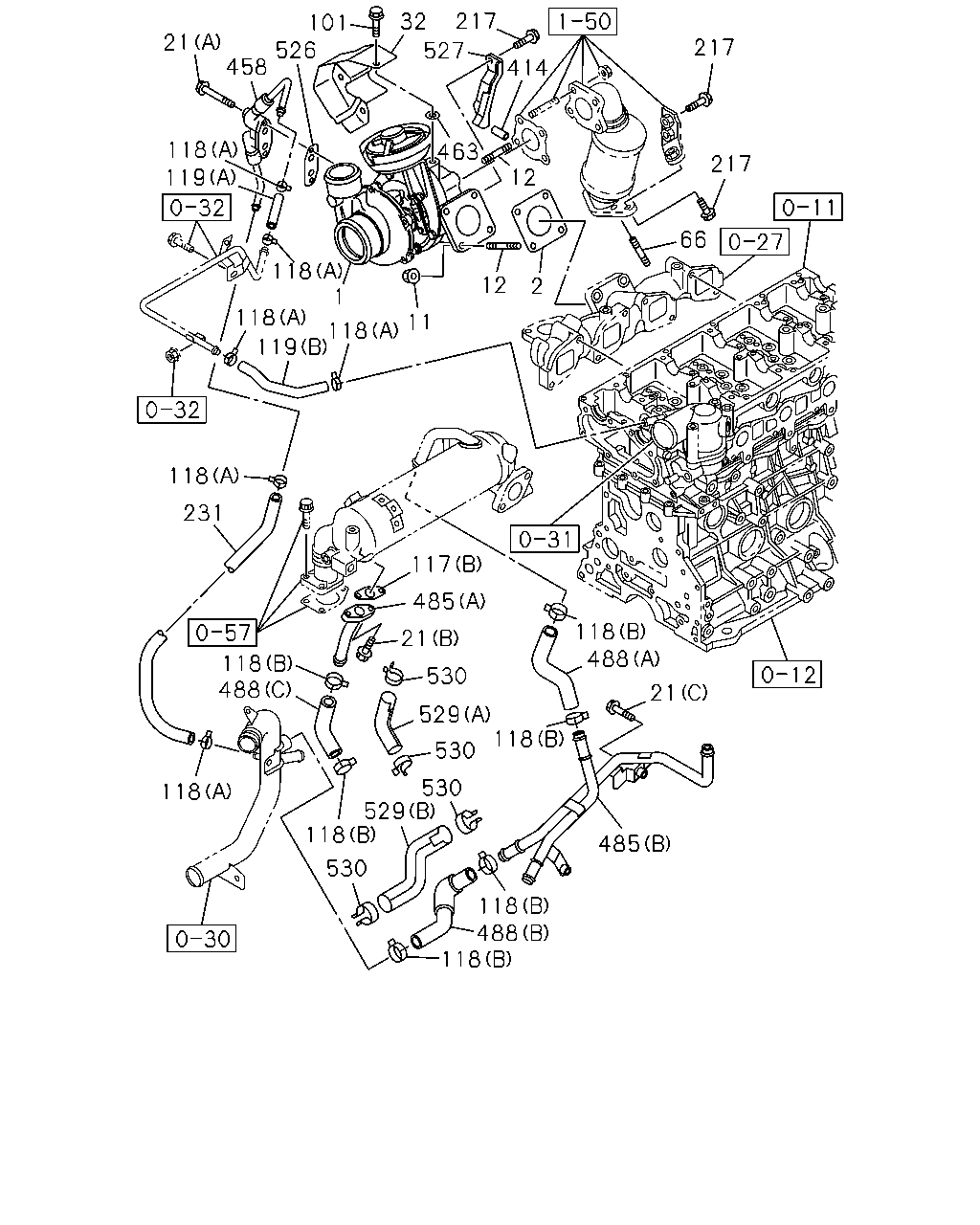

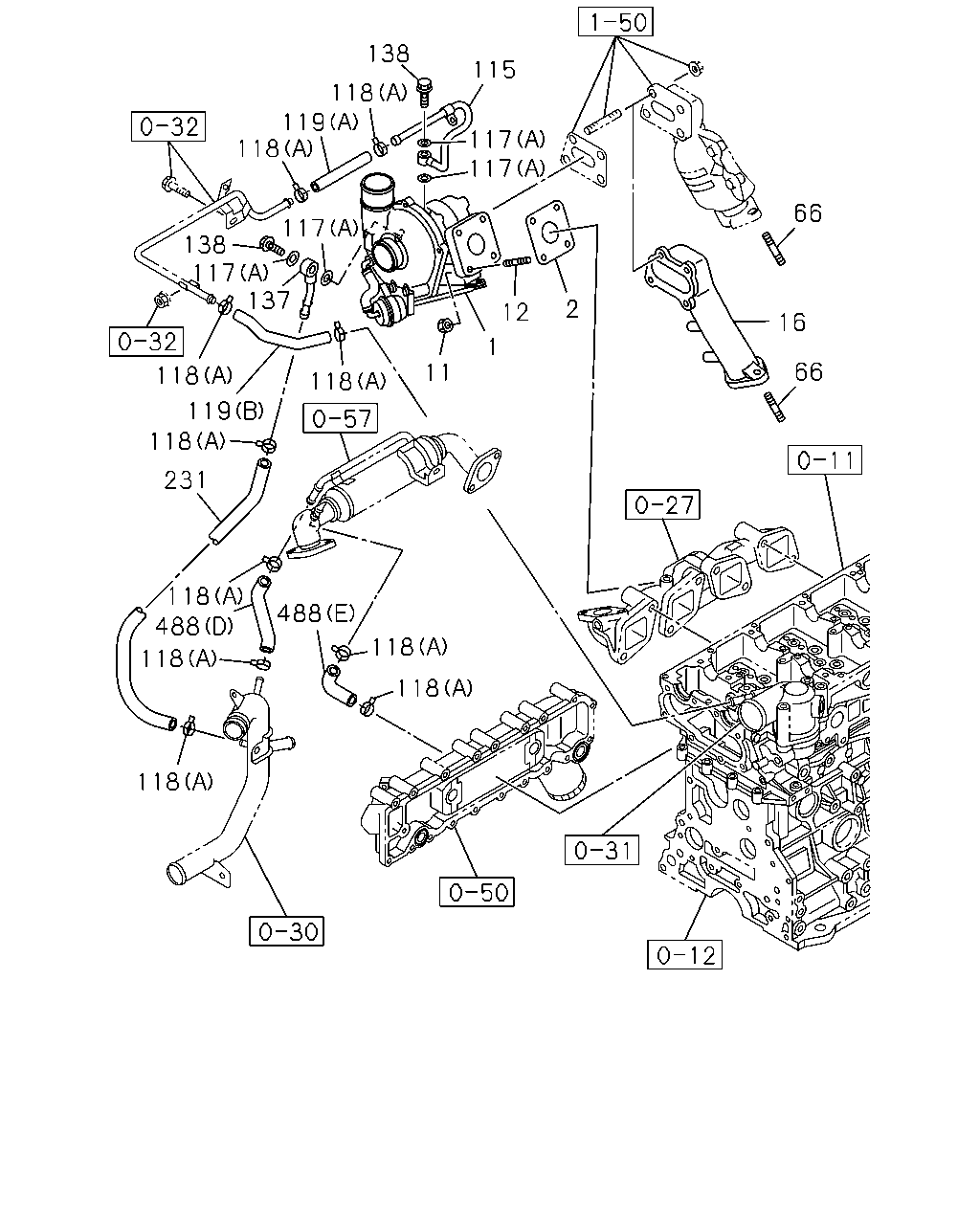

138 118 115 119 118 117 117 117 138 117 137 12 2 1 11 118 66 16 66 118 119 118 231 118 488 488 118 118 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-893-4	01	1	1008-	●
1	03.342 TURBOCHARGER ASM	8-97240-210-2	01	1	0810-		●
1	03.342 TURBOCHARGER ASM	8-98011-530-7	01	1	0810-1007			●
1	03.342 TURBOCHARGER ASM	8-98132-070-3	01	1	1008-			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-892-3	01	1	0810-1109				●
1	03.342 TURBOCHARGER ASM EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-892-3	01	1	1110-				●
1	03.342 TURBOCHARGER ASM	8-98011-529-7	01	1	0808-1007					●
1	03.342 TURBOCHARGER ASM	8-98132-069-2	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1)	8-94433-605-0	01	1	1008-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1008-			●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	0810-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1)	8-94433-605-0	01	1	0810-1003				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	0808-0809					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	0810-1007			●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1)	8-97912-697-0	01	1	0810-1007				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	1008-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	1008-	●
11	03.342 NUT; TURBOCHARGER KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE	8-97161-607-0	04	1	0810-1003				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0810-1003		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1004-1007		●
11	03.342 NUT; TURBOCHARGER KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE	8-97161-607-0	04	1	1008-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1008-		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0808-0809					●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0810-1007			●		●
11	03.342 NUT; TURBOCHARGER EXC. KENYA EQUIPMENT(CL1) M8 FLANGE	8-97379-384-0	04	1	0810-1007				●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1008-	●		●		●
11	03.342 NUT; TURBOCHARGER EXC. KENYA EQUIPMENT(CL1) M8 FLANGE	8-97379-384-0	04	1	1008-				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0810-1007		●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1008-	●	●		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0808-0809					●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-			●		●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0808-0809					●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0810-			●		●
16	03.609 ADAPTER; EXH PIPE	8-98011-531-1	01	1	1008-1109				●
16	03.609 ADAPTER; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>	8-98011-531-1	01	1	1110-				●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0810-		●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0810-1003			●		●
66	03.342 STUD; EXH PIPE KENYA EQUIPMENT(CL1) M10X22 L=43	0-43211-022-0	02	1	0810-1003				●
66	03.342 STUD; EXH PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43	0-43211-022-0	02	1	1004-1007			●	●	●
66	03.342 STUD; EXH PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43	0-43211-022-0	02	1	1008-	●		●		●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0808-0809					●
66	03.342 STUD; EXH PIPE EXC. KENYA EQUIPMENT(CL1) M10X25 L=40	0-44011-025-0	02	1	0810-1003				●
66	03.342 STUD; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M10X25 L=40	0-44011-025-0	02	1	1004-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98011-902-0	01	1	0810-1007				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98011-902-0	01	1	1008-	●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	0810-1007				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1008-	●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B)	8-97262-117-0	01	1	0808-0809					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B)	8-97262-117-0	01	1	0810-1007			●		●
118	03.342 CLIP; WATER HOSE KENYA EQUIPMENT(CL1) 01.153 (A) ID=12.8	8-94367-943-0	06	1	1008-				●
118	03.342 CLIP; WATER HOSE KENYA EQUIPMENT(CL1) 01.153 (A) ID=12.8	8-94367-943-0	06	1	0810-1003				●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (A) ID=12.8	8-97944-125-0	04	1	0810-1007				●
118	03.342 CLIP; WATER HOSE (A) ID=12.8	8-97944-125-0	04	1	1008-	●
118	03.342 CLIP; WATER HOSE (A) ID=12.8	8-97944-125-0	06	1	0808-0809					●
118	03.342 CLIP; WATER HOSE (A) ID=12.8	8-97944-125-0	06	1	0810-1007			●		●
118	03.342 CLIP; WATER HOSE EXC. KENYA EQUIPMENT(CL1) (A) ID=12.8	8-97944-125-0	06	1	0810-1007				●
118	03.342 CLIP; WATER HOSE (A) ID=12.8	8-97944-125-0	06	1	1008-	●		●		●
118	03.342 CLIP; WATER HOSE EXC. KENYA EQUIPMENT(CL1) (A) ID=12.8	8-97944-125-0	06	1	1008-				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	06	1	0808-0809					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	06	1	0810-			●		●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (A) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	1008-			●		●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (A) L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0808-0809					●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (A) L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0810-1007			●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (A) L=210 SERVICED BY L=3000	0-03559-300-0	01	1	1008-	●			●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0808-0809					●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0810-1007			●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	1008-	●		●	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98011-903-0	01	1	0810-1007				●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98011-903-0	01	1	1008-	●			●
138	03.342 BOLT; EYE,WATER PIPE M14X31 EYE-BOLT	8-98037-067-0	02	1	0810-1007				●
138	03.342 BOLT; EYE,WATER PIPE M14X31 EYE-BOLT	8-98037-067-0	02	1	1008-	●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0808-0809					●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0810-1007			●	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000	0-03559-300-0	01	1	1008-	●		●	●	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> 01.097 (E) L=150 SERVICED BY L=3000	0-03559-300-0	01	1	0810-1007				●
488	03.163 HOSE; RUBBER 01.097 (E) L=150 SERVICED BY L=3000	0-03559-300-0	01	1	1008-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> 01.097 (D) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0810-1007				●
488	03.163 HOSE; RUBBER 01.097 (D) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	1008-	●
488	03.163 HOSE; RUBBER (C)	8-98011-632-1	01	1	0808-0809					●
488	03.163 HOSE; RUBBER (C)	8-98011-632-1	01	1	0810-			●		●
488	03.163 HOSE; RUBBER (A)	8-98011-633-1	01	1	0808-0809					●
488	03.163 HOSE; RUBBER (A)	8-98011-633-1	01	1	0810-			●		●
488	03.163 HOSE; RUBBER (B)	8-98031-860-0	01	1	0808-0809					●
488	03.163 HOSE; RUBBER (B)	8-98031-860-0	01	1	0810-			●		●

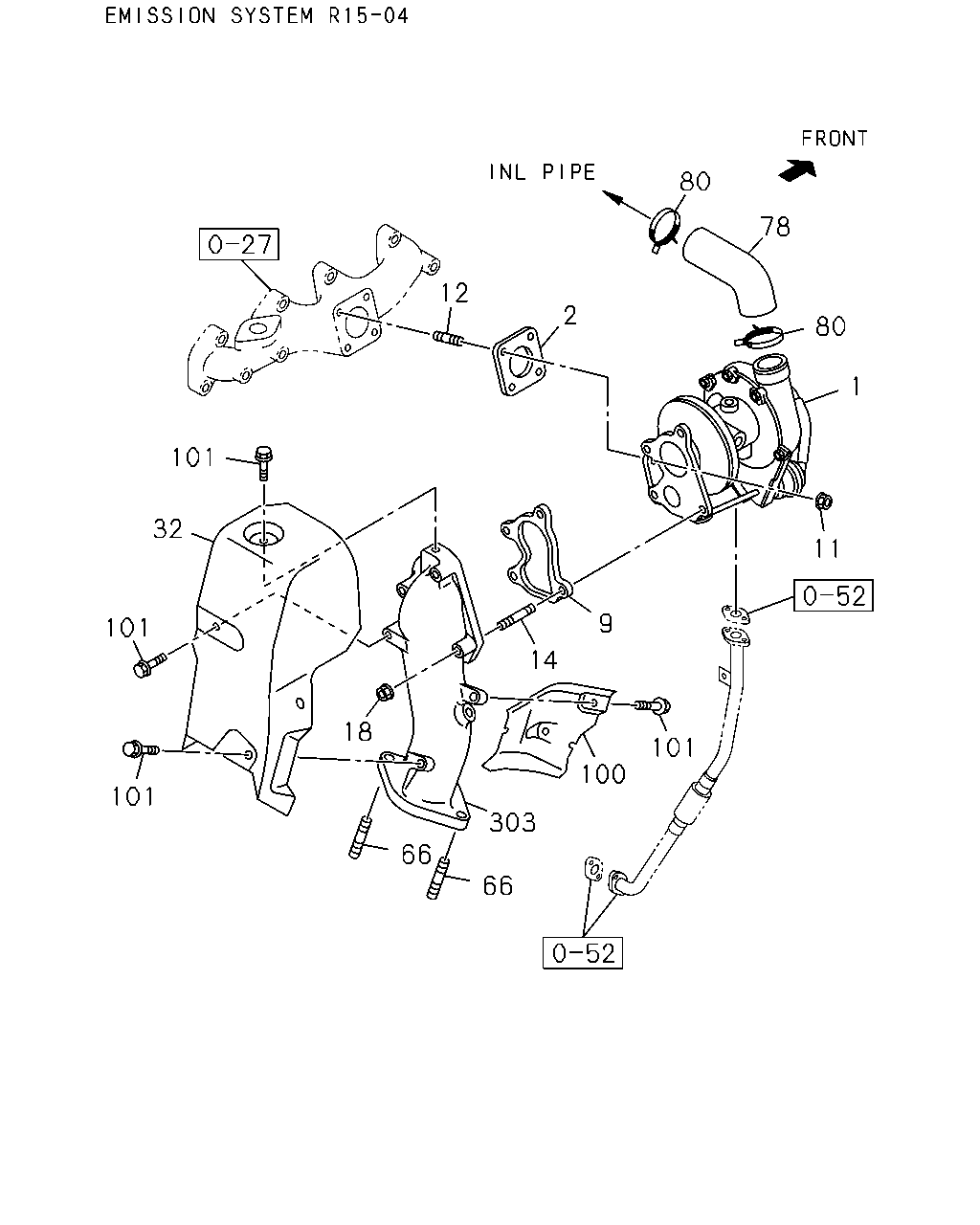

80 78 12 2 80 1 101 32 11 9 101 14 18 101 100 101 303 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-893-4	01	1	1008-	●
1	03.342 TURBOCHARGER ASM	8-97240-210-2	01	1	0810-		●
1	03.342 TURBOCHARGER ASM	8-98011-530-7	01	1	0810-1007			●
1	03.342 TURBOCHARGER ASM	8-98132-070-3	01	1	1008-			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-892-3	01	1	0810-1109				●
1	03.342 TURBOCHARGER ASM EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-892-3	01	1	1110-				●
1	03.342 TURBOCHARGER ASM	8-98011-529-7	01	1	0808-1007					●
1	03.342 TURBOCHARGER ASM	8-98132-069-2	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1)	8-94433-605-0	01	1	1008-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1008-			●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	0810-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1)	8-94433-605-0	01	1	0810-1003				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	0808-0809					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	0810-1007			●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1)	8-97912-697-0	01	1	0810-1007				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	1008-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	1008-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97139-726-0	01	1	0810-		●
11	03.342 NUT; TURBOCHARGER KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE	8-97161-607-0	04	1	0810-1003				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0810-1003		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1004-1007		●
11	03.342 NUT; TURBOCHARGER KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE	8-97161-607-0	04	1	1008-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1008-		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0808-0809					●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0810-1007			●		●
11	03.342 NUT; TURBOCHARGER EXC. KENYA EQUIPMENT(CL1) M8 FLANGE	8-97379-384-0	04	1	0810-1007				●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1008-	●		●		●
11	03.342 NUT; TURBOCHARGER EXC. KENYA EQUIPMENT(CL1) M8 FLANGE	8-97379-384-0	04	1	1008-				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0810-1007		●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1008-	●	●		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0808-0809					●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-			●		●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0808-0809					●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0810-			●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97378-067-0	04	1	0810-		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0810-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>	8-97087-029-0	01	1	0810-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98057-857-0	01	1	0808-0809					●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98057-857-0	01	1	0810-1007			●		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98156-389-0	01	1	1008-			●		●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0810-		●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0810-1003			●		●
66	03.342 STUD; EXH PIPE KENYA EQUIPMENT(CL1) M10X22 L=43	0-43211-022-0	02	1	0810-1003				●
66	03.342 STUD; EXH PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43	0-43211-022-0	02	1	1004-1007			●	●	●
66	03.342 STUD; EXH PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43	0-43211-022-0	02	1	1008-	●		●		●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0808-0809					●
66	03.342 STUD; EXH PIPE EXC. KENYA EQUIPMENT(CL1) M10X25 L=40	0-44011-025-0	02	1	0810-1003				●
66	03.342 STUD; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M10X25 L=40	0-44011-025-0	02	1	1004-				●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	0810-		●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	0810-		●
100	03.417 PROTECTOR; HEAT,EXH MANIF EMISSION SYSTEM R15-04<K75>	8-97038-109-1	01	1	0810-		●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75> 02.343 M8X12 FLANGE	0-28050-812-0	06	1	0810-		●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 M6X12 FLANGE	0-28050-612-0	03	1	0810-		●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0808-0809					●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0810-			●		●
303	03.440 ADAPTER; THROTTLE BODY,EXH EMISSION SYSTEM R15-04<K75>	8-97139-725-0	01	1	0810-		●

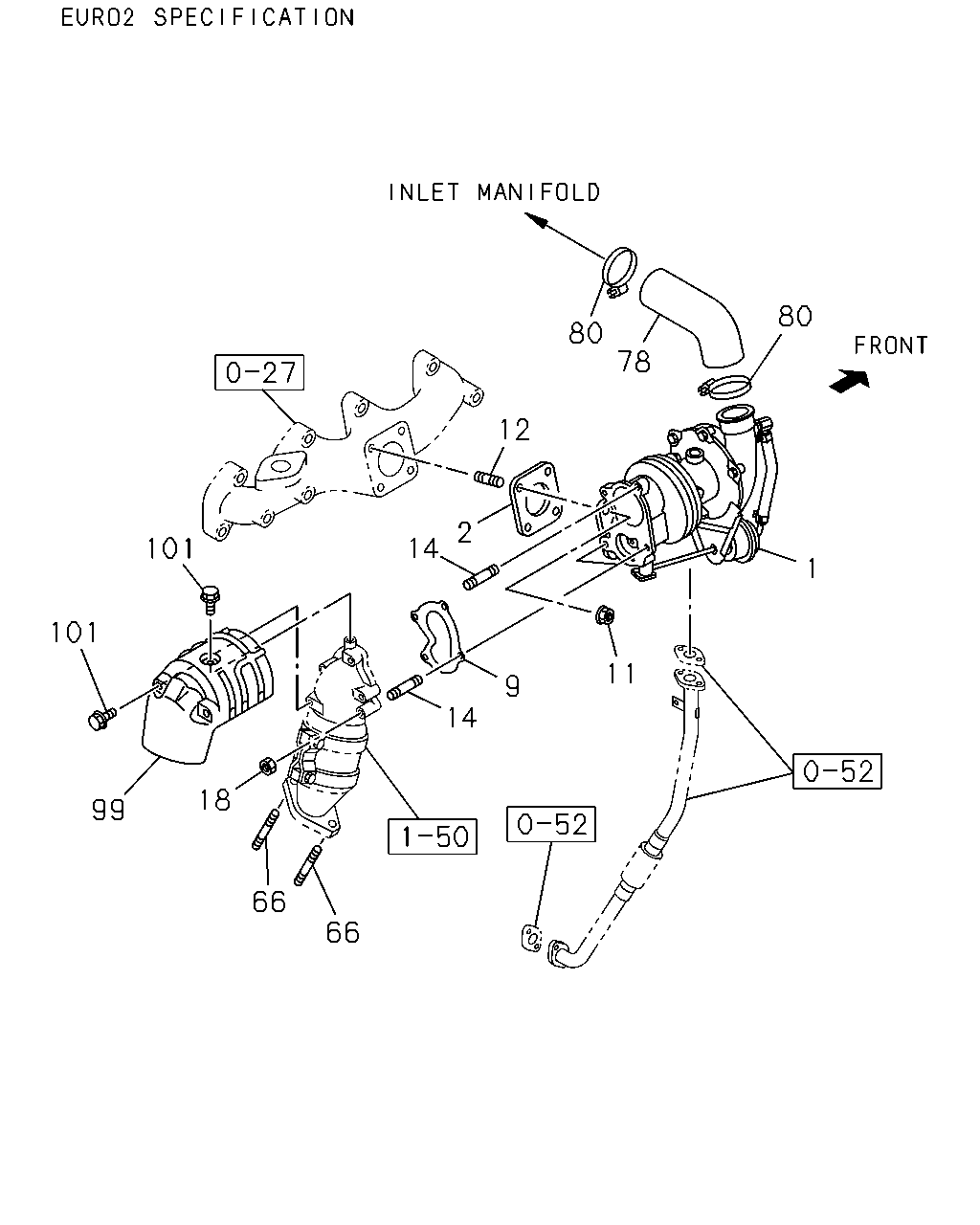

80 80 78 12 2 101 14 1 101 11 9 14 18 99 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-893-4	01	1	1008-	●
1	03.342 TURBOCHARGER ASM	8-97240-210-2	01	1	0810-		●
1	03.342 TURBOCHARGER ASM	8-98011-530-7	01	1	0810-1007			●
1	03.342 TURBOCHARGER ASM	8-98132-070-3	01	1	1008-			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-892-3	01	1	0810-1109				●
1	03.342 TURBOCHARGER ASM EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-892-3	01	1	1110-				●
1	03.342 TURBOCHARGER ASM	8-98011-529-7	01	1	0808-1007					●
1	03.342 TURBOCHARGER ASM	8-98132-069-2	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1)	8-94433-605-0	01	1	1008-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1008-			●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	0810-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1)	8-94433-605-0	01	1	0810-1003				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	0808-0809					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	0810-1007			●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1)	8-97912-697-0	01	1	0810-1007				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	1008-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	1008-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97139-726-0	01	1	0810-		●
11	03.342 NUT; TURBOCHARGER KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE	8-97161-607-0	04	1	0810-1003				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0810-1003		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1004-1007		●
11	03.342 NUT; TURBOCHARGER KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE	8-97161-607-0	04	1	1008-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1008-		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0808-0809					●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0810-1007			●		●
11	03.342 NUT; TURBOCHARGER EXC. KENYA EQUIPMENT(CL1) M8 FLANGE	8-97379-384-0	04	1	0810-1007				●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1008-	●		●		●
11	03.342 NUT; TURBOCHARGER EXC. KENYA EQUIPMENT(CL1) M8 FLANGE	8-97379-384-0	04	1	1008-				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0810-1007		●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1008-	●	●		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0808-0809					●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-			●		●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0808-0809					●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0810-			●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97378-067-0	04	1	0810-		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0810-		●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0810-		●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0810-1003			●		●
66	03.342 STUD; EXH PIPE KENYA EQUIPMENT(CL1) M10X22 L=43	0-43211-022-0	02	1	0810-1003				●
66	03.342 STUD; EXH PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43	0-43211-022-0	02	1	1004-1007			●	●	●
66	03.342 STUD; EXH PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43	0-43211-022-0	02	1	1008-	●		●		●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0808-0809					●
66	03.342 STUD; EXH PIPE EXC. KENYA EQUIPMENT(CL1) M10X25 L=40	0-44011-025-0	02	1	0810-1003				●
66	03.342 STUD; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M10X25 L=40	0-44011-025-0	02	1	1004-				●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	0810-		●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	0810-		●
99	03.602 PROTECTOR; HEAT EURO2 SPECIFICATION<NT2>	8-97318-472-0	01	1	0810-		●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75> 02.343 M8X12 FLANGE	0-28050-812-0	06	1	0810-		●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 M6X12 FLANGE	0-28050-612-0	03	1	0810-		●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0808-0809					●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0810-			●		●

217 32 101 526 458 21 217 527 414 118 119 463 12 217 66 118 1 12 2 118 11 118 119 118 231 117 485 118 488 21 118 488 530 21 529 118 530 530 529 118 118 485 530 118 488 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-893-4	01	1	1008-	●
1	03.342 TURBOCHARGER ASM	8-97240-210-2	01	1	0810-		●
1	03.342 TURBOCHARGER ASM	8-98011-530-7	01	1	0810-1007			●
1	03.342 TURBOCHARGER ASM	8-98132-070-3	01	1	1008-			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-892-3	01	1	0810-1109				●
1	03.342 TURBOCHARGER ASM EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-892-3	01	1	1110-				●
1	03.342 TURBOCHARGER ASM	8-98011-529-7	01	1	0808-1007					●
1	03.342 TURBOCHARGER ASM	8-98132-069-2	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1)	8-94433-605-0	01	1	1008-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1008-			●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	0810-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1)	8-94433-605-0	01	1	0810-1003				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	0808-0809					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	0810-1007			●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1)	8-97912-697-0	01	1	0810-1007				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	1008-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97912-697-0	01	1	1008-	●
11	03.342 NUT; TURBOCHARGER KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE	8-97161-607-0	04	1	0810-1003				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0810-1003		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1004-1007		●
11	03.342 NUT; TURBOCHARGER KENYA EQUIPMENT(CL1) 03.613 M8 FLANGE	8-97161-607-0	04	1	1008-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1008-		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0808-0809					●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0810-1007			●		●
11	03.342 NUT; TURBOCHARGER EXC. KENYA EQUIPMENT(CL1) M8 FLANGE	8-97379-384-0	04	1	0810-1007				●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1008-	●		●		●
11	03.342 NUT; TURBOCHARGER EXC. KENYA EQUIPMENT(CL1) M8 FLANGE	8-97379-384-0	04	1	1008-				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0810-1007		●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1008-	●	●		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0808-0809					●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-			●		●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0808-0809					●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0810-			●		●
21	03.358 BOLT; PIPE 04.866 (A) M6X40 FLANGE	0-28050-640-0	02	1	0808-0809					●
21	03.358 BOLT; PIPE 04.866 (A) M6X40 FLANGE	0-28050-640-0	02	1	0810-1007			●		●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1008-			●		●
21	03.358 BOLT; PIPE 03.162 (B) M6X20 FLANGE	0-28650-620-0	02	1	0808-0809					●
21	03.358 BOLT; PIPE 03.162 (B) M6X20 FLANGE	0-28650-620-0	02	1	0810-1007			●		●
21	03.358 BOLT; PIPE 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	0808-0809					●
21	03.358 BOLT; PIPE 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	0810-			●		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>	8-97087-029-0	01	1	0810-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98057-857-0	01	1	0808-0809					●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98057-857-0	01	1	0810-1007			●		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98156-389-0	01	1	1008-			●		●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0810-		●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0810-1003			●		●
66	03.342 STUD; EXH PIPE KENYA EQUIPMENT(CL1) M10X22 L=43	0-43211-022-0	02	1	0810-1003				●
66	03.342 STUD; EXH PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43	0-43211-022-0	02	1	1004-1007			●	●	●
66	03.342 STUD; EXH PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43	0-43211-022-0	02	1	1008-	●		●		●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0808-0809					●
66	03.342 STUD; EXH PIPE EXC. KENYA EQUIPMENT(CL1) M10X25 L=40	0-44011-025-0	02	1	0810-1003				●
66	03.342 STUD; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M10X25 L=40	0-44011-025-0	02	1	1004-				●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75> 02.343 M8X12 FLANGE	0-28050-812-0	06	1	0810-		●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 M6X12 FLANGE	0-28050-612-0	03	1	0810-		●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0808-0809					●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0810-			●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	0810-1007				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1008-	●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B)	8-97262-117-0	01	1	0808-0809					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B)	8-97262-117-0	01	1	0810-1007			●		●
118	03.342 CLIP; WATER HOSE KENYA EQUIPMENT(CL1) 01.153 (A) ID=12.8	8-94367-943-0	06	1	1008-				●
118	03.342 CLIP; WATER HOSE KENYA EQUIPMENT(CL1) 01.153 (A) ID=12.8	8-94367-943-0	06	1	0810-1003				●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (A) ID=12.8	8-97944-125-0	04	1	0810-1007				●
118	03.342 CLIP; WATER HOSE (A) ID=12.8	8-97944-125-0	04	1	1008-	●
118	03.342 CLIP; WATER HOSE (A) ID=12.8	8-97944-125-0	06	1	0808-0809					●
118	03.342 CLIP; WATER HOSE (A) ID=12.8	8-97944-125-0	06	1	0810-1007			●		●
118	03.342 CLIP; WATER HOSE EXC. KENYA EQUIPMENT(CL1) (A) ID=12.8	8-97944-125-0	06	1	0810-1007				●
118	03.342 CLIP; WATER HOSE (A) ID=12.8	8-97944-125-0	06	1	1008-	●		●		●
118	03.342 CLIP; WATER HOSE EXC. KENYA EQUIPMENT(CL1) (A) ID=12.8	8-97944-125-0	06	1	1008-				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	06	1	0808-0809					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	06	1	0810-			●		●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (A) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	1008-			●		●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (A) L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0808-0809					●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (A) L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0810-1007			●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (A) L=210 SERVICED BY L=3000	0-03559-300-0	01	1	1008-	●			●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0808-0809					●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0810-1007			●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	1008-	●		●	●	●
217	03.417 BOLT; BRKT 04.686 M8X60 FLANGE	0-28050-860-0	01	1	0808-0809					●
217	03.417 BOLT; BRKT 04.686 M8X60 FLANGE	0-28050-860-0	01	1	0810-1007			●		●
217	03.417 BOLT; BRKT 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1008-			●		●
217	03.417 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0808-0809					●
217	03.417 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-			●		●
217	03.417 BOLT; BRKT 03.670 M8X18 FLANGE	8-97378-076-0	01	1	0808-0809					●
217	03.417 BOLT; BRKT 03.670 M8X18 FLANGE	8-97378-076-0	01	1	0810-			●		●
217	03.417 BOLT; BRKT M8X28 FLANGE	8-98041-363-0	01	1	0808-0809					●
217	03.417 BOLT; BRKT M8X28 FLANGE	8-98041-363-0	01	1	0810-			●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0808-0809					●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0810-1007			●	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000	0-03559-300-0	01	1	1008-	●		●	●	●
414	03.602 SPACER	8-98059-266-0	01	1	0808-0809					●
414	03.602 SPACER	8-98059-266-0	01	1	0810-1007			●		●
458	03.373 PIPE; WATER,TURBOCHARGER	8-98031-001-0	01	1	0808-0809					●
458	03.373 PIPE; WATER,TURBOCHARGER	8-98031-001-0	01	1	0810-1007			●		●
458	03.373 PIPE; WATER,TURBOCHARGER	8-98132-035-2	01	1	1008-			●		●
463	03.602 WASHER; PL,HEAT PROTECTOR 02.277 ID=8.4 OD=22	0-91614-708-0	01	1	0808-0809					●
463	03.602 WASHER; PL,HEAT PROTECTOR 02.277 ID=8.4 OD=22	0-91614-708-0	01	1	0810-1007			●		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION<NT3> (B)	8-98020-208-2	01	1	0810-1007					●
485	01.097 PIPE; WATER EGR (A)	8-98011-517-0	01	1	0808-0809					●
485	01.097 PIPE; WATER EGR (A)	8-98011-517-0	01	1	0810-1007			●		●
485	01.097 PIPE; WATER EGR (B)	8-98011-520-2	01	1	0808-0809					●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4> (B)	8-98011-520-2	01	1	0810-1007			●		●
485	01.097 PIPE; WATER EGR (B)	8-98011-520-2	01	1	1008-			●		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> 01.097 (E) L=150 SERVICED BY L=3000	0-03559-300-0	01	1	0810-1007				●
488	03.163 HOSE; RUBBER 01.097 (E) L=150 SERVICED BY L=3000	0-03559-300-0	01	1	1008-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> 01.097 (D) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0810-1007				●
488	03.163 HOSE; RUBBER 01.097 (D) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	1008-	●
488	03.163 HOSE; RUBBER (C)	8-98011-632-1	01	1	0808-0809					●
488	03.163 HOSE; RUBBER (C)	8-98011-632-1	01	1	0810-			●		●
488	03.163 HOSE; RUBBER (A)	8-98011-633-1	01	1	0808-0809					●
488	03.163 HOSE; RUBBER (A)	8-98011-633-1	01	1	0810-			●		●
488	03.163 HOSE; RUBBER (B)	8-98031-860-0	01	1	0808-0809					●
488	03.163 HOSE; RUBBER (B)	8-98031-860-0	01	1	0810-			●		●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	0808-0809					●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	0810-			●		●
527	03.373 BRACKET; TURBOCHARGER	8-98011-536-1	01	1	0808-0809					●
527	03.373 BRACKET; TURBOCHARGER	8-98011-536-1	01	1	0810-1007			●		●
527	03.373 BRACKET; TURBOCHARGER	8-98156-388-0	01	1	1008-			●		●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	0808-0809					●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	0810-			●		●
529	03.374 INSULATOR; HOSE (B)	8-98031-884-0	01	1	0808-0809					●
529	03.374 INSULATOR; HOSE (B)	8-98031-884-0	01	1	0810-			●		●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	0808-0809					●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	0810-			●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
