0-33 — FAN AND FAN BELT (#76951) — 163 parça

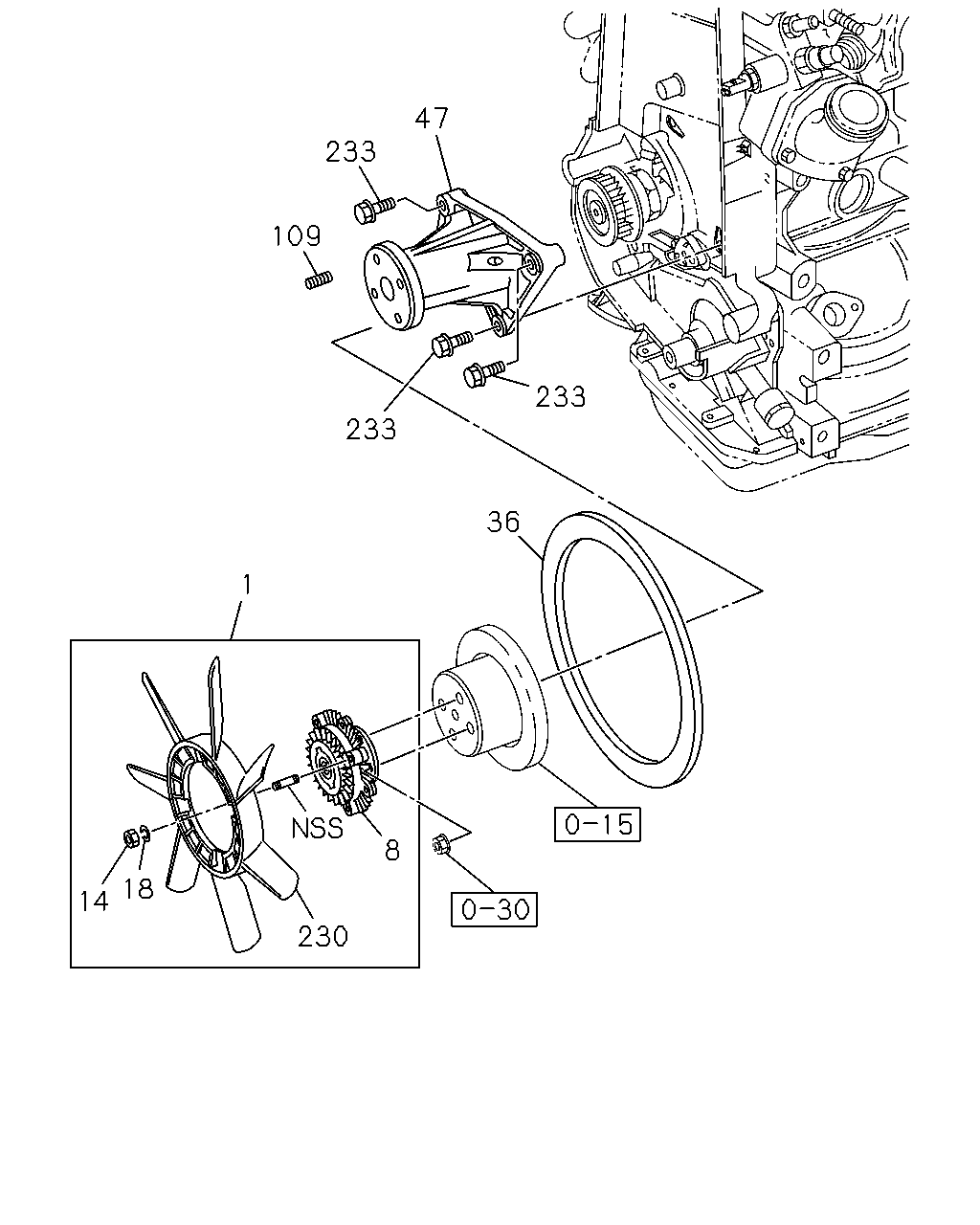

çizim 60870
47 233 109 233 233 36 1 8 18 14 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0810- ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0810- ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0808-0809 ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0810-1007 ● ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 1008- ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0810- ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0810- ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0808-0809 ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0810-1007 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 1008- ● ● ● ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 0810- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0810- ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 0810- ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0810- ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0810- ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0808-0809 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0810-1003 ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1004-1007 ● ●
36 01.066 BELT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) L=1006 		8-97362-926-0 01 1 1004-1007 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1008- ● ● ● ●
47 01.060 BRACKET; FAN 8-92064-194-0 01 1 0810- ●
109 01.062 STUD; FAN CLU 8-92064-389-0 04 1 1010- ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 0810-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0810-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1004-1007 ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 1008- ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1008- ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0808-0809 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0810-1007 ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 0810-1007 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1406- ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X20 L=31 		8-98256-636-0 04 1 1406- ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 0810- ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0810- ●
233 01.060 BOLT; FAN BRKT 8-11082-931-0 03 1 0810-1009 ●
233 01.060 BOLT; FAN BRKT 8-93299-090-0 03 1 1010- ●

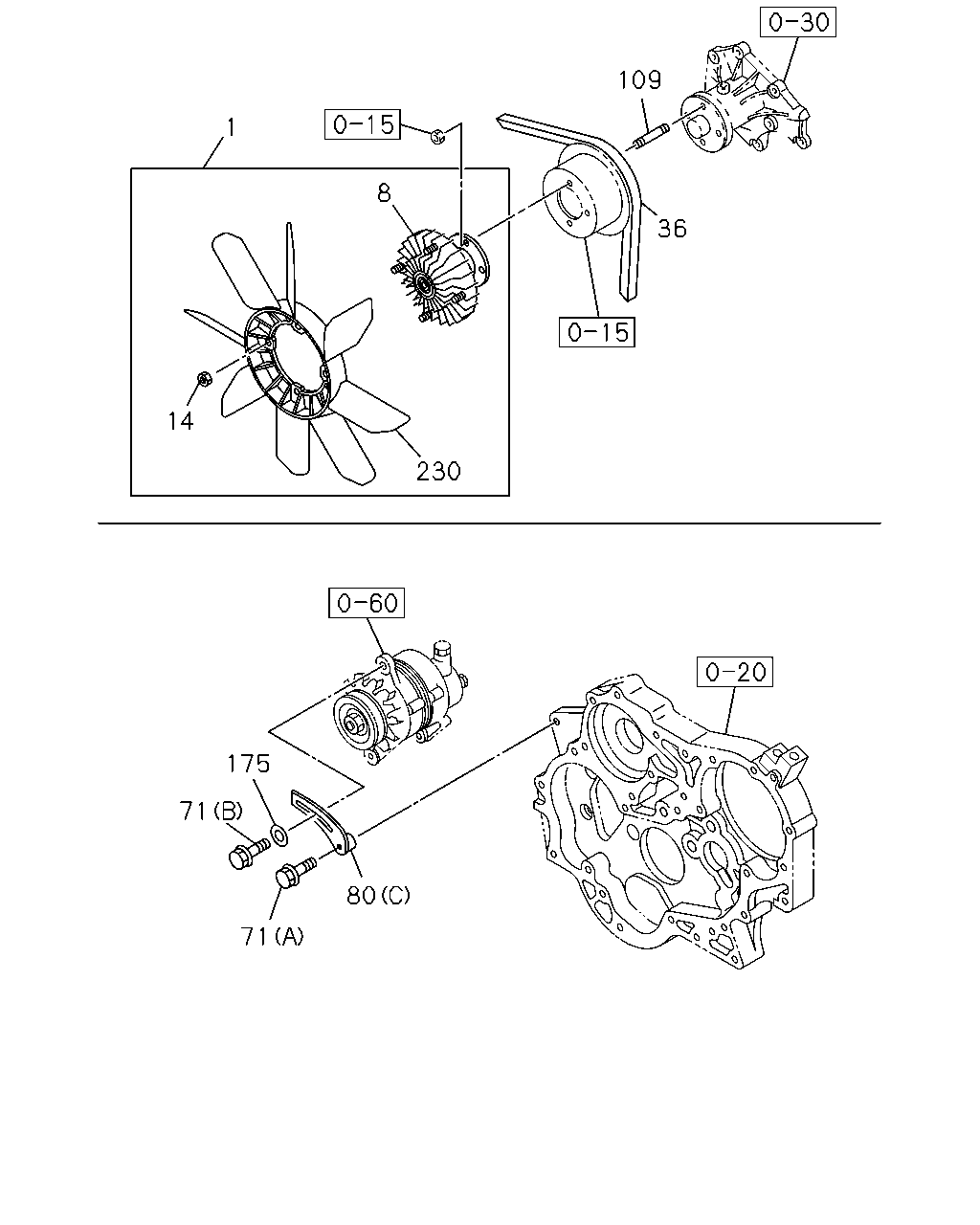

çizim 61149
109 1 8 36 14 230 175 71 80 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0810- ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0810- ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0808-0809 ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0810-1007 ● ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 1008- ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0810- ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0810- ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0808-0809 ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0810-1007 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 1008- ● ● ● ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 0810- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0810- ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0810- ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0810- ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0808-0809 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0810-1003 ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1004-1007 ● ●
36 01.066 BELT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) L=1006 		8-97362-926-0 01 1 1004-1007 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1008- ● ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
KENYA EQUIPMENT(CL1) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 0810- ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0810- ●
71 02.317 BOLT; ADJ PLATE,GEN
KENYA EQUIPMENT(CL1) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0810-1003 ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 0810- ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 0808-0809 ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 0810-1003 ● ● ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 1004-1007 ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97322-592-1 01 1 1004-1007 ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 1008- ● ● ● ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 0808-0809 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 0810-1007 ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-1 01 1 0810-1007 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1008-1402 ● ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-1 01 1 1008-1402 ●
80 02.317 PLATE; ADJ
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1403- ● ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-1 01 1 1403- ●
109 01.062 STUD; FAN CLU 8-92064-389-0 04 1 1010- ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 0810-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0810-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1004-1007 ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 1008- ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1008- ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0808-0809 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0810-1007 ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 0810-1007 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1406- ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X20 L=31 		8-98256-636-0 04 1 1406- ●
175 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0810- ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 0810- ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0810- ●

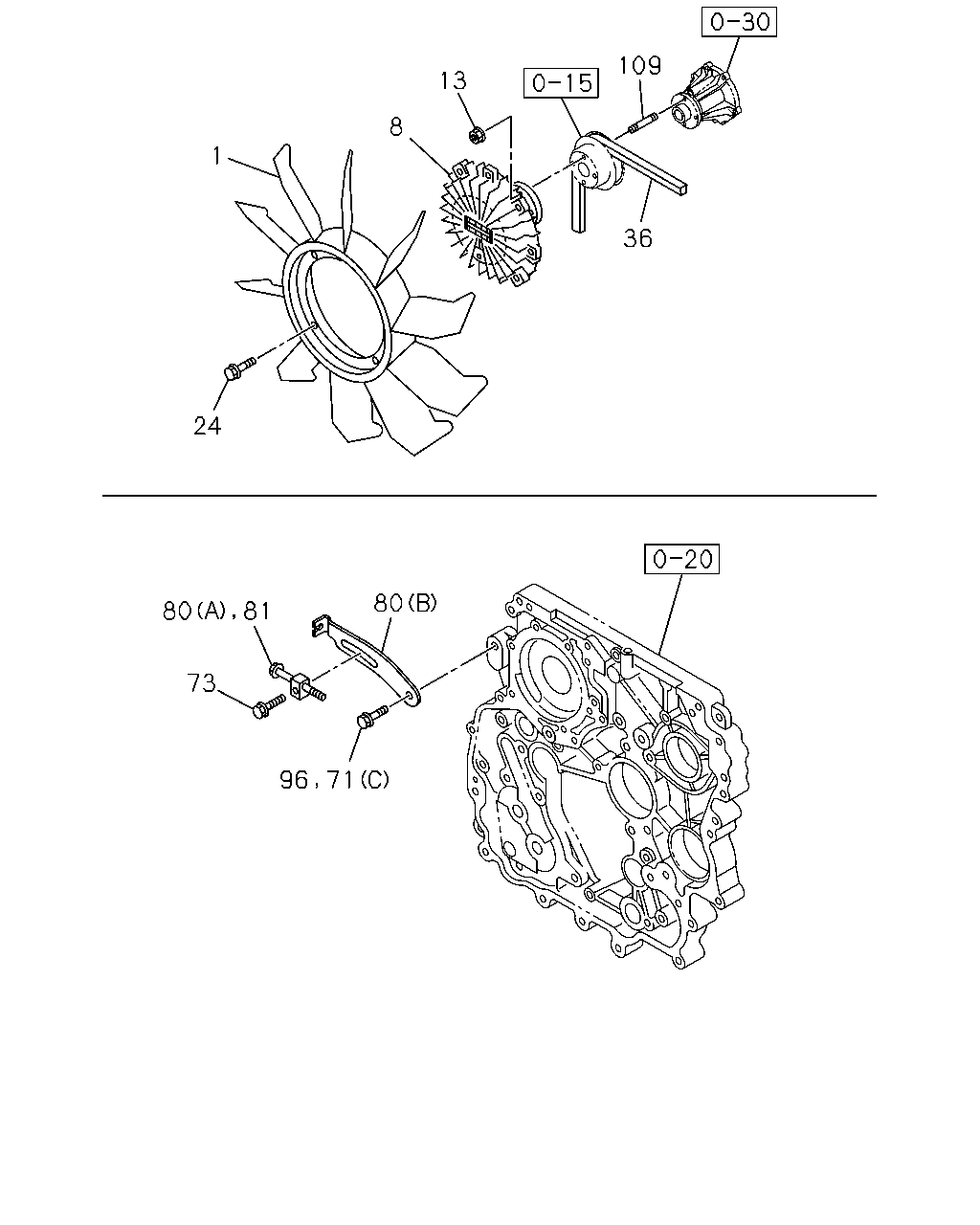

çizim 186232
109 13 8 1 36 24 80 80 81 73 96 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0810- ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0810- ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0808-0809 ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0810-1007 ● ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 1008- ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0810- ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0810- ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0808-0809 ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0810-1007 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 1008- ● ● ● ●
13 01.062 NUT; COOLING FAN
KENYA EQUIPMENT(CL1) 07.829 M6 FLANGE 		5-09440-004-0 04 1 1008- ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 0911-1007 ● ●
13 01.062 NUT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) 16.320 M6 FLANGE 		8-98049-362-0 04 1 0911-1007 ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 1008- ● ● ●
13 01.062 NUT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) 16.320 M6 FLANGE 		8-98049-362-0 04 1 1008- ●
13 01.062 NUT; COOLING FAN
KENYA EQUIPMENT(CL1) 07.829 M6 FLANGE 		5-09440-004-0 04 1 0810-1003 ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 0808-0809 ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 0810-0910 ● ●
13 01.062 NUT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) 16.320 M6 FLANGE 		8-98049-362-0 04 1 0810-0910 ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 0808-0809 ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 0810-1007 ● ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1008- ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0810- ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0810- ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0808-0809 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0810-1003 ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1004-1007 ● ●
36 01.066 BELT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) L=1006 		8-97362-926-0 01 1 1004-1007 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1008- ● ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
KENYA EQUIPMENT(CL1) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 0810- ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0810- ●
71 02.317 BOLT; ADJ PLATE,GEN
KENYA EQUIPMENT(CL1) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0810-1003 ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0808-0809 ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0810-1003 ● ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1004-1007 ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
EXC. KENYA EQUIPMENT(CL1) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1004-1007 ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1008- ● ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 0810- ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 0808-0809 ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 0810-1003 ● ● ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 1004-1007 ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97322-592-1 01 1 1004-1007 ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 1008- ● ● ● ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 0808-0809 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 0810-1007 ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-1 01 1 0810-1007 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1008-1402 ● ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-1 01 1 1008-1402 ●
80 02.317 PLATE; ADJ
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1403- ● ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-1 01 1 1403- ●
81 02.317 PIECE; SLIDING
KENYA EQUIPMENT(CL1) 		8-97944-144-1 01 1 1008- ● ● ●
81 02.317 PIECE; SLIDING
KENYA EQUIPMENT(CL1) 		8-97944-144-1 01 1 0810-1003 ● ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0808-0809 ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0810-1007 ● ●
96 02.317 BOLT; ADJ PLATE
EXC. KENYA EQUIPMENT(CL1) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0810-1007 ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1008-1402 ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. KENYA EQUIPMENT(CL1) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1008-1402 ●
96 02.317 BOLT; ADJ PLATE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1403- ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. KENYA EQUIPMENT(CL1) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1403- ●
109 01.062 STUD; FAN CLU 8-92064-389-0 04 1 1010- ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 0810-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0810-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1004-1007 ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 1008- ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1008- ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0808-0809 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0810-1007 ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 0810-1007 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1406- ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X20 L=31 		8-98256-636-0 04 1 1406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
