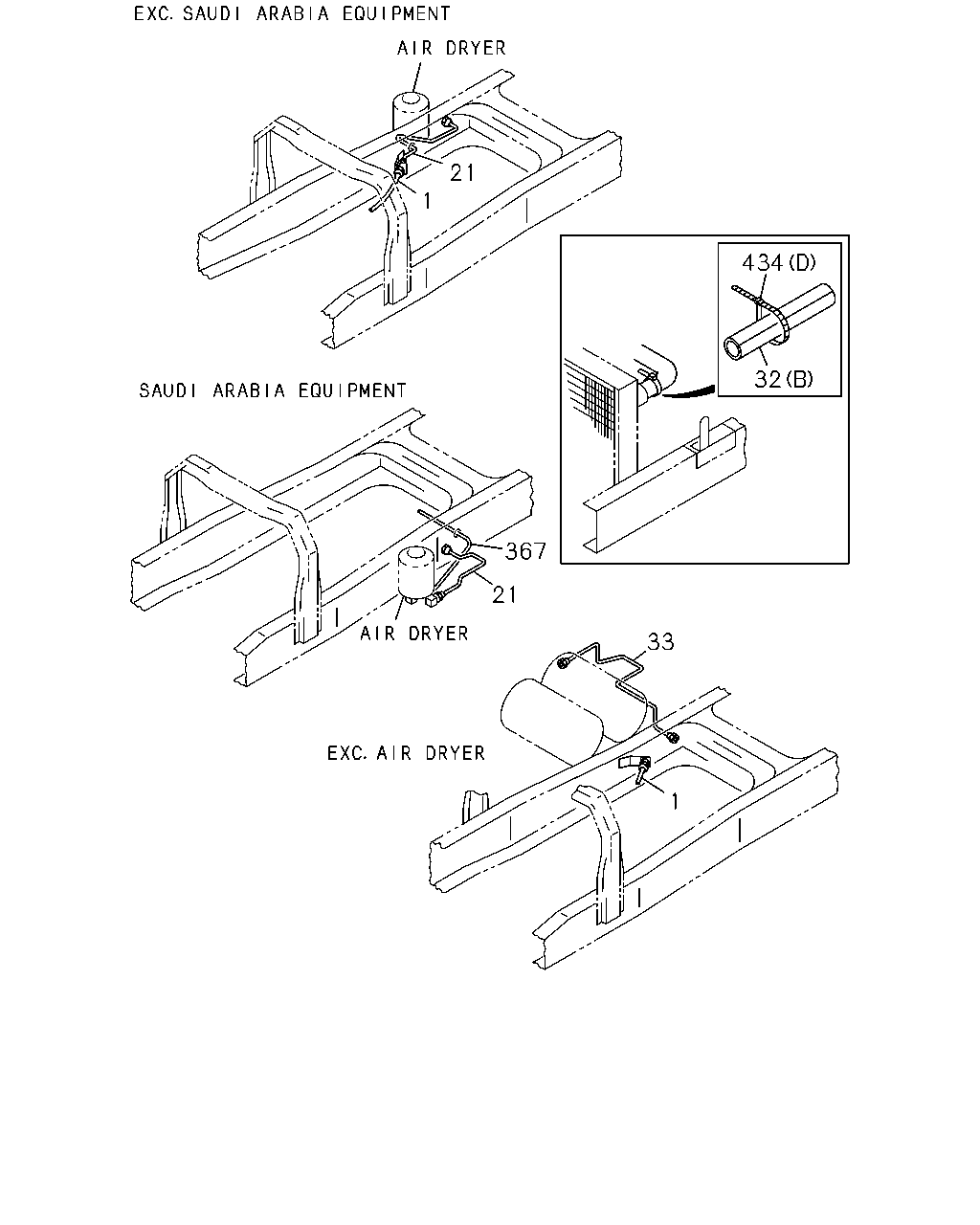

3-70 — BRAKE PIPING; AIR,AIR MASTER (#7695) — 1229 parça

444 444 444 202 258 258 80 374 80 80 185 186 247 428 150 304 124 345 175 374 214 215 291 123 304 249 248 177 213 221 202 175 376 72 8 6 163 7 304 124 21 2 3 35 51 421 180 179 35 221 4 1 98 1 4 374 18 12 376 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJA7 M/T<X9Q> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJA7 M/T<X9Q> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7U M/T(X6G) EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) L=630	0-07846-630-1	01	1	9905-9912	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	9905-9912	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	0001-0002	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) L=630	0-07846-630-1	01	1	0001-0002	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=630	0-07846-630-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=580	0-07846-580-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=580	0-07846-580-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=580	0-07846-580-1	01	1	0004-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=580	0-07846-580-1	01	1	0004-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) L=580	0-07846-580-1	01	1	0004-		●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=470	0-07846-470-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=530	0-07846-530-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> MJD7 M/T<X9J>	0-07846-430-1	01	1	9905-9905	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y)	0-07846-430-1	01	1	9906-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7 M/T<X9Q> L=590	0-07846-590-1	01	1	9902-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7U M/T(X6G) L=590	0-07846-590-1	01	1	0004-	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9902-0003	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	0004-	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9902-0003	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	0004-	●	●
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9902-0003	●
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0004-	●	●
6	BRACKET; FLEX HOSE,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W)	1-47477-708-0	01	1	9905-9905	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-47478-075-0	01	1	9902-9904	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W) MJD7 M/T<X9J>,MJA7 M/T<X9Q>	1-47478-075-0	01	1	9905-9905	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-47478-075-0	01	1	9905-9905	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W)	1-47478-075-0	01	1	9906-9907	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-47478-075-0	01	1	9906-9907	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W)	1-47478-674-0	01	1	9908-0003	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-47478-674-0	01	1	9908-0003	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W)	1-47478-674-0	01	1	0004-	●	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-47478-674-0	01	1	0004-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9902-9905	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W) M8X30 FLANGE	0-28680-830-0	02	1	9906-0003	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	02	1	9906-0003	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W) M8X30 FLANGE	0-28680-830-0	02	1	0004-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	02	1	0004-	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	9902-9905	●
8	NUT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	02	1	9906-0003	●
8	NUT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	02	1	9906-0003	●
8	NUT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	02	1	0004-	●
12	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) (A) M14	9-99111-414-0	01	1	9905-9905	●
12	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (B) M20	9-99111-420-0	01	1	9902-9904	●
12	NUT; UNION MJA7 M/T<X9Q> (B) M20	9-99111-420-0	01	1	9902-9904	●
12	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (B) M20	9-99111-420-0	01	1	9905-9905	●
12	NUT; UNION MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) M20	9-99111-420-0	01	1	9905-9905	●
12	NUT; UNION (B) M20	9-99111-420-0	01	1	9906-0003	●
12	NUT; UNION (B) M20	9-99111-420-0	01	1	0004-	●	●
18	WASHER; LK,UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) (A) ID=14.2	9-09150-514-0	01	1	9905-9905	●
18	WASHER; LK,UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (B) ID=20.2	9-09150-520-0	01	1	9902-9904	●
18	WASHER; LK,UNION MJA7 M/T<X9Q> (B) ID=20.2	9-09150-520-0	01	1	9902-9904	●
18	WASHER; LK,UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (B) ID=20.2	9-09150-520-0	01	1	9905-9905	●
18	WASHER; LK,UNION MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) ID=20.2	9-09150-520-0	01	1	9905-9905	●
18	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	9906-0003	●
18	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	0004-	●	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-187-0	01	1	9905-9905	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0003-0003	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0004-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0004-		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7> MJD7 M/T<X9J>,MJA7 M/T<X9Q>	1-49121-305-0	01	1	9905-9905	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-679-0	01	1	9906-0002	●
21	PIPE; AIR,UNION TO AIR DRYER MJA7U M/T(X6G),TRANSMISSION-ZF 16S151 OD(Y2N), MJD7S M/T(Y2Y),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-679-0	01	1	0003-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3500MM(35W) AIR DRYER<PS7>	1-49121-465-0	01	1	9902-	●
35	NUT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
35	NUT; BRKT WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
35	NUT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
35	NUT; BRKT WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
35	NUT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0004-	●
51	UNION AIR DRYER<PS7>	1-48320-028-2	01	1	9902-0003	●
51	UNION AIR DRYER<PS7>	1-48320-028-2	01	1	0004-	●	●
51	UNION EXC. AIR DRYER<PS7>	1-09654-202-1	01	1	9902-	●
72	UNION; AIR PIPE	1-09654-318-1	01	1	9902-0003	●
72	UNION; AIR PIPE	1-09654-318-1	01	1	0004-	●	●
80	UNION; 3 WAY (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	9902-0003	●
80	UNION; 3 WAY (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0004-	●	●
80	UNION; 3 WAY ZF M/T<X9E> (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9902-0003	●
80	UNION; 3 WAY ZF M/T<X9E> (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0004-	●
80	UNION; 3 WAY (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0004-		●
98	BRACKET; AIR PIPE (A)	1-47477-471-0	01	1	9902-0003	●
98	BRACKET; AIR PIPE (A)	1-47477-471-0	01	1	0004-	●	●
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (B)	1-47477-840-0	02	1	9902-9905	●
98	BRACKET; AIR PIPE MJA7U M/T(X6G),MJD7S M/T(Y2Y) (B)	1-47477-840-0	02	1	9906-0003	●
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (B)	1-47477-840-0	02	1	0004-	●
98	BRACKET; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B)	1-47477-902-0	01	1	9902-0003	●
98	BRACKET; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B)	1-47477-902-0	01	1	0004-	●
123	BRACKET; UNION (A)	1-47477-045-0	01	1	9902-0003	●
123	BRACKET; UNION (A)	1-47477-045-0	01	1	0004-	●	●
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) (B)	1-47477-588-0	01	1	9905-9905	●
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (C)	1-47478-280-0	01	1	9902-9905	●
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (G)	1-47478-632-0	01	1	9906-9912	●
123	BRACKET; UNION ZF M/T<X9E> (G)	1-47478-632-0	01	1	0001-	●
123	BRACKET; UNION (G)	1-47478-632-0	01	1	0001-		●
123	BRACKET; UNION WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) (D)	1-47477-396-1	01	1	9905-	●
123	BRACKET; UNION WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7U M/T(X6G) (E)	1-47478-398-0	01	1	9902-	●
123	BRACKET; UNION WHEEL BASE 3500MM(35W) MJA7U M/T(X6G) EXC. AIR DRYER<PS7> (F)	1-47478-396-0	01	1	9902-	●
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	9902-0003	●
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9902-0003	●
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
124	BOLT; BRKT WHEEL BASE 3500MM(35W) M8X35 FLANGE	0-28680-835-0	02	1	9902-	●
150	WASHER; LK,UNION WHEEL BASE 3500MM(35W) ID=12.2	9-09150-512-0	02	1	9902-9904	●
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9905-0003	●
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0004-	●	●
163	BRACKET; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=90 B=25	1-47475-530-0	01	1	9902-9904	●
163	BRACKET; AIR PIPE WHEEL BASE 3200MM(32W) L=90 B=25	1-47475-530-0	01	1	9905-0003	●
163	BRACKET; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=90 B=25	1-47475-530-0	01	1	9905-0003	●
163	BRACKET; AIR PIPE WHEEL BASE 3200MM(32W) L=90 B=25	1-47475-530-0	01	1	0004-	●	●
163	BRACKET; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=90 B=25	1-47475-530-0	01	1	0004-	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3200MM(32W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3200MM(32W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3200MM(32W) (B)	1-09660-961-0	01	1	9905-9907	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3200MM(32W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-0003	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3200MM(32W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-	●	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3500MM(35W) (C)	1-09650-070-3	01	1	9902-	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3500MM(35W) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9902-	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3500MM(35W) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9902-	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3500MM(35W) (E) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9902-0003	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3500MM(35W) (E) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0004-0005	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=862 SERVICED BY L=900	1-47428-813-0	01	1	9905-9905	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=848 SERVICED BY L=900	1-47428-813-0	01	1	9905-0003	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=848 SERVICED BY L=900	1-47428-813-0	01	1	0004-0004	●	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=848 SERVICED BY L=900	1-47428-813-0	01	1	0005-	●	●
179	NUT; UNION M22	9-09111-422-0	01	1	9902-0003	●
179	NUT; UNION M22	9-09111-422-0	01	1	0004-	●	●
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9902-0003	●
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0004-	●	●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9902-0003	●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0004-	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9902-0003	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	0004-	●	●
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9902-0003	●
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0004-0007	●	●
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
202	ADAPTER WHEEL BASE 3200MM(32W) (A)	1-09660-879-0	02	1	9905-0003	●
202	ADAPTER WHEEL BASE 3200MM(32W) (A)	1-09660-879-0	02	1	0004-	●	●
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	9902-0003	●
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0004-0004	●	●
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0005-	●
213	UNION; AIR PIPE EXC. FULL FLOATING CAB<W16> M12 ELBOW	9-09225-206-1	01	1	0005-		●
213	UNION; AIR PIPE FULL FLOATING CAB<W16> M12 3WAY	9-09228-906-1	01	1	0005-		●
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	9902-0003	●
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0004-	●	●
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9902-0003	●
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	0004-	●	●
221	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9912	●
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0001-0003	●
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-	●	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	9902-9904	●
221	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X35 FLANGE	0-28680-835-0	01	1	9905-0003	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	9905-0003	●
221	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X35 FLANGE	0-28680-835-0	01	1	0004-	●	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0004-	●
247	UNION; AIR PIPE WHEEL BASE 3200MM(32W) M12 L=66.5	9-09223-306-1	01	1	9905-0003	●
247	UNION; AIR PIPE WHEEL BASE 3200MM(32W) M12 L=66.5	9-09223-306-1	01	1	0004-	●	●
248	NUT; PIPE UNION WHEEL BASE 3200MM(32W) M12	9-09840-280-0	01	1	9905-0003	●
248	NUT; PIPE UNION WHEEL BASE 3200MM(32W) M12	9-09840-280-0	01	1	0004-	●	●
249	WASHER; LK,PIPE UNION WHEEL BASE 3200MM(32W) ID=12.2	9-09150-512-0	01	1	9905-0003	●
249	WASHER; LK,PIPE UNION WHEEL BASE 3200MM(32W) ID=12.2	9-09150-512-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 8S151 OD(Y3N) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9904-9904	●
258	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> WHEEL BASE 3200MM(32W) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9902-0003	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-		●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-0007	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E)	1-09660-796-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (E)	1-09660-796-1	01	1	0001-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007	●	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-		●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●
291	NUT; UNION WHEEL BASE 3500MM(35W) M12	9-09840-280-0	02	1	9902-9904	●
291	NUT; UNION M12	9-09840-280-0	02	1	9905-0003	●
291	NUT; UNION M12	9-09840-280-0	02	1	0004-	●	●
304	BRACKET; UNION ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D)	1-47477-182-1	01	1	9910-	●
304	BRACKET; UNION MJA7U M/T(X6G) (D)	1-47477-182-1	01	1	9902-9905	●
304	BRACKET; UNION MJD7S M/T(Y2Y) (D)	1-47477-183-1	01	1	9905-9905	●
304	BRACKET; UNION CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D)	1-47477-183-1	01	1	9906-	●
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E)	1-71117-210-0	01	1	9902-9912	●
304	BRACKET; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION WHEEL BASE 3200MM(32W) (B)	1-47477-045-0	01	1	9905-0003	●
304	BRACKET; UNION WHEEL BASE 3200MM(32W) (B)	1-47477-045-0	01	1	0004-	●	●
304	BRACKET; UNION WHEEL BASE 3500MM(35W) (C)	1-47476-556-0	02	1	9902-	●
304	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-757-1	01	1	9902-0003	●
304	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-757-1	01	1	0004-	●
304	BRACKET; UNION (A)	1-47477-757-1	01	1	0004-		●
304	BRACKET; UNION (E)	1-71117-211-0	01	1	0004-		●
345	UNION; AIR PIPE BRAKE SYSTEM RETARDER<RE2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) (A) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9902-9903	●
345	UNION; AIR PIPE WHEEL BASE 3200MM(32W) (B) M12 L=66.5	9-09223-306-1	02	1	9905-0003	●
345	UNION; AIR PIPE WHEEL BASE 3200MM(32W) (B) M12 L=66.5	9-09223-306-1	02	1	0004-	●	●
345	UNION; AIR PIPE WHEEL BASE 3500MM(35W) (A)	1-09654-280-1	01	1	9902-	●
345	UNION; AIR PIPE WHEEL BASE 3500MM(35W) (B) M12 L=66.5	9-09223-306-1	01	1	9902-0003	●
345	UNION; AIR PIPE WHEEL BASE 3500MM(35W) (B) M12 L=66.5	9-09223-306-1	01	1	0004-	●
374	CONNECTOR BRAKE SYSTEM RETARDER<RE2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9903	●
374	CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) (C)	1-09654-203-1	01	1	9905-9905	●
374	CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9902-9904	●
374	CONNECTOR MJA7 M/T<X9Q> (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9902-9904	●
374	CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9905-9905	●
374	CONNECTOR MJD7 M/T<X9J>,MJA7 M/T<X9Q> (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9905-9905	●
374	CONNECTOR (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9906-0003	●
374	CONNECTOR (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0004-	●	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9905-0003	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0004-	●	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	9905-0003	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0004-	●	●
374	CONNECTOR WHEEL BASE 3200MM(32W) BRAKE SYSTEM RETARDER<RE2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●
374	CONNECTOR WHEEL BASE 3500MM(35W) (D) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9902-9904	●
374	CONNECTOR (D) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9905-0003	●
374	CONNECTOR (D) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0004-	●	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) L=552	1-49117-764-0	01	1	9905-9905	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W)	1-49119-641-0	01	1	9902-9905	●
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E>	1-49119-641-0	01	1	9906-0003	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-49119-641-0	01	1	0004-	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-49117-287-0	01	1	9910-9912	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-49122-469-0	01	1	0001-0003	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-49122-469-0	01	1	0004-	●
376	PIPE; AIR,FLEX HOSE	1-49122-469-0	01	1	0004-		●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJA7U M/T(X6G)	1-49121-370-0	01	1	9905-9905	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3500MM(35W) MJA7U M/T(X6G) EXC. AIR DRYER<PS7>	1-49121-370-0	01	1	9906-	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) L=778	1-49112-564-0	01	1	9905-0002	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=778	1-49112-564-0	01	1	0003-	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=741	1-49112-563-0	01	1	0003-	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3500MM(35W) MJA7U M/T(X6G)	1-49121-303-0	01	1	9902-9905	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7U M/T(X6G)	1-49121-303-0	01	1	9906-	●
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0004-	●	●
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9902-9902	●
428	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9903-0003	●
428	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0004-	●	●
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	9902-0003	●
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●

124 262 98 267 268 266 175 176 287 177 357 176 185 186 32 177 345 345 262 377 214 215 248 345 428 304 291 150 304 249 150 428 345 124 291 175 202 377 150 123 247 175 291 202 175 428 177 296 175 213 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	SLEEVE; RUBBER,AIR PIPE (A) ID=12.5 OD=15.5 L=30	9-09714-002-0	02	1	9902-	●
32	SLEEVE; RUBBER,AIR PIPE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 L=30	5-09360-352-0	01	1	9902-9910	●
32	SLEEVE; RUBBER,AIR PIPE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-	●
98	BRACKET; AIR PIPE (A)	1-47477-471-0	01	1	9902-0003	●
98	BRACKET; AIR PIPE (A)	1-47477-471-0	01	1	0004-	●	●
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (B)	1-47477-840-0	02	1	9902-9905	●
98	BRACKET; AIR PIPE MJA7U M/T(X6G),MJD7S M/T(Y2Y) (B)	1-47477-840-0	02	1	9906-0003	●
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (B)	1-47477-840-0	02	1	0004-	●
98	BRACKET; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B)	1-47477-902-0	01	1	9902-0003	●
98	BRACKET; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B)	1-47477-902-0	01	1	0004-	●
123	BRACKET; UNION (A)	1-47477-045-0	01	1	9902-0003	●
123	BRACKET; UNION (A)	1-47477-045-0	01	1	0004-	●	●
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) (B)	1-47477-588-0	01	1	9905-9905	●
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (C)	1-47478-280-0	01	1	9902-9905	●
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (G)	1-47478-632-0	01	1	9906-9912	●
123	BRACKET; UNION ZF M/T<X9E> (G)	1-47478-632-0	01	1	0001-	●
123	BRACKET; UNION (G)	1-47478-632-0	01	1	0001-		●
123	BRACKET; UNION WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) (D)	1-47477-396-1	01	1	9905-	●
123	BRACKET; UNION WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7U M/T(X6G) (E)	1-47478-398-0	01	1	9902-	●
123	BRACKET; UNION WHEEL BASE 3500MM(35W) MJA7U M/T(X6G) EXC. AIR DRYER<PS7> (F)	1-47478-396-0	01	1	9902-	●
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	9902-0003	●
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9902-0003	●
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
124	BOLT; BRKT WHEEL BASE 3500MM(35W) M8X35 FLANGE	0-28680-835-0	02	1	9902-	●
150	WASHER; LK,UNION WHEEL BASE 3500MM(35W) ID=12.2	9-09150-512-0	02	1	9902-9904	●
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9905-0003	●
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0004-	●	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3200MM(32W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3200MM(32W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3200MM(32W) (B)	1-09660-961-0	01	1	9905-9907	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3200MM(32W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-0003	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3200MM(32W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-	●	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3500MM(35W) (C)	1-09650-070-3	01	1	9902-	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3500MM(35W) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9902-	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3500MM(35W) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9902-	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3500MM(35W) (E) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9902-0003	●
175	CONNECTOR; AIR PIPE WHEEL BASE 3500MM(35W) (E) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0004-0005	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> (A)	1-49121-278-0	01	1	9902-	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> (B)	1-49121-280-0	01	1	9902-	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=862 SERVICED BY L=900	1-47428-813-0	01	1	9905-9905	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=848 SERVICED BY L=900	1-47428-813-0	01	1	9905-0003	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=848 SERVICED BY L=900	1-47428-813-0	01	1	0004-0004	●	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=848 SERVICED BY L=900	1-47428-813-0	01	1	0005-	●	●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9902-0003	●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0004-	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9902-0003	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	0004-	●	●
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9902-0003	●
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0004-0007	●	●
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
202	ADAPTER WHEEL BASE 3200MM(32W) (A)	1-09660-879-0	02	1	9905-0003	●
202	ADAPTER WHEEL BASE 3200MM(32W) (A)	1-09660-879-0	02	1	0004-	●	●
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	9902-0003	●
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0004-0004	●	●
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0005-	●
213	UNION; AIR PIPE EXC. FULL FLOATING CAB<W16> M12 ELBOW	9-09225-206-1	01	1	0005-		●
213	UNION; AIR PIPE FULL FLOATING CAB<W16> M12 3WAY	9-09228-906-1	01	1	0005-		●
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	9902-0003	●
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0004-	●	●
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9902-0003	●
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	0004-	●	●
247	UNION; AIR PIPE WHEEL BASE 3200MM(32W) M12 L=66.5	9-09223-306-1	01	1	9905-0003	●
247	UNION; AIR PIPE WHEEL BASE 3200MM(32W) M12 L=66.5	9-09223-306-1	01	1	0004-	●	●
248	NUT; PIPE UNION WHEEL BASE 3200MM(32W) M12	9-09840-280-0	01	1	9905-0003	●
248	NUT; PIPE UNION WHEEL BASE 3200MM(32W) M12	9-09840-280-0	01	1	0004-	●	●
249	WASHER; LK,PIPE UNION WHEEL BASE 3200MM(32W) ID=12.2	9-09150-512-0	01	1	9905-0003	●
249	WASHER; LK,PIPE UNION WHEEL BASE 3200MM(32W) ID=12.2	9-09150-512-0	01	1	0004-	●	●
262	PIPE; AIR,UNION TO FLEX CAB UP +110MM<TGG>	1-49119-635-0	01	1	9902-9902	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3200MM(32W) CAB UP +110MM<TGG>	1-49121-783-0	01	1	9905-0003	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3200MM(32W) CAB UP +110MM<TGG>	1-49121-783-0	01	1	0004-	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3200MM(32W)	1-49121-783-0	01	1	0004-		●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3500MM(35W)	1-49121-324-0	01	1	9902-9902	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG>	1-49121-324-0	01	1	9903-9909	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG>	1-49122-250-0	01	1	9910-9910	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG>	1-49122-366-0	01	1	9911-	●
266	UNION; AIR PIPE WHEEL BASE 3500MM(35W) M12 ELBOW	9-09225-206-1	01	1	9902-	●
267	NUT; UNION WHEEL BASE 3500MM(35W) M12	9-09840-280-0	01	1	9902-	●
268	WASHER; LK,UNION WHEEL BASE 3500MM(35W) ID=12.2	9-09150-512-0	01	1	9902-	●
287	PIPE; AIR,MAG VLV 6WA1 TC-C(55L) CAB UP +110MM<TGG> L=1310 SERVICED BY L=1370	1-47428-818-0	01	1	9902-9904	●
287	PIPE; AIR,MAG VLV 6WA1 TC-C(55L) CAB UP +110MM<TGG>	1-49121-785-0	01	1	9905-9910	●
287	PIPE; AIR,MAG VLV 6WA1 TC-C(55L) CAB UP +110MM<TGG>	1-49122-364-0	01	1	9911-	●
287	PIPE; AIR,MAG VLV 6WG1 TC-R(75L) CAB UP +110MM<TGG>	1-49121-786-0	01	1	9905-9909	●
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG>	1-49121-786-0	01	1	9910-9910	●
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG>	1-49122-365-0	01	1	9911-0003	●
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG>	1-49122-365-0	01	1	0004-	●
287	PIPE; AIR,MAG VLV 6WG1 TC-N(71L)	1-49122-365-0	01	1	0004-		●
291	NUT; UNION WHEEL BASE 3500MM(35W) M12	9-09840-280-0	02	1	9902-9904	●
291	NUT; UNION M12	9-09840-280-0	02	1	9905-0003	●
291	NUT; UNION M12	9-09840-280-0	02	1	0004-	●	●
296	TUBE; NYLON (A) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9902-0001	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0002-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0004-	●	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0004-	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0004-	●	●
304	BRACKET; UNION ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D)	1-47477-182-1	01	1	9910-	●
304	BRACKET; UNION MJA7U M/T(X6G) (D)	1-47477-182-1	01	1	9902-9905	●
304	BRACKET; UNION MJD7S M/T(Y2Y) (D)	1-47477-183-1	01	1	9905-9905	●
304	BRACKET; UNION CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D)	1-47477-183-1	01	1	9906-	●
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E)	1-71117-210-0	01	1	9902-9912	●
304	BRACKET; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION WHEEL BASE 3200MM(32W) (B)	1-47477-045-0	01	1	9905-0003	●
304	BRACKET; UNION WHEEL BASE 3200MM(32W) (B)	1-47477-045-0	01	1	0004-	●	●
304	BRACKET; UNION WHEEL BASE 3500MM(35W) (C)	1-47476-556-0	02	1	9902-	●
304	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-757-1	01	1	9902-0003	●
304	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-757-1	01	1	0004-	●
304	BRACKET; UNION (A)	1-47477-757-1	01	1	0004-		●
304	BRACKET; UNION (E)	1-71117-211-0	01	1	0004-		●
345	UNION; AIR PIPE BRAKE SYSTEM RETARDER<RE2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) (A) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9902-9903	●
345	UNION; AIR PIPE WHEEL BASE 3200MM(32W) (B) M12 L=66.5	9-09223-306-1	02	1	9905-0003	●
345	UNION; AIR PIPE WHEEL BASE 3200MM(32W) (B) M12 L=66.5	9-09223-306-1	02	1	0004-	●	●
345	UNION; AIR PIPE WHEEL BASE 3500MM(35W) (A)	1-09654-280-1	01	1	9902-	●
345	UNION; AIR PIPE WHEEL BASE 3500MM(35W) (B) M12 L=66.5	9-09223-306-1	01	1	9902-0003	●
345	UNION; AIR PIPE WHEEL BASE 3500MM(35W) (B) M12 L=66.5	9-09223-306-1	01	1	0004-	●
357	PIPE; AIR,UNION TO UNION WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-49119-840-0	01	1	9902-	●
377	BOLT; BRKT FIX (B) M8X35 FLANGE	0-28680-835-0	02	1	9902-0003	●
377	BOLT; BRKT FIX (B) M8X35 FLANGE	0-28680-835-0	02	1	0004-	●	●
377	BOLT; BRKT FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (A) M12X16	0-28181-216-0	01	1	9902-0003	●
377	BOLT; BRKT FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (A) M12X16	0-28181-216-0	01	1	0004-	●
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9902-9902	●
428	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9903-0003	●
428	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0004-	●	●

296 367 343 456 232 233 304 434 221 231 296 148 286 258 367 273 434 445 296 434 434 337 337 232 330 231 335 258 322 323 321 334 330 88 232 258 231 343 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	GASKET; NYLON TUBE MJA7U M/T(X6G),MJD7S M/T(Y2Y) ID=11 OD=18	9-09572-510-0	01	1	9902-	●
148	CONNECTOR; UNION ZF M/T<X9E>	8-94338-417-0	01	1	9902-9912	●
148	CONNECTOR; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	8-94338-417-0	01	1	0001-0003	●
148	CONNECTOR; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	8-94338-417-0	01	1	0004-	●
148	CONNECTOR; UNION	8-94338-417-0	01	1	0004-		●
221	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9912	●
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0001-0003	●
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-	●	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	9902-9904	●
221	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X35 FLANGE	0-28680-835-0	01	1	9905-0003	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	9905-0003	●
221	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X35 FLANGE	0-28680-835-0	01	1	0004-	●	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0004-	●
231	UNION; AIR PIPE (B) M10 ELBOW	1-09654-186-2	01	1	9902-9904	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B) M10 ELBOW	1-09654-186-2	01	1	9905-	●
231	UNION; AIR PIPE (C) M10 STRAIGHT	1-09654-361-0	01	1	9902-9904	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (C) M10 STRAIGHT	1-09654-361-0	01	1	9905-	●
231	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-347-0	01	1	9905-	●
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (D)	1-09656-713-2	01	1	9902-9912	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (D)	1-09656-713-2	01	1	0001-0003	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (D)	1-09656-713-2	01	1	0004-	●
231	UNION; AIR PIPE (D)	1-09656-713-2	01	1	0004-		●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	02	1	9902-9904	●
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9905-	●
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M10 H=8	1-09400-029-0	01	1	9902-9912	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	0001-0003	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	0004-	●	●
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) ID=10.2	9-09150-510-0	01	1	9902-9912	●
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	0001-0003	●
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 8S151 OD(Y3N) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9904-9904	●
258	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> WHEEL BASE 3200MM(32W) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9902-0003	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-		●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-0007	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E)	1-09660-796-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (E)	1-09660-796-1	01	1	0001-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007	●	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-		●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●
273	GROMMET TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-09332-102-0	01	1	9902-9912	●
273	GROMMET	1-09332-102-0	01	1	0001-	●
273	GROMMET	1-09332-135-0	01	1	0004-		●
286	PLUG; AIR PIPE EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	9902-	●
296	TUBE; NYLON (A) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9902-0001	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0002-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0004-	●	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0004-	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0004-	●	●
304	BRACKET; UNION ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D)	1-47477-182-1	01	1	9910-	●
304	BRACKET; UNION MJA7U M/T(X6G) (D)	1-47477-182-1	01	1	9902-9905	●
304	BRACKET; UNION MJD7S M/T(Y2Y) (D)	1-47477-183-1	01	1	9905-9905	●
304	BRACKET; UNION CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D)	1-47477-183-1	01	1	9906-	●
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E)	1-71117-210-0	01	1	9902-9912	●
304	BRACKET; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION WHEEL BASE 3200MM(32W) (B)	1-47477-045-0	01	1	9905-0003	●
304	BRACKET; UNION WHEEL BASE 3200MM(32W) (B)	1-47477-045-0	01	1	0004-	●	●
304	BRACKET; UNION WHEEL BASE 3500MM(35W) (C)	1-47476-556-0	02	1	9902-	●
304	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-757-1	01	1	9902-0003	●
304	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-757-1	01	1	0004-	●
304	BRACKET; UNION (A)	1-47477-757-1	01	1	0004-		●
304	BRACKET; UNION (E)	1-71117-211-0	01	1	0004-		●
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	9902-0003	●
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	0004-	●	●
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	9902-0003	●
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	0004-	●	●
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	9902-0003	●
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	0004-	●	●
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	9902-9904	●
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9905-	●
334	SPACER; PIPE UNION ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9902-9904	●
334	SPACER; PIPE UNION DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9905-	●
335	SEAL; UNION DUAL AIR GAUGE<UG2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	9902-9912	●
335	SEAL; UNION ISUZU M/T<X9A>,TRANSMISSION-ZF 8S151 OD(Y3N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0001-	●

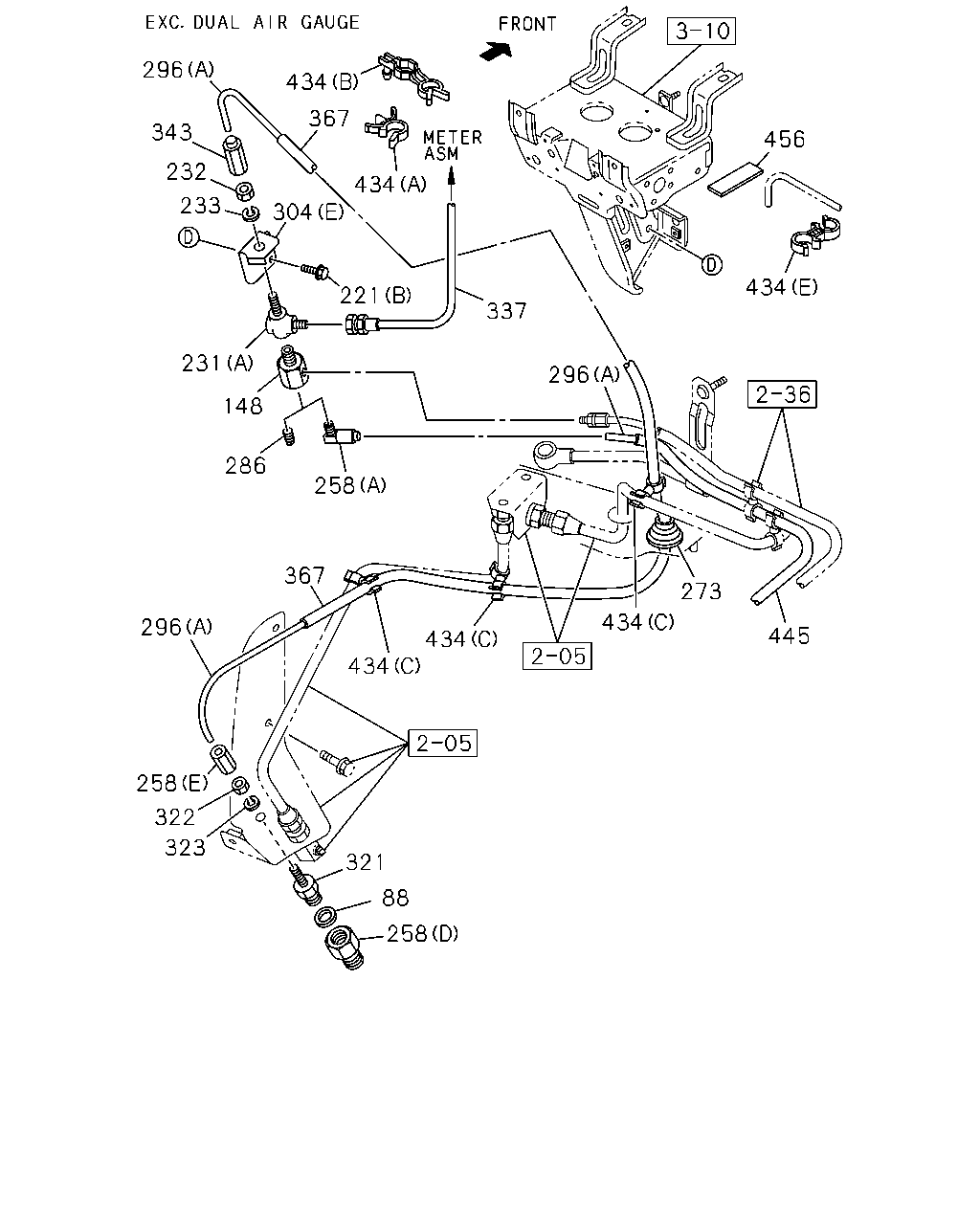

337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	9902-9904	●

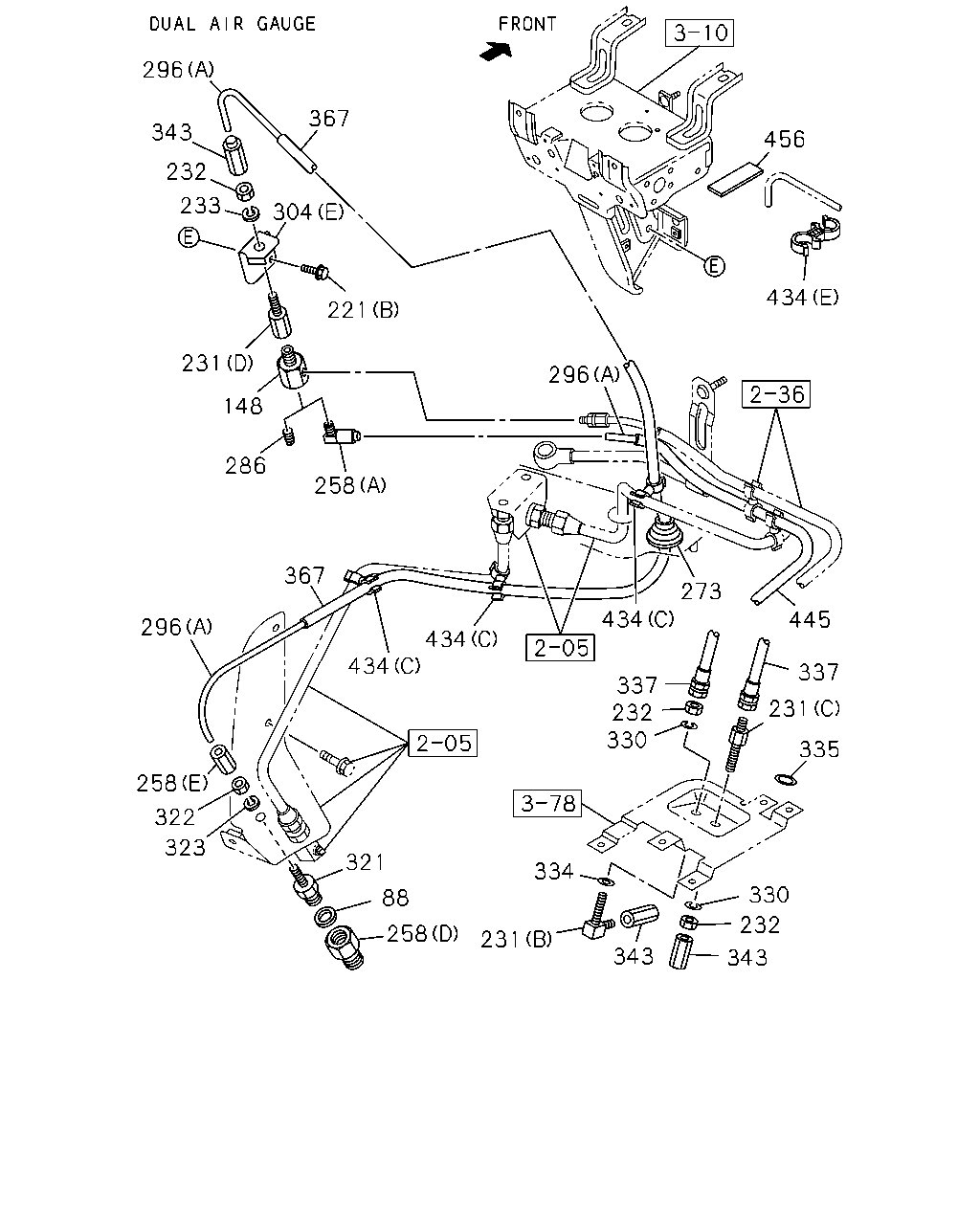

337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9905-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	01	1	9905-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=520	0-07210-520-0	02	1	0004-		●
343	UNION; NYLON TUBE	1-09660-796-0	02	1	9902-9904	●
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2>	1-09660-796-0	02	1	9905-0003	●
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2>	1-09660-796-1	02	1	0004-	●
343	UNION; NYLON TUBE	1-09660-796-1	02	1	0004-		●
343	UNION; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-09660-796-0	01	1	9902-9912	●
343	UNION; NYLON TUBE	1-09660-796-1	01	1	0001-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9902-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9902-0003	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9902-0003	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0004-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0004-	●	●
434	CLIP (E) ID=10 & 10	1-09709-221-0	01	1	9902-9904	●
434	CLIP DUAL AIR GAUGE<UG2> (E) ID=10 & 10	1-09709-221-0	01	1	9905-	●
434	CLIP AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	04	1	9905-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B) ID=17	1-09987-105-1	01	1	9905-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A)	8-94297-486-0	01	1	9905-	●
434	CLIP EXC. ELECTRONIC GOV RED3(KG5) (D) L=300	1-09707-001-1	01	1	9902-	●
434	CLIP TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	9902-9912	●
434	CLIP TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP ID=17	8-94449-734-1	01	1	0004-		●
445	GUARD ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-83129-031-1	01	1	9902-	●
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ)	1-83129-031-1	01	1	9905-	●
456	SEAL; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X30	1-72498-014-1	01	1	9902-9903	●
456	SEAL; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40	1-72498-022-0	01	1	9904-	●

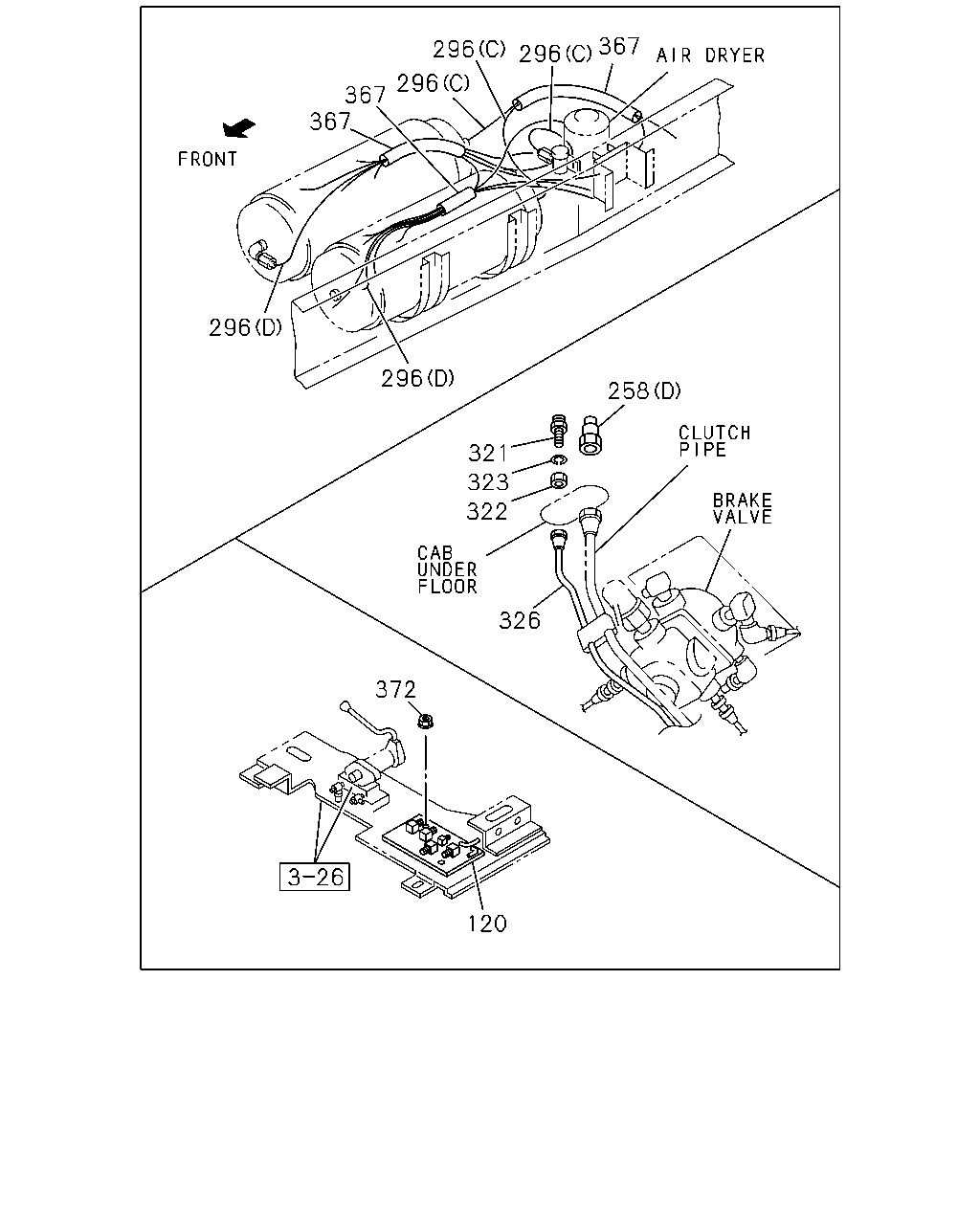

120

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	120	CONNECTOR; AIR PIPE EXC. FULL FLOATING CAB<W16> DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-	●
	120	CONNECTOR; AIR PIPE	1-47470-402-3	01	1	0004-		●

163 35 21 33 179 180 72 2 3 4 51 6 421 304 374 8 1 18 12 376 421 7 304 33 21 72 179 180 4 123 18 98 12 123 123 123 123 123 377 23 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

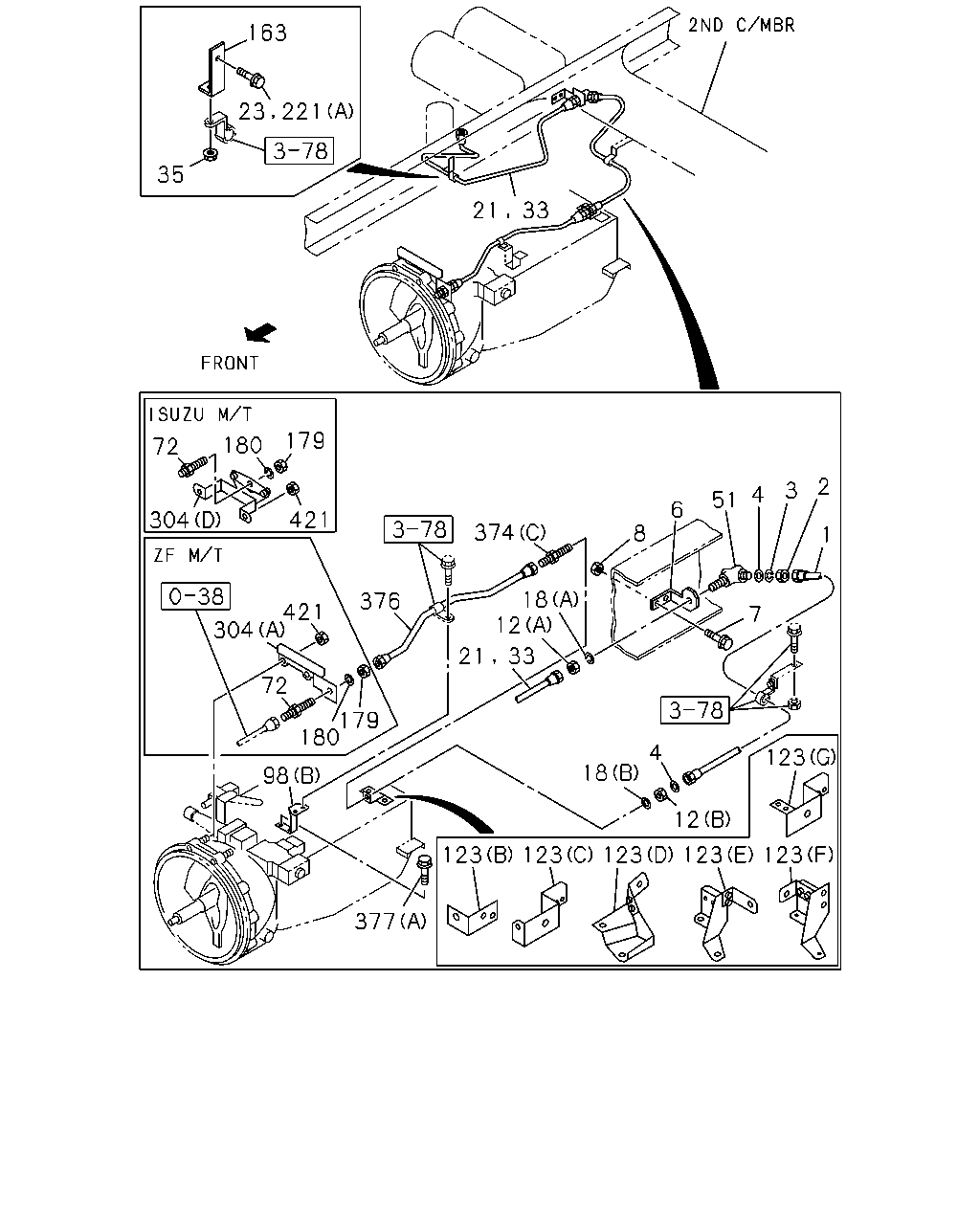

1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJA7 M/T<X9Q> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJA7 M/T<X9Q> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7U M/T(X6G) EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) L=630	0-07846-630-1	01	1	9905-9912	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	9905-9912	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	0001-0002	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) L=630	0-07846-630-1	01	1	0001-0002	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=630	0-07846-630-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=580	0-07846-580-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=580	0-07846-580-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=580	0-07846-580-1	01	1	0004-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=580	0-07846-580-1	01	1	0004-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) L=580	0-07846-580-1	01	1	0004-		●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=470	0-07846-470-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=530	0-07846-530-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> MJD7 M/T<X9J>	0-07846-430-1	01	1	9905-9905	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y)	0-07846-430-1	01	1	9906-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7 M/T<X9Q> L=590	0-07846-590-1	01	1	9902-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7U M/T(X6G) L=590	0-07846-590-1	01	1	0004-	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9902-0003	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	0004-	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9902-0003	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	0004-	●	●
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9902-0003	●
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0004-	●	●
6	BRACKET; FLEX HOSE,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W)	1-47477-708-0	01	1	9905-9905	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-47478-075-0	01	1	9902-9904	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W) MJD7 M/T<X9J>,MJA7 M/T<X9Q>	1-47478-075-0	01	1	9905-9905	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-47478-075-0	01	1	9905-9905	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W)	1-47478-075-0	01	1	9906-9907	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-47478-075-0	01	1	9906-9907	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W)	1-47478-674-0	01	1	9908-0003	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-47478-674-0	01	1	9908-0003	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W)	1-47478-674-0	01	1	0004-	●	●
6	BRACKET; FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-47478-674-0	01	1	0004-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9902-9905	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W) M8X30 FLANGE	0-28680-830-0	02	1	9906-0003	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	02	1	9906-0003	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W) M8X30 FLANGE	0-28680-830-0	02	1	0004-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	02	1	0004-	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	9902-9905	●
8	NUT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	02	1	9906-0003	●
8	NUT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	02	1	9906-0003	●
8	NUT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	02	1	0004-	●
12	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) (A) M14	9-99111-414-0	01	1	9905-9905	●
12	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (B) M20	9-99111-420-0	01	1	9902-9904	●
12	NUT; UNION MJA7 M/T<X9Q> (B) M20	9-99111-420-0	01	1	9902-9904	●
12	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (B) M20	9-99111-420-0	01	1	9905-9905	●
12	NUT; UNION MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) M20	9-99111-420-0	01	1	9905-9905	●
12	NUT; UNION (B) M20	9-99111-420-0	01	1	9906-0003	●
12	NUT; UNION (B) M20	9-99111-420-0	01	1	0004-	●	●
18	WASHER; LK,UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) (A) ID=14.2	9-09150-514-0	01	1	9905-9905	●
18	WASHER; LK,UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (B) ID=20.2	9-09150-520-0	01	1	9902-9904	●
18	WASHER; LK,UNION MJA7 M/T<X9Q> (B) ID=20.2	9-09150-520-0	01	1	9902-9904	●
18	WASHER; LK,UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (B) ID=20.2	9-09150-520-0	01	1	9905-9905	●
18	WASHER; LK,UNION MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) ID=20.2	9-09150-520-0	01	1	9905-9905	●
18	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	9906-0003	●
18	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	0004-	●	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-187-0	01	1	9905-9905	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0003-0003	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0004-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0004-		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7> MJD7 M/T<X9J>,MJA7 M/T<X9Q>	1-49121-305-0	01	1	9905-9905	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-679-0	01	1	9906-0002	●
21	PIPE; AIR,UNION TO AIR DRYER MJA7U M/T(X6G),TRANSMISSION-ZF 16S151 OD(Y2N), MJD7S M/T(Y2Y),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-679-0	01	1	0003-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3500MM(35W) AIR DRYER<PS7>	1-49121-465-0	01	1	9902-	●
23	BOLT; BRKT,AIR PIPE AIR DRYER<PS7> M8X35 FLANGE	0-28680-835-0	01	1	9902-	●
33	PIPE; AIR,UNION TO AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7>	1-49121-999-0	01	1	0003-	●
33	PIPE; AIR,UNION TO AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-49121-782-0	01	1	0003-	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> EXC. AIR DRYER<PS7>	1-49121-644-0	01	1	9905-9905	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7>	1-49121-967-0	01	1	9906-0002	●
33	PIPE; AIR,UNION TO AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7>	1-49121-967-0	01	1	0003-	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3200MM(32W) MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. AIR DRYER<PS7>	1-49121-967-0	01	1	0003-	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> EXC. AIR DRYER<PS7>	1-49121-645-0	01	1	9905-9905	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-49121-339-0	01	1	9902-9903	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-49121-790-0	01	1	9904-0002	●
33	PIPE; AIR,UNION TO AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-49121-790-0	01	1	0003-	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3500MM(35W) MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. AIR DRYER<PS7>	1-49121-790-0	01	1	0003-	●
35	NUT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
35	NUT; BRKT WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
35	NUT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9905-0003	●
35	NUT; BRKT WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
35	NUT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0004-	●
51	UNION AIR DRYER<PS7>	1-48320-028-2	01	1	9902-0003	●
51	UNION AIR DRYER<PS7>	1-48320-028-2	01	1	0004-	●	●
51	UNION EXC. AIR DRYER<PS7>	1-09654-202-1	01	1	9902-	●
72	UNION; AIR PIPE	1-09654-318-1	01	1	9902-0003	●
72	UNION; AIR PIPE	1-09654-318-1	01	1	0004-	●	●
98	BRACKET; AIR PIPE (A)	1-47477-471-0	01	1	9902-0003	●
98	BRACKET; AIR PIPE (A)	1-47477-471-0	01	1	0004-	●	●
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (B)	1-47477-840-0	02	1	9902-9905	●
98	BRACKET; AIR PIPE MJA7U M/T(X6G),MJD7S M/T(Y2Y) (B)	1-47477-840-0	02	1	9906-0003	●
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (B)	1-47477-840-0	02	1	0004-	●
98	BRACKET; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B)	1-47477-902-0	01	1	9902-0003	●
98	BRACKET; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B)	1-47477-902-0	01	1	0004-	●
123	BRACKET; UNION (A)	1-47477-045-0	01	1	9902-0003	●
123	BRACKET; UNION (A)	1-47477-045-0	01	1	0004-	●	●
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) (B)	1-47477-588-0	01	1	9905-9905	●
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (C)	1-47478-280-0	01	1	9902-9905	●
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (G)	1-47478-632-0	01	1	9906-9912	●
123	BRACKET; UNION ZF M/T<X9E> (G)	1-47478-632-0	01	1	0001-	●
123	BRACKET; UNION (G)	1-47478-632-0	01	1	0001-		●
123	BRACKET; UNION WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) (D)	1-47477-396-1	01	1	9905-	●
123	BRACKET; UNION WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7U M/T(X6G) (E)	1-47478-398-0	01	1	9902-	●
123	BRACKET; UNION WHEEL BASE 3500MM(35W) MJA7U M/T(X6G) EXC. AIR DRYER<PS7> (F)	1-47478-396-0	01	1	9902-	●
163	BRACKET; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=90 B=25	1-47475-530-0	01	1	9902-9904	●
163	BRACKET; AIR PIPE WHEEL BASE 3200MM(32W) L=90 B=25	1-47475-530-0	01	1	9905-0003	●
163	BRACKET; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=90 B=25	1-47475-530-0	01	1	9905-0003	●
163	BRACKET; AIR PIPE WHEEL BASE 3200MM(32W) L=90 B=25	1-47475-530-0	01	1	0004-	●	●
163	BRACKET; AIR PIPE WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=90 B=25	1-47475-530-0	01	1	0004-	●
179	NUT; UNION M22	9-09111-422-0	01	1	9902-0003	●
179	NUT; UNION M22	9-09111-422-0	01	1	0004-	●	●
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9902-0003	●
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0004-	●	●
221	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9912	●
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0001-0003	●
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-	●	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	9902-9904	●
221	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X35 FLANGE	0-28680-835-0	01	1	9905-0003	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	9905-0003	●
221	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X35 FLANGE	0-28680-835-0	01	1	0004-	●	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0004-	●
304	BRACKET; UNION ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D)	1-47477-182-1	01	1	9910-	●
304	BRACKET; UNION MJA7U M/T(X6G) (D)	1-47477-182-1	01	1	9902-9905	●
304	BRACKET; UNION MJD7S M/T(Y2Y) (D)	1-47477-183-1	01	1	9905-9905	●
304	BRACKET; UNION CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D)	1-47477-183-1	01	1	9906-	●
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E)	1-71117-210-0	01	1	9902-9912	●
304	BRACKET; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION WHEEL BASE 3200MM(32W) (B)	1-47477-045-0	01	1	9905-0003	●
304	BRACKET; UNION WHEEL BASE 3200MM(32W) (B)	1-47477-045-0	01	1	0004-	●	●
304	BRACKET; UNION WHEEL BASE 3500MM(35W) (C)	1-47476-556-0	02	1	9902-	●
304	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-757-1	01	1	9902-0003	●
304	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-757-1	01	1	0004-	●
304	BRACKET; UNION (A)	1-47477-757-1	01	1	0004-		●
304	BRACKET; UNION (E)	1-71117-211-0	01	1	0004-		●
374	CONNECTOR BRAKE SYSTEM RETARDER<RE2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9903	●
374	CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) (C)	1-09654-203-1	01	1	9905-9905	●
374	CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9902-9904	●
374	CONNECTOR MJA7 M/T<X9Q> (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9902-9904	●
374	CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9905-9905	●
374	CONNECTOR MJD7 M/T<X9J>,MJA7 M/T<X9Q> (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9905-9905	●
374	CONNECTOR (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9906-0003	●
374	CONNECTOR (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0004-	●	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9905-0003	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0004-	●	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	9905-0003	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0004-	●	●
374	CONNECTOR WHEEL BASE 3200MM(32W) BRAKE SYSTEM RETARDER<RE2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●
374	CONNECTOR WHEEL BASE 3500MM(35W) (D) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9902-9904	●
374	CONNECTOR (D) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9905-0003	●
374	CONNECTOR (D) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0004-	●	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) L=552	1-49117-764-0	01	1	9905-9905	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W)	1-49119-641-0	01	1	9902-9905	●
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E>	1-49119-641-0	01	1	9906-0003	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-49119-641-0	01	1	0004-	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-49117-287-0	01	1	9910-9912	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-49122-469-0	01	1	0001-0003	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-49122-469-0	01	1	0004-	●
376	PIPE; AIR,FLEX HOSE	1-49122-469-0	01	1	0004-		●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJA7U M/T(X6G)	1-49121-370-0	01	1	9905-9905	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3500MM(35W) MJA7U M/T(X6G) EXC. AIR DRYER<PS7>	1-49121-370-0	01	1	9906-	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) L=778	1-49112-564-0	01	1	9905-0002	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=778	1-49112-564-0	01	1	0003-	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=741	1-49112-563-0	01	1	0003-	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3500MM(35W) MJA7U M/T(X6G)	1-49121-303-0	01	1	9902-9905	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7U M/T(X6G)	1-49121-303-0	01	1	9906-	●
377	BOLT; BRKT FIX (B) M8X35 FLANGE	0-28680-835-0	02	1	9902-0003	●
377	BOLT; BRKT FIX (B) M8X35 FLANGE	0-28680-835-0	02	1	0004-	●	●
377	BOLT; BRKT FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (A) M12X16	0-28181-216-0	01	1	9902-0003	●
377	BOLT; BRKT FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (A) M12X16	0-28181-216-0	01	1	0004-	●
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0004-	●	●

296 1 297 376 262 21 1 287 177 297 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJA7 M/T<X9Q> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJA7 M/T<X9Q> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7U M/T(X6G) EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) L=630	0-07846-630-1	01	1	9905-9912	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	9905-9912	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	0001-0002	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) L=630	0-07846-630-1	01	1	0001-0002	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=630	0-07846-630-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=580	0-07846-580-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=580	0-07846-580-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=580	0-07846-580-1	01	1	0004-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=580	0-07846-580-1	01	1	0004-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) L=580	0-07846-580-1	01	1	0004-		●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=470	0-07846-470-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=530	0-07846-530-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> MJD7 M/T<X9J>	0-07846-430-1	01	1	9905-9905	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y)	0-07846-430-1	01	1	9906-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7 M/T<X9Q> L=590	0-07846-590-1	01	1	9902-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7U M/T(X6G) L=590	0-07846-590-1	01	1	0004-	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-187-0	01	1	9905-9905	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0003-0003	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0004-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0004-		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7> MJD7 M/T<X9J>,MJA7 M/T<X9Q>	1-49121-305-0	01	1	9905-9905	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-679-0	01	1	9906-0002	●
21	PIPE; AIR,UNION TO AIR DRYER MJA7U M/T(X6G),TRANSMISSION-ZF 16S151 OD(Y2N), MJD7S M/T(Y2Y),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-679-0	01	1	0003-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3500MM(35W) AIR DRYER<PS7>	1-49121-465-0	01	1	9902-	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=862 SERVICED BY L=900	1-47428-813-0	01	1	9905-9905	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=848 SERVICED BY L=900	1-47428-813-0	01	1	9905-0003	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=848 SERVICED BY L=900	1-47428-813-0	01	1	0004-0004	●	●
177	PIPE; AIR,UNION TO UNION WHEEL BASE 3200MM(32W) L=848 SERVICED BY L=900	1-47428-813-0	01	1	0005-	●	●
262	PIPE; AIR,UNION TO FLEX CAB UP +110MM<TGG>	1-49119-635-0	01	1	9902-9902	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3200MM(32W) CAB UP +110MM<TGG>	1-49121-783-0	01	1	9905-0003	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3200MM(32W) CAB UP +110MM<TGG>	1-49121-783-0	01	1	0004-	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3200MM(32W)	1-49121-783-0	01	1	0004-		●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3500MM(35W)	1-49121-324-0	01	1	9902-9902	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG>	1-49121-324-0	01	1	9903-9909	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG>	1-49122-250-0	01	1	9910-9910	●
262	PIPE; AIR,UNION TO FLEX WHEEL BASE 3500MM(35W) CAB UP +110MM<TGG>	1-49122-366-0	01	1	9911-	●
287	PIPE; AIR,MAG VLV 6WA1 TC-C(55L) CAB UP +110MM<TGG> L=1310 SERVICED BY L=1370	1-47428-818-0	01	1	9902-9904	●
287	PIPE; AIR,MAG VLV 6WA1 TC-C(55L) CAB UP +110MM<TGG>	1-49121-785-0	01	1	9905-9910	●
287	PIPE; AIR,MAG VLV 6WA1 TC-C(55L) CAB UP +110MM<TGG>	1-49122-364-0	01	1	9911-	●
287	PIPE; AIR,MAG VLV 6WG1 TC-R(75L) CAB UP +110MM<TGG>	1-49121-786-0	01	1	9905-9909	●
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG>	1-49121-786-0	01	1	9910-9910	●
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG>	1-49122-365-0	01	1	9911-0003	●
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG>	1-49122-365-0	01	1	0004-	●
287	PIPE; AIR,MAG VLV 6WG1 TC-N(71L)	1-49122-365-0	01	1	0004-		●
296	TUBE; NYLON (A) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9902-0001	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0002-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0004-	●	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0004-	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0004-	●	●
297	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003	●
297	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003	●
297	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9902-	●
297	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
297	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0004-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9902-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9902-0003	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9902-0003	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0004-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0004-	●	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) L=552	1-49117-764-0	01	1	9905-9905	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W)	1-49119-641-0	01	1	9902-9905	●
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E>	1-49119-641-0	01	1	9906-0003	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-49119-641-0	01	1	0004-	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-49117-287-0	01	1	9910-9912	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-49122-469-0	01	1	0001-0003	●
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-49122-469-0	01	1	0004-	●
376	PIPE; AIR,FLEX HOSE	1-49122-469-0	01	1	0004-		●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJA7U M/T(X6G)	1-49121-370-0	01	1	9905-9905	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3500MM(35W) MJA7U M/T(X6G) EXC. AIR DRYER<PS7>	1-49121-370-0	01	1	9906-	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) L=778	1-49112-564-0	01	1	9905-0002	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=778	1-49112-564-0	01	1	0003-	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=741	1-49112-563-0	01	1	0003-	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3500MM(35W) MJA7U M/T(X6G)	1-49121-303-0	01	1	9902-9905	●
376	PIPE; AIR,FLEX HOSE WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7U M/T(X6G)	1-49121-303-0	01	1	9906-	●

296 297 296 296 374 374 297 202 444 336 296 374 297 444 305 258 258 145 80 296 296 296 296 296 259 296 296 296 297 258 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	UNION; 3 WAY (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	9902-0003	●
80	UNION; 3 WAY (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0004-	●	●
80	UNION; 3 WAY ZF M/T<X9E> (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9902-0003	●
80	UNION; 3 WAY ZF M/T<X9E> (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0004-	●
80	UNION; 3 WAY (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0004-		●
145	UNION; NYLON TUBE MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. BRAKE SYSTEM RETARDER<RE2>	1-09661-128-0	01	1	9902-9903	●
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9902-0003	●
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0004-0007	●	●
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
202	ADAPTER WHEEL BASE 3200MM(32W) (A)	1-09660-879-0	02	1	9905-0003	●
202	ADAPTER WHEEL BASE 3200MM(32W) (A)	1-09660-879-0	02	1	0004-	●	●
258	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 8S151 OD(Y3N) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9904-9904	●
258	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> WHEEL BASE 3200MM(32W) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9902-0003	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-		●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-0007	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E)	1-09660-796-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (E)	1-09660-796-1	01	1	0001-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007	●	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-		●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> ID=23 OD=27 L=40	1-09337-015-0	02	1	9902-	●
296	TUBE; NYLON (A) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9902-0001	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0002-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0004-	●	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0004-	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0004-	●	●
297	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003	●
297	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003	●
297	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9902-	●
297	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
297	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0004-	●	●
305	UNION ASM; NYLON TUBE WHEEL BASE 3200MM(32W) ISUZU M/T<X9A>	1-09661-128-0	01	1	9905-	●
336	BOLT; PIPE UNION M8X20 FLANGE	0-28680-820-0	01	1	9902-0003	●
336	BOLT; PIPE UNION M8X20 FLANGE	0-28680-820-0	01	1	0004-	●	●
374	CONNECTOR BRAKE SYSTEM RETARDER<RE2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9903	●
374	CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) (C)	1-09654-203-1	01	1	9905-9905	●
374	CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9902-9904	●
374	CONNECTOR MJA7 M/T<X9Q> (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9902-9904	●
374	CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9905-9905	●
374	CONNECTOR MJD7 M/T<X9J>,MJA7 M/T<X9Q> (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9905-9905	●
374	CONNECTOR (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9906-0003	●
374	CONNECTOR (C) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0004-	●	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9905-0003	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0004-	●	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	9905-0003	●
374	CONNECTOR WHEEL BASE 3200MM(32W) (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0004-	●	●
374	CONNECTOR WHEEL BASE 3200MM(32W) BRAKE SYSTEM RETARDER<RE2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●
374	CONNECTOR WHEEL BASE 3500MM(35W) (D) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9902-9904	●
374	CONNECTOR (D) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9905-0003	●
374	CONNECTOR (D) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0004-	●	●
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	9902-0003	●
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●

21 1 434 32 367 21 33 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJA7 M/T<X9Q> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9905-9909	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJA7 M/T<X9Q> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7 M/T<X9Q> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9910-9912	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) MJA7U M/T(X6G) EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	9902-9904	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) L=630	0-07846-630-1	01	1	9905-9912	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	9905-9912	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	0001-0002	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) L=630	0-07846-630-1	01	1	0001-0002	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=630	0-07846-630-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=580	0-07846-580-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=580	0-07846-580-1	01	1	0003-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> L=580	0-07846-580-1	01	1	0004-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. AIR DRYER<PS7> L=580	0-07846-580-1	01	1	0004-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) L=580	0-07846-580-1	01	1	0004-		●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=470	0-07846-470-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3500MM(35W) AIR DRYER<PS7> L=530	0-07846-530-1	01	1	0001-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> MJD7 M/T<X9J>	0-07846-430-1	01	1	9905-9905	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3200MM(32W) MJD7S M/T(Y2Y)	0-07846-430-1	01	1	9906-	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7 M/T<X9Q> L=590	0-07846-590-1	01	1	9902-0003	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 3500MM(35W) AIR DRYER<PS7> MJA7U M/T(X6G) L=590	0-07846-590-1	01	1	0004-	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-187-0	01	1	9905-9905	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0003-0003	●
21	PIPE; AIR,UNION TO AIR DRYER TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0004-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-680-0	01	1	0004-		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7> MJD7 M/T<X9J>,MJA7 M/T<X9Q>	1-49121-305-0	01	1	9905-9905	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-679-0	01	1	9906-0002	●
21	PIPE; AIR,UNION TO AIR DRYER MJA7U M/T(X6G),TRANSMISSION-ZF 16S151 OD(Y2N), MJD7S M/T(Y2Y),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-49121-679-0	01	1	0003-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 3500MM(35W) AIR DRYER<PS7>	1-49121-465-0	01	1	9902-	●
32	SLEEVE; RUBBER,AIR PIPE (A) ID=12.5 OD=15.5 L=30	9-09714-002-0	02	1	9902-	●
32	SLEEVE; RUBBER,AIR PIPE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 L=30	5-09360-352-0	01	1	9902-9910	●
32	SLEEVE; RUBBER,AIR PIPE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-	●
33	PIPE; AIR,UNION TO AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7>	1-49121-999-0	01	1	0003-	●
33	PIPE; AIR,UNION TO AIR TANK TRANSMISSION-ZF 16S221 OD(Y1U) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-49121-782-0	01	1	0003-	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> EXC. AIR DRYER<PS7>	1-49121-644-0	01	1	9905-9905	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7>	1-49121-967-0	01	1	9906-0002	●
33	PIPE; AIR,UNION TO AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7>	1-49121-967-0	01	1	0003-	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3200MM(32W) MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. AIR DRYER<PS7>	1-49121-967-0	01	1	0003-	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3200MM(32W) ZF M/T<X9E> EXC. AIR DRYER<PS7>	1-49121-645-0	01	1	9905-9905	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-49121-339-0	01	1	9902-9903	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-49121-790-0	01	1	9904-0002	●
33	PIPE; AIR,UNION TO AIR TANK TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7>	1-49121-790-0	01	1	0003-	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3500MM(35W) MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. AIR DRYER<PS7>	1-49121-790-0	01	1	0003-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9902-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9902-0003	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9902-0003	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0004-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0004-	●	●
434	CLIP (E) ID=10 & 10	1-09709-221-0	01	1	9902-9904	●
434	CLIP DUAL AIR GAUGE<UG2> (E) ID=10 & 10	1-09709-221-0	01	1	9905-	●
434	CLIP AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	04	1	9905-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B) ID=17	1-09987-105-1	01	1	9905-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A)	8-94297-486-0	01	1	9905-	●
434	CLIP EXC. ELECTRONIC GOV RED3(KG5) (D) L=300	1-09707-001-1	01	1	9902-	●
434	CLIP TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	9902-9912	●
434	CLIP TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP ID=17	8-94449-734-1	01	1	0004-		●

296 434 367 343 456 232 434 233 304 434 221 337 231 296 148 286 258 367 273 434 296 445 434 434 258 322 323 321 88 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	GASKET; NYLON TUBE MJA7U M/T(X6G),MJD7S M/T(Y2Y) ID=11 OD=18	9-09572-510-0	01	1	9902-	●
148	CONNECTOR; UNION ZF M/T<X9E>	8-94338-417-0	01	1	9902-9912	●
148	CONNECTOR; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	8-94338-417-0	01	1	0001-0003	●
148	CONNECTOR; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	8-94338-417-0	01	1	0004-	●
148	CONNECTOR; UNION	8-94338-417-0	01	1	0004-		●
221	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9912	●
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0001-0003	●
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-	●	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	9902-9904	●
221	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X35 FLANGE	0-28680-835-0	01	1	9905-0003	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	9905-0003	●
221	BOLT; BRKT WHEEL BASE 3200MM(32W) (A) M8X35 FLANGE	0-28680-835-0	01	1	0004-	●	●
221	BOLT; BRKT WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0004-	●
231	UNION; AIR PIPE (B) M10 ELBOW	1-09654-186-2	01	1	9902-9904	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B) M10 ELBOW	1-09654-186-2	01	1	9905-	●
231	UNION; AIR PIPE (C) M10 STRAIGHT	1-09654-361-0	01	1	9902-9904	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (C) M10 STRAIGHT	1-09654-361-0	01	1	9905-	●
231	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-347-0	01	1	9905-	●
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (D)	1-09656-713-2	01	1	9902-9912	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (D)	1-09656-713-2	01	1	0001-0003	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (D)	1-09656-713-2	01	1	0004-	●
231	UNION; AIR PIPE (D)	1-09656-713-2	01	1	0004-		●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	02	1	9902-9904	●
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9905-	●
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M10 H=8	1-09400-029-0	01	1	9902-9912	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	0001-0003	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	0004-	●	●
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) ID=10.2	9-09150-510-0	01	1	9902-9912	●
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	0001-0003	●
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 8S151 OD(Y3N) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9904-9904	●
258	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> WHEEL BASE 3200MM(32W) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9902-0003	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-		●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-0007	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E)	1-09660-796-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (E)	1-09660-796-1	01	1	0001-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007	●	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-		●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●
273	GROMMET TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-09332-102-0	01	1	9902-9912	●
273	GROMMET	1-09332-102-0	01	1	0001-	●
273	GROMMET	1-09332-135-0	01	1	0004-		●
286	PLUG; AIR PIPE EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	9902-	●
296	TUBE; NYLON (A) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9902-0001	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0002-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0004-	●	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0004-	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0004-	●	●
304	BRACKET; UNION ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D)	1-47477-182-1	01	1	9910-	●
304	BRACKET; UNION MJA7U M/T(X6G) (D)	1-47477-182-1	01	1	9902-9905	●
304	BRACKET; UNION MJD7S M/T(Y2Y) (D)	1-47477-183-1	01	1	9905-9905	●
304	BRACKET; UNION CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D)	1-47477-183-1	01	1	9906-	●
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E)	1-71117-210-0	01	1	9902-9912	●
304	BRACKET; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (E)	1-71117-210-0	01	1	0001-	●
304	BRACKET; UNION WHEEL BASE 3200MM(32W) (B)	1-47477-045-0	01	1	9905-0003	●
304	BRACKET; UNION WHEEL BASE 3200MM(32W) (B)	1-47477-045-0	01	1	0004-	●	●
304	BRACKET; UNION WHEEL BASE 3500MM(35W) (C)	1-47476-556-0	02	1	9902-	●
304	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-757-1	01	1	9902-0003	●
304	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-757-1	01	1	0004-	●
304	BRACKET; UNION (A)	1-47477-757-1	01	1	0004-		●
304	BRACKET; UNION (E)	1-71117-211-0	01	1	0004-		●
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	9902-0003	●
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	0004-	●	●
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	9902-0003	●
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	0004-	●	●
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	9902-0003	●
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	0004-	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	9902-9904	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9905-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	01	1	9905-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=520	0-07210-520-0	02	1	0004-		●
343	UNION; NYLON TUBE	1-09660-796-0	02	1	9902-9904	●
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2>	1-09660-796-0	02	1	9905-0003	●
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2>	1-09660-796-1	02	1	0004-	●
343	UNION; NYLON TUBE	1-09660-796-1	02	1	0004-		●
343	UNION; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-09660-796-0	01	1	9902-9912	●
343	UNION; NYLON TUBE	1-09660-796-1	01	1	0001-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9902-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9902-0003	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9902-0003	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0004-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0004-	●	●
434	CLIP (E) ID=10 & 10	1-09709-221-0	01	1	9902-9904	●
434	CLIP DUAL AIR GAUGE<UG2> (E) ID=10 & 10	1-09709-221-0	01	1	9905-	●
434	CLIP AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	04	1	9905-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B) ID=17	1-09987-105-1	01	1	9905-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A)	8-94297-486-0	01	1	9905-	●
434	CLIP EXC. ELECTRONIC GOV RED3(KG5) (D) L=300	1-09707-001-1	01	1	9902-	●
434	CLIP TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	9902-9912	●
434	CLIP TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP ID=17	8-94449-734-1	01	1	0004-		●
445	GUARD ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-83129-031-1	01	1	9902-	●
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ)	1-83129-031-1	01	1	9905-	●
456	SEAL; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X30	1-72498-014-1	01	1	9902-9903	●
456	SEAL; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40	1-72498-022-0	01	1	9904-	●

367 296 296 296 367 367 296 296 258 321 323 322 326 372 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
120	CONNECTOR; AIR PIPE EXC. FULL FLOATING CAB<W16> DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-	●
120	CONNECTOR; AIR PIPE	1-47470-402-3	01	1	0004-		●
258	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 8S151 OD(Y3N) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9904-9904	●
258	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> WHEEL BASE 3200MM(32W) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9902-0003	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-		●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-0007	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E)	1-09660-796-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (E)	1-09660-796-1	01	1	0001-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007	●	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-		●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●
296	TUBE; NYLON (A) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9902-0001	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0002-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0004-	●	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0004-	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0004-	●	●
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	9902-0003	●
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	0004-	●	●
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	9902-0003	●
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	0004-	●	●
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	9902-0003	●
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	0004-	●	●
326	PIPE; AIR,FLEX HOSE L=529	1-47494-216-3	01	1	0004-		●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9902-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9902-0003	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9902-0003	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0004-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0004-	●	●
372	NUT M8 FLANGE	0-91150-108-0	02	1	0004-		●

258 296 148 231 233 232 337 329 328 273 434 435 343 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
148	CONNECTOR; UNION ZF M/T<X9E>	8-94338-417-0	01	1	9902-9912	●
148	CONNECTOR; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	8-94338-417-0	01	1	0001-0003	●
148	CONNECTOR; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	8-94338-417-0	01	1	0004-	●
148	CONNECTOR; UNION	8-94338-417-0	01	1	0004-		●
231	UNION; AIR PIPE (B) M10 ELBOW	1-09654-186-2	01	1	9902-9904	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B) M10 ELBOW	1-09654-186-2	01	1	9905-	●
231	UNION; AIR PIPE (C) M10 STRAIGHT	1-09654-361-0	01	1	9902-9904	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (C) M10 STRAIGHT	1-09654-361-0	01	1	9905-	●
231	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-347-0	01	1	9905-	●
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (D)	1-09656-713-2	01	1	9902-9912	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (D)	1-09656-713-2	01	1	0001-0003	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (D)	1-09656-713-2	01	1	0004-	●
231	UNION; AIR PIPE (D)	1-09656-713-2	01	1	0004-		●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	02	1	9902-9904	●
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9905-	●
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M10 H=8	1-09400-029-0	01	1	9902-9912	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	0001-0003	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	0004-	●	●
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) ID=10.2	9-09150-510-0	01	1	9902-9912	●
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	0001-0003	●
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 8S151 OD(Y3N) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-	●
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9904-9904	●
258	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> WHEEL BASE 3200MM(32W) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9902-0003	●
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0004-		●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-0007	●
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E)	1-09660-796-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (E)	1-09660-796-1	01	1	0001-	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-9912	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007	●	●
258	CONNECTOR; NYLON TUBE (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) ZF M/T<X9E> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-	●
258	CONNECTOR; NYLON TUBE (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-		●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9902-9903	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9904-9909	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9910-0003	●
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●
273	GROMMET TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-09332-102-0	01	1	9902-9912	●
273	GROMMET	1-09332-102-0	01	1	0001-	●
273	GROMMET	1-09332-135-0	01	1	0004-		●
296	TUBE; NYLON (A) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9902-0001	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0003	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9902-0003	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9902-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0002-0003	●
296	TUBE; NYLON (A) L=1200 OD=6	1-09366-256-0	AR	1	0004-	●	●
296	TUBE; NYLON (C) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0004-	●	●
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0004-	●	●
296	TUBE; NYLON (D) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0004-	●	●
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0004-	●	●
328	UNION; AIR PIPE	1-47470-442-0	01	1	0004-		●
329	NUT; UNION,AIR PIPE M6 FLANGE	0-91150-106-0	01	1	0004-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	9902-9904	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9905-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	01	1	9905-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=520	0-07210-520-0	02	1	0004-		●
343	UNION; NYLON TUBE	1-09660-796-0	02	1	9902-9904	●
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2>	1-09660-796-0	02	1	9905-0003	●
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2>	1-09660-796-1	02	1	0004-	●
343	UNION; NYLON TUBE	1-09660-796-1	02	1	0004-		●
343	UNION; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-09660-796-0	01	1	9902-9912	●
343	UNION; NYLON TUBE	1-09660-796-1	01	1	0001-	●
434	CLIP (E) ID=10 & 10	1-09709-221-0	01	1	9902-9904	●
434	CLIP DUAL AIR GAUGE<UG2> (E) ID=10 & 10	1-09709-221-0	01	1	9905-	●
434	CLIP AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	04	1	9905-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B) ID=17	1-09987-105-1	01	1	9905-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A)	8-94297-486-0	01	1	9905-	●
434	CLIP EXC. ELECTRONIC GOV RED3(KG5) (D) L=300	1-09707-001-1	01	1	9902-	●
434	CLIP TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	9902-9912	●
434	CLIP TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-	●
434	CLIP ID=17	8-94449-734-1	01	1	0004-		●
435	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0004-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
