◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶

0-31 — THERMOSTAT AND HOUSING (#76949) — 103 parça

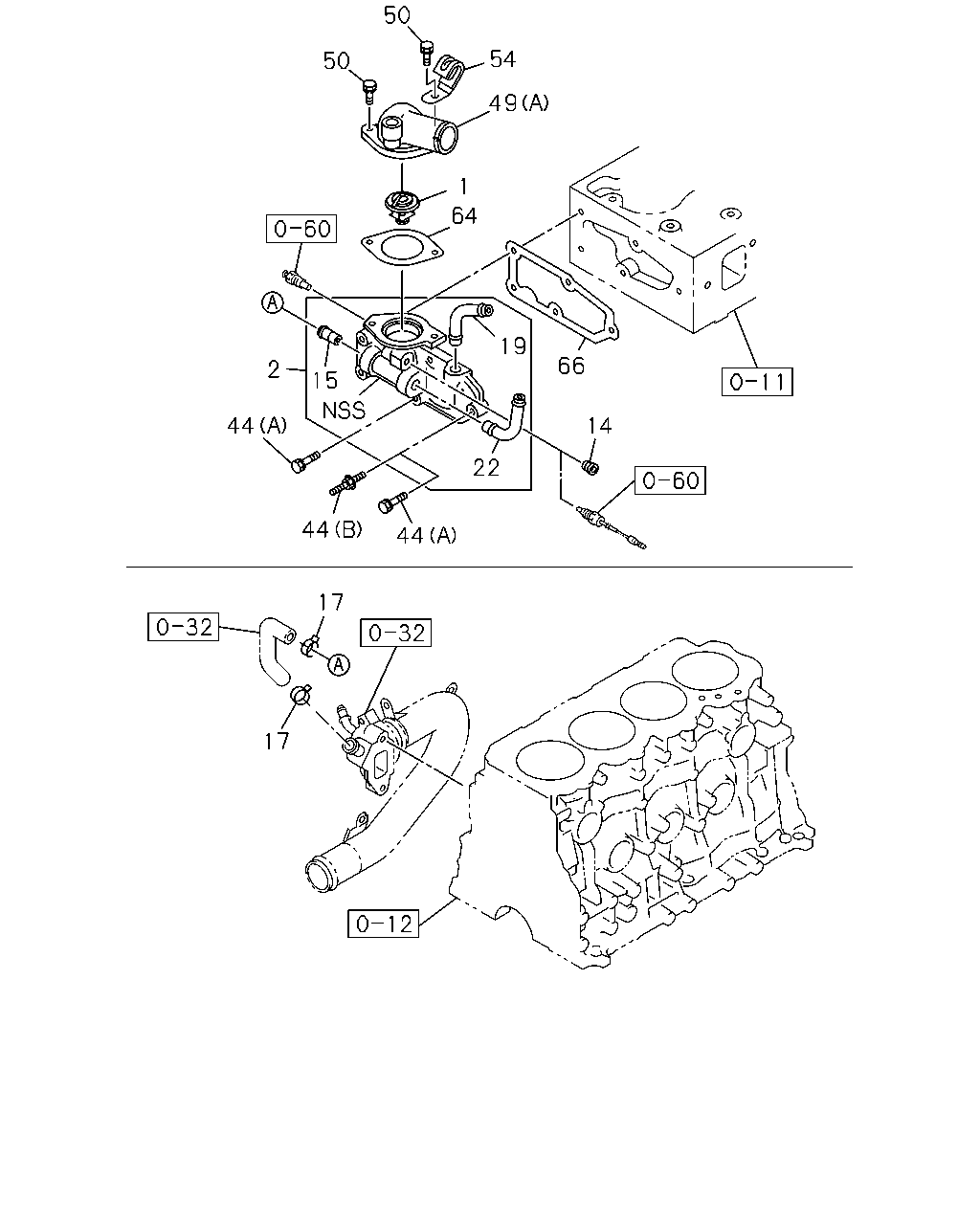

50 54 50 49 1 64 19 66 2 15 44 14 22 44 44 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0810-	●
1	01.246 THERMOSTAT 92 CELSIUS	8-92067-821-0	01	1	0810-		●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0808-0809			●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0810-1007			●	●	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-2	01	1	1008-			●	●	●	●
2	01.251 HOUSING; THERMOSTAT	8-97372-994-1	01	1	0810-	●
2	01.251 HOUSING; THERMOSTAT	8-92060-793-0	01	1	0810-		●
14	01.252 PLUG; SW EMISSION SYSTEM R15-04<K75> 01.073 PT3/8	5-09605-005-0	01	1	0810-	●
15	01.251 PIPE; BYPASS	8-94343-211-1	01	1	0810-	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0808-0809			●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0810-1007			●	●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	1008-			●	●	●	●
17	01.166 CLIP; WATER HOSE ID=20.8	8-94125-862-1	02	1	0810-	●
19	01.252 PIPE; HSG TO HTR	8-94478-870-1	01	1	0810-	●
22	03.278 PIPE; HTR,RETURN	8-94478-869-2	01	1	0810-	●
44	01.252 BOLT; HSG TO HD 09.171 (A) M8X30 W/LK WASHER	0-50540-830-0	04	1	0810-	●
44	01.252 BOLT; HSG TO HD (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	0810-	●
44	01.252 BOLT; HSG TO HD (C)	8-11042-897-0	02	1	0810-1009		●
44	01.252 BOLT; HSG TO HD (C)	8-11042-896-0	02	1	1010-		●
49	01.153 PIPE; WATER OUTLET KENYA EQUIPMENT(CL1) (B)	8-97355-456-7	01	1	0810-0901				●
49	01.153 PIPE; WATER OUTLET (A)	8-97352-105-0	01	1	0810-	●
49	01.153 PIPE; WATER OUTLET (B)	8-97355-456-7	01	1	0808-0809			●
49	01.153 PIPE; WATER OUTLET (B)	8-98120-945-0	01	1	0810-0810			●
49	01.153 PIPE; WATER OUTLET (B)	8-98120-945-0	01	1	0810-0901			●		●
49	01.153 PIPE; WATER OUTLET EXC. KENYA EQUIPMENT(CL1) (B)	8-98120-945-0	01	1	0810-0901				●
49	01.153 PIPE; WATER OUTLET (B)	8-98120-945-0	01	1	0902-1007			●	●	●
49	01.153 PIPE; WATER OUTLET (B)	8-98120-945-0	01	1	1008-			●	●	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0810-	●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE	0-28050-880-0	02	1	0808-0809			●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE	0-28050-880-0	02	1	0810-1007			●	●	●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE	0-28050-880-0	02	1	1008-			●	●	●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 01.150 ID=12	8-97367-983-1	01	1	0810-	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252	8-94365-674-2	01	1	0810-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98114-587-0	01	1	0808-0809			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98114-587-0	01	1	0810-1007			●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98114-587-0	01	1	1008-			●	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	0810-0905	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97212-537-1	01	1	0906-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90220-436-0	01	1	0810-1009		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-93244-440-0	01	1	1010-		●

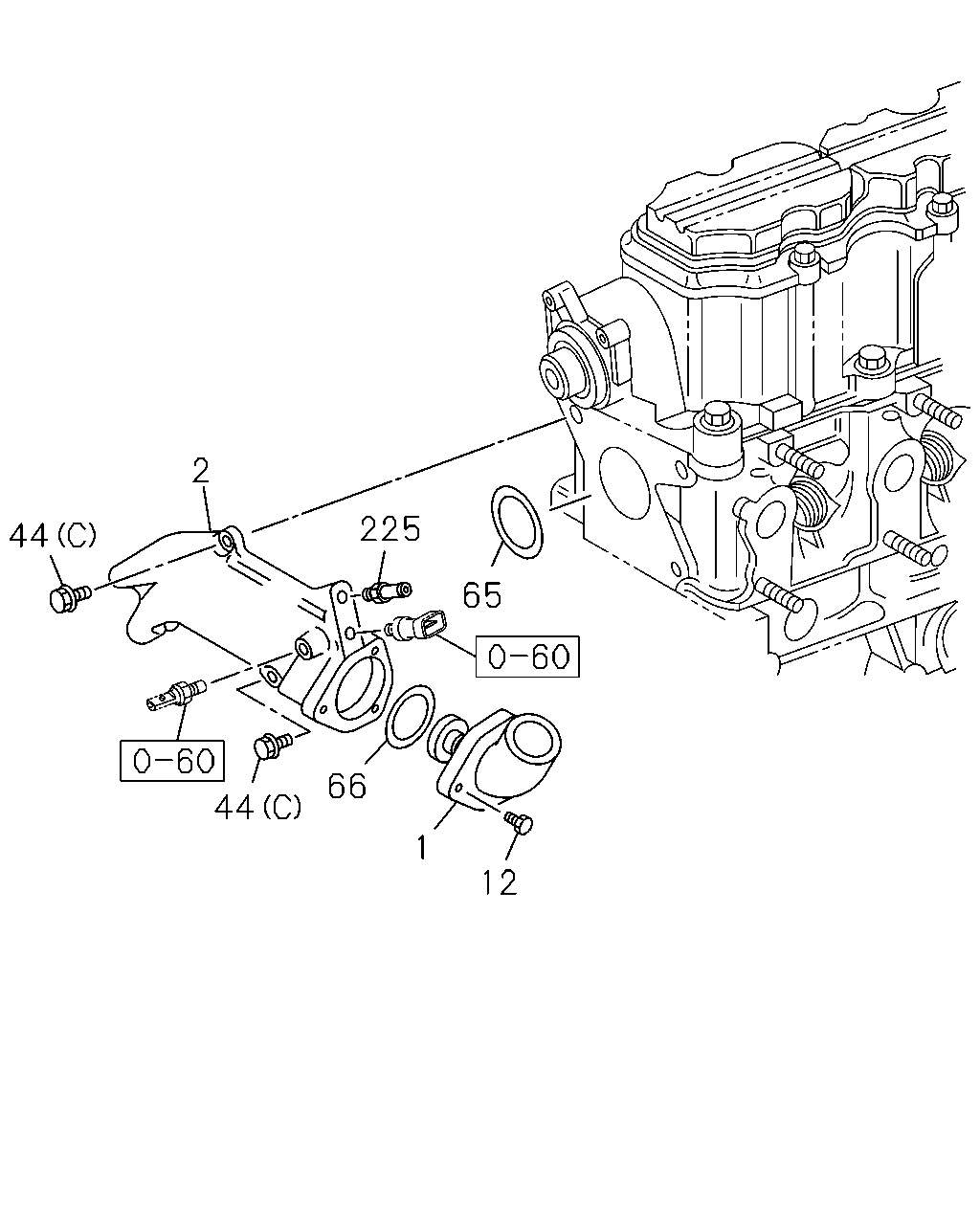

2 225 44 65 66 44 1 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0810-	●
1	01.246 THERMOSTAT 92 CELSIUS	8-92067-821-0	01	1	0810-		●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0808-0809			●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0810-1007			●	●	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-2	01	1	1008-			●	●	●	●
2	01.251 HOUSING; THERMOSTAT	8-97372-994-1	01	1	0810-	●
2	01.251 HOUSING; THERMOSTAT	8-92060-793-0	01	1	0810-		●
12	01.252 BOLT; HSG	8-11013-351-0	03	1	0810-		●
44	01.252 BOLT; HSG TO HD 09.171 (A) M8X30 W/LK WASHER	0-50540-830-0	04	1	0810-	●
44	01.252 BOLT; HSG TO HD (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	0810-	●
44	01.252 BOLT; HSG TO HD (C)	8-11042-897-0	02	1	0810-1009		●
44	01.252 BOLT; HSG TO HD (C)	8-11042-896-0	02	1	1010-		●
65	01.252 GASKET; HSG TO HD	8-90118-437-0	01	1	0810-1009		●
65	01.252 GASKET; HSG TO HD	8-92066-121-0	01	1	1010-		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98114-587-0	01	1	0808-0809			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98114-587-0	01	1	0810-1007			●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98114-587-0	01	1	1008-			●	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	0810-0905	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97212-537-1	01	1	0906-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90220-436-0	01	1	0810-1009		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-93244-440-0	01	1	1010-		●
225	01.153 CONNECTOR; BYPASS HSG	8-90284-423-0	01	1	0810-		●

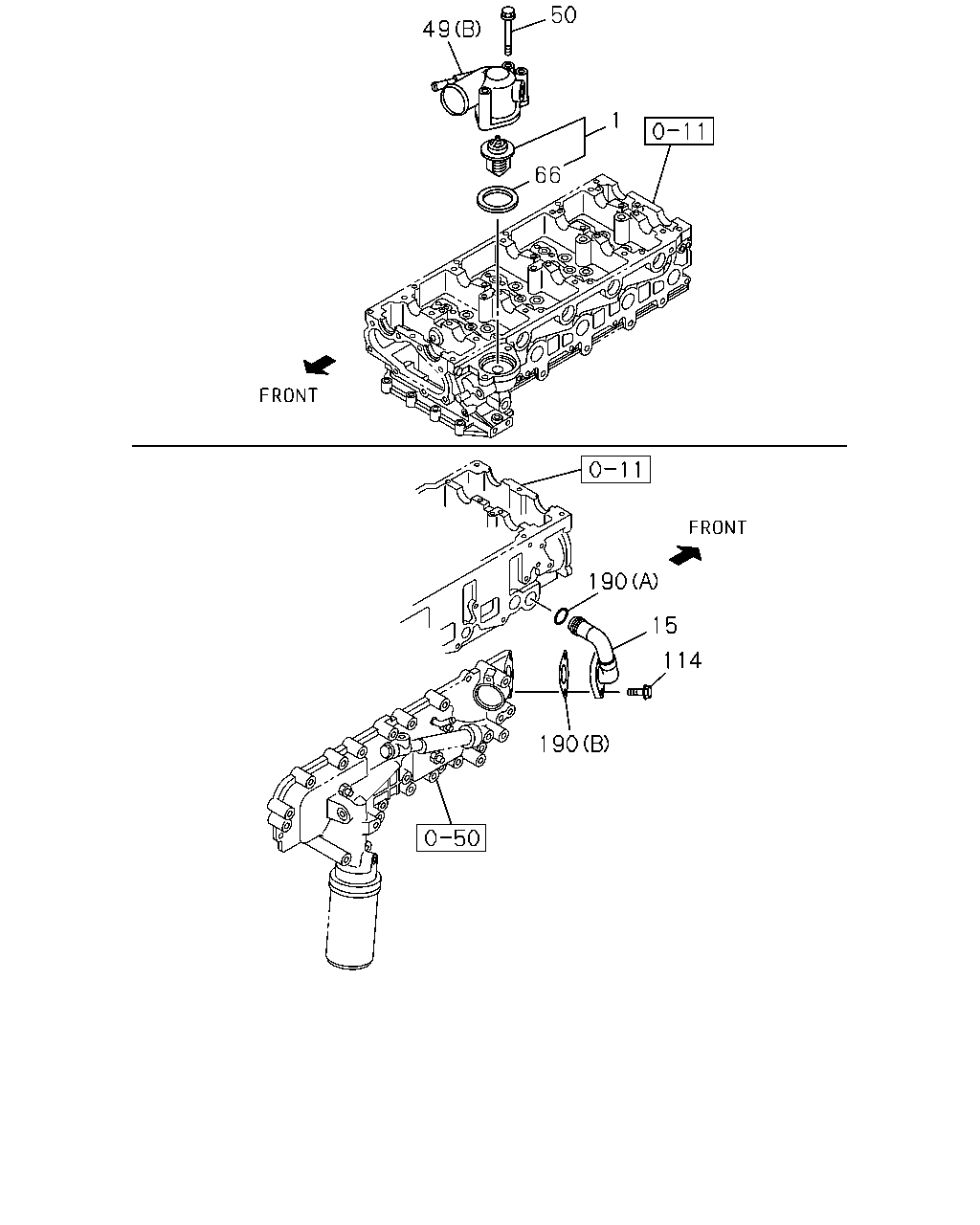

50 49 1 66 190 15 114 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0810-	●
1	01.246 THERMOSTAT 92 CELSIUS	8-92067-821-0	01	1	0810-		●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0808-0809			●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0810-1007			●	●	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-2	01	1	1008-			●	●	●	●
15	01.251 PIPE; BYPASS	8-94343-211-1	01	1	0810-	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0808-0809			●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0810-1007			●	●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	1008-			●	●	●	●
49	01.153 PIPE; WATER OUTLET KENYA EQUIPMENT(CL1) (B)	8-97355-456-7	01	1	0810-0901				●
49	01.153 PIPE; WATER OUTLET (A)	8-97352-105-0	01	1	0810-	●
49	01.153 PIPE; WATER OUTLET (B)	8-97355-456-7	01	1	0808-0809			●
49	01.153 PIPE; WATER OUTLET (B)	8-98120-945-0	01	1	0810-0810			●
49	01.153 PIPE; WATER OUTLET (B)	8-98120-945-0	01	1	0810-0901			●		●
49	01.153 PIPE; WATER OUTLET EXC. KENYA EQUIPMENT(CL1) (B)	8-98120-945-0	01	1	0810-0901				●
49	01.153 PIPE; WATER OUTLET (B)	8-98120-945-0	01	1	0902-1007			●	●	●
49	01.153 PIPE; WATER OUTLET (B)	8-98120-945-0	01	1	1008-			●	●	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0810-	●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE	0-28050-880-0	02	1	0808-0809			●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE	0-28050-880-0	02	1	0810-1007			●	●	●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE	0-28050-880-0	02	1	1008-			●	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98114-587-0	01	1	0808-0809			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98114-587-0	01	1	0810-1007			●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98114-587-0	01	1	1008-			●	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	0810-0905	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97212-537-1	01	1	0906-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90220-436-0	01	1	0810-1009		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-93244-440-0	01	1	1010-		●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0808-0809			●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-1007			●	●	●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1008-			●	●	●	●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (B)	8-98009-322-0	01	1	1008-				●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) (B)	8-98009-322-0	01	1	0810-1003				●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	0-95690-226-0	01	1	0808-0809			●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	0-95690-226-0	01	1	0810-1007			●	●	●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	0-95690-226-0	01	1	1008-			●	●	●	●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97318-494-2	01	1	0808-0809			●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97318-494-2	01	1	0810-1007			●		●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97318-494-2	01	1	0810-1007				●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97318-494-2	01	1	1008-			●		●	●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) (B)	8-97318-494-2	01	1	1008-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
