◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#76948) — 93 parça

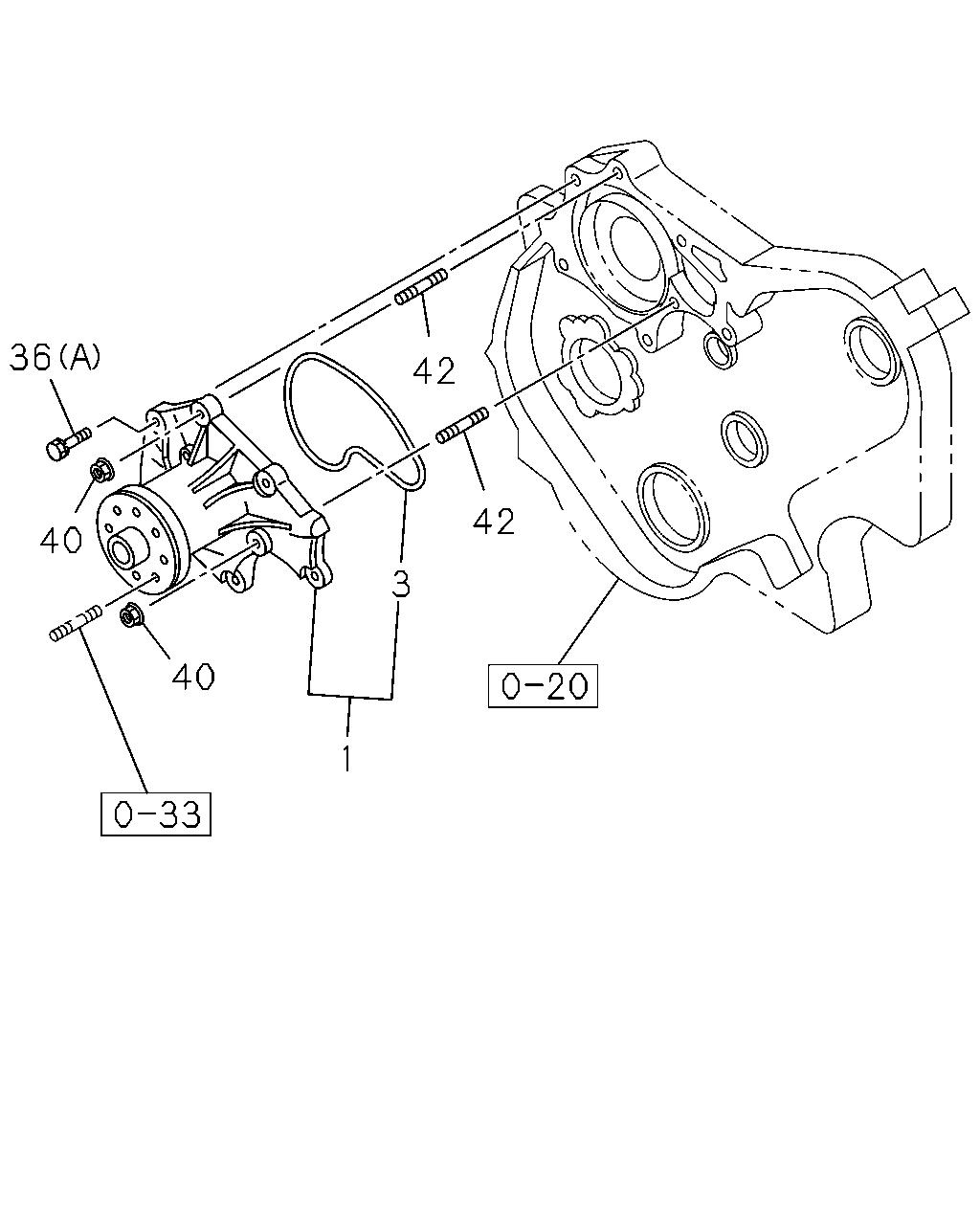

çizim 41275
36 42 42 40 3 40 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.069 PUMP ASM; WATER,W/GASKET 8-97105-012-5 01 1 0810- ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94178-081-1 01 1 1008- ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94178-081-0 01 1 0810-1007 ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 0808-0809 ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 0810-1007 ● ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 1008- ● ● ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
KENYA EQUIPMENT(CL1) 04.686 (C) M8X60 FLANGE 		0-28050-860-0 04 1 1008- ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 (A) M8X55 W/LK WASHER 		5-09000-084-1 05 1 0810- ●
36 00.386 BOLT; WATER PUMP TO C/BL
KENYA EQUIPMENT(CL1) 04.686 (C) M8X60 FLANGE 		0-28050-860-0 04 1 0810-1003 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(B) 		8-92065-461-0 03 1 0810-1009 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(B) 		8-93376-830-0 03 1 1010- ●
36 00.386 BOLT; WATER PUMP TO C/BL
(C) M8X50 FLANGE 		0-28050-850-0 04 1 0808-0809 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(C) M8X50 FLANGE 		0-28050-850-0 04 1 0810-1007 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
EXC. KENYA EQUIPMENT(CL1) (C) M8X50 FLANGE 		0-28050-850-0 04 1 0810-1007 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(C) M8X50 FLANGE 		0-28050-850-0 04 1 1008- ● ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
EXC. KENYA EQUIPMENT(CL1) (C) M8X50 FLANGE 		0-28050-850-0 04 1 1008- ●
40 07.874 NUT; WATER PUMP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0810- ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 0808-0809 ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 0810-1007 ● ● ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1008- ● ● ● ●
42 01.073 STUD; WATER PUMP
KENYA EQUIPMENT(CL1) M8X28 L=40 		0-41010-828-0 02 1 1008- ●
42 01.073 STUD; WATER PUMP
M8X22 L=34 		0-41010-822-0 02 1 0810- ●
42 01.073 STUD; WATER PUMP
KENYA EQUIPMENT(CL1) M8X28 L=40 		0-41010-828-0 02 1 0810-1003 ●
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 0808-0809 ●
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 0810-1007 ● ●
42 01.073 STUD; WATER PUMP
EXC. KENYA EQUIPMENT(CL1) M8X22 L=40 		0-49140-822-0 02 1 0810-1007 ●
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 1008- ● ● ●
42 01.073 STUD; WATER PUMP
EXC. KENYA EQUIPMENT(CL1) M8X22 L=40 		0-49140-822-0 02 1 1008- ●

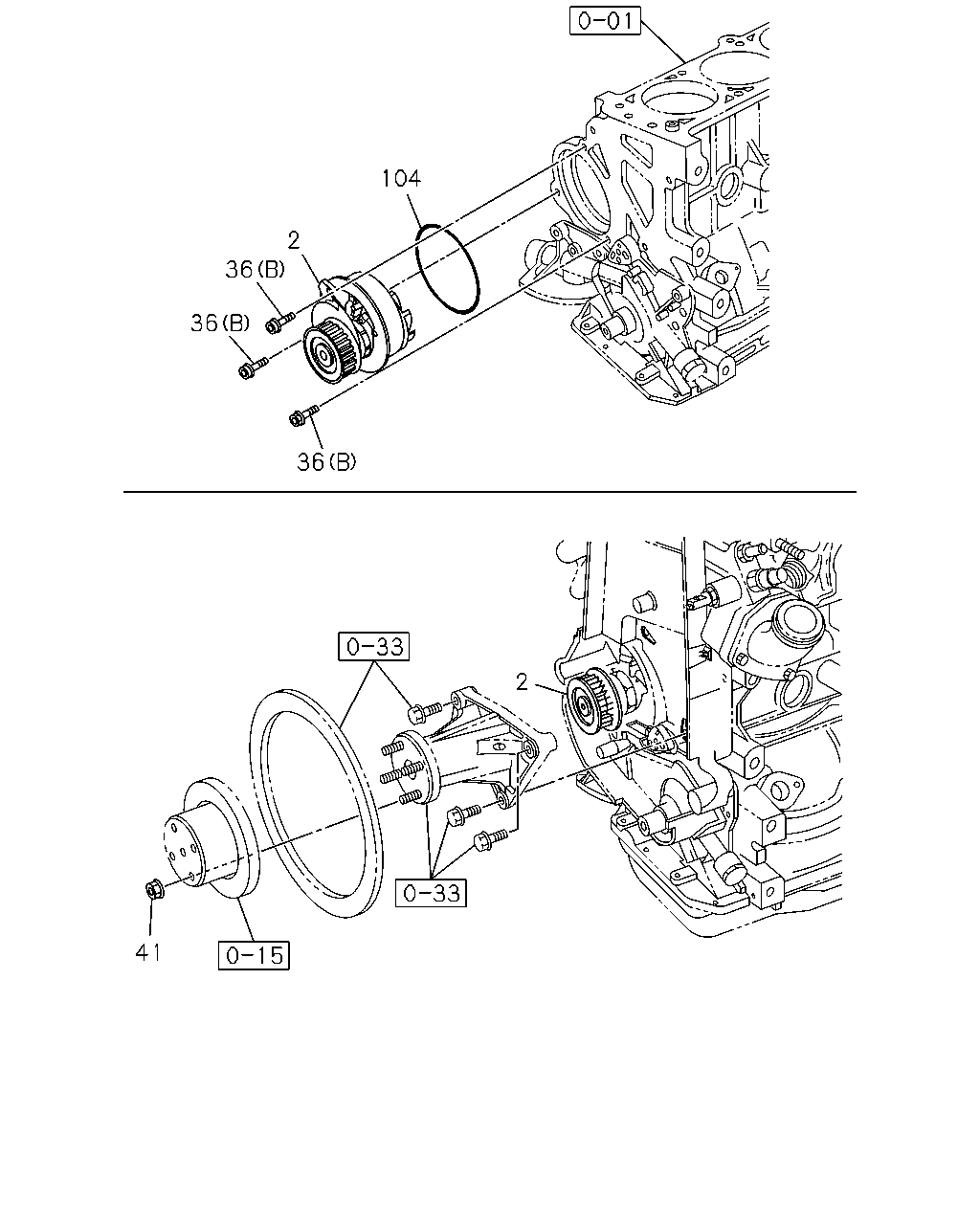

çizim 41396
104 2 36 36 36 2 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.069 PUMP ASM; WATER
KENYA EQUIPMENT(CL1) 		8-98004-292-3 01 1 1008- ●
2 01.069 PUMP ASM; WATER
KENYA EQUIPMENT(CL1) 		8-98004-292-2 01 1 0810-1003 ●
2 01.069 PUMP ASM; WATER 8-92064-391-0 01 1 0810-1009 ●
2 01.069 PUMP ASM; WATER 8-93284-725-0 01 1 1010- ●
2 01.069 PUMP ASM; WATER 8-97312-147-3 01 1 0808-0809 ●
2 01.069 PUMP ASM; WATER 8-97312-147-4 01 1 0810-1007 ● ●
2 01.069 PUMP ASM; WATER
EXC. KENYA EQUIPMENT(CL1) 		8-97312-147-4 01 1 0810-1007 ●
2 01.069 PUMP ASM; WATER 8-97312-147-4 01 1 1008- ● ● ●
2 01.069 PUMP ASM; WATER
EXC. KENYA EQUIPMENT(CL1) 		8-97312-147-4 01 1 1008- ●
36 00.386 BOLT; WATER PUMP TO C/BL
KENYA EQUIPMENT(CL1) 04.686 (C) M8X60 FLANGE 		0-28050-860-0 04 1 1008- ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 (A) M8X55 W/LK WASHER 		5-09000-084-1 05 1 0810- ●
36 00.386 BOLT; WATER PUMP TO C/BL
KENYA EQUIPMENT(CL1) 04.686 (C) M8X60 FLANGE 		0-28050-860-0 04 1 0810-1003 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(B) 		8-92065-461-0 03 1 0810-1009 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(B) 		8-93376-830-0 03 1 1010- ●
36 00.386 BOLT; WATER PUMP TO C/BL
(C) M8X50 FLANGE 		0-28050-850-0 04 1 0808-0809 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(C) M8X50 FLANGE 		0-28050-850-0 04 1 0810-1007 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
EXC. KENYA EQUIPMENT(CL1) (C) M8X50 FLANGE 		0-28050-850-0 04 1 0810-1007 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(C) M8X50 FLANGE 		0-28050-850-0 04 1 1008- ● ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
EXC. KENYA EQUIPMENT(CL1) (C) M8X50 FLANGE 		0-28050-850-0 04 1 1008- ●
41 01.062 NUT; PULLEY
M8 FLANGE 		0-91180-108-0 04 1 0810- ●
104 01.079 GASKET; WATER PUMP 8-90322-506-0 01 1 0810-1009 ●
104 01.079 GASKET; WATER PUMP 8-92213-729-0 01 1 1010- ●

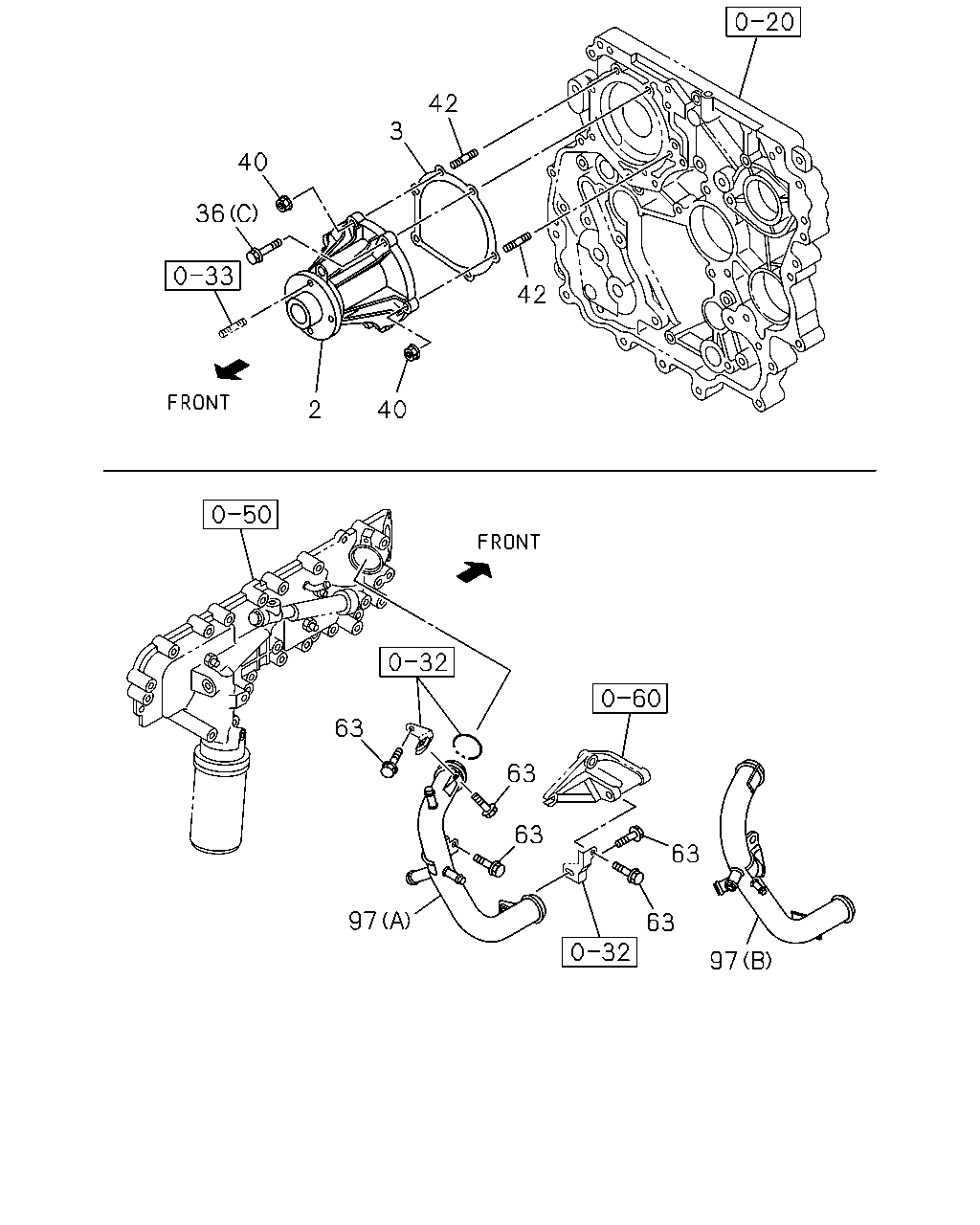

çizim 41779
42 3 40 36 42 2 40 63 63 63 63 97 63 97
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.069 PUMP ASM; WATER
KENYA EQUIPMENT(CL1) 		8-98004-292-3 01 1 1008- ●
2 01.069 PUMP ASM; WATER
KENYA EQUIPMENT(CL1) 		8-98004-292-2 01 1 0810-1003 ●
2 01.069 PUMP ASM; WATER 8-92064-391-0 01 1 0810-1009 ●
2 01.069 PUMP ASM; WATER 8-93284-725-0 01 1 1010- ●
2 01.069 PUMP ASM; WATER 8-97312-147-3 01 1 0808-0809 ●
2 01.069 PUMP ASM; WATER 8-97312-147-4 01 1 0810-1007 ● ●
2 01.069 PUMP ASM; WATER
EXC. KENYA EQUIPMENT(CL1) 		8-97312-147-4 01 1 0810-1007 ●
2 01.069 PUMP ASM; WATER 8-97312-147-4 01 1 1008- ● ● ●
2 01.069 PUMP ASM; WATER
EXC. KENYA EQUIPMENT(CL1) 		8-97312-147-4 01 1 1008- ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94178-081-1 01 1 1008- ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94178-081-0 01 1 0810-1007 ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 0808-0809 ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 0810-1007 ● ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 1008- ● ● ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
KENYA EQUIPMENT(CL1) 04.686 (C) M8X60 FLANGE 		0-28050-860-0 04 1 1008- ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 (A) M8X55 W/LK WASHER 		5-09000-084-1 05 1 0810- ●
36 00.386 BOLT; WATER PUMP TO C/BL
KENYA EQUIPMENT(CL1) 04.686 (C) M8X60 FLANGE 		0-28050-860-0 04 1 0810-1003 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(B) 		8-92065-461-0 03 1 0810-1009 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(B) 		8-93376-830-0 03 1 1010- ●
36 00.386 BOLT; WATER PUMP TO C/BL
(C) M8X50 FLANGE 		0-28050-850-0 04 1 0808-0809 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(C) M8X50 FLANGE 		0-28050-850-0 04 1 0810-1007 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
EXC. KENYA EQUIPMENT(CL1) (C) M8X50 FLANGE 		0-28050-850-0 04 1 0810-1007 ●
36 00.386 BOLT; WATER PUMP TO C/BL
(C) M8X50 FLANGE 		0-28050-850-0 04 1 1008- ● ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
EXC. KENYA EQUIPMENT(CL1) (C) M8X50 FLANGE 		0-28050-850-0 04 1 1008- ●
40 07.874 NUT; WATER PUMP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0810- ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 0808-0809 ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 0810-1007 ● ● ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1008- ● ● ● ●
42 01.073 STUD; WATER PUMP
KENYA EQUIPMENT(CL1) M8X28 L=40 		0-41010-828-0 02 1 1008- ●
42 01.073 STUD; WATER PUMP
M8X22 L=34 		0-41010-822-0 02 1 0810- ●
42 01.073 STUD; WATER PUMP
KENYA EQUIPMENT(CL1) M8X28 L=40 		0-41010-828-0 02 1 0810-1003 ●
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 0808-0809 ●
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 0810-1007 ● ●
42 01.073 STUD; WATER PUMP
EXC. KENYA EQUIPMENT(CL1) M8X22 L=40 		0-49140-822-0 02 1 0810-1007 ●
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 1008- ● ● ●
42 01.073 STUD; WATER PUMP
EXC. KENYA EQUIPMENT(CL1) M8X22 L=40 		0-49140-822-0 02 1 1008- ●
63 01.073 BOLT; INL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 05 1 0808-0809 ●
63 01.073 BOLT; INL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 05 1 0810-1007 ● ● ●
63 01.073 BOLT; INL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 05 1 1008- ● ● ● ●
97 01.097 PIPE; WATER
(A) 		8-98090-214-0 01 1 0810-1007 ●
97 01.097 PIPE; WATER
(A) 		8-98090-214-0 01 1 1008- ● ●
97 01.097 PIPE; WATER
(B) 		8-98090-215-0 01 1 0808-0809 ●
97 01.097 PIPE; WATER
(B) 		8-98090-215-0 01 1 0810- ● ●
