◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#76947) — 12 parça

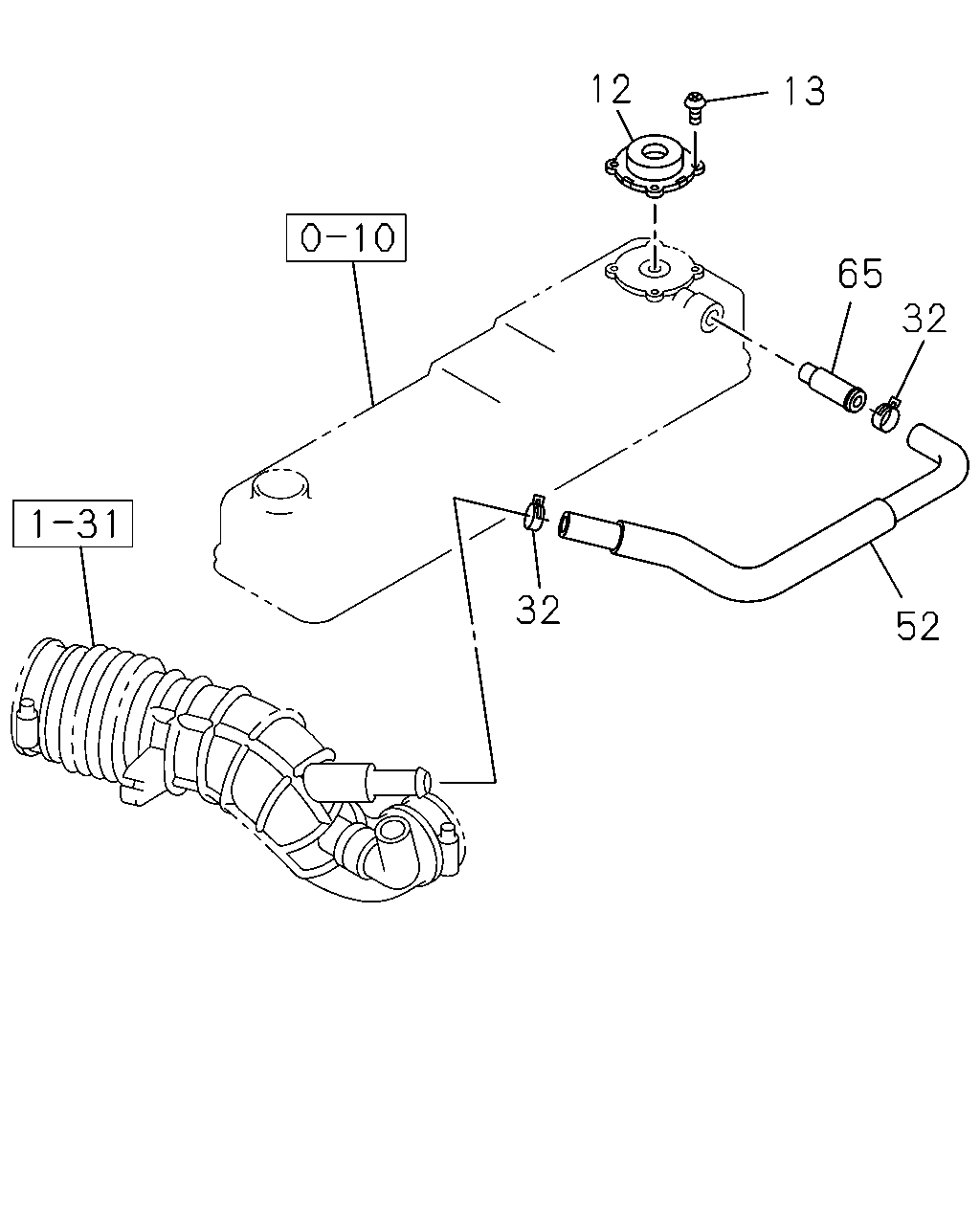

çizim 40739
12 13 65 32 32 52
BalonParca AdiParca NoAdetTipApplied Date A B
12 01.745 VENTILATOR; AIR
03.415 		8-97119-887-0 01 1 0810- ●
13 00.386 SCREW; VENTILATOR TO HD COVER
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0810- ●
32 03.417 CLIP; VENT HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 0810- ●
52 03.278 HOSE; PCV 8-97306-435-2 01 1 0810- ●
65 01.762 PIPE; BREATHER 8-94250-615-1 01 1 0810- ●

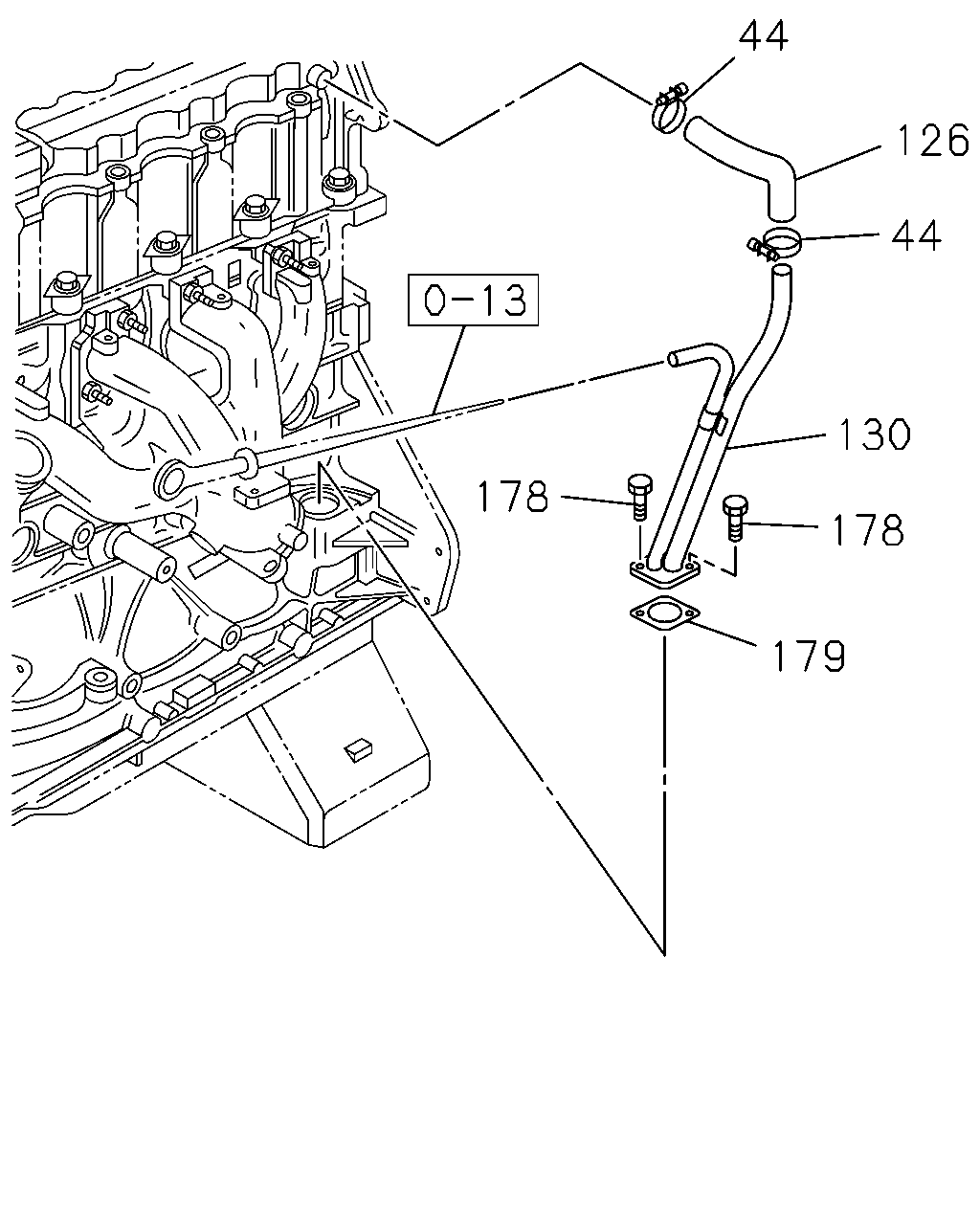

çizim 186230
44 126 44 130 178 178 179
BalonParca AdiParca NoAdetTipApplied Date A B
44 03.278 CLIP; HOSE,PCV 8-90467-971-0 02 1 0810- ●
126 01.762 HOSE; RUBBER,PCV 8-90409-617-0 01 1 0810- ●
130 03.278 PIPE; PCV 8-92062-793-0 01 1 0810- ●
178 03.278 BOLT; PIPE 8-11052-954-0 02 1 0810-1009 ●
178 03.278 BOLT; PIPE
04.054 		8-92138-813-0 02 1 1010- ●
179 03.278 GASKET; PIPE 8-90500-571-0 01 1 0810-1009 ●
179 03.278 GASKET; PIPE 8-92067-502-0 01 1 1010- ●
