◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#76942) — 841 parça

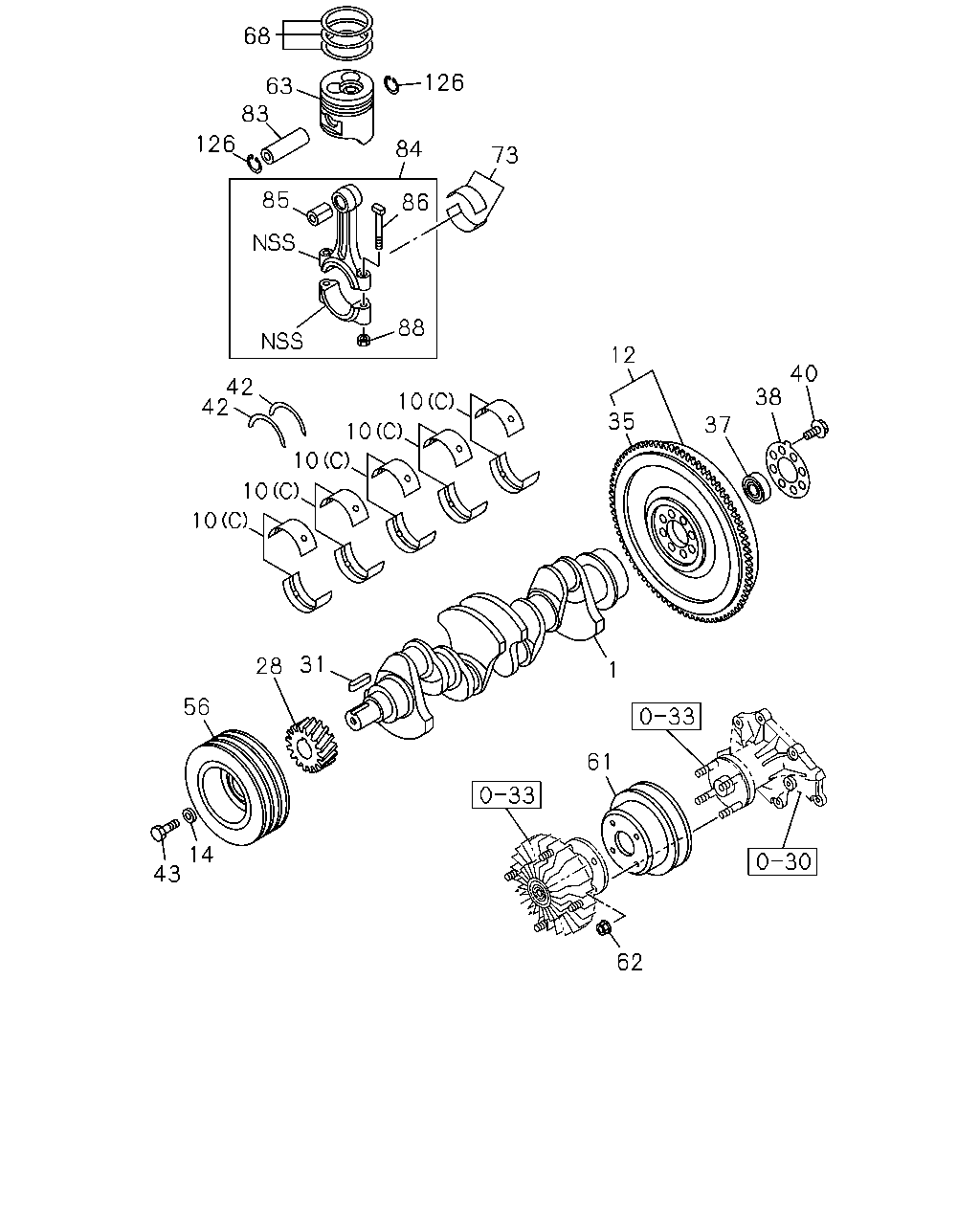

çizim 37513
68 63 83 126 85 126 84 73 86 88 42 42 10 10 10 10 10 56 28 31 43 14 1 61 62 12 35 37 38 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.646 CRANKSHAFT
KENYA EQUIPMENT(CL1) 		8-97388-828-4 01 1 1008-1403 ●
1 00.646 CRANKSHAFT 8-97388-828-4 01 1 1404- ● ●
1 00.646 CRANKSHAFT 8-97249-041-0 01 1 0810-0905 ●
1 00.646 CRANKSHAFT 8-97190-927-1 01 1 0906- ●
1 00.646 CRANKSHAFT
KENYA EQUIPMENT(CL1) 		8-97388-828-4 01 1 0810-1003 ●
1 00.646 CRANKSHAFT 8-93281-999-0 01 1 0810- ●
1 00.646 CRANKSHAFT 8-97372-419-2 01 1 0810-1007 ●
1 00.646 CRANKSHAFT 8-97372-419-2 01 1 1008-1108 ● ●
1 00.646 CRANKSHAFT 8-98131-999-1 01 1 1109- ● ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 0808-0809 ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 0810-1003 ●
1 00.646 CRANKSHAFT
EXC. KENYA EQUIPMENT(CL1) 		8-97311-632-1 01 1 0810-1003 ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 1004-1007 ● ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 1008- ●
1 00.646 CRANKSHAFT
EXC. KENYA EQUIPMENT(CL1) 		8-97311-632-1 01 1 1008- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 5 		8-97387-970-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 4 		8-97387-971-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 3 		8-97387-972-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 2 		8-97387-973-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 1 		8-97387-974-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(A) 		8-92066-633-0 01 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 1008- ● ● ● ●
12 00.666 FLYWHEEL
KENYA EQUIPMENT(CL1) W/RING GEAR 		8-97021-401-2 01 1 1008- ●
12 00.666 FLYWHEEL 8-94172-529-1 01 1 0810- ●
12 00.666 FLYWHEEL
KENYA EQUIPMENT(CL1) W/RING GEAR 		8-97021-401-2 01 1 0810-1003 ●
12 00.666 FLYWHEEL 8-90466-547-0 01 1 0810- ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 0810-0910 ● ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) EXC. KENYA EQUIPMENT(CL1) 		8-98077-180-0 01 1 0911-1003 ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 0911-1003 ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 1004-1007 ● ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) EXC. KENYA EQUIPMENT(CL1) 		8-98077-180-0 01 1 1008- ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 1008- ● ●
12 00.666 FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 		8-98011-631-1 01 1 0808- ●
12 00.666 FLYWHEEL
A/T AISIN(RMD) 		8-97912-517-1 01 1 0808-0809 ●
12 00.666 FLYWHEEL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97912-517-1 01 1 0810- ● ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 0808-0809 ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 0810-1007 ● ● ● ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 1008- ● ● ● ● ●
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 1008- ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0810- ●
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 0810-1003 ●
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0810- ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0808-0809 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0810-1007 ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 0810-1007 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1008- ● ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 1008- ●
31 00.662 KEY; FEATHER,CR/SHF
KENYA EQUIPMENT(CL1) 00.729 		8-94201-641-0 01 1 0810-1003 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0810-1003 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 1004-1007 ●
31 00.662 KEY; FEATHER,CR/SHF
KENYA EQUIPMENT(CL1) 00.729 		8-94201-641-0 01 1 1008-1403 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 1008-1403 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 1404- ● ● ● ● ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 0808-0809 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 0810-1007 ● ●
31 00.662 KEY; FEATHER,CR/SHF
EXC. KENYA EQUIPMENT(CL1) 00.729 		9-08030-743-0 01 1 0810-1007 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 1008- ● ● ●
31 00.662 KEY; FEATHER,CR/SHF
EXC. KENYA EQUIPMENT(CL1) 00.729 		9-08030-743-0 01 1 1008- ●
35 00.673 GEAR; RING
Z=135 		8-90136-995-0 01 1 0810-1009 ●
35 00.673 GEAR; RING
KENYA EQUIPMENT(CL1) Z=108 		8-94419-602-1 01 1 0810-1003 ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0810-1003 ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 1004-1007 ●
35 00.673 GEAR; RING
KENYA EQUIPMENT(CL1) Z=108 		8-94419-602-1 01 1 1008- ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 1008- ●
35 00.673 GEAR; RING
M/T MUX 5 SPEED 5S(MZJ) Z=122 		8-94364-395-1 01 1 0808- ●
35 00.673 GEAR; RING
A/T AISIN(RMD) Z=108 		8-97912-516-1 01 1 0808-0809 ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) EXC. KENYA EQUIPMENT(CL1) Z=108 		8-97912-516-1 01 1 0810-1003 ● ● ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) Z=108 		8-97912-516-1 01 1 1004-1007 ● ● ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) EXC. KENYA EQUIPMENT(CL1) Z=108 		8-97912-516-1 01 1 1008- ● ● ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 0810- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT 8-90105-743-0 01 1 0810- ●
38 00.862 WASHER; FLYWHEEL
ID=50.5 OD=97 		8-98171-700-0 01 1 1006-1007 ●
38 00.862 WASHER; FLYWHEEL
KENYA EQUIPMENT(CL1) ID=50.5 OD=97 		8-98171-700-0 01 1 1008- ●
38 00.862 WASHER; FLYWHEEL
ID=50.5 OD=97 		8-98171-700-0 01 1 1008- ●
38 00.862 WASHER; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 00.669 		8-94133-970-1 01 1 0808-0809 ●
38 00.862 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 00.669 		8-94133-970-1 01 1 0810-1005 ● ● ● ●
38 00.862 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 00.669 		8-94133-970-1 01 1 1006-1007 ● ● ●
38 00.862 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) 00.669 		8-94133-970-1 01 1 1008- ● ● ● ●
38 00.862 WASHER; FLYWHEEL
A/T AISIN(RMD) 		8-97038-939-1 01 1 0808-0809 ●
38 00.862 WASHER; FLYWHEEL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97038-939-1 01 1 0810- ● ●
40 00.669 BOLT; FLYWHEEL
KENYA EQUIPMENT(CL1) M13X36 		8-97065-984-1 08 1 0810-1003 ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0810-1003 ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 1004-1007 ●
40 00.669 BOLT; FLYWHEEL
KENYA EQUIPMENT(CL1) M13X36 		8-97065-984-1 08 1 1008- ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 1008- ●
40 00.669 BOLT; FLYWHEEL 8-90285-303-0 06 1 0810-1009 ●
40 00.669 BOLT; FLYWHEEL 8-93288-625-0 06 1 1010- ●
40 00.669 BOLT; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 0808-0809 ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) M13X36 		8-97941-069-0 08 1 0810-1003 ● ● ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 1004-1007 ● ● ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) M13X36 		8-97941-069-0 08 1 1008- ● ● ● ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD) M13X78 		8-97080-561-1 08 1 0808-0809 ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M13X78 		8-97080-561-1 08 1 0810- ● ●
42 00.095 WASHER; THRUST,CR/SHF
KENYA EQUIPMENT(CL1) 		8-98040-704-0 02 1 1008- ●
42 00.095 WASHER; THRUST,CR/SHF 8-97383-751-0 02 1 0810- ●
42 00.095 WASHER; THRUST,CR/SHF
KENYA EQUIPMENT(CL1) 		8-98040-704-0 02 1 0810-1003 ●
42 00.095 WASHER; THRUST,CR/SHF 8-90156-055-0 01 1 0810-1009 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 0808-0809 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 0810-1007 ● ●
42 00.095 WASHER; THRUST,CR/SHF
EXC. KENYA EQUIPMENT(CL1) 		8-97354-055-1 02 1 0810-1007 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 1008- ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
EXC. KENYA EQUIPMENT(CL1) 		8-97354-055-1 02 1 1008- ●
43 00.662 BOLT; CR/SHF PULLEY
KENYA EQUIPMENT(CL1) M16X43 		5-09000-273-2 01 1 0810-1003 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0810-1003 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 1004-1007 ●
43 00.662 BOLT; CR/SHF PULLEY
KENYA EQUIPMENT(CL1) M16X43 		5-09000-273-2 01 1 1008- ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 1008- ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 0808-0809 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 0810-1007 ● ●
43 00.662 BOLT; CR/SHF PULLEY
EXC. KENYA EQUIPMENT(CL1) M16X43 		8-97373-852-1 01 1 0810-1007 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 1008- ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
EXC. KENYA EQUIPMENT(CL1) M16X43 		8-97373-852-1 01 1 1008- ●
56 00.659 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-97306-533-5 01 1 0810- ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-97361-562-1 01 1 0808-0809 ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-97361-562-1 01 1 0810-1007 ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-97361-562-1 01 1 1008- ● ● ● ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-94146-638-2 01 1 0810- ●
61 00.659 PULLEY; FAN DRIVE
01.062 		8-92064-197-0 01 1 0810- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 0808-0809 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 0810-1007 ● ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 1008- ● ● ● ●
62 01.060 NUT; FAN PULLEY
07.829 M6 FLANGE 		5-09440-004-0 04 1 0810- ●
63 00.629 PISTON
GRADE=A 		8-98133-458-1 04 1 1202- ●
63 00.629 PISTON
GRADE=B 		8-98133-459-1 04 1 1202- ●
63 00.629 PISTON
GRADE=C 		8-98133-460-1 04 1 1202- ●
63 00.629 PISTON
GRADE=AX ALSO INCLUDED IN LINER SET. 		8-97942-985-0 04 1 0810- ●
63 00.629 PISTON
GRADE=CX ALSO INCLUDED IN LINER SET. 		8-97942-986-0 04 1 0810- ●
63 00.629 PISTON 8-93292-774-0 04 1 0810-1009 ●
63 00.629 PISTON 8-92061-386-0 04 1 1010- ●
63 00.629 PISTON
GRADE=A 		8-97355-671-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=A 		8-97355-671-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=B 		8-97355-672-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=B 		8-97355-672-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=C 		8-97355-673-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=C 		8-97355-673-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 1202- ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 1202- ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 1202- ●
68 00.643 RING SET; PISTON,STANDARD 8-98171-044-0 04 1 1201- ●
68 00.643 RING SET; PISTON,STANDARD
KENYA EQUIPMENT(CL1) 		8-98173-004-0 04 1 1008-1112 ●
68 00.643 RING SET; PISTON,STANDARD
FOR TRUCK-BUS USERS 		8-98173-004-0 04 1 1201- ● ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97319-087-1 04 1 0810- ●
68 00.643 RING SET; PISTON,STANDARD 8-92066-631-0 01 1 0810-1009 ●
68 00.643 RING SET; PISTON,STANDARD 8-92029-793-0 01 1 1010- ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-0 04 1 0808-0809 ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-1 04 1 0810-1007 ● ● ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-1 04 1 1008-1112 ● ● ● ●
68 00.643 RING SET; PISTON,STANDARD
STANDARD SPEC 		8-98096-676-1 04 1 1201- ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0810- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 0808-0809 ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 0810-1007 ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 1008- ● ● ● ●
83 00.636 PIN; PISTON
KENYA EQUIPMENT(CL1) 		8-98015-193-1 04 1 1008- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0810- ●
83 00.636 PIN; PISTON
KENYA EQUIPMENT(CL1) 		8-98015-193-1 04 1 0810-1003 ●
83 00.636 PIN; PISTON 8-97311-928-2 04 1 0808-0809 ●
83 00.636 PIN; PISTON 8-97311-928-2 04 1 0810-0910 ● ●
83 00.636 PIN; PISTON
EXC. KENYA EQUIPMENT(CL1) 		8-97311-928-2 04 1 0810-0910 ●
83 00.636 PIN; PISTON 8-98150-333-0 04 1 0911-1007 ● ●
83 00.636 PIN; PISTON
EXC. KENYA EQUIPMENT(CL1) 		8-98150-333-0 04 1 0911-1007 ●
83 00.636 PIN; PISTON 8-98150-333-0 04 1 1008- ● ● ●
83 00.636 PIN; PISTON
EXC. KENYA EQUIPMENT(CL1) 		8-98150-333-0 04 1 1008- ●
84 00.603 ROD ASM; CONN
KENYA EQUIPMENT(CL1) 		8-97388-921-2 04 1 1008- ●
84 00.603 ROD ASM; CONN 8-98012-611-2 04 1 0810- ●
84 00.603 ROD ASM; CONN
KENYA EQUIPMENT(CL1) 		8-97388-921-2 04 1 0810-1003 ●
84 00.603 ROD ASM; CONN 8-90530-169-0 04 1 0810- ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 0808-0809 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 0810-1007 ● ●
84 00.603 ROD ASM; CONN
EXC. KENYA EQUIPMENT(CL1) 		8-97357-716-3 04 1 0810-1007 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 1008- ● ● ●
84 00.603 ROD ASM; CONN
EXC. KENYA EQUIPMENT(CL1) 		8-97357-716-3 04 1 1008- ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET. 		8-97352-889-0 04 1 0810- ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 0808-0809 ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 0810-1007 ● ● ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 1008- ● ● ● ●
86 00.623 BOLT; CONNROD
M11X59 		5-12235-009-0 08 1 0810- ●
86 00.623 BOLT; CONNROD 8-90281-736-0 08 1 0810- ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0808-0809 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0810-1007 ● ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1008- ● ● ● ●
88 00.623 NUT; CONNROD
00.626 M11 		5-09409-016-0 08 1 0810- ●
126 00.639 RING; SNAP,PISTON PIN
ID=33.9 ALSO INCLUDED IN LINER SET. 		8-94133-969-0 08 1 0810- ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 0808-0809 ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 0810-1007 ● ● ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 1008- ● ● ● ●

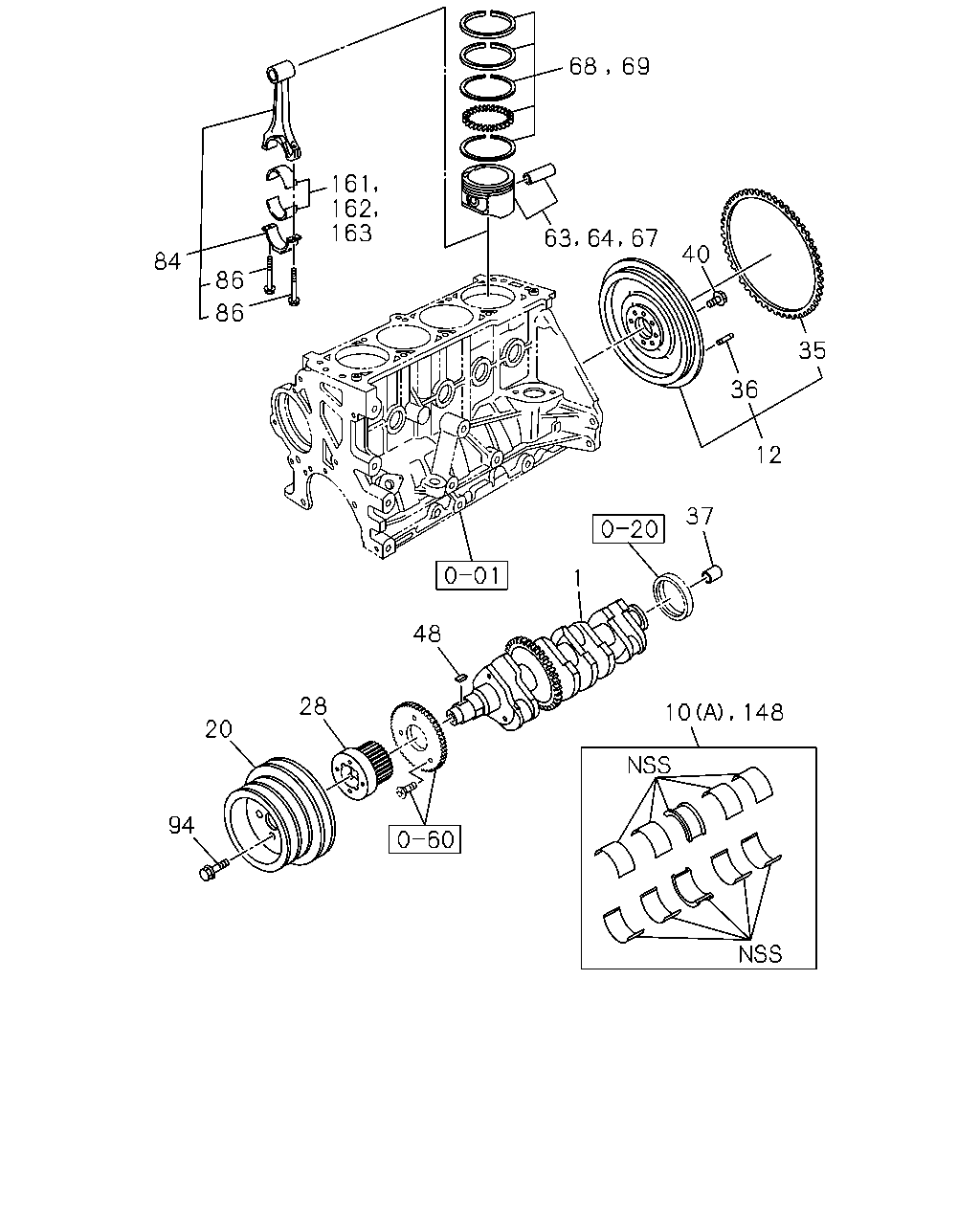

çizim 37592
68 69 161 162 163 40 84 86 86 35 36 12 37 1 48 28 10 148 20 94 63 64 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.646 CRANKSHAFT
KENYA EQUIPMENT(CL1) 		8-97388-828-4 01 1 1008-1403 ●
1 00.646 CRANKSHAFT 8-97388-828-4 01 1 1404- ● ●
1 00.646 CRANKSHAFT 8-97249-041-0 01 1 0810-0905 ●
1 00.646 CRANKSHAFT 8-97190-927-1 01 1 0906- ●
1 00.646 CRANKSHAFT
KENYA EQUIPMENT(CL1) 		8-97388-828-4 01 1 0810-1003 ●
1 00.646 CRANKSHAFT 8-93281-999-0 01 1 0810- ●
1 00.646 CRANKSHAFT 8-97372-419-2 01 1 0810-1007 ●
1 00.646 CRANKSHAFT 8-97372-419-2 01 1 1008-1108 ● ●
1 00.646 CRANKSHAFT 8-98131-999-1 01 1 1109- ● ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 0808-0809 ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 0810-1003 ●
1 00.646 CRANKSHAFT
EXC. KENYA EQUIPMENT(CL1) 		8-97311-632-1 01 1 0810-1003 ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 1004-1007 ● ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 1008- ●
1 00.646 CRANKSHAFT
EXC. KENYA EQUIPMENT(CL1) 		8-97311-632-1 01 1 1008- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 5 		8-97387-970-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 4 		8-97387-971-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 3 		8-97387-972-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 2 		8-97387-973-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 1 		8-97387-974-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(A) 		8-92066-633-0 01 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 1008- ● ● ● ●
12 00.666 FLYWHEEL
KENYA EQUIPMENT(CL1) W/RING GEAR 		8-97021-401-2 01 1 1008- ●
12 00.666 FLYWHEEL 8-94172-529-1 01 1 0810- ●
12 00.666 FLYWHEEL
KENYA EQUIPMENT(CL1) W/RING GEAR 		8-97021-401-2 01 1 0810-1003 ●
12 00.666 FLYWHEEL 8-90466-547-0 01 1 0810- ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 0810-0910 ● ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) EXC. KENYA EQUIPMENT(CL1) 		8-98077-180-0 01 1 0911-1003 ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 0911-1003 ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 1004-1007 ● ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) EXC. KENYA EQUIPMENT(CL1) 		8-98077-180-0 01 1 1008- ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 1008- ● ●
12 00.666 FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 		8-98011-631-1 01 1 0808- ●
12 00.666 FLYWHEEL
A/T AISIN(RMD) 		8-97912-517-1 01 1 0808-0809 ●
12 00.666 FLYWHEEL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97912-517-1 01 1 0810- ● ●
20 00.659 DAMPER; CR/SHF 8-92063-589-0 01 1 0810- ●
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 1008- ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0810- ●
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 0810-1003 ●
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0810- ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0808-0809 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0810-1007 ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 0810-1007 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1008- ● ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 1008- ●
35 00.673 GEAR; RING
Z=135 		8-90136-995-0 01 1 0810-1009 ●
35 00.673 GEAR; RING
KENYA EQUIPMENT(CL1) Z=108 		8-94419-602-1 01 1 0810-1003 ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0810-1003 ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 1004-1007 ●
35 00.673 GEAR; RING
KENYA EQUIPMENT(CL1) Z=108 		8-94419-602-1 01 1 1008- ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 1008- ●
35 00.673 GEAR; RING
M/T MUX 5 SPEED 5S(MZJ) Z=122 		8-94364-395-1 01 1 0808- ●
35 00.673 GEAR; RING
A/T AISIN(RMD) Z=108 		8-97912-516-1 01 1 0808-0809 ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) EXC. KENYA EQUIPMENT(CL1) Z=108 		8-97912-516-1 01 1 0810-1003 ● ● ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) Z=108 		8-97912-516-1 01 1 1004-1007 ● ● ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) EXC. KENYA EQUIPMENT(CL1) Z=108 		8-97912-516-1 01 1 1008- ● ● ● ●
36 00.862 PIN; FLYWHEEL 8-92061-816-0 03 1 0810-1009 ●
36 00.862 PIN; FLYWHEEL 8-90322-716-0 03 1 1010- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 0810- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT 8-90105-743-0 01 1 0810- ●
40 00.669 BOLT; FLYWHEEL
KENYA EQUIPMENT(CL1) M13X36 		8-97065-984-1 08 1 0810-1003 ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0810-1003 ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 1004-1007 ●
40 00.669 BOLT; FLYWHEEL
KENYA EQUIPMENT(CL1) M13X36 		8-97065-984-1 08 1 1008- ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 1008- ●
40 00.669 BOLT; FLYWHEEL 8-90285-303-0 06 1 0810-1009 ●
40 00.669 BOLT; FLYWHEEL 8-93288-625-0 06 1 1010- ●
40 00.669 BOLT; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 0808-0809 ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) M13X36 		8-97941-069-0 08 1 0810-1003 ● ● ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 1004-1007 ● ● ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) M13X36 		8-97941-069-0 08 1 1008- ● ● ● ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD) M13X78 		8-97080-561-1 08 1 0808-0809 ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M13X78 		8-97080-561-1 08 1 0810- ● ●
48 00.662 KEY; WOODRUFF,CR/SHF 8-11010-612-0 01 1 0810- ●
63 00.629 PISTON
GRADE=A 		8-98133-458-1 04 1 1202- ●
63 00.629 PISTON
GRADE=B 		8-98133-459-1 04 1 1202- ●
63 00.629 PISTON
GRADE=C 		8-98133-460-1 04 1 1202- ●
63 00.629 PISTON
GRADE=AX ALSO INCLUDED IN LINER SET. 		8-97942-985-0 04 1 0810- ●
63 00.629 PISTON
GRADE=CX ALSO INCLUDED IN LINER SET. 		8-97942-986-0 04 1 0810- ●
63 00.629 PISTON 8-93292-774-0 04 1 0810-1009 ●
63 00.629 PISTON 8-92061-386-0 04 1 1010- ●
63 00.629 PISTON
GRADE=A 		8-97355-671-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=A 		8-97355-671-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=B 		8-97355-672-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=B 		8-97355-672-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=C 		8-97355-673-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=C 		8-97355-673-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 1202- ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 1202- ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 1202- ●
64 00.629 PISTON; O/S=0.50 8-98132-711-1 04 1 1202- ●
64 00.629 PISTON; O/S=0.50 8-93282-455-0 04 1 0810-1009 ●
64 00.629 PISTON; O/S=0.50 8-92061-702-0 04 1 1010- ●
64 00.629 PISTON; O/S=0.50 8-98028-031-0 04 1 0808-0809 ●
64 00.629 PISTON; O/S=0.50 8-98028-031-0 04 1 0810-1201 ● ●
64 00.629 PISTON; O/S=0.50 8-98028-031-0 04 1 1202- ●
64 00.629 PISTON; O/S=0.50 8-97388-330-0 04 1 0810-1007 ●
64 00.629 PISTON; O/S=0.50 8-97388-330-0 04 1 1008- ● ●
67 00.629 PISTON; O/S=0.25 8-98132-710-1 04 1 1202- ●
67 00.629 PISTON; O/S=0.25 8-93282-453-0 04 1 0810-1009 ●
67 00.629 PISTON; O/S=0.25 8-97388-329-0 04 1 0810-1007 ●
67 00.629 PISTON; O/S=0.25 8-97388-329-0 04 1 1008- ● ●
67 00.629 PISTON; O/S=0.25 8-98028-030-0 04 1 0808-0809 ●
67 00.629 PISTON; O/S=0.25 8-98028-030-0 04 1 0810-1201 ● ●
67 00.629 PISTON; O/S=0.25 8-98028-030-0 04 1 1202- ●
68 00.643 RING SET; PISTON,STANDARD 8-98171-044-0 04 1 1201- ●
68 00.643 RING SET; PISTON,STANDARD
KENYA EQUIPMENT(CL1) 		8-98173-004-0 04 1 1008-1112 ●
68 00.643 RING SET; PISTON,STANDARD
FOR TRUCK-BUS USERS 		8-98173-004-0 04 1 1201- ● ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97319-087-1 04 1 0810- ●
68 00.643 RING SET; PISTON,STANDARD 8-92066-631-0 01 1 0810-1009 ●
68 00.643 RING SET; PISTON,STANDARD 8-92029-793-0 01 1 1010- ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-0 04 1 0808-0809 ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-1 04 1 0810-1007 ● ● ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-1 04 1 1008-1112 ● ● ● ●
68 00.643 RING SET; PISTON,STANDARD
STANDARD SPEC 		8-98096-676-1 04 1 1201- ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92066-632-0 01 1 0810-1007 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92066-632-0 01 1 1008-1009 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92029-795-0 01 1 1010- ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98171-046-0 04 1 1201- ●
69 00.643 RING SET; PISTON,O/S=0.50
KENYA EQUIPMENT(CL1) 		8-98173-006-0 04 1 1008-1112 ●
69 00.643 RING SET; PISTON,O/S=0.50
FOR TRUCK-BUS USERS 		8-98173-006-0 04 1 1201- ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98096-562-0 04 1 0808-0809 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98096-562-1 04 1 0810-1007 ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98096-562-1 04 1 1008-1112 ● ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50
STANDARD SPEC 		8-98096-562-1 04 1 1201- ● ● ●
84 00.603 ROD ASM; CONN
KENYA EQUIPMENT(CL1) 		8-97388-921-2 04 1 1008- ●
84 00.603 ROD ASM; CONN 8-98012-611-2 04 1 0810- ●
84 00.603 ROD ASM; CONN
KENYA EQUIPMENT(CL1) 		8-97388-921-2 04 1 0810-1003 ●
84 00.603 ROD ASM; CONN 8-90530-169-0 04 1 0810- ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 0808-0809 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 0810-1007 ● ●
84 00.603 ROD ASM; CONN
EXC. KENYA EQUIPMENT(CL1) 		8-97357-716-3 04 1 0810-1007 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 1008- ● ● ●
84 00.603 ROD ASM; CONN
EXC. KENYA EQUIPMENT(CL1) 		8-97357-716-3 04 1 1008- ●
86 00.623 BOLT; CONNROD
M11X59 		5-12235-009-0 08 1 0810- ●
86 00.623 BOLT; CONNROD 8-90281-736-0 08 1 0810- ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0808-0809 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0810-1007 ● ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1008- ● ● ● ●
94 00.659 BOLT; DAMPER
02.183 		8-11094-881-0 04 1 0810- ●
148 00.094 METAL SET; CRANKSHAFT,U/S
UNSI=0.25 		8-92066-634-0 01 1 0810-1009 ●
148 00.094 METAL SET; CRANKSHAFT,U/S 8-93295-033-0 01 1 1010- ●
148 00.094 METAL SET; CRANKSHAFT,U/S
UNSI=0.50 		8-92066-635-0 01 1 0810-1009 ●
161 00.616 METAL KIT; CONN ROD,STANDARD
00.094 		8-92028-817-0 01 1 0810- ●
162 00.616 METAL KIT; CONN ROD,U/S=0.25
00.094 		8-92028-818-0 01 1 0810- ●
163 00.616 METAL KIT; CONN ROD,U/S=0.50
00.094 		8-92028-819-0 01 1 0810- ●

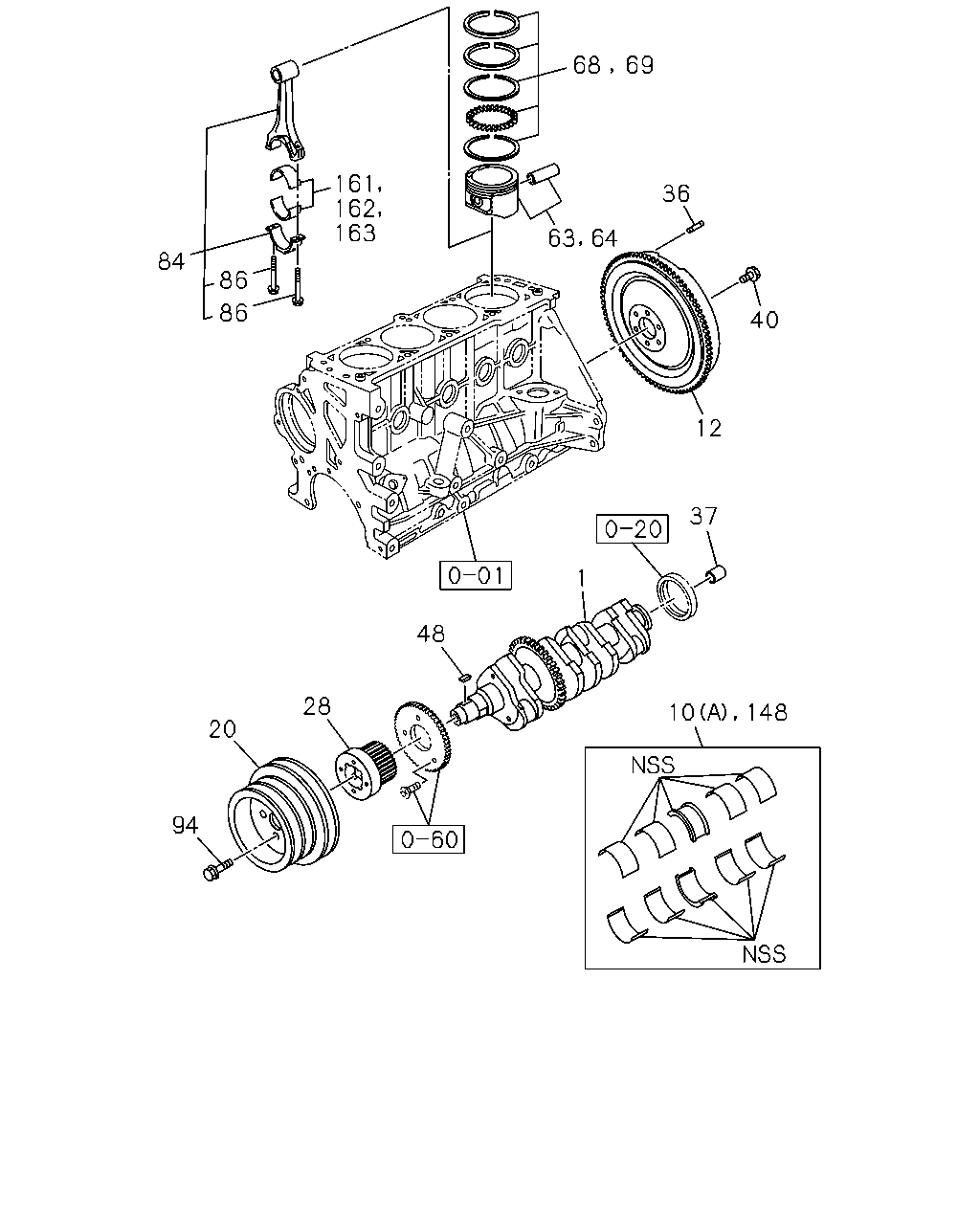

çizim 38076
68 69 161 162 163 36 84 86 86 40 12 37 1 48 28 10 148 20 94 63 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.646 CRANKSHAFT
KENYA EQUIPMENT(CL1) 		8-97388-828-4 01 1 1008-1403 ●
1 00.646 CRANKSHAFT 8-97388-828-4 01 1 1404- ● ●
1 00.646 CRANKSHAFT 8-97249-041-0 01 1 0810-0905 ●
1 00.646 CRANKSHAFT 8-97190-927-1 01 1 0906- ●
1 00.646 CRANKSHAFT
KENYA EQUIPMENT(CL1) 		8-97388-828-4 01 1 0810-1003 ●
1 00.646 CRANKSHAFT 8-93281-999-0 01 1 0810- ●
1 00.646 CRANKSHAFT 8-97372-419-2 01 1 0810-1007 ●
1 00.646 CRANKSHAFT 8-97372-419-2 01 1 1008-1108 ● ●
1 00.646 CRANKSHAFT 8-98131-999-1 01 1 1109- ● ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 0808-0809 ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 0810-1003 ●
1 00.646 CRANKSHAFT
EXC. KENYA EQUIPMENT(CL1) 		8-97311-632-1 01 1 0810-1003 ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 1004-1007 ● ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 1008- ●
1 00.646 CRANKSHAFT
EXC. KENYA EQUIPMENT(CL1) 		8-97311-632-1 01 1 1008- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 5 		8-97387-970-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 4 		8-97387-971-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 3 		8-97387-972-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 2 		8-97387-973-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 1 		8-97387-974-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(A) 		8-92066-633-0 01 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 1008- ● ● ● ●
12 00.666 FLYWHEEL
KENYA EQUIPMENT(CL1) W/RING GEAR 		8-97021-401-2 01 1 1008- ●
12 00.666 FLYWHEEL 8-94172-529-1 01 1 0810- ●
12 00.666 FLYWHEEL
KENYA EQUIPMENT(CL1) W/RING GEAR 		8-97021-401-2 01 1 0810-1003 ●
12 00.666 FLYWHEEL 8-90466-547-0 01 1 0810- ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 0810-0910 ● ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) EXC. KENYA EQUIPMENT(CL1) 		8-98077-180-0 01 1 0911-1003 ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 0911-1003 ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 1004-1007 ● ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) EXC. KENYA EQUIPMENT(CL1) 		8-98077-180-0 01 1 1008- ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 1008- ● ●
12 00.666 FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 		8-98011-631-1 01 1 0808- ●
12 00.666 FLYWHEEL
A/T AISIN(RMD) 		8-97912-517-1 01 1 0808-0809 ●
12 00.666 FLYWHEEL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97912-517-1 01 1 0810- ● ●
20 00.659 DAMPER; CR/SHF 8-92063-589-0 01 1 0810- ●
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 1008- ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0810- ●
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 0810-1003 ●
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0810- ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0808-0809 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0810-1007 ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 0810-1007 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1008- ● ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 1008- ●
36 00.862 PIN; FLYWHEEL 8-92061-816-0 03 1 0810-1009 ●
36 00.862 PIN; FLYWHEEL 8-90322-716-0 03 1 1010- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 0810- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT 8-90105-743-0 01 1 0810- ●
40 00.669 BOLT; FLYWHEEL
KENYA EQUIPMENT(CL1) M13X36 		8-97065-984-1 08 1 0810-1003 ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0810-1003 ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 1004-1007 ●
40 00.669 BOLT; FLYWHEEL
KENYA EQUIPMENT(CL1) M13X36 		8-97065-984-1 08 1 1008- ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 1008- ●
40 00.669 BOLT; FLYWHEEL 8-90285-303-0 06 1 0810-1009 ●
40 00.669 BOLT; FLYWHEEL 8-93288-625-0 06 1 1010- ●
40 00.669 BOLT; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 0808-0809 ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) M13X36 		8-97941-069-0 08 1 0810-1003 ● ● ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 1004-1007 ● ● ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) M13X36 		8-97941-069-0 08 1 1008- ● ● ● ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD) M13X78 		8-97080-561-1 08 1 0808-0809 ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M13X78 		8-97080-561-1 08 1 0810- ● ●
48 00.662 KEY; WOODRUFF,CR/SHF 8-11010-612-0 01 1 0810- ●
63 00.629 PISTON
GRADE=A 		8-98133-458-1 04 1 1202- ●
63 00.629 PISTON
GRADE=B 		8-98133-459-1 04 1 1202- ●
63 00.629 PISTON
GRADE=C 		8-98133-460-1 04 1 1202- ●
63 00.629 PISTON
GRADE=AX ALSO INCLUDED IN LINER SET. 		8-97942-985-0 04 1 0810- ●
63 00.629 PISTON
GRADE=CX ALSO INCLUDED IN LINER SET. 		8-97942-986-0 04 1 0810- ●
63 00.629 PISTON 8-93292-774-0 04 1 0810-1009 ●
63 00.629 PISTON 8-92061-386-0 04 1 1010- ●
63 00.629 PISTON
GRADE=A 		8-97355-671-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=A 		8-97355-671-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=B 		8-97355-672-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=B 		8-97355-672-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=C 		8-97355-673-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=C 		8-97355-673-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 1202- ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 1202- ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 1202- ●
64 00.629 PISTON; O/S=0.50 8-98132-711-1 04 1 1202- ●
64 00.629 PISTON; O/S=0.50 8-93282-455-0 04 1 0810-1009 ●
64 00.629 PISTON; O/S=0.50 8-92061-702-0 04 1 1010- ●
64 00.629 PISTON; O/S=0.50 8-98028-031-0 04 1 0808-0809 ●
64 00.629 PISTON; O/S=0.50 8-98028-031-0 04 1 0810-1201 ● ●
64 00.629 PISTON; O/S=0.50 8-98028-031-0 04 1 1202- ●
64 00.629 PISTON; O/S=0.50 8-97388-330-0 04 1 0810-1007 ●
64 00.629 PISTON; O/S=0.50 8-97388-330-0 04 1 1008- ● ●
68 00.643 RING SET; PISTON,STANDARD 8-98171-044-0 04 1 1201- ●
68 00.643 RING SET; PISTON,STANDARD
KENYA EQUIPMENT(CL1) 		8-98173-004-0 04 1 1008-1112 ●
68 00.643 RING SET; PISTON,STANDARD
FOR TRUCK-BUS USERS 		8-98173-004-0 04 1 1201- ● ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97319-087-1 04 1 0810- ●
68 00.643 RING SET; PISTON,STANDARD 8-92066-631-0 01 1 0810-1009 ●
68 00.643 RING SET; PISTON,STANDARD 8-92029-793-0 01 1 1010- ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-0 04 1 0808-0809 ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-1 04 1 0810-1007 ● ● ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-1 04 1 1008-1112 ● ● ● ●
68 00.643 RING SET; PISTON,STANDARD
STANDARD SPEC 		8-98096-676-1 04 1 1201- ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92066-632-0 01 1 0810-1007 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92066-632-0 01 1 1008-1009 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92029-795-0 01 1 1010- ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98171-046-0 04 1 1201- ●
69 00.643 RING SET; PISTON,O/S=0.50
KENYA EQUIPMENT(CL1) 		8-98173-006-0 04 1 1008-1112 ●
69 00.643 RING SET; PISTON,O/S=0.50
FOR TRUCK-BUS USERS 		8-98173-006-0 04 1 1201- ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98096-562-0 04 1 0808-0809 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98096-562-1 04 1 0810-1007 ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98096-562-1 04 1 1008-1112 ● ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50
STANDARD SPEC 		8-98096-562-1 04 1 1201- ● ● ●
84 00.603 ROD ASM; CONN
KENYA EQUIPMENT(CL1) 		8-97388-921-2 04 1 1008- ●
84 00.603 ROD ASM; CONN 8-98012-611-2 04 1 0810- ●
84 00.603 ROD ASM; CONN
KENYA EQUIPMENT(CL1) 		8-97388-921-2 04 1 0810-1003 ●
84 00.603 ROD ASM; CONN 8-90530-169-0 04 1 0810- ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 0808-0809 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 0810-1007 ● ●
84 00.603 ROD ASM; CONN
EXC. KENYA EQUIPMENT(CL1) 		8-97357-716-3 04 1 0810-1007 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 1008- ● ● ●
84 00.603 ROD ASM; CONN
EXC. KENYA EQUIPMENT(CL1) 		8-97357-716-3 04 1 1008- ●
86 00.623 BOLT; CONNROD
M11X59 		5-12235-009-0 08 1 0810- ●
86 00.623 BOLT; CONNROD 8-90281-736-0 08 1 0810- ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0808-0809 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0810-1007 ● ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1008- ● ● ● ●
94 00.659 BOLT; DAMPER
02.183 		8-11094-881-0 04 1 0810- ●
148 00.094 METAL SET; CRANKSHAFT,U/S
UNSI=0.25 		8-92066-634-0 01 1 0810-1009 ●
148 00.094 METAL SET; CRANKSHAFT,U/S 8-93295-033-0 01 1 1010- ●
148 00.094 METAL SET; CRANKSHAFT,U/S
UNSI=0.50 		8-92066-635-0 01 1 0810-1009 ●
161 00.616 METAL KIT; CONN ROD,STANDARD
00.094 		8-92028-817-0 01 1 0810- ●
162 00.616 METAL KIT; CONN ROD,U/S=0.25
00.094 		8-92028-818-0 01 1 0810- ●
163 00.616 METAL KIT; CONN ROD,U/S=0.50
00.094 		8-92028-819-0 01 1 0810- ●

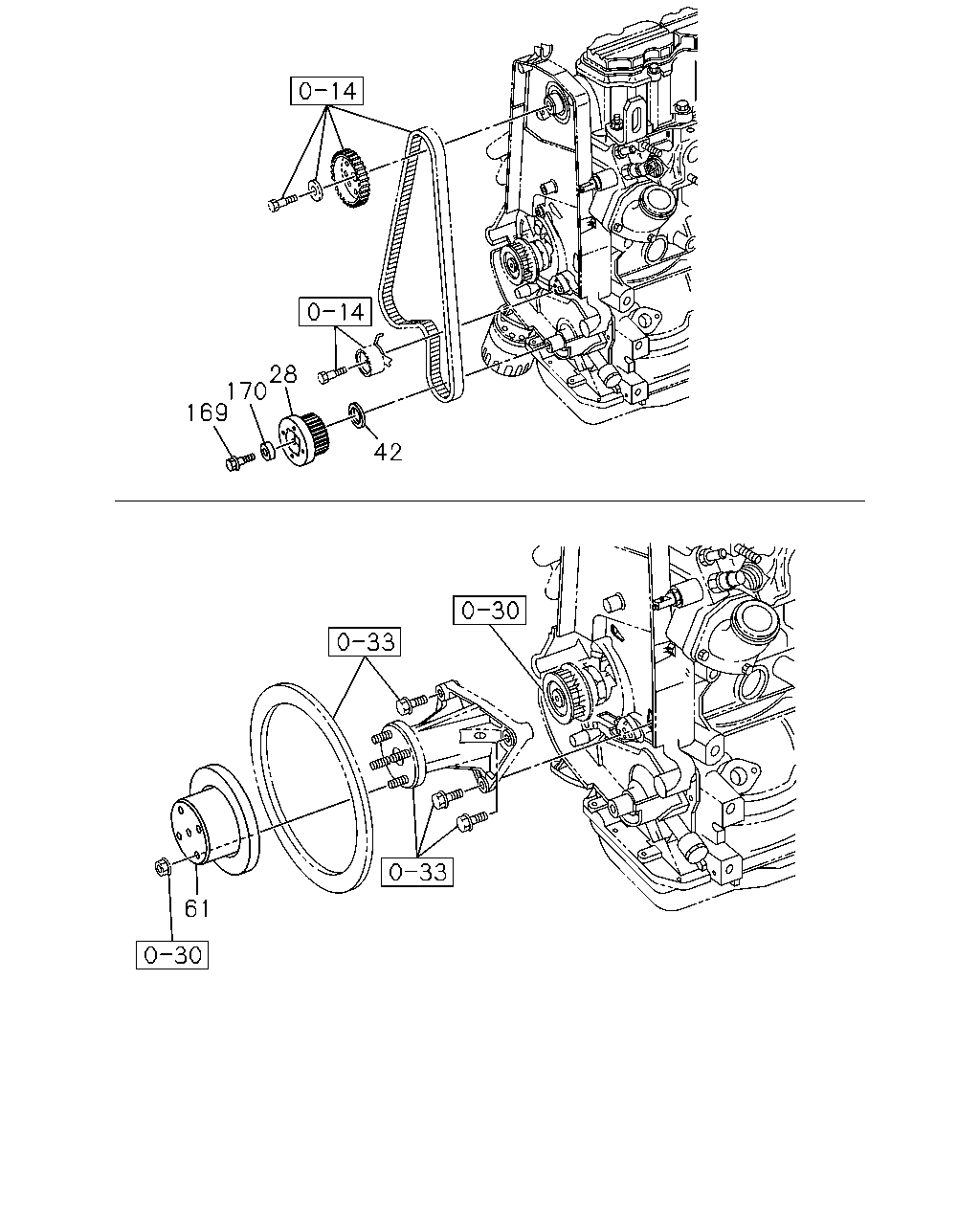

çizim 186228
28 170 169 42 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 1008- ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0810- ●
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 0810-1003 ●
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0810- ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0808-0809 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0810-1007 ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 0810-1007 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1008- ● ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 1008- ●
42 00.095 WASHER; THRUST,CR/SHF
KENYA EQUIPMENT(CL1) 		8-98040-704-0 02 1 1008- ●
42 00.095 WASHER; THRUST,CR/SHF 8-97383-751-0 02 1 0810- ●
42 00.095 WASHER; THRUST,CR/SHF
KENYA EQUIPMENT(CL1) 		8-98040-704-0 02 1 0810-1003 ●
42 00.095 WASHER; THRUST,CR/SHF 8-90156-055-0 01 1 0810-1009 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 0808-0809 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 0810-1007 ● ●
42 00.095 WASHER; THRUST,CR/SHF
EXC. KENYA EQUIPMENT(CL1) 		8-97354-055-1 02 1 0810-1007 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 1008- ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
EXC. KENYA EQUIPMENT(CL1) 		8-97354-055-1 02 1 1008- ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-94146-638-2 01 1 0810- ●
61 00.659 PULLEY; FAN DRIVE
01.062 		8-92064-197-0 01 1 0810- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 0808-0809 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 0810-1007 ● ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 1008- ● ● ● ●
169 00.659 BOLT; GEAR TO CRANKSHAFT 8-11085-932-0 01 1 0810- ●
170 00.659 WASHER; GEAR TO CRANKSHAFT 8-92023-395-0 01 1 0810-1009 ●
170 00.659 WASHER; GEAR TO CRANKSHAFT 8-93271-884-0 01 1 1010- ●

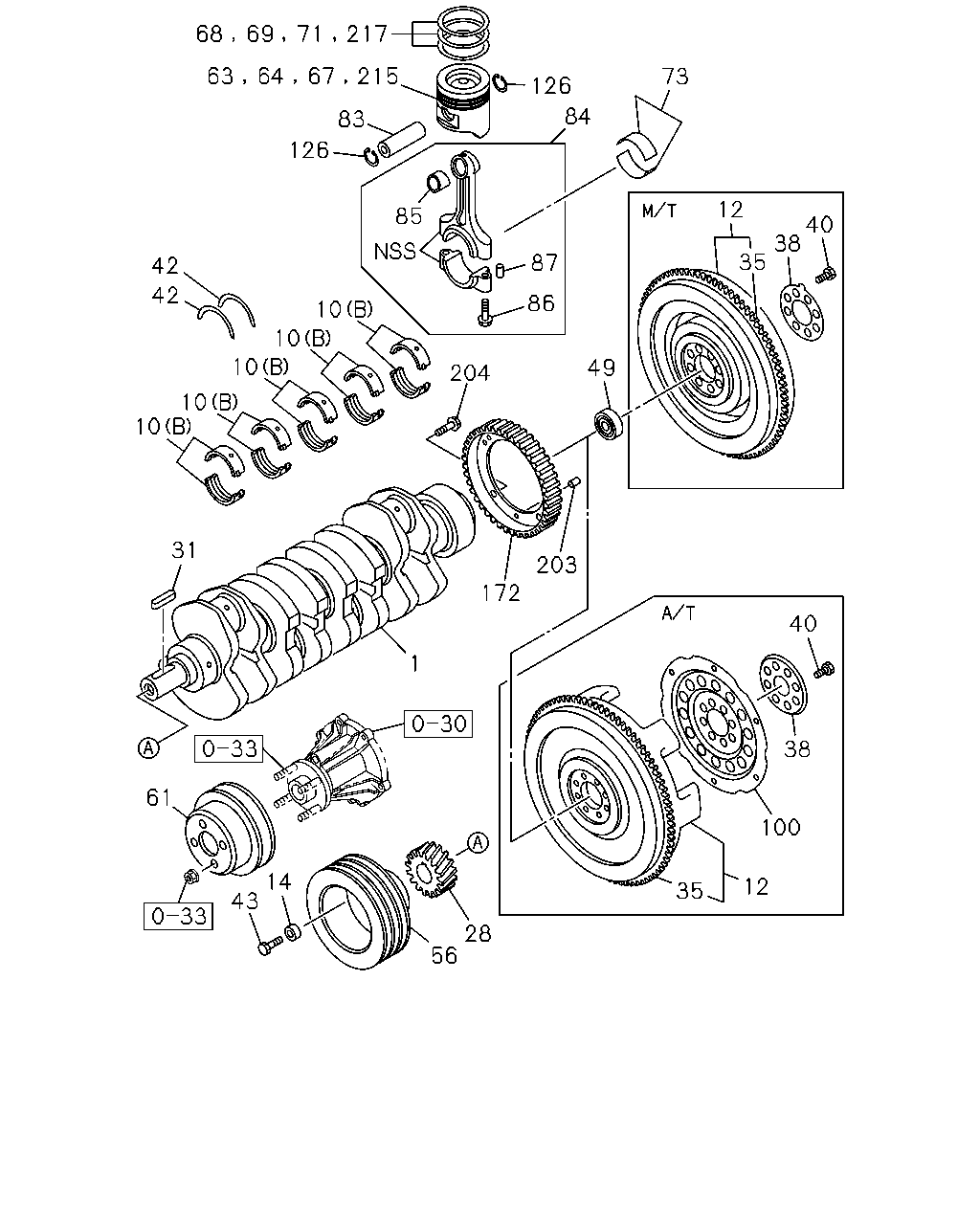

çizim 186295
68 69 71 217 63 64 67 215 83 126 42 42 10 10 10 10 10 85 126 84 73 31 204 86 87 49 172 203 1 61 43 14 56 28 12 35 38 40 35 12 100 38 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.646 CRANKSHAFT
KENYA EQUIPMENT(CL1) 		8-97388-828-4 01 1 1008-1403 ●
1 00.646 CRANKSHAFT 8-97388-828-4 01 1 1404- ● ●
1 00.646 CRANKSHAFT 8-97249-041-0 01 1 0810-0905 ●
1 00.646 CRANKSHAFT 8-97190-927-1 01 1 0906- ●
1 00.646 CRANKSHAFT
KENYA EQUIPMENT(CL1) 		8-97388-828-4 01 1 0810-1003 ●
1 00.646 CRANKSHAFT 8-93281-999-0 01 1 0810- ●
1 00.646 CRANKSHAFT 8-97372-419-2 01 1 0810-1007 ●
1 00.646 CRANKSHAFT 8-97372-419-2 01 1 1008-1108 ● ●
1 00.646 CRANKSHAFT 8-98131-999-1 01 1 1109- ● ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 0808-0809 ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 0810-1003 ●
1 00.646 CRANKSHAFT
EXC. KENYA EQUIPMENT(CL1) 		8-97311-632-1 01 1 0810-1003 ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 1004-1007 ● ●
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 1008- ●
1 00.646 CRANKSHAFT
EXC. KENYA EQUIPMENT(CL1) 		8-97311-632-1 01 1 1008- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 5 		8-97387-970-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 4 		8-97387-971-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 3 		8-97387-972-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 2 		8-97387-973-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) GRADE 1 		8-97387-974-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(A) 		8-92066-633-0 01 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GREEN 		8-97388-502-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLACK 		8-97388-503-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) BLUE 		8-97388-504-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) YELLOW 		8-97388-505-0 05 1 1008- ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 0808-0809 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 0810-1007 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) RED 		8-97388-506-0 05 1 1008- ● ● ● ●
12 00.666 FLYWHEEL
KENYA EQUIPMENT(CL1) W/RING GEAR 		8-97021-401-2 01 1 1008- ●
12 00.666 FLYWHEEL 8-94172-529-1 01 1 0810- ●
12 00.666 FLYWHEEL
KENYA EQUIPMENT(CL1) W/RING GEAR 		8-97021-401-2 01 1 0810-1003 ●
12 00.666 FLYWHEEL 8-90466-547-0 01 1 0810- ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 0810-0910 ● ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) EXC. KENYA EQUIPMENT(CL1) 		8-98077-180-0 01 1 0911-1003 ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 0911-1003 ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 1004-1007 ● ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) EXC. KENYA EQUIPMENT(CL1) 		8-98077-180-0 01 1 1008- ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 1008- ● ●
12 00.666 FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 		8-98011-631-1 01 1 0808- ●
12 00.666 FLYWHEEL
A/T AISIN(RMD) 		8-97912-517-1 01 1 0808-0809 ●
12 00.666 FLYWHEEL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97912-517-1 01 1 0810- ● ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 0808-0809 ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 0810-1007 ● ● ● ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 1008- ● ● ● ● ●
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 1008- ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0810- ●
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 0810-1003 ●
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0810- ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0808-0809 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0810-1007 ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 0810-1007 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1008- ● ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 1008- ●
31 00.662 KEY; FEATHER,CR/SHF
KENYA EQUIPMENT(CL1) 00.729 		8-94201-641-0 01 1 0810-1003 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0810-1003 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 1004-1007 ●
31 00.662 KEY; FEATHER,CR/SHF
KENYA EQUIPMENT(CL1) 00.729 		8-94201-641-0 01 1 1008-1403 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 1008-1403 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 1404- ● ● ● ● ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 0808-0809 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 0810-1007 ● ●
31 00.662 KEY; FEATHER,CR/SHF
EXC. KENYA EQUIPMENT(CL1) 00.729 		9-08030-743-0 01 1 0810-1007 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 1008- ● ● ●
31 00.662 KEY; FEATHER,CR/SHF
EXC. KENYA EQUIPMENT(CL1) 00.729 		9-08030-743-0 01 1 1008- ●
35 00.673 GEAR; RING
Z=135 		8-90136-995-0 01 1 0810-1009 ●
35 00.673 GEAR; RING
KENYA EQUIPMENT(CL1) Z=108 		8-94419-602-1 01 1 0810-1003 ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0810-1003 ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 1004-1007 ●
35 00.673 GEAR; RING
KENYA EQUIPMENT(CL1) Z=108 		8-94419-602-1 01 1 1008- ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 1008- ●
35 00.673 GEAR; RING
M/T MUX 5 SPEED 5S(MZJ) Z=122 		8-94364-395-1 01 1 0808- ●
35 00.673 GEAR; RING
A/T AISIN(RMD) Z=108 		8-97912-516-1 01 1 0808-0809 ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) EXC. KENYA EQUIPMENT(CL1) Z=108 		8-97912-516-1 01 1 0810-1003 ● ● ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) Z=108 		8-97912-516-1 01 1 1004-1007 ● ● ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) EXC. KENYA EQUIPMENT(CL1) Z=108 		8-97912-516-1 01 1 1008- ● ● ● ●
38 00.862 WASHER; FLYWHEEL
ID=50.5 OD=97 		8-98171-700-0 01 1 1006-1007 ●
38 00.862 WASHER; FLYWHEEL
KENYA EQUIPMENT(CL1) ID=50.5 OD=97 		8-98171-700-0 01 1 1008- ●
38 00.862 WASHER; FLYWHEEL
ID=50.5 OD=97 		8-98171-700-0 01 1 1008- ●
38 00.862 WASHER; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 00.669 		8-94133-970-1 01 1 0808-0809 ●
38 00.862 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 00.669 		8-94133-970-1 01 1 0810-1005 ● ● ● ●
38 00.862 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 00.669 		8-94133-970-1 01 1 1006-1007 ● ● ●
38 00.862 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) 00.669 		8-94133-970-1 01 1 1008- ● ● ● ●
38 00.862 WASHER; FLYWHEEL
A/T AISIN(RMD) 		8-97038-939-1 01 1 0808-0809 ●
38 00.862 WASHER; FLYWHEEL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97038-939-1 01 1 0810- ● ●
40 00.669 BOLT; FLYWHEEL
KENYA EQUIPMENT(CL1) M13X36 		8-97065-984-1 08 1 0810-1003 ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0810-1003 ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 1004-1007 ●
40 00.669 BOLT; FLYWHEEL
KENYA EQUIPMENT(CL1) M13X36 		8-97065-984-1 08 1 1008- ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 1008- ●
40 00.669 BOLT; FLYWHEEL 8-90285-303-0 06 1 0810-1009 ●
40 00.669 BOLT; FLYWHEEL 8-93288-625-0 06 1 1010- ●
40 00.669 BOLT; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 0808-0809 ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) M13X36 		8-97941-069-0 08 1 0810-1003 ● ● ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 1004-1007 ● ● ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) M13X36 		8-97941-069-0 08 1 1008- ● ● ● ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD) M13X78 		8-97080-561-1 08 1 0808-0809 ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M13X78 		8-97080-561-1 08 1 0810- ● ●
42 00.095 WASHER; THRUST,CR/SHF
KENYA EQUIPMENT(CL1) 		8-98040-704-0 02 1 1008- ●
42 00.095 WASHER; THRUST,CR/SHF 8-97383-751-0 02 1 0810- ●
42 00.095 WASHER; THRUST,CR/SHF
KENYA EQUIPMENT(CL1) 		8-98040-704-0 02 1 0810-1003 ●
42 00.095 WASHER; THRUST,CR/SHF 8-90156-055-0 01 1 0810-1009 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 0808-0809 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 0810-1007 ● ●
42 00.095 WASHER; THRUST,CR/SHF
EXC. KENYA EQUIPMENT(CL1) 		8-97354-055-1 02 1 0810-1007 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 1008- ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
EXC. KENYA EQUIPMENT(CL1) 		8-97354-055-1 02 1 1008- ●
43 00.662 BOLT; CR/SHF PULLEY
KENYA EQUIPMENT(CL1) M16X43 		5-09000-273-2 01 1 0810-1003 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0810-1003 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 1004-1007 ●
43 00.662 BOLT; CR/SHF PULLEY
KENYA EQUIPMENT(CL1) M16X43 		5-09000-273-2 01 1 1008- ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 1008- ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 0808-0809 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 0810-1007 ● ●
43 00.662 BOLT; CR/SHF PULLEY
EXC. KENYA EQUIPMENT(CL1) M16X43 		8-97373-852-1 01 1 0810-1007 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 1008- ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
EXC. KENYA EQUIPMENT(CL1) M16X43 		8-97373-852-1 01 1 1008- ●
49 00.669 BEARING; PILOT
KENYA EQUIPMENT(CL1) 00.649 NSK 		9-00090-679-0 01 1 1008- ●
49 00.669 BEARING; PILOT
KENYA EQUIPMENT(CL1) 00.649 NSK 		9-00090-679-0 01 1 0810-1003 ●
49 00.669 BEARING; PILOT
M/T MUX 5 SPEED 5S(MZJ) 00.096 NSK 		8-97920-344-2 01 1 0808-0809 ●
49 00.669 BEARING; PILOT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 00.096 NSK 		8-97920-344-2 01 1 0810-0912 ● ● ●
49 00.669 BEARING; PILOT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) 00.096 NSK 		8-97920-344-2 01 1 1001-1003 ● ● ●
49 00.669 BEARING; PILOT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 00.096 NSK 		8-97920-344-2 01 1 1004-1007 ● ● ●
49 00.669 BEARING; PILOT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) 00.096 NSK 		8-97920-344-2 01 1 1008- ● ● ● ●
49 00.669 BEARING; PILOT
M/T MUX 5 SPEED 5S(MZJ) NACHI 		8-97922-552-1 01 1 0808-0809 ●
49 00.669 BEARING; PILOT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) NACHI 		8-97922-552-1 01 1 0810-0912 ● ● ●
49 00.669 BEARING; PILOT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) NACHI 		8-97922-552-1 01 1 1001-1003 ● ● ●
49 00.669 BEARING; PILOT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) NACHI 		8-97922-552-1 01 1 1004-1007 ● ● ●
49 00.669 BEARING; PILOT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. KENYA EQUIPMENT(CL1) NACHI 		8-97922-552-1 01 1 1008- ● ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-97306-533-5 01 1 0810- ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-97361-562-1 01 1 0808-0809 ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-97361-562-1 01 1 0810-1007 ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-97361-562-1 01 1 1008- ● ● ● ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-94146-638-2 01 1 0810- ●
61 00.659 PULLEY; FAN DRIVE
01.062 		8-92064-197-0 01 1 0810- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 0808-0809 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 0810-1007 ● ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 1008- ● ● ● ●
63 00.629 PISTON
GRADE=A 		8-98133-458-1 04 1 1202- ●
63 00.629 PISTON
GRADE=B 		8-98133-459-1 04 1 1202- ●
63 00.629 PISTON
GRADE=C 		8-98133-460-1 04 1 1202- ●
63 00.629 PISTON
GRADE=AX ALSO INCLUDED IN LINER SET. 		8-97942-985-0 04 1 0810- ●
63 00.629 PISTON
GRADE=CX ALSO INCLUDED IN LINER SET. 		8-97942-986-0 04 1 0810- ●
63 00.629 PISTON 8-93292-774-0 04 1 0810-1009 ●
63 00.629 PISTON 8-92061-386-0 04 1 1010- ●
63 00.629 PISTON
GRADE=A 		8-97355-671-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=A 		8-97355-671-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=B 		8-97355-672-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=B 		8-97355-672-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=C 		8-97355-673-2 04 1 0810-1007 ●
63 00.629 PISTON
GRADE=C 		8-97355-673-2 04 1 1008- ● ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=A 		8-98028-116-0 04 1 1202- ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=B 		8-98028-117-0 04 1 1202- ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 0808-0809 ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 0810-1201 ● ●
63 00.629 PISTON
GRADE=C 		8-98028-118-0 04 1 1202- ●
64 00.629 PISTON; O/S=0.50 8-98132-711-1 04 1 1202- ●
64 00.629 PISTON; O/S=0.50 8-93282-455-0 04 1 0810-1009 ●
64 00.629 PISTON; O/S=0.50 8-92061-702-0 04 1 1010- ●
64 00.629 PISTON; O/S=0.50 8-98028-031-0 04 1 0808-0809 ●
64 00.629 PISTON; O/S=0.50 8-98028-031-0 04 1 0810-1201 ● ●
64 00.629 PISTON; O/S=0.50 8-98028-031-0 04 1 1202- ●
64 00.629 PISTON; O/S=0.50 8-97388-330-0 04 1 0810-1007 ●
64 00.629 PISTON; O/S=0.50 8-97388-330-0 04 1 1008- ● ●
67 00.629 PISTON; O/S=0.25 8-98132-710-1 04 1 1202- ●
67 00.629 PISTON; O/S=0.25 8-93282-453-0 04 1 0810-1009 ●
67 00.629 PISTON; O/S=0.25 8-97388-329-0 04 1 0810-1007 ●
67 00.629 PISTON; O/S=0.25 8-97388-329-0 04 1 1008- ● ●
67 00.629 PISTON; O/S=0.25 8-98028-030-0 04 1 0808-0809 ●
67 00.629 PISTON; O/S=0.25 8-98028-030-0 04 1 0810-1201 ● ●
67 00.629 PISTON; O/S=0.25 8-98028-030-0 04 1 1202- ●
68 00.643 RING SET; PISTON,STANDARD 8-98171-044-0 04 1 1201- ●
68 00.643 RING SET; PISTON,STANDARD
KENYA EQUIPMENT(CL1) 		8-98173-004-0 04 1 1008-1112 ●
68 00.643 RING SET; PISTON,STANDARD
FOR TRUCK-BUS USERS 		8-98173-004-0 04 1 1201- ● ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97319-087-1 04 1 0810- ●
68 00.643 RING SET; PISTON,STANDARD 8-92066-631-0 01 1 0810-1009 ●
68 00.643 RING SET; PISTON,STANDARD 8-92029-793-0 01 1 1010- ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-0 04 1 0808-0809 ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-1 04 1 0810-1007 ● ● ●
68 00.643 RING SET; PISTON,STANDARD 8-98096-676-1 04 1 1008-1112 ● ● ● ●
68 00.643 RING SET; PISTON,STANDARD
STANDARD SPEC 		8-98096-676-1 04 1 1201- ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92066-632-0 01 1 0810-1007 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92066-632-0 01 1 1008-1009 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92029-795-0 01 1 1010- ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98171-046-0 04 1 1201- ●
69 00.643 RING SET; PISTON,O/S=0.50
KENYA EQUIPMENT(CL1) 		8-98173-006-0 04 1 1008-1112 ●
69 00.643 RING SET; PISTON,O/S=0.50
FOR TRUCK-BUS USERS 		8-98173-006-0 04 1 1201- ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98096-562-0 04 1 0808-0809 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98096-562-1 04 1 0810-1007 ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98096-562-1 04 1 1008-1112 ● ● ● ●
69 00.643 RING SET; PISTON,O/S=0.50
STANDARD SPEC 		8-98096-562-1 04 1 1201- ● ● ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98171-045-0 04 1 1201- ●
71 00.643 RING SET; PISTON,O/S=0.25
KENYA EQUIPMENT(CL1) 		8-98173-005-0 04 1 1008-1112 ●
71 00.643 RING SET; PISTON,O/S=0.25
FOR TRUCK-BUS USERS 		8-98173-005-0 04 1 1201- ● ● ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98096-561-0 04 1 0808-0809 ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98096-561-1 04 1 0810-1007 ● ● ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98096-561-1 04 1 1008-1112 ● ● ● ●
71 00.643 RING SET; PISTON,O/S=0.25
STANDARD SPEC 		8-98096-561-1 04 1 1201- ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0810- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 0808-0809 ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 0810-1007 ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 1008- ● ● ● ●
83 00.636 PIN; PISTON
KENYA EQUIPMENT(CL1) 		8-98015-193-1 04 1 1008- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0810- ●
83 00.636 PIN; PISTON
KENYA EQUIPMENT(CL1) 		8-98015-193-1 04 1 0810-1003 ●
83 00.636 PIN; PISTON 8-97311-928-2 04 1 0808-0809 ●
83 00.636 PIN; PISTON 8-97311-928-2 04 1 0810-0910 ● ●
83 00.636 PIN; PISTON
EXC. KENYA EQUIPMENT(CL1) 		8-97311-928-2 04 1 0810-0910 ●
83 00.636 PIN; PISTON 8-98150-333-0 04 1 0911-1007 ● ●
83 00.636 PIN; PISTON
EXC. KENYA EQUIPMENT(CL1) 		8-98150-333-0 04 1 0911-1007 ●
83 00.636 PIN; PISTON 8-98150-333-0 04 1 1008- ● ● ●
83 00.636 PIN; PISTON
EXC. KENYA EQUIPMENT(CL1) 		8-98150-333-0 04 1 1008- ●
84 00.603 ROD ASM; CONN
KENYA EQUIPMENT(CL1) 		8-97388-921-2 04 1 1008- ●
84 00.603 ROD ASM; CONN 8-98012-611-2 04 1 0810- ●
84 00.603 ROD ASM; CONN
KENYA EQUIPMENT(CL1) 		8-97388-921-2 04 1 0810-1003 ●
84 00.603 ROD ASM; CONN 8-90530-169-0 04 1 0810- ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 0808-0809 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 0810-1007 ● ●
84 00.603 ROD ASM; CONN
EXC. KENYA EQUIPMENT(CL1) 		8-97357-716-3 04 1 0810-1007 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 1008- ● ● ●
84 00.603 ROD ASM; CONN
EXC. KENYA EQUIPMENT(CL1) 		8-97357-716-3 04 1 1008- ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET. 		8-97352-889-0 04 1 0810- ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 0808-0809 ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 0810-1007 ● ● ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 1008- ● ● ● ●
86 00.623 BOLT; CONNROD
M11X59 		5-12235-009-0 08 1 0810- ●
86 00.623 BOLT; CONNROD 8-90281-736-0 08 1 0810- ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0808-0809 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 0810-1007 ● ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1008- ● ● ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0808-0809 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 0810-1007 ● ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 1008- ● ● ● ●
100 00.666 PLATE; FLEX
A/T AISIN(RMD) 		8-97118-308-0 01 1 0808-0809 ●
100 00.666 PLATE; FLEX
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97118-308-0 01 1 0810- ● ●
126 00.639 RING; SNAP,PISTON PIN
ID=33.9 ALSO INCLUDED IN LINER SET. 		8-94133-969-0 08 1 0810- ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 0808-0809 ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 0810-1007 ● ● ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 1008- ● ● ● ●
172 02.383 ROTOR; CRANK SENSOR
KENYA EQUIPMENT(CL1) 		8-98163-693-0 01 1 1102- ●
172 02.383 ROTOR; CRANK SENSOR 8-97312-337-0 01 1 0808-0809 ●
172 02.383 ROTOR; CRANK SENSOR 8-97312-337-0 01 1 0810-1007 ● ● ●
172 02.383 ROTOR; CRANK SENSOR 8-97312-337-0 01 1 1008-1101 ● ● ● ●
172 02.383 ROTOR; CRANK SENSOR 8-97312-337-0 01 1 1102- ● ● ●
172 02.383 ROTOR; CRANK SENSOR
EXC. KENYA EQUIPMENT(CL1) 		8-97312-337-0 01 1 1102- ●
203 01.150 PIN; ROTOR
00.613 OD=5 L=8 		9-08160-508-0 01 1 0808-0809 ●
203 01.150 PIN; ROTOR
00.613 OD=5 L=8 		9-08160-508-0 01 1 0810-1007 ● ● ●
203 01.150 PIN; ROTOR
00.613 OD=5 L=8 		9-08160-508-0 01 1 1008- ● ● ● ●
204 01.150 BOLT; ROTOR
KENYA EQUIPMENT(CL1) 02.383 M6X10 		8-98038-343-0 03 1 1008- ●
204 01.150 BOLT; ROTOR
KENYA EQUIPMENT(CL1) 02.383 M6X10 		8-98038-343-0 03 1 0810-1003 ●
204 01.150 BOLT; ROTOR 8-97944-142-1 03 1 0808-0809 ●
204 01.150 BOLT; ROTOR 8-97944-142-1 03 1 0810-1007 ● ●
204 01.150 BOLT; ROTOR
EXC. KENYA EQUIPMENT(CL1) 		8-97944-142-1 03 1 0810-1007 ●
204 01.150 BOLT; ROTOR 8-97944-142-1 03 1 1008- ● ● ●
204 01.150 BOLT; ROTOR
EXC. KENYA EQUIPMENT(CL1) 		8-97944-142-1 03 1 1008- ●
215 00.629 PISTON; O/S=0.75 8-98132-712-1 04 1 1202- ●
215 00.629 PISTON; O/S=0.75 8-98028-032-0 04 1 0808-0809 ●
215 00.629 PISTON; O/S=0.75 8-98028-032-0 04 1 0810-1201 ● ●
215 00.629 PISTON; O/S=0.75 8-98028-032-0 04 1 1202- ●
215 00.629 PISTON; O/S=0.75 8-97388-331-0 04 1 0810-1007 ●
215 00.629 PISTON; O/S=0.75 8-97388-331-0 04 1 1008- ● ●
217 00.643 RING SET; PISTON,O/S=0.75 8-98171-047-0 04 1 1201- ●
217 00.643 RING SET; PISTON,O/S=0.75
KENYA EQUIPMENT(CL1) 		8-98173-007-0 04 1 1008-1112 ●
217 00.643 RING SET; PISTON,O/S=0.75
FOR TRUCK-BUS USERS 		8-98173-007-0 04 1 1201- ● ● ●
217 00.643 RING SET; PISTON,O/S=0.75 8-98096-563-0 04 1 0808-0809 ●
217 00.643 RING SET; PISTON,O/S=0.75 8-98096-563-1 04 1 0810-1007 ● ● ●
217 00.643 RING SET; PISTON,O/S=0.75 8-98096-563-1 04 1 1008-1112 ● ● ● ●
217 00.643 RING SET; PISTON,O/S=0.75
STANDARD SPEC 		8-98096-563-1 04 1 1201- ● ● ●
çizim 186296
28 170 169 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 1008- ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0810- ●
28 00.728 GEAR; CR/SHF
KENYA EQUIPMENT(CL1) Z=44 		8-97386-232-1 01 1 0810-1003 ●
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0810- ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0808-0809 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 0810-1007 ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 0810-1007 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1008- ● ● ●
28 00.728 GEAR; CR/SHF
EXC. KENYA EQUIPMENT(CL1) Z=44 		8-97312-199-1 01 1 1008- ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-94146-638-2 01 1 0810- ●
61 00.659 PULLEY; FAN DRIVE
01.062 		8-92064-197-0 01 1 0810- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 0808-0809 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 0810-1007 ● ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 1008- ● ● ● ●
169 00.659 BOLT; GEAR TO CRANKSHAFT 8-11085-932-0 01 1 0810- ●
170 00.659 WASHER; GEAR TO CRANKSHAFT 8-92023-395-0 01 1 0810-1009 ●
170 00.659 WASHER; GEAR TO CRANKSHAFT 8-93271-884-0 01 1 1010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
