Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#76941) — 590 parça

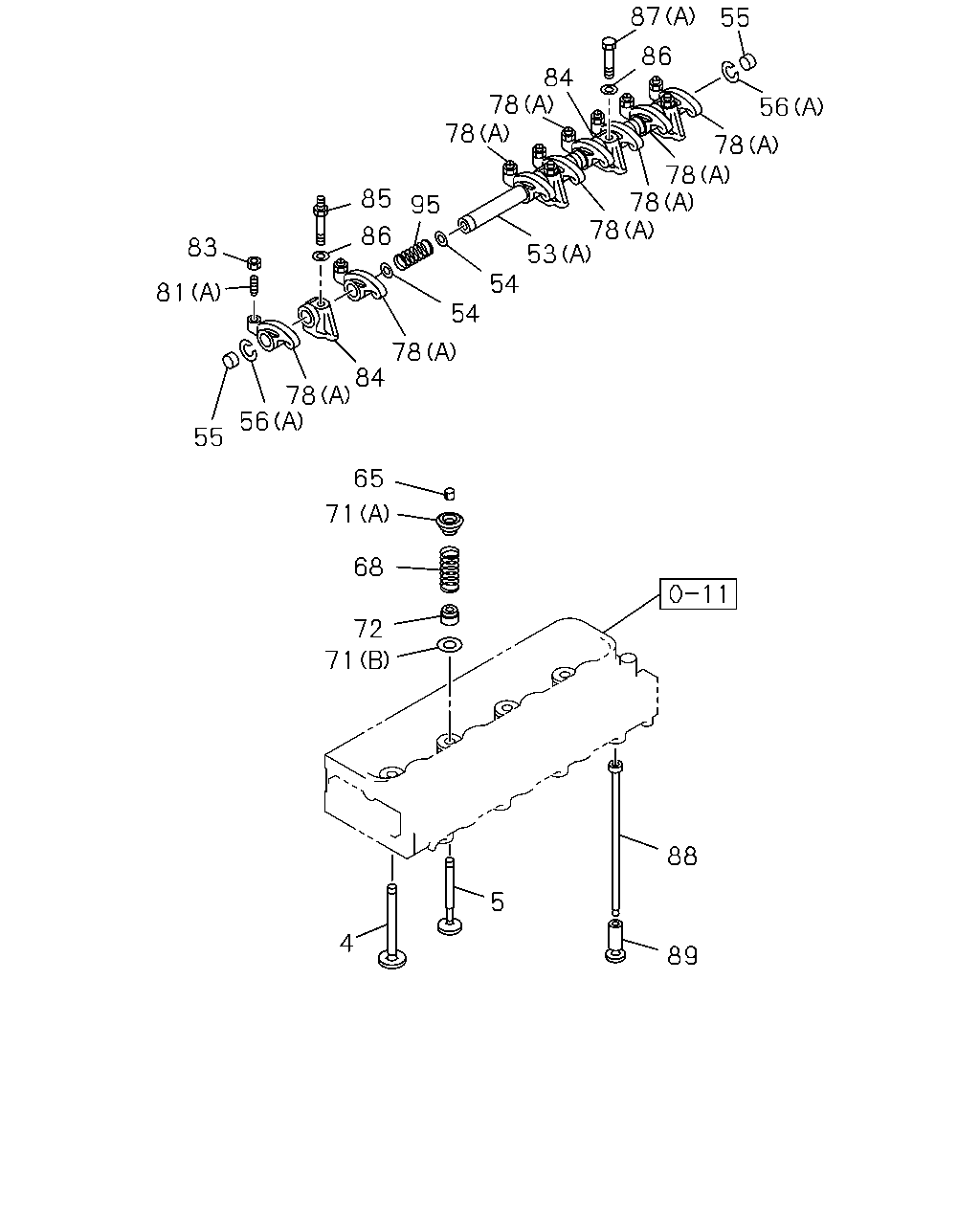

87 55 86 84 78 78 56 78 78 78 78 85 95 86 83 53 54 54 81 78 84 78 56 55 65 71 68 72 71 88 5 4 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	00.296 VALVE; INL KENYA EQUIPMENT(CL1)	8-98016-973-0	08	1	1008-1409	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1410-	●	●	●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	0810-					●
4	00.296 VALVE; INL KENYA EQUIPMENT(CL1)	8-98016-973-0	08	1	0810-1003	●
4	00.296 VALVE; INL STD	8-90220-121-0	04	1	0810-1009						●
4	00.296 VALVE; INL	8-90220-119-0	04	1	1010-						●
4	00.296 VALVE; INL OVSI=0.15	8-90220-123-0	04	1	0810-1009						●
4	00.296 VALVE; INL OVSI=0.25	8-90220-124-0	04	1	0810-1009						●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0808-0809				●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0810-1007			●	●
4	00.296 VALVE; INL EXC. KENYA EQUIPMENT(CL1)	8-97309-675-1	08	1	0810-1007	●
4	00.296 VALVE; INL	8-97309-675-1	08	1	1008-		●	●	●
4	00.296 VALVE; INL EXC. KENYA EQUIPMENT(CL1)	8-97309-675-1	08	1	1008-	●
5	00.297 VALVE; EXH KENYA EQUIPMENT(CL1)	8-98016-974-1	08	1	1008-	●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	0810-1405					●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-					●
5	00.297 VALVE; EXH KENYA EQUIPMENT(CL1)	8-98016-974-1	08	1	0810-1003	●
5	00.297 VALVE; EXH STD	8-90323-757-0	04	1	0810-1009						●
5	00.297 VALVE; EXH	8-90323-756-0	04	1	1010-						●
5	00.297 VALVE; EXH OVSI=0.15	8-90323-759-0	04	1	0810-1009						●
5	00.297 VALVE; EXH OVSI=0.25	8-90323-760-0	04	1	0810-1009						●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0808-0809				●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0810-1007			●	●
5	00.297 VALVE; EXH EXC. KENYA EQUIPMENT(CL1)	8-97309-677-1	08	1	0810-1007	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	1008-		●	●	●
5	00.297 VALVE; EXH EXC. KENYA EQUIPMENT(CL1)	8-97309-677-1	08	1	1008-	●

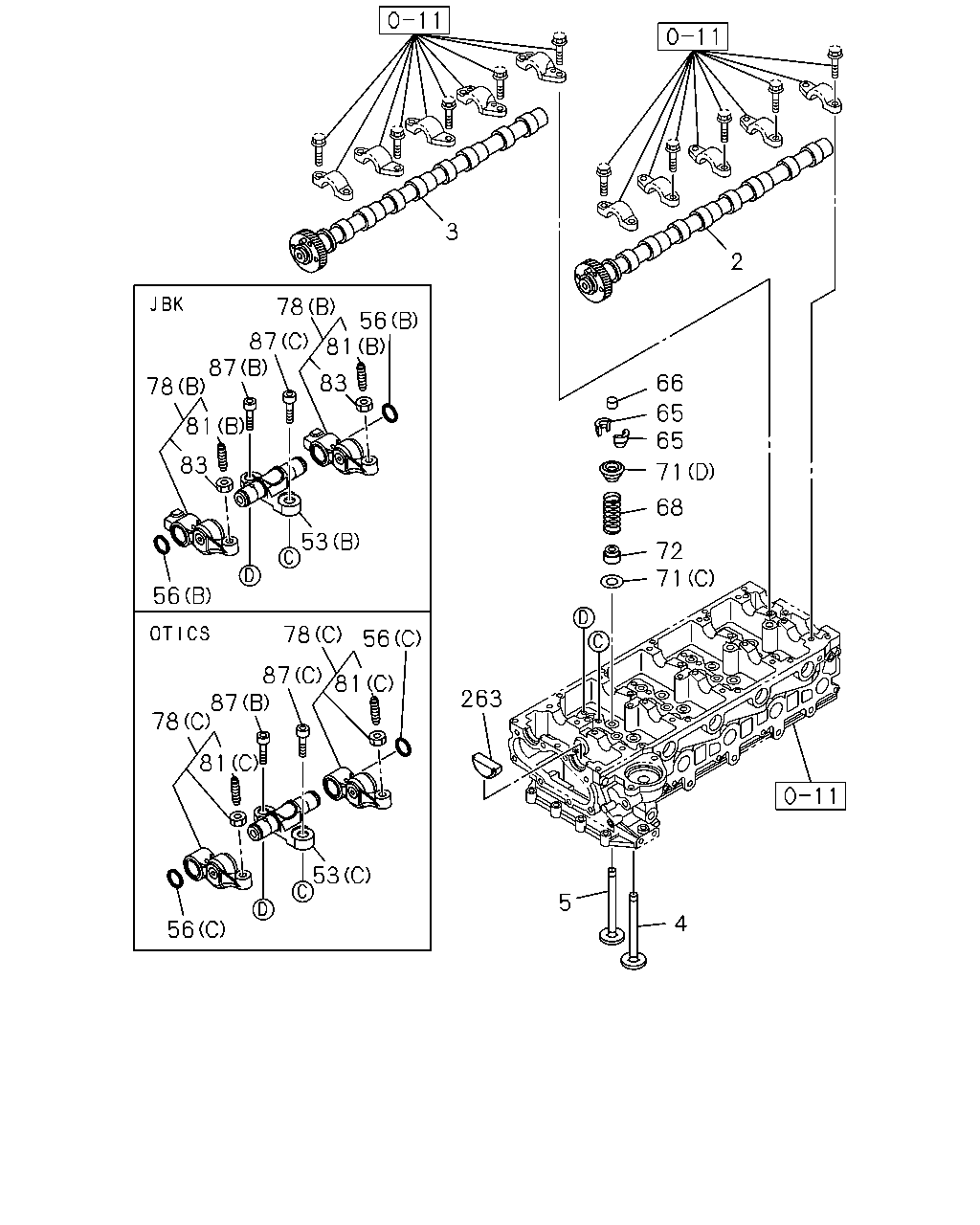

53	00.353 SHAFT; ROCKER ARM KENYA EQUIPMENT(CL1) (B) INLET JBK	8-98025-071-1	04	1	1008-	●
53	00.353 SHAFT; ROCKER ARM KENYA EQUIPMENT(CL1) (B) EXHAUST JBK	8-98025-074-1	04	1	1008-	●
53	00.353 SHAFT; ROCKER ARM (A)	8-97036-197-0	01	1	0810-					●
53	00.353 SHAFT; ROCKER ARM KENYA EQUIPMENT(CL1) (B) INLET JBK	8-98025-071-1	04	1	0810-1003	●
53	00.353 SHAFT; ROCKER ARM KENYA EQUIPMENT(CL1) (B) EXHAUST JBK	8-98025-074-1	04	1	0810-1003	●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	0808-0809				●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	0810-0912			●	●
53	00.353 SHAFT; ROCKER ARM EXC. KENYA EQUIPMENT(CL1) (C) INLET OTICS	8-97364-809-2	04	1	0810-0912	●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1001-1007	●		●	●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1008-	●	●	●	●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	0808-0809				●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	0810-0912			●	●
53	00.353 SHAFT; ROCKER ARM EXC. KENYA EQUIPMENT(CL1) (C) EXHAUST OTICS	8-97364-811-2	04	1	0810-0912	●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1001-1007	●		●	●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1008-	●	●	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0810-					●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0810-					●
56	00.349 RING; SNAP,ROCKER ARM KENYA EQUIPMENT(CL1) 00.353 (B)	8-98025-496-0	16	1	1008-	●
56	00.349 RING; SNAP,ROCKER ARM (A) ID=17.5	9-09180-019-0	02	1	0810-					●
56	00.349 RING; SNAP,ROCKER ARM KENYA EQUIPMENT(CL1) 00.353 (B)	8-98025-496-0	16	1	0810-1003	●
56	00.349 RING; SNAP,ROCKER ARM (C)	8-98109-470-0	16	1	0808-0809				●
56	00.349 RING; SNAP,ROCKER ARM (C)	8-98109-470-0	16	1	0810-0912			●	●
56	00.349 RING; SNAP,ROCKER ARM EXC. KENYA EQUIPMENT(CL1) (C)	8-98109-470-0	16	1	0810-0912	●
56	00.349 RING; SNAP,ROCKER ARM (C)	8-98109-470-0	16	1	1001-1007	●		●	●
56	00.349 RING; SNAP,ROCKER ARM (C)	8-98109-470-0	16	1	1008-	●	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0810-					●
65	00.310 COLLAR; SPLIT	8-90076-745-0	08	1	0810-						●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0808-0809				●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0810-1007	●		●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1008-	●	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0810-					●
68	00.303 SPRING; VLV	8-90501-491-0	08	1	0810-						●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0808-0809				●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0810-1007	●		●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	1008-	●	●	●	●
71	00.309 SEAT; SPR (F)	8-93369-526-0	04	1	1010-						●
71	00.309 SEAT; SPR KENYA EQUIPMENT(CL1) (D)	8-98017-067-0	16	1	1008-	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0810-					●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0810-					●
71	00.309 SEAT; SPR KENYA EQUIPMENT(CL1) (D)	8-98017-067-0	16	1	0810-1003	●
71	00.309 SEAT; SPR (E)	8-90128-720-0	04	1	0810-						●
71	00.309 SEAT; SPR 00.283 (F)	8-90499-099-0	04	1	0810-1009						●
71	00.309 SEAT; SPR (G)	8-52261-643-0	04	1	1010-						●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	0808-0809				●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	0810-1007	●		●	●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	1008-	●	●	●	●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	0808-0809				●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	0810-1007			●	●
71	00.309 SEAT; SPR EXC. KENYA EQUIPMENT(CL1) (D) OD=29.5	8-97311-668-0	16	1	0810-1007	●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	1008-		●	●	●
71	00.309 SEAT; SPR EXC. KENYA EQUIPMENT(CL1) (D) OD=29.5	8-97311-668-0	16	1	1008-	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	0810-					●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	0808-0809				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	0810-1007	●		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	1008-	●	●	●	●
78	00.333 ARM; ROCKER KENYA EQUIPMENT(CL1) 00.353 (B) JBK	8-98025-059-4	16	1	1008-	●
78	00.333 ARM; ROCKER (A)	8-94152-344-0	08	1	0810-					●
78	00.333 ARM; ROCKER KENYA EQUIPMENT(CL1) 00.353 (B) JBK	8-98025-059-2	16	1	0810-1003	●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-2	16	1	0808-0809				●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-2	16	1	0810-0912			●	●
78	00.333 ARM; ROCKER EXC. KENYA EQUIPMENT(CL1) (C) OTICS	8-98029-537-2	16	1	0810-0912	●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-4	16	1	1001-1007	●		●	●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-6	16	1	1008-	●	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM KENYA EQUIPMENT(CL1) (B) M8 L=22	8-98025-497-0	16	1	1008-	●
81	00.429 SCREW; ADJ,ROCKER ARM KENYA EQUIPMENT(CL1) (C) M8 L=22	8-98029-893-0	16	1	1008-1102	●
81	00.429 SCREW; ADJ,ROCKER ARM (C) M8 L=22	8-98029-893-0	16	1	1103-	●	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM KENYA EQUIPMENT(CL1) (C) M8 L=22	8-98029-893-0	16	1	1001-1003	●
81	00.429 SCREW; ADJ,ROCKER ARM KENYA EQUIPMENT(CL1) (B) M8 L=22	8-98025-497-0	16	1	0810-1003	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=30	8-94152-283-1	08	1	0810-					●
83	00.787 NUT; ADJ SCREW,LK KENYA EQUIPMENT(CL1) 00.429 M8 FLANGE	9-09844-574-0	16	1	1008-	●
83	00.787 NUT; ADJ SCREW,LK KENYA EQUIPMENT(CL1) 00.429 M8 FLANGE	9-09844-574-0	16	1	0810-1003	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0810-					●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0810-					●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	02	1	0810-					●
85	00.349 BOLT; BRKT M8X37 & M10X60 L=104	8-94437-493-1	01	1	0810-					●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0810-					●
87	00.349 BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	0810-					●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	0808-0809				●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	0810-1007	●		●	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1008-	●	●	●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	0808-0809				●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	0810-1007	●		●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	1008-	●	●	●	●
88	00.426 ROD; PUSH	8-97378-496-0	08	1	0810-					●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0810-					●
89	00.459 TAPPET; VLV	8-90409-194-0	08	1	0810-1009						●
89	00.459 TAPPET; VLV	8-93307-104-0	08	1	1010-						●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0810-					●

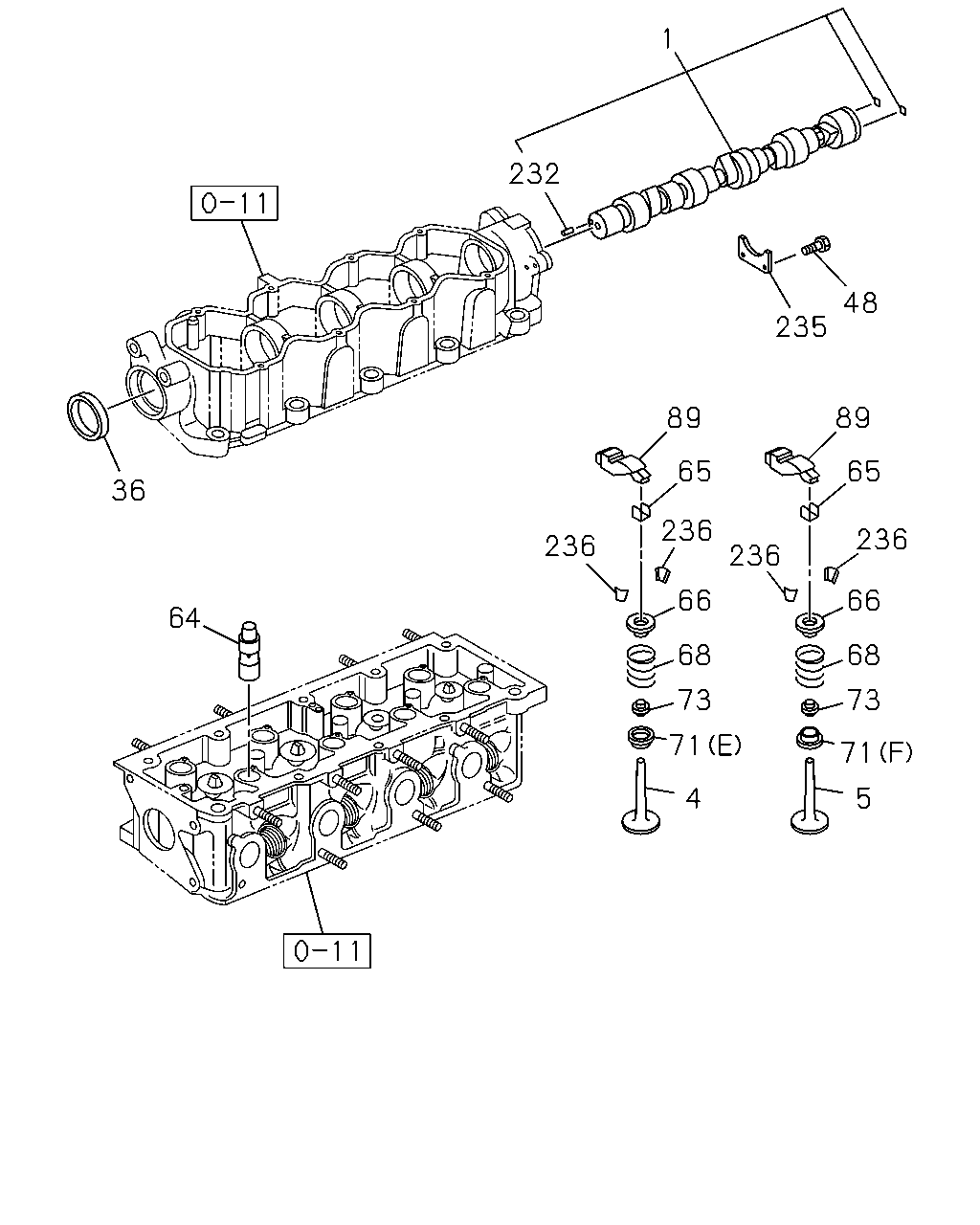

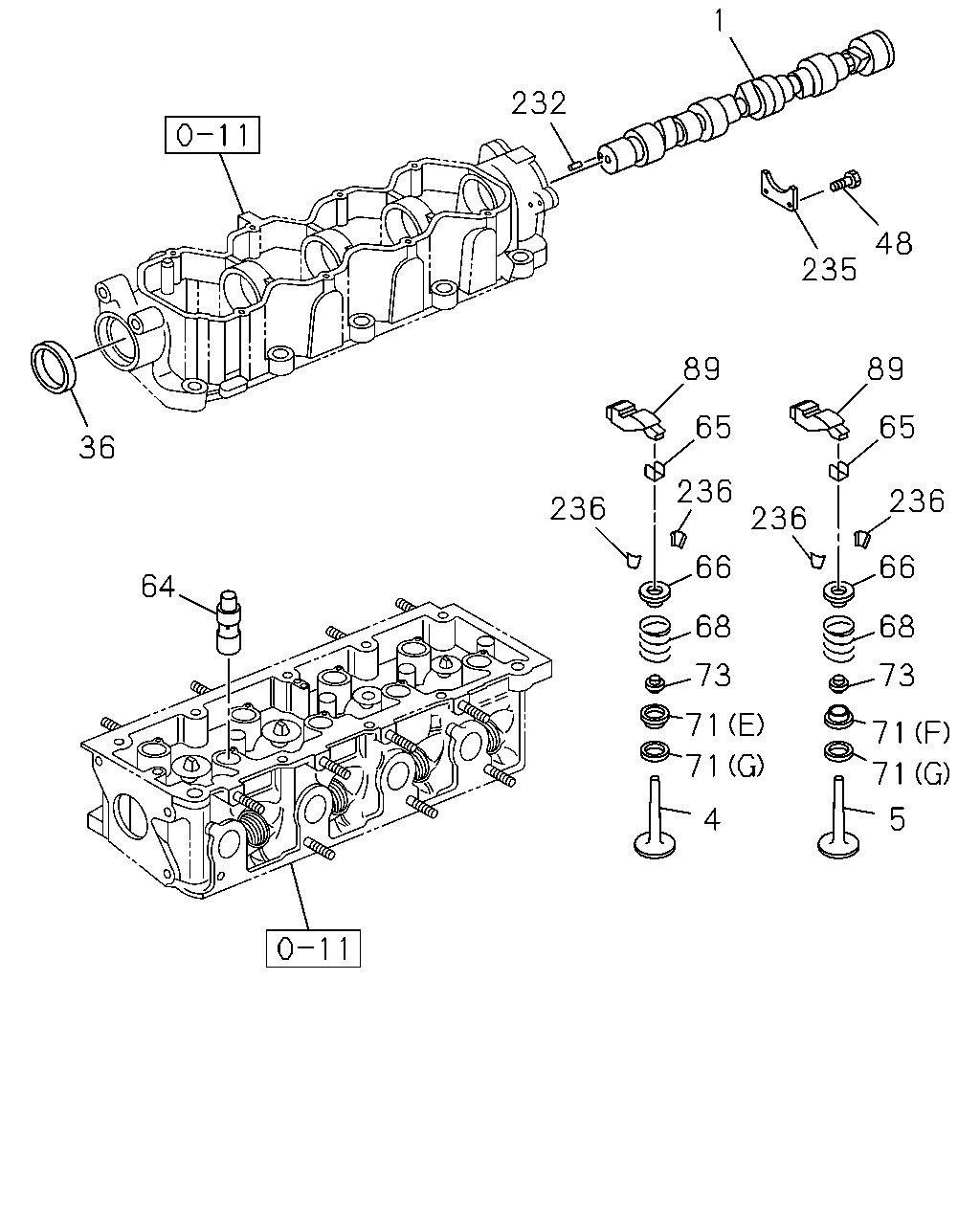

1 232 48 235 89 89 65 65 36 236 236 236 236 66 66 64 68 68 73 73 71 71 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

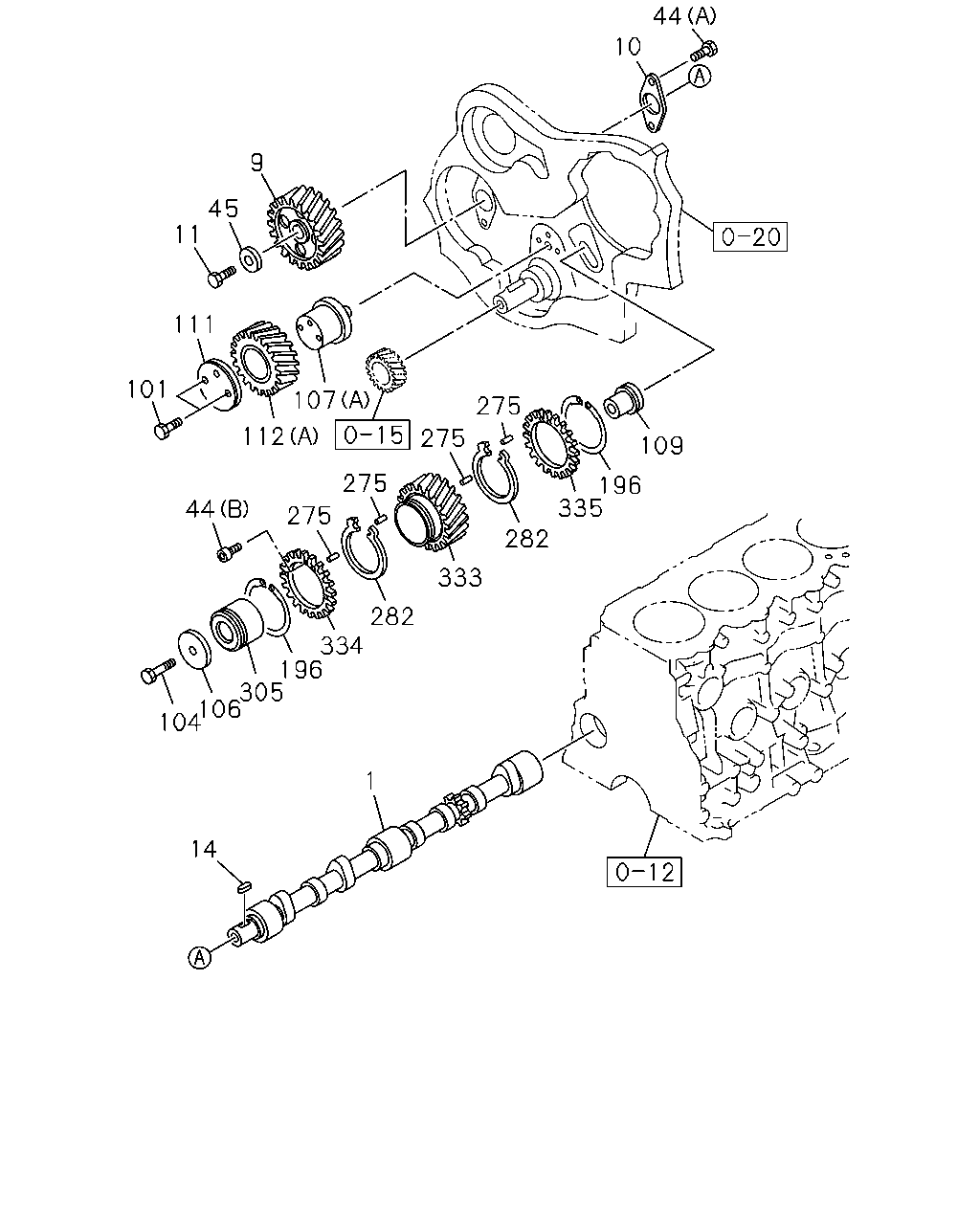

1	00.519 CAMSHAFT	8-97287-657-1	01	1	0810-					●
1	00.519 CAMSHAFT	8-92065-519-0	01	1	0810-1009						●
1	00.519 CAMSHAFT	8-90233-484-0	01	1	1010-						●
4	00.296 VALVE; INL KENYA EQUIPMENT(CL1)	8-98016-973-0	08	1	1008-1409	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1410-	●	●	●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	0810-					●
4	00.296 VALVE; INL KENYA EQUIPMENT(CL1)	8-98016-973-0	08	1	0810-1003	●
4	00.296 VALVE; INL STD	8-90220-121-0	04	1	0810-1009						●
4	00.296 VALVE; INL	8-90220-119-0	04	1	1010-						●
4	00.296 VALVE; INL OVSI=0.15	8-90220-123-0	04	1	0810-1009						●
4	00.296 VALVE; INL OVSI=0.25	8-90220-124-0	04	1	0810-1009						●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0808-0809				●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0810-1007			●	●
4	00.296 VALVE; INL EXC. KENYA EQUIPMENT(CL1)	8-97309-675-1	08	1	0810-1007	●
4	00.296 VALVE; INL	8-97309-675-1	08	1	1008-		●	●	●
4	00.296 VALVE; INL EXC. KENYA EQUIPMENT(CL1)	8-97309-675-1	08	1	1008-	●
5	00.297 VALVE; EXH KENYA EQUIPMENT(CL1)	8-98016-974-1	08	1	1008-	●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	0810-1405					●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-					●
5	00.297 VALVE; EXH KENYA EQUIPMENT(CL1)	8-98016-974-1	08	1	0810-1003	●
5	00.297 VALVE; EXH STD	8-90323-757-0	04	1	0810-1009						●
5	00.297 VALVE; EXH	8-90323-756-0	04	1	1010-						●
5	00.297 VALVE; EXH OVSI=0.15	8-90323-759-0	04	1	0810-1009						●
5	00.297 VALVE; EXH OVSI=0.25	8-90323-760-0	04	1	0810-1009						●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0808-0809				●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0810-1007			●	●
5	00.297 VALVE; EXH EXC. KENYA EQUIPMENT(CL1)	8-97309-677-1	08	1	0810-1007	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	1008-		●	●	●
5	00.297 VALVE; EXH EXC. KENYA EQUIPMENT(CL1)	8-97309-677-1	08	1	1008-	●
36	00.533 SEAL; OIL,CM/SHF,FRT	8-90280-463-0	01	1	0810-						●
48	00.724 BOLT; RET	8-90264-407-0	02	1	0810-1009						●
48	00.724 BOLT; RET 04.312	8-11078-142-0	02	1	1010-						●
64	00.459 ADJUSTER; VLV LASH	8-05233-315-0	08	1	0810-						●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0810-					●
65	00.310 COLLAR; SPLIT	8-90076-745-0	08	1	0810-						●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0808-0809				●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0810-1007	●		●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1008-	●	●	●	●
66	00.303 CAP; VLV STEM END KENYA EQUIPMENT(CL1)	8-98147-945-0	16	1	0911-0911	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	0911-1007	●		●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1008-	●	●	●	●
66	00.303 CAP; VLV STEM END	8-90169-987-0	08	1	0810-						●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0808-0809				●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0810-0910	●		●	●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0911-0911			●	●
66	00.303 CAP; VLV STEM END EXC. KENYA EQUIPMENT(CL1)	8-98029-870-1	16	1	0911-0911	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0810-					●
68	00.303 SPRING; VLV	8-90501-491-0	08	1	0810-						●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0808-0809				●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0810-1007	●		●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	1008-	●	●	●	●
71	00.309 SEAT; SPR (F)	8-93369-526-0	04	1	1010-						●
71	00.309 SEAT; SPR KENYA EQUIPMENT(CL1) (D)	8-98017-067-0	16	1	1008-	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0810-					●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0810-					●
71	00.309 SEAT; SPR KENYA EQUIPMENT(CL1) (D)	8-98017-067-0	16	1	0810-1003	●
71	00.309 SEAT; SPR (E)	8-90128-720-0	04	1	0810-						●
71	00.309 SEAT; SPR 00.283 (F)	8-90499-099-0	04	1	0810-1009						●
71	00.309 SEAT; SPR (G)	8-52261-643-0	04	1	1010-						●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	0808-0809				●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	0810-1007	●		●	●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	1008-	●	●	●	●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	0808-0809				●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	0810-1007			●	●
71	00.309 SEAT; SPR EXC. KENYA EQUIPMENT(CL1) (D) OD=29.5	8-97311-668-0	16	1	0810-1007	●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	1008-		●	●	●
71	00.309 SEAT; SPR EXC. KENYA EQUIPMENT(CL1) (D) OD=29.5	8-97311-668-0	16	1	1008-	●
73	00.309 SEAL; VLV GUIDE	8-90215-296-0	08	1	0810-						●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0810-					●
89	00.459 TAPPET; VLV	8-90409-194-0	08	1	0810-1009						●
89	00.459 TAPPET; VLV	8-93307-104-0	08	1	1010-						●
232	00.662 PIN; GEAR SET	8-11055-129-0	01	1	0810-						●
235	00.724 RETAINER; CM/SHF	8-90233-647-0	01	1	0810-						●
236	00.426 RETAINER; VLV LIFTER GUIDE	8-90076-732-0	16	1	0810-1009						●
236	00.426 RETAINER; VLV LIFTER GUIDE	8-93376-142-0	16	1	1010-						●

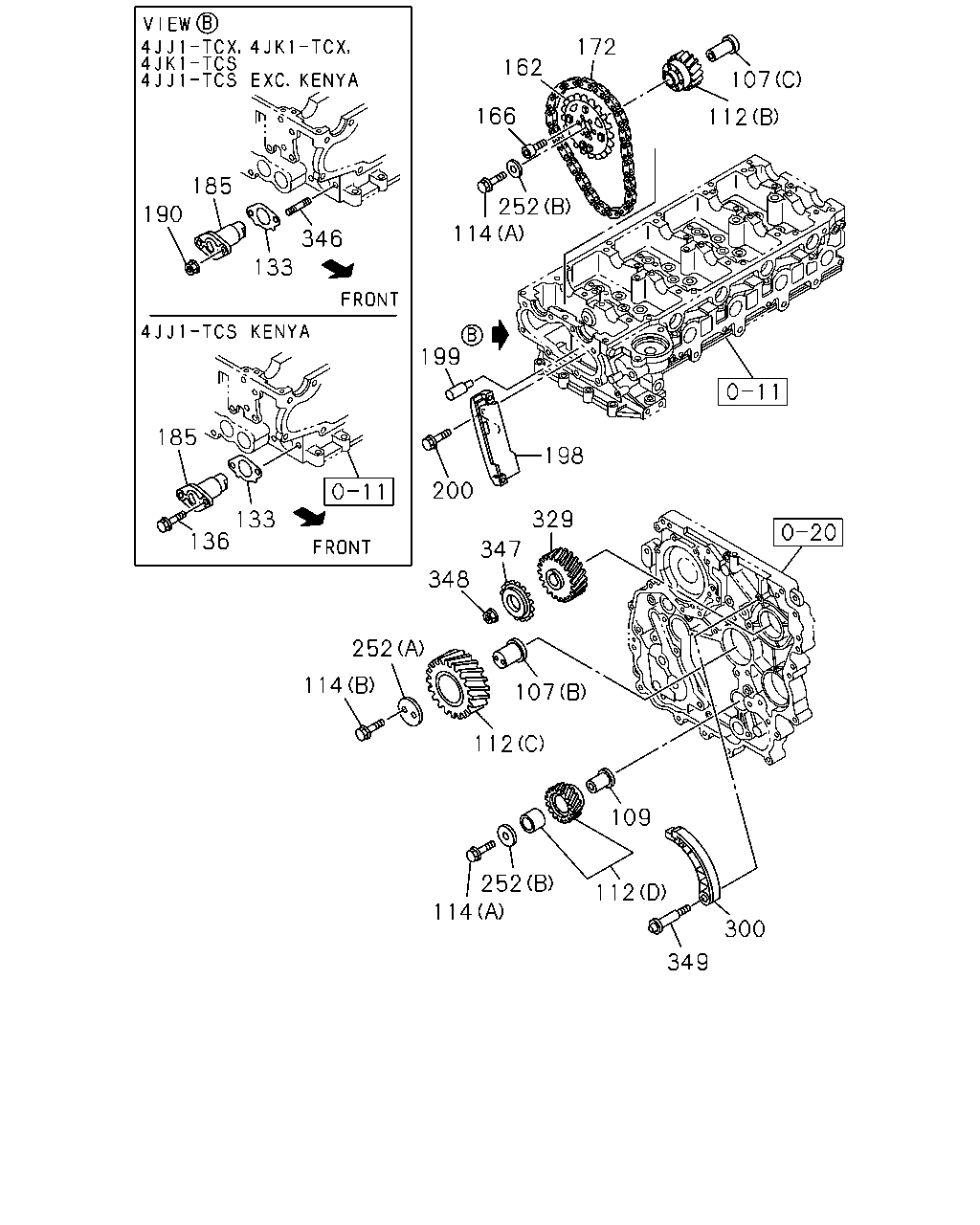

172 162 166 252 114 107 112 198 200 199 133 136 185 133 346 185 190 252 114 347 348 107 112 109 112 114 252 300 329 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
107	00.724 SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0810-					●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	0808-0809				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	0810-1007	●		●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	1008-	●	●	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97312-322-1	01	1	0808-0809				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97312-322-1	01	1	0810-1007	●		●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97312-322-1	01	1	1008-	●	●	●	●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	0810-					●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	0808-0809				●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	0810-1007	●		●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1008-	●	●	●	●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (C) Z=80	8-97381-516-1	01	1	1008-1311	●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (C) Z=80	8-98232-105-1	01	1	1312-	●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (D) Z=34	8-97381-518-0	01	1	1008-	●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (B) Z=35	8-97381-520-3	01	1	1008-	●
112	00.724 GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0810-					●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (C) Z=80	8-97381-516-1	01	1	0810-1003	●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (D) Z=34	8-97381-518-0	01	1	0810-1003	●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (B) Z=35	8-97381-520-3	01	1	0810-1003	●
112	00.724 GEAR; IDLE (C) Z=80	8-98021-050-1	01	1	0808-0809				●
112	00.724 GEAR; IDLE (C) Z=80	8-98021-050-1	01	1	0810-1007			●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (C) Z=80	8-98021-050-1	01	1	0810-1007	●
112	00.724 GEAR; IDLE (C) Z=80	8-98021-050-2	01	1	1008-		●	●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (C) Z=80	8-98021-050-2	01	1	1008-	●
112	00.724 GEAR; IDLE (D) Z=34	8-98021-052-1	01	1	0808-0809				●
112	00.724 GEAR; IDLE (D) Z=34	8-98021-052-1	01	1	0810-1007			●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (D) Z=34	8-98021-052-1	01	1	0810-1007	●
112	00.724 GEAR; IDLE (D) Z=34	8-98021-052-1	01	1	1008-		●	●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (D) Z=34	8-98021-052-1	01	1	1008-	●
112	00.724 GEAR; IDLE (B) Z=35	8-98021-053-1	01	1	0808-0809				●
112	00.724 GEAR; IDLE (B) Z=35	8-98021-053-1	01	1	0810-1007			●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (B) Z=35	8-98021-053-1	01	1	0810-1007	●
112	00.724 GEAR; IDLE (B) Z=35	8-98021-053-3	01	1	1008-		●	●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (B) Z=35	8-98021-053-3	01	1	1008-	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	0808-0809				●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	0810-1007	●		●	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1008-	●	●	●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	0808-0809				●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	0810-1007	●		●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	1008-	●	●	●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97312-336-0	01	1	0808-0809				●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97312-336-0	01	1	0810-1007	●		●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97312-336-0	01	1	1008-	●	●	●	●
136	00.724 BOLT; TENSIONER KENYA EQUIPMENT(CL1) 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1008-	●
162	00.736 SPROCKET; IDLE KENYA EQUIPMENT(CL1)	8-98193-179-0	01	1	1110-	●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	0808-0809				●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	0810-1007	●		●	●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	1008-1109	●	●	●	●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	1110-		●	●	●
162	00.736 SPROCKET; IDLE EXC. KENYA EQUIPMENT(CL1)	8-97312-331-1	01	1	1110-	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	0808-0809				●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	0810-1007	●		●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1008-	●	●	●	●
172	00.724 CHAIN; TIMING,CM/SHF KENYA EQUIPMENT(CL1)	8-97945-067-0	01	1	1008-	●
172	00.724 CHAIN; TIMING,CM/SHF	8-98119-279-0	01	1	0909-1007			●	●
172	00.724 CHAIN; TIMING,CM/SHF EXC. KENYA EQUIPMENT(CL1)	8-98119-279-0	01	1	0909-1007	●
172	00.724 CHAIN; TIMING,CM/SHF	8-98119-279-1	01	1	1008-		●	●	●
172	00.724 CHAIN; TIMING,CM/SHF EXC. KENYA EQUIPMENT(CL1)	8-98119-279-1	01	1	1008-	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	0808-0809				●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	0810-0908	●		●	●
172	00.724 CHAIN; TIMING,CM/SHF KENYA EQUIPMENT(CL1)	8-97945-067-0	01	1	0909-1003	●
185	00.724 TENSIONER; CHAIN	8-97945-068-1	01	1	0808-0809				●
185	00.724 TENSIONER; CHAIN	8-97945-068-1	01	1	0810-1007	●		●	●
185	00.724 TENSIONER; CHAIN	8-97945-068-1	01	1	1008-	●	●	●	●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	0808-0809				●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	0810-1007	●		●	●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	1008-1008	●	●	●	●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	1008-		●	●	●
190	00.724 NUT; CHAIN TENSIONER EXC. KENYA EQUIPMENT(CL1) 01.540 M6 FLANGE	0-91180-206-0	02	1	1008-	●
198	00.724 GUIDE; TIMING CHAIN	8-98173-188-0	01	1	1010-		●	●	●
198	00.724 GUIDE; TIMING CHAIN EXC. KENYA EQUIPMENT(CL1)	8-98173-188-0	01	1	1010-	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	0808-0809				●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	0810-1007	●		●	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1008-1009	●	●	●	●
198	00.724 GUIDE; TIMING CHAIN KENYA EQUIPMENT(CL1)	8-97945-069-0	01	1	1010-	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	0808-0809				●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	0810-1007	●		●	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1008-	●	●	●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	0808-0809				●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	0810-1007	●		●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1008-	●	●	●	●
252	00.724 FLANGE; IDLE SHAFT KENYA EQUIPMENT(CL1) (A)	8-98016-892-0	01	1	1008-	●
252	00.724 FLANGE; IDLE SHAFT KENYA EQUIPMENT(CL1) (B)	8-98016-893-0	02	1	1008-	●
252	00.724 FLANGE; IDLE SHAFT KENYA EQUIPMENT(CL1) (A)	8-98016-892-0	01	1	0810-1003	●
252	00.724 FLANGE; IDLE SHAFT KENYA EQUIPMENT(CL1) (B)	8-98016-893-0	02	1	0810-1003	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-97312-316-1	01	1	0808-0809				●
252	00.724 FLANGE; IDLE SHAFT (A)	8-97312-316-1	01	1	0810-1007			●	●
252	00.724 FLANGE; IDLE SHAFT EXC. KENYA EQUIPMENT(CL1) (A)	8-97312-316-1	01	1	0810-1007	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-97312-316-1	01	1	1008-		●	●	●
252	00.724 FLANGE; IDLE SHAFT EXC. KENYA EQUIPMENT(CL1) (A)	8-97312-316-1	01	1	1008-	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97312-323-1	02	1	0808-0809				●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97312-323-1	02	1	0810-1007			●	●
252	00.724 FLANGE; IDLE SHAFT EXC. KENYA EQUIPMENT(CL1) (B)	8-97312-323-1	02	1	0810-1007	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97312-323-1	02	1	1008-		●	●	●
252	00.724 FLANGE; IDLE SHAFT EXC. KENYA EQUIPMENT(CL1) (B)	8-97312-323-1	02	1	1008-	●
300	00.724 LEVER; TENSION,TIMING CHAIN KENYA EQUIPMENT(CL1)	8-97945-070-0	01	1	1008-	●
300	00.724 LEVER; TENSION,TIMING CHAIN KENYA EQUIPMENT(CL1)	8-97945-070-0	01	1	0810-1003	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	0808-0809				●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-98119-278-0	01	1	0810-0810				●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-98119-278-0	01	1	0810-1007			●	●
300	00.724 LEVER; TENSION,TIMING CHAIN EXC. KENYA EQUIPMENT(CL1)	8-98119-278-0	01	1	0810-1007	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-98119-278-1	01	1	1008-		●	●	●
300	00.724 LEVER; TENSION,TIMING CHAIN EXC. KENYA EQUIPMENT(CL1)	8-98119-278-1	01	1	1008-	●
329	00.724 GEAR; INJ PUMP KENYA EQUIPMENT(CL1) Z=44	8-98017-539-1	01	1	1008-	●
329	00.724 GEAR; INJ PUMP KENYA EQUIPMENT(CL1) Z=44	8-98017-539-1	01	1	0810-1003	●
329	00.724 GEAR; INJ PUMP Z=44	8-97312-298-3	01	1	0808-0809				●
329	00.724 GEAR; INJ PUMP Z=44	8-97312-298-3	01	1	0810-1007			●	●
329	00.724 GEAR; INJ PUMP EXC. KENYA EQUIPMENT(CL1) Z=44	8-97312-298-3	01	1	0810-1007	●
329	00.724 GEAR; INJ PUMP Z=44	8-97312-298-3	01	1	1008-		●	●	●
329	00.724 GEAR; INJ PUMP EXC. KENYA EQUIPMENT(CL1) Z=44	8-97312-298-3	01	1	1008-	●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	0808-0809				●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	0810-1007	●		●	●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	1008-1008	●	●	●	●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	1008-		●	●	●
346	00.429 STUD; CHAIN EXC. KENYA EQUIPMENT(CL1) 01.062 M6X18 L=27	0-41010-618-0	02	1	1008-	●
347	00.429 SPROCKET; I/PUMP KENYA EQUIPMENT(CL1)	8-98210-266-0	01	1	1208-	●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	0808-0809				●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	0810-1007	●		●	●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	1008-1207	●	●	●	●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	1208-		●	●	●
347	00.429 SPROCKET; I/PUMP EXC. KENYA EQUIPMENT(CL1)	8-97312-330-1	01	1	1208-	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	0808-0809				●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	0810-1007	●		●	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1008-	●	●	●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	0808-0809				●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	0810-1007	●		●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1008-	●	●	●	●

1 232 48 235 89 89 65 65 36 236 236 236 236 66 66 64 68 68 73 73 71 71 71 71 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-97287-657-1	01	1	0810-					●
1	00.519 CAMSHAFT	8-92065-519-0	01	1	0810-1009						●
1	00.519 CAMSHAFT	8-90233-484-0	01	1	1010-						●
4	00.296 VALVE; INL KENYA EQUIPMENT(CL1)	8-98016-973-0	08	1	1008-1409	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1410-	●	●	●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	0810-					●
4	00.296 VALVE; INL KENYA EQUIPMENT(CL1)	8-98016-973-0	08	1	0810-1003	●
4	00.296 VALVE; INL STD	8-90220-121-0	04	1	0810-1009						●
4	00.296 VALVE; INL	8-90220-119-0	04	1	1010-						●
4	00.296 VALVE; INL OVSI=0.15	8-90220-123-0	04	1	0810-1009						●
4	00.296 VALVE; INL OVSI=0.25	8-90220-124-0	04	1	0810-1009						●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0808-0809				●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0810-1007			●	●
4	00.296 VALVE; INL EXC. KENYA EQUIPMENT(CL1)	8-97309-675-1	08	1	0810-1007	●
4	00.296 VALVE; INL	8-97309-675-1	08	1	1008-		●	●	●
4	00.296 VALVE; INL EXC. KENYA EQUIPMENT(CL1)	8-97309-675-1	08	1	1008-	●
5	00.297 VALVE; EXH KENYA EQUIPMENT(CL1)	8-98016-974-1	08	1	1008-	●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	0810-1405					●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-					●
5	00.297 VALVE; EXH KENYA EQUIPMENT(CL1)	8-98016-974-1	08	1	0810-1003	●
5	00.297 VALVE; EXH STD	8-90323-757-0	04	1	0810-1009						●
5	00.297 VALVE; EXH	8-90323-756-0	04	1	1010-						●
5	00.297 VALVE; EXH OVSI=0.15	8-90323-759-0	04	1	0810-1009						●
5	00.297 VALVE; EXH OVSI=0.25	8-90323-760-0	04	1	0810-1009						●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0808-0809				●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0810-1007			●	●
5	00.297 VALVE; EXH EXC. KENYA EQUIPMENT(CL1)	8-97309-677-1	08	1	0810-1007	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	1008-		●	●	●
5	00.297 VALVE; EXH EXC. KENYA EQUIPMENT(CL1)	8-97309-677-1	08	1	1008-	●
36	00.533 SEAL; OIL,CM/SHF,FRT	8-90280-463-0	01	1	0810-						●
48	00.724 BOLT; RET	8-90264-407-0	02	1	0810-1009						●
48	00.724 BOLT; RET 04.312	8-11078-142-0	02	1	1010-						●
64	00.459 ADJUSTER; VLV LASH	8-05233-315-0	08	1	0810-						●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0810-					●
65	00.310 COLLAR; SPLIT	8-90076-745-0	08	1	0810-						●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0808-0809				●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0810-1007	●		●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1008-	●	●	●	●
66	00.303 CAP; VLV STEM END KENYA EQUIPMENT(CL1)	8-98147-945-0	16	1	0911-0911	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	0911-1007	●		●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1008-	●	●	●	●
66	00.303 CAP; VLV STEM END	8-90169-987-0	08	1	0810-						●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0808-0809				●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0810-0910	●		●	●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0911-0911			●	●
66	00.303 CAP; VLV STEM END EXC. KENYA EQUIPMENT(CL1)	8-98029-870-1	16	1	0911-0911	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0810-					●
68	00.303 SPRING; VLV	8-90501-491-0	08	1	0810-						●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0808-0809				●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0810-1007	●		●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	1008-	●	●	●	●
71	00.309 SEAT; SPR (F)	8-93369-526-0	04	1	1010-						●
71	00.309 SEAT; SPR KENYA EQUIPMENT(CL1) (D)	8-98017-067-0	16	1	1008-	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0810-					●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0810-					●
71	00.309 SEAT; SPR KENYA EQUIPMENT(CL1) (D)	8-98017-067-0	16	1	0810-1003	●
71	00.309 SEAT; SPR (E)	8-90128-720-0	04	1	0810-						●
71	00.309 SEAT; SPR 00.283 (F)	8-90499-099-0	04	1	0810-1009						●
71	00.309 SEAT; SPR (G)	8-52261-643-0	04	1	1010-						●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	0808-0809				●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	0810-1007	●		●	●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	1008-	●	●	●	●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	0808-0809				●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	0810-1007			●	●
71	00.309 SEAT; SPR EXC. KENYA EQUIPMENT(CL1) (D) OD=29.5	8-97311-668-0	16	1	0810-1007	●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	1008-		●	●	●
71	00.309 SEAT; SPR EXC. KENYA EQUIPMENT(CL1) (D) OD=29.5	8-97311-668-0	16	1	1008-	●
73	00.309 SEAL; VLV GUIDE	8-90215-296-0	08	1	0810-						●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0810-					●
89	00.459 TAPPET; VLV	8-90409-194-0	08	1	0810-1009						●
89	00.459 TAPPET; VLV	8-93307-104-0	08	1	1010-						●
232	00.662 PIN; GEAR SET	8-11055-129-0	01	1	0810-						●
235	00.724 RETAINER; CM/SHF	8-90233-647-0	01	1	0810-						●
236	00.426 RETAINER; VLV LIFTER GUIDE	8-90076-732-0	16	1	0810-1009						●
236	00.426 RETAINER; VLV LIFTER GUIDE	8-93376-142-0	16	1	1010-						●

78 87 87 78 81 83 56 53 56 78 56 81 87 87 78 81 56 53 263 3 2 66 65 65 71 68 72 71 5 4 81 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	00.519 CAMSHAFT; INL	8-97328-642-8	01	1	1008-		●	●	●
2	00.519 CAMSHAFT; INL EXC. KENYA EQUIPMENT(CL1)	8-97328-642-8	01	1	1008-	●
2	00.519 CAMSHAFT; INL KENYA EQUIPMENT(CL1)	8-98003-129-3	01	1	0810-1003	●
2	00.519 CAMSHAFT; INL	8-97328-642-6	01	1	0808-0809				●
2	00.519 CAMSHAFT; INL	8-97328-642-7	01	1	0810-1007			●	●
2	00.519 CAMSHAFT; INL EXC. KENYA EQUIPMENT(CL1)	8-97328-642-7	01	1	0810-1007	●
2	00.519 CAMSHAFT; INL KENYA EQUIPMENT(CL1)	8-98003-129-4	01	1	1008-	●
3	00.519 CAMSHAFT; EXH	8-97328-644-8	01	1	1008-		●	●	●
3	00.519 CAMSHAFT; EXH EXC. KENYA EQUIPMENT(CL1)	8-97328-644-8	01	1	1008-	●
3	00.519 CAMSHAFT; EXH KENYA EQUIPMENT(CL1)	8-98003-130-3	01	1	0810-1003	●
3	00.519 CAMSHAFT; EXH	8-97328-644-6	01	1	0808-0809				●
3	00.519 CAMSHAFT; EXH	8-97328-644-7	01	1	0810-1007			●	●
3	00.519 CAMSHAFT; EXH EXC. KENYA EQUIPMENT(CL1)	8-97328-644-7	01	1	0810-1007	●
3	00.519 CAMSHAFT; EXH KENYA EQUIPMENT(CL1)	8-98003-130-4	01	1	1008-	●
4	00.296 VALVE; INL KENYA EQUIPMENT(CL1)	8-98016-973-0	08	1	1008-1409	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1410-	●	●	●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	0810-					●
4	00.296 VALVE; INL KENYA EQUIPMENT(CL1)	8-98016-973-0	08	1	0810-1003	●
4	00.296 VALVE; INL STD	8-90220-121-0	04	1	0810-1009						●
4	00.296 VALVE; INL	8-90220-119-0	04	1	1010-						●
4	00.296 VALVE; INL OVSI=0.15	8-90220-123-0	04	1	0810-1009						●
4	00.296 VALVE; INL OVSI=0.25	8-90220-124-0	04	1	0810-1009						●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0808-0809				●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0810-1007			●	●
4	00.296 VALVE; INL EXC. KENYA EQUIPMENT(CL1)	8-97309-675-1	08	1	0810-1007	●
4	00.296 VALVE; INL	8-97309-675-1	08	1	1008-		●	●	●
4	00.296 VALVE; INL EXC. KENYA EQUIPMENT(CL1)	8-97309-675-1	08	1	1008-	●
5	00.297 VALVE; EXH KENYA EQUIPMENT(CL1)	8-98016-974-1	08	1	1008-	●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	0810-1405					●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-					●
5	00.297 VALVE; EXH KENYA EQUIPMENT(CL1)	8-98016-974-1	08	1	0810-1003	●
5	00.297 VALVE; EXH STD	8-90323-757-0	04	1	0810-1009						●
5	00.297 VALVE; EXH	8-90323-756-0	04	1	1010-						●
5	00.297 VALVE; EXH OVSI=0.15	8-90323-759-0	04	1	0810-1009						●
5	00.297 VALVE; EXH OVSI=0.25	8-90323-760-0	04	1	0810-1009						●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0808-0809				●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0810-1007			●	●
5	00.297 VALVE; EXH EXC. KENYA EQUIPMENT(CL1)	8-97309-677-1	08	1	0810-1007	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	1008-		●	●	●
5	00.297 VALVE; EXH EXC. KENYA EQUIPMENT(CL1)	8-97309-677-1	08	1	1008-	●
53	00.353 SHAFT; ROCKER ARM KENYA EQUIPMENT(CL1) (B) INLET JBK	8-98025-071-1	04	1	1008-	●
53	00.353 SHAFT; ROCKER ARM KENYA EQUIPMENT(CL1) (B) EXHAUST JBK	8-98025-074-1	04	1	1008-	●
53	00.353 SHAFT; ROCKER ARM (A)	8-97036-197-0	01	1	0810-					●
53	00.353 SHAFT; ROCKER ARM KENYA EQUIPMENT(CL1) (B) INLET JBK	8-98025-071-1	04	1	0810-1003	●
53	00.353 SHAFT; ROCKER ARM KENYA EQUIPMENT(CL1) (B) EXHAUST JBK	8-98025-074-1	04	1	0810-1003	●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	0808-0809				●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	0810-0912			●	●
53	00.353 SHAFT; ROCKER ARM EXC. KENYA EQUIPMENT(CL1) (C) INLET OTICS	8-97364-809-2	04	1	0810-0912	●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1001-1007	●		●	●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1008-	●	●	●	●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	0808-0809				●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	0810-0912			●	●
53	00.353 SHAFT; ROCKER ARM EXC. KENYA EQUIPMENT(CL1) (C) EXHAUST OTICS	8-97364-811-2	04	1	0810-0912	●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1001-1007	●		●	●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1008-	●	●	●	●
56	00.349 RING; SNAP,ROCKER ARM KENYA EQUIPMENT(CL1) 00.353 (B)	8-98025-496-0	16	1	1008-	●
56	00.349 RING; SNAP,ROCKER ARM (A) ID=17.5	9-09180-019-0	02	1	0810-					●
56	00.349 RING; SNAP,ROCKER ARM KENYA EQUIPMENT(CL1) 00.353 (B)	8-98025-496-0	16	1	0810-1003	●
56	00.349 RING; SNAP,ROCKER ARM (C)	8-98109-470-0	16	1	0808-0809				●
56	00.349 RING; SNAP,ROCKER ARM (C)	8-98109-470-0	16	1	0810-0912			●	●
56	00.349 RING; SNAP,ROCKER ARM EXC. KENYA EQUIPMENT(CL1) (C)	8-98109-470-0	16	1	0810-0912	●
56	00.349 RING; SNAP,ROCKER ARM (C)	8-98109-470-0	16	1	1001-1007	●		●	●
56	00.349 RING; SNAP,ROCKER ARM (C)	8-98109-470-0	16	1	1008-	●	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0810-					●
65	00.310 COLLAR; SPLIT	8-90076-745-0	08	1	0810-						●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0808-0809				●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0810-1007	●		●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1008-	●	●	●	●
66	00.303 CAP; VLV STEM END KENYA EQUIPMENT(CL1)	8-98147-945-0	16	1	0911-0911	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	0911-1007	●		●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1008-	●	●	●	●
66	00.303 CAP; VLV STEM END	8-90169-987-0	08	1	0810-						●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0808-0809				●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0810-0910	●		●	●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0911-0911			●	●
66	00.303 CAP; VLV STEM END EXC. KENYA EQUIPMENT(CL1)	8-98029-870-1	16	1	0911-0911	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0810-					●
68	00.303 SPRING; VLV	8-90501-491-0	08	1	0810-						●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0808-0809				●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0810-1007	●		●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	1008-	●	●	●	●
71	00.309 SEAT; SPR (F)	8-93369-526-0	04	1	1010-						●
71	00.309 SEAT; SPR KENYA EQUIPMENT(CL1) (D)	8-98017-067-0	16	1	1008-	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0810-					●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0810-					●
71	00.309 SEAT; SPR KENYA EQUIPMENT(CL1) (D)	8-98017-067-0	16	1	0810-1003	●
71	00.309 SEAT; SPR (E)	8-90128-720-0	04	1	0810-						●
71	00.309 SEAT; SPR 00.283 (F)	8-90499-099-0	04	1	0810-1009						●
71	00.309 SEAT; SPR (G)	8-52261-643-0	04	1	1010-						●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	0808-0809				●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	0810-1007	●		●	●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	1008-	●	●	●	●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	0808-0809				●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	0810-1007			●	●
71	00.309 SEAT; SPR EXC. KENYA EQUIPMENT(CL1) (D) OD=29.5	8-97311-668-0	16	1	0810-1007	●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	1008-		●	●	●
71	00.309 SEAT; SPR EXC. KENYA EQUIPMENT(CL1) (D) OD=29.5	8-97311-668-0	16	1	1008-	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	0810-					●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	0808-0809				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	0810-1007	●		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	1008-	●	●	●	●
78	00.333 ARM; ROCKER KENYA EQUIPMENT(CL1) 00.353 (B) JBK	8-98025-059-4	16	1	1008-	●
78	00.333 ARM; ROCKER (A)	8-94152-344-0	08	1	0810-					●
78	00.333 ARM; ROCKER KENYA EQUIPMENT(CL1) 00.353 (B) JBK	8-98025-059-2	16	1	0810-1003	●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-2	16	1	0808-0809				●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-2	16	1	0810-0912			●	●
78	00.333 ARM; ROCKER EXC. KENYA EQUIPMENT(CL1) (C) OTICS	8-98029-537-2	16	1	0810-0912	●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-4	16	1	1001-1007	●		●	●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-6	16	1	1008-	●	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM KENYA EQUIPMENT(CL1) (B) M8 L=22	8-98025-497-0	16	1	1008-	●
81	00.429 SCREW; ADJ,ROCKER ARM KENYA EQUIPMENT(CL1) (C) M8 L=22	8-98029-893-0	16	1	1008-1102	●
81	00.429 SCREW; ADJ,ROCKER ARM (C) M8 L=22	8-98029-893-0	16	1	1103-	●	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM KENYA EQUIPMENT(CL1) (C) M8 L=22	8-98029-893-0	16	1	1001-1003	●
81	00.429 SCREW; ADJ,ROCKER ARM KENYA EQUIPMENT(CL1) (B) M8 L=22	8-98025-497-0	16	1	0810-1003	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=30	8-94152-283-1	08	1	0810-					●
83	00.787 NUT; ADJ SCREW,LK KENYA EQUIPMENT(CL1) 00.429 M8 FLANGE	9-09844-574-0	16	1	1008-	●
83	00.787 NUT; ADJ SCREW,LK KENYA EQUIPMENT(CL1) 00.429 M8 FLANGE	9-09844-574-0	16	1	0810-1003	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0810-					●
87	00.349 BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	0810-					●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	0808-0809				●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	0810-1007	●		●	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1008-	●	●	●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	0808-0809				●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	0810-1007	●		●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	1008-	●	●	●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1)	8-98101-472-0	04	1	1008-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1)	8-98216-269-0	04	1	1205-	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1)	8-98101-472-0	04	1	0810-1003	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97947-079-0	04	1	0808-0809				●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97947-079-0	04	1	0810-1007			●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1)	8-97947-079-0	04	1	0810-1007	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97947-079-0	04	1	1008-		●	●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1)	8-97947-079-0	04	1	1008-	●

44 10 9 45 11 111 101 107 275 112 275 109 275 196 335 44 275 282 333 282 334 196 305 106 104 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-97287-657-1	01	1	0810-					●
1	00.519 CAMSHAFT	8-92065-519-0	01	1	0810-1009						●
1	00.519 CAMSHAFT	8-90233-484-0	01	1	1010-						●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0810-					●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0810-					●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	0810-					●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0810-					●
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0810-					●
44	00.738 BOLT (B) M6X30 HEX SOCKET	9-05820-630-0	01	1	0810-					●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0810-					●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0810-					●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0810-					●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0810-					●
107	00.724 SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0810-					●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	0808-0809				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	0810-1007	●		●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	1008-	●	●	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97312-322-1	01	1	0808-0809				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97312-322-1	01	1	0810-1007	●		●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97312-322-1	01	1	1008-	●	●	●	●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	0810-					●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	0808-0809				●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	0810-1007	●		●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1008-	●	●	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0810-					●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (C) Z=80	8-97381-516-1	01	1	1008-1311	●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (C) Z=80	8-98232-105-1	01	1	1312-	●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (D) Z=34	8-97381-518-0	01	1	1008-	●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (B) Z=35	8-97381-520-3	01	1	1008-	●
112	00.724 GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0810-					●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (C) Z=80	8-97381-516-1	01	1	0810-1003	●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (D) Z=34	8-97381-518-0	01	1	0810-1003	●
112	00.724 GEAR; IDLE KENYA EQUIPMENT(CL1) (B) Z=35	8-97381-520-3	01	1	0810-1003	●
112	00.724 GEAR; IDLE (C) Z=80	8-98021-050-1	01	1	0808-0809				●
112	00.724 GEAR; IDLE (C) Z=80	8-98021-050-1	01	1	0810-1007			●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (C) Z=80	8-98021-050-1	01	1	0810-1007	●
112	00.724 GEAR; IDLE (C) Z=80	8-98021-050-2	01	1	1008-		●	●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (C) Z=80	8-98021-050-2	01	1	1008-	●
112	00.724 GEAR; IDLE (D) Z=34	8-98021-052-1	01	1	0808-0809				●
112	00.724 GEAR; IDLE (D) Z=34	8-98021-052-1	01	1	0810-1007			●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (D) Z=34	8-98021-052-1	01	1	0810-1007	●
112	00.724 GEAR; IDLE (D) Z=34	8-98021-052-1	01	1	1008-		●	●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (D) Z=34	8-98021-052-1	01	1	1008-	●
112	00.724 GEAR; IDLE (B) Z=35	8-98021-053-1	01	1	0808-0809				●
112	00.724 GEAR; IDLE (B) Z=35	8-98021-053-1	01	1	0810-1007			●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (B) Z=35	8-98021-053-1	01	1	0810-1007	●
112	00.724 GEAR; IDLE (B) Z=35	8-98021-053-3	01	1	1008-		●	●	●
112	00.724 GEAR; IDLE EXC. KENYA EQUIPMENT(CL1) (B) Z=35	8-98021-053-3	01	1	1008-	●
196	00.724 RING; SNAP	8-97245-684-1	02	1	0810-					●
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0810-					●
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	0810-					●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0810-					●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0810-					●
334	00.724 GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	0810-					●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0810-					●

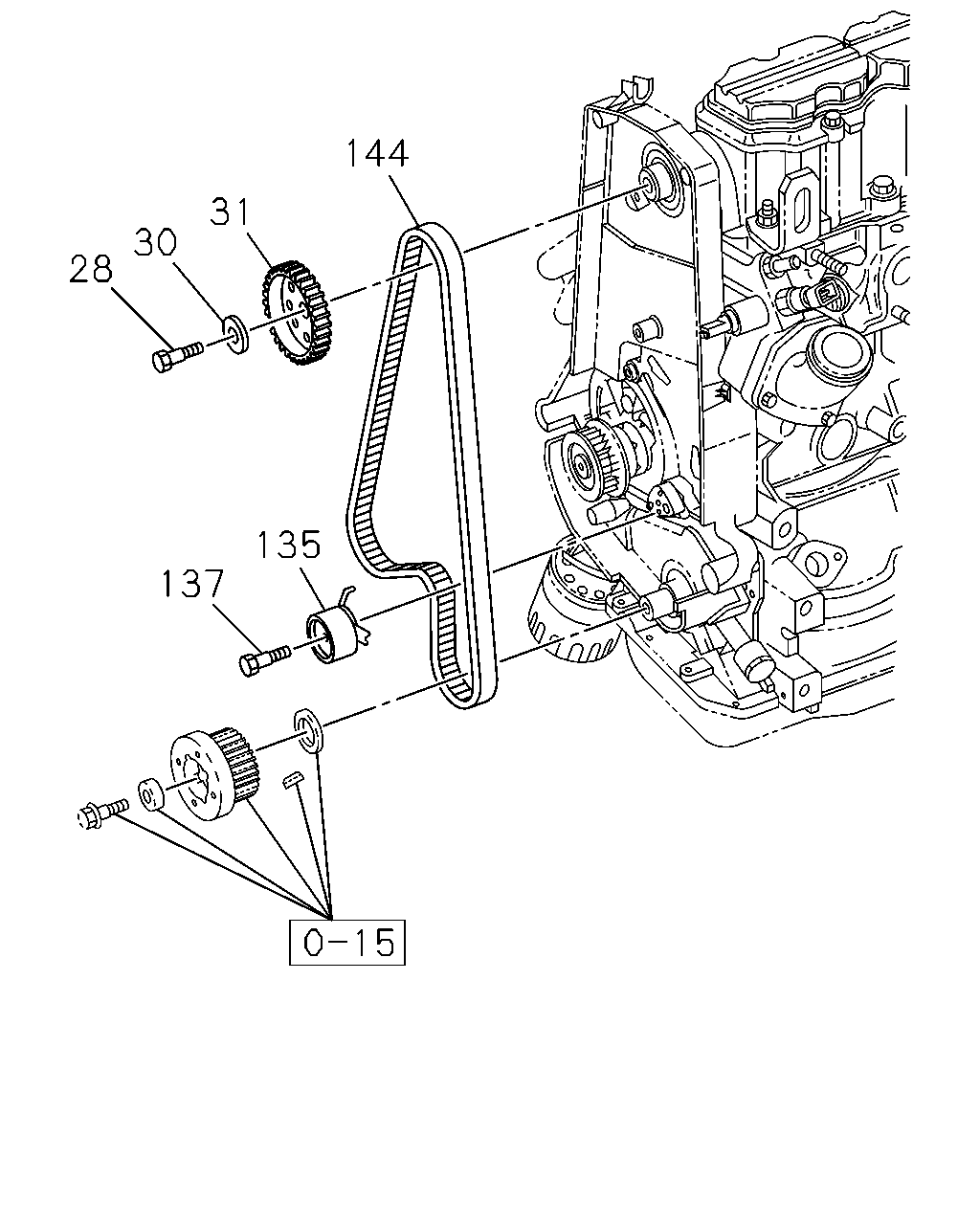

144 31 30 28 135 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	F
28	00.738 BOLT; CAM PULLEY	8-11073-824-0	01	1	0810-1009	●
28	00.738 BOLT; CAM PULLEY	8-93376-817-0	01	1	1010-	●
30	00.662 WASHER; PULLEY	8-90067-443-0	01	1	0810-1009	●
30	00.662 WASHER; PULLEY 00.659	8-92023-395-0	01	1	1010-	●
31	00.736 SPROCKET; CM/SHF	8-93262-588-0	01	1	0810-	●
135	00.724 PULLEY; TENSIONER	8-09158-003-0	01	1	0810-	●
137	00.724 BOLT; TENSIONER	8-11084-141-0	01	1	0810-1009	●
137	00.724 BOLT; TENSIONER	8-93392-886-0	01	1	1010-	●
144	00.724 BELT; TIMING 4X2(TFB***)	8-12065-303-0	01	1	0810-1009	●
144	00.724 BELT; TIMING	8-92065-977-0	01	1	1010-	●
144	00.724 BELT; TIMING 4X4(TFS***)	8-92065-303-0	01	1	0810-1009	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
