Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#76940) — 230 parça

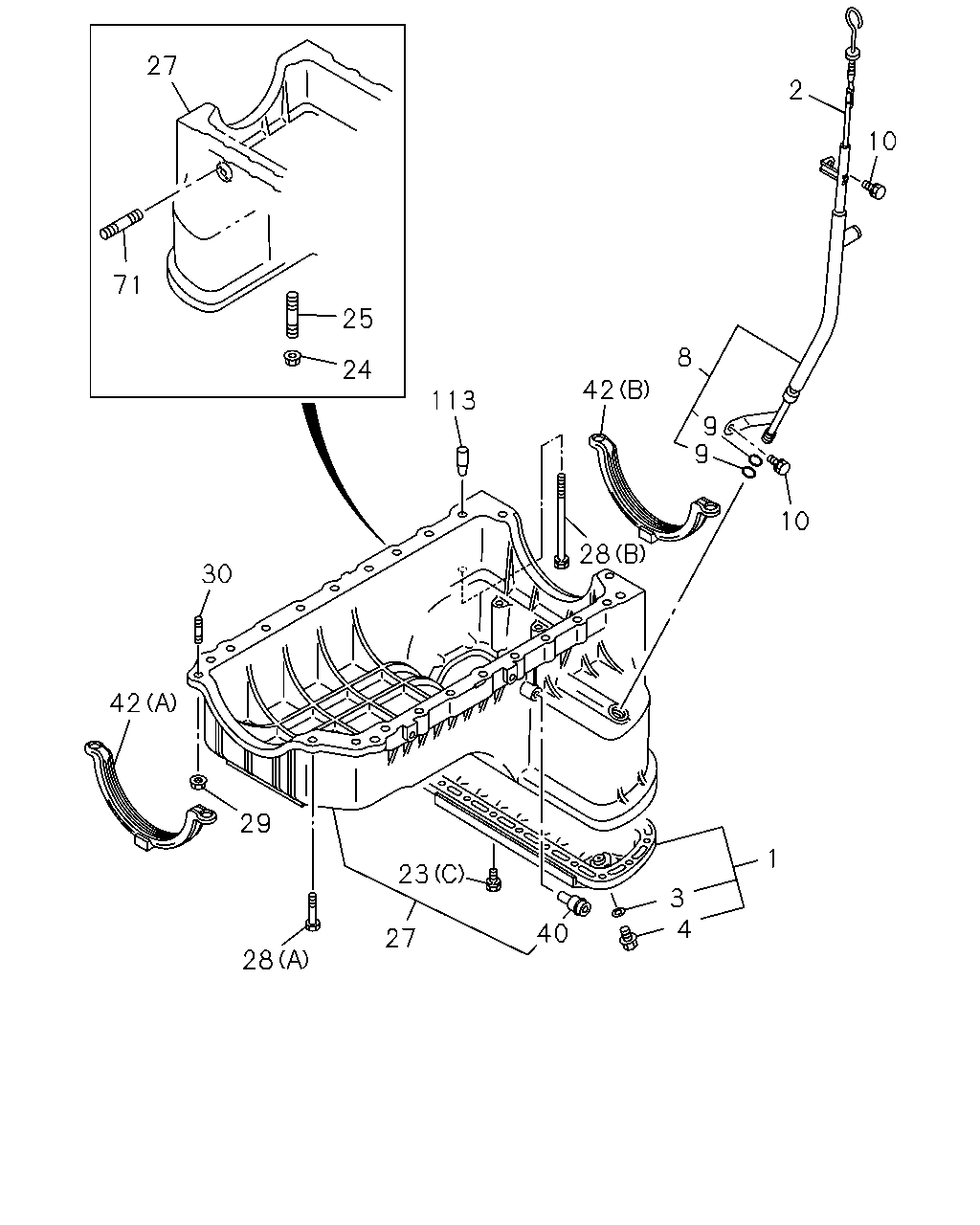

27 71 25 24 42 8 2 10 10 9 9 113 42 30 29 28 23 27 40 3 4 1 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-97248-860-2	01	1	0810-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92065-759-0	01	1	0810-1009		●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-92065-759-0	01	1	1010-		●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-92065-808-0	01	1	0810-		●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98011-499-0	01	1	0808-0809			●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98011-499-0	01	1	0810-1007			●	●	●
1	01.426 PAN ASM; OIL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98156-373-0	01	1	1008-			●	●	●	●
1	01.426 PAN ASM; OIL 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98013-383-0	01	1	0808-0809			●
1	01.426 PAN ASM; OIL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98013-383-0	01	1	0810-1007			●	●	●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98156-371-0	01	1	1008-			●	●	●	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0810-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	0810-1009		●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-92063-647-0	01	1	1010-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-92063-162-0	01	1	0810-		●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98053-833-1	01	1	0808-0809			●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98053-833-1	01	1	0810-1007			●	●	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98053-833-1	01	1	1008-			●	●	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98053-834-1	01	1	0808-0809			●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98053-834-1	01	1	0810-1007			●	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98053-834-1	01	1	1008-			●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	0810-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0808-0809			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0810-1007	●		●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1008-	●		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0810-	●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	0810-1009		●
4	01.453 PLUG; DRAIN,OIL	8-92139-054-0	01	1	1010-		●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0808-0809			●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0810-1003			●	●	●
4	01.453 PLUG; DRAIN,OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK) M14X14	8-97329-621-0	01	1	1004-1004			●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1004-1007			●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1008-			●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98067-937-0	01	1	0810-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98011-973-1	01	1	0808-0809			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98011-973-1	01	1	0810-1007			●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98011-973-1	01	1	1008-			●	●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) ID=11	1-09623-469-0	01	1	1008-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0810-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) ID=11	1-09623-469-0	01	1	0810-1003				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	0808-0809			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	8-98034-629-0	01	1	0810-1007			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) ID=11 OD=15.8	8-98034-629-0	01	1	0810-1007				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	8-98034-629-0	01	1	1008-			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) ID=11 OD=15.8	8-98034-629-0	01	1	1008-				●
10	01.516 BOLT; GUIDE TUBE KENYA EQUIPMENT(CL1) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1008-				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0810-	●
10	01.516 BOLT; GUIDE TUBE KENYA EQUIPMENT(CL1) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0810-1003				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0808-0809			●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0810-1007			●		●
10	01.516 BOLT; GUIDE TUBE EXC. KENYA EQUIPMENT(CL1) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0810-1007				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1008-			●		●	●
10	01.516 BOLT; GUIDE TUBE EXC. KENYA EQUIPMENT(CL1) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1008-				●
23	01.428 BOLT; OIL PAN (A)	8-11096-082-0	01	1	1010-		●
23	01.428 BOLT; OIL PAN (C) M6X13 W/PL WASHER	8-97135-141-0	15	1	0810-	●
23	01.428 BOLT; OIL PAN (A) M8X132	8-11093-981-0	03	1	0810-		●
23	01.428 BOLT; OIL PAN 00.662 (B) M8X45	8-11096-481-0	11	1	0810-1009		●
23	01.428 BOLT; OIL PAN 00.662 (B) M8X45	8-11096-481-0	10	1	1010-		●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97329-622-0	02	1	0810-	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809			●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-1007			●	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-			●	●	●	●
25	01.453 STUD; OIL PAN KENYA EQUIPMENT(CL1) 00.349 M8X20 L=31	8-97945-022-0	02	1	1403-				●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	0810-	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	0808-0809			●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	0810-1007			●	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1008-1405			●	●	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1406-			●		●	●
25	01.453 STUD; OIL PAN EXC. KENYA EQUIPMENT(CL1) M8X16 L=28	0-41010-816-0	02	1	1406-				●
27	01.426 CRANKCASE	8-97358-796-0	01	1	0810-	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ)	8-98011-497-2	01	1	0808-			●
27	01.426 CRANKCASE 4X2(TFB***) A/T AISIN(RMD)	8-98013-794-1	01	1	0808-0809			●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-98013-794-1	01	1	0810-1007			●	●	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-98013-794-1	01	1	1008-			●	●	●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ)	8-98011-498-2	01	1	0808-			●
27	01.426 CRANKCASE 4X4(TFS***) A/T AISIN(RMD)	8-97370-514-3	01	1	0808-0809			●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-97370-514-3	01	1	0810-1007			●	●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-97370-514-3	01	1	1008-			●	●	●	●
28	01.780 BOLT; CRANKCASE TO C/BL (B) M8X120 FLANGE	0-28055-812-0	01	1	0810-	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 (A) M8X32 W/LK WASHER	0-50040-832-0	19	1	0810-0909	●
28	01.780 BOLT; CRANKCASE TO C/BL (A) M8X32 W/LK WASHER	0-50540-832-0	19	1	0910-	●
29	01.426 NUT; CRANKCASE 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-	●
30	01.780 STUD; CRANKCASE M8X35 L=47	0-41010-835-0	02	1	0810-	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	0810-	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97120-933-0	01	1	0810-	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97123-342-0	01	1	0810-	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	0-41010-818-0	02	1	0810-	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0810-	●
113	01.453 PIN; STRAIGHT M/T MUX 5 SPEED 5S(MZJ) 08.939 OD=10 L=32	9-08161-032-0	02	1	0808-			●

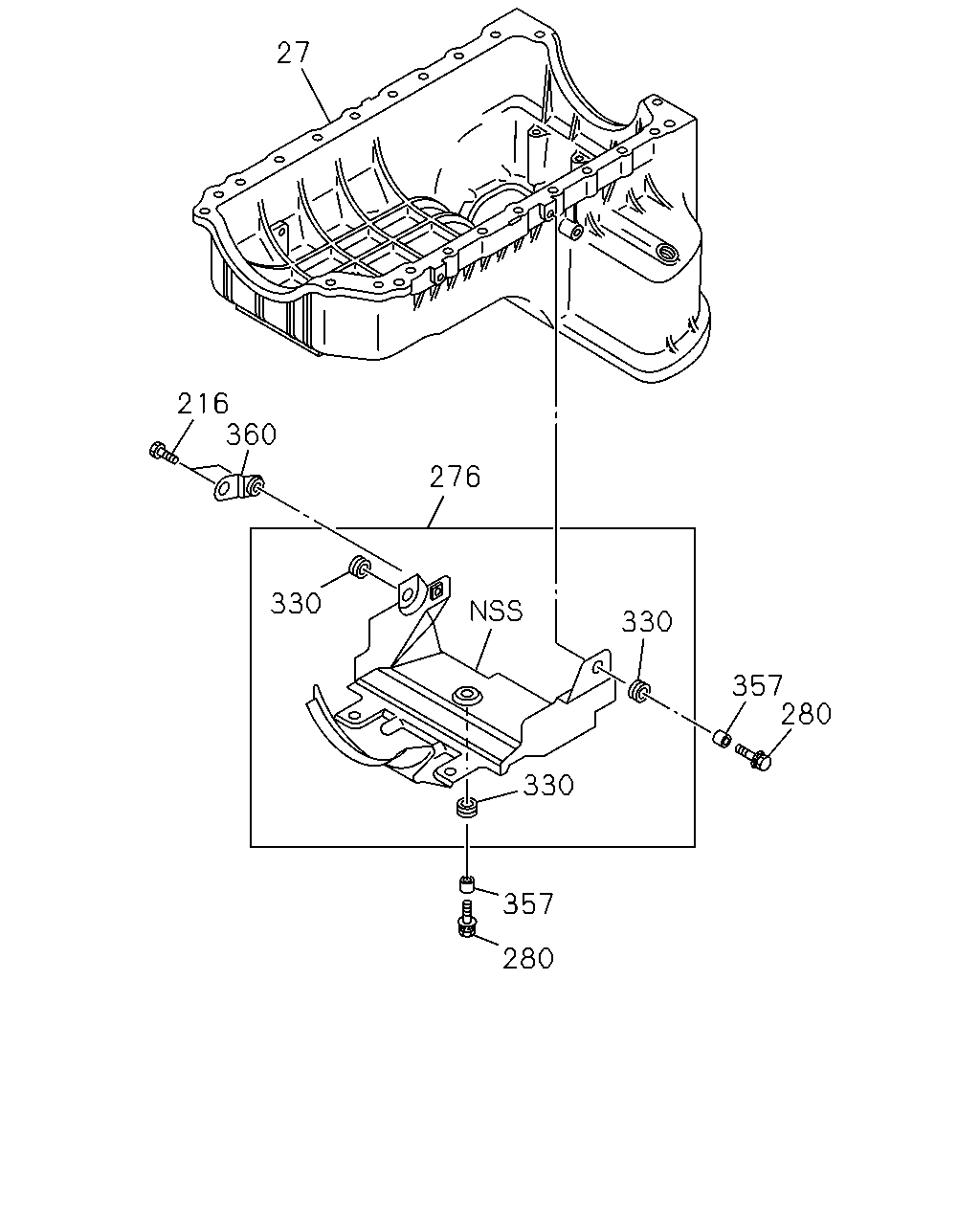

27 216 360 276 330 330 357 280 330 357 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	E	F
27	01.426 CRANKCASE	8-97358-796-0	01	1	0810-	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ)	8-98011-497-2	01	1	0808-		●
27	01.426 CRANKCASE 4X2(TFB***) A/T AISIN(RMD)	8-98013-794-1	01	1	0808-0809		●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-98013-794-1	01	1	0810-1007		●	●	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-98013-794-1	01	1	1008-		●	●	●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ)	8-98011-498-2	01	1	0808-		●
27	01.426 CRANKCASE 4X4(TFS***) A/T AISIN(RMD)	8-97370-514-3	01	1	0808-0809		●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-97370-514-3	01	1	0810-1007		●	●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-97370-514-3	01	1	1008-		●	●	●	●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0810-	●
216	01.429 BOLT; BRKT 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0810-	●
276	01.516 COVER; CRANKCASE	8-97373-085-2	01	1	0810-	●
280	01.430 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0810-	●
330	01.516 RUBBER; MTG,CRANKCASE COVER 00.413 OD=21.8	8-97325-051-0	03	1	1411-	●
330	01.516 RUBBER; MTG,CRANKCASE COVER 00.034 OD=22	8-94140-428-1	03	1	0810-0905	●
330	01.516 RUBBER; MTG,CRANKCASE COVER 00.413 OD=21.8	8-97325-051-0	03	1	0906-1012	●
357	01.516 BUSHING; COVER	8-97371-498-0	03	1	0810-	●
360	01.750 BRACKET; CRANK CASE	8-97329-650-1	01	1	0810-	●

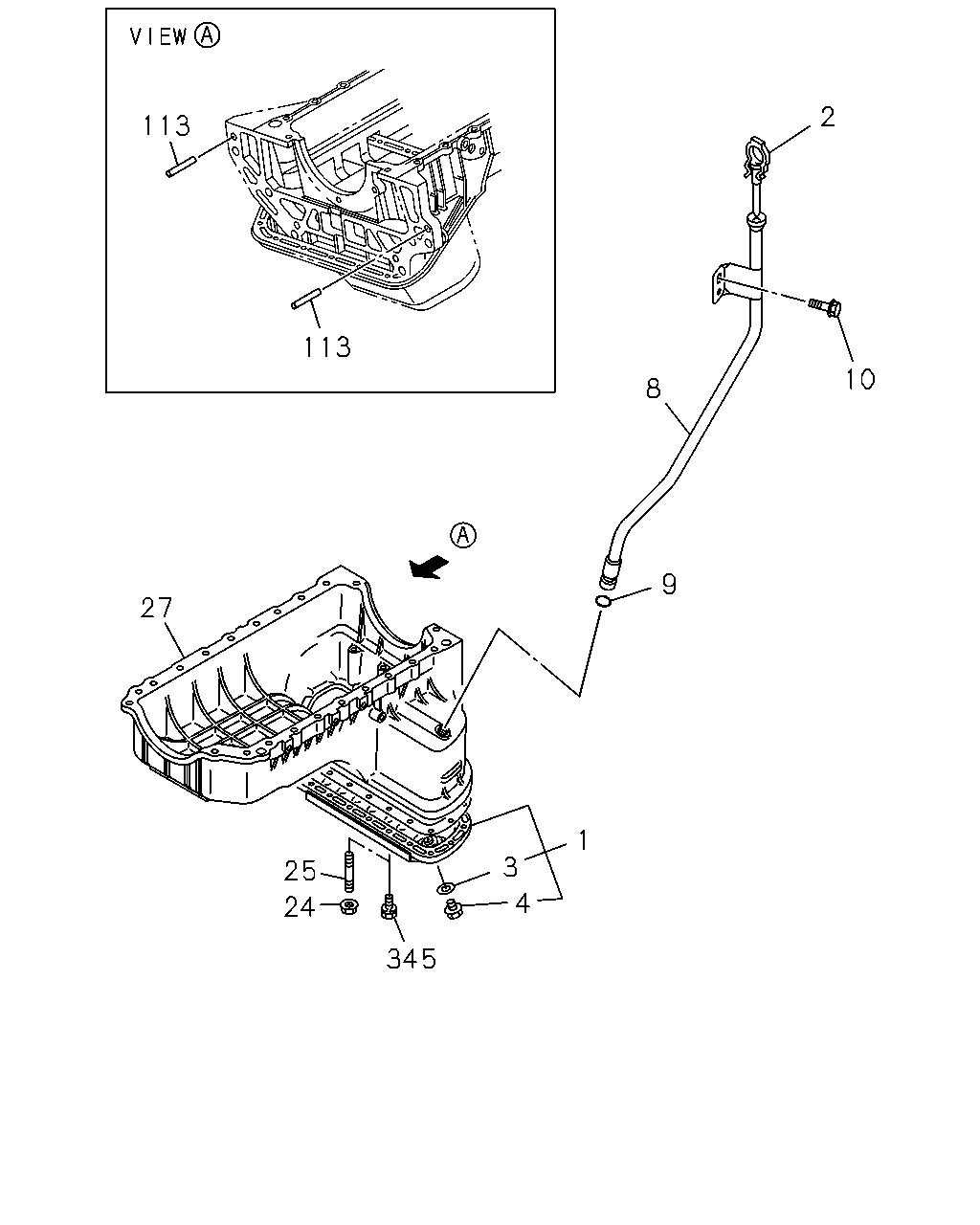

113 113 27 25 24 3 4 345 1 9 8 10 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-97248-860-2	01	1	0810-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92065-759-0	01	1	0810-1009		●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-92065-759-0	01	1	1010-		●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-92065-808-0	01	1	0810-		●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98011-499-0	01	1	0808-0809			●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98011-499-0	01	1	0810-1007			●	●	●
1	01.426 PAN ASM; OIL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98156-373-0	01	1	1008-			●	●	●	●
1	01.426 PAN ASM; OIL 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98013-383-0	01	1	0808-0809			●
1	01.426 PAN ASM; OIL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98013-383-0	01	1	0810-1007			●	●	●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98156-371-0	01	1	1008-			●	●	●	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0810-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	0810-1009		●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-92063-647-0	01	1	1010-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-92063-162-0	01	1	0810-		●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98053-833-1	01	1	0808-0809			●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98053-833-1	01	1	0810-1007			●	●	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98053-833-1	01	1	1008-			●	●	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98053-834-1	01	1	0808-0809			●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98053-834-1	01	1	0810-1007			●	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98053-834-1	01	1	1008-			●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	0810-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0808-0809			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0810-1007	●		●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1008-	●		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0810-	●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	0810-1009		●
4	01.453 PLUG; DRAIN,OIL	8-92139-054-0	01	1	1010-		●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0808-0809			●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0810-1003			●	●	●
4	01.453 PLUG; DRAIN,OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK) M14X14	8-97329-621-0	01	1	1004-1004			●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1004-1007			●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1008-			●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98067-937-0	01	1	0810-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98011-973-1	01	1	0808-0809			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98011-973-1	01	1	0810-1007			●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98011-973-1	01	1	1008-			●	●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) ID=11	1-09623-469-0	01	1	1008-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0810-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1) ID=11	1-09623-469-0	01	1	0810-1003				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	0808-0809			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	8-98034-629-0	01	1	0810-1007			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) ID=11 OD=15.8	8-98034-629-0	01	1	0810-1007				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	8-98034-629-0	01	1	1008-			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1) ID=11 OD=15.8	8-98034-629-0	01	1	1008-				●
10	01.516 BOLT; GUIDE TUBE KENYA EQUIPMENT(CL1) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1008-				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0810-	●
10	01.516 BOLT; GUIDE TUBE KENYA EQUIPMENT(CL1) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0810-1003				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0808-0809			●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0810-1007			●		●
10	01.516 BOLT; GUIDE TUBE EXC. KENYA EQUIPMENT(CL1) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0810-1007				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1008-			●		●	●
10	01.516 BOLT; GUIDE TUBE EXC. KENYA EQUIPMENT(CL1) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1008-				●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97329-622-0	02	1	0810-	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0808-0809			●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-1007			●	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-			●	●	●	●
25	01.453 STUD; OIL PAN KENYA EQUIPMENT(CL1) 00.349 M8X20 L=31	8-97945-022-0	02	1	1403-				●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	0810-	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	0808-0809			●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	0810-1007			●	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1008-1405			●	●	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1406-			●		●	●
25	01.453 STUD; OIL PAN EXC. KENYA EQUIPMENT(CL1) M8X16 L=28	0-41010-816-0	02	1	1406-				●
27	01.426 CRANKCASE	8-97358-796-0	01	1	0810-	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ)	8-98011-497-2	01	1	0808-			●
27	01.426 CRANKCASE 4X2(TFB***) A/T AISIN(RMD)	8-98013-794-1	01	1	0808-0809			●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-98013-794-1	01	1	0810-1007			●	●	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-98013-794-1	01	1	1008-			●	●	●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ)	8-98011-498-2	01	1	0808-			●
27	01.426 CRANKCASE 4X4(TFS***) A/T AISIN(RMD)	8-97370-514-3	01	1	0808-0809			●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-97370-514-3	01	1	0810-1007			●	●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-97370-514-3	01	1	1008-			●	●	●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0810-	●
113	01.453 PIN; STRAIGHT M/T MUX 5 SPEED 5S(MZJ) 08.939 OD=10 L=32	9-08161-032-0	02	1	0808-			●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	0808-0809			●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	0810-1007			●	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK) 02.343 M8X12 FLANGE	0-28050-812-0	17	1	1008-			●	●	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 M8X12 FLANGE	0-28050-812-0	17	1	0808-0809			●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 M8X12 FLANGE	0-28050-812-0	17	1	0810-1007			●	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	1008-			●	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0810-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	0810-1009		●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-92063-647-0	01	1	1010-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-92063-162-0	01	1	0810-		●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98053-833-1	01	1	0808-0809			●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98053-833-1	01	1	0810-1007			●	●	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98053-833-1	01	1	1008-			●	●	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98053-834-1	01	1	0808-0809			●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98053-834-1	01	1	0810-1007			●	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98053-834-1	01	1	1008-			●	●	●	●

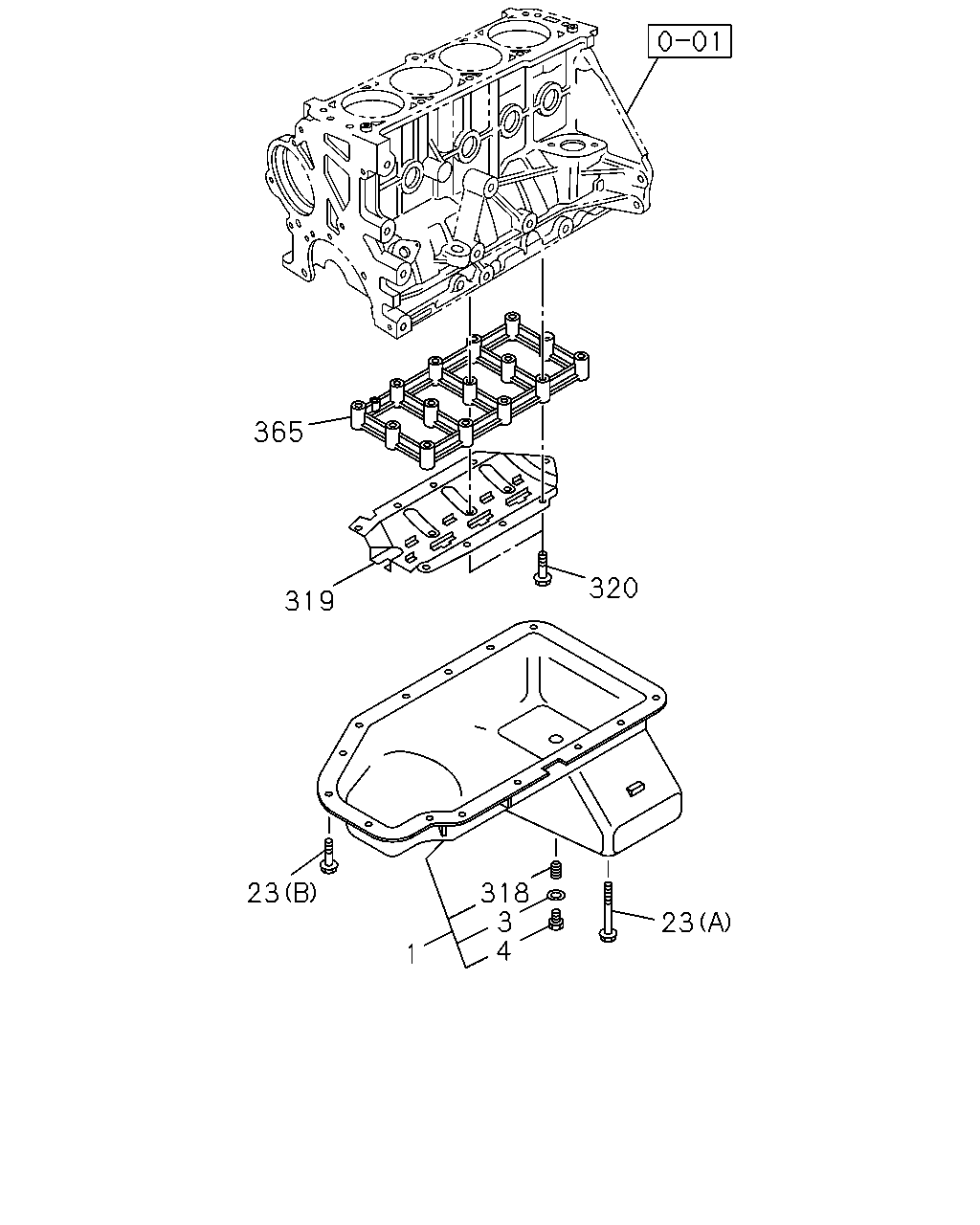

365 320 319 23 318 3 4 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-97248-860-2	01	1	0810-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92065-759-0	01	1	0810-1009		●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-92065-759-0	01	1	1010-		●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-92065-808-0	01	1	0810-		●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98011-499-0	01	1	0808-0809			●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98011-499-0	01	1	0810-1007			●	●	●
1	01.426 PAN ASM; OIL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98156-373-0	01	1	1008-			●	●	●	●
1	01.426 PAN ASM; OIL 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98013-383-0	01	1	0808-0809			●
1	01.426 PAN ASM; OIL 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98013-383-0	01	1	0810-1007			●	●	●
1	01.426 PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK)	8-98156-371-0	01	1	1008-			●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	0810-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0808-0809			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0810-1007	●		●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1008-	●		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0810-	●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	0810-1009		●
4	01.453 PLUG; DRAIN,OIL	8-92139-054-0	01	1	1010-		●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0808-0809			●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0810-1003			●	●	●
4	01.453 PLUG; DRAIN,OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED -JATCO(RMK) M14X14	8-97329-621-0	01	1	1004-1004			●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1004-1007			●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1008-			●	●	●	●
23	01.428 BOLT; OIL PAN (A)	8-11096-082-0	01	1	1010-		●
23	01.428 BOLT; OIL PAN (C) M6X13 W/PL WASHER	8-97135-141-0	15	1	0810-	●
23	01.428 BOLT; OIL PAN (A) M8X132	8-11093-981-0	03	1	0810-		●
23	01.428 BOLT; OIL PAN 00.662 (B) M8X45	8-11096-481-0	11	1	0810-1009		●
23	01.428 BOLT; OIL PAN 00.662 (B) M8X45	8-11096-481-0	10	1	1010-		●
318	01.428 INSERT; OIL PAN	8-11065-809-0	01	1	0810-		●
319	01.430 SCRAPER; OIL PAN	8-92063-872-0	01	1	0810-1009		●
319	01.430 SCRAPER; OIL PAN	8-90571-319-0	01	1	1010-		●
320	01.430 BOLT; SCRAPER 00.662 M8X45	8-11096-481-0	13	1	0810-1009		●
320	01.430 BOLT; SCRAPER	8-11096-482-0	13	1	1010-		●
365	01.426 BRIDGE; MAIN BEARING	8-90501-900-0	01	1	0810-1009		●
365	01.426 BRIDGE; MAIN BEARING	8-93382-758-0	01	1	1010-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
