Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#76939) — 300 parça

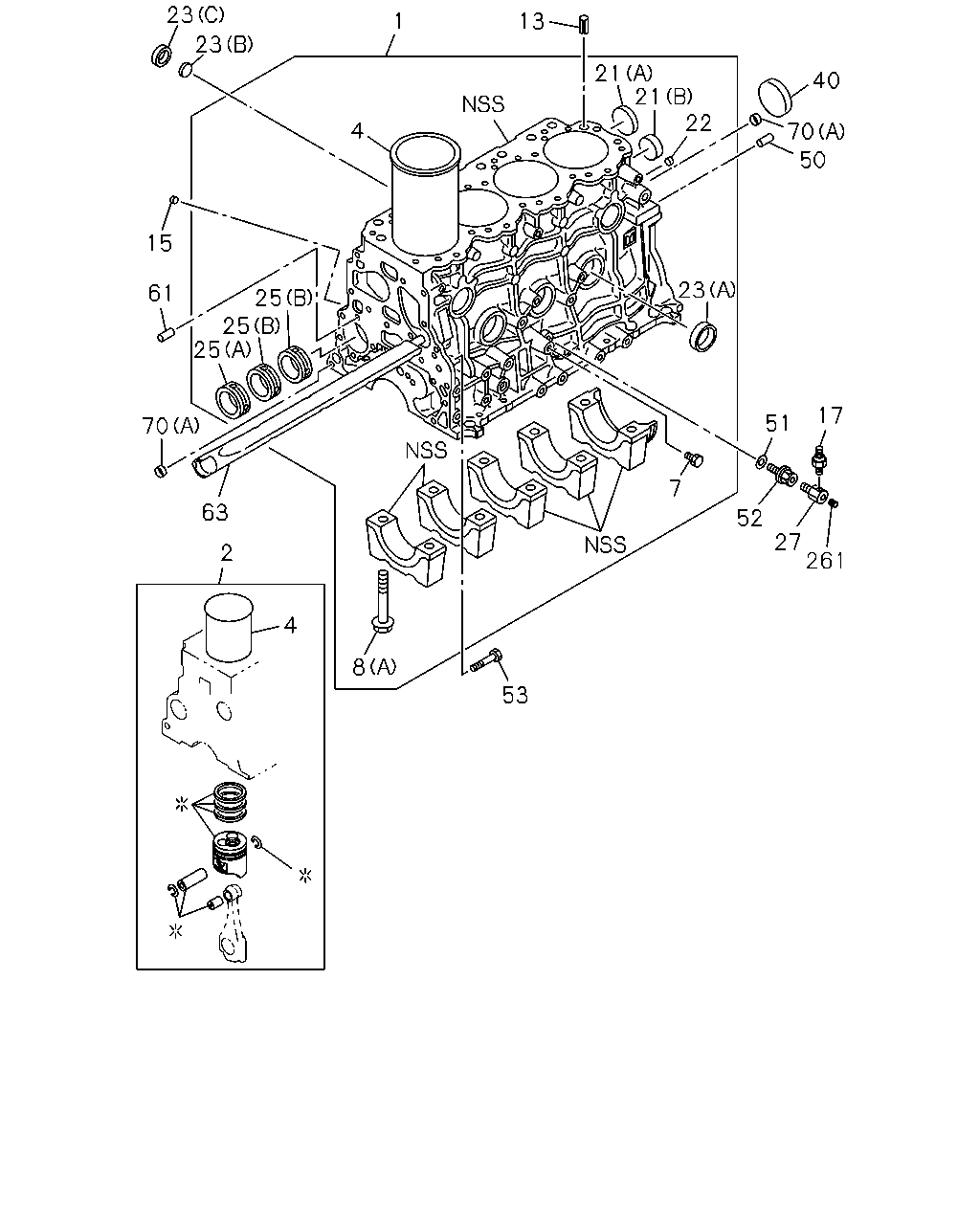

23 23 1 13 21 21 22 70 40 50 4 23 51 17 52 27 261 7 53 8 4 2 63 70 25 25 25 61 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	0810-1007	●
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1008-1405	●	●
1	00.033 BLOCK ASM; CYL	8-98239-517-2	01	1	1406-	●	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0808-0809			●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0810-1304			●	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1305-1405			●
1	00.033 BLOCK ASM; CYL EXC. KENYA EQUIPMENT(CL1)	8-97386-617-5	01	1	1305-1405				●
1	00.033 BLOCK ASM; CYL	8-98239-516-2	01	1	1406-			●
1	00.033 BLOCK ASM; CYL EXC. KENYA EQUIPMENT(CL1)	8-98239-516-2	01	1	1406-				●
1	00.033 BLOCK ASM; CYL KENYA EQUIPMENT(CL1)	8-98240-635-1	01	1	1305-				●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	0810-					●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-401-2	04	1	0810-					●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-402-2	04	1	0810-					●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-403-2	04	1	0810-					●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-404-2	04	1	0810-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	0810-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	0810-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	0810-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	0810-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	0810-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	0810-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	0810-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	0810-					●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0808-0809			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0810-1007	●		●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1008-	●	●	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0808-0809			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0810-1007	●		●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1008-	●	●	●	●	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0810-						●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0808-0809			●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0810-1007	●		●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1008-	●	●	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0810-1007	●		●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1008-	●	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0808-0809			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0810-					●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-3	01	1	0810-					●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0808-0809			●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0810-1007	●		●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1008-	●	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0808-0809			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0810-1007	●		●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1008-	●	●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0808-0809			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0810-1007	●		●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1008-	●	●	●	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0810-					●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0808-0809			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0810-1007	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1008-	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0810-					●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0808-0809			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0810-1007	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	1008-	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0808-0809			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0810-1007	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	1008-	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0810-					●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0808-0809			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0810-1007	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1008-	●	●	●	●	●
25	00.539 METAL; CM/SHF (B)	8-97378-147-0	02	1	0810-					●
25	00.539 METAL; CM/SHF (A)	8-97378-148-0	01	1	0810-					●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0808-0809			●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0810-1007	●		●	●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-1	01	1	1008-	●	●	●	●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0810-					●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0810-					●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1).	8-94336-292-0	01	1	0810-1003				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0810-1003					●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1004-1007					●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1).	8-94336-292-0	01	1	1008-				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1008-					●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	0808-0809			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	0810-1007	●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1)	8-97912-498-0	01	1	0810-1007				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	1008-	●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1)	8-97912-498-0	01	1	1008-				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1)	8-94167-750-2	01	1	0810-1003				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0810-1003					●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1004-1007					●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1)	8-94167-750-2	01	1	1008-				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1008-					●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	0808-0809			●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	0810-1007	●		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-98084-434-0	01	1	0810-1007				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	1008-	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-98084-434-0	01	1	1008-				●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0810-					●
61	00.206 PIN; STRAIGHT KENYA EQUIPMENT(CL1) 01.428 L=31	9-09878-597-0	02	1	1008-				●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0810-					●
61	00.206 PIN; STRAIGHT KENYA EQUIPMENT(CL1) 01.428 L=31	9-09878-597-0	02	1	0810-1003				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0808-0809			●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0810-1007	●		●
61	00.206 PIN; STRAIGHT EXC. KENYA EQUIPMENT(CL1) 01.453 L=31	8-97920-964-1	02	1	0810-1007				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1008-	●	●	●
61	00.206 PIN; STRAIGHT EXC. KENYA EQUIPMENT(CL1) 01.453 L=31	8-97920-964-1	02	1	1008-				●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	0810-					●
70	00.034 CUP; SEALING,FRT & RR (B) OD=34	8-11056-093-0	07	1	0810-						●
70	00.034 CUP; SEALING,FRT & RR (B) OD=36	8-11070-803-0	07	1	0810-1009						●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	0810-1007	●		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	1008-	●	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	0808-0809			●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0810-					●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0808-0809			●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0810-1007	●		●	●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	1008-	●	●	●	●	●

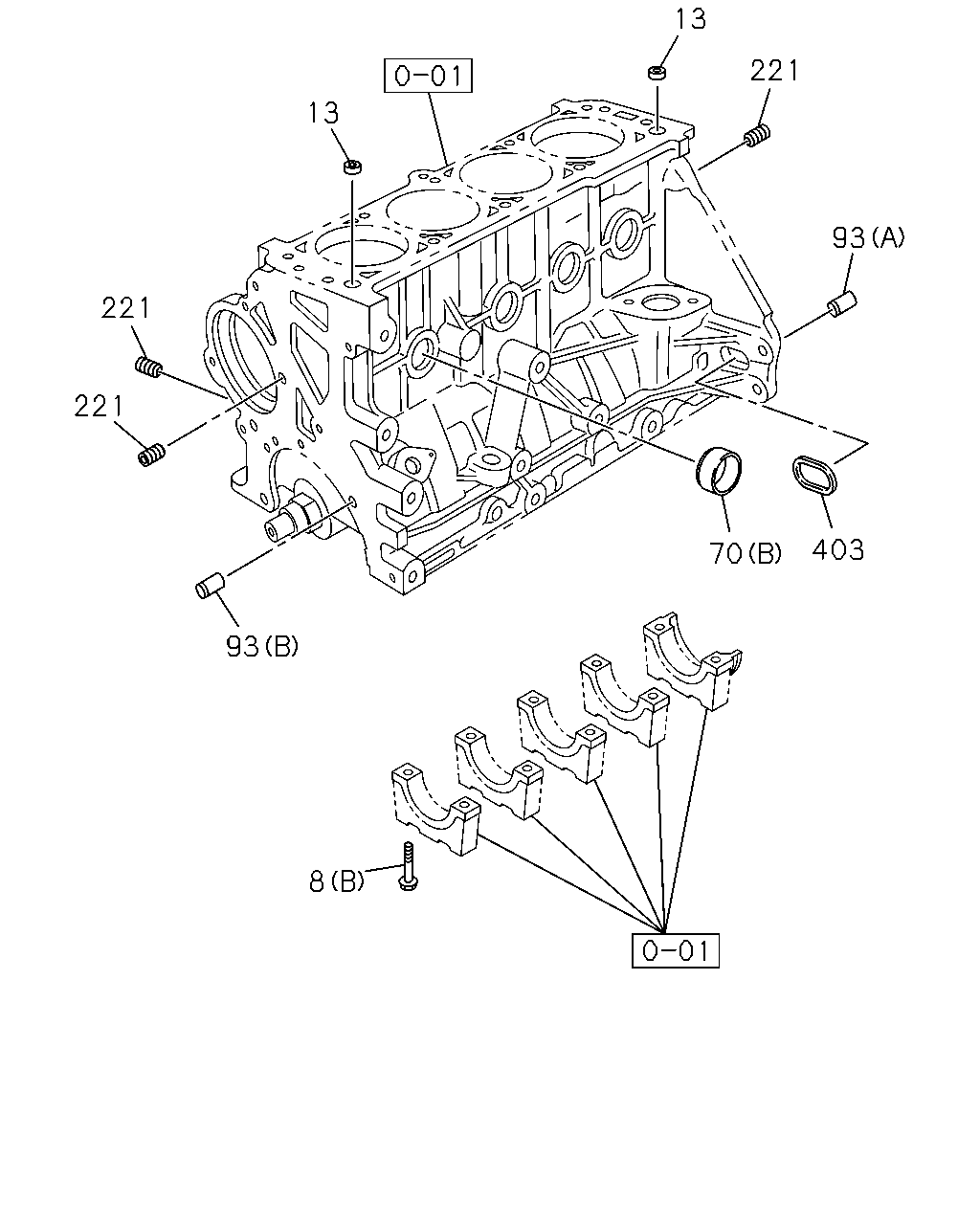

13 221 13 93 221 221 403 70 93 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0808-0809			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0810-1007	●		●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1008-	●	●	●	●	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0810-						●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0808-0809			●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0810-1007	●		●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1008-	●	●	●	●	●
70	00.034 CUP; SEALING,FRT & RR (B) OD=34	8-11056-093-0	07	1	0810-						●
70	00.034 CUP; SEALING,FRT & RR (B) OD=36	8-11070-803-0	07	1	0810-1009						●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	0810-1007	●		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	1008-	●	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	0808-0809			●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0810-					●
93	00.206 DOWEL; RET TO C/BL (A)	8-90108-591-0	02	1	0810-1009						●
93	00.206 DOWEL; RET TO C/BL (A)	8-90351-708-0	02	1	1010-						●
93	00.206 DOWEL; RET TO C/BL 01.609 (B)	8-90351-709-0	02	1	0810-1009						●
93	00.206 DOWEL; RET TO C/BL (B)	8-90096-047-0	02	1	1010-						●
221	01.531 PLUG; OIL GALLERY	8-11056-321-0	04	1	0810-						●
403	01.519 GUIDE; GALLERY	8-90501-712-0	01	1	0810-						●

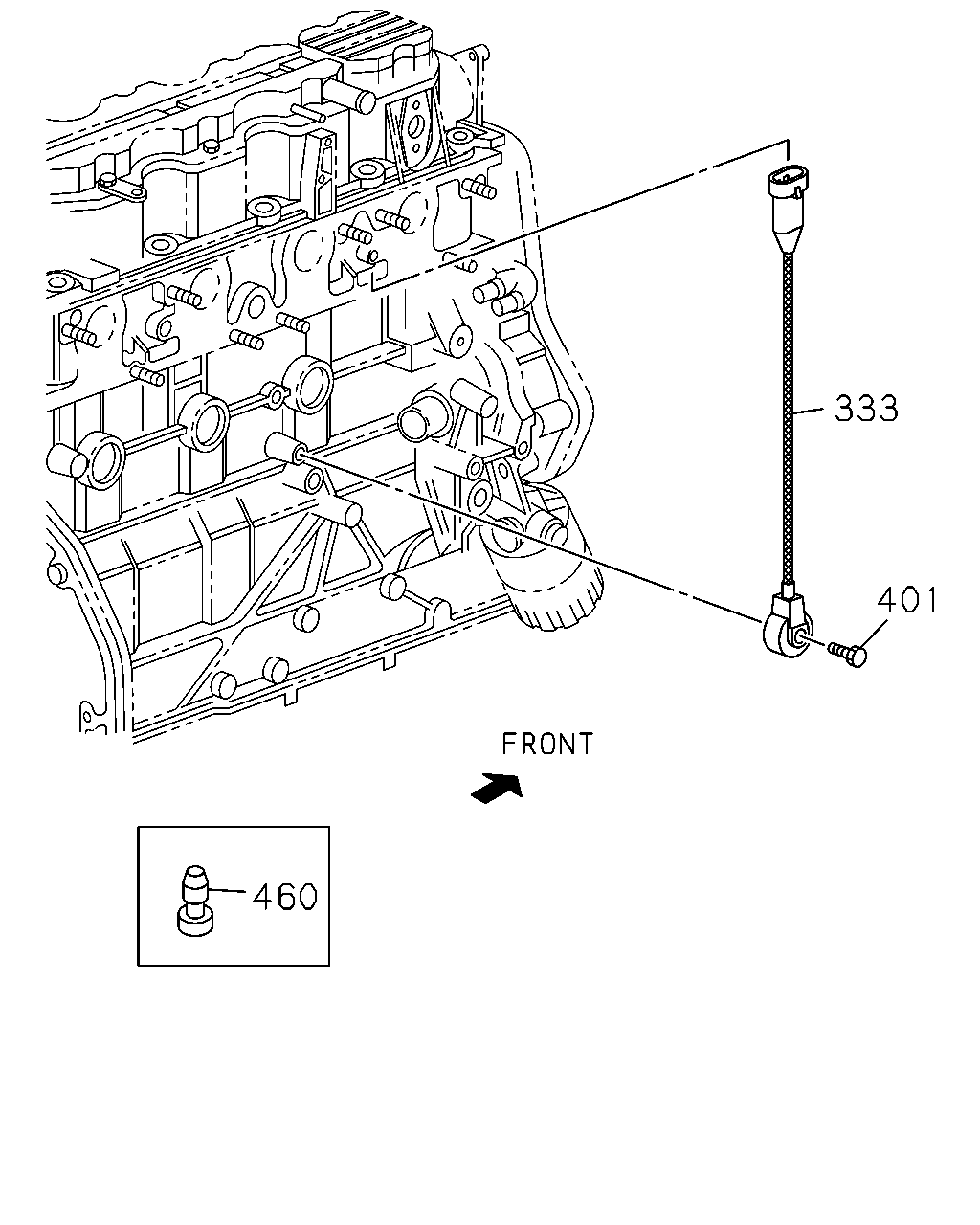

333 401 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	F
333	03.682 SENSOR; KNOCK	8-10456-669-0	01	1	0810-					●
401	00.724 BOLT; SENSOR	8-92063-265-0	01	1	0810-					●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0808-0809			●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0810-1007	●		●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1008-	●	●	●	●
460	00.034 SEAL; CYL BLOCK	8-97163-071-0	01	1	0810-					●

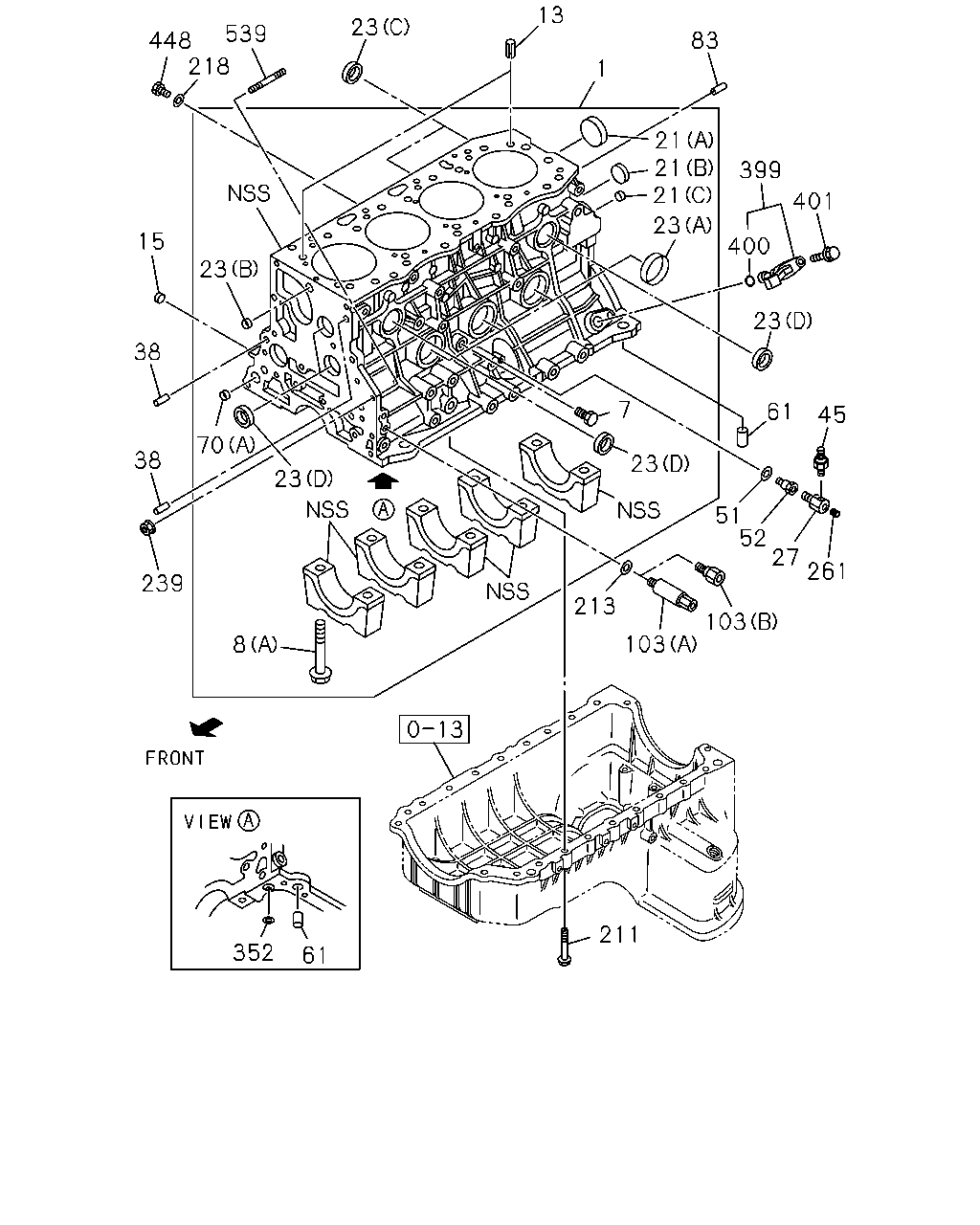

13 83 23 539 448 218 1 21 21 21 23 399 400 401 15 23 23 7 38 70 38 23 23 61 45 51 52 27 261 239 8 213 103 352 61 211 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	0810-1007	●
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1008-1405	●	●
1	00.033 BLOCK ASM; CYL	8-98239-517-2	01	1	1406-	●	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0808-0809			●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0810-1304			●	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1305-1405			●
1	00.033 BLOCK ASM; CYL EXC. KENYA EQUIPMENT(CL1)	8-97386-617-5	01	1	1305-1405				●
1	00.033 BLOCK ASM; CYL	8-98239-516-2	01	1	1406-			●
1	00.033 BLOCK ASM; CYL EXC. KENYA EQUIPMENT(CL1)	8-98239-516-2	01	1	1406-				●
1	00.033 BLOCK ASM; CYL KENYA EQUIPMENT(CL1)	8-98240-635-1	01	1	1305-				●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	0810-					●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0808-0809			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0810-1007	●		●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1008-	●	●	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0808-0809			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0810-1007	●		●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1008-	●	●	●	●	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0810-						●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0808-0809			●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0810-1007	●		●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1008-	●	●	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0810-1007	●		●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1008-	●	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0808-0809			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0810-					●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0808-0809			●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0810-1007	●		●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1008-	●	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0808-0809			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0810-1007	●		●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1008-	●	●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0808-0809			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0810-1007	●		●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1008-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0808-0809			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0810-1007	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1008-	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0810-					●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0808-0809			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0810-1007	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	1008-	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0808-0809			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0810-1007	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	1008-	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0810-					●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0808-0809			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0810-1007	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1008-	●	●	●	●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0808-0809			●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0810-1007	●		●	●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-1	01	1	1008-	●	●	●	●	●
38	00.206 PIN; TIMING GEAR CASE KENYA EQUIPMENT(CL1) 04.510 OD=10 L=20	8-97135-423-0	02	1	1008-				●
38	00.206 PIN; TIMING GEAR CASE KENYA EQUIPMENT(CL1) 04.510 OD=10 L=20	8-97135-423-0	02	1	0810-1003				●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	0808-0809			●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	0810-1007	●		●
38	00.206 PIN; TIMING GEAR CASE EXC. KENYA EQUIPMENT(CL1) 00.669 OD=10 L=20	9-08151-020-0	02	1	0810-1007				●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	1008-	●	●	●
38	00.206 PIN; TIMING GEAR CASE EXC. KENYA EQUIPMENT(CL1) 00.669 OD=10 L=20	9-08151-020-0	02	1	1008-				●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0808-0809			●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0810-1007	●		●	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1008-	●	●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1).	8-94336-292-0	01	1	0810-1003				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0810-1003					●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1004-1007					●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). KENYA EQUIPMENT(CL1).	8-94336-292-0	01	1	1008-				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1008-					●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	0808-0809			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	0810-1007	●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1)	8-97912-498-0	01	1	0810-1007				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	1008-	●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KENYA EQUIPMENT(CL1)	8-97912-498-0	01	1	1008-				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1)	8-94167-750-2	01	1	0810-1003				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0810-1003					●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1004-1007					●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1)	8-94167-750-2	01	1	1008-				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1008-					●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	0808-0809			●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	0810-1007	●		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-98084-434-0	01	1	0810-1007				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	1008-	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-98084-434-0	01	1	1008-				●
61	00.206 PIN; STRAIGHT KENYA EQUIPMENT(CL1) 01.428 L=31	9-09878-597-0	02	1	1008-				●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0810-					●
61	00.206 PIN; STRAIGHT KENYA EQUIPMENT(CL1) 01.428 L=31	9-09878-597-0	02	1	0810-1003				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0808-0809			●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0810-1007	●		●
61	00.206 PIN; STRAIGHT EXC. KENYA EQUIPMENT(CL1) 01.453 L=31	8-97920-964-1	02	1	0810-1007				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1008-	●	●	●
61	00.206 PIN; STRAIGHT EXC. KENYA EQUIPMENT(CL1) 01.453 L=31	8-97920-964-1	02	1	1008-				●
70	00.034 CUP; SEALING,FRT & RR (B) OD=34	8-11056-093-0	07	1	0810-						●
70	00.034 CUP; SEALING,FRT & RR (B) OD=36	8-11070-803-0	07	1	0810-1009						●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	0810-1007	●		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	1008-	●	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	0808-0809			●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0810-					●
83	00.685 PIN; FLYWHEEL HSG A/T AISIN(RMD) 08.939 OD=10 L=32	9-08161-032-0	01	1	0808-0809			●
83	00.685 PIN; FLYWHEEL HSG A/T AISIN(RMD) 08.939 OD=10 L=32	9-08161-032-0	01	1	0810-1007			●
83	00.685 PIN; FLYWHEEL HSG M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 08.939 OD=10 L=32	9-08161-032-0	01	1	0810-1007				●
83	00.685 PIN; FLYWHEEL HSG M/T MUA 5 SPEED 5H(MWQ) 08.939 OD=10 L=32	9-08161-032-0	01	1	0810-1007	●
83	00.685 PIN; FLYWHEEL HSG A/T AISIN(RMD) 08.939 OD=10 L=32	9-08161-032-0	01	1	1008-			●
83	00.685 PIN; FLYWHEEL HSG M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 08.939 OD=10 L=32	9-08161-032-0	01	1	1008-				●
83	00.685 PIN; FLYWHEEL HSG M/T MUA 5 SPEED 5H(MWQ) 08.939 OD=10 L=32	9-08161-032-0	01	1	1008-	●	●
103	01.531 NIPPLE; OIL FEED KENYA EQUIPMENT(CL1) 00.293 (B)	8-94469-596-0	01	1	1301-				●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	0808-0809			●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	0810-1007	●		●	●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	1008-1212	●	●	●	●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	1301-	●	●	●
103	01.531 NIPPLE; OIL FEED EXC. KENYA EQUIPMENT(CL1) (A)	8-97316-983-4	01	1	1301-				●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE	0-28050-830-0	05	1	0808-0809			●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE	0-28050-830-0	05	1	0810-1007	●		●	●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE	0-28050-830-0	05	1	1008-	●	●	●	●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE	0-28650-825-0	14	1	0808-0809			●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE	0-28650-825-0	14	1	0810-1007	●		●	●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE	0-28650-825-0	14	1	1008-	●	●	●	●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE	0-28650-840-0	01	1	0808-0809			●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE	0-28650-840-0	01	1	0810-1007	●		●	●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1008-	●	●	●	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	0808-0809			●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	0810-1007	●		●	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1008-	●	●	●	●
218	01.531 GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0808-0809			●
218	01.531 GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0810-1007	●		●	●
218	01.531 GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1008-	●	●	●	●
239	02.100 NUT; STUD,C/BL KENYA EQUIPMENT(CL1) 04.085 M10 FLANGE	0-91180-210-0	01	1	0810-				●
239	02.100 NUT; STUD,C/BL A/T AISIN(RMD) 03.162 M10 FLANGE	0-91180-110-0	01	1	0808-0809			●
239	02.100 NUT; STUD,C/BL A/T AISIN(RMD) 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-0912			●
239	02.100 NUT; STUD,C/BL EXC. KENYA EQUIPMENT(CL1) 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-0912				●
239	02.100 NUT; STUD,C/BL M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> POWER STEERING<N40> 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-0912	●
239	02.100 NUT; STUD,C/BL A/T AISIN(RMD) 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-1003			●
239	02.100 NUT; STUD,C/BL M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. KENYA EQUIPMENT(CL1) 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-1003				●
239	02.100 NUT; STUD,C/BL M/T MUA 5 SPEED 5H(MWQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-1003	●
239	02.100 NUT; STUD,C/BL A/T AISIN(RMD) 03.162 M10 FLANGE	0-91180-110-0	01	1	1004-1007			●
239	02.100 NUT; STUD,C/BL M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 03.162 M10 FLANGE	0-91180-110-0	01	1	1004-1007				●
239	02.100 NUT; STUD,C/BL M/T MUA 5 SPEED 5H(MWQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1004-1007	●
239	02.100 NUT; STUD,C/BL M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 03.162 M10 FLANGE	0-91180-110-0	01	1	1008-1402	●	●	●
239	02.100 NUT; STUD,C/BL EXC. KENYA EQUIPMENT(CL1) 03.162 M10 FLANGE	0-91180-110-0	01	1	1008-1402				●
239	02.100 NUT; STUD,C/BL M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) EXC. KENYA EQUIPMENT(CL1) 03.162 M10 FLANGE	0-91180-110-0	01	1	1403-	●	●	●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0808-0809			●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0810-1007	●		●	●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	1008-	●	●	●	●	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	0808-0809			●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	0810-1007	●		●	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	1008-	●	●	●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0808-0809			●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0810-1007	●		●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	1008-	●	●	●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0808-0809			●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0810-1007	●		●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	1008-	●	●	●	●
401	00.724 BOLT; SENSOR	8-92063-265-0	01	1	0810-						●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0808-0809			●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0810-1007	●		●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1008-	●	●	●	●
448	00.034 PLUG; C/BL KENYA EQUIPMENT(CL1) 03.001 M14X14	8-94152-613-0	01	1	1008-				●
448	00.034 PLUG; C/BL KENYA EQUIPMENT(CL1) 03.001 M14X14	8-94152-613-0	01	1	0810-1003				●
448	00.034 PLUG; C/BL	8-97379-656-1	01	1	0808-0809			●
448	00.034 PLUG; C/BL	8-97379-656-1	01	1	0810-1007	●		●
448	00.034 PLUG; C/BL EXC. KENYA EQUIPMENT(CL1)	8-97379-656-1	01	1	0810-1007				●
448	00.034 PLUG; C/BL	8-97379-656-1	01	1	1008-	●	●	●
448	00.034 PLUG; C/BL EXC. KENYA EQUIPMENT(CL1)	8-97379-656-1	01	1	1008-				●
539	01.428 STUD; REAMER A/T AISIN(RMD) 00.862 M10X40 L=75.5	8-97371-842-1	01	1	0808-0809			●
539	01.428 STUD; REAMER A/T AISIN(RMD) 00.862 M10X40 L=75.5	8-97371-842-1	01	1	0810-1007			●
539	01.428 STUD; REAMER M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 00.862 M10X40 L=75.5	8-97371-842-1	01	1	0810-1007				●
539	01.428 STUD; REAMER M/T MUA 5 SPEED 5H(MWQ) 00.862 M10X40 L=75.5	8-97371-842-1	01	1	0810-1007	●
539	01.428 STUD; REAMER A/T AISIN(RMD) 00.862 M10X40 L=75.5	8-97371-842-1	01	1	1008-			●
539	01.428 STUD; REAMER M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 00.862 M10X40 L=75.5	8-97371-842-1	01	1	1008-				●
539	01.428 STUD; REAMER M/T MUA 5 SPEED 5H(MWQ) 00.862 M10X40 L=75.5	8-97371-842-1	01	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
