◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#76938) — 633 parça

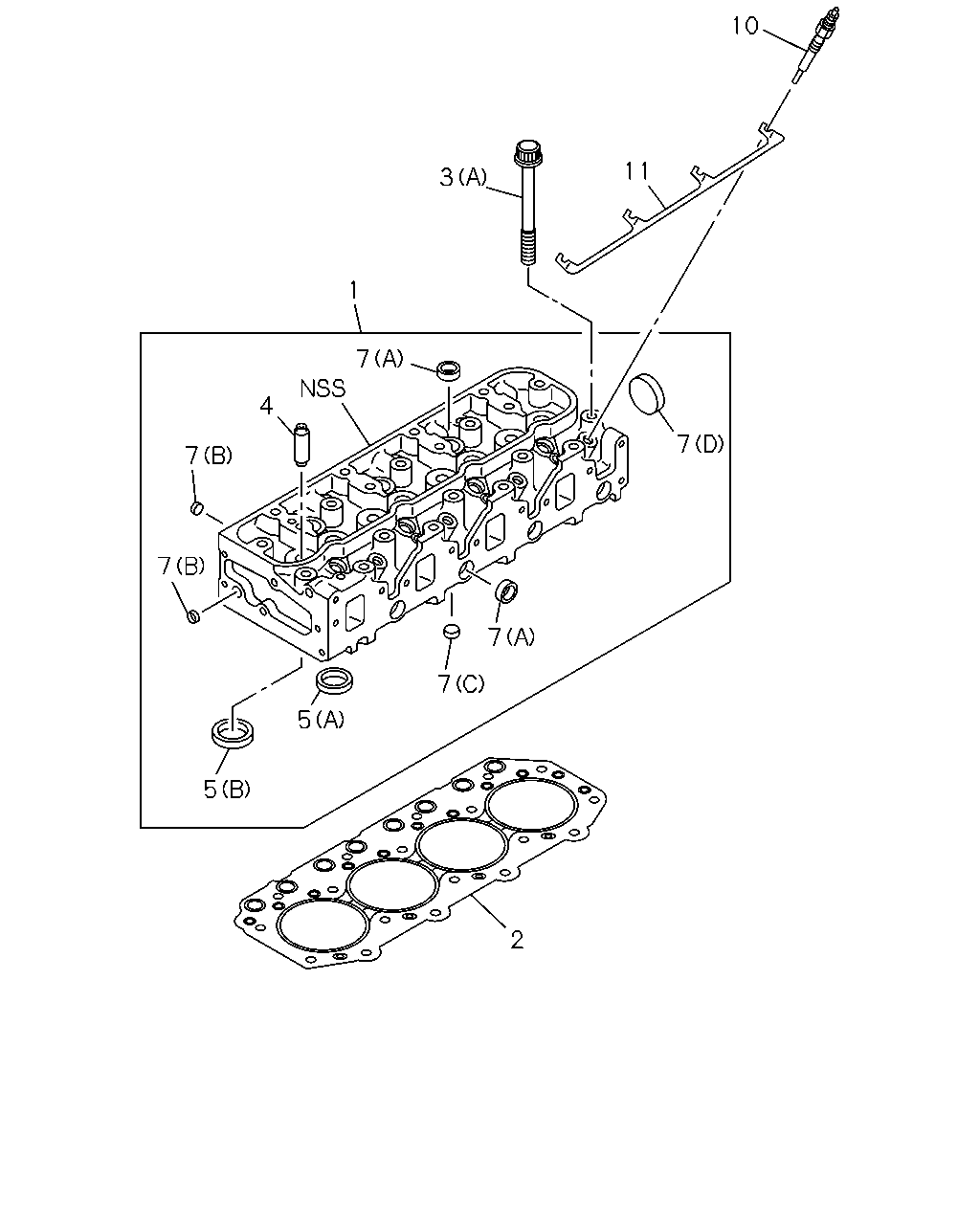

çizim 14702
10 11 3 1 7 4 7 7 7 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-98223-019-1 01 1 1211-1301 ● ● ●
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98223-019-1 01 1 1211-1301 ●
1 00.269 HEAD ASM; CYL 8-98223-019-2 01 1 1302- ● ● ● ●
1 00.269 HEAD ASM; CYL 8-98175-606-0 01 1 1010-1012 ● ● ●
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98175-606-0 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101-1210 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-98175-606-1 01 1 1211-1301 ●
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 0810- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0810-1009 ●
1 00.269 HEAD ASM; CYL 8-93381-263-0 01 1 1010- ●
1 00.269 HEAD ASM; CYL 8-97355-970-8 01 1 0808-0809 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0810-1007 ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1008-1009 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-97355-970-9 01 1 1010-1012 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.14 1-NOTCH 		8-98291-683-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.19 2-NOTCH 		8-98291-684-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.24 3-NOTCH 		8-98291-685-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1308-1309 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1310-1502 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1503- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1308-1309 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1310-1502 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1503- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1308-1309 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1310-1502 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1503- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98135-953-0 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98135-954-0 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98135-955-0 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98135-953-0 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98135-954-0 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98135-955-0 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-93282-665-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0808-0809 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0810-0901 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-1007 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1008-1108 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1109-1307 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0808-0809 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0810-0901 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-1007 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1008-1108 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1109-1307 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0808-0809 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0810-0901 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-1007 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1008-1108 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1109-1307 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OVER SIZE 		8-97388-314-0 01 1 1403- ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
KENYA EQUIPMENT(CL1) (C) M11X114 W/WASHER 		8-98201-019-0 18 1 1109-1201 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 W/WASHER 		8-98201-019-0 18 1 1202- ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 0810- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) 		8-90325-498-0 09 1 0810-1009 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) 		8-93294-943-0 07 1 1010- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-1 18 1 0808-0809 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 0810-1007 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 1008-1108 ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 1109-1201 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KENYA EQUIPMENT(CL1) (C) M11X114 		8-97144-583-2 18 1 1109-1201 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0810- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0810- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0810-1009 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0808-0809 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0810-1007 ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1008-1210 ● ● ● ●
4 00.283 GUIDE; VLV
KENYA EQUIPMENT(CL1) L=42 		8-94239-423-0 16 1 1211-1301 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1302- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=41.2 		8-97231-228-0 04 1 0810- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0810- ●
5 00.253 SEAT; VLV INSERT
(D) INLET 		8-90233-708-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST 		8-90233-709-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(C) INLET 		8-90233-712-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST 		8-90233-713-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 0808-0809 ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 0810-1007 ● ● ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 1008-1210 ● ● ● ●
5 00.253 SEAT; VLV INSERT
KENYA EQUIPMENT(CL1) (F) INLET ID=29 OD=35 		8-97311-378-0 08 1 1211-1301 ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 1302- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0808-0809 ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0810-1007 ● ● ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1008-1210 ● ● ● ●
5 00.253 SEAT; VLV INSERT
KENYA EQUIPMENT(CL1) (E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1211-1301 ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) STD OD=26 		8-11044-142-0 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=30.8 		8-11067-433-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(J) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=30 		8-11072-963-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(K) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OVSI OD=28 		8-11084-312-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) 00.034 (I) OD=32 		1-09600-012-2 02 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) (H) OD=18 		5-11219-008-0 13 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) 00.034 (G) OD=14 		5-11219-011-0 07 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1302- ● ● ● ●
10 02.270 PLUG; GLOW
KENYA EQUIPMENT(CL1) BOSCH 		8-98200-051-0 04 1 1109-1109 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98200-051-0 04 1 1110- ● ● ● ●
10 02.270 PLUG; GLOW
KENYA EQUIPMENT(CL1) BOSCH 		8-98174-898-0 04 1 1009-1009 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98174-898-0 04 1 1010-1108 ● ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-98174-898-0 04 1 1109-1109 ● ● ●
10 02.270 PLUG; GLOW
EXC. KENYA EQUIPMENT(CL1) BOSCH 		8-98174-898-0 04 1 1109-1109 ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0810- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 0810- ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 0808-0809 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 0810-1007 ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 1008-1008 ● ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 1009-1009 ● ● ●
10 02.270 PLUG; GLOW
EXC. KENYA EQUIPMENT(CL1) BOSCH 		8-98013-392-0 04 1 1009-1009 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1304-1304 ● ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. KENYA EQUIPMENT(CL1) 		8-98209-370-0 01 1 1304-1304 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1304- ● ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0810- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 0808-0809 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 0810-1007 ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 1008-1303 ● ● ● ●
11 02.251 CONNECTOR; GLOW PLUG
KENYA EQUIPMENT(CL1) 		8-97326-045-3 01 1 1304-1304 ●

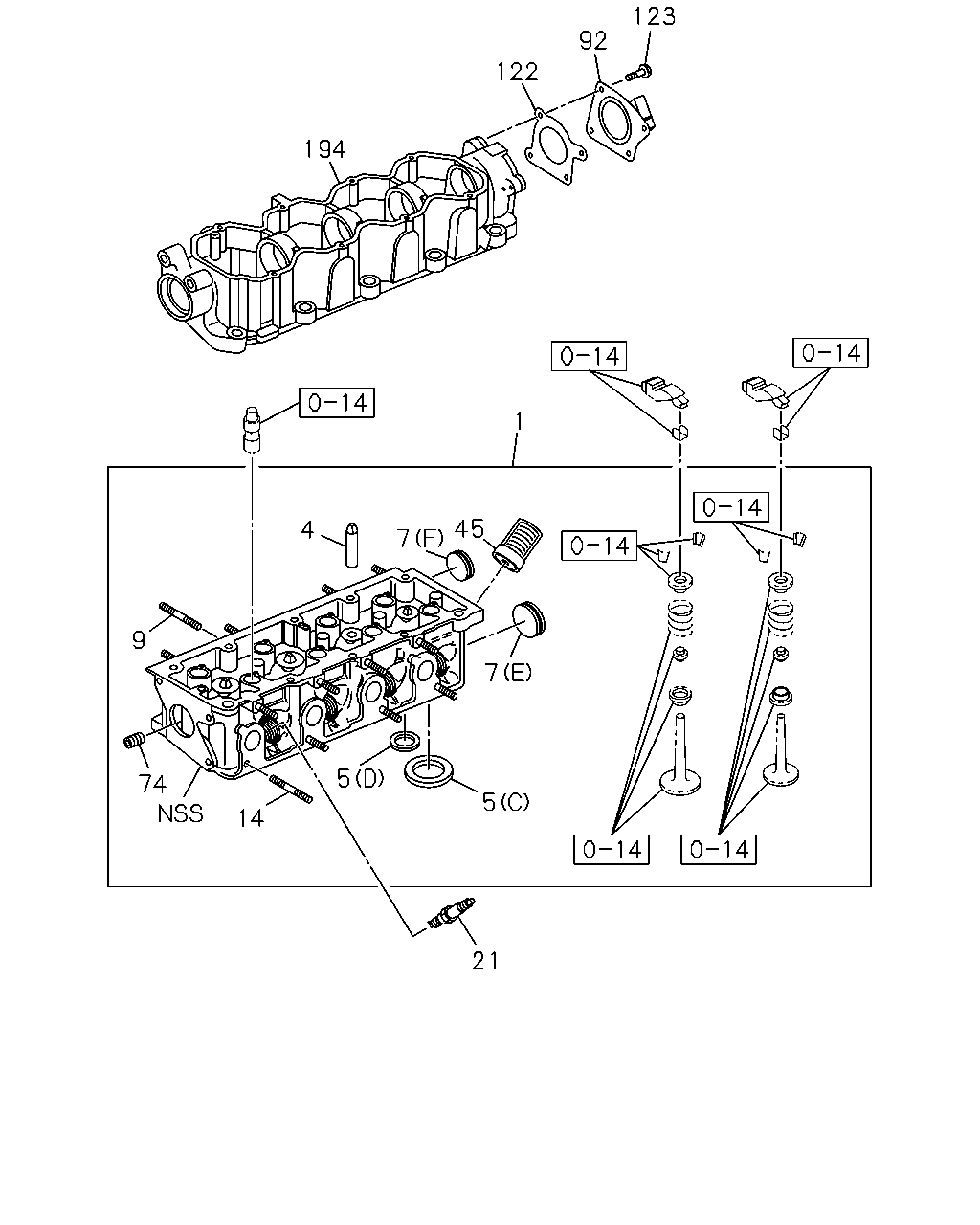

çizim 19484
123 92 122 194 1 45 7 4 9 7 5 74 5 14 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-98223-019-1 01 1 1211-1301 ● ● ●
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98223-019-1 01 1 1211-1301 ●
1 00.269 HEAD ASM; CYL 8-98223-019-2 01 1 1302- ● ● ● ●
1 00.269 HEAD ASM; CYL 8-98175-606-0 01 1 1010-1012 ● ● ●
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98175-606-0 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101-1210 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-98175-606-1 01 1 1211-1301 ●
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 0810- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0810-1009 ●
1 00.269 HEAD ASM; CYL 8-93381-263-0 01 1 1010- ●
1 00.269 HEAD ASM; CYL 8-97355-970-8 01 1 0808-0809 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0810-1007 ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1008-1009 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-97355-970-9 01 1 1010-1012 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0810- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0810- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0810-1009 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0808-0809 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0810-1007 ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1008-1210 ● ● ● ●
4 00.283 GUIDE; VLV
KENYA EQUIPMENT(CL1) L=42 		8-94239-423-0 16 1 1211-1301 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1302- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=41.2 		8-97231-228-0 04 1 0810- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0810- ●
5 00.253 SEAT; VLV INSERT
(D) INLET 		8-90233-708-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST 		8-90233-709-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(C) INLET 		8-90233-712-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST 		8-90233-713-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 0808-0809 ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 0810-1007 ● ● ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 1008-1210 ● ● ● ●
5 00.253 SEAT; VLV INSERT
KENYA EQUIPMENT(CL1) (F) INLET ID=29 OD=35 		8-97311-378-0 08 1 1211-1301 ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 1302- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0808-0809 ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0810-1007 ● ● ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1008-1210 ● ● ● ●
5 00.253 SEAT; VLV INSERT
KENYA EQUIPMENT(CL1) (E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1211-1301 ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) STD OD=26 		8-11044-142-0 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=30.8 		8-11067-433-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(J) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=30 		8-11072-963-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(K) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OVSI OD=28 		8-11084-312-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) 00.034 (I) OD=32 		1-09600-012-2 02 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) (H) OD=18 		5-11219-008-0 13 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) 00.034 (G) OD=14 		5-11219-011-0 07 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1302- ● ● ● ●
9 03.275 STUD; INL MANIF 8-92066-276-0 09 1 0810-1009 ●
9 03.275 STUD; INL MANIF 8-90106-924-0 09 1 1010- ●
14 03.275 STUD; EXH MANIF 8-92066-276-0 08 1 0810-1009 ●
14 03.275 STUD; EXH MANIF 8-90106-924-0 08 1 1010- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0810-1009 ●
21 02.270 PLUG; SPARK 8-93206-675-0 04 1 1010- ●
45 00.293 VALVE; OIL RELIEF,CYL HD 8-90136-113-0 01 1 0810-1009 ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 0810-1009 ●
92 00.206 COVER; CM/SHF,CYL HD 8-92063-831-0 01 1 0810- ●
122 00.206 GASKET; COVER 8-92062-158-0 01 1 0810-1009 ●
122 00.206 GASKET; COVER 8-90572-268-0 01 1 1010- ●
123 00.206 BOLT; COVER
KENYA EQUIPMENT(CL1) M8X20 FLANGE 		8-97366-632-0 04 1 1008- ●
123 00.206 BOLT; COVER
KENYA EQUIPMENT(CL1) M8X20 FLANGE 		8-97366-632-0 04 1 0810-1003 ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 0810-1009 ●
123 00.206 BOLT; COVER 8-93298-898-0 04 1 1010- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0808-0809 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0810-1007 ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0810-1007 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1008- ● ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1008- ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0810-1009 ●
194 00.349 CARRIER; CAM SHAFT 8-93369-422-0 01 1 1010- ●

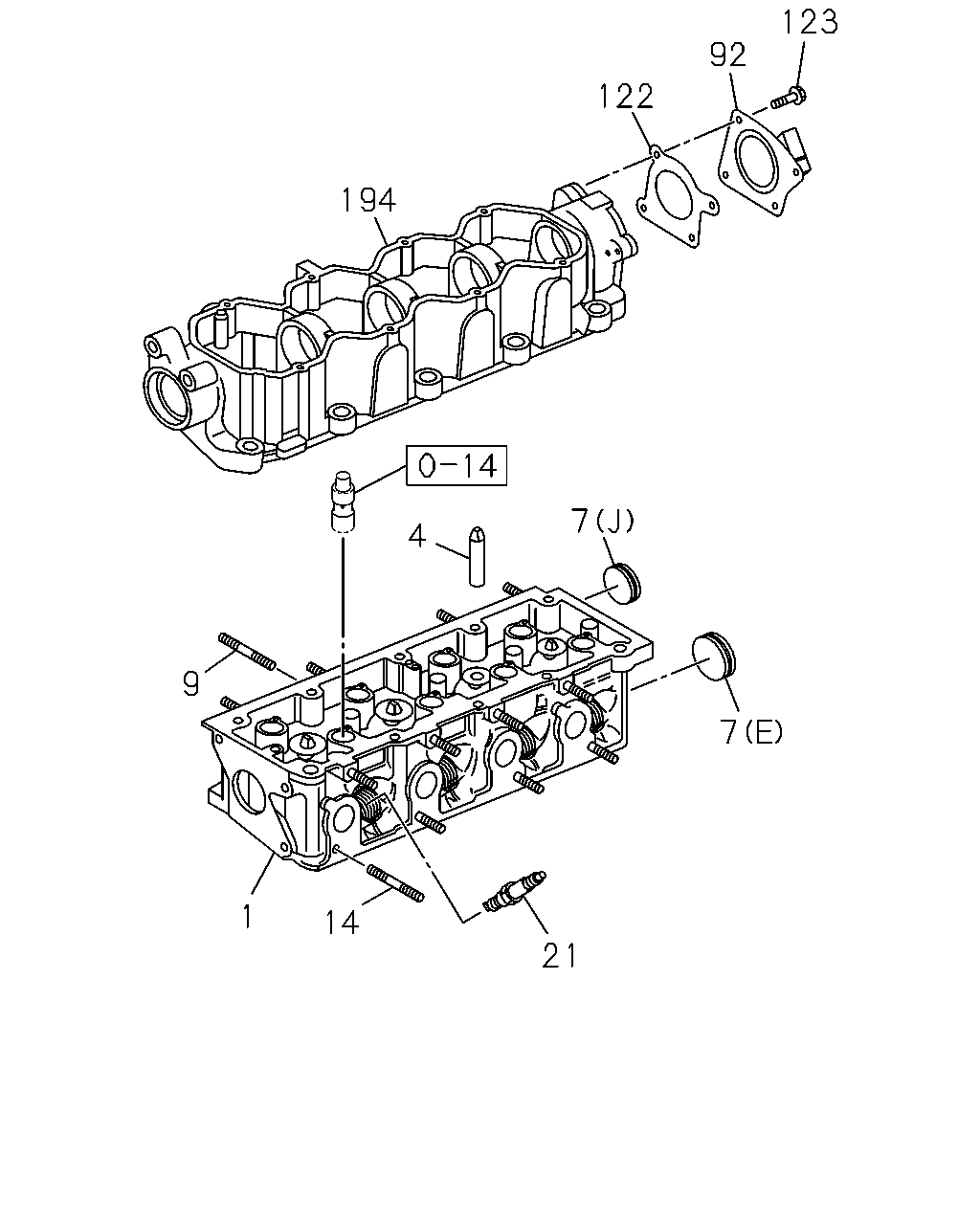

çizim 27817
123 92 122 194 7 4 9 7 1 14 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-98223-019-1 01 1 1211-1301 ● ● ●
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98223-019-1 01 1 1211-1301 ●
1 00.269 HEAD ASM; CYL 8-98223-019-2 01 1 1302- ● ● ● ●
1 00.269 HEAD ASM; CYL 8-98175-606-0 01 1 1010-1012 ● ● ●
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98175-606-0 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101-1210 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-98175-606-1 01 1 1211-1301 ●
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 0810- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0810-1009 ●
1 00.269 HEAD ASM; CYL 8-93381-263-0 01 1 1010- ●
1 00.269 HEAD ASM; CYL 8-97355-970-8 01 1 0808-0809 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0810-1007 ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1008-1009 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-97355-970-9 01 1 1010-1012 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0810- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0810- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0810-1009 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0808-0809 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0810-1007 ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1008-1210 ● ● ● ●
4 00.283 GUIDE; VLV
KENYA EQUIPMENT(CL1) L=42 		8-94239-423-0 16 1 1211-1301 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) STD OD=26 		8-11044-142-0 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=30.8 		8-11067-433-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(J) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=30 		8-11072-963-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(K) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OVSI OD=28 		8-11084-312-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) 00.034 (I) OD=32 		1-09600-012-2 02 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) (H) OD=18 		5-11219-008-0 13 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) 00.034 (G) OD=14 		5-11219-011-0 07 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1302- ● ● ● ●
9 03.275 STUD; INL MANIF 8-92066-276-0 09 1 0810-1009 ●
9 03.275 STUD; INL MANIF 8-90106-924-0 09 1 1010- ●
14 03.275 STUD; EXH MANIF 8-92066-276-0 08 1 0810-1009 ●
14 03.275 STUD; EXH MANIF 8-90106-924-0 08 1 1010- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0810-1009 ●
21 02.270 PLUG; SPARK 8-93206-675-0 04 1 1010- ●
92 00.206 COVER; CM/SHF,CYL HD 8-92063-831-0 01 1 0810- ●
122 00.206 GASKET; COVER 8-92062-158-0 01 1 0810-1009 ●
122 00.206 GASKET; COVER 8-90572-268-0 01 1 1010- ●
123 00.206 BOLT; COVER
KENYA EQUIPMENT(CL1) M8X20 FLANGE 		8-97366-632-0 04 1 1008- ●
123 00.206 BOLT; COVER
KENYA EQUIPMENT(CL1) M8X20 FLANGE 		8-97366-632-0 04 1 0810-1003 ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 0810-1009 ●
123 00.206 BOLT; COVER 8-93298-898-0 04 1 1010- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0808-0809 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0810-1007 ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0810-1007 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1008- ● ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1008- ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0810-1009 ●
194 00.349 CARRIER; CAM SHAFT 8-93369-422-0 01 1 1010- ●

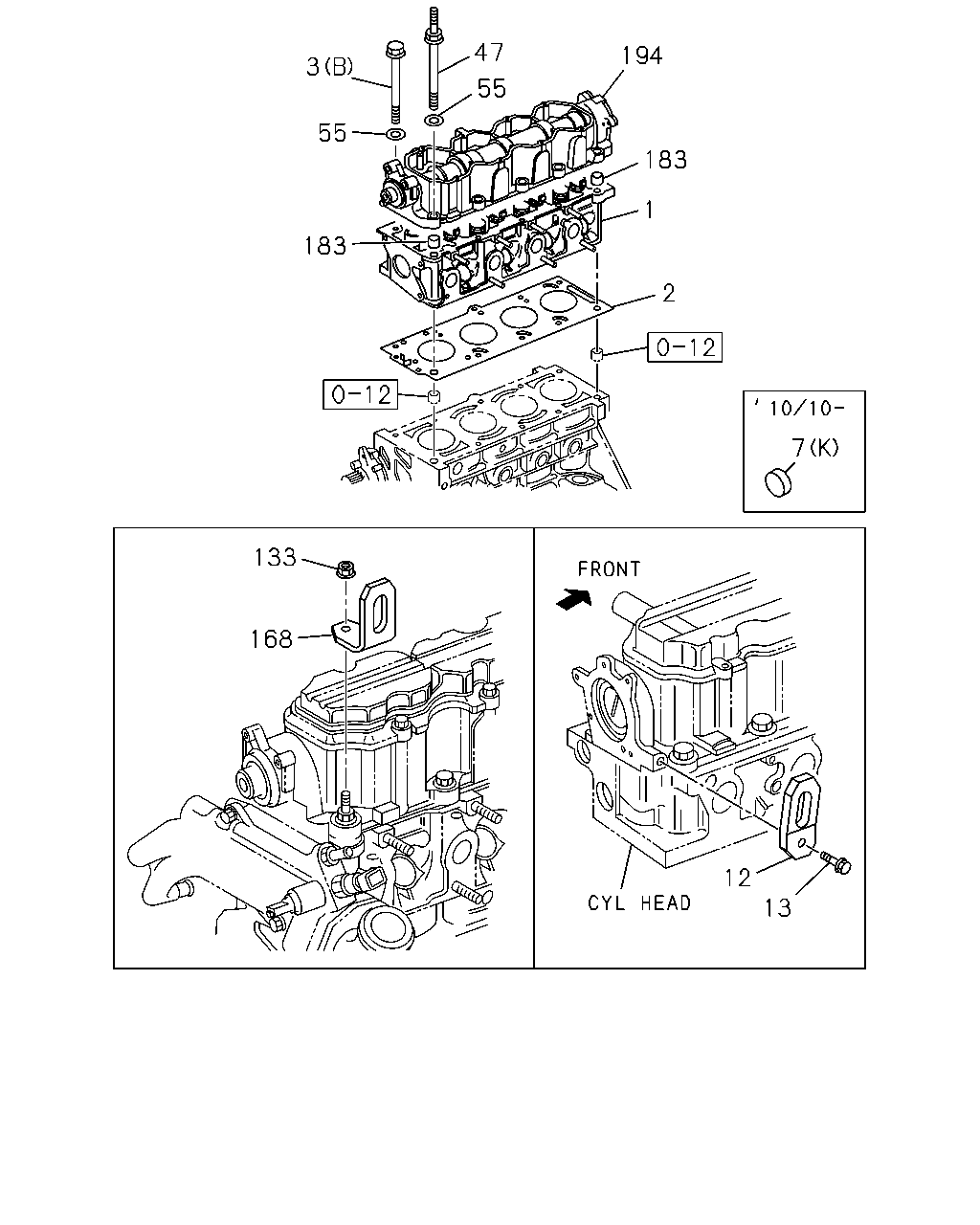

çizim 27898
47 194 3 55 55 183 1 183 2 7 133 168 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-98223-019-1 01 1 1211-1301 ● ● ●
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98223-019-1 01 1 1211-1301 ●
1 00.269 HEAD ASM; CYL 8-98223-019-2 01 1 1302- ● ● ● ●
1 00.269 HEAD ASM; CYL 8-98175-606-0 01 1 1010-1012 ● ● ●
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98175-606-0 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101-1210 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-98175-606-1 01 1 1211-1301 ●
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 0810- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0810-1009 ●
1 00.269 HEAD ASM; CYL 8-93381-263-0 01 1 1010- ●
1 00.269 HEAD ASM; CYL 8-97355-970-8 01 1 0808-0809 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0810-1007 ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1008-1009 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-97355-970-9 01 1 1010-1012 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.14 1-NOTCH 		8-98291-683-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.19 2-NOTCH 		8-98291-684-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.24 3-NOTCH 		8-98291-685-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1308-1309 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1310-1502 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1503- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1308-1309 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1310-1502 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1503- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1308-1309 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1310-1502 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1503- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98135-953-0 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98135-954-0 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98135-955-0 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98135-953-0 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98135-954-0 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98135-955-0 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-93282-665-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0808-0809 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0810-0901 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-1007 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1008-1108 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1109-1307 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0808-0809 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0810-0901 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-1007 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1008-1108 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1109-1307 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0808-0809 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0810-0901 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-1007 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1008-1108 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1109-1307 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OVER SIZE 		8-97388-314-0 01 1 1403- ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
KENYA EQUIPMENT(CL1) (C) M11X114 W/WASHER 		8-98201-019-0 18 1 1109-1201 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 W/WASHER 		8-98201-019-0 18 1 1202- ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 0810- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) 		8-90325-498-0 09 1 0810-1009 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) 		8-93294-943-0 07 1 1010- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-1 18 1 0808-0809 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 0810-1007 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 1008-1108 ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 1109-1201 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KENYA EQUIPMENT(CL1) (C) M11X114 		8-97144-583-2 18 1 1109-1201 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) STD OD=26 		8-11044-142-0 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=30.8 		8-11067-433-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(J) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=30 		8-11072-963-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(K) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OVSI OD=28 		8-11084-312-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) 00.034 (I) OD=32 		1-09600-012-2 02 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) (H) OD=18 		5-11219-008-0 13 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) 00.034 (G) OD=14 		5-11219-011-0 07 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1302- ● ● ● ●
12 00.004 HANGER; ENG,RR
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98099-830-1 01 1 0810- ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 0810- ●
13 00.004 BOLT; HANGER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0810- ●
13 00.004 BOLT; HANGER
03.670 		8-11041-103-0 01 1 0810-1009 ●
13 00.004 BOLT; HANGER 8-93298-987-0 01 1 1010- ●
47 00.413 STUD; CYL HD 8-92061-632-0 01 1 0810-1009 ●
47 00.413 STUD; CYL HD 8-10031-214-0 03 1 1010- ●
55 00.004 WASHER; PL,CYL HD TO BLOCK 8-90325-497-0 10 1 0810-1009 ●
55 00.004 WASHER; PL,CYL HD TO BLOCK 8-90144-297-0 10 1 1010- ●
133 00.004 NUT; HANGER 8-92066-006-0 01 1 0810-1009 ●
133 00.004 NUT; HANGER 8-93251-957-0 01 1 1010- ●
168 00.004 HANGER; ENG,FRT 8-90323-004-0 01 1 0810-1009 ●
168 00.004 HANGER; ENG,FRT 8-92065-449-0 01 1 1010- ●
183 00.206 DOWEL; CYL HEAD
00.293 		8-90353-654-0 02 1 0810- ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0810-1009 ●
194 00.349 CARRIER; CAM SHAFT 8-93369-422-0 01 1 1010- ●

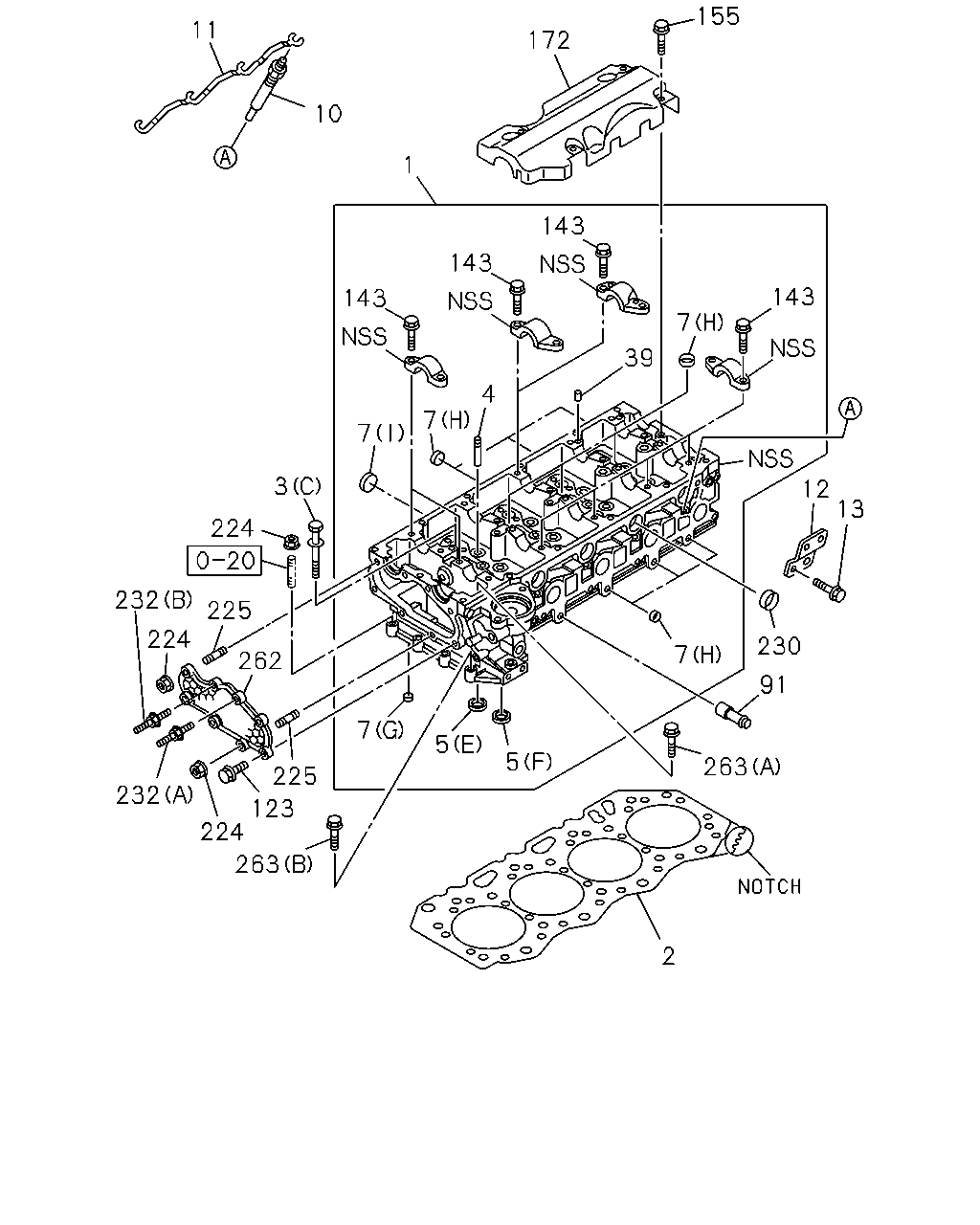

çizim 186294
155 11 172 10 1 143 143 143 143 7 39 4 7 7 12 13 3 224 232 225 224 230 7 262 91 7 5 225 5 263 232 123 224 263 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-98223-019-1 01 1 1211-1301 ● ● ●
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98223-019-1 01 1 1211-1301 ●
1 00.269 HEAD ASM; CYL 8-98223-019-2 01 1 1302- ● ● ● ●
1 00.269 HEAD ASM; CYL 8-98175-606-0 01 1 1010-1012 ● ● ●
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98175-606-0 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101-1210 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-98175-606-1 01 1 1211-1301 ●
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 0810- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0810-1009 ●
1 00.269 HEAD ASM; CYL 8-93381-263-0 01 1 1010- ●
1 00.269 HEAD ASM; CYL 8-97355-970-8 01 1 0808-0809 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0810-1007 ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1008-1009 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-97355-970-9 01 1 1010-1012 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.14 1-NOTCH 		8-98291-683-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.19 2-NOTCH 		8-98291-684-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.24 3-NOTCH 		8-98291-685-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1308-1309 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1310-1502 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1503- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1308-1309 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1310-1502 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1503- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1308-1309 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1310-1502 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1503- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1503- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98135-953-0 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98135-954-0 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98135-955-0 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-98135-953-0 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-98135-954-0 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-98135-955-0 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-93282-665-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0808-0809 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0810-0901 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-1007 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1008-1108 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1109-1307 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0808-0809 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0810-0901 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-1007 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1008-1108 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1109-1307 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0808-0809 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0810-0901 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-1007 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-1007 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1008-1108 ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1008-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1109-1307 ● ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1308-1309 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OVER SIZE 		8-97388-314-0 01 1 1403- ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
KENYA EQUIPMENT(CL1) (C) M11X114 W/WASHER 		8-98201-019-0 18 1 1109-1201 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 W/WASHER 		8-98201-019-0 18 1 1202- ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 0810- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) 		8-90325-498-0 09 1 0810-1009 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) 		8-93294-943-0 07 1 1010- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-1 18 1 0808-0809 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 0810-1007 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 1008-1108 ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X114 		8-97144-583-2 18 1 1109-1201 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KENYA EQUIPMENT(CL1) (C) M11X114 		8-97144-583-2 18 1 1109-1201 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0810- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0810- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0810-1009 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0808-0809 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0810-1007 ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1008-1210 ● ● ● ●
4 00.283 GUIDE; VLV
KENYA EQUIPMENT(CL1) L=42 		8-94239-423-0 16 1 1211-1301 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1302- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=41.2 		8-97231-228-0 04 1 0810- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0810- ●
5 00.253 SEAT; VLV INSERT
(D) INLET 		8-90233-708-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST 		8-90233-709-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(C) INLET 		8-90233-712-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST 		8-90233-713-0 04 1 0810-1009 ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 0808-0809 ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 0810-1007 ● ● ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 1008-1210 ● ● ● ●
5 00.253 SEAT; VLV INSERT
KENYA EQUIPMENT(CL1) (F) INLET ID=29 OD=35 		8-97311-378-0 08 1 1211-1301 ●
5 00.253 SEAT; VLV INSERT
(F) INLET ID=29 OD=35 		8-97311-378-0 08 1 1302- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0808-0809 ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0810-1007 ● ● ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1008-1210 ● ● ● ●
5 00.253 SEAT; VLV INSERT
KENYA EQUIPMENT(CL1) (E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1211-1301 ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) STD OD=26 		8-11044-142-0 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=30.8 		8-11067-433-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(J) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=30 		8-11072-963-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(K) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OVSI OD=28 		8-11084-312-0 01 1 0810-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) 00.034 (I) OD=32 		1-09600-012-2 02 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (I) OD=32 		1-09600-012-2 02 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) (H) OD=18 		5-11219-008-0 13 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=18 		5-11219-008-0 13 1 1302- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0808-0809 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0810-1007 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1008-1210 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
KENYA EQUIPMENT(CL1) 00.034 (G) OD=14 		5-11219-011-0 07 1 1211-1301 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1302- ● ● ● ●
10 02.270 PLUG; GLOW
KENYA EQUIPMENT(CL1) BOSCH 		8-98200-051-0 04 1 1109-1109 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98200-051-0 04 1 1110- ● ● ● ●
10 02.270 PLUG; GLOW
KENYA EQUIPMENT(CL1) BOSCH 		8-98174-898-0 04 1 1009-1009 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98174-898-0 04 1 1010-1108 ● ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-98174-898-0 04 1 1109-1109 ● ● ●
10 02.270 PLUG; GLOW
EXC. KENYA EQUIPMENT(CL1) BOSCH 		8-98174-898-0 04 1 1109-1109 ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0810- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 0810- ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 0808-0809 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 0810-1007 ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 1008-1008 ● ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 1009-1009 ● ● ●
10 02.270 PLUG; GLOW
EXC. KENYA EQUIPMENT(CL1) BOSCH 		8-98013-392-0 04 1 1009-1009 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1304-1304 ● ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. KENYA EQUIPMENT(CL1) 		8-98209-370-0 01 1 1304-1304 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1304- ● ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0810- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 0808-0809 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 0810-1007 ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 1008-1303 ● ● ● ●
11 02.251 CONNECTOR; GLOW PLUG
KENYA EQUIPMENT(CL1) 		8-97326-045-3 01 1 1304-1304 ●
12 00.004 HANGER; ENG,RR
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98099-830-1 01 1 0810- ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 0810- ●
13 00.004 BOLT; HANGER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0810- ●
13 00.004 BOLT; HANGER
03.670 		8-11041-103-0 01 1 0810-1009 ●
13 00.004 BOLT; HANGER 8-93298-987-0 01 1 1010- ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 0808-0809 ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 0810-1007 ● ● ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 1008-1210 ● ● ● ●
39 00.413 DOWEL; CAP,CM/SHF
KENYA EQUIPMENT(CL1) 		8-97329-129-1 20 1 1211-1301 ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 1302- ● ● ● ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 0808-0809 ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 0810-1007 ● ● ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 1008- ● ● ● ●
123 00.206 BOLT; COVER
KENYA EQUIPMENT(CL1) M8X20 FLANGE 		8-97366-632-0 04 1 1008- ●
123 00.206 BOLT; COVER
KENYA EQUIPMENT(CL1) M8X20 FLANGE 		8-97366-632-0 04 1 0810-1003 ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 0810-1009 ●
123 00.206 BOLT; COVER 8-93298-898-0 04 1 1010- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0808-0809 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0810-1007 ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0810-1007 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1008- ● ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1008- ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 0808-0809 ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 0810-1007 ● ● ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 1008-1210 ● ● ● ●
143 02.251 BOLT; FIX
KENYA EQUIPMENT(CL1) 00.685 M8X40 FLANGE 		0-28650-840-0 20 1 1211-1301 ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 1302- ● ● ● ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 0808-0809 ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 0810-1007 ● ● ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 1008- ● ● ● ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98049-103-0 01 1 0808-0809 ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98049-103-0 01 1 0810-1007 ● ● ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98049-103-0 01 1 1008- ● ● ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 0808-0809 ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 0810-1007 ● ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1008- ● ● ● ●
225 00.349 STUD; COVER
KENYA EQUIPMENT(CL1) M8X15.5 L=33.5 		8-98017-062-0 02 1 1008- ●
225 00.349 STUD; COVER
KENYA EQUIPMENT(CL1) M8X15.5 L=33.5 		8-98017-062-0 02 1 0810-1003 ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 0808-0809 ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 0810-1007 ● ●
225 00.349 STUD; COVER
EXC. KENYA EQUIPMENT(CL1) M8X20 L=31 		8-97945-022-0 02 1 0810-1007 ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 1008- ● ● ●
225 00.349 STUD; COVER
EXC. KENYA EQUIPMENT(CL1) M8X20 L=31 		8-97945-022-0 02 1 1008- ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) 03.306 OD=30 		1-09639-034-0 04 1 1008- ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) KENYA EQUIPMENT(CL1) 03.306 OD=30 		1-09639-034-0 04 1 0810-1003 ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97943-955-0 04 1 0808-0809 ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97943-955-0 04 1 0810-1007 ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) 		8-97943-955-0 04 1 0810-1007 ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97943-955-0 04 1 1008- ● ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. KENYA EQUIPMENT(CL1) 		8-97943-955-0 04 1 1008- ●
232 00.413 STUD; CAM,CARRIER
KENYA EQUIPMENT(CL1) (A) M8X15 M8X17 L=40 		8-98166-373-0 01 1 1008- ●
232 00.413 STUD; CAM,CARRIER
KENYA EQUIPMENT(CL1) (A) M8X15 M8X17 L=40 		8-97366-633-0 01 1 0810-1003 ●
232 00.413 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 0808-0809 ●
232 00.413 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 0810-1007 ● ● ●
232 00.413 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 1008- ● ● ● ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 0808-0809 ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 0810-1007 ● ●
232 00.413 STUD; CAM,CARRIER
EXC. KENYA EQUIPMENT(CL1) (A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 0810-1007 ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 1008- ● ● ●
232 00.413 STUD; CAM,CARRIER
EXC. KENYA EQUIPMENT(CL1) (A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 1008- ●
262 00.206 COVER; CYL HEAD 8-97355-516-4 01 1 0808-0809 ●
262 00.206 COVER; CYL HEAD 8-97355-516-4 01 1 0810-1007 ● ● ●
262 00.206 COVER; CYL HEAD 8-97355-516-4 01 1 1008- ● ● ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 0808-0809 ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 0810-1007 ● ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1008- ● ● ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 0808-0809 ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 0810-1007 ● ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1008- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
