0-10 — CYLINDER HEAD COVER (#76937) — 127 parça

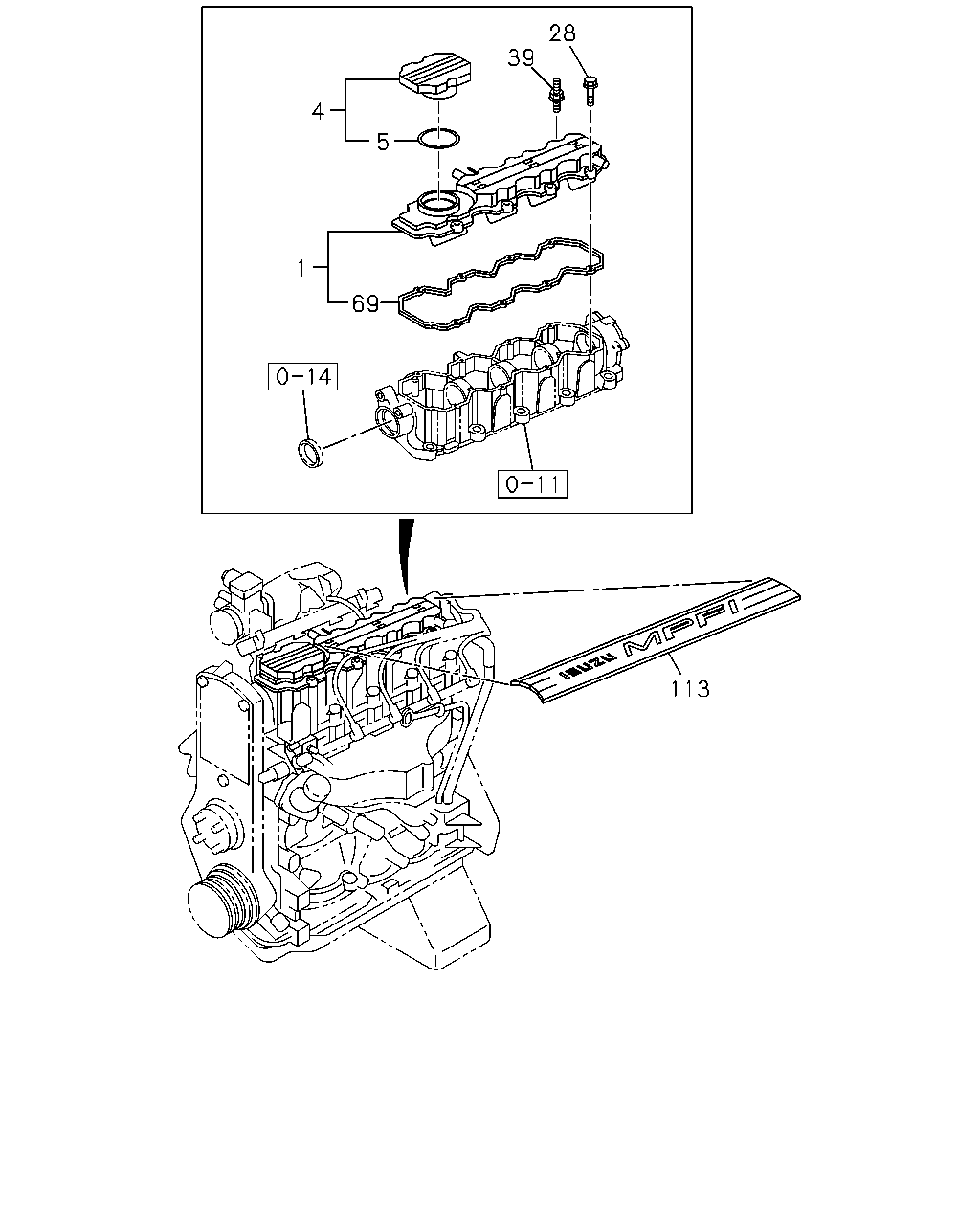

28 39 4 5 1 69 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	0810-	●
1	00.386 COVER; CYL HD	8-90467-642-0	01	1	0810-1009		●
1	00.386 COVER; CYL HD	8-93317-147-0	01	1	1010-		●
1	00.386 COVER; CYL HD	8-98051-196-1	01	1	0808-0809			●
1	00.386 COVER; CYL HD	8-98051-196-2	01	1	0810-1007			●	●	●
1	00.386 COVER; CYL HD	8-98156-392-2	01	1	1008-			●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0810-	●
4	01.758 CAP; OIL FILLER	8-90467-648-0	01	1	0810-		●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	0808-0809			●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	0810-1007			●	●	●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1008-			●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0810-	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-90448-217-0	01	1	0810-		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	0808-0809			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	0810-1007			●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	1008-			●	●	●	●
28	00.413 BOLT; HD COVER	8-11068-795-0	07	1	0810-1009		●
28	00.413 BOLT; HD COVER	8-93376-828-0	07	1	1010-		●
39	00.413 STUD; COVER,HD KENYA EQUIPMENT(CL1) M6X30 L=38	8-97372-795-0	01	1	0810-1003				●
39	00.413 STUD; COVER,HD	8-92064-273-0	01	1	0810-		●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	0808-0809			●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	0810-1007			●		●
39	00.413 STUD; COVER,HD EXC. KENYA EQUIPMENT(CL1) M6X30 L=38	0-41010-630-0	01	1	0810-1007				●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	01	1	1008-			●	●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97349-416-1	01	1	0810-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90467-661-0	01	1	0810-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97945-338-0	01	1	0808-0809			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97945-338-0	01	1	0810-1007			●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98156-394-0	01	1	1008-			●	●	●	●
113	00.386 COVER; CYL HEAD COVER	8-92063-671-0	01	1	0810-		●

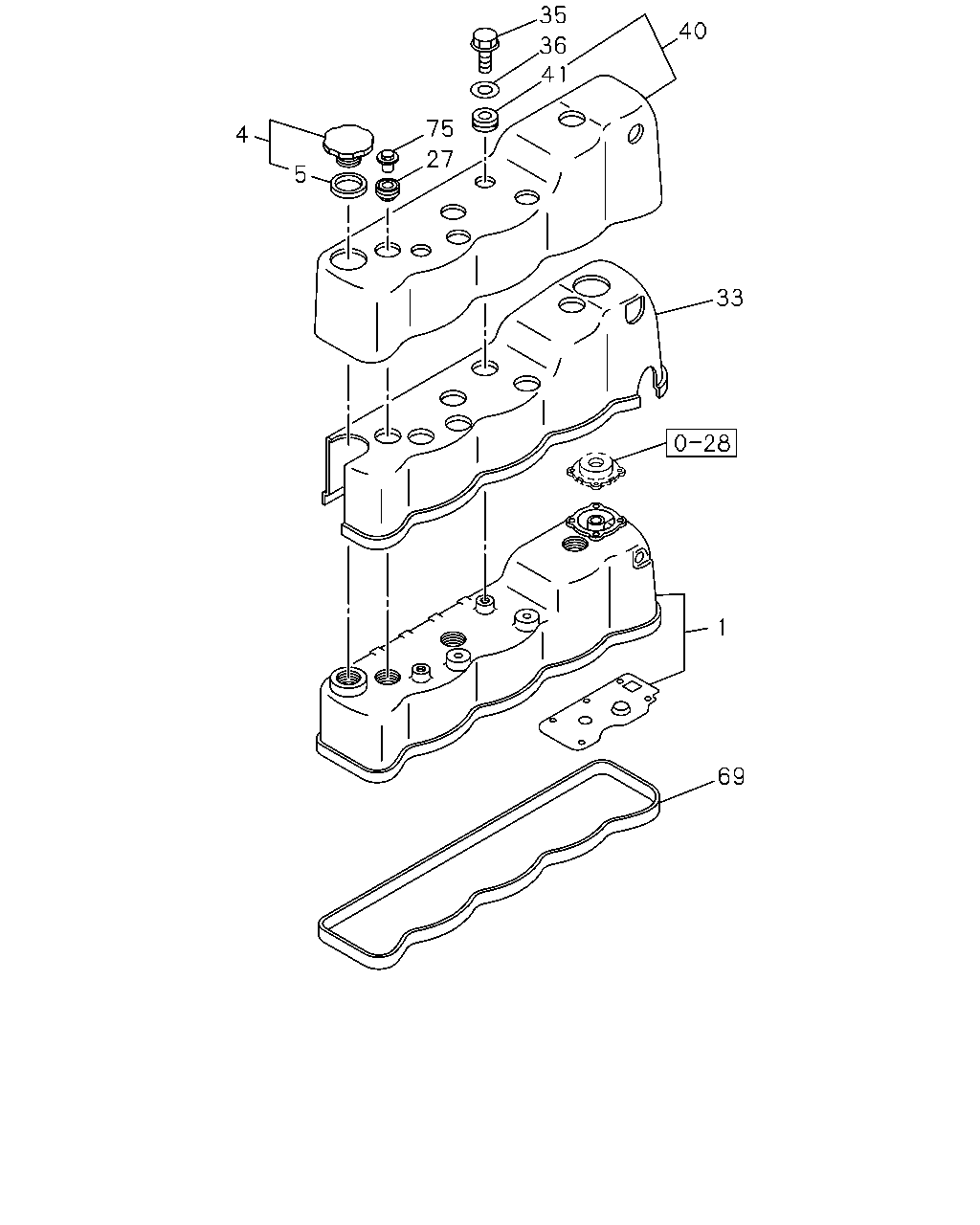

4 5 75 27 35 36 41 40 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	0810-	●
1	00.386 COVER; CYL HD	8-90467-642-0	01	1	0810-1009		●
1	00.386 COVER; CYL HD	8-93317-147-0	01	1	1010-		●
1	00.386 COVER; CYL HD	8-98051-196-1	01	1	0808-0809			●
1	00.386 COVER; CYL HD	8-98051-196-2	01	1	0810-1007			●	●	●
1	00.386 COVER; CYL HD	8-98156-392-2	01	1	1008-			●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0810-	●
4	01.758 CAP; OIL FILLER	8-90467-648-0	01	1	0810-		●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	0808-0809			●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	0810-1007			●	●	●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1008-			●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0810-	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-90448-217-0	01	1	0810-		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	0808-0809			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	0810-1007			●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	1008-			●	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5	8-97263-801-1	03	1	0810-	●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97365-746-0	01	1	1008-	●
35	00.293 BOLT; NOISE SHIELD COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0810-	●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0810-	●
40	00.386 COVER	8-97043-018-0	01	1	0810-	●
41	00.413 GROMMET; HD COVER,OUTER	8-94256-959-0	02	1	0810-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97349-416-1	01	1	0810-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90467-661-0	01	1	0810-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97945-338-0	01	1	0808-0809			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97945-338-0	01	1	0810-1007			●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98156-394-0	01	1	1008-			●	●	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0810-	●

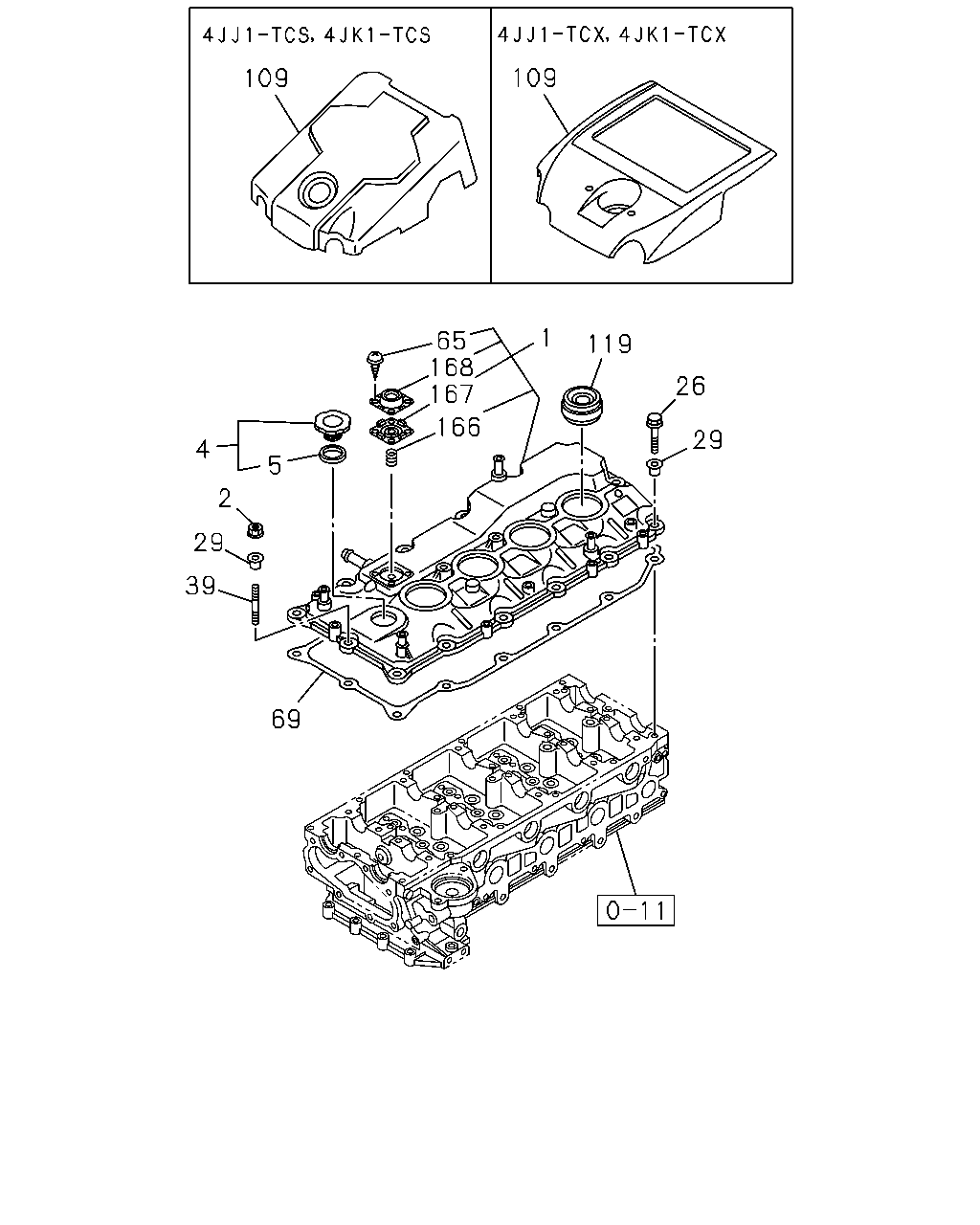

109 109 1 65 168 167 119 26 166 29 4 5 2 29 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	0810-	●
1	00.386 COVER; CYL HD	8-90467-642-0	01	1	0810-1009		●
1	00.386 COVER; CYL HD	8-93317-147-0	01	1	1010-		●
1	00.386 COVER; CYL HD	8-98051-196-1	01	1	0808-0809			●
1	00.386 COVER; CYL HD	8-98051-196-2	01	1	0810-1007			●	●	●
1	00.386 COVER; CYL HD	8-98156-392-2	01	1	1008-			●	●	●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	0808-0809			●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	0810-1007			●	●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1008-			●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0810-	●
4	01.758 CAP; OIL FILLER	8-90467-648-0	01	1	0810-		●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	0808-0809			●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	0810-1007			●	●	●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1008-			●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0810-	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-90448-217-0	01	1	0810-		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	0808-0809			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	0810-1007			●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	1008-			●	●	●	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	0808-0809			●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	0810-1007			●	●	●
26	08.900 BOLT; CYL HD COVER 00.685 M6X25 FLANGE	0-28650-625-0	13	1	1008-			●	●	●	●
29	00.413 RUBBER; MTG,HD COVER KENYA EQUIPMENT(CL1)	8-97381-524-0	14	1	0810-1003				●
29	00.413 RUBBER; MTG,HD COVER	8-97361-811-1	14	1	0808-0809			●
29	00.413 RUBBER; MTG,HD COVER	8-97361-811-1	14	1	0810-1007			●		●
29	00.413 RUBBER; MTG,HD COVER EXC. KENYA EQUIPMENT(CL1)	8-97361-811-1	14	1	0810-1007				●
39	00.413 STUD; COVER,HD KENYA EQUIPMENT(CL1) M6X30 L=38	8-97372-795-0	01	1	0810-1003				●
39	00.413 STUD; COVER,HD	8-92064-273-0	01	1	0810-		●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	0808-0809			●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	0810-1007			●		●
39	00.413 STUD; COVER,HD EXC. KENYA EQUIPMENT(CL1) M6X30 L=38	0-41010-630-0	01	1	0810-1007				●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	01	1	1008-			●	●	●	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	0808-0809			●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	0810-1007			●	●	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1008-			●	●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97349-416-1	01	1	0810-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90467-661-0	01	1	0810-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97945-338-0	01	1	0808-0809			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97945-338-0	01	1	0810-1007			●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98156-394-0	01	1	1008-			●	●	●	●
109	00.386 COVER; ENG MALAYSIA EQUIPMENT(B10) ISUZU BRAND<7WL> ENG SIGHT SHIELD<8LQ>	8-98102-514-0	01	1	1008-						●
109	00.386 COVER; ENG CHEVROLET BRAND<RWE> ENG SIGHT SHIELD<8LQ>	8-98031-432-0	01	1	1008-						●
109	00.386 COVER; ENG ISUZU BRAND<7WL> ENG SIGHT SHIELD<8LQ>	8-98097-019-0	01	1	0810-1003				●
109	00.386 COVER; ENG ISUZU BRAND<7WL> ENG SIGHT SHIELD<8LQ>	8-98102-515-0	01	1	1004-1007				●
109	00.386 COVER; ENG ISUZU BRAND<7WL> ENG SIGHT SHIELD<8LQ> EXC. AUSTRALIA EQUIPMENT(B13)	8-98102-515-0	01	1	1008-				●
109	00.386 COVER; ENG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> CHEVROLET BRAND<RWE> ENG SIGHT SHIELD<8LQ>	8-98031-431-0	01	1	0810-1001				●
109	00.386 COVER; ENG CHEVROLET BRAND<RWE> ENG SIGHT SHIELD<8LQ>	8-98031-431-0	01	1	1002-				●
109	00.386 COVER; ENG ISUZU BRAND<7WL> EXC. AUSTRALIA EQUIPMENT(B13)	8-98061-176-0	01	1	0810-1003			●		●
109	00.386 COVER; ENG ISUZU BRAND<7WL> EXC. AUSTRALIA EQUIPMENT(B13)	8-98154-683-0	01	1	1004-1006			●		●
109	00.386 COVER; ENG ISUZU BRAND<7WL> EXC. AUSTRALIA EQUIPMENT(B13)	8-98175-665-0	01	1	1007-			●		●
109	00.386 COVER; ENG	8-98061-176-0	01	1	0808-0808			●
109	00.386 COVER; ENG	8-98102-513-0	01	1	0808-0809			●
109	00.386 COVER; ENG AUSTRALIA EQUIPMENT(B13) ISUZU BRAND<7WL>	8-98102-513-0	01	1	0810-1006			●
109	00.386 COVER; ENG AUSTRALIA EQUIPMENT(B13) ISUZU BRAND<7WL>	8-98175-666-0	01	1	1007-			●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	0808-0809			●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	0810-1007			●	●	●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1008-			●	●	●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	0808-0809			●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	0810-1007			●	●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1008-			●	●	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1304-			●		●	●
167	00.283 DIAPHRAGM; VENTILATOR EXC. KENYA EQUIPMENT(CL1)	8-98226-101-0	01	1	1304-				●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	0808-0809			●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	0810-1007			●	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1008-1303			●	●	●	●
167	00.283 DIAPHRAGM; VENTILATOR KENYA EQUIPMENT(CL1)	8-98003-164-0	01	1	1304-				●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	0808-0809			●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	0810-1007			●	●	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1008-			●	●	●	●
