◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#76936) — 476 parça

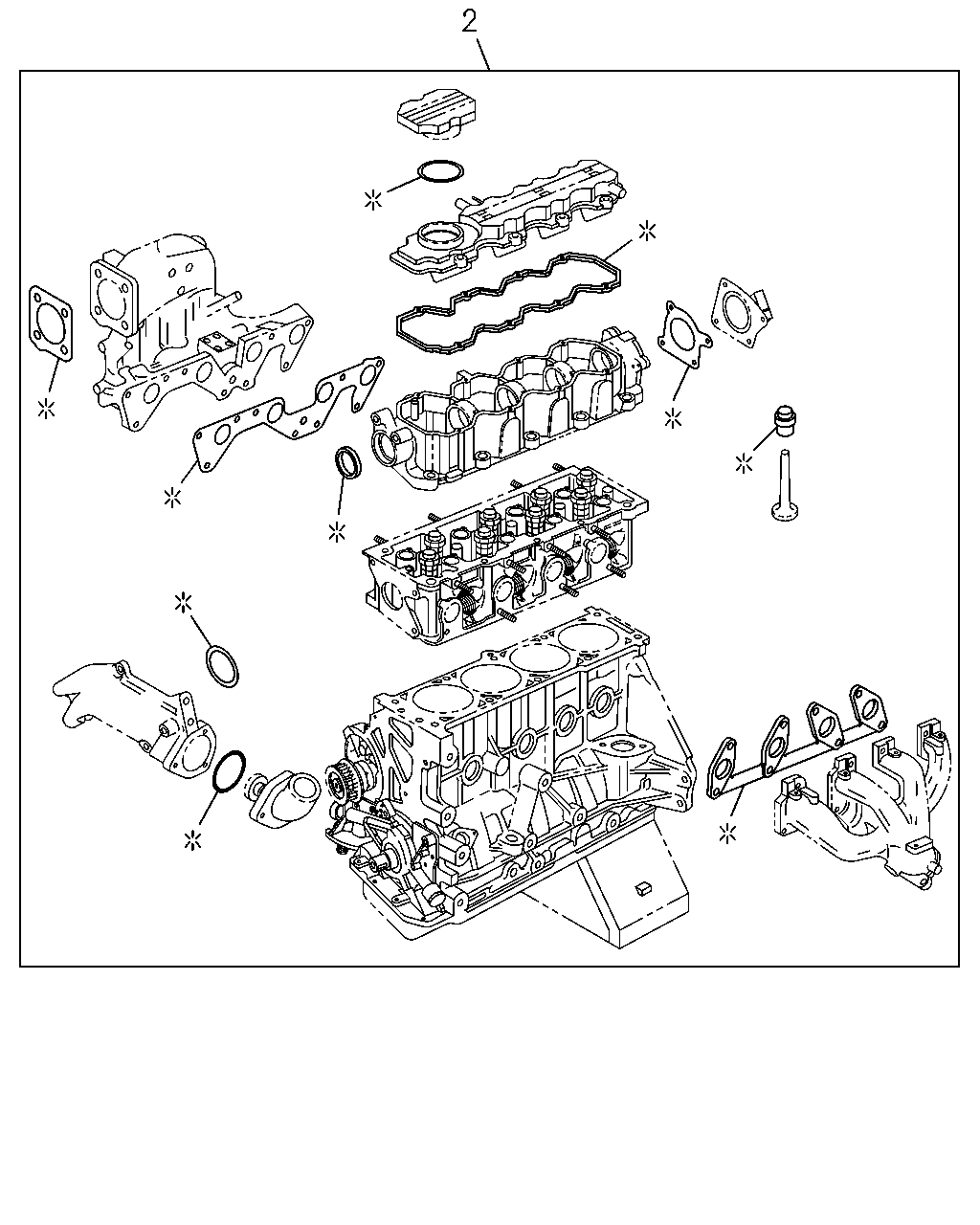

çizim 14938
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-903-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-903-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-904-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-904-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-905-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-905-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-050-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-242-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-427-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-653-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-838-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-051-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-243-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-428-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-654-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-839-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-052-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-244-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-429-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-655-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-840-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-405-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-406-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-407-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92066-630-0 01 1 0810-1009 ●

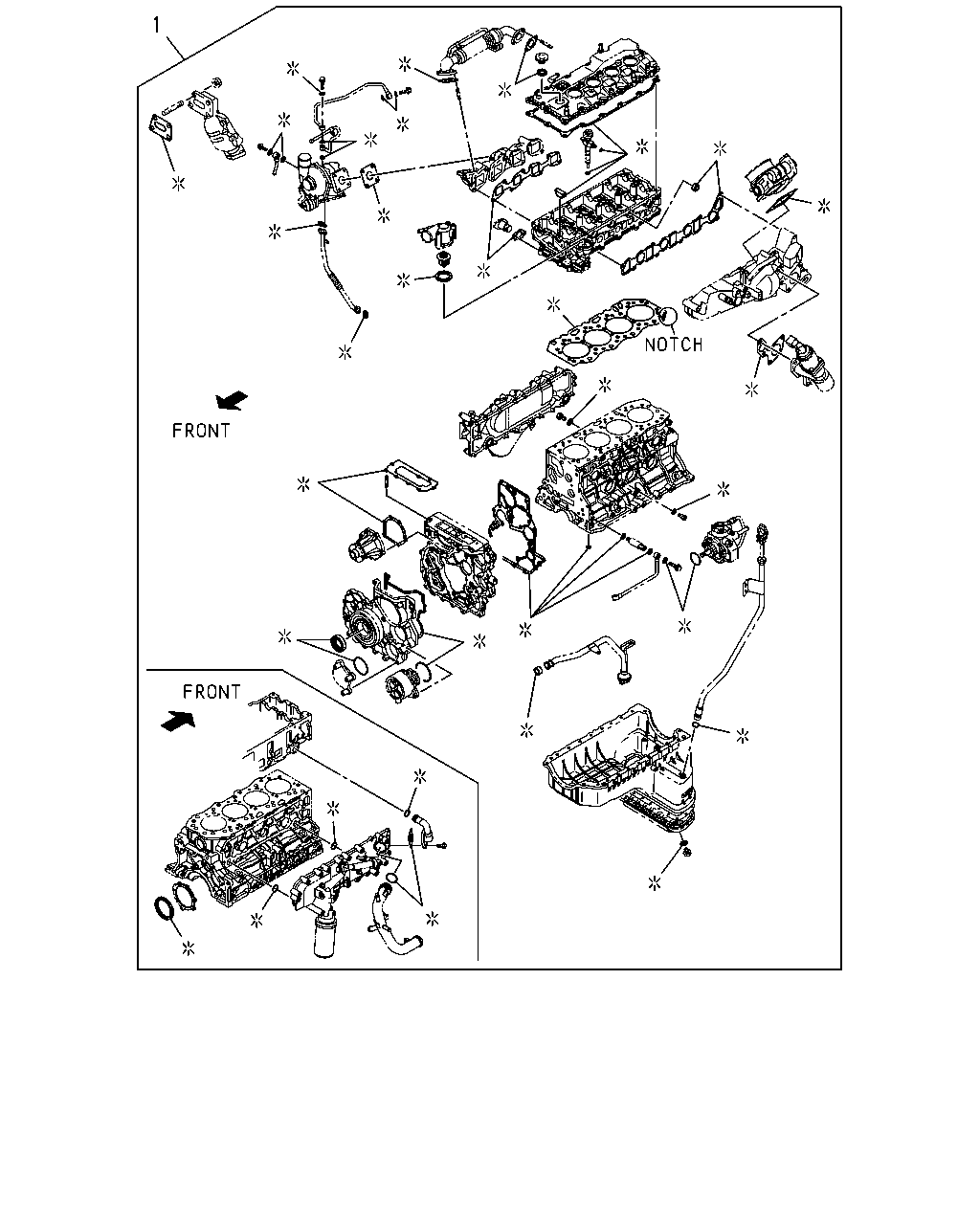

çizim 14997
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-927-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-927-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-928-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-928-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-929-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-929-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-749-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-059-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-251-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-418-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-659-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-814-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-960-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-750-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-060-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-252-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-419-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-660-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-815-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-961-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-751-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-061-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-253-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-420-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-661-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-816-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-962-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-399-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-451-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-400-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-452-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-401-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-453-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 0810-1009 ●

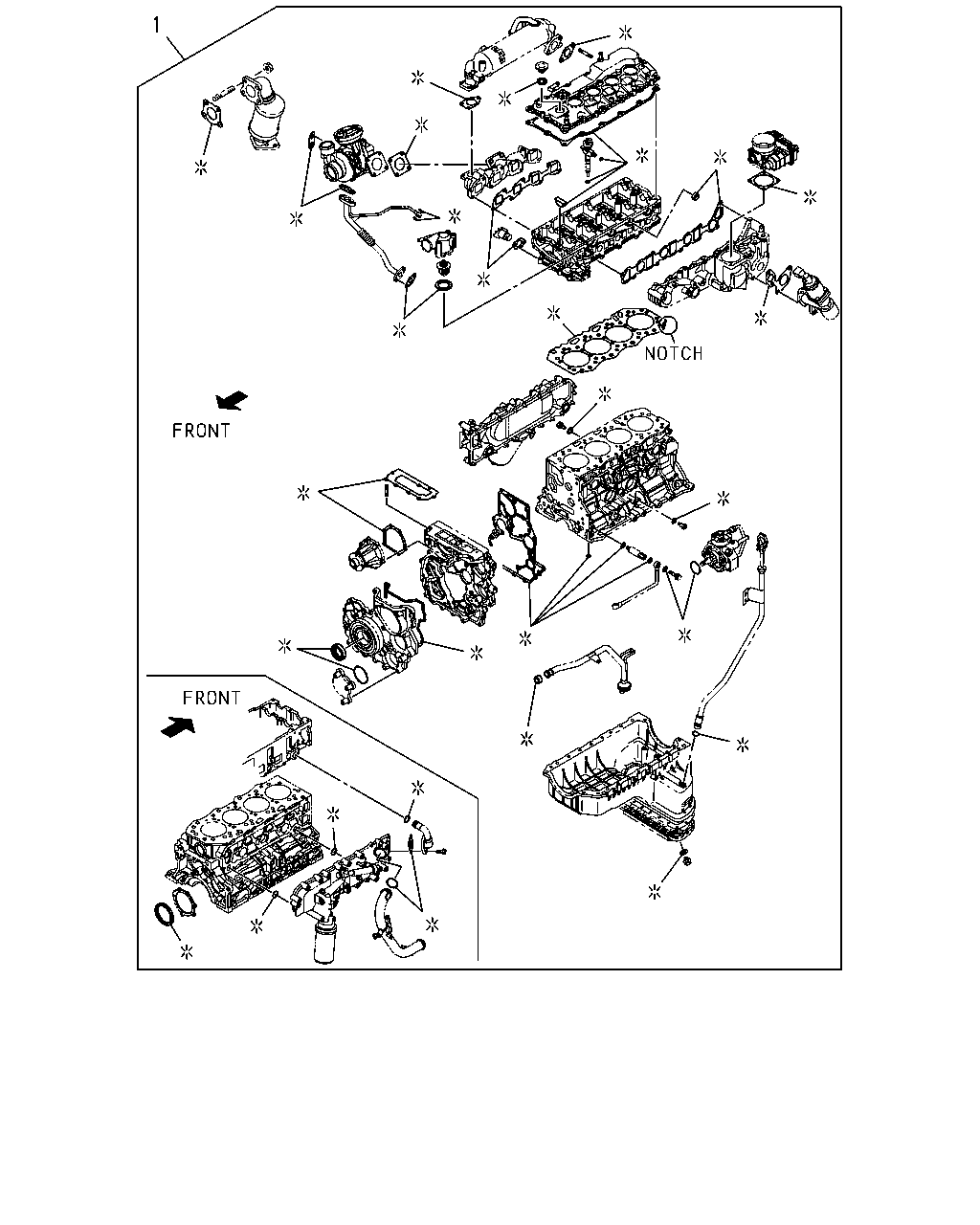

çizim 15212
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-927-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-927-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-928-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-928-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-929-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-929-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-749-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-059-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-251-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-418-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-659-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-814-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-960-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-750-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-060-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-252-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-419-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-660-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-815-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-961-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-751-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-061-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-253-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-420-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-661-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-816-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-962-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-399-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-451-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-400-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-452-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-401-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-453-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 0810-1009 ●

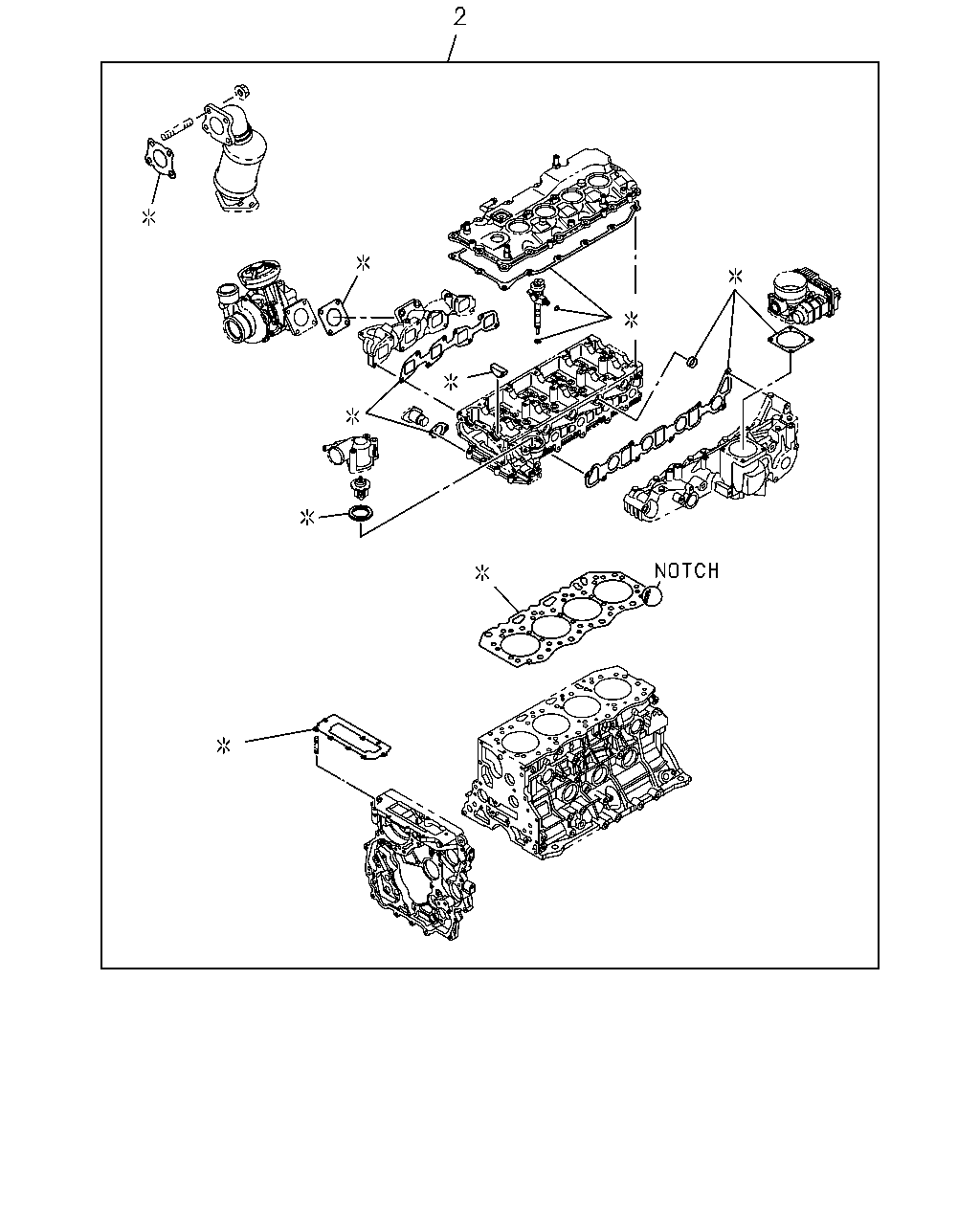

çizim 15308
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-903-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-903-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-904-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-904-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-905-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-905-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-050-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-242-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-427-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-653-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-838-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-051-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-243-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-428-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-654-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-839-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-052-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-244-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-429-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-655-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-840-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-405-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-406-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-407-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92066-630-0 01 1 0810-1009 ●

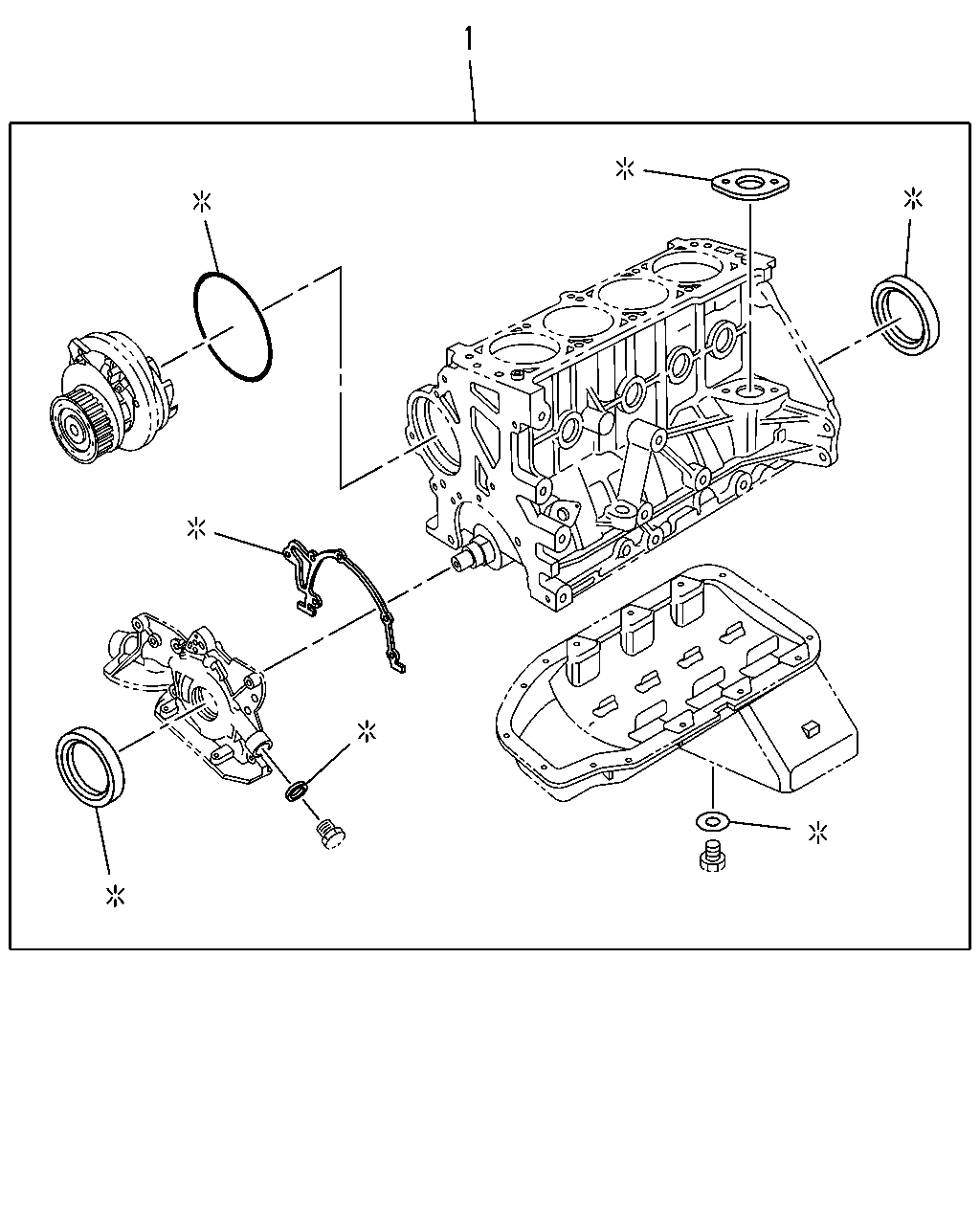

çizim 186221
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-927-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-927-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-928-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-928-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-929-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-929-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-749-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-059-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-251-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-418-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-659-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-814-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-960-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-750-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-060-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-252-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-419-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-660-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-815-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-961-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-751-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-061-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-253-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-420-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-661-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-816-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-962-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-399-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-451-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-400-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-452-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-401-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-453-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 0810-1009 ●

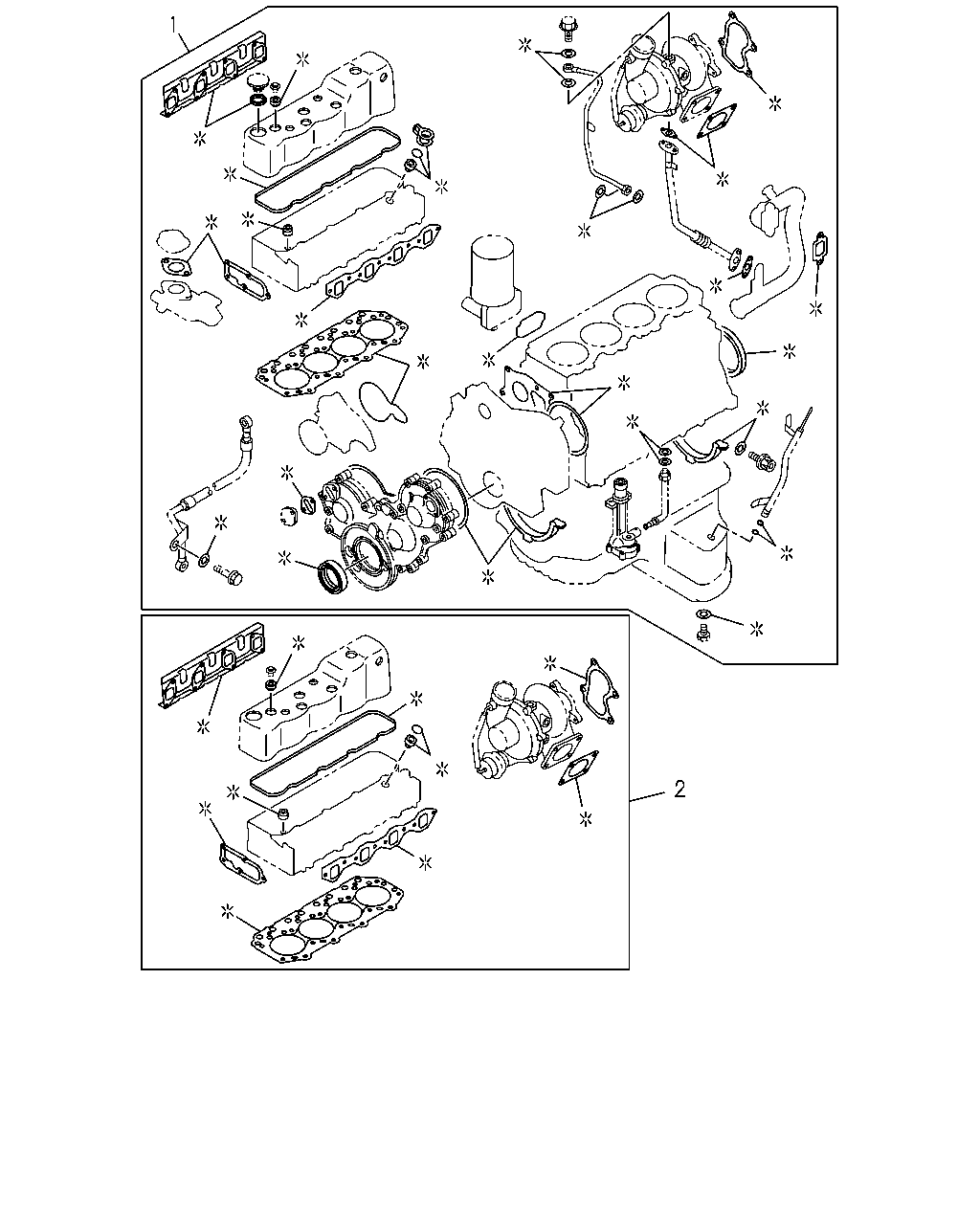

çizim 186223
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-927-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-927-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-928-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-928-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-929-1 01 1 1310- ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-929-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-749-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-059-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-251-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-418-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-659-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-814-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-960-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-750-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-060-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-252-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-419-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-660-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-815-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-961-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0808-0809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0810-1003 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0810-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 1004-1007 ● ● ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-751-0 01 1 1008-1103 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-061-0 01 1 1104-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-253-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-420-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-661-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-816-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-962-2 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-399-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-451-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-400-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-452-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-401-0 01 1 0810-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-453-0 01 1 0903-1003 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 0810- ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 0810-1009 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-903-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-903-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-904-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-904-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-905-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-905-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-050-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-242-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-427-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-653-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-838-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-051-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-243-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-428-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-654-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-839-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-052-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-244-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-429-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-655-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-840-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-405-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-406-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-407-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92066-630-0 01 1 0810-1009 ●

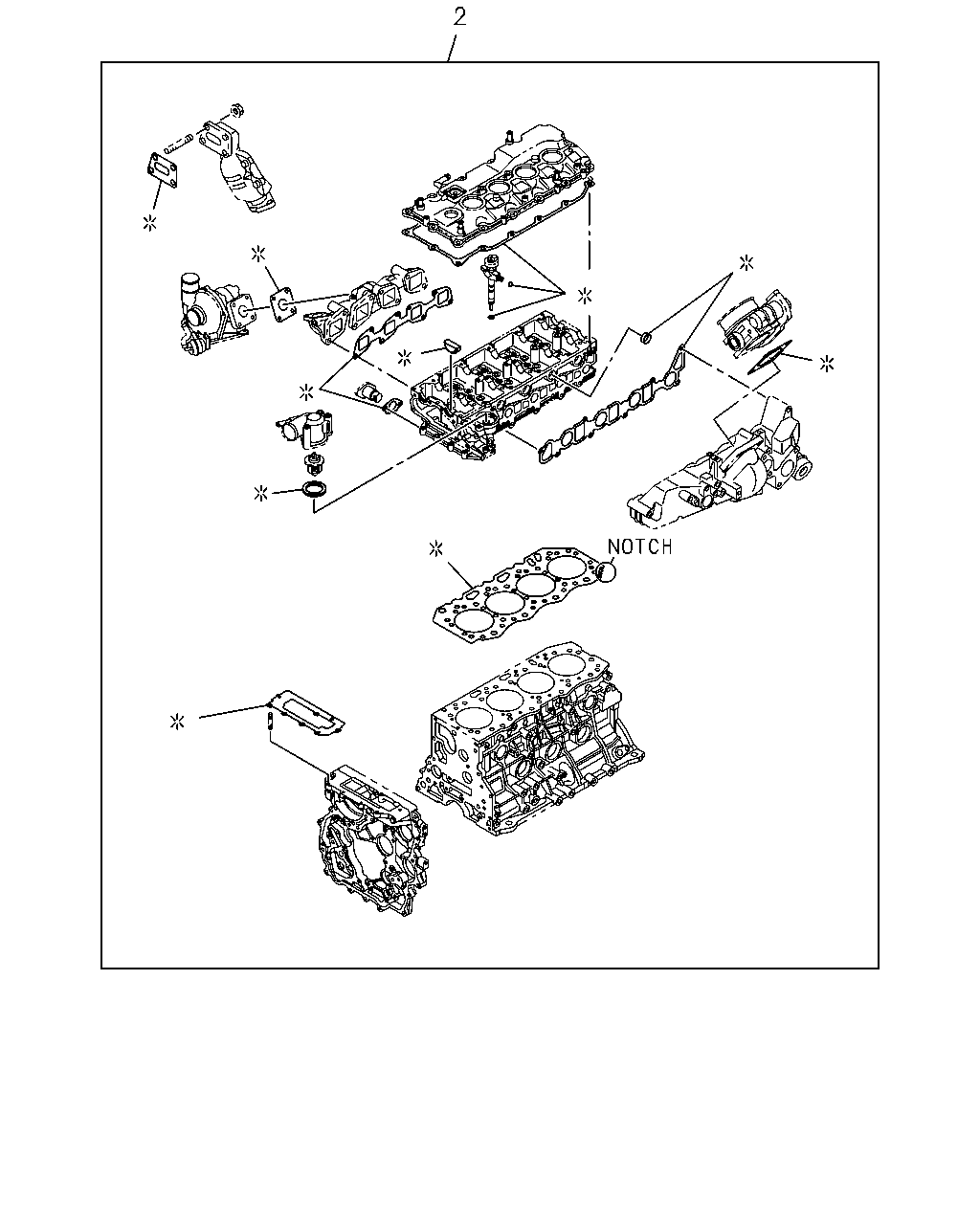

çizim 186290
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-903-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-903-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-904-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-904-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-905-1 01 1 1310- ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-905-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-050-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-242-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-427-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-653-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87816-838-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-051-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-243-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-428-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-654-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87816-839-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0808-0809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0810-1003 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0810-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 1004-1007 ● ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 1008-1103 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-052-0 01 1 1104-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-244-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-429-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-655-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87816-840-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-405-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-406-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-407-0 01 1 0810-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 0903-1003 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 0810- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92066-630-0 01 1 0810-1009 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
