◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#7693) — 38 parça

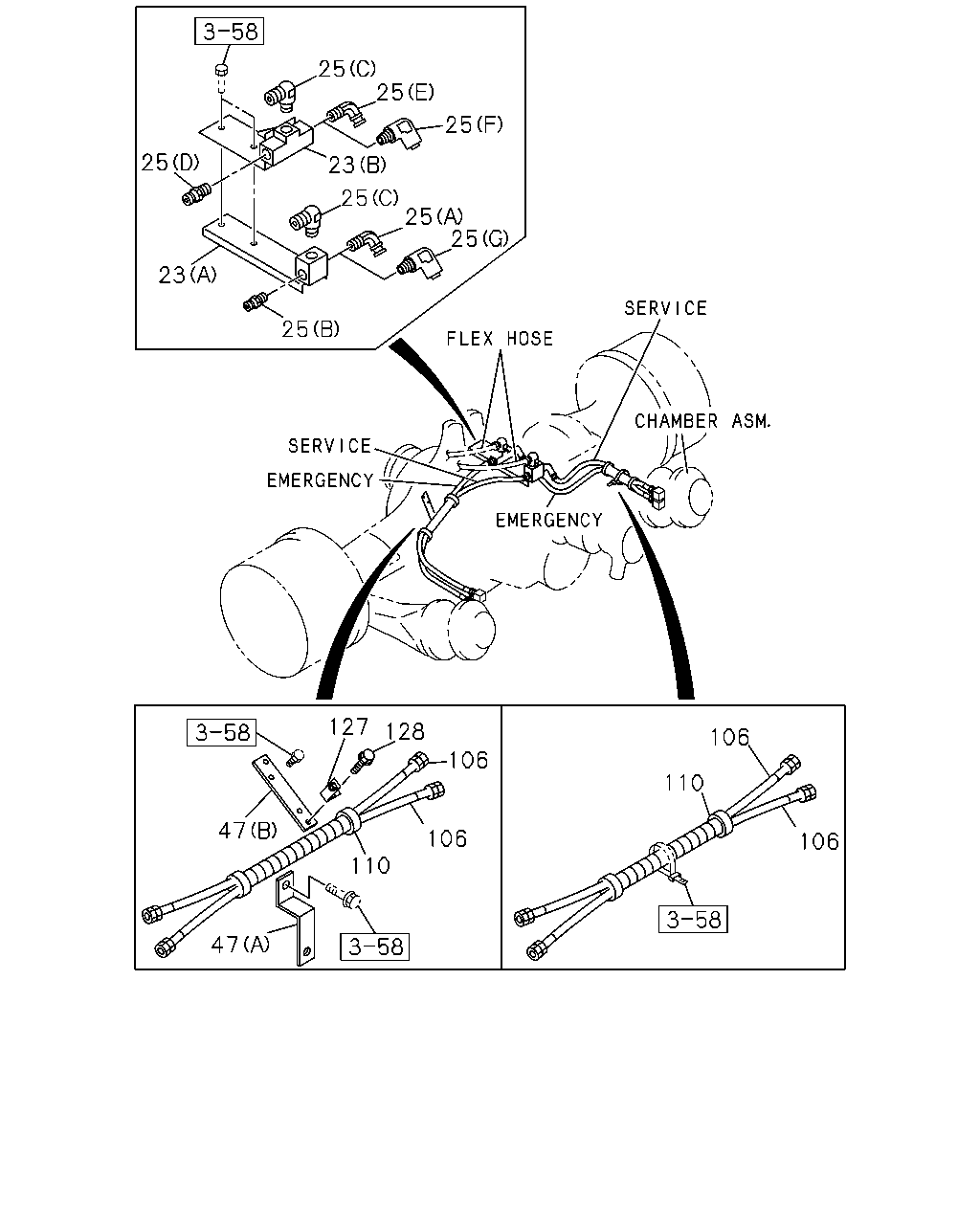

çizim 42772
25 25 25 25 23 25 25 25 23 25 127 128 106 106 110 47 106 106 110 47
BalonParca AdiParca NoAdetTipApplied Date A B
23 NIPPLE; W/BRKT
(A) 		1-47470-380-0 01 1 9902-0003 ●
23 NIPPLE; W/BRKT
(A) 		1-47470-380-0 01 1 0004- ● ●
23 NIPPLE; W/BRKT
(B) 		1-47475-537-0 01 1 9902-0003 ●
23 NIPPLE; W/BRKT
(B) 		1-47475-537-1 01 1 0004- ● ●
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-1 02 1 9902-0003 ●
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 0004- ● ●
25 CONNECTOR
(D) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9902-9904 ●
25 CONNECTOR
(D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9905-0003 ●
25 CONNECTOR
(D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0004- ● ●
25 CONNECTOR
(E) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9902-9904 ●
25 CONNECTOR
(F) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0003 ●
25 CONNECTOR
(F) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0004- ● ●
25 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (A) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9902-0003 ●
25 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (A) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 0004- ● ●
25 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (B) M20 & PT3/8 		1-09660-731-0 01 1 9902-0003 ●
25 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (B) M20 & PT3/8 		1-09660-731-0 01 1 0004- ● ●
25 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9902-9904 ●
25 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2> (G) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9905-0003 ●
25 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2> (G) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0004- ● ●
25 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9902-9904 ●
25 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 9905-0003 ●
25 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0004- ● ●
47 BRACKET
BRAKE SYSTEM RETARDER<RE2> (B) 		1-42119-151-0 01 1 9902-0003 ●
47 BRACKET
BRAKE SYSTEM RETARDER<RE2> (B) 		1-42119-151-0 01 1 0004- ● ●
47 BRACKET
BRAKE SYSTEM RETARDER<RE2> (A) 		1-47477-908-1 01 1 9905-0003 ●
47 BRACKET
BRAKE SYSTEM RETARDER<RE2> (A) 		1-47477-908-1 01 1 0004- ● ●
47 BRACKET
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-42119-065-0 01 1 9902-0003 ●
47 BRACKET
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-42119-065-0 01 1 0004- ● ●
106 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9902-0003 ●
106 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0004- ● ●
106 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9902-0003 ●
106 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0004- ● ●
110 TUBE; CORRUGATE
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=19 		1-87410-094-0 01 1 9902-0003 ●
110 TUBE; CORRUGATE
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=19 		1-87410-094-0 01 1 0004- ● ●
127 BRACKET; HARNESS
BRAKE SYSTEM RETARDER<RE2> 		1-42119-152-0 01 1 9902-0003 ●
127 BRACKET; HARNESS
BRAKE SYSTEM RETARDER<RE2> 		1-42119-152-0 01 1 0004- ● ●
128 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28680-820-0 01 1 9902-0003 ●
128 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28680-820-0 01 1 0004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
