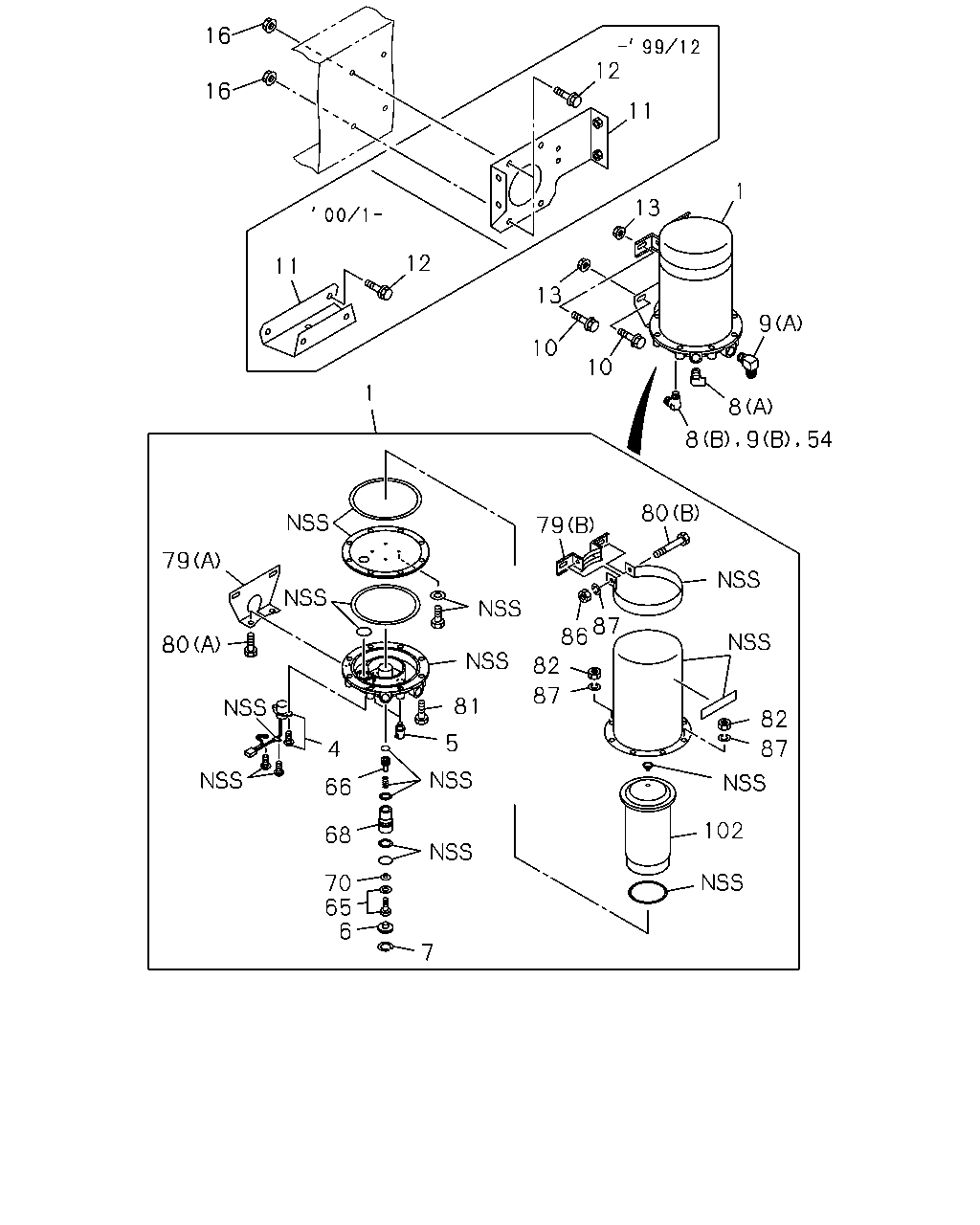

3-46 — AIR DRYER (#7692) — 72 parça

16 12 16 11 1 13 12 11 13 9 10 10 1 8 80 79 79 87 86 80 82 87 81 82 5 87 4 66 102 68 70 65 6 7 8 9 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-216-0	01	1	9902-0003	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-216-0	01	1	0004-	●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-216-0	01	1	9902-0003	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-216-0	01	1	0004-	●	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	02	1	9902-0003	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	02	1	0004-	●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-419-0	01	1	9902-0003	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-419-0	01	1	0004-	●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	9902-0003	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	0004-	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9902-	●
8	CONNECTOR; OUT,AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0003	●
8	CONNECTOR; OUT,AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0004-	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9902-0003	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0004-	●	●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-0003	●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0004-	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	9902-	●
10	BOLT; AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9905-0003	●
10	BOLT; AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	0004-	●	●
11	BRACKET; AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-53497-613-0	02	1	9905-9912	●
11	BRACKET; AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-48317-806-0	02	1	0001-0003	●
11	BRACKET; AIR DRYER WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-48317-806-0	02	1	0004-	●	●
12	BOLT; BRKT WHEEL BASE 3200MM(32W) AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	9905-0003	●
12	BOLT; BRKT WHEEL BASE 3200MM(32W) AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	0004-	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9902-0003	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0004-	●	●
16	NUT; BRKT WHEEL BASE 3200MM(32W) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9905-0003	●
16	NUT; BRKT WHEEL BASE 3200MM(32W) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0004-	●	●
54	CONNECTOR AIR DRYER<PS7> M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9902-	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	9902-0003	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	0004-	●	●
66	PISTON; AIR DRYER AIR DRYER<PS7>	1-48199-198-0	01	1	9902-0003	●
66	PISTON; AIR DRYER AIR DRYER<PS7>	1-48199-198-0	01	1	0004-	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-439-0	01	1	9902-0003	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-439-0	01	1	0004-	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9902-0003	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0004-	●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (B)	1-48199-336-0	01	1	9902-0003	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (B)	1-48199-336-0	01	1	0004-	●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (A)	1-48199-354-0	01	1	9902-0003	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (A)	1-48199-354-0	01	1	0004-	●	●
80	BOLT; BRKT AIR DRYER<PS7> (B)	1-48199-335-0	01	1	9902-0003	●
80	BOLT; BRKT AIR DRYER<PS7> (B)	1-48199-335-0	01	1	0004-	●	●
80	BOLT; BRKT AIR DRYER<PS7> (A)	1-48199-338-0	02	1	9902-0003	●
80	BOLT; BRKT AIR DRYER<PS7> (A)	1-48199-338-0	02	1	0004-	●	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-341-0	06	1	9902-0003	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-341-0	06	1	0004-	●	●
82	NUT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-421-0	08	1	9902-0003	●
82	NUT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-421-0	08	1	0004-	●	●
86	NUT; BRKT AIR DRYER<PS7>	1-48199-333-0	01	1	9902-0003	●
86	NUT; BRKT AIR DRYER<PS7>	1-48199-333-0	01	1	0004-	●	●
87	WASHER; LK,BRKT AIR DRYER<PS7>	1-48199-334-0	09	1	9902-0003	●
87	WASHER; LK,BRKT AIR DRYER<PS7>	1-48199-334-0	09	1	0004-	●	●
102	CARTRIDGE; AIR DRYER AIR DRYER<PS7>	1-48199-347-0	01	1	9902-0003	●
102	CARTRIDGE; AIR DRYER AIR DRYER<PS7>	1-48199-347-0	01	1	0004-	●	●

65 2 66 68 70 65 7 6 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-140-0	01	1	9902-0003	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-140-0	01	1	0004-	●	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-139-0	01	1	9902-0003	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-139-0	01	1	0004-	●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-419-0	01	1	9902-0003	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-419-0	01	1	0004-	●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	9902-0003	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	0004-	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	9902-0003	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	0004-	●	●
66	PISTON; AIR DRYER AIR DRYER<PS7>	1-48199-198-0	01	1	9902-0003	●
66	PISTON; AIR DRYER AIR DRYER<PS7>	1-48199-198-0	01	1	0004-	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-439-0	01	1	9902-0003	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-439-0	01	1	0004-	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9902-0003	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0004-	●	●
