Sayfa 3-45 - Isuzu EPC

3-45 — LOAD SENSING PROPORTIONING VALVE (#7691) — 278 parça

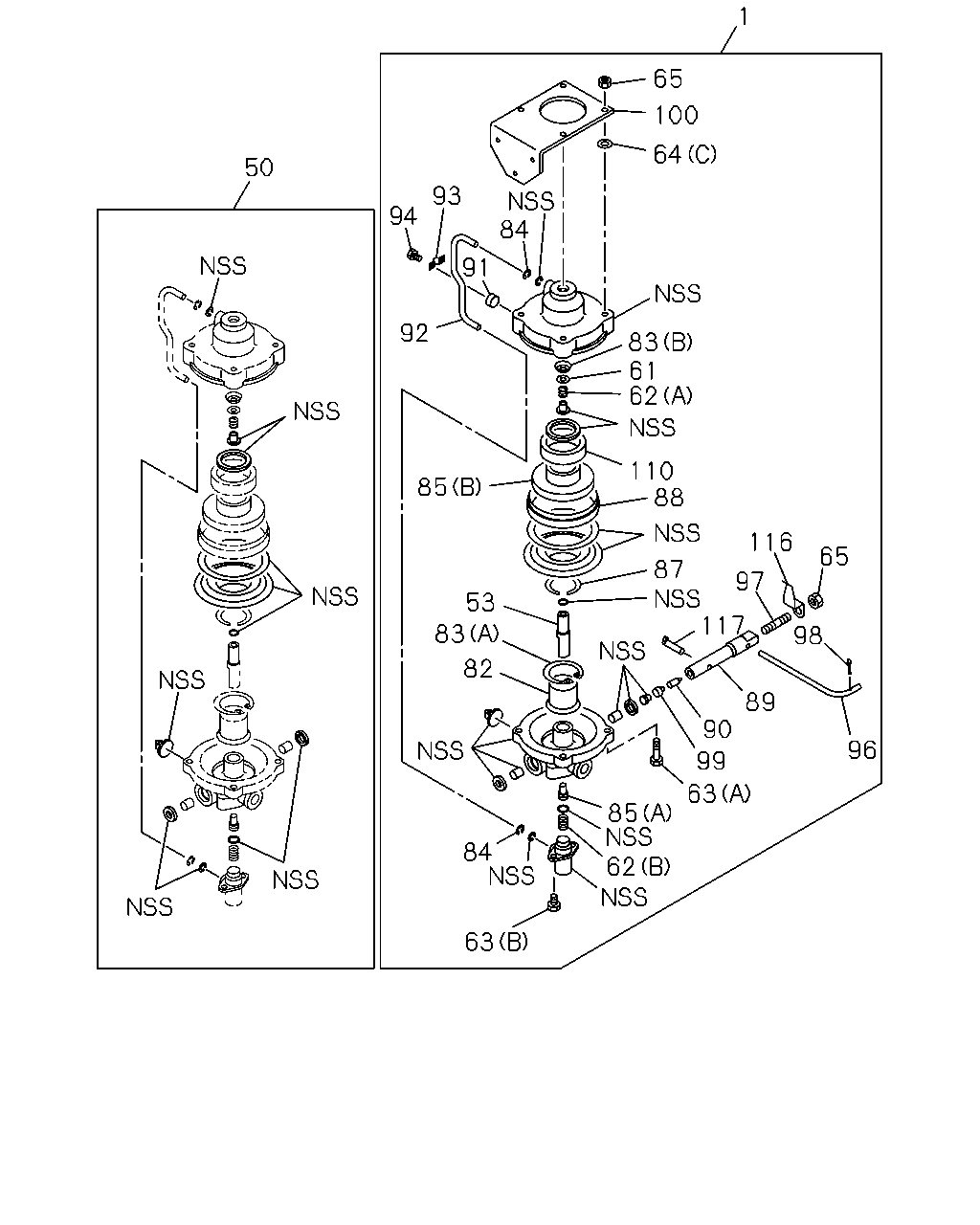

1 65 100 64 50 93 84 94 91 92 83 61 62 110 88 85 116 65 87 117 97 53 83 98 82 89 90 96 99 63 85 62 84 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-059-0	01	1	9902-	●
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	9905-0003	●
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	0004-	●
1	VALVE ASM; LOAD SENSING PROPORTIONING	1-47720-053-0	01	1	0004-		●
50	REPAIR KIT; LSPV BRAKE REGULATION ECE<TDV>	1-47769-142-0	01	1	9902-	●
50	REPAIR KIT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-87830-263-0	01	1	9905-0003	●
50	REPAIR KIT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-87830-263-0	01	1	0004-	●
50	REPAIR KIT; LSPV	1-87830-263-0	01	1	0004-		●
53	PLUNGER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-141-0	01	1	9902-	●
53	PLUNGER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	9905-0003	●
53	PLUNGER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	0004-	●
53	PLUNGER; LSPV	1-47769-033-0	01	1	0004-		●
61	RETAINER; SPRING BRAKE REGULATION ECE<TDV>	1-47769-138-0	01	1	9902-	●
61	RETAINER; SPRING EXC. BRAKE REGULATION ECE<TDV>	1-47769-091-0	01	1	9905-0003	●
61	RETAINER; SPRING EXC. BRAKE REGULATION ECE<TDV>	1-47769-091-0	01	1	0004-	●
61	RETAINER; SPRING	1-47769-091-0	01	1	0004-		●
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-025-0	01	1	9902-9904	●
62	SPRING; LSPV (A)	1-47769-025-0	01	1	9905-0003	●
62	SPRING; LSPV (A)	1-47769-025-0	01	1	0004-	●	●
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-042-0	01	1	9902-9904	●
62	SPRING; LSPV (B)	1-47769-042-0	01	1	9905-0003	●
62	SPRING; LSPV (B)	1-47769-042-0	01	1	0004-	●	●
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-045-0	02	1	9902-	●
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-094-0	04	1	9902-9904	●
63	BOLT; LSPV (A)	1-47769-094-0	04	1	9905-0003	●
63	BOLT; LSPV (A)	1-47769-094-0	04	1	0004-	●	●
63	BOLT; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-098-0	02	1	9905-0003	●
63	BOLT; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-098-0	02	1	0004-	●
63	BOLT; LSPV (B)	1-47769-098-0	02	1	0004-		●
64	WASHER; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47769-079-0	04	1	9902-	●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-036-0	09	1	9905-0003	●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-036-0	09	1	0004-	●
64	WASHER; LSPV (A)	1-47769-036-0	09	1	0004-		●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-099-0	02	1	9905-0003	●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-099-0	02	1	0004-	●
64	WASHER; LSPV (B)	1-47769-099-0	02	1	0004-		●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (C)	1-47769-107-0	04	1	9905-0003	●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (C)	1-47769-107-0	04	1	0004-	●
64	WASHER; LSPV (C)	1-47769-107-0	04	1	0004-		●
65	NUT; LSPV BRAKE REGULATION ECE<TDV>	1-48199-320-0	05	1	9902-	●
65	NUT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-095-0	03	1	9905-0003	●
65	NUT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-095-0	03	1	0004-	●
65	NUT; LSPV	1-47769-095-0	03	1	0004-		●
82	GUIDE; PISTON,LSPV BRAKE REGULATION ECE<TDV>	1-47769-131-0	01	1	9902-	●
82	GUIDE; PISTON,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	9905-0003	●
82	GUIDE; PISTON,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	0004-	●
82	GUIDE; PISTON,LSPV	1-47769-016-0	01	1	0004-		●
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (A)	1-47769-017-0	01	1	9902-	●
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (B)	1-47769-139-0	01	1	9902-	●
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-089-0	01	1	9905-0003	●
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-089-0	01	1	0004-	●
83	RING; SNAP,RET (A)	1-47769-089-0	01	1	0004-		●
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-092-0	01	1	9905-0003	●
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-092-0	01	1	0004-	●
83	RING; SNAP,RET (B)	1-47769-092-0	01	1	0004-		●
84	RETAINER; GASKET BRAKE REGULATION ECE<TDV>	1-47769-021-0	02	1	9902-9904	●
84	RETAINER; GASKET	1-47769-021-0	02	1	9905-0003	●
84	RETAINER; GASKET	1-47769-021-0	02	1	0004-	●	●
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-043-0	01	1	9902-9904	●
85	PISTON; LSPV (A)	1-47769-043-0	01	1	9905-0003	●
85	PISTON; LSPV (A)	1-47769-043-0	01	1	0004-	●	●
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-136-0	01	1	9902-	●
85	PISTON; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-090-0	01	1	9905-0003	●
85	PISTON; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-090-0	01	1	0004-	●
85	PISTON; LSPV (B)	1-47769-090-0	01	1	0004-		●
87	RETAINER; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-086-0	01	1	9902-	●
87	RETAINER; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-031-0	01	1	9905-0003	●
87	RETAINER; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-031-0	01	1	0004-	●
87	RETAINER; DIAPH	1-47769-031-0	01	1	0004-		●
88	GUIDE; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-032-0	01	1	9902-	●
88	GUIDE; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-093-0	01	1	9905-0003	●
88	GUIDE; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-093-0	01	1	0004-	●
88	GUIDE; DIAPH	1-47769-093-0	01	1	0004-		●
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV>	1-47769-083-0	01	1	9902-	●
89	ROD; CONN,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-076-0	01	1	9905-0003	●
89	ROD; CONN,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-076-0	01	1	0004-	●
89	ROD; CONN,LSPV	1-47769-076-0	01	1	0004-		●
90	SCREW; CAM BRAKE REGULATION ECE<TDV>	1-47769-039-0	01	1	9902-	●
90	SCREW; CAM EXC. BRAKE REGULATION ECE<TDV>	1-47769-097-0	01	1	9905-0003	●
90	SCREW; CAM EXC. BRAKE REGULATION ECE<TDV>	1-47769-097-0	01	1	0004-	●
90	SCREW; CAM	1-47769-097-0	01	1	0004-		●
91	FILTER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-047-0	01	1	9902-	●
91	FILTER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-100-0	01	1	9905-0003	●
91	FILTER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-100-0	01	1	0004-	●
91	FILTER; LSPV	1-47769-100-0	01	1	0004-		●
92	PIPE; LSPV BRAKE REGULATION ECE<TDV>	1-47769-048-0	01	1	9902-	●
92	PIPE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-101-0	01	1	9905-0003	●
92	PIPE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-101-0	01	1	0004-	●
92	PIPE; LSPV	1-47769-101-0	01	1	0004-		●
93	CLIP; PIPE BRAKE REGULATION ECE<TDV>	1-47769-050-0	01	1	9902-	●
93	CLIP; PIPE EXC. BRAKE REGULATION ECE<TDV>	1-47769-102-0	01	1	9905-0003	●
93	CLIP; PIPE EXC. BRAKE REGULATION ECE<TDV>	1-47769-102-0	01	1	0004-	●
93	CLIP; PIPE	1-47769-102-0	01	1	0004-		●
94	SCREW; CLIP BRAKE REGULATION ECE<TDV>	1-47769-162-0	02	1	9902-	●
94	SCREW; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-051-0	02	1	9905-0003	●
94	SCREW; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-051-0	02	1	0004-	●
94	SCREW; CLIP	1-47769-051-0	02	1	0004-		●
96	ARM; OPERATING BRAKE REGULATION ECE<TDV>	1-47769-110-0	01	1	9902-9904	●
96	ARM; OPERATING	1-47769-110-0	01	1	9905-0003	●
96	ARM; OPERATING	1-47769-110-0	01	1	0004-	●	●
97	BOLT; OPERATING ARM BRAKE REGULATION ECE<TDV>	1-47769-081-0	01	1	9902-	●
97	BOLT; OPERATING ARM EXC. BRAKE REGULATION ECE<TDV>	1-47769-104-0	01	1	9905-0003	●
97	BOLT; OPERATING ARM EXC. BRAKE REGULATION ECE<TDV>	1-47769-104-0	01	1	0004-	●
97	BOLT; OPERATING ARM	1-47769-104-0	01	1	0004-		●
98	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=15	9-08112-015-0	01	1	9902-	●
98	PIN; SPLIT EXC. BRAKE REGULATION ECE<TDV>	1-47769-105-0	01	1	9905-0003	●
98	PIN; SPLIT EXC. BRAKE REGULATION ECE<TDV>	1-47769-105-0	01	1	0004-	●
98	PIN; SPLIT	1-47769-105-0	01	1	0004-		●
99	CAP; SCREW BRAKE REGULATION ECE<TDV>	1-47769-055-0	01	1	9902-9904	●
99	CAP; SCREW	1-47769-055-0	01	1	9905-0003	●
99	CAP; SCREW	1-47769-055-0	01	1	0004-	●	●
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV>	1-47769-111-0	01	1	9902-9904	●
100	BRACKET; LSPV	1-47769-111-0	01	1	9905-0003	●
100	BRACKET; LSPV	1-47769-111-0	01	1	0004-	●	●
110	BUSHING; LSPV BRAKE REGULATION ECE<TDV>	1-47769-134-0	01	1	9902-	●
116	INDICATOR; LSPV BRAKE REGULATION ECE<TDV>	1-47769-078-0	01	1	9902-	●
117	CAM; LSPV BRAKE REGULATION ECE<TDV>	1-47769-038-0	01	1	9902-	●

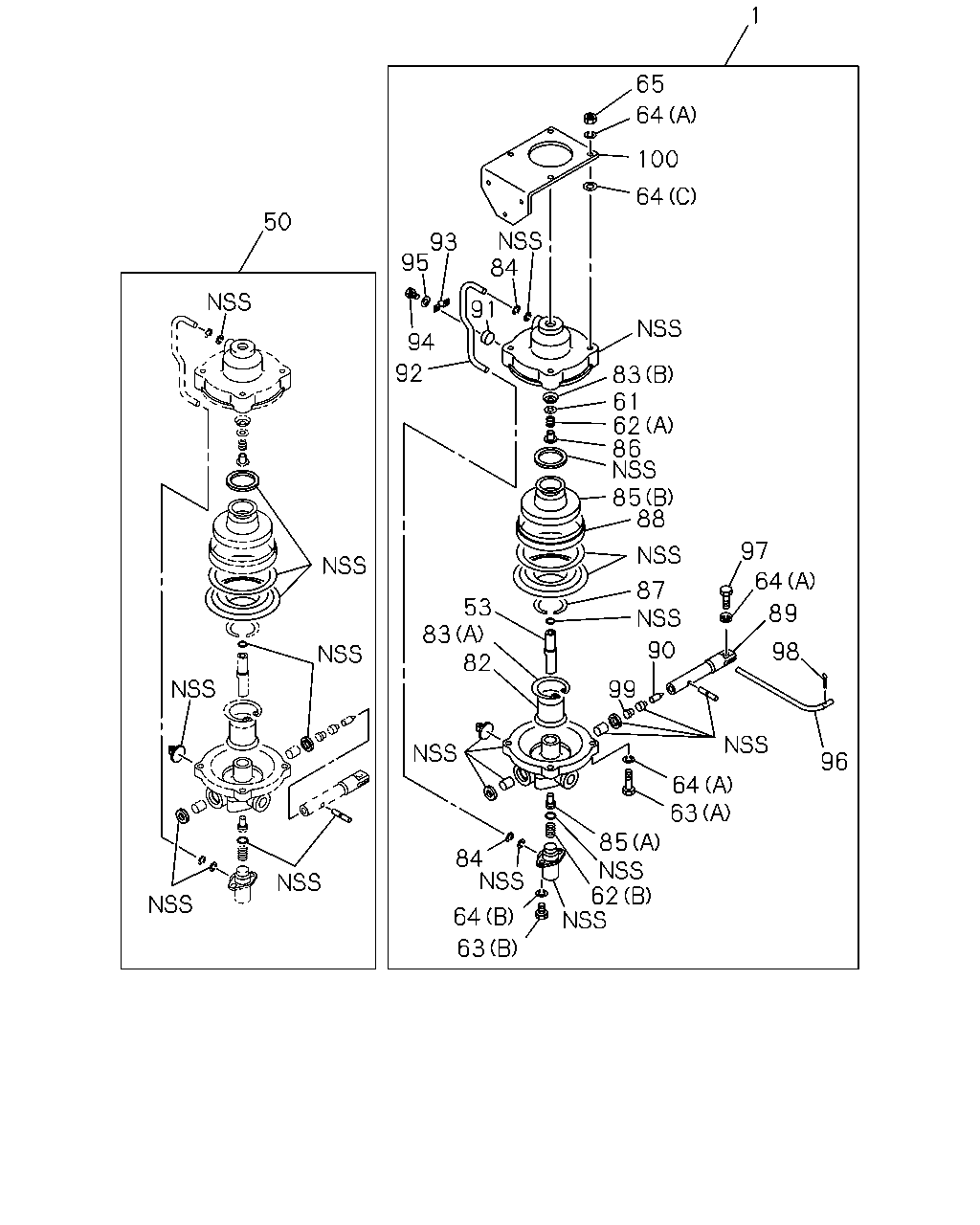

1 65 64 100 64 50 84 93 95 91 94 92 83 61 62 86 85 88 97 64 87 53 83 82 89 90 98 99 96 64 63 85 62 84 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-059-0	01	1	9902-	●
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	9905-0003	●
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	0004-	●
1	VALVE ASM; LOAD SENSING PROPORTIONING	1-47720-053-0	01	1	0004-		●
50	REPAIR KIT; LSPV BRAKE REGULATION ECE<TDV>	1-47769-142-0	01	1	9902-	●
50	REPAIR KIT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-87830-263-0	01	1	9905-0003	●
50	REPAIR KIT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-87830-263-0	01	1	0004-	●
50	REPAIR KIT; LSPV	1-87830-263-0	01	1	0004-		●
53	PLUNGER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-141-0	01	1	9902-	●
53	PLUNGER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	9905-0003	●
53	PLUNGER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	0004-	●
53	PLUNGER; LSPV	1-47769-033-0	01	1	0004-		●
61	RETAINER; SPRING BRAKE REGULATION ECE<TDV>	1-47769-138-0	01	1	9902-	●
61	RETAINER; SPRING EXC. BRAKE REGULATION ECE<TDV>	1-47769-091-0	01	1	9905-0003	●
61	RETAINER; SPRING EXC. BRAKE REGULATION ECE<TDV>	1-47769-091-0	01	1	0004-	●
61	RETAINER; SPRING	1-47769-091-0	01	1	0004-		●
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-025-0	01	1	9902-9904	●
62	SPRING; LSPV (A)	1-47769-025-0	01	1	9905-0003	●
62	SPRING; LSPV (A)	1-47769-025-0	01	1	0004-	●	●
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-042-0	01	1	9902-9904	●
62	SPRING; LSPV (B)	1-47769-042-0	01	1	9905-0003	●
62	SPRING; LSPV (B)	1-47769-042-0	01	1	0004-	●	●
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-045-0	02	1	9902-	●
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-094-0	04	1	9902-9904	●
63	BOLT; LSPV (A)	1-47769-094-0	04	1	9905-0003	●
63	BOLT; LSPV (A)	1-47769-094-0	04	1	0004-	●	●
63	BOLT; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-098-0	02	1	9905-0003	●
63	BOLT; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-098-0	02	1	0004-	●
63	BOLT; LSPV (B)	1-47769-098-0	02	1	0004-		●
64	WASHER; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47769-079-0	04	1	9902-	●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-036-0	09	1	9905-0003	●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-036-0	09	1	0004-	●
64	WASHER; LSPV (A)	1-47769-036-0	09	1	0004-		●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-099-0	02	1	9905-0003	●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-099-0	02	1	0004-	●
64	WASHER; LSPV (B)	1-47769-099-0	02	1	0004-		●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (C)	1-47769-107-0	04	1	9905-0003	●
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (C)	1-47769-107-0	04	1	0004-	●
64	WASHER; LSPV (C)	1-47769-107-0	04	1	0004-		●
65	NUT; LSPV BRAKE REGULATION ECE<TDV>	1-48199-320-0	05	1	9902-	●
65	NUT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-095-0	03	1	9905-0003	●
65	NUT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-095-0	03	1	0004-	●
65	NUT; LSPV	1-47769-095-0	03	1	0004-		●
82	GUIDE; PISTON,LSPV BRAKE REGULATION ECE<TDV>	1-47769-131-0	01	1	9902-	●
82	GUIDE; PISTON,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	9905-0003	●
82	GUIDE; PISTON,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	0004-	●
82	GUIDE; PISTON,LSPV	1-47769-016-0	01	1	0004-		●
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (A)	1-47769-017-0	01	1	9902-	●
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (B)	1-47769-139-0	01	1	9902-	●
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-089-0	01	1	9905-0003	●
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-089-0	01	1	0004-	●
83	RING; SNAP,RET (A)	1-47769-089-0	01	1	0004-		●
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-092-0	01	1	9905-0003	●
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-092-0	01	1	0004-	●
83	RING; SNAP,RET (B)	1-47769-092-0	01	1	0004-		●
84	RETAINER; GASKET BRAKE REGULATION ECE<TDV>	1-47769-021-0	02	1	9902-9904	●
84	RETAINER; GASKET	1-47769-021-0	02	1	9905-0003	●
84	RETAINER; GASKET	1-47769-021-0	02	1	0004-	●	●
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-043-0	01	1	9902-9904	●
85	PISTON; LSPV (A)	1-47769-043-0	01	1	9905-0003	●
85	PISTON; LSPV (A)	1-47769-043-0	01	1	0004-	●	●
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-136-0	01	1	9902-	●
85	PISTON; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-090-0	01	1	9905-0003	●
85	PISTON; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-090-0	01	1	0004-	●
85	PISTON; LSPV (B)	1-47769-090-0	01	1	0004-		●
86	VALVE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-024-0	01	1	9905-0003	●
86	VALVE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-024-0	01	1	0004-	●
86	VALVE; LSPV	1-47769-024-0	01	1	0004-		●
87	RETAINER; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-086-0	01	1	9902-	●
87	RETAINER; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-031-0	01	1	9905-0003	●
87	RETAINER; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-031-0	01	1	0004-	●
87	RETAINER; DIAPH	1-47769-031-0	01	1	0004-		●
88	GUIDE; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-032-0	01	1	9902-	●
88	GUIDE; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-093-0	01	1	9905-0003	●
88	GUIDE; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-093-0	01	1	0004-	●
88	GUIDE; DIAPH	1-47769-093-0	01	1	0004-		●
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV>	1-47769-083-0	01	1	9902-	●
89	ROD; CONN,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-076-0	01	1	9905-0003	●
89	ROD; CONN,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-076-0	01	1	0004-	●
89	ROD; CONN,LSPV	1-47769-076-0	01	1	0004-		●
90	SCREW; CAM BRAKE REGULATION ECE<TDV>	1-47769-039-0	01	1	9902-	●
90	SCREW; CAM EXC. BRAKE REGULATION ECE<TDV>	1-47769-097-0	01	1	9905-0003	●
90	SCREW; CAM EXC. BRAKE REGULATION ECE<TDV>	1-47769-097-0	01	1	0004-	●
90	SCREW; CAM	1-47769-097-0	01	1	0004-		●
91	FILTER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-047-0	01	1	9902-	●
91	FILTER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-100-0	01	1	9905-0003	●
91	FILTER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-100-0	01	1	0004-	●
91	FILTER; LSPV	1-47769-100-0	01	1	0004-		●
92	PIPE; LSPV BRAKE REGULATION ECE<TDV>	1-47769-048-0	01	1	9902-	●
92	PIPE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-101-0	01	1	9905-0003	●
92	PIPE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-101-0	01	1	0004-	●
92	PIPE; LSPV	1-47769-101-0	01	1	0004-		●
93	CLIP; PIPE BRAKE REGULATION ECE<TDV>	1-47769-050-0	01	1	9902-	●
93	CLIP; PIPE EXC. BRAKE REGULATION ECE<TDV>	1-47769-102-0	01	1	9905-0003	●
93	CLIP; PIPE EXC. BRAKE REGULATION ECE<TDV>	1-47769-102-0	01	1	0004-	●
93	CLIP; PIPE	1-47769-102-0	01	1	0004-		●
94	SCREW; CLIP BRAKE REGULATION ECE<TDV>	1-47769-162-0	02	1	9902-	●
94	SCREW; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-051-0	02	1	9905-0003	●
94	SCREW; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-051-0	02	1	0004-	●
94	SCREW; CLIP	1-47769-051-0	02	1	0004-		●
95	WASHER; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-052-0	02	1	9905-0003	●
95	WASHER; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-052-0	02	1	0004-	●
95	WASHER; CLIP	1-47769-052-0	02	1	0004-		●
96	ARM; OPERATING BRAKE REGULATION ECE<TDV>	1-47769-110-0	01	1	9902-9904	●
96	ARM; OPERATING	1-47769-110-0	01	1	9905-0003	●
96	ARM; OPERATING	1-47769-110-0	01	1	0004-	●	●
97	BOLT; OPERATING ARM BRAKE REGULATION ECE<TDV>	1-47769-081-0	01	1	9902-	●
97	BOLT; OPERATING ARM EXC. BRAKE REGULATION ECE<TDV>	1-47769-104-0	01	1	9905-0003	●
97	BOLT; OPERATING ARM EXC. BRAKE REGULATION ECE<TDV>	1-47769-104-0	01	1	0004-	●
97	BOLT; OPERATING ARM	1-47769-104-0	01	1	0004-		●
98	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=15	9-08112-015-0	01	1	9902-	●
98	PIN; SPLIT EXC. BRAKE REGULATION ECE<TDV>	1-47769-105-0	01	1	9905-0003	●
98	PIN; SPLIT EXC. BRAKE REGULATION ECE<TDV>	1-47769-105-0	01	1	0004-	●
98	PIN; SPLIT	1-47769-105-0	01	1	0004-		●
99	CAP; SCREW BRAKE REGULATION ECE<TDV>	1-47769-055-0	01	1	9902-9904	●
99	CAP; SCREW	1-47769-055-0	01	1	9905-0003	●
99	CAP; SCREW	1-47769-055-0	01	1	0004-	●	●
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV>	1-47769-111-0	01	1	9902-9904	●
100	BRACKET; LSPV	1-47769-111-0	01	1	9905-0003	●
100	BRACKET; LSPV	1-47769-111-0	01	1	0004-	●	●

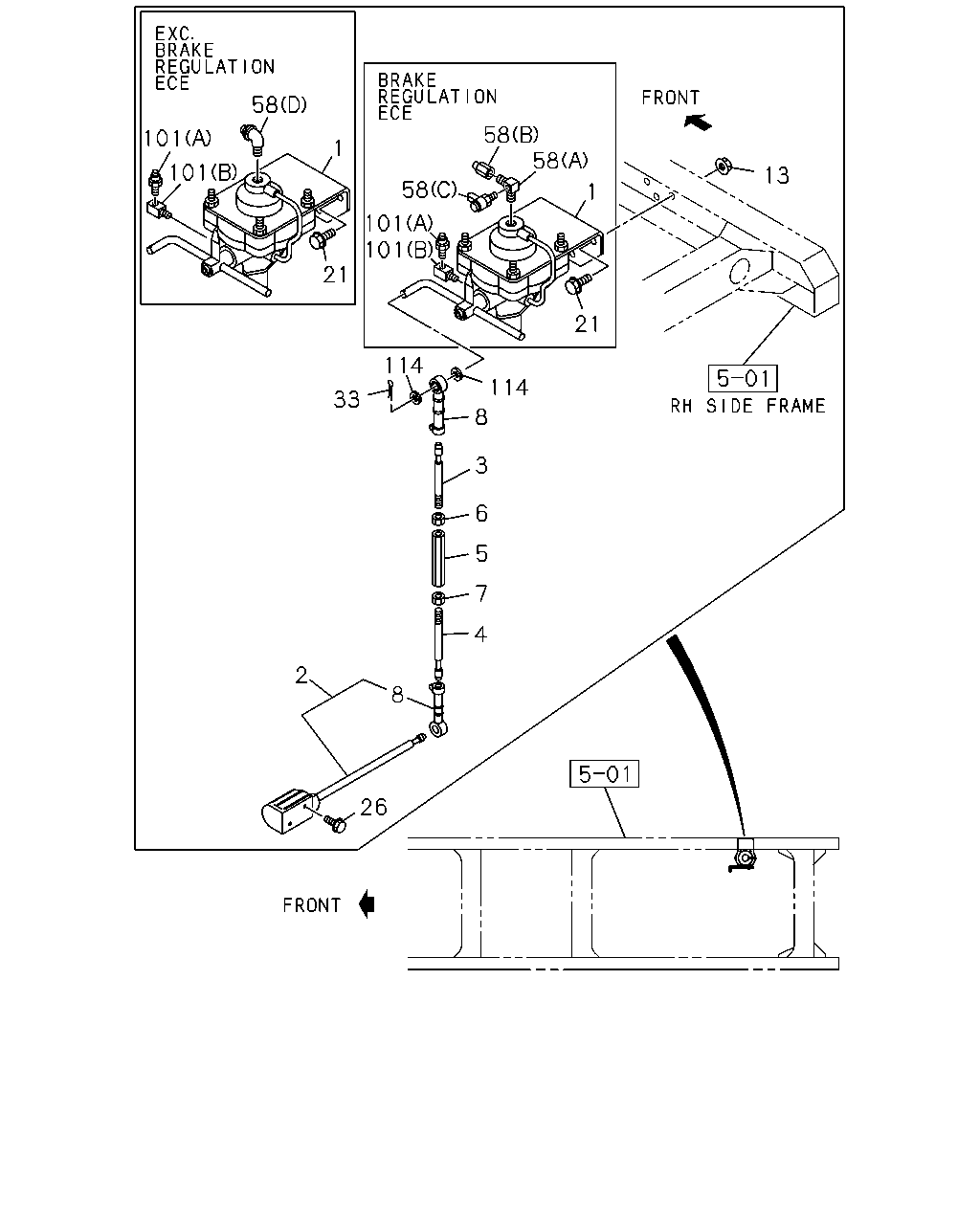

58 58 58 101 1 101 13 58 1 101 101 21 21 114 114 33 8 3 6 5 7 4 2 8 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-059-0	01	1	9902-	●
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	9905-0003	●
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	0004-	●
1	VALVE ASM; LOAD SENSING PROPORTIONING	1-47720-053-0	01	1	0004-		●
2	DAMPER	1-47725-012-0	01	1	9902-0003	●
2	DAMPER	1-47725-012-0	01	1	0004-	●	●
3	ROD; UPR	1-09765-290-0	01	1	9902-0003	●
3	ROD; UPR	1-09765-290-0	01	1	0004-	●	●
4	ROD; LWR	1-09765-283-0	01	1	9902-0003	●
4	ROD; LWR	1-09765-283-0	01	1	0004-	●	●
5	JOINT	1-09768-091-0	01	1	9902-0003	●
5	JOINT	1-09768-091-0	01	1	0004-	●	●
6	NUT; LK,UPR M8	9-09111-408-0	01	1	9902-0003	●
6	NUT; LK,UPR M8	9-09111-408-0	01	1	0004-	●	●
7	NUT; LK,LWR LH THREAD	1-09409-002-0	01	1	9902-0003	●
7	NUT; LK,LWR LH THREAD	1-09409-002-0	01	1	0004-	●	●
8	ROD END	1-47723-001-0	02	1	9902-0003	●
8	ROD END	1-47723-001-0	02	1	0004-	●	●
13	NUT; LSPV TO BRKT M8 FLANGE	0-91150-108-0	03	1	9902-0003	●
13	NUT; LSPV TO BRKT M8 FLANGE	0-91150-108-0	03	1	0004-	●	●
21	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	03	1	9902-0003	●
21	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	03	1	0004-	●	●
26	BOLT; DAMPER M8X12 FLANGE	0-28080-812-0	02	1	9902-0003	●
26	BOLT; DAMPER M8X12 FLANGE	0-28080-812-0	02	1	0004-	●	●
33	PIN; SPLIT OD=1.8 L=25	9-08112-025-0	01	1	9902-0003	●
33	PIN; SPLIT OD=1.8 L=25	9-08112-025-0	01	1	0004-	●	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9902-	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0007	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47459-013-0	01	1	9902-	●
58	CONNECTOR; LSPV EXC. BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-0003	●
58	CONNECTOR; LSPV EXC. BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-	●
58	CONNECTOR; LSPV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A)	1-09660-778-1	01	1	9902-9904	●
101	CONNECTOR; LSPV (A)	1-09660-778-1	01	1	9905-0003	●
101	CONNECTOR; LSPV (A)	1-09660-778-1	01	1	0004-	●	●
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9902-9904	●
101	CONNECTOR; LSPV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-0003	●
101	CONNECTOR; LSPV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-	●	●
114	WASHER; PL,JOINT RUBBER ID=8.4	9-09160-508-0	02	1	9902-0003	●
114	WASHER; PL,JOINT RUBBER ID=8.4	9-09160-508-0	02	1	0004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
