3-41 — REAR BRAKE POWER CHAMBER (#7690) — 299 parça

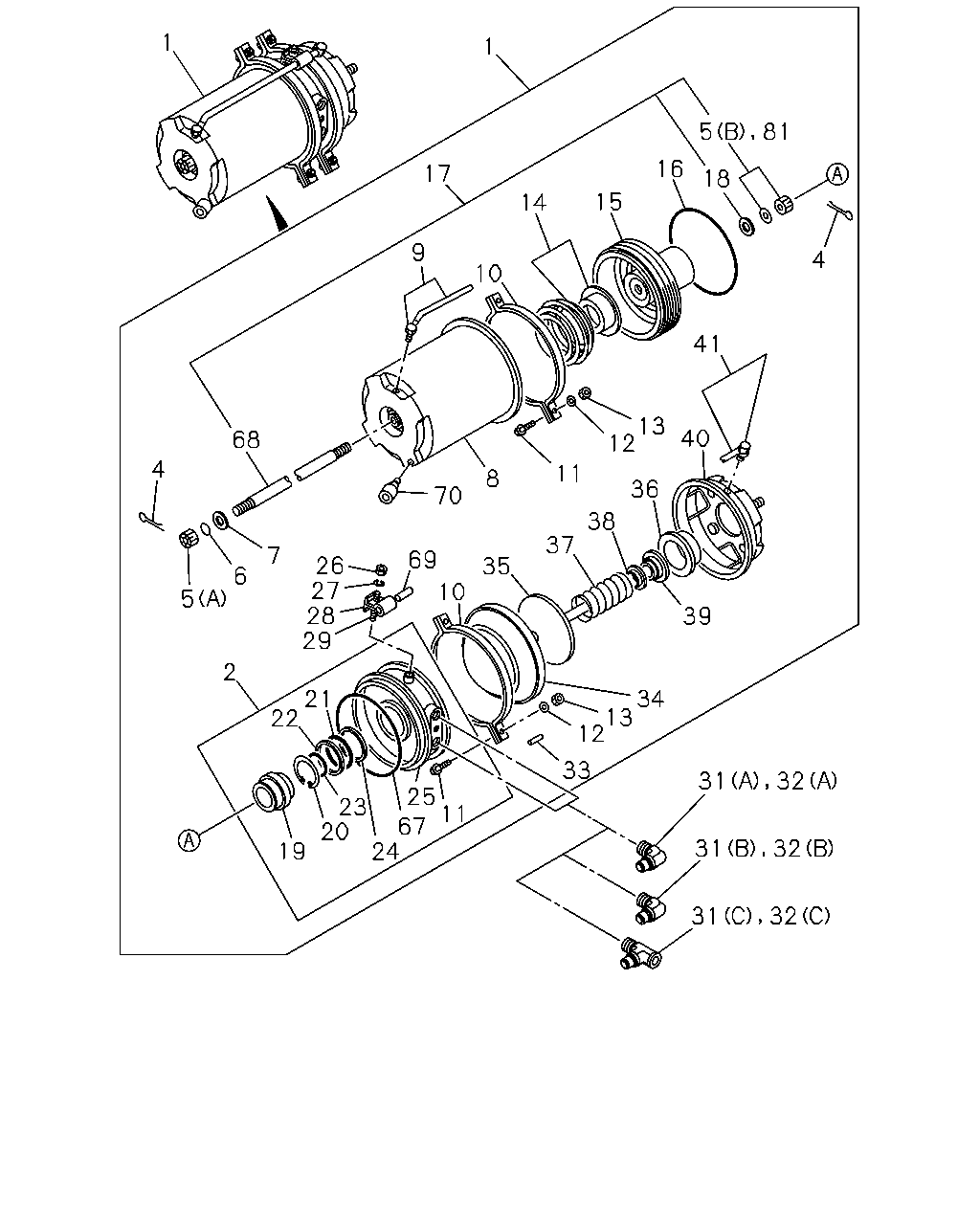

çizim 10761
1 1 16 17 18 15 14 9 4 10 41 13 12 40 68 4 11 8 36 70 38 37 7 69 26 27 28 29 35 6 10 5 39 2 34 13 12 21 22 33 31 32 25 11 23 20 67 24 19 31 32 31 32 5 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING 1-48250-181-1 01 1 9902-9904 ●
1 CHAMBER ASM; SPRING
EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48250-181-1 01 1 9905-9906 ●
1 CHAMBER ASM; SPRING 1-48250-181-1 01 1 9907-0003 ●
1 CHAMBER ASM; SPRING 1-48250-181-1 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM RETARDER<RE2> 		1-48250-664-0 01 1 9902-0003 ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM RETARDER<RE2> 		1-48250-664-0 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48250-180-1 01 1 9902-9904 ●
1 CHAMBER ASM; SPRING
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> 		1-48250-180-1 01 1 9905-9906 ●
1 CHAMBER ASM; SPRING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48250-180-1 01 1 9907-0003 ●
1 CHAMBER ASM; SPRING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48250-180-1 01 1 0004- ● ●
2 CHAMBER; EMERGENCY 1-48252-019-0 01 1 9902-9904 ●
2 CHAMBER; EMERGENCY
EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48252-019-0 01 1 9905-9906 ●
2 CHAMBER; EMERGENCY 1-48252-019-0 01 1 9907-0003 ●
2 CHAMBER; EMERGENCY 1-48252-019-0 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM RETARDER<RE2> 		1-48253-060-0 01 1 9902-0003 ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM RETARDER<RE2> 		1-48253-060-0 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48252-018-0 01 1 9902-9904 ●
2 CHAMBER; EMERGENCY
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> 		1-48252-018-0 01 1 9905-9906 ●
2 CHAMBER; EMERGENCY
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48252-018-0 01 1 9907-0003 ●
2 CHAMBER; EMERGENCY
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48252-018-0 01 1 0004- ● ●
4 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-056-0 04 1 9902-9904 ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 02 1 9905-0003 ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 02 1 9905-0003 ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 02 1 0004- ● ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 02 1 0004- ● ●
4 PIN; STRAIGHT,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-056-0 04 1 9902-9904 ●
5 NUT; SHELL
(B) 		1-48259-074-0 01 1 9902-9904 ●
5 NUT; SHELL
(B) 		1-48259-074-0 01 1 9905-0003 ●
5 NUT; SHELL
(B) 		1-48259-074-0 01 1 9905-0003 ●
5 NUT; SHELL
(B) 		1-48259-074-0 01 1 0004- ● ●
5 NUT; SHELL
(B) 		1-48259-074-0 01 1 0004- ● ●
5 NUT; SHELL
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48259-054-0 02 1 9902-9904 ●
5 NUT; SHELL
(A) 		1-48259-054-0 01 1 9905-0003 ●
5 NUT; SHELL
(A) 		1-48259-054-0 01 1 9905-0003 ●
5 NUT; SHELL
(A) 		1-48259-054-0 01 1 0004- ● ●
5 NUT; SHELL
(A) 		1-48259-054-0 01 1 0004- ● ●
5 NUT; SHELL
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-48259-054-0 02 1 9902-9904 ●
5 NUT; SHELL
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-48259-074-0 01 1 9902- ●
6 GASKET; SHELL
BRAKE SYSTEM RETARDER<RE2> 		1-48259-055-0 01 1 9902-0003 ●
6 GASKET; SHELL
BRAKE SYSTEM RETARDER<RE2> 		1-48259-055-0 01 1 0004- ● ●
7 GASKET 1-48259-055-0 01 1 9902-9904 ●
7 GASKET 1-48259-055-0 01 1 9905-0003 ●
7 GASKET 1-48259-055-0 01 1 9905-0003 ●
7 GASKET 1-48259-055-0 01 1 0004- ● ●
7 GASKET 1-48259-055-0 01 1 0004- ● ●
7 GASKET
BRAKE SYSTEM RETARDER<RE2> 		9-09920-268-0 01 1 9902-0003 ●
7 GASKET
BRAKE SYSTEM RETARDER<RE2> 		9-09920-268-0 01 1 0004- ● ●
7 GASKET
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-055-0 01 1 9902- ●
8 SHELL; CYL,SPR CHAMBER 1-48259-070-0 01 1 9902-9904 ●
8 SHELL; CYL,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48259-070-0 01 1 9905-9906 ●
8 SHELL; CYL,SPR CHAMBER 1-48259-070-0 01 1 9907-0003 ●
8 SHELL; CYL,SPR CHAMBER 1-48259-070-0 01 1 0004- ● ●
8 SHELL; CYL,SPR CHAMBER 1-48259-069-0 01 1 9902-9904 ●
8 SHELL; CYL,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48259-069-0 01 1 9905-0003 ●
8 SHELL; CYL,SPR CHAMBER 1-48259-069-0 01 1 0004- ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM RETARDER<RE2> 		1-48259-076-0 02 1 9902-9904 ●
9 PIPE ASM; SHELL 1-48259-076-0 01 1 9905-0003 ●
9 PIPE ASM; SHELL 1-48259-076-0 01 1 9905-0003 ●
9 PIPE ASM; SHELL 1-48259-076-0 01 1 0004- ● ●
9 PIPE ASM; SHELL 1-48259-076-0 01 1 0004- ● ●
9 PIPE ASM; SHELL
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-076-0 02 1 9902-9904 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-016-0 08 1 9902-9904 ●
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 04 1 9905-0003 ●
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 04 1 9905-0003 ●
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 04 1 0004- ● ●
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 04 1 0004- ● ●
10 RING; CLAMP,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-016-0 08 1 9902-9904 ●
11 BOLT; CLAMP RING 1-48259-035-0 04 1 9902-9904 ●
11 BOLT; CLAMP RING 1-48259-035-0 04 1 9905-0003 ●
11 BOLT; CLAMP RING 1-48259-035-0 04 1 9905-0003 ●
11 BOLT; CLAMP RING 1-48259-035-0 04 1 0004- ● ●
11 BOLT; CLAMP RING 1-48259-035-0 04 1 0004- ● ●
11 BOLT; CLAMP RING
BRAKE SYSTEM RETARDER<RE2> 		1-48259-092-0 04 1 9902-0003 ●
11 BOLT; CLAMP RING
BRAKE SYSTEM RETARDER<RE2> 		1-48259-092-0 04 1 0004- ● ●
11 BOLT; CLAMP RING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-035-0 01 1 9902- ●
12 WASHER; LK,CLAMP RING 1-48259-046-0 04 1 9902-9904 ●
12 WASHER; LK,CLAMP RING 1-48259-046-0 04 1 9905-0003 ●
12 WASHER; LK,CLAMP RING 1-48259-046-0 04 1 9905-0003 ●
12 WASHER; LK,CLAMP RING 1-48259-046-0 04 1 0004- ● ●
12 WASHER; LK,CLAMP RING 1-48259-046-0 04 1 0004- ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM RETARDER<RE2> ID=10.2 		9-09150-510-0 04 1 9902-0003 ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM RETARDER<RE2> ID=10.2 		9-09150-510-0 04 1 0004- ● ●
12 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-046-0 01 1 9902- ●
13 NUT; CLAMP RING
M10 		9-09110-510-0 04 1 9902-9904 ●
13 NUT; CLAMP RING
M10 		9-09110-510-0 04 1 9905-0003 ●
13 NUT; CLAMP RING
M10 		9-09110-510-0 04 1 9905-0003 ●
13 NUT; CLAMP RING
M10 		9-09110-510-0 04 1 0004- ● ●
13 NUT; CLAMP RING
M10 		9-09110-510-0 04 1 0004- ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM RETARDER<RE2> 		9-83315-080-0 04 1 9902-0003 ●
13 NUT; CLAMP RING
BRAKE SYSTEM RETARDER<RE2> 		9-83315-080-0 04 1 0004- ● ●
13 NUT; CLAMP RING
EXC. BRAKE SYSTEM RETARDER<RE2> M10 		9-09110-510-0 01 1 9902- ●
14 SPRING & SEAT SET
BRAKE SYSTEM RETARDER<RE2> 		1-48259-037-0 02 1 9902-9904 ●
14 SPRING & SEAT SET 1-48259-037-0 01 1 9905-0003 ●
14 SPRING & SEAT SET 1-48259-037-0 01 1 9905-0003 ●
14 SPRING & SEAT SET 1-48259-037-0 01 1 0004- ● ●
14 SPRING & SEAT SET 1-48259-037-0 01 1 0004- ● ●
14 SPRING & SEAT SET
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-037-0 02 1 9902-9904 ●
15 PISTON
BRAKE SYSTEM RETARDER<RE2> 		1-48262-005-0 02 1 9902-9904 ●
15 PISTON 1-48262-005-0 01 1 9905-0003 ●
15 PISTON 1-48262-005-0 01 1 9905-0003 ●
15 PISTON 1-48262-005-0 01 1 0004- ● ●
15 PISTON 1-48262-005-0 01 1 0004- ● ●
15 PISTON
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48262-005-0 02 1 9902-9904 ●
16 GASKET
BRAKE SYSTEM RETARDER<RE2> 		1-48259-048-0 02 1 9902-9904 ●
16 GASKET 1-48259-048-0 01 1 9905-0003 ●
16 GASKET 1-48259-048-0 01 1 9905-0003 ●
16 GASKET 1-48259-048-0 01 1 0004- ● ●
16 GASKET 1-48259-048-0 01 1 0004- ● ●
16 GASKET
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-048-0 02 1 9902-9904 ●
17 BOLT ASM; EMERGENCY
BRAKE SYSTEM RETARDER<RE2> 		1-48259-073-0 02 1 9902-9904 ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 01 1 9905-0003 ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 01 1 9905-0003 ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 01 1 0004- ● ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 01 1 0004- ● ●
17 BOLT ASM; EMERGENCY
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-073-0 02 1 9902-9904 ●
18 WASHER; PISTON COVER,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-098-0 01 1 9902-0003 ●
18 WASHER; PISTON COVER,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-098-0 01 1 0004- ● ●
19 COVER; PISTON
BRAKE SYSTEM RETARDER<RE2> 		1-48269-011-0 02 1 9902-9904 ●
19 COVER; PISTON 1-48269-011-0 01 1 9905-0003 ●
19 COVER; PISTON 1-48269-011-0 01 1 9905-0003 ●
19 COVER; PISTON 1-48269-011-0 01 1 0004- ● ●
19 COVER; PISTON 1-48269-011-0 01 1 0004- ● ●
19 COVER; PISTON
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48269-011-0 02 1 9902-9904 ●
20 RING; RET
BRAKE SYSTEM RETARDER<RE2> 		1-48259-060-0 02 1 9902-9904 ●
20 RING; RET 1-48259-060-0 01 1 9905-0003 ●
20 RING; RET 1-48259-060-0 01 1 9905-0003 ●
20 RING; RET 1-48259-060-0 01 1 0004- ● ●
20 RING; RET 1-48259-060-0 01 1 0004- ● ●
20 RING; RET
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-060-0 02 1 9902-9904 ●
21 GASKET; SPR CHAMBER 1-48259-049-0 01 1 9902-9904 ●
21 GASKET; SPR CHAMBER 1-48259-049-0 01 1 9905-0003 ●
21 GASKET; SPR CHAMBER 1-48259-049-0 01 1 9905-0003 ●
21 GASKET; SPR CHAMBER 1-48259-049-0 01 1 0004- ● ●
21 GASKET; SPR CHAMBER 1-48259-049-0 01 1 0004- ● ●
21 GASKET; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-047-0 01 1 9902-0003 ●
21 GASKET; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-047-0 01 1 0004- ● ●
21 GASKET; SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-049-0 01 1 9902- ●
22 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-019-0 02 1 9902-9904 ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 01 1 9905-0003 ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 01 1 9905-0003 ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 01 1 0004- ● ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 01 1 0004- ● ●
22 RING; BACKUP,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-019-0 02 1 9902-9904 ●
23 GASKET; SPR CHAMBER 1-48259-047-0 01 1 9902-9904 ●
23 GASKET; SPR CHAMBER 1-48259-047-0 01 1 9905-0003 ●
23 GASKET; SPR CHAMBER 1-48259-047-0 01 1 9905-0003 ●
23 GASKET; SPR CHAMBER 1-48259-047-0 01 1 0004- ● ●
23 GASKET; SPR CHAMBER 1-48259-047-0 01 1 0004- ● ●
23 GASKET; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-049-0 01 1 9902-0003 ●
23 GASKET; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-049-0 01 1 0004- ● ●
23 GASKET; SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-047-0 01 1 9902- ●
24 BEARING; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-020-0 02 1 9902-9904 ●
24 BEARING; SPR CHAMBER 1-48259-020-0 01 1 9905-0003 ●
24 BEARING; SPR CHAMBER 1-48259-020-0 01 1 9905-0003 ●
24 BEARING; SPR CHAMBER 1-48259-020-0 01 1 0004- ● ●
24 BEARING; SPR CHAMBER 1-48259-020-0 01 1 0004- ● ●
24 BEARING; SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-020-0 02 1 9902-9904 ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-086-0 02 1 9902-9904 ●
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-086-0 01 1 9902-9904 ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-086-0 01 1 9905-0003 ●
25 PLATE; PRESSURE,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> 		1-48259-086-0 01 1 9905-0003 ●
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-086-0 01 1 0004- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-086-0 01 1 0004- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-085-0 01 1 9902-9904 ●
25 PLATE; PRESSURE,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> 		1-48259-085-0 01 1 9905-9906 ●
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-085-0 01 1 9907-0003 ●
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-085-0 01 1 0004- ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-48259-058-0 04 1 9902-9904 ●
26 NUT; PRESSURE PLATE 1-48259-058-0 02 1 9905-0003 ●
26 NUT; PRESSURE PLATE 1-48259-058-0 02 1 9905-0003 ●
26 NUT; PRESSURE PLATE 1-48259-058-0 02 1 0004- ● ●
26 NUT; PRESSURE PLATE 1-48259-058-0 02 1 0004- ● ●
26 NUT; PRESSURE PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-058-0 04 1 9902-9904 ●
27 WASHER; PRESSURE PLATE 1-48259-057-0 01 1 9902-9904 ●
27 WASHER; PRESSURE PLATE 1-48259-057-0 01 1 9905-0003 ●
27 WASHER; PRESSURE PLATE 1-48259-057-0 01 1 9905-0003 ●
27 WASHER; PRESSURE PLATE 1-48259-057-0 01 1 0004- ● ●
27 WASHER; PRESSURE PLATE 1-48259-057-0 01 1 0004- ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM RETARDER<RE2> ID=8.2 		9-09150-508-0 01 1 9902-0003 ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM RETARDER<RE2> ID=8.2 		9-09150-508-0 01 1 0004- ● ●
27 WASHER; PRESSURE PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-057-0 01 1 9902- ●
28 BRACKET; PRESSURE PLATE,HOSE
BRAKE SYSTEM RETARDER<RE2> 		1-48259-059-0 02 1 9902-9904 ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 01 1 9905-0003 ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 01 1 9905-0003 ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 01 1 0004- ● ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 01 1 0004- ● ●
28 BRACKET; PRESSURE PLATE,HOSE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-059-0 02 1 9902-9904 ●
29 STUD; PRESSURE PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-48259-050-0 02 1 9902-9904 ●
29 STUD; PRESSURE PLATE 1-48259-050-0 01 1 9905-0003 ●
29 STUD; PRESSURE PLATE 1-48259-050-0 01 1 9905-0003 ●
29 STUD; PRESSURE PLATE 1-48259-050-0 01 1 0004- ● ●
29 STUD; PRESSURE PLATE 1-48259-050-0 01 1 0004- ● ●
29 STUD; PRESSURE PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-050-0 02 1 9902-9904 ●
31 CONNECTOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9902-9904 ●
31 CONNECTOR
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9905-0003 ●
31 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0004- ● ●
31 CONNECTOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9902-9904 ●
31 CONNECTOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9905-9906 ●
31 CONNECTOR
BRAKE SYSTEM HEAVY DUTY(J55) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9905-9906 ●
31 CONNECTOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9907-0003 ●
31 CONNECTOR
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9907-0003 ●
31 CONNECTOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0004- ●
31 CONNECTOR
BRAKE SYSTEM HEAVY DUTY(J55) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0004- ●
31 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (C) 		1-09660-838-0 01 1 9902-9904 ●
31 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (C) 		1-09660-838-0 01 1 9905-9906 ●
31 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (C) 		1-47815-034-0 01 1 9907-0003 ●
31 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (C) 		1-47815-034-0 01 1 0004- ● ●
31 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9905-9906 ●
31 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-47815-035-0 01 1 9907- ●
31 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9902-0003 ●
31 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0004- ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 9902-9904 ●
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 9905- ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9902-9904 ●
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9905- ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9902-9904 ●
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9905- ●
33 RETAINER; DIAPH
BRAKE SYSTEM RETARDER<RE2> 		1-48259-044-0 04 1 9902-9904 ●
33 RETAINER; DIAPH 1-48259-044-0 02 1 9905-0003 ●
33 RETAINER; DIAPH 1-48259-044-0 02 1 9905-0003 ●
33 RETAINER; DIAPH 1-48259-044-0 02 1 0004- ● ●
33 RETAINER; DIAPH 1-48259-044-0 02 1 0004- ● ●
33 RETAINER; DIAPH
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-044-0 04 1 9902-9904 ●
34 DIAPHRAGM 1-48252-010-0 01 1 9902-9904 ●
34 DIAPHRAGM 1-48252-010-0 01 1 9905-0003 ●
34 DIAPHRAGM 1-48252-010-0 01 1 9905-0003 ●
34 DIAPHRAGM 1-48252-010-0 01 1 0004- ● ●
34 DIAPHRAGM 1-48252-010-0 01 1 0004- ● ●
34 DIAPHRAGM
BRAKE SYSTEM RETARDER<RE2> 		1-48252-056-0 01 1 9902-0003 ●
34 DIAPHRAGM
BRAKE SYSTEM RETARDER<RE2> 		1-48252-056-0 01 1 0004- ● ●
34 DIAPHRAGM
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-056-0 01 1 9902- ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48253-010-0 02 1 9902-9904 ●
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 01 1 9905-0003 ●
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 01 1 9905-0003 ●
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 01 1 0004- ● ●
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 01 1 0004- ● ●
35 PLATE; ROD END,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48253-010-0 02 1 9902-9904 ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-043-0 02 1 9902-9904 ●
36 RETAINER; SPR CHAMBER 1-48259-043-0 01 1 9905-0003 ●
36 RETAINER; SPR CHAMBER 1-48259-043-0 01 1 9905-0003 ●
36 RETAINER; SPR CHAMBER 1-48259-043-0 01 1 0004- ● ●
36 RETAINER; SPR CHAMBER 1-48259-043-0 01 1 0004- ● ●
36 RETAINER; SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-043-0 02 1 9902-9904 ●
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48255-003-0 02 1 9902-9904 ●
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 01 1 9905-0003 ●
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 01 1 9905-0003 ●
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 01 1 0004- ● ●
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 01 1 0004- ● ●
37 SPRING; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48255-003-0 02 1 9902-9904 ●
38 COVER; ROD & PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-48259-066-0 02 1 9902-9904 ●
38 COVER; ROD & PLATE 1-48259-066-0 01 1 9905-0003 ●
38 COVER; ROD & PLATE 1-48259-066-0 01 1 9905-0003 ●
38 COVER; ROD & PLATE 1-48259-066-0 01 1 0004- ● ●
38 COVER; ROD & PLATE 1-48259-066-0 01 1 0004- ● ●
38 COVER; ROD & PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-066-0 02 1 9902-9904 ●
39 COVER; ROD & PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-48259-065-0 02 1 9902-9904 ●
39 COVER; ROD & PLATE 1-48259-065-0 01 1 9905-0003 ●
39 COVER; ROD & PLATE 1-48259-065-0 01 1 9905-0003 ●
39 COVER; ROD & PLATE 1-48259-065-0 01 1 0004- ● ●
39 COVER; ROD & PLATE 1-48259-065-0 01 1 0004- ● ●
39 COVER; ROD & PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-065-0 02 1 9902-9904 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 9902-9904 ●
40 COVER ASM; LWR,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48259-068-1 01 1 9905-9906 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 9907-0003 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 0004- ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48250-067-1 01 1 9902-0003 ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48250-067-1 01 1 0004- ● ●
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-067-1 01 1 9902-9904 ●
40 COVER ASM; LWR,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> 		1-48259-067-1 01 1 9905-9906 ●
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-067-1 01 1 9907-0003 ●
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-067-1 01 1 0004- ● ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-075-0 02 1 9902-9904 ●
41 PIPE ASM; LWR COVER 1-48259-075-0 01 1 9905-0003 ●
41 PIPE ASM; LWR COVER 1-48259-075-0 01 1 9905-0003 ●
41 PIPE ASM; LWR COVER 1-48259-075-0 01 1 0004- ● ●
41 PIPE ASM; LWR COVER 1-48259-075-0 01 1 0004- ● ●
41 PIPE ASM; LWR COVER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-075-0 02 1 9902-9904 ●
67 GASKET; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-053-0 02 1 9902-9904 ●
67 GASKET; SPR CHAMBER 1-48259-053-0 01 1 9905-0003 ●
67 GASKET; SPR CHAMBER 1-48259-053-0 01 1 9905-0003 ●
67 GASKET; SPR CHAMBER 1-48259-053-0 01 1 0004- ● ●
67 GASKET; SPR CHAMBER 1-48259-053-0 01 1 0004- ● ●
67 GASKET; SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-053-0 02 1 9902-9904 ●
68 BOLT; PISTON COVER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-026-0 01 1 9902-0003 ●
68 BOLT; PISTON COVER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-026-0 01 1 0004- ● ●
69 HOSE; PRESSURE PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-48259-051-0 02 1 9902-9904 ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 01 1 9905-0003 ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 01 1 9905-0003 ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 01 1 0004- ● ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 01 1 0004- ● ●
69 HOSE; PRESSURE PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-051-0 02 1 9902-9904 ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-052-0 02 1 9902-9904 ●
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 01 1 9905-0003 ●
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 01 1 9905-0003 ●
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 01 1 0004- ● ●
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 01 1 0004- ● ●
70 COVER; EXH,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-052-0 02 1 9902-9904 ●
81 NUT ASM; EMERGENCY
BRAKE SYSTEM RETARDER<RE2> 		1-48259-074-0 01 1 9902-0003 ●
81 NUT ASM; EMERGENCY
BRAKE SYSTEM RETARDER<RE2> 		1-48259-074-0 01 1 0004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
