6-76 — FLOOR EQUIPMENT AND SEALING (#76898) — 15 parça

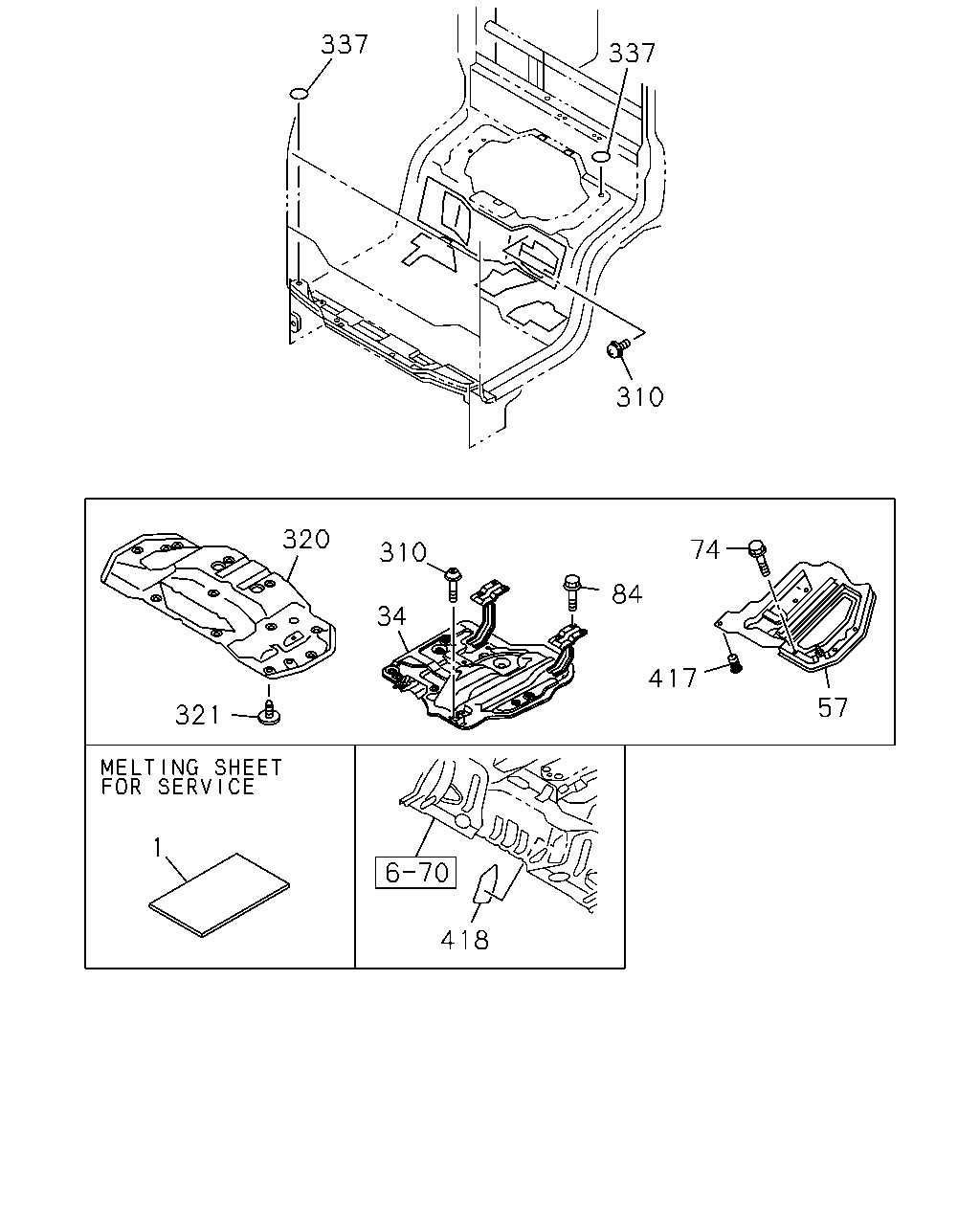

çizim 60239
337 337 310 57 74 417 84 418 34 310 320 321 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0810-
34 16.549 COVER ASM; ENG,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97589-391-2 01 1 1507-
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97589-396-4 01 1 1507-
74 16.549 BOLT; SUPPORT COVER TO FLOOR
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 10 1 1507-
84 16.549 BOLT; ENG COVER HINGE
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1507-
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811-
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 09 1 0810-0810
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 05 1 0811-
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-97586-164-7 01 1 0810-1408
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98242-225-0 01 1 1409-
321 16.549 CLIP; INSULATOR,FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4 		8-97808-623-0 15 1 0810-
337 16.545 SEAL; CLIP HOLE
EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 08 1 0810-
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT 		8-98013-752-0 01 1 1507-
418 16.549 SEAL; PROTECTOR 8-98090-191-0 01 1 0810-0910
418 16.549 SEAL; PROTECTOR 8-98090-192-0 01 1 0810-0910
