◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51190 - NPS(LHD)EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#76896) — 64 parça

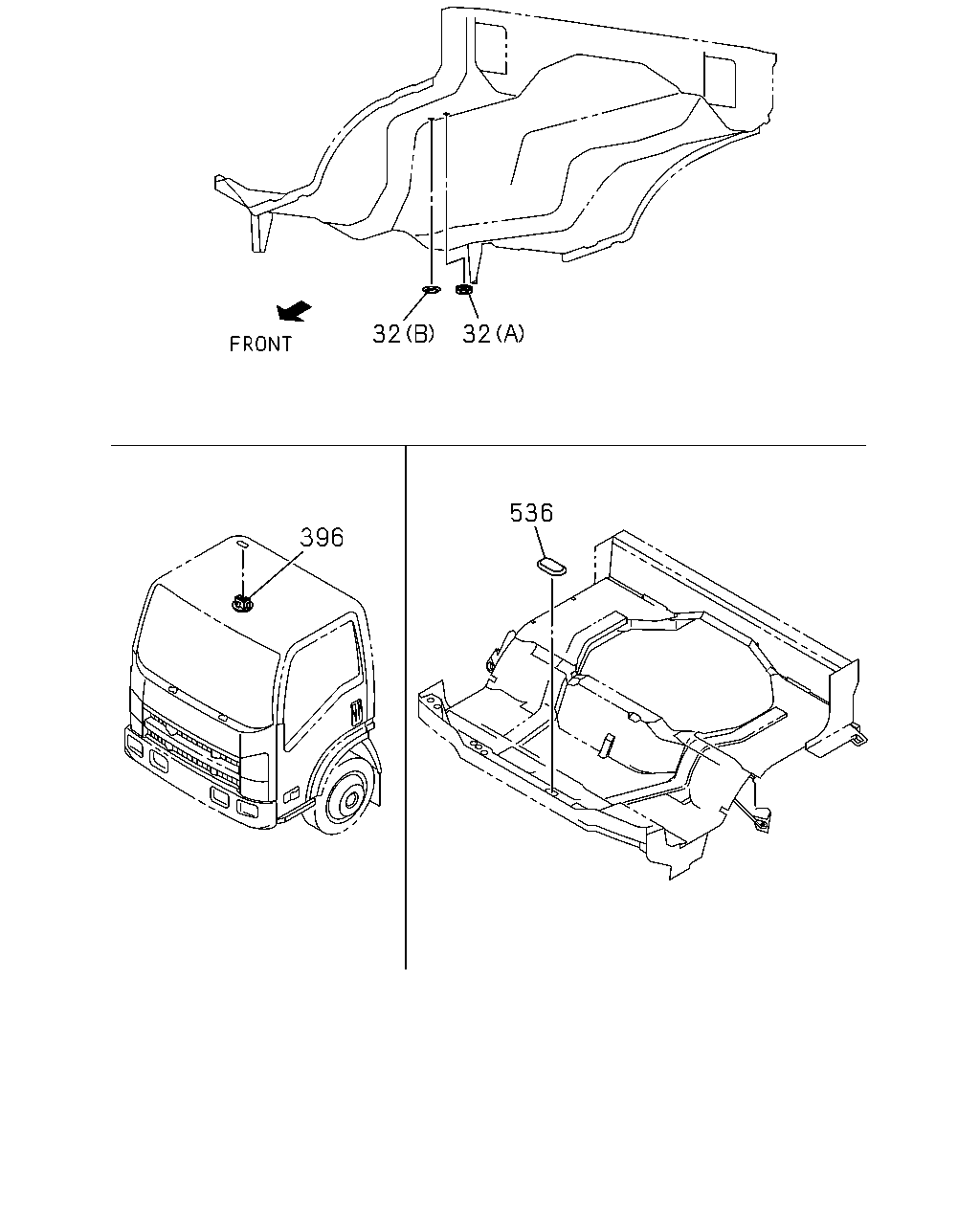

çizim 101167
32 32 536 396
BalonParca AdiParca NoAdetTipApplied Date
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
00.785 (A) OD=16.2 		8-94492-493-0 02 1 0810-0908
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 0909-
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 0810-
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 0810-
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 0810-

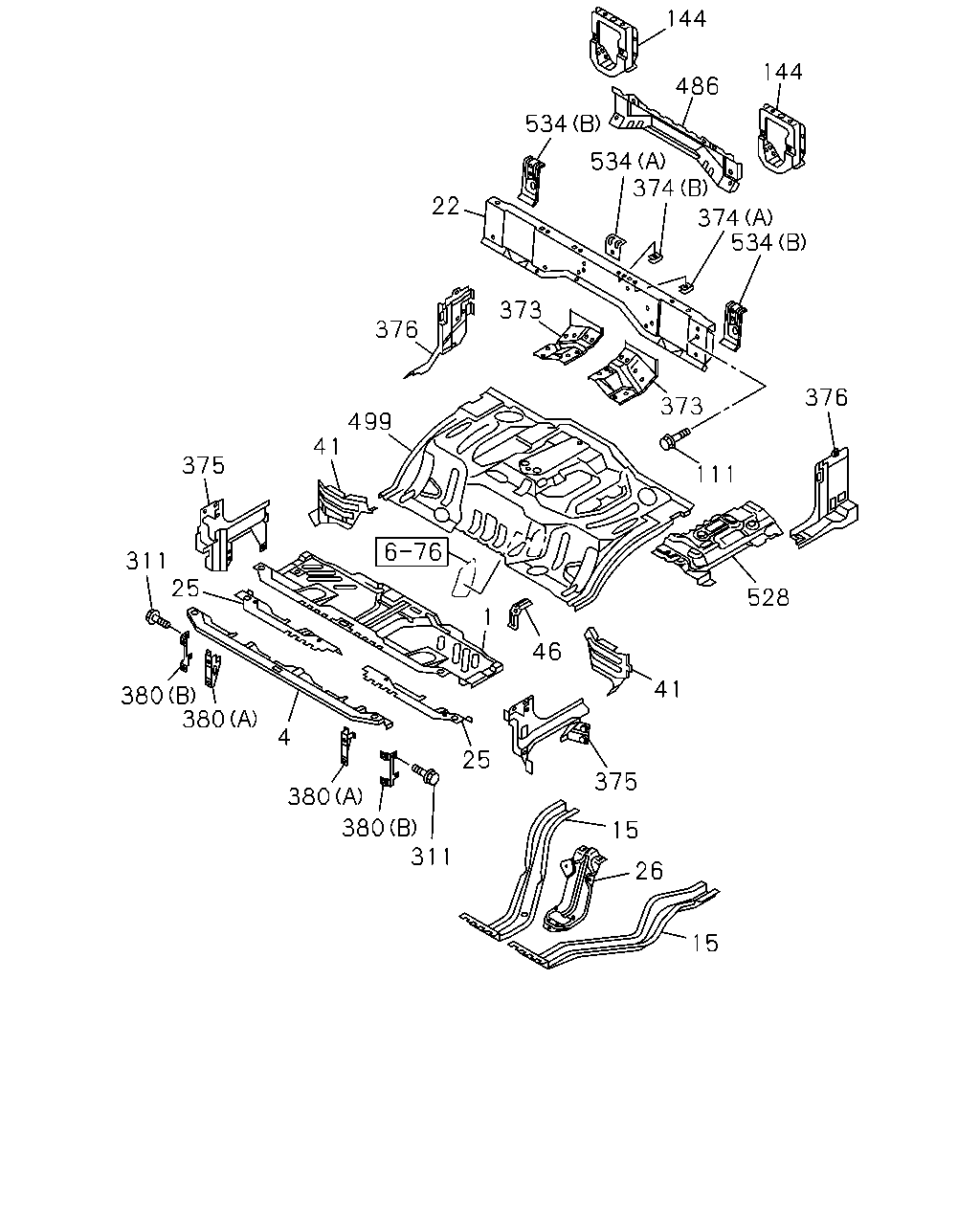

çizim 101170
144 144 486 534 534 374 22 374 534 373 376 376 373 499 41 375 111 311 25 528 1 46 380 380 41 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date
1 16.545 PANEL; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-407-4 01 1 0810-1506
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-407-4 01 1 1507-
4 16.545 FRAME; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-595-0 01 1 0810-1506
4 16.545 FRAME; FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-595-0 01 1 1507-
15 16.545 FRAME; UNDER
EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-498-1 01 1 0810-1506
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-498-1 01 1 1507-
15 16.545 FRAME; UNDER
EXC. INSPECTION ENGINE COVER<8GA> 		8-98088-004-0 01 1 0810-1506
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98088-004-0 01 1 1507-
22 16.545 FRAME; FLOOR REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 0810-1506
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 1507-
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-823-0 01 1 0810-1506
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-823-0 01 1 1507-
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-587-0 01 1 0810-1506
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-587-0 01 1 1507-
26 16.545 PANEL; GEAR CONT REINF
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-517-1 01 1 0810-1506
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-517-1 01 1 1507-
41 16.545 SUPPORT; STEP,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-880-1 01 1 0810-1506
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-880-1 01 1 1507-
41 16.545 SUPPORT; STEP,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-881-1 01 1 0810-1506
41 16.545 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-881-1 01 1 1507-
46 16.545 BRACKET; FRT SEAT,RR OUTER
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-834-0 01 1 0810-1506
46 16.545 BRACKET; FRT SEAT,RR OUTER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-834-0 01 1 1507-
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810-
144 16.545 BRACKET; MTG,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-2 02 1 0810-1506
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 1507-
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0810-
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 0810-1506
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 1507-
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 0810-1506
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 1507-
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 0810-1506
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 1507-
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 0810-1506
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1507-
375 16.545 CLOSING; PILLAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98080-727-2 01 1 0810-1506
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98080-727-2 01 1 1507-
375 16.545 CLOSING; PILLAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98080-728-1 01 1 0810-1506
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98080-728-1 01 1 1507-
376 16.545 CLOSING; PILLAR,LWR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-888-2 01 1 0810-1506
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-888-2 01 1 1507-
376 16.545 CLOSING; PILLAR,LWR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-618-2 01 1 0810-1506
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-618-2 01 1 1507-
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0810-
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0810-
380 16.545 BRACKET; HEAD LAMP
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-384-4 01 1 0810-1506
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-384-4 01 1 1507-
380 16.545 BRACKET; HEAD LAMP
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-385-3 01 1 0810-1506
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-385-3 01 1 1507-
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 0810-1506
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 1507-
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-409-5 01 1 0810-1207
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-799-0 01 1 1208-1506
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-799-0 01 1 1507-
528 16.545 REINFORCEMENT; PARKING BRAKE
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-410-2 01 1 0810-1506
528 16.545 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-410-2 01 1 1507-
534 16.545 REINFORCEMENT; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97583-851-3 02 1 0810-1506
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97583-851-3 02 1 1507-
534 16.545 REINFORCEMENT; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98019-181-2 01 1 0810-1506
534 16.545 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98019-181-2 01 1 1507-
