3-40 — FRONT BRAKE POWER CHAMBER (#7689) — 180 parça

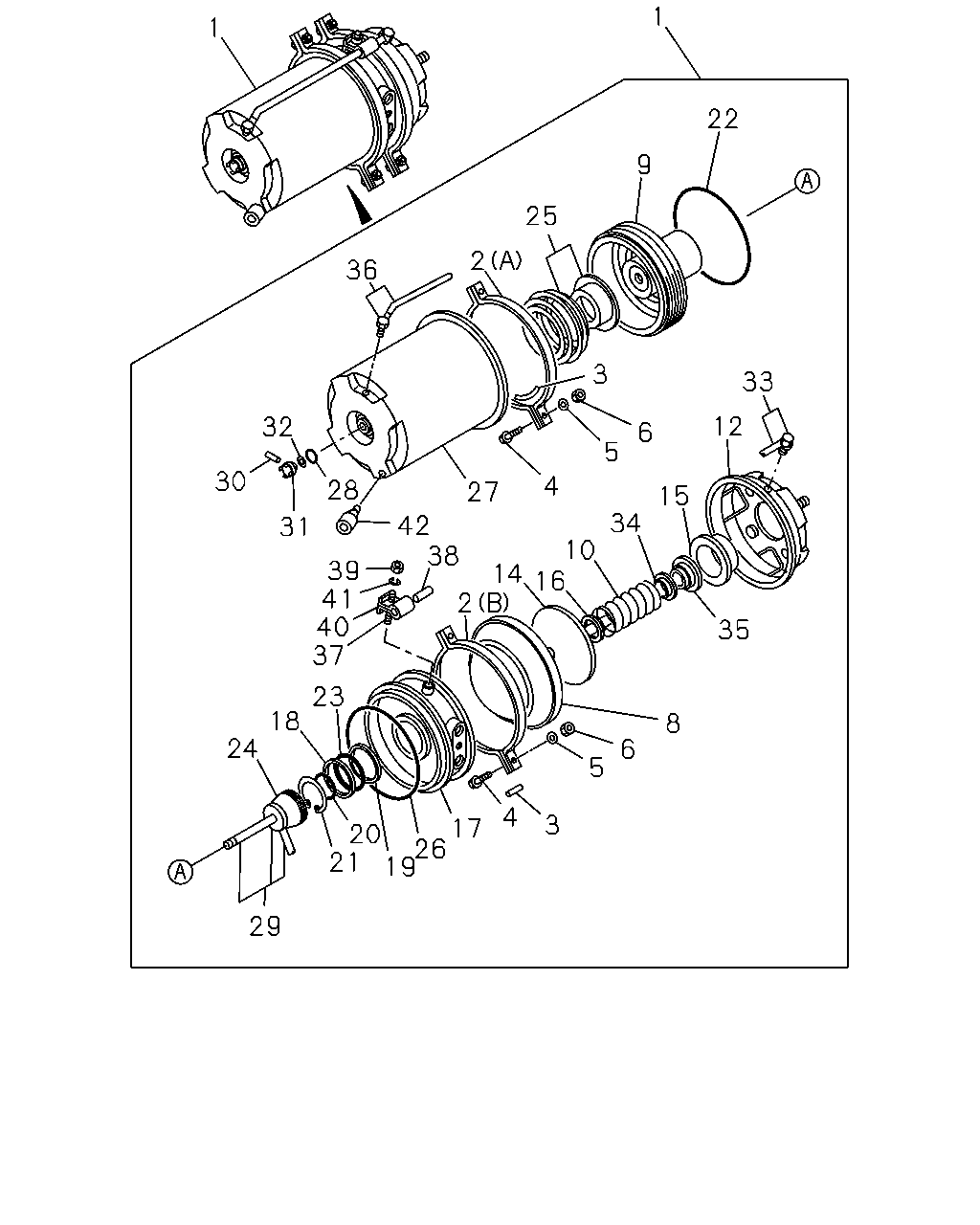

çizim 9091
1 1 22 9 25 2 36 3 33 12 32 6 5 30 4 28 27 15 34 42 38 31 10 16 39 41 40 37 14 2 35 23 18 8 24 6 5 4 3 17 20 26 21 19 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK 1-48250-523-0 01 1 9902-9904 ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-523-1 01 1 9905- ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-522-0 01 1 9902-9904 ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-522-1 01 1 9905- ●
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-338-0 02 1 9905-0003 ●
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-338-0 02 1 0004- ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-338-0 02 1 0004- ●
2 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 9902-9904 ●
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48259-016-0 04 1 9905- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 9902-9904 ●
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48259-031-0 04 1 9905- ●
2 RING; CLAMP,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-001-0 02 1 9905-0003 ●
2 RING; CLAMP,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-001-0 02 1 0004- ●
2 RING; CLAMP,SPR CHAMBER 1-48259-001-0 02 1 0004- ●
3 RETAINER; DIAPH 1-48250-044-0 04 1 9902-9904 ●
3 RETAINER; DIAPH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-044-0 04 1 9905- ●
3 RETAINER; DIAPH
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48259-016-0 04 1 9905-0003 ●
3 RETAINER; DIAPH
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48259-016-0 04 1 0004- ●
3 RETAINER; DIAPH 9-48259-016-0 04 1 0004- ●
4 BOLT; CLAMP RING 1-48259-092-0 08 1 9902-9904 ●
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-092-0 08 1 9905- ●
4 BOLT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-002-0 04 1 9905-0003 ●
4 BOLT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-002-0 04 1 0004- ●
4 BOLT; CLAMP RING 1-48259-002-0 04 1 0004- ●
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 08 1 9902-9904 ●
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 08 1 9905- ●
5 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 9905-0003 ●
5 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0004- ●
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 0004- ●
6 NUT; CLAMP RING 9-83315-080-0 08 1 9902-9904 ●
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-83315-080-0 08 1 9905- ●
6 NUT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10 		9-09110-010-0 04 1 9905-0003 ●
6 NUT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10 		9-09110-010-0 04 1 0004- ●
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 0004- ●
8 DIAPHRAGM; SPR CHAMBER 1-48258-011-0 02 1 9902-9904 ●
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48258-011-0 02 1 9905- ●
8 DIAPHRAGM; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-006-0 02 1 9905-0003 ●
8 DIAPHRAGM; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-006-0 02 1 0004- ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 02 1 0004- ●
9 PISTON; SPR CHAMBER 1-48262-005-0 02 1 9902-9904 ●
9 PISTON; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48262-005-0 02 1 9905- ●
9 PISTON; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-001-0 02 1 9905-0003 ●
9 PISTON; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-001-0 02 1 0004- ●
9 PISTON; SPR CHAMBER 1-48253-001-0 02 1 0004- ●
10 SPRING; PISTON,SPR CHAMBER 1-48255-003-0 02 1 9902-9904 ●
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-003-0 02 1 9905- ●
10 SPRING; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-001-0 02 1 9905-0003 ●
10 SPRING; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-001-0 02 1 0004- ●
10 SPRING; PISTON,SPR CHAMBER 1-48255-001-0 02 1 0004- ●
12 COVER ASM; LWR,SPR CHAMBER 1-48259-242-0 01 1 9902-9904 ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-242-0 01 1 9905- ●
12 COVER ASM; LWR,SPR CHAMBER 1-48259-243-0 01 1 9902-9904 ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-243-0 01 1 9905- ●
12 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-019-0 02 1 9905-0003 ●
12 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-019-0 02 1 0004- ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-019-0 02 1 0004- ●
14 PLATE; ROD END,SPR CHAMBER 1-48253-045-0 02 1 9902-9904 ●
14 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-045-0 02 1 9905- ●
15 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 9902-9904 ●
15 RETAINER; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-043-0 02 1 9905- ●
16 RETAINER; SPRING,SPR CHAMBER 1-48259-033-0 02 1 9902-9904 ●
16 RETAINER; SPRING,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-033-0 02 1 9905- ●
17 PLATE; PRESS,SPR CHAMBER 1-48259-088-0 01 1 9902-9904 ●
17 PLATE; PRESS,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-088-0 01 1 9905- ●
17 PLATE; PRESS,SPR CHAMBER 1-48259-087-0 01 1 9902-9904 ●
17 PLATE; PRESS,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-087-0 01 1 9905- ●
18 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9902-9904 ●
18 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-019-0 02 1 9905- ●
19 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9902-9904 ●
19 BEARING; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-020-0 02 1 9905- ●
20 GASKET; SPR CHAMBER 1-48259-047-0 02 1 9902-9904 ●
20 GASKET; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-047-0 02 1 9905- ●
21 RING; SNAP,SPR CHAMBER 1-48259-060-0 02 1 9902-9904 ●
21 RING; SNAP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-060-0 02 1 9905- ●
22 GASKET; PISTON,SPR CHAMBER 1-48259-048-0 02 1 9902-9904 ●
22 GASKET; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-048-0 02 1 9905- ●
23 GASKET; COVER,SPR CHAMBER 1-48259-049-0 02 1 9902-9904 ●
23 GASKET; COVER,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-049-0 02 1 9905- ●
24 COVER; PISTON,SPR CHAMBER 1-48269-011-0 02 1 9902-9904 ●
24 COVER; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48269-011-0 02 1 9905- ●
25 SPRING & SEAT SET 1-48259-037-0 02 1 9902-9904 ●
25 SPRING & SEAT SET
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-037-1 02 1 9905- ●
26 GASKET; PRESS PLATE 1-48259-053-0 02 1 9902-9904 ●
26 GASKET; PRESS PLATE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-053-0 02 1 9905- ●
27 SHELL; CYL,SPR CHAMBER 1-48259-232-0 01 1 9902-9904 ●
27 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-232-0 01 1 9905- ●
27 SHELL; CYL,SPR CHAMBER 1-48259-233-0 01 1 9902-9904 ●
27 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-233-0 01 1 9905- ●
28 GASKET; SHELL 9-09920-268-0 02 1 9902-9904 ●
28 GASKET; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-09920-268-0 02 1 9905- ●
29 BOLT ASM; EMARGENCY 1-48259-073-0 02 1 9902-9904 ●
29 BOLT ASM; EMARGENCY
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-073-0 02 1 9905- ●
30 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9902-9904 ●
30 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-056-0 04 1 9905- ●
31 NUT; SHELL 1-48259-054-0 02 1 9902-9904 ●
31 NUT; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-054-0 02 1 9905- ●
32 GASKET; BOLT 1-48259-055-0 02 1 9902-9904 ●
32 GASKET; BOLT
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-055-0 02 1 9905- ●
33 PIPE ASM; LWR COVER 1-48259-080-0 02 1 9902-9904 ●
33 PIPE ASM; LWR COVER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-080-0 02 1 9905- ●
34 COVER; RETAINER 1-48259-065-0 02 1 9902-9904 ●
34 COVER; RETAINER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-065-0 02 1 9905- ●
35 COVER; ROD & PLATE 1-48259-066-0 02 1 9902-9904 ●
35 COVER; ROD & PLATE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-066-0 02 1 9905- ●
36 PIPE ASM; SHELL 1-89922-126-1 02 1 9902-9904 ●
36 PIPE ASM; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-89922-126-1 02 1 9905- ●
37 STUD; BRKT 1-48259-050-0 02 1 9902-9904 ●
37 STUD; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-050-0 02 1 9905- ●
38 HOSE; AIR 1-48259-051-0 02 1 9902-9904 ●
38 HOSE; AIR
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-051-0 02 1 9905- ●
39 NUT; BRKT 8-94311-428-0 04 1 9902-9904 ●
39 NUT; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94311-428-0 04 1 9905- ●
40 BRACKET; AIR HOSE 1-48259-244-0 02 1 9902-9904 ●
40 BRACKET; AIR HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-244-0 02 1 9905- ●
41 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 02 1 9902-9904 ●
41 WASHER; LK,BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) ID=8.2 		9-09150-508-0 02 1 9905- ●
42 COVER; EXH 1-89966-127-3 02 1 9902-9904 ●
42 COVER; EXH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-89966-127-3 02 1 9905- ●

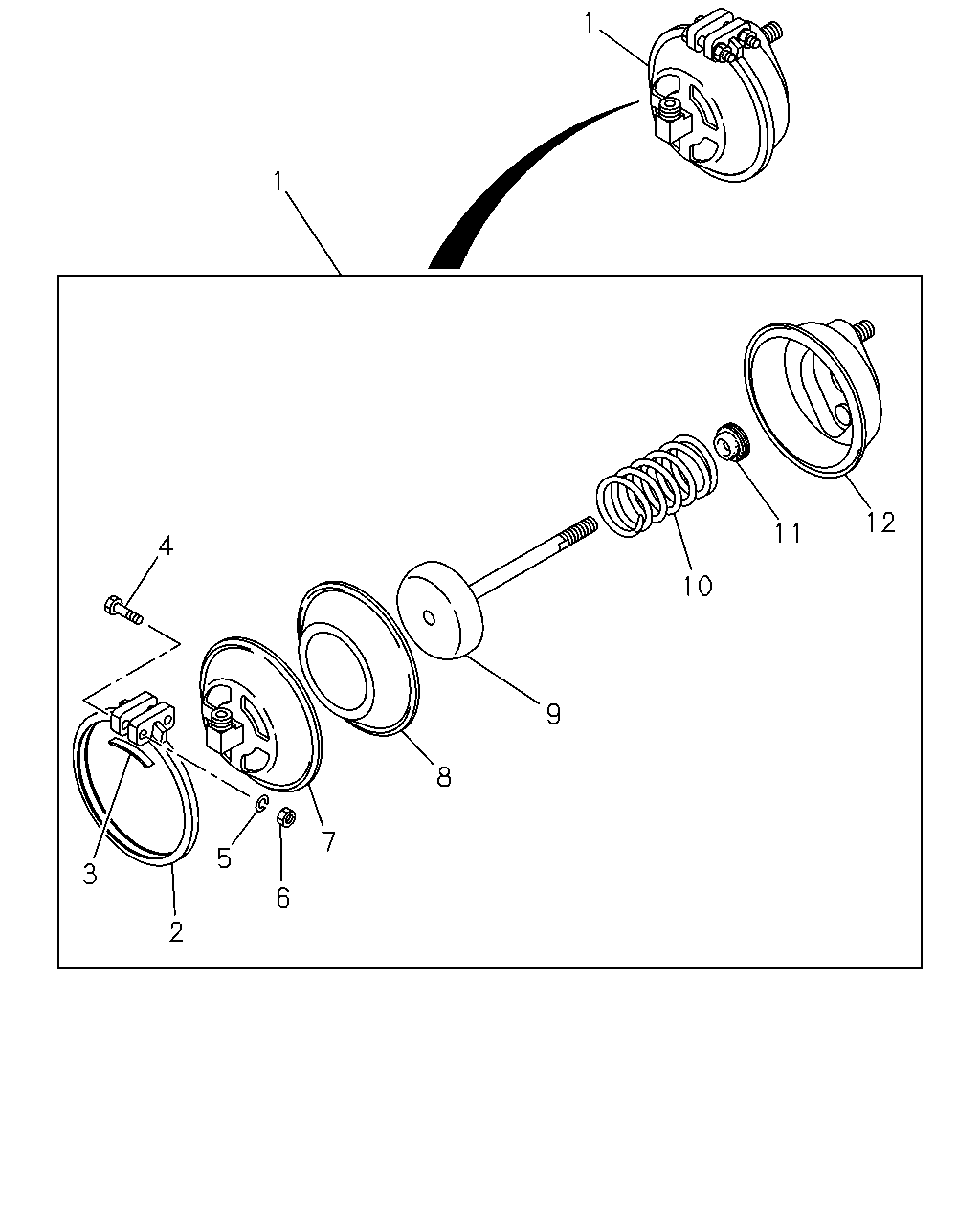

çizim 42703
1 1 12 11 4 10 9 8 7 5 3 6 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK 1-48250-523-0 01 1 9902-9904 ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-523-1 01 1 9905- ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-522-0 01 1 9902-9904 ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-522-1 01 1 9905- ●
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-338-0 02 1 9905-0003 ●
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-338-0 02 1 0004- ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-338-0 02 1 0004- ●
2 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 9902-9904 ●
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48259-016-0 04 1 9905- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 9902-9904 ●
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48259-031-0 04 1 9905- ●
2 RING; CLAMP,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-001-0 02 1 9905-0003 ●
2 RING; CLAMP,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-001-0 02 1 0004- ●
2 RING; CLAMP,SPR CHAMBER 1-48259-001-0 02 1 0004- ●
3 RETAINER; DIAPH 1-48250-044-0 04 1 9902-9904 ●
3 RETAINER; DIAPH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-044-0 04 1 9905- ●
3 RETAINER; DIAPH
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48259-016-0 04 1 9905-0003 ●
3 RETAINER; DIAPH
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48259-016-0 04 1 0004- ●
3 RETAINER; DIAPH 9-48259-016-0 04 1 0004- ●
4 BOLT; CLAMP RING 1-48259-092-0 08 1 9902-9904 ●
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-092-0 08 1 9905- ●
4 BOLT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-002-0 04 1 9905-0003 ●
4 BOLT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-002-0 04 1 0004- ●
4 BOLT; CLAMP RING 1-48259-002-0 04 1 0004- ●
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 08 1 9902-9904 ●
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 08 1 9905- ●
5 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 9905-0003 ●
5 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0004- ●
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 0004- ●
6 NUT; CLAMP RING 9-83315-080-0 08 1 9902-9904 ●
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-83315-080-0 08 1 9905- ●
6 NUT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10 		9-09110-010-0 04 1 9905-0003 ●
6 NUT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10 		9-09110-010-0 04 1 0004- ●
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 0004- ●
7 COVER ASM; UPR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-039-0 02 1 9905-0003 ●
7 COVER ASM; UPR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-039-0 02 1 0004- ●
7 COVER ASM; UPR,SPR CHAMBER 1-48251-039-0 02 1 0004- ●
8 DIAPHRAGM; SPR CHAMBER 1-48258-011-0 02 1 9902-9904 ●
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48258-011-0 02 1 9905- ●
8 DIAPHRAGM; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-006-0 02 1 9905-0003 ●
8 DIAPHRAGM; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-006-0 02 1 0004- ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 02 1 0004- ●
9 PISTON; SPR CHAMBER 1-48262-005-0 02 1 9902-9904 ●
9 PISTON; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48262-005-0 02 1 9905- ●
9 PISTON; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-001-0 02 1 9905-0003 ●
9 PISTON; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-001-0 02 1 0004- ●
9 PISTON; SPR CHAMBER 1-48253-001-0 02 1 0004- ●
10 SPRING; PISTON,SPR CHAMBER 1-48255-003-0 02 1 9902-9904 ●
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-003-0 02 1 9905- ●
10 SPRING; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-001-0 02 1 9905-0003 ●
10 SPRING; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-001-0 02 1 0004- ●
10 SPRING; PISTON,SPR CHAMBER 1-48255-001-0 02 1 0004- ●
11 SEAL; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-025-0 02 1 9905-0003 ●
11 SEAL; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-025-0 02 1 0004- ●
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 0004- ●
12 COVER ASM; LWR,SPR CHAMBER 1-48259-242-0 01 1 9902-9904 ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-242-0 01 1 9905- ●
12 COVER ASM; LWR,SPR CHAMBER 1-48259-243-0 01 1 9902-9904 ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-243-0 01 1 9905- ●
12 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-019-0 02 1 9905-0003 ●
12 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-019-0 02 1 0004- ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-019-0 02 1 0004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
