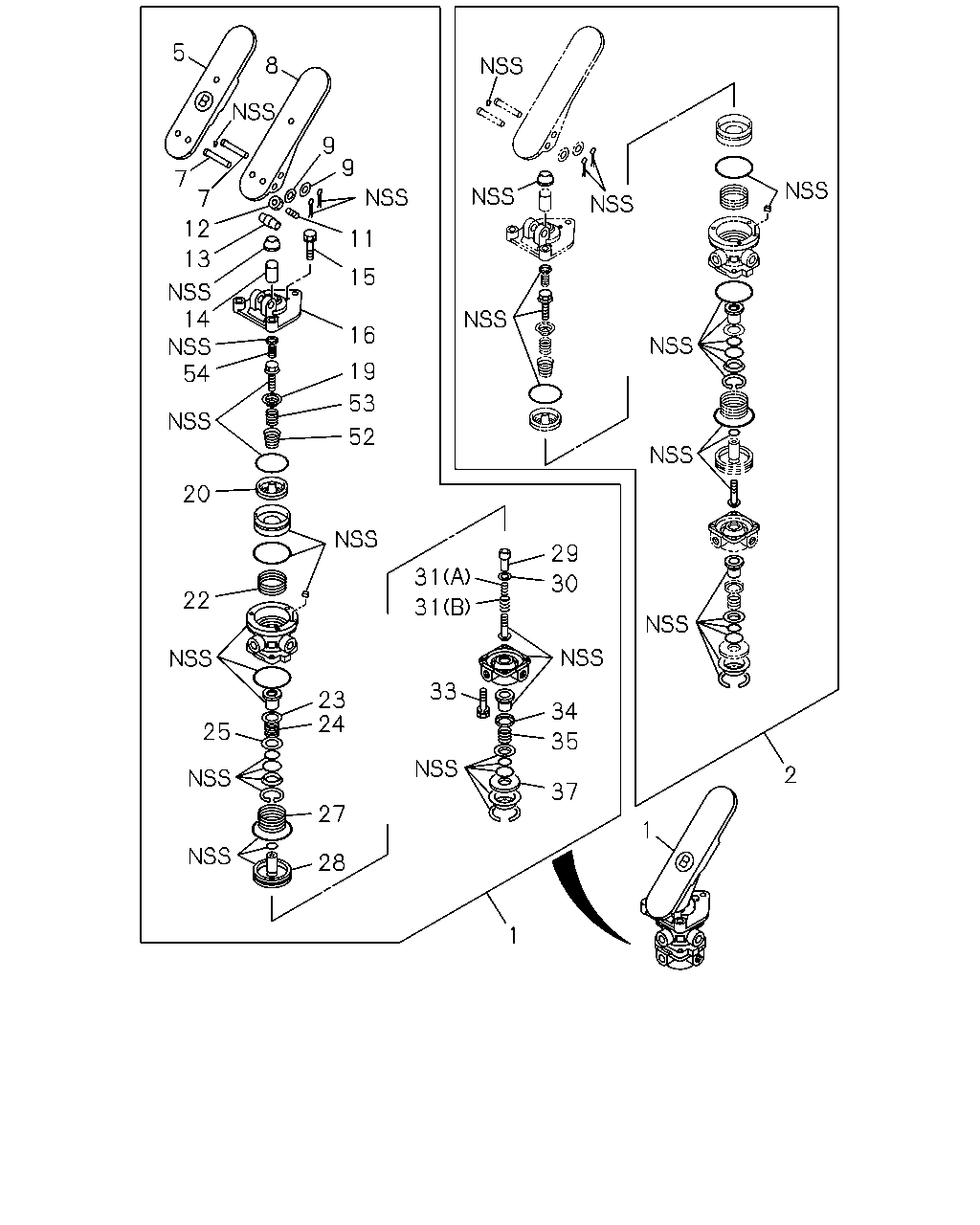

3-34 — BRAKE VALVE; AIR (#7688) — 128 parça

5 8 9 9 7 7 12 11 13 15 14 54 16 19 53 52 20 29 31 30 22 31 33 23 24 34 25 35 2 37 27 1 28 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; BRK BRAKE REGULATION ECE<TDV>	1-48100-750-4	01	1	9902-	●
1	VALVE; BRK EXC. BRAKE REGULATION ECE<TDV>	1-48100-740-3	01	1	9905-	●
1	VALVE; BRK	1-48100-773-0	01	1	0004-		●
2	REPAIR KIT; BRK VLV	1-85576-182-0	01	1	0004-		●
5	COVER; PEDAL,BRK VLV	1-48119-333-0	01	1	0004-		●
7	PIN; PEDAL,BRK VLV	1-48119-244-0	02	1	0004-		●
8	PEDAL; BRK VLV	1-48119-332-0	01	1	0004-		●
9	WASHER; PIN,BRK VLV	1-48119-106-0	02	1	0004-		●
11	SCREW; SET,BRK VLV	1-48119-245-0	01	1	0004-		●
12	NUT; SCREW,PEDAL,BRK VLV	9-88510-123-0	01	1	0004-		●
13	ROLLER; PEDAL,BRK VLV	1-48119-243-0	01	1	0004-		●
14	PLUNGER; BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-365-0	01	1	9902-9904	●
14	PLUNGER; BRK VLV	1-48119-365-0	01	1	9905-	●
14	PLUNGER; BRK VLV	1-48119-383-0	01	1	0004-		●
15	BOLT; PLATE,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-232-0	03	1	9902-9904	●
15	BOLT; PLATE,BRK VLV	1-48119-232-0	03	1	9905-	●
15	BOLT; PLATE,BRK VLV	1-48219-039-0	03	1	0004-		●
16	PLATE; MTG,BRKT VLV BRAKE REGULATION ECE<TDV>	1-48119-364-1	01	1	9902-9904	●
16	PLATE; MTG,BRKT VLV	1-48119-364-1	01	1	9905-	●
16	PLATE; MTG,BRKT VLV	1-48119-268-0	01	1	0004-		●
19	SEAT; SPRING,BRK VLV BRAKE REGULATION ECE<TDV> (B)	1-48119-370-0	01	1	9902-9904	●
19	SEAT; SPRING,BRK VLV (B)	1-48119-370-0	01	1	9905-	●
19	SEAT; SPRING,BRK VLV BRAKE REGULATION ECE<TDV> (A)	1-48119-371-0	01	1	9902-9904	●
19	SEAT; SPRING,BRK VLV (A)	1-48119-371-0	01	1	9905-	●
19	SEAT; SPRING,BRK VLV	1-48123-041-0	01	1	0004-		●
20	PISTON; UPR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-318-0	01	1	9902-9904	●
20	PISTON; UPR,BRK VLV	1-48119-318-0	01	1	9905-	●
20	PISTON; UPR,BRK VLV	1-48119-381-0	01	1	0004-		●
22	SPRING; PISTON,LWR,BRK VLV	1-48123-071-0	01	1	0004-		●
23	WASHER; UPR,BRK VLV	1-48129-145-0	01	1	0004-		●
24	SPRING; UPR,BRK VLV	1-48123-018-0	01	1	0004-		●
25	WASHER; PISTON,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-149-0	01	1	9902-9904	●
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	9905-	●
25	WASHER; PISTON,BRK VLV	1-48129-138-0	01	1	0004-		●
27	SPRING; PISTON,LWR,BRK VLV	1-48123-055-0	01	1	0004-		●
28	PISTON; LWR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-337-0	01	1	9902-	●
28	PISTON; LWR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48123-050-0	01	1	9905-	●
28	PISTON; LWR,BRK VLV	1-48129-140-0	01	1	0004-		●
29	SLEEVE; VLV,BRK VLV	1-48129-083-1	01	1	0004-		●
30	WASHER; SLEEVE,BRK VLV	1-48129-082-0	01	1	0004-		●
31	SPRING; VLV,BRK VLV (A)	1-48123-032-0	01	1	0004-		●
31	SPRING; VLV,BRK VLV (B)	1-48123-033-0	01	1	0004-		●
33	BOLT; BODY,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-068-0	04	1	9902-9904	●
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	9905-	●
33	BOLT; BODY,BRK VLV	1-48119-213-0	04	1	0004-		●
34	RETAINER; VLV,BRK VLV BRAKE REGULATION ECE<TDV>	1-48122-010-0	01	1	9902-9904	●
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	9905-	●
34	RETAINER; VLV,BRK VLV	1-48129-144-0	01	1	0004-		●
35	SPRING; VLV,BRK VLV	1-48123-019-0	01	1	0004-		●
37	WASHER; VLV LWR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-166-0	01	1	9902-9904	●
37	WASHER; VLV LWR,BRK VLV	1-48129-166-0	01	1	9905-	●
37	WASHER; VLV LWR,BRK VLV	1-48129-080-0	01	1	0004-		●
52	SPRING; PISTON,OUTER,BRK VLV	1-48123-074-0	01	1	0004-		●
53	SPRING; PISTON,INNER,BRK VLV	1-48123-068-0	01	1	0004-		●
54	SPRING; PISTON,UPR,BRK VLV	1-48123-067-0	01	1	0004-		●

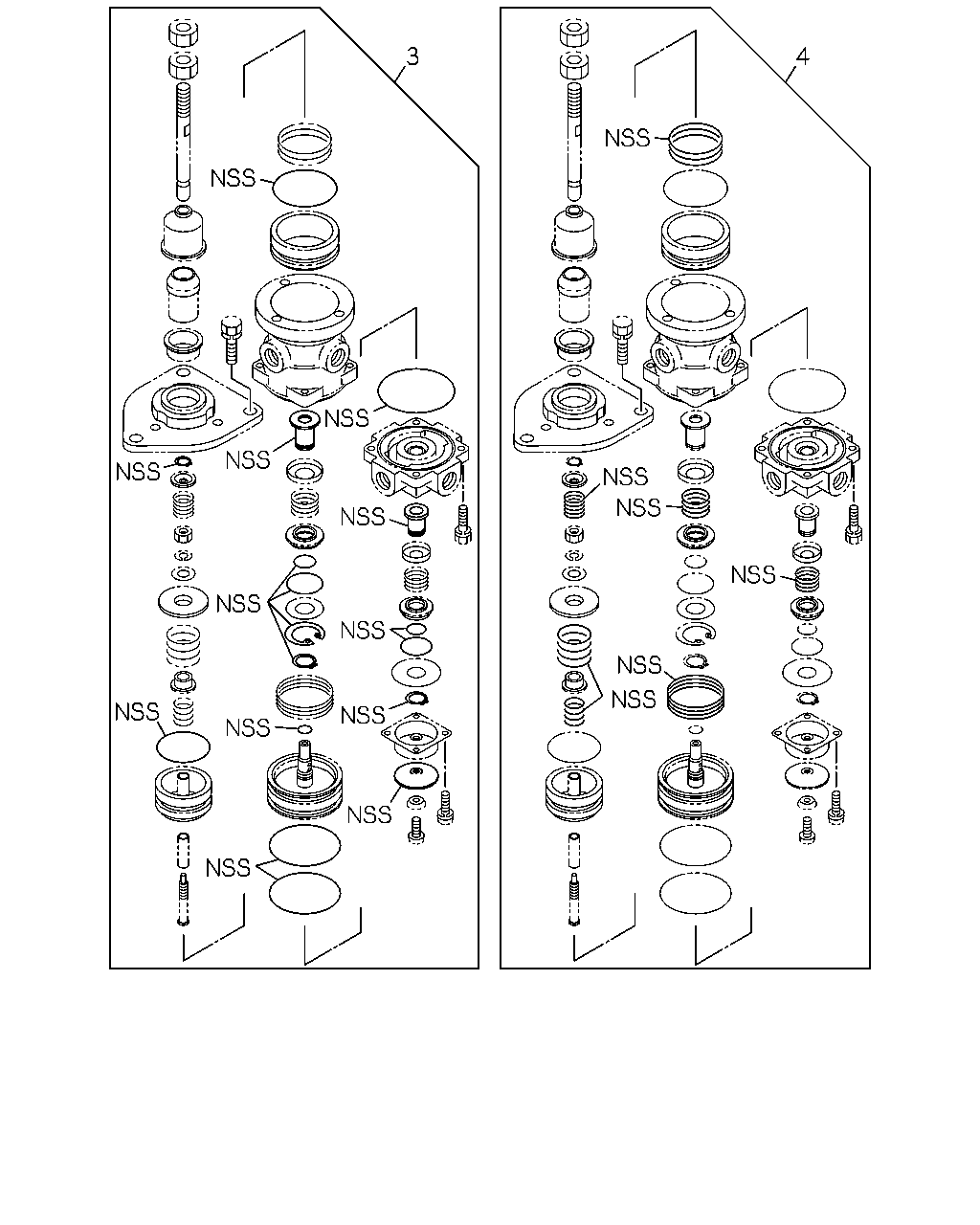

3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
3	REPAIR KIT; RUBBER,BRK VLV BRAKE REGULATION ECE<TDV>	1-85576-177-0	01	1	9902-	●
3	REPAIR KIT; RUBBER,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-85576-143-0	01	1	9905-	●
4	REPAIR KIT; SPRING,BRK VLV BRAKE REGULATION ECE<TDV>	1-85576-179-0	01	1	9902-9904	●
4	REPAIR KIT; SPRING,BRK VLV	1-85576-179-0	01	1	9905-	●

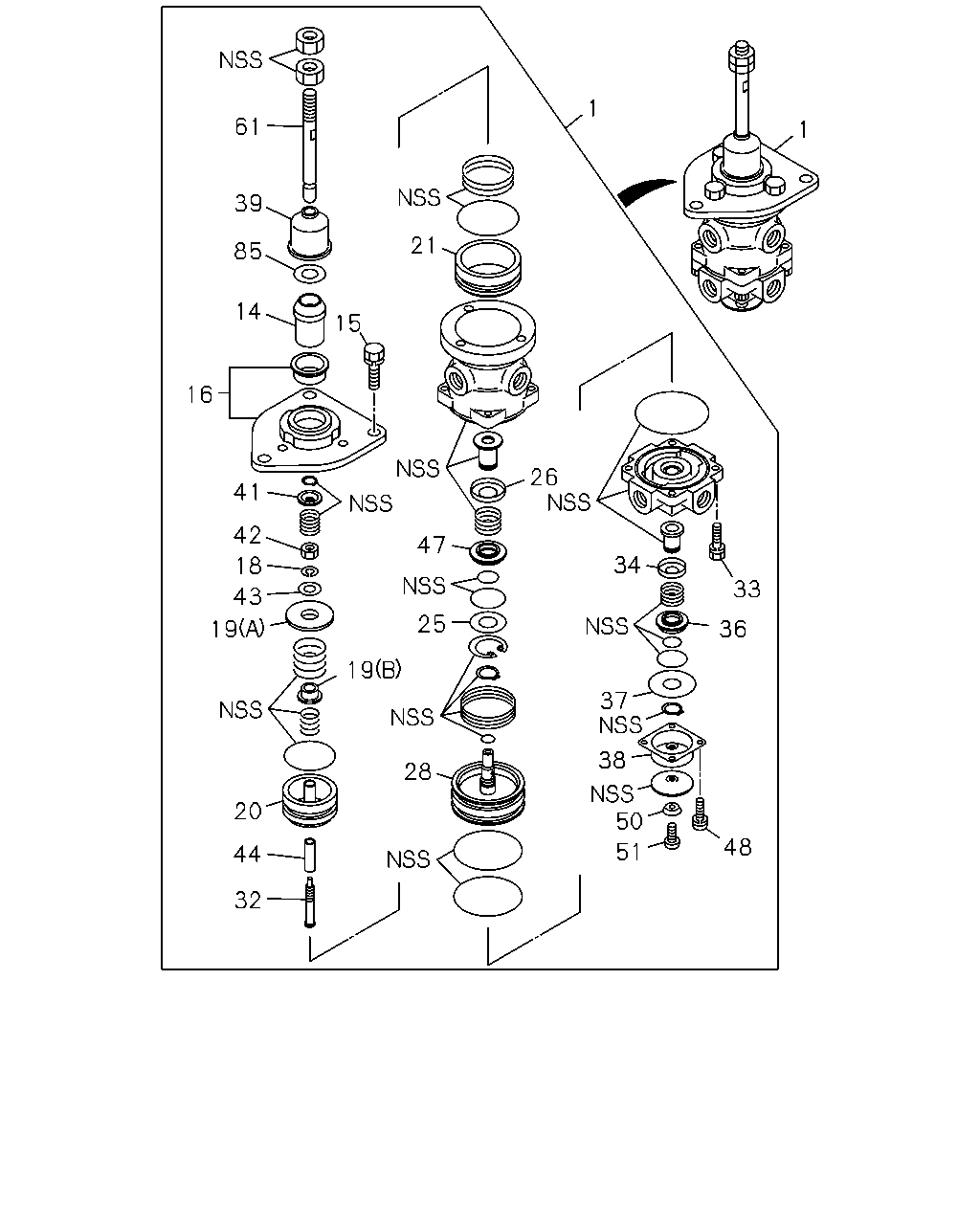

1 61 1 39 21 85 14 15 16 26 41 42 47 34 18 33 43 25 36 19 19 37 38 28 50 20 48 51 44 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; BRK BRAKE REGULATION ECE<TDV>	1-48100-750-4	01	1	9902-	●
1	VALVE; BRK EXC. BRAKE REGULATION ECE<TDV>	1-48100-740-3	01	1	9905-	●
1	VALVE; BRK	1-48100-773-0	01	1	0004-		●
14	PLUNGER; BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-365-0	01	1	9902-9904	●
14	PLUNGER; BRK VLV	1-48119-365-0	01	1	9905-	●
14	PLUNGER; BRK VLV	1-48119-383-0	01	1	0004-		●
15	BOLT; PLATE,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-232-0	03	1	9902-9904	●
15	BOLT; PLATE,BRK VLV	1-48119-232-0	03	1	9905-	●
15	BOLT; PLATE,BRK VLV	1-48219-039-0	03	1	0004-		●
16	PLATE; MTG,BRKT VLV BRAKE REGULATION ECE<TDV>	1-48119-364-1	01	1	9902-9904	●
16	PLATE; MTG,BRKT VLV	1-48119-364-1	01	1	9905-	●
16	PLATE; MTG,BRKT VLV	1-48119-268-0	01	1	0004-		●
18	WASHER; LK,SEAT,BRK VLV BRAKE REGULATION ECE<TDV>	1-48199-024-0	01	1	9902-9904	●
18	WASHER; LK,SEAT,BRK VLV	1-48199-024-0	01	1	9905-	●
19	SEAT; SPRING,BRK VLV BRAKE REGULATION ECE<TDV> (B)	1-48119-370-0	01	1	9902-9904	●
19	SEAT; SPRING,BRK VLV (B)	1-48119-370-0	01	1	9905-	●
19	SEAT; SPRING,BRK VLV BRAKE REGULATION ECE<TDV> (A)	1-48119-371-0	01	1	9902-9904	●
19	SEAT; SPRING,BRK VLV (A)	1-48119-371-0	01	1	9905-	●
19	SEAT; SPRING,BRK VLV	1-48123-041-0	01	1	0004-		●
20	PISTON; UPR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-318-0	01	1	9902-9904	●
20	PISTON; UPR,BRK VLV	1-48119-318-0	01	1	9905-	●
20	PISTON; UPR,BRK VLV	1-48119-381-0	01	1	0004-		●
21	BUSHING; UPR BODY BRAKE REGULATION ECE<TDV>	1-48119-317-0	01	1	9902-9904	●
21	BUSHING; UPR BODY	1-48119-317-0	01	1	9905-	●
25	WASHER; PISTON,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-149-0	01	1	9902-9904	●
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	9905-	●
25	WASHER; PISTON,BRK VLV	1-48129-138-0	01	1	0004-		●
26	RETAINER; VLV,BRK VLV BRAKE REGULATION ECE<TDV>	1-48122-003-0	01	1	9902-9904	●
26	RETAINER; VLV,BRK VLV	1-48122-003-0	01	1	9905-	●
28	PISTON; LWR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-337-0	01	1	9902-	●
28	PISTON; LWR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48123-050-0	01	1	9905-	●
28	PISTON; LWR,BRK VLV	1-48129-140-0	01	1	0004-		●
32	SCREW; BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-323-0	01	1	9902-9904	●
32	SCREW; BRK VLV	1-48119-323-0	01	1	9905-	●
33	BOLT; BODY,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-068-0	04	1	9902-9904	●
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	9905-	●
33	BOLT; BODY,BRK VLV	1-48119-213-0	04	1	0004-		●
34	RETAINER; VLV,BRK VLV BRAKE REGULATION ECE<TDV>	1-48122-010-0	01	1	9902-9904	●
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	9905-	●
34	RETAINER; VLV,BRK VLV	1-48129-144-0	01	1	0004-		●
36	RETAINER; GASKET,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-298-0	01	1	9902-9904	●
36	RETAINER; GASKET,BRK VLV	1-48129-298-0	01	1	9905-	●
37	WASHER; VLV LWR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-166-0	01	1	9902-9904	●
37	WASHER; VLV LWR,BRK VLV	1-48129-166-0	01	1	9905-	●
37	WASHER; VLV LWR,BRK VLV	1-48129-080-0	01	1	0004-		●
38	COVER; EXH,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-217-0	01	1	9902-9904	●
38	COVER; EXH,BRK VLV	1-48119-217-0	01	1	9905-	●
39	BOOT; PLUNGER,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-438-0	01	1	9902-9904	●
39	BOOT; PLUNGER,BRK VLV	1-48119-438-0	01	1	9905-	●
41	PLATE; STEM,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-167-0	01	1	9902-9904	●
41	PLATE; STEM,BRK VLV	1-48129-167-0	01	1	9905-	●
42	NUT; SPR SEAT,BRK VLV BRAKE REGULATION ECE<TDV>	1-48199-025-0	01	1	9902-9904	●
42	NUT; SPR SEAT,BRK VLV	1-48199-025-0	01	1	9905-	●
43	WASHER; SPR SEAT,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-170-0	01	1	9902-9904	●
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	9905-	●
44	SLEEVE; PISTON,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-322-0	01	1	9902-9904	●
44	SLEEVE; PISTON,BRK VLV	1-48119-322-0	01	1	9905-	●
47	RETAINER; GASKET,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-297-0	01	1	9902-9904	●
47	RETAINER; GASKET,BRK VLV	1-48129-297-0	01	1	9905-	●
48	BOLT; COVER,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-216-0	04	1	9902-9904	●
48	BOLT; COVER,BRK VLV	1-48119-216-0	04	1	9905-	●
50	WASHER; RET,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-112-0	01	1	9902-9904	●
50	WASHER; RET,BRK VLV	1-48129-112-0	01	1	9905-	●
51	SCREW; FORMING,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-111-0	01	1	9902-9904	●
51	SCREW; FORMING,BRK VLV	1-48129-111-0	01	1	9905-	●
61	ROD; PUSH,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-363-0	01	1	9902-9904	●
61	ROD; PUSH,BRK VLV	1-48119-363-0	01	1	9905-	●
85	WASHER; PUSH ROD BRAKE REGULATION ECE<TDV>	1-48119-366-0	01	1	9902-9904	●
85	WASHER; PUSH ROD	1-48119-366-0	01	1	9905-	●
