Isuzu WW
▶
TRUCKS
▶
NPS
▶
51190 - NPS(LHD)EURO1
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#76876) — 14 parça
◀

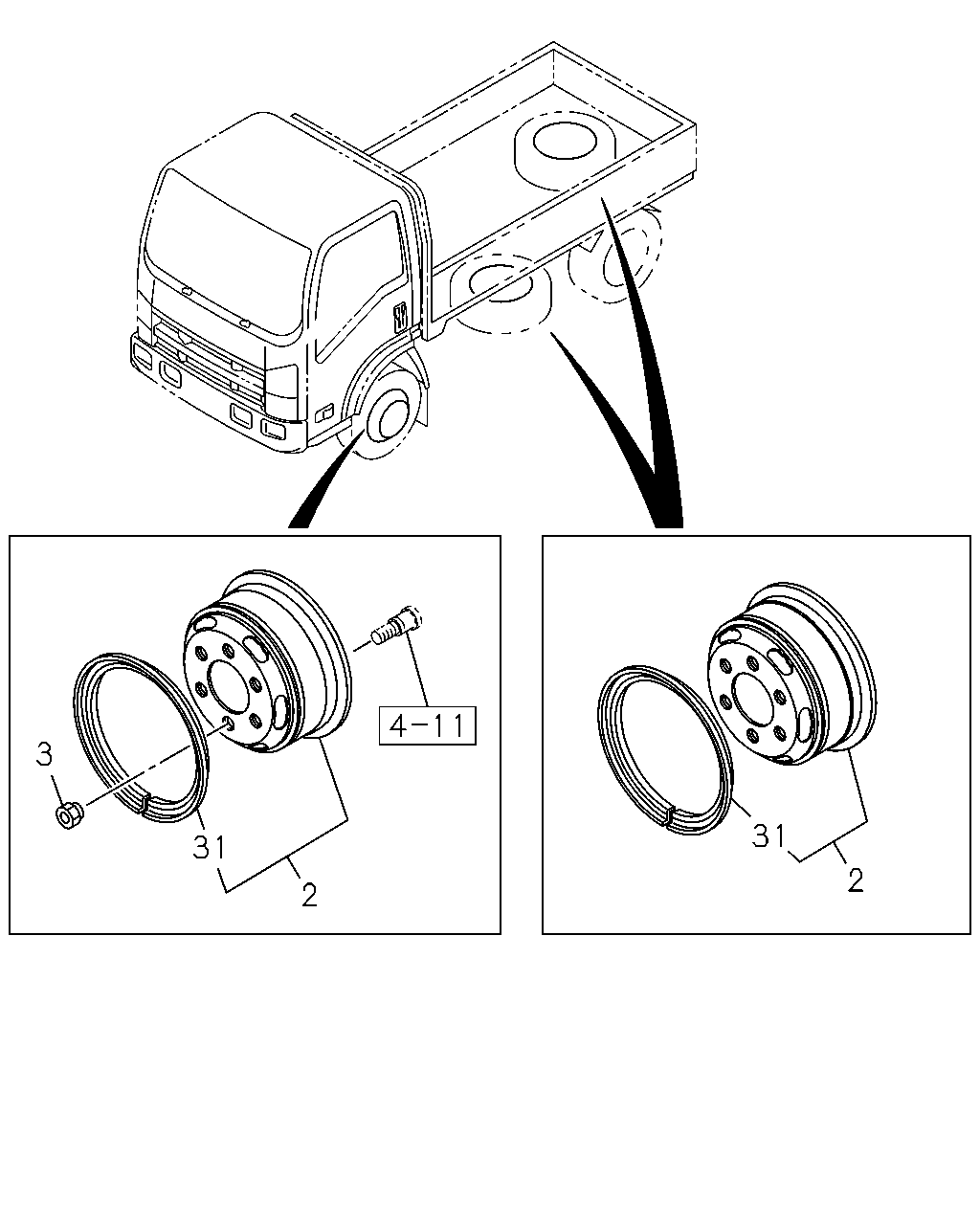

[480A] FRONT AND SPARE (6 parça)

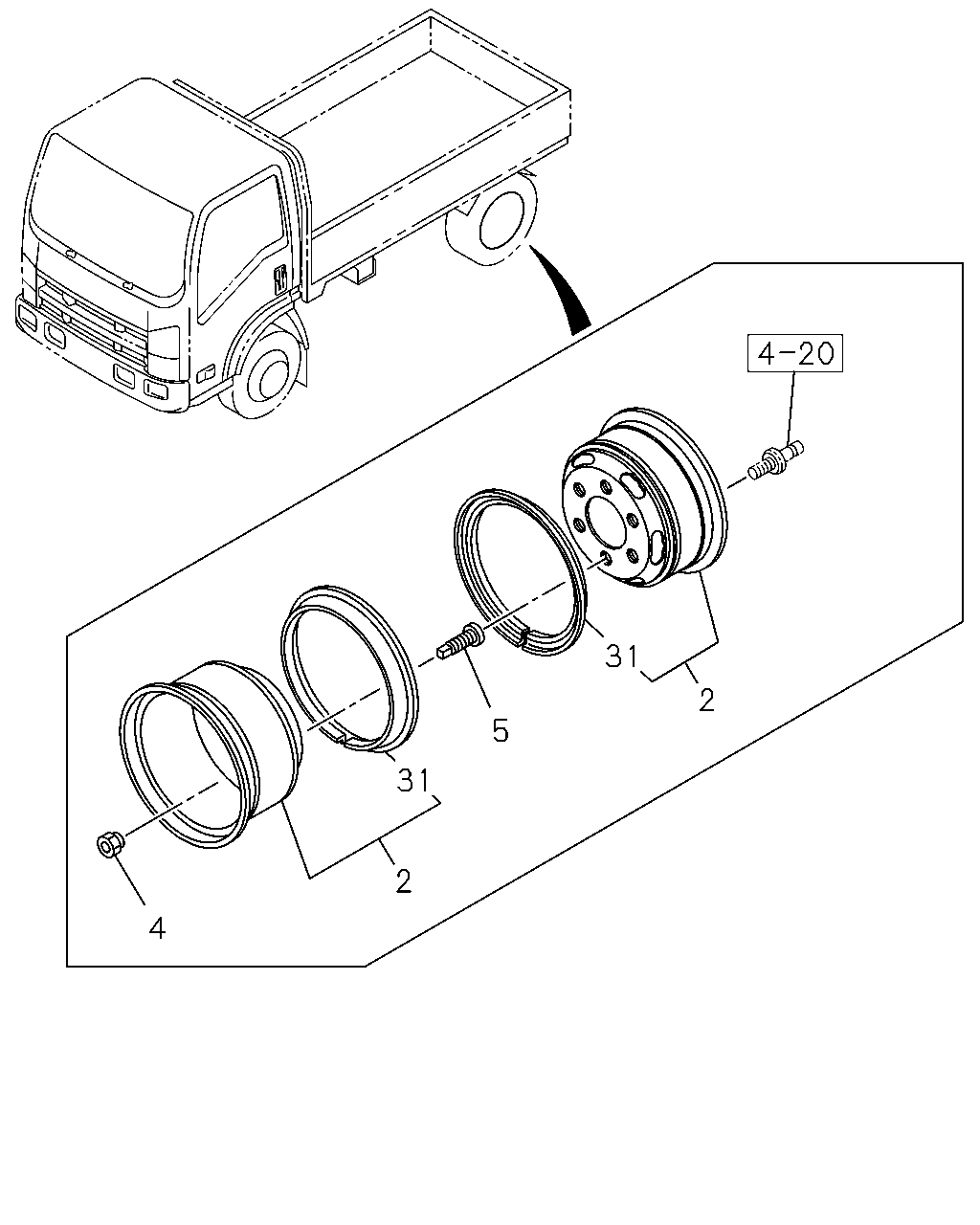

[480A] REAR (8 parça)
▶
3
31
31
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
0810-
2
05.803 WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
0810-
3
05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD
8-97359-807-0
06
1
0810-
3
05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD
8-97359-808-0
06
1
0810-
31
05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
0810-
31
05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
0810-
31
2
5
31
2
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
0810-
2
05.803 WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
0810-
4
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
0810-
4
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
0810-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
0810-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
0810-
31
05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
0810-
31
05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
0810-
