3-26 — TRAILER CONTROL (#7687) — 350 parça

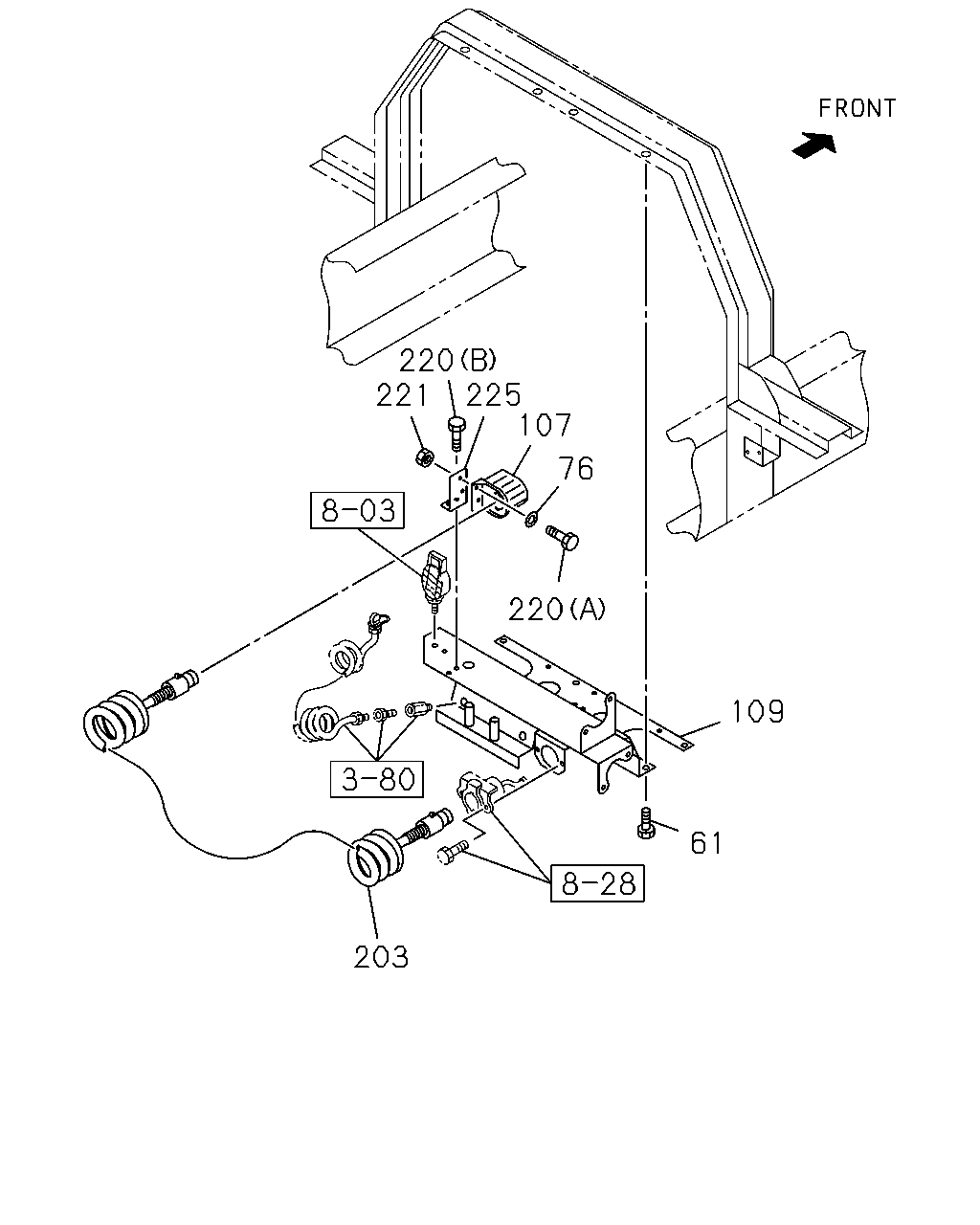

220 221 225 107 76 220 109 61 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	BOLT; STEP BOARD M10X25 FLANGE	0-28681-025-0	08	1	9902-0003	●
61	BOLT; STEP BOARD M10X25 FLANGE	0-28681-025-0	08	1	0004-	●	●
76	WASHER; PL,HANGER ID=17 OD=32	9-09160-616-0	02	1	9902-9903	●
107	HANGER; JUMPER HOSE	1-57550-022-0	01	1	9902-0003	●
107	HANGER; JUMPER HOSE	1-57550-022-0	01	1	0004-	●	●
109	BRACKET; HOSE HANGER	1-53497-619-2	01	1	9902-9904	●
109	BRACKET; HOSE HANGER	1-53497-642-0	01	1	9905-0002	●
109	BRACKET; HOSE HANGER ANTILOCK BRAKE SYSTEM(BFA)	1-53497-656-0	01	1	0003-	●
109	BRACKET; HOSE HANGER EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-53497-657-0	01	1	0003-0003	●
109	BRACKET; HOSE HANGER EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-53497-657-0	01	1	0004-	●
109	BRACKET; HOSE HANGER	1-53497-657-0	01	1	0004-		●
203	CABLE; JUMPER L=4000	1-82659-186-0	01	1	9902-0003	●
203	CABLE; JUMPER L=4000	1-82659-186-1	01	1	0004-	●	●
220	BOLT; HANGER (A) M6X16 FLANGE	0-28680-616-0	02	1	9902-0003	●
220	BOLT; HANGER (A) M6X16 FLANGE	0-28680-616-0	02	1	0004-	●	●
220	BOLT; HANGER (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-0003	●
220	BOLT; HANGER (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
221	NUT; HANGER M6 FLANGE	0-91150-106-0	02	1	9902-0003	●
221	NUT; HANGER M6 FLANGE	0-91150-106-0	02	1	0004-	●	●
225	BRACKET; HANGER	1-82698-002-0	01	1	9902-0003	●
225	BRACKET; HANGER	1-82698-002-0	01	1	0004-	●	●

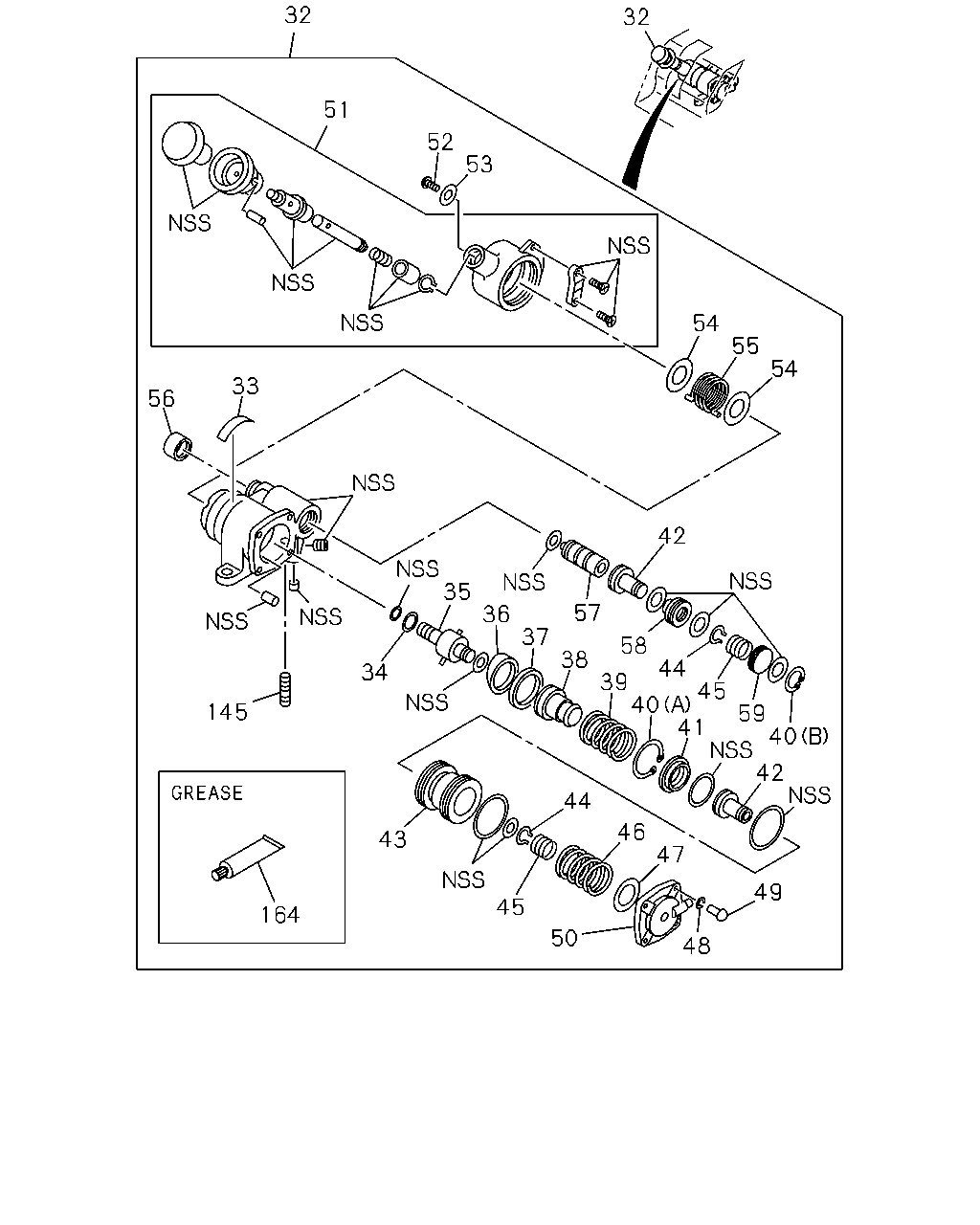

32 32 51 52 53 54 55 54 33 56 42 35 57 36 37 58 38 44 34 39 45 40 41 42 145 59 40 44 46 43 47 49 45 164 50 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT BRAKE REGULATION ECE<TDV>	1-48460-316-0	01	1	9902-	●
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ>	1-48460-315-0	01	1	9905-0003	●
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ>	1-48460-315-0	01	1	0004-	●	●
33	PLATE; CAUTION BRAKE REGULATION ECE<TDV>	1-48469-121-0	01	1	9902-	●
33	PLATE; CAUTION BRAKE REGULATION HONG KONG<TCZ>	1-48469-081-0	01	1	9905-0003	●
33	PLATE; CAUTION BRAKE REGULATION HONG KONG<TCZ>	1-48469-081-0	01	1	0004-	●	●
34	SHIM; CAM HOLDER BRAKE REGULATION ECE<TDV>	1-48469-055-0	AR	1	9902-9904	●
34	SHIM; CAM HOLDER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-055-0	AR	1	9905-0003	●
34	SHIM; CAM HOLDER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-055-0	AR	1	0004-	●
34	SHIM; CAM HOLDER BRAKE REGULATION HONG KONG<TCZ>	1-48469-055-0	AR	1	0004-		●
35	HOLDER; CAM BRAKE REGULATION ECE<TDV>	1-48469-054-0	01	1	9902-9904	●
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-054-0	01	1	9905-0003	●
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-054-0	01	1	0004-	●
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-054-0	01	1	0004-		●
36	RING; CAM BRAKE REGULATION ECE<TDV>	1-48469-056-0	01	1	9902-9904	●
36	RING; CAM BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-056-0	01	1	9905-0003	●
36	RING; CAM BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-056-0	01	1	0004-	●
36	RING; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-056-0	01	1	0004-		●
37	GUIDE; CAM RING BRAKE REGULATION ECE<TDV>	1-48469-058-0	01	1	9902-9904	●
37	GUIDE; CAM RING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-058-0	01	1	9905-0003	●
37	GUIDE; CAM RING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-058-0	01	1	0004-	●
37	GUIDE; CAM RING BRAKE REGULATION HONG KONG<TCZ>	1-48469-058-0	01	1	0004-		●
38	SEAT; EXH VLV BRAKE REGULATION ECE<TDV>	1-48469-057-0	01	1	9902-9904	●
38	SEAT; EXH VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-057-0	01	1	9905-0003	●
38	SEAT; EXH VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-057-0	01	1	0004-	●
38	SEAT; EXH VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-057-0	01	1	0004-		●
39	SPRING; RETURN,CAM RING BRAKE REGULATION ECE<TDV>	1-48469-063-0	01	1	9902-9904	●
39	SPRING; RETURN,CAM RING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-063-0	01	1	9905-0003	●
39	SPRING; RETURN,CAM RING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-063-0	01	1	0004-	●
39	SPRING; RETURN,CAM RING BRAKE REGULATION HONG KONG<TCZ>	1-48469-063-0	01	1	0004-		●
40	RING; SNAP BRAKE REGULATION ECE<TDV> (A)	1-48469-067-0	01	1	9902-9904	●
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48469-067-0	01	1	9905-0003	●
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48469-067-0	01	1	0004-	●
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-067-0	01	1	0004-		●
40	RING; SNAP BRAKE REGULATION ECE<TDV> (B)	1-48469-079-0	01	1	9902-9904	●
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48469-079-0	01	1	9905-0003	●
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48469-079-0	01	1	0004-	●
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-079-0	01	1	0004-		●
41	SEAT; FEED VLV BRAKE REGULATION ECE<TDV>	1-48469-066-0	01	1	9902-9904	●
41	SEAT; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-066-0	01	1	9905-0003	●
41	SEAT; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-066-0	01	1	0004-	●
41	SEAT; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-066-0	01	1	0004-		●
42	VALVE; FEED BRAKE REGULATION ECE<TDV>	1-48469-065-0	02	1	9902-9904	●
42	VALVE; FEED BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-065-0	02	1	9905-0003	●
42	VALVE; FEED BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-065-0	02	1	0004-	●
42	VALVE; FEED BRAKE REGULATION HONG KONG<TCZ>	1-48469-065-0	02	1	0004-		●
43	PISTON; HAND BRK VLV BRAKE REGULATION ECE<TDV>	1-48469-064-0	01	1	9902-9904	●
43	PISTON; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-064-0	01	1	9905-0003	●
43	PISTON; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-064-0	01	1	0004-	●
43	PISTON; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-064-0	01	1	0004-		●
44	RING; SNAP,FEED VLV BRAKE REGULATION ECE<TDV>	1-48469-068-0	02	1	9902-9904	●
44	RING; SNAP,FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-068-0	02	1	9905-0003	●
44	RING; SNAP,FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-068-0	02	1	0004-	●
44	RING; SNAP,FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-068-0	02	1	0004-		●
45	SPRING; FEED VLV BRAKE REGULATION ECE<TDV>	1-48469-070-0	02	1	9902-9904	●
45	SPRING; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-070-0	02	1	9905-0003	●
45	SPRING; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-070-0	02	1	0004-	●
45	SPRING; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-070-0	02	1	0004-		●
46	SPRING; MAIN,PISTON BRAKE REGULATION ECE<TDV>	1-48469-119-0	01	1	9902-	●
46	SPRING; MAIN,PISTON BRAKE REGULATION HONG KONG<TCZ>	1-48469-071-0	01	1	9905-0003	●
46	SPRING; MAIN,PISTON BRAKE REGULATION HONG KONG<TCZ>	1-48469-071-0	01	1	0004-	●	●
47	SHIM; MAIN SPRING BRAKE REGULATION ECE<TDV>	1-48469-072-0	AR	1	9902-9904	●
47	SHIM; MAIN SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-072-0	AR	1	9905-0003	●
47	SHIM; MAIN SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-072-0	AR	1	0004-	●
47	SHIM; MAIN SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-072-0	AR	1	0004-		●
48	WASHER; COVER BRAKE REGULATION HONG KONG<TCZ>	1-48469-074-0	04	1	9905-0003	●
48	WASHER; COVER BRAKE REGULATION HONG KONG<TCZ>	1-48469-074-0	04	1	0004-	●	●
49	SCREW; COVER BRAKE REGULATION ECE<TDV>	1-48469-120-0	04	1	9902-	●
49	SCREW; COVER BRAKE REGULATION HONG KONG<TCZ>	1-48469-075-0	04	1	9905-0003	●
49	SCREW; COVER BRAKE REGULATION HONG KONG<TCZ>	1-48469-075-0	04	1	0004-	●	●
50	COVER; HAND BRK VLV BRAKE REGULATION ECE<TDV>	1-48469-073-0	01	1	9902-9904	●
50	COVER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-073-0	01	1	9905-0003	●
50	COVER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-073-0	01	1	0004-	●
50	COVER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-073-0	01	1	0004-		●
51	HANDLE ASM; HAND BRK VLV BRAKE REGULATION ECE<TDV>	1-48469-060-0	01	1	9902-9904	●
51	HANDLE ASM; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-060-0	01	1	9905-0003	●
51	HANDLE ASM; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-060-0	01	1	0004-	●
51	HANDLE ASM; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-060-0	01	1	0004-		●
52	SCREW; HANDLE BRAKE REGULATION ECE<TDV>	1-48469-062-0	01	1	9902-9904	●
52	SCREW; HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-062-0	01	1	9905-0003	●
52	SCREW; HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-062-0	01	1	0004-	●
52	SCREW; HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-062-0	01	1	0004-		●
53	WASHER; HANDLE BRAKE REGULATION ECE<TDV>	1-48469-061-0	01	1	9902-9904	●
53	WASHER; HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-061-0	01	1	9905-0003	●
53	WASHER; HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-061-0	01	1	0004-	●
53	WASHER; HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-061-0	01	1	0004-		●
54	SEAT; SPRING BRAKE REGULATION ECE<TDV>	1-48469-082-0	02	1	9902-9904	●
54	SEAT; SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-082-0	02	1	9905-0003	●
54	SEAT; SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-082-0	02	1	0004-	●
54	SEAT; SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-082-0	02	1	0004-		●
55	SPRING; RETURN,HANDLE BRAKE REGULATION ECE<TDV>	1-48469-059-0	01	1	9902-9904	●
55	SPRING; RETURN,HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-059-0	01	1	9905-0003	●
55	SPRING; RETURN,HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-059-0	01	1	0004-	●
55	SPRING; RETURN,HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-059-0	01	1	0004-		●
56	BOOT; PLUNGER BRAKE REGULATION ECE<TDV>	1-48469-080-0	01	1	9902-9904	●
56	BOOT; PLUNGER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-080-0	01	1	9905-0003	●
56	BOOT; PLUNGER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-080-0	01	1	0004-	●
56	BOOT; PLUNGER BRAKE REGULATION HONG KONG<TCZ>	1-48469-080-0	01	1	0004-		●
57	PLUNGER; HAND BRK VLV BRAKE REGULATION ECE<TDV>	1-48469-076-0	01	1	9902-9904	●
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-076-0	01	1	9905-0003	●
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-076-0	01	1	0004-	●
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-076-0	01	1	0004-		●
58	HOLDER; FEED VLV BRAKE REGULATION ECE<TDV>	1-48469-077-0	01	1	9902-9904	●
58	HOLDER; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-077-0	01	1	9905-0003	●
58	HOLDER; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-077-0	01	1	0004-	●
58	HOLDER; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-077-0	01	1	0004-		●
59	HOLDER; SPRING BRAKE REGULATION ECE<TDV>	1-48469-078-0	01	1	9902-9904	●
59	HOLDER; SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-078-0	01	1	9905-0003	●
59	HOLDER; SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-078-0	01	1	0004-	●
59	HOLDER; SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-078-0	01	1	0004-		●
145	STUD; HAND BRK VLV BRAKE REGULATION ECE<TDV>	1-48469-069-0	01	1	9902-9904	●
145	STUD; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-069-0	01	1	9905-0003	●
145	STUD; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-069-0	01	1	0004-	●
145	STUD; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-069-0	01	1	0004-		●
164	GREASE; HAND BRK VLV BRAKE REGULATION ECE<TDV>	1-48469-084-0	01	1	9902-9904	●
164	GREASE; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-084-0	01	1	9905-0003	●
164	GREASE; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-084-0	01	1	0004-	●
164	GREASE; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-084-0	01	1	0004-		●

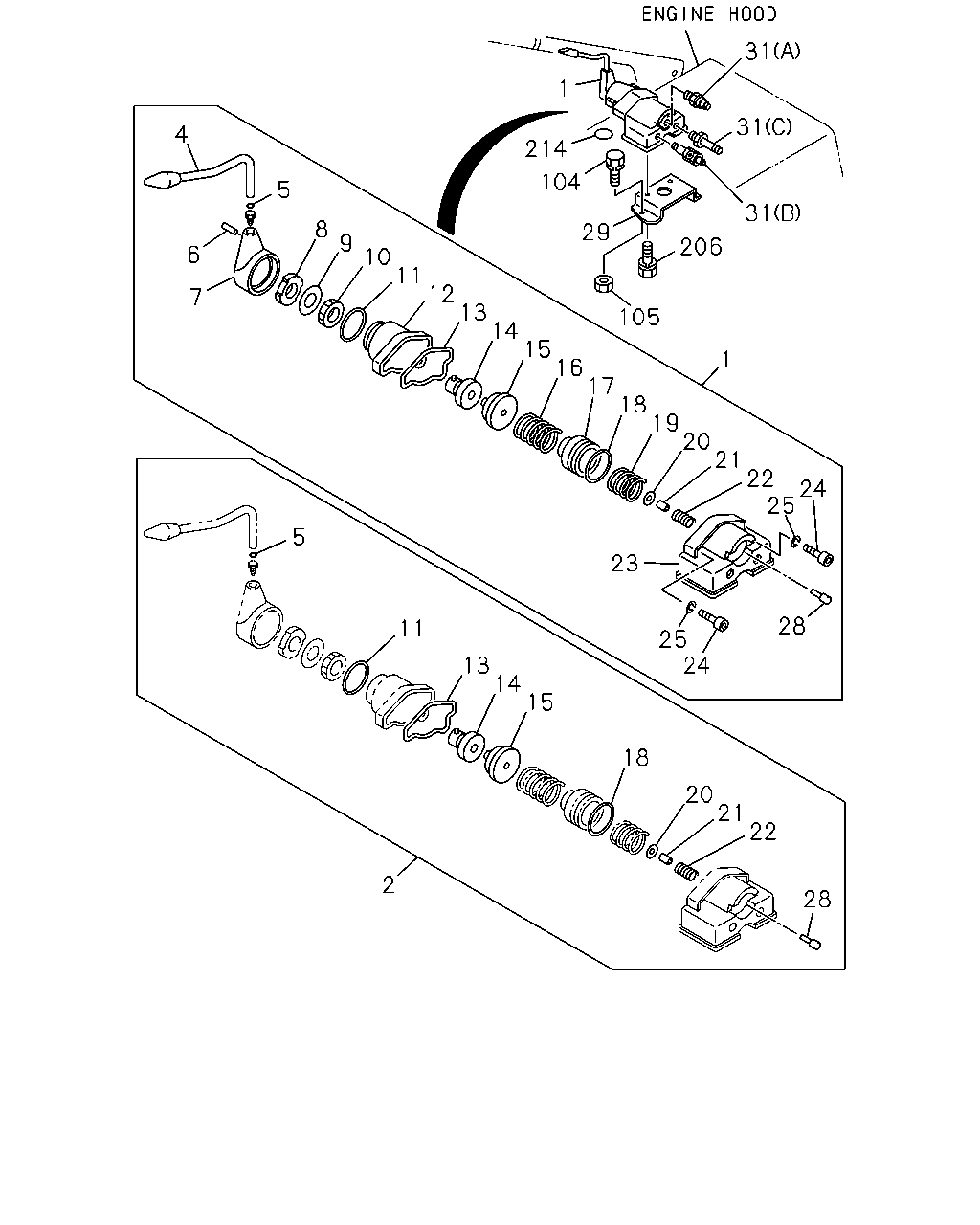

31 1 31 4 214 104 5 31 8 29 9 206 6 10 11 12 13 14 15 16 17 18 19 20 21 22 24 25 7 105 1 5 23 28 11 25 24 13 14 15 18 20 21 22 2 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK TRAILER BRAKE CONTROL<J91>	1-48100-761-1	01	1	9905-	●
1	VALVE ASM; HAND BRK	1-48100-747-1	01	1	0004-		●
2	REPAIR KIT; HAND BRK VLV TRAILER BRAKE CONTROL<J91>	1-85576-180-0	01	1	9905-	●
2	REPAIR KIT; HAND BRK VLV	1-85576-181-0	01	1	0004-		●
4	HANDLE ASM; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48119-360-0	01	1	9905-0003	●
4	HANDLE ASM; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48119-360-0	01	1	0004-	●
4	HANDLE ASM; BRK VLV	1-48119-360-0	01	1	0004-		●
5	GASKET; HANDLE TRAILER BRAKE CONTROL<J91>	1-48119-128-0	01	1	9905-0003	●
5	GASKET; HANDLE TRAILER BRAKE CONTROL<J91>	1-48119-128-0	01	1	0004-	●
5	GASKET; HANDLE	1-48119-128-0	01	1	0004-		●
6	PIN; SPR TRAILER BRAKE CONTROL<J91>	1-48119-143-0	01	1	9905-0003	●
6	PIN; SPR TRAILER BRAKE CONTROL<J91>	1-48119-143-0	01	1	0004-	●
6	PIN; SPR	1-48119-143-0	01	1	0004-		●
7	HEAD; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48119-131-0	01	1	9905-0003	●
7	HEAD; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48119-131-0	01	1	0004-	●
7	HEAD; BRK VLV	1-48119-131-0	01	1	0004-		●
8	STOPPER; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48119-136-0	01	1	9905-	●
8	STOPPER; BRK VLV	1-48119-239-0	01	1	0004-		●
9	WASHER; LK,ADJ TRAILER BRAKE CONTROL<J91>	1-48119-123-0	01	1	9905-0003	●
9	WASHER; LK,ADJ TRAILER BRAKE CONTROL<J91>	1-48119-123-0	01	1	0004-	●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0004-		●
10	RING; ADJ TRAILER BRAKE CONTROL<J91>	1-48119-122-0	01	1	9905-0003	●
10	RING; ADJ TRAILER BRAKE CONTROL<J91>	1-48119-122-0	01	1	0004-	●
10	RING; ADJ	1-48119-122-0	01	1	0004-		●
11	GASKET; HD TO COVER TRAILER BRAKE CONTROL<J91>	1-48119-130-0	01	1	9905-0003	●
11	GASKET; HD TO COVER TRAILER BRAKE CONTROL<J91>	1-48119-130-0	01	1	0004-	●
11	GASKET; HD TO COVER	1-48119-130-0	01	1	0004-		●
12	COVER; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48129-097-0	01	1	9905-0003	●
12	COVER; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48129-097-0	01	1	0004-	●
12	COVER; BRK VLV	1-48129-097-0	01	1	0004-		●
13	GASKET; BODY TO COVER TRAILER BRAKE CONTROL<J91>	1-48119-120-0	01	1	9905-0003	●
13	GASKET; BODY TO COVER TRAILER BRAKE CONTROL<J91>	1-48119-120-0	01	1	0004-	●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0004-		●
14	FOLLOWER; CAM TRAILER BRAKE CONTROL<J91>	1-48129-109-0	01	1	9905-	●
14	FOLLOWER; CAM	1-48129-135-0	01	1	0004-		●
15	CAM; FOLLOWER TRAILER BRAKE CONTROL<J91>	1-48129-110-0	01	1	9905-	●
15	CAM; FOLLOWER	1-48129-134-0	01	1	0004-		●
16	SPRING; GRUDUATING TRAILER BRAKE CONTROL<J91>	1-48129-101-0	01	1	9905-0003	●
16	SPRING; GRUDUATING TRAILER BRAKE CONTROL<J91>	1-48129-101-0	01	1	0004-	●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0004-		●
17	PISTON; SPR TRAILER BRAKE CONTROL<J91>	1-48129-095-0	01	1	9905-0003	●
17	PISTON; SPR TRAILER BRAKE CONTROL<J91>	1-48129-095-0	01	1	0004-	●
17	PISTON; SPR	1-48129-095-0	01	1	0004-		●
18	GASKET; BODY TRAILER BRAKE CONTROL<J91>	1-48129-096-0	01	1	9905-0003	●
18	GASKET; BODY TRAILER BRAKE CONTROL<J91>	1-48129-096-0	01	1	0004-	●
18	GASKET; BODY	1-48129-096-0	01	1	0004-		●
19	SPRING; PISTON TRAILER BRAKE CONTROL<J91>	1-48129-094-0	01	1	9905-0003	●
19	SPRING; PISTON TRAILER BRAKE CONTROL<J91>	1-48129-094-0	01	1	0004-	●
19	SPRING; PISTON	1-48129-094-0	01	1	0004-		●
20	GUIDE; VLV TRAILER BRAKE CONTROL<J91>	1-48129-090-0	01	1	9905-0003	●
20	GUIDE; VLV TRAILER BRAKE CONTROL<J91>	1-48129-090-0	01	1	0004-	●
20	GUIDE; VLV	1-48129-090-0	01	1	0004-		●
21	VALVE; IN & EXH TRAILER BRAKE CONTROL<J91>	1-48121-017-0	01	1	9905-0003	●
21	VALVE; IN & EXH TRAILER BRAKE CONTROL<J91>	1-48121-017-0	01	1	0004-	●
21	VALVE; IN & EXH	1-48121-017-0	01	1	0004-		●
22	SPRING; VLV TRAILER BRAKE CONTROL<J91>	1-48123-024-0	01	1	9905-0003	●
22	SPRING; VLV TRAILER BRAKE CONTROL<J91>	1-48123-024-0	01	1	0004-	●
22	SPRING; VLV	1-48123-024-0	01	1	0004-		●
23	BODY; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48111-061-0	01	1	9905-	●
23	BODY; BRK VLV	1-48111-060-0	01	1	0004-		●
24	BOLT; EXH VLV TRAILER BRAKE CONTROL<J91>	1-48129-092-0	02	1	9905-0003	●
24	BOLT; EXH VLV TRAILER BRAKE CONTROL<J91>	1-48129-092-0	02	1	0004-	●
24	BOLT; EXH VLV	1-48129-092-0	02	1	0004-		●
25	WASHER; LK,EXH VLV TRAILER BRAKE CONTROL<J91>	1-48129-093-0	02	1	9905-0003	●
25	WASHER; LK,EXH VLV TRAILER BRAKE CONTROL<J91>	1-48129-093-0	02	1	0004-	●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0004-		●
28	STEM ASM; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48129-089-0	01	1	9905-0003	●
28	STEM ASM; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48129-089-0	01	1	0004-	●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0004-		●
29	BRACKET; HAND BRK TRAILER BRAKE CONTROL<J91>	1-79996-131-1	01	1	9905-	●
29	BRACKET; HAND BRK	1-79997-357-0	01	1	0004-		●
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (B) M14	1-09656-391-2	01	1	9905-0003	●
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (B) M14	1-09656-391-2	01	1	0004-	●
31	CONNECTOR; HAND BRK VLV (B) M14	1-09656-391-2	01	1	0004-		●
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (C) L=45	8-94338-874-0	01	1	9905-0003	●
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (C) L=45	8-94338-874-0	01	1	0004-	●
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0004-		●
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9905-0003	●
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0004-	●
31	CONNECTOR; HAND BRK VLV (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0004-		●
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9902-0003	●
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0004-	●	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9902-	●
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9905-0003	●
105	NUT; BRKT TRAILER BRAKE CONTROL<J91> M8 FLANGE	0-91150-108-0	02	1	9905-0003	●
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	0004-	●
105	NUT; BRKT TRAILER BRAKE CONTROL<J91> M8 FLANGE	0-91150-108-0	02	1	0004-	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-		●
206	BOLT; HAND BRK VALVE TRAILER BRAKE CONTROL<J91> M10X20 W/LK WASHER	0-50041-020-0	02	1	9905-0003	●
206	BOLT; HAND BRK VALVE TRAILER BRAKE CONTROL<J91> M10X20 W/LK WASHER	0-50041-020-0	02	1	0004-	●
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	0004-		●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	0004-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

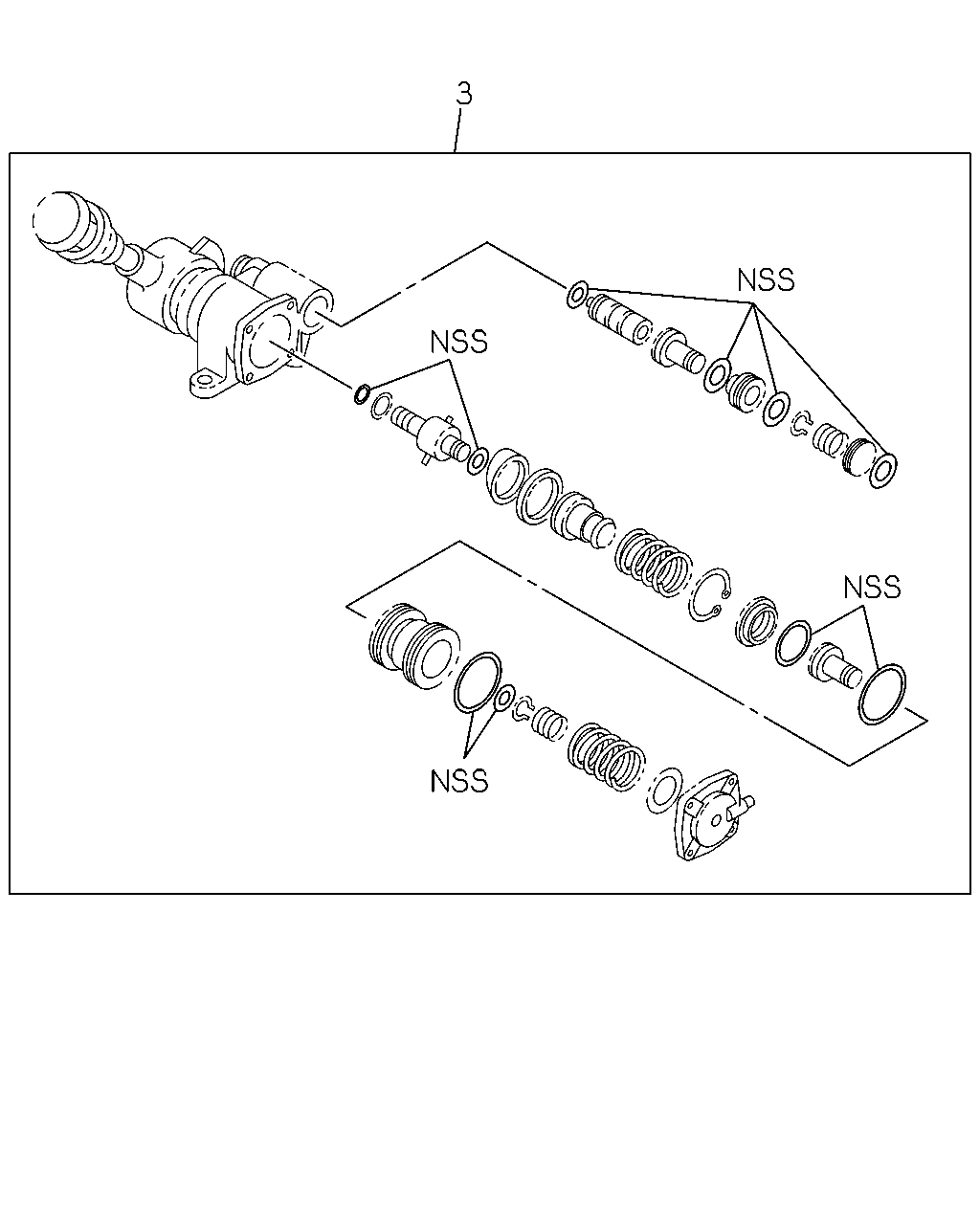

3	REPAIR KIT; HAND BRK VLV BRAKE REGULATION ECE<TDV>	1-48469-083-0	01	1	9902-9904	●
3	REPAIR KIT; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-083-0	01	1	9905-0003	●
3	REPAIR KIT; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-083-0	01	1	0004-	●
3	REPAIR KIT; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-083-0	01	1	0004-		●

139 140 162 32 105 138 138 32 112 112 138 151 129 151 137 137 138 129 137 137 112 138 137 138 138 162 112 151 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT BRAKE REGULATION ECE<TDV>	1-48460-316-0	01	1	9902-	●
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ>	1-48460-315-0	01	1	9905-0003	●
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ>	1-48460-315-0	01	1	0004-	●	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9902-	●
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9905-0003	●
105	NUT; BRKT TRAILER BRAKE CONTROL<J91> M8 FLANGE	0-91150-108-0	02	1	9905-0003	●
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	0004-	●
105	NUT; BRKT TRAILER BRAKE CONTROL<J91> M8 FLANGE	0-91150-108-0	02	1	0004-	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-		●
112	BRACKET; CONT VLV ISRINGHAUSEN SEAT(SJA) (C)	1-79996-439-0	01	1	9902-9903	●
112	BRACKET; CONT VLV EXC. ISRINGHAUSEN SEAT(SJA) (B)	1-79996-113-1	01	1	9902-9903	●
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	9904-	●
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79996-112-1	01	1	9902-	●
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D)	1-47475-260-2	01	1	9905-	●
112	BRACKET; CONT VLV	1-79996-336-1	01	1	0004-		●
129	NUT; VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	01	1	0004-	●
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	0004-		●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-09650-352-1	01	1	9902-	●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (B) PT1/4 2WAY	1-09660-693-0	01	1	9902-0003	●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (B) PT1/4 2WAY	1-09660-693-0	01	1	0004-	●
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0004-		●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9902-	●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007	●
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0004-	●
137	CONNECTOR; SUPPLY (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0004-		●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	1-09656-391-2	01	1	9902-0003	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	1-09656-391-2	01	1	0004-	●
138	CONNECTOR; DELIVERY (A) M14	1-09656-391-2	01	1	0004-		●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9902-9911	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9912-	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) PT1/4 2WAY	1-09660-693-0	01	1	9902-	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9902-	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0003	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	0004-0007	●
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	0004-0007		●
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-		●
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9905-	●
138	CONNECTOR; DELIVERY (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-		●
139	CONNECTOR; EXH EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=45	8-94338-874-0	01	1	9905-	●
140	PLUG EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9905-	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9902-	●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M6X16 W/LK WASHER	0-50040-616-0	02	1	9905-	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0004-		●
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	9902-0003	●
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	0004-	●	●

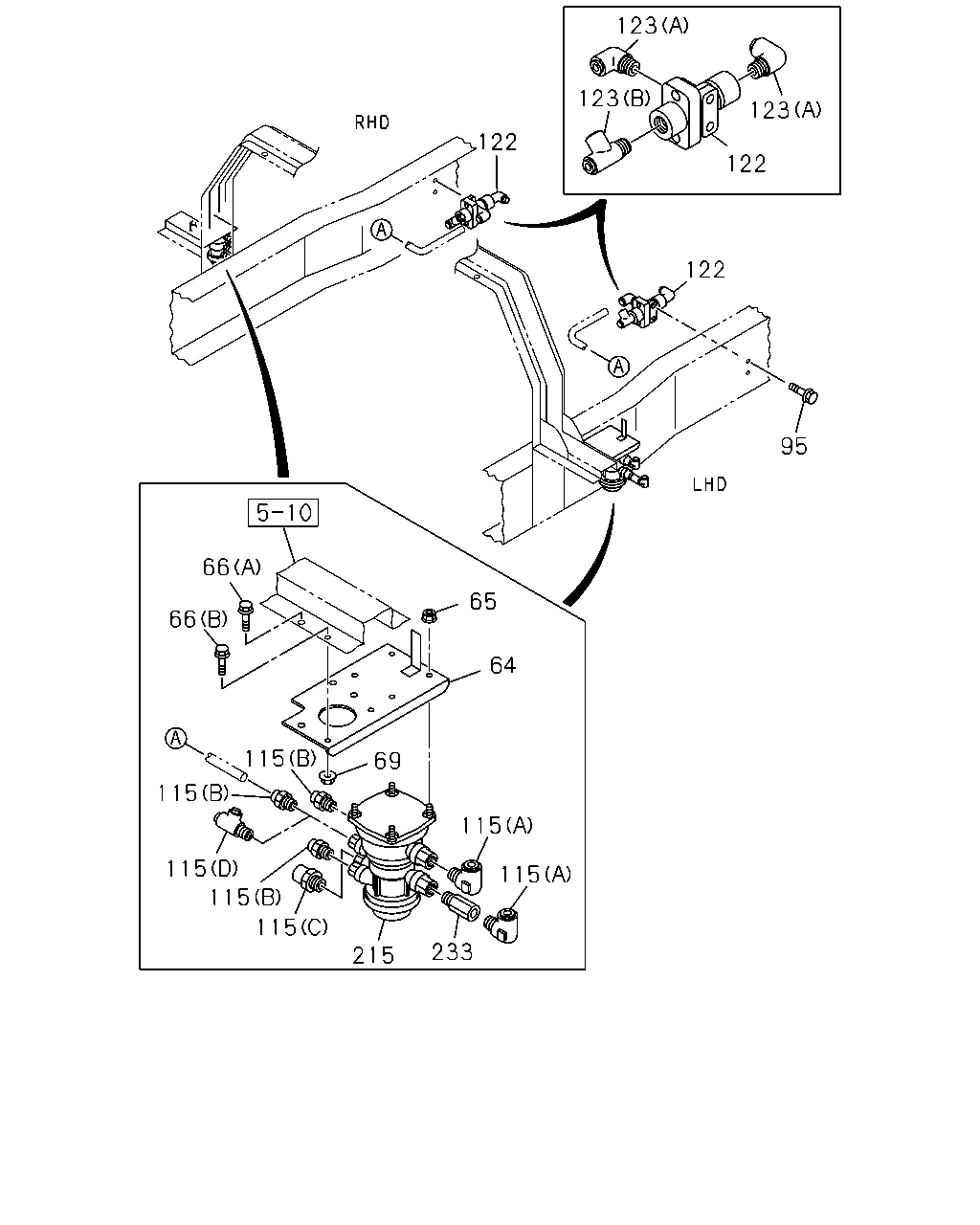

123 123 123 122 122 122 95 66 65 66 64 115 69 115 115 115 115 115 115 233 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	BRACKET; RELAY VLV BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2>	1-48495-216-0	01	1	9902-9907	●
64	BRACKET; RELAY VLV WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28>	1-48495-216-0	01	1	9908-	●
64	BRACKET; RELAY VLV WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28>	1-48495-216-0	01	1	9908-	●
64	BRACKET; RELAY VLV SILENCER SINGLE VERTICAL<N28>	1-48495-193-0	01	1	9902-9907	●
64	BRACKET; RELAY VLV WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> ANTILOCK BRAKE SYSTEM(BFA) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48495-193-0	01	1	9908-0007	●
64	BRACKET; RELAY VLV WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> ANTILOCK BRAKE SYSTEM(BFA) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48495-226-0	01	1	0008-	●
64	BRACKET; RELAY VLV WHEEL BASE 3200MM(32W)	1-48495-219-1	01	1	0004-		●
65	NUT; RELAY VLV BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2> M8	9-09110-408-0	08	1	9902-9907	●
65	NUT; RELAY VLV WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> ANTILOCK BRAKE SYSTEM(BFA) PARKING BRAKE VALVE LEVER TYPE<W48> M8	9-09110-408-0	06	1	9908-	●
65	NUT; RELAY VLV SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	06	1	9902-9907	●
65	NUT; RELAY VLV WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	08	1	9908-0003	●
65	NUT; RELAY VLV WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	08	1	9908-0003	●
65	NUT; RELAY VLV WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	08	1	0004-	●
65	NUT; RELAY VLV WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	08	1	0004-	●
65	NUT; RELAY VLV WHEEL BASE 3200MM(32W) M8	9-09110-408-0	08	1	0004-		●
66	BOLT; VLV BRKT BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-9907	●
66	BOLT; VLV BRKT WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X25 FLANGE	0-28680-825-0	02	1	9908-0003	●
66	BOLT; VLV BRKT WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (B) M8X25 FLANGE	0-28680-825-0	02	1	9908-0003	●
66	BOLT; VLV BRKT WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●
66	BOLT; VLV BRKT WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●
66	BOLT; VLV BRKT WHEEL BASE 3200MM(32W) (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-		●
66	BOLT; VLV BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (A) M10X25 FLANGE	0-28681-025-0	02	1	9902-0003	●
66	BOLT; VLV BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (A) M10X25 FLANGE	0-28681-025-0	02	1	0004-	●
66	BOLT; VLV BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	0004-		●
69	NUT; VLV BRKT WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> ANTILOCK BRAKE SYSTEM(BFA) PARKING BRAKE VALVE LEVER TYPE<W48> M10 FLANGE	0-91150-210-0	02	1	9908-	●
95	BOLT; BRKT,DOUBLE CHECK VLV BRAKE REGULATION HONG KONG<TCZ> M8X16 FLANGE	0-28080-816-0	02	1	9905-0003	●
95	BOLT; BRKT,DOUBLE CHECK VLV BRAKE REGULATION HONG KONG<TCZ> M8X16 FLANGE	0-28080-816-0	02	1	0004-	●	●
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9902-9907	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9908-0003	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3500MM(35W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9908-0003	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. SILENCER SINGLE VERTICAL<N28> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0004-	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0004-	●
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0004-		●
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9902-9907	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9908-0003	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3500MM(35W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9908-0003	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. SILENCER SINGLE VERTICAL<N28> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0004-	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0004-	●
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0004-		●
115	CONNECTOR; DUAL RELAY VLV BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9902-9907	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> ANTILOCK BRAKE SYSTEM(BFA) PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	9908-	●
115	CONNECTOR; DUAL RELAY VLV SILENCER SINGLE VERTICAL<N28> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	9902-9907	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9908-0003	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9908-0003	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. SILENCER SINGLE VERTICAL<N28> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0004-	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0004-	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3200MM(32W) (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0004-		●
115	CONNECTOR; DUAL RELAY VLV SILENCER SINGLE VERTICAL<N28> (D) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9902-9907	●
115	CONNECTOR; DUAL RELAY VLV WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> ANTILOCK BRAKE SYSTEM(BFA) PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9908-	●
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-0	01	1	9905-0003	●
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-0	01	1	0004-	●	●
123	CONNECTOR; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9905-0003	●
123	CONNECTOR; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0004-	●	●
123	CONNECTOR; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9905-0003	●
123	CONNECTOR; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0004-	●	●
215	VALVE; TRAILER CONT	1-48210-684-0	01	1	9902-9904	●
215	VALVE; TRAILER CONT PARKING BRAKE VALVE LEVER TYPE<W48>	1-48210-684-0	01	1	9905-9907	●
215	VALVE; TRAILER CONT WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28>	1-48210-684-0	01	1	9908-0003	●
215	VALVE; TRAILER CONT WHEEL BASE 3500MM(35W)	1-48210-684-0	01	1	9908-0003	●
215	VALVE; TRAILER CONT WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. SILENCER SINGLE VERTICAL<N28>	1-48210-684-0	01	1	0004-	●
215	VALVE; TRAILER CONT WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48210-684-0	01	1	0004-	●
215	VALVE; TRAILER CONT	1-48210-684-0	01	1	0004-		●
233	ADAPTER; VLV PT3/8	1-48319-058-0	01	1	9902-9907	●
233	ADAPTER; VLV WHEEL BASE 3200MM(32W) EXC. SILENCER SINGLE VERTICAL<N28> PT3/8	1-48319-058-0	01	1	9908-0003	●
233	ADAPTER; VLV WHEEL BASE 3500MM(35W) PT3/8	1-48319-058-0	01	1	9908-0003	●
233	ADAPTER; VLV WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. SILENCER SINGLE VERTICAL<N28> PT3/8	1-48319-058-0	01	1	0004-	●
233	ADAPTER; VLV WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> PT3/8	1-48319-058-0	01	1	0004-	●
233	ADAPTER; VLV PT3/8	1-48319-058-0	01	1	0004-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
