0-41 — FUEL FILTER AND BRACKET (#76868) — 106 parça

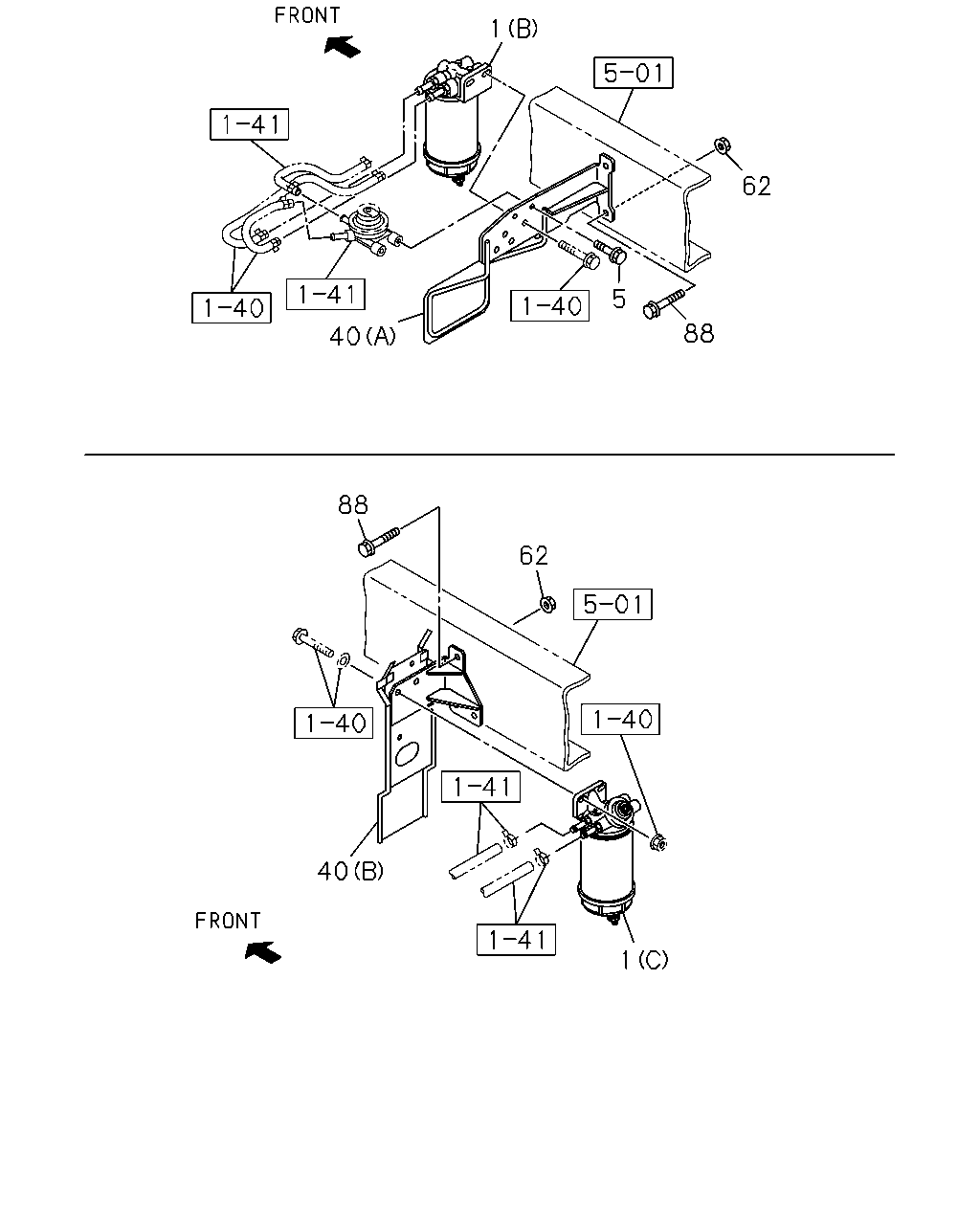

1 88 62 5 40 88 62 40 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> (C)	8-98139-828-1	01	1	1103-	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-1	01	1	1010-1108	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-2	01	1	1109-1208	●	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1209-	●	●	●
1	03.890 FILTER ASM; FUEL (B)	8-98095-980-1	01	1	1010-1102	●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (B)	8-98095-980-1	01	1	1103-	●
5	03.890 BOLT; FUEL FILTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1010-1108	●
5	03.890 BOLT; FUEL FILTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1109-	●	●	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> (B)	8-98180-843-0	01	1	1103-1108	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> (B)	8-98180-843-0	01	1	1109-1208	●	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> (B)	8-98180-843-0	01	1	1209-1402	●	●	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> (B)	8-98180-843-0	01	1	1403-	●	●	●
40	03.890 BRACKET; FUEL FILTER (A)	8-98107-354-3	01	1	1010-1102	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (A)	8-98107-354-3	01	1	1103-1108	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (A)	8-98107-354-3	01	1	1109-1205	●	●
40	03.890 BRACKET; FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (A)	8-98107-354-3	01	1	1206-1208	●	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (A)	8-98107-354-3	01	1	1209-	●	●	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (A)	8-98107-354-3	01	1	1209-	●	●	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 03.162 M10 FLANGE	0-91180-110-0	02	1	1209-	●	●	●
62	03.895 NUT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 03.162 M10 FLANGE	0-91180-110-0	01	1	1103-1204	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 03.162 M10 FLANGE	0-91180-110-0	01	1	1205-1208	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 03.162 M10 FLANGE	0-91180-110-0	01	1	1209-1402	●	●	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 03.162 M10 FLANGE	0-91180-110-0	01	1	1403-	●	●	●
88	03.895 BOLT; BRKT,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1103-1204	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1205-1208	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1209-1402	●	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1403-	●	●	●
88	03.895 BOLT; BRKT,FUEL FILTER 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1010-1102	●
88	03.895 BOLT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1103-1205	●
88	03.895 BOLT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1206-1208	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1209-1510	●	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1209-1510	●	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1511-	●	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1511-	●	●	●

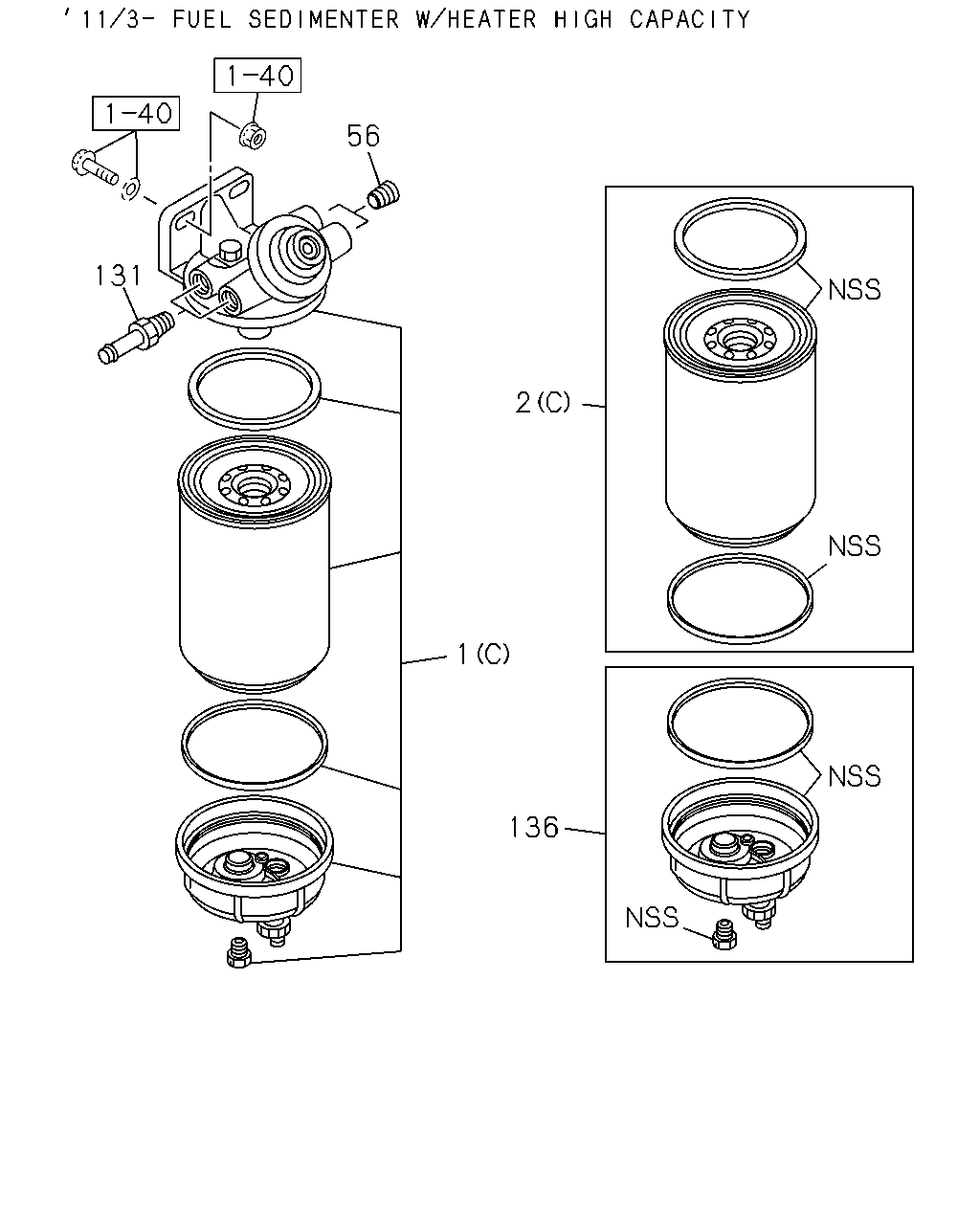

2 56 131 1 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> (C)	8-98139-828-1	01	1	1103-	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-1	01	1	1010-1108	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-2	01	1	1109-1208	●	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1209-	●	●	●
1	03.890 FILTER ASM; FUEL (B)	8-98095-980-1	01	1	1010-1102	●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (B)	8-98095-980-1	01	1	1103-	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-1208	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1209-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> (C)	8-98139-830-0	01	1	1103-	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1010-1108	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1109-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-1208	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1209-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (B)	8-98095-983-0	01	1	1010-1102	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (B)	8-98095-983-0	01	1	1103-	●
56	03.890 PLUG; FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 01.453 NPTF3/8-18	8-97329-623-0	02	1	1103-	●
131	03.890 PIPE; FILTER NPTF3/8-18 OD=10	8-98122-953-0	02	1	1010-1108	●
131	03.890 PIPE; FILTER NPTF3/8-18 OD=10	8-98122-953-0	02	1	1109-	●	●	●
136	03.890 CAP KIT; FUEL FILTER	8-98096-004-0	01	1	1010-1108	●
136	03.890 CAP KIT; FUEL FILTER	8-98096-004-0	01	1	1109-1408	●	●	●
136	03.890 CAP KIT; FUEL FILTER	8-98279-324-0	01	1	1409-	●

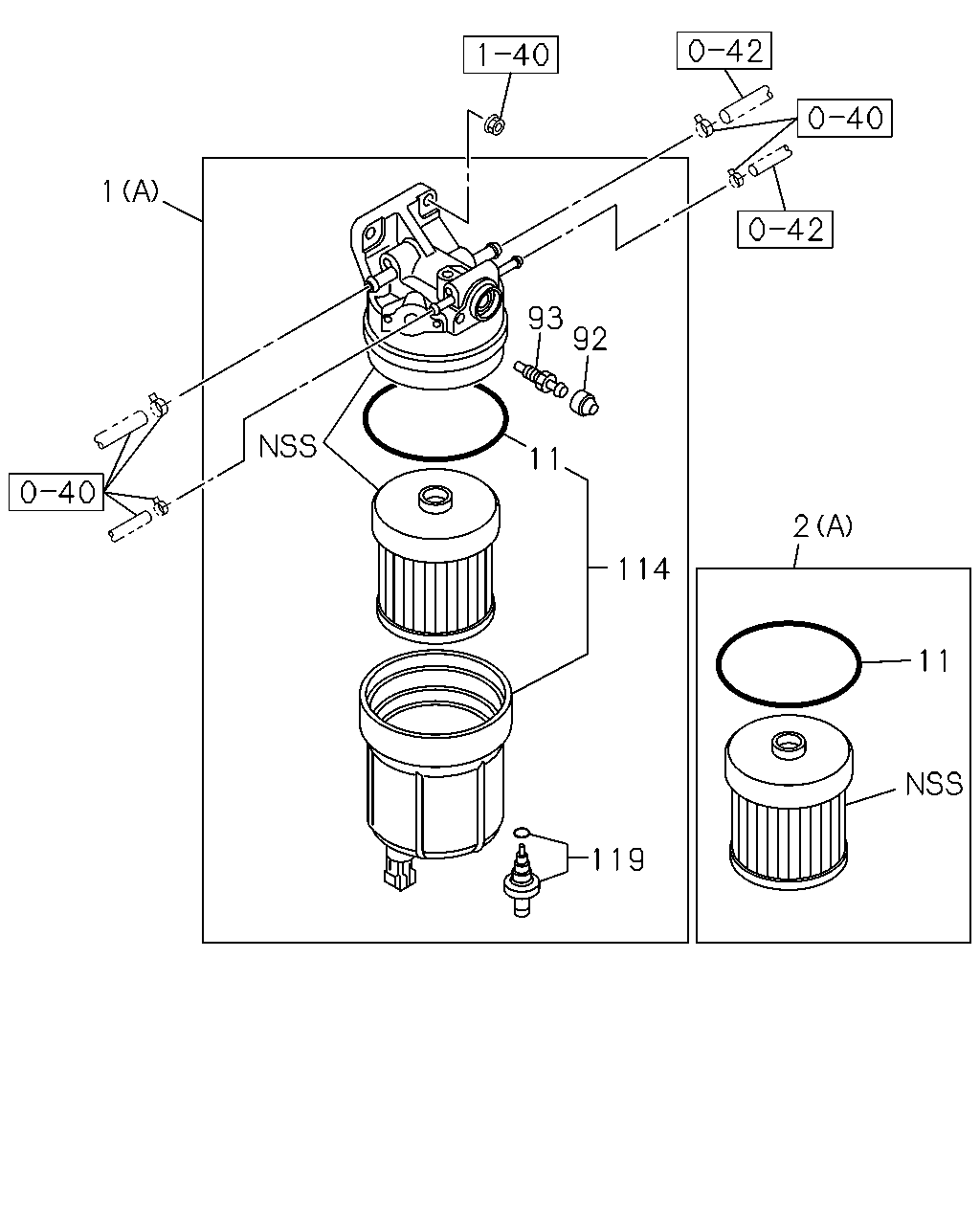

1 11 92 93 114 2 11 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> (C)	8-98139-828-1	01	1	1103-	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-1	01	1	1010-1108	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-2	01	1	1109-1208	●	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1209-	●	●	●
1	03.890 FILTER ASM; FUEL (B)	8-98095-980-1	01	1	1010-1102	●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (B)	8-98095-980-1	01	1	1103-	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-1208	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1209-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> (C)	8-98139-830-0	01	1	1103-	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1010-1108	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1109-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-1208	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1209-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (B)	8-98095-983-0	01	1	1010-1102	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (B)	8-98095-983-0	01	1	1103-	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	1010-1108	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	1109-1112	●	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-1208	●	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1209-	●	●	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	1010-1108	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	1109-1208	●	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	1209-	●	●	●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	1010-1108	●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	1109-1208	●	●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	1209-	●	●	●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-0	01	1	1010-1108	●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	1109-1208	●	●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	1209-	●	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	1010-1108	●
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	1109-1208	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	1209-	●	●	●

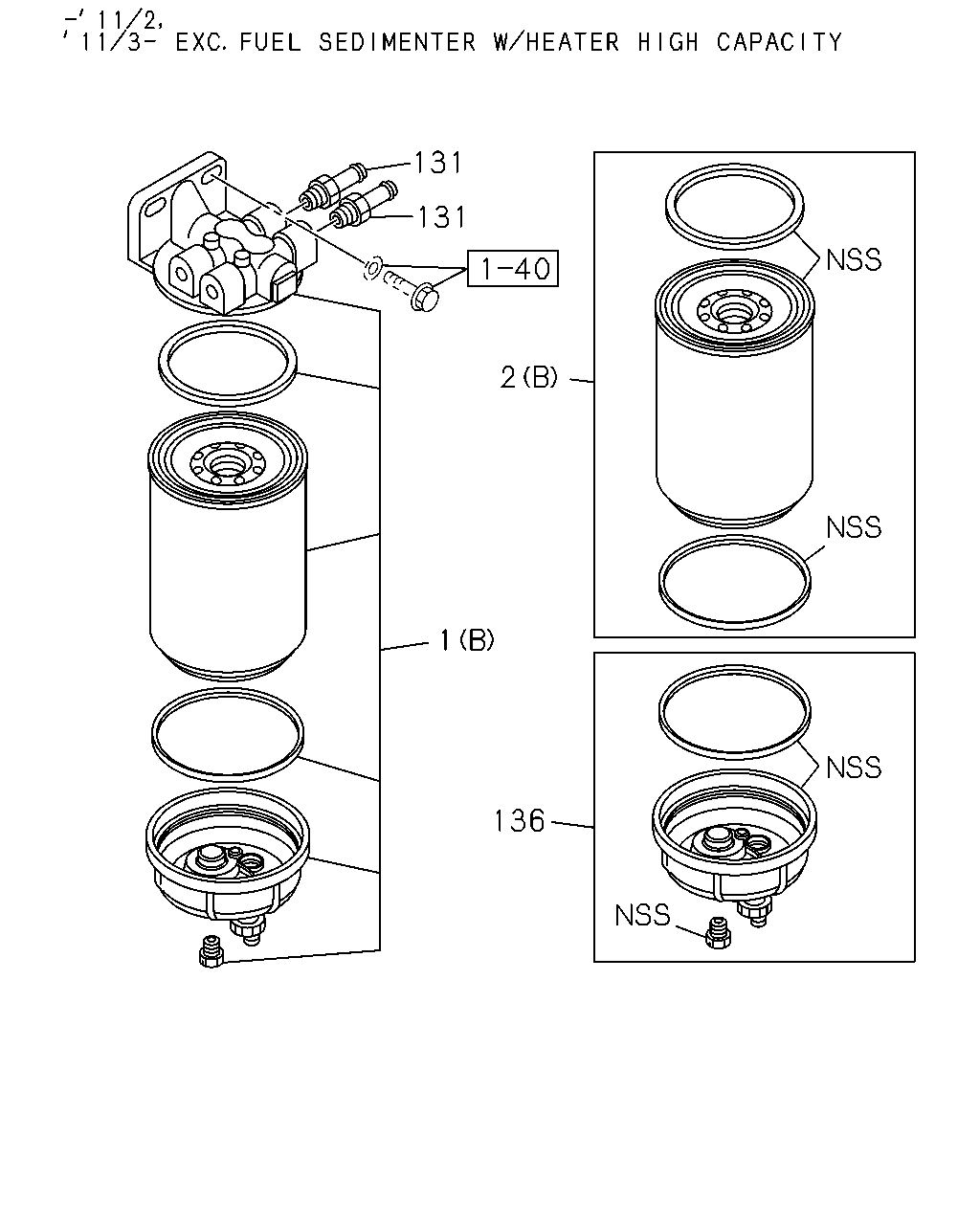

136 1 2 131 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> (C)	8-98139-828-1	01	1	1103-	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-1	01	1	1010-1108	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-2	01	1	1109-1208	●	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1209-	●	●	●
1	03.890 FILTER ASM; FUEL (B)	8-98095-980-1	01	1	1010-1102	●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (B)	8-98095-980-1	01	1	1103-	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-1208	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1209-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> (C)	8-98139-830-0	01	1	1103-	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1010-1108	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1109-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-1208	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1209-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (B)	8-98095-983-0	01	1	1010-1102	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CA PACITY<8NK> (B)	8-98095-983-0	01	1	1103-	●
131	03.890 PIPE; FILTER NPTF3/8-18 OD=10	8-98122-953-0	02	1	1010-1108	●
131	03.890 PIPE; FILTER NPTF3/8-18 OD=10	8-98122-953-0	02	1	1109-	●	●	●
136	03.890 CAP KIT; FUEL FILTER	8-98096-004-0	01	1	1010-1108	●
136	03.890 CAP KIT; FUEL FILTER	8-98096-004-0	01	1	1109-1408	●	●	●
136	03.890 CAP KIT; FUEL FILTER	8-98279-324-0	01	1	1409-	●
