0-40 — FUEL INJECTION SYSTEM (#76867) — 415 parça

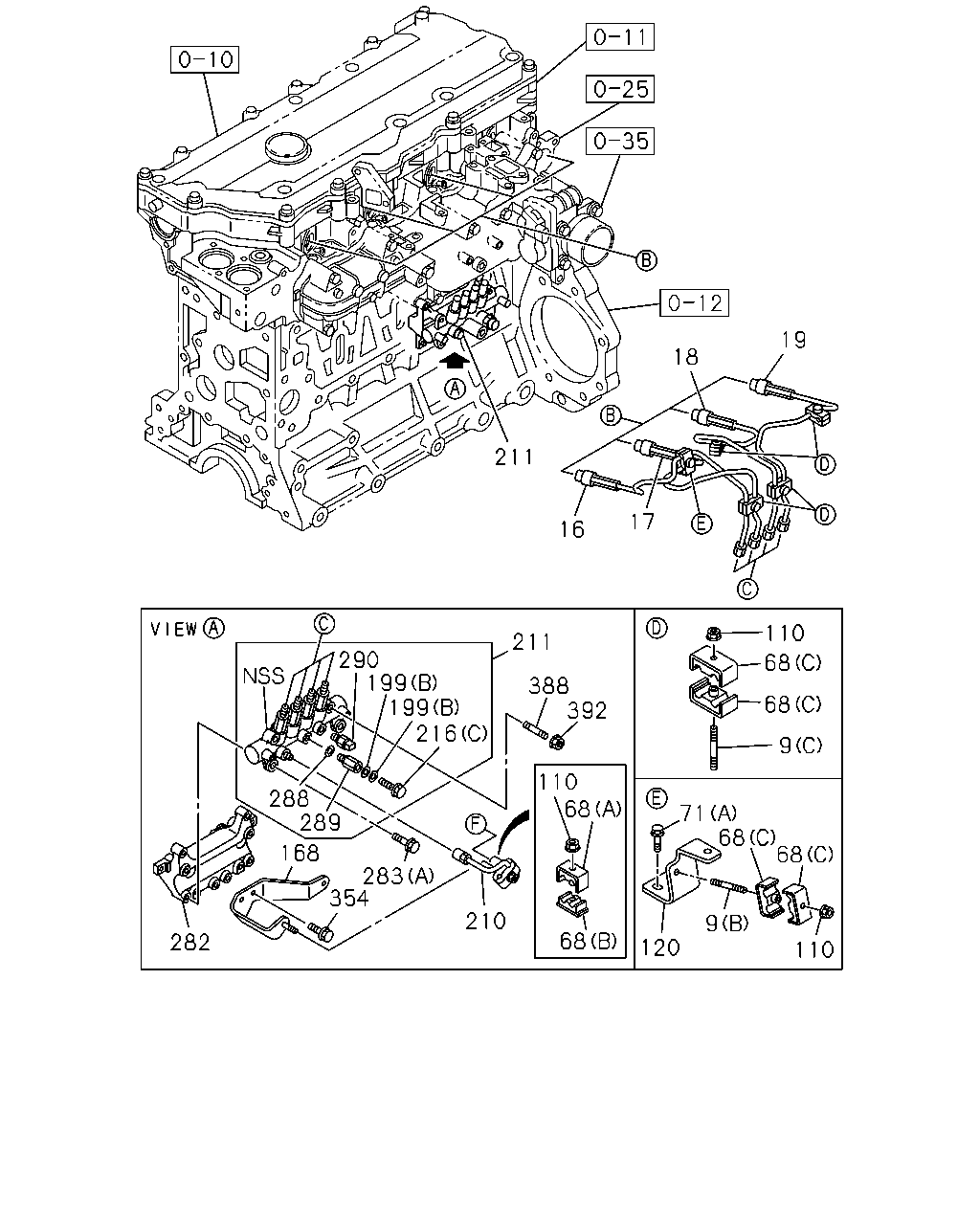

çizim 63097
211 18 19 17 16 211 388 392 110 68 68 9 290 199 199 216 288 289 168 354 210 283 110 68 68 120 71 68 68 9 110 282
BalonParca AdiParca NoAdetTipApplied Date A B C
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1209- ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 1010-1108 ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 1109- ● ●
9 03.340 STUD; CLIP
03.278 (A) M6X40 L=50 		0-41010-640-0 02 1 1010-1108 ●
9 03.340 STUD; CLIP
03.278 (A) M6X40 L=50 		0-41010-640-0 02 1 1109- ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1010-1108 ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1109- ● ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1209- ●
16 03.330 PIPE; INJ NO.1 8-98086-354-0 01 1 1010-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-352-0 01 1 1103-1108 ●
16 03.330 PIPE; INJ NO.1 8-98185-352-0 01 1 1109-1404 ● ●
16 03.330 PIPE; INJ NO.1 8-98271-218-0 01 1 1405-1502 ● ●
16 03.330 PIPE; INJ NO.1 8-98298-628-0 01 1 1503- ● ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1209- ●
17 03.330 PIPE; INJ NO.2 8-98086-355-0 01 1 1010-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-353-0 01 1 1103-1108 ●
17 03.330 PIPE; INJ NO.2 8-98185-353-0 01 1 1109-1404 ● ●
17 03.330 PIPE; INJ NO.2 8-98271-219-0 01 1 1405-1502 ● ●
17 03.330 PIPE; INJ NO.2 8-98298-629-0 01 1 1503- ● ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1209- ●
18 03.330 PIPE; INJ NO.3 8-98086-356-0 01 1 1010-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-354-0 01 1 1103-1108 ●
18 03.330 PIPE; INJ NO.3 8-98185-354-0 01 1 1109-1404 ● ●
18 03.330 PIPE; INJ NO.3 8-98271-220-0 01 1 1405-1502 ● ●
18 03.330 PIPE; INJ NO.3 8-98298-630-0 01 1 1503- ● ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1209- ●
19 03.330 PIPE; INJ NO.4 8-98086-357-0 01 1 1010-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-355-0 01 1 1103-1108 ●
19 03.330 PIPE; INJ NO.4 8-98185-355-0 01 1 1109-1404 ● ●
19 03.330 PIPE; INJ NO.4 8-98271-221-0 01 1 1405-1502 ● ●
19 03.330 PIPE; INJ NO.4 8-98298-631-0 01 1 1503- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1209-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-1 01 1 1010-1108 ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1109- ● ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-1 01 1 1010-1108 ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1109- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 10 1 1010-1108 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 10 1 1109-1405 ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ● ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1010-1108 ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1109- ● ●
71 03.162 BOLT; BRKT
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 1010-1108 ●
71 03.162 BOLT; BRKT
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 1109- ● ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1010-1108 ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1109- ● ●
71 03.162 BOLT; BRKT
04.686 (C) M8X60 FLANGE 		0-28050-860-0 02 1 1010-1108 ●
71 03.162 BOLT; BRKT
04.686 (C) M8X60 FLANGE 		0-28050-860-0 02 1 1109- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1209- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 08 1 1010-1108 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 08 1 1109- ● ●
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 1010-1108 ●
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 1109- ● ●
168 03.890 BRACKET; FUEL PIPE 8-98096-204-0 01 1 1010-1108 ●
168 03.890 BRACKET; FUEL PIPE 8-98096-204-0 01 1 1109- ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1209- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1010-1108 ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1109- ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1010-1108 ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1109- ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1209- ●
210 03.330 PIPE; INJ,C/R 8-98159-133-1 01 1 1010-1108 ●
210 03.330 PIPE; INJ,C/R 8-98159-133-1 01 1 1109- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1010-1108 ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1109-1208 ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1209- ● ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 1209- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 1109- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1109- ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1109-1208 ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1209- ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98147-694-0 01 1 1209- ●
282 03.163 BRACKET; COMMON RAIL 8-98106-661-1 01 1 1010-1108 ●
282 03.163 BRACKET; COMMON RAIL 8-98106-661-1 01 1 1109- ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 1209- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1209- ●
283 03.330 BOLT; COMMON RAIL
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1010-1108 ●
283 03.330 BOLT; COMMON RAIL
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1109- ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1010-1108 ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1109-1208 ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1209- ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1010-1108 ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1109-1208 ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1209- ● ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1010-1108 ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1109-1208 ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1209- ● ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1010-1108 ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1109- ● ●
388 03.332 STUD; RAIL
03.278 M8X35 L=53 		0-49140-835-0 02 1 1010-1108 ●
388 03.332 STUD; RAIL
03.278 M8X35 L=53 		0-49140-835-0 02 1 1109- ● ●
392 03.330 NUT; RAIL ASM
01.062 M8 FLANGE 		0-91180-108-0 02 1 1010-1108 ●
392 03.330 NUT; RAIL ASM
01.062 M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●

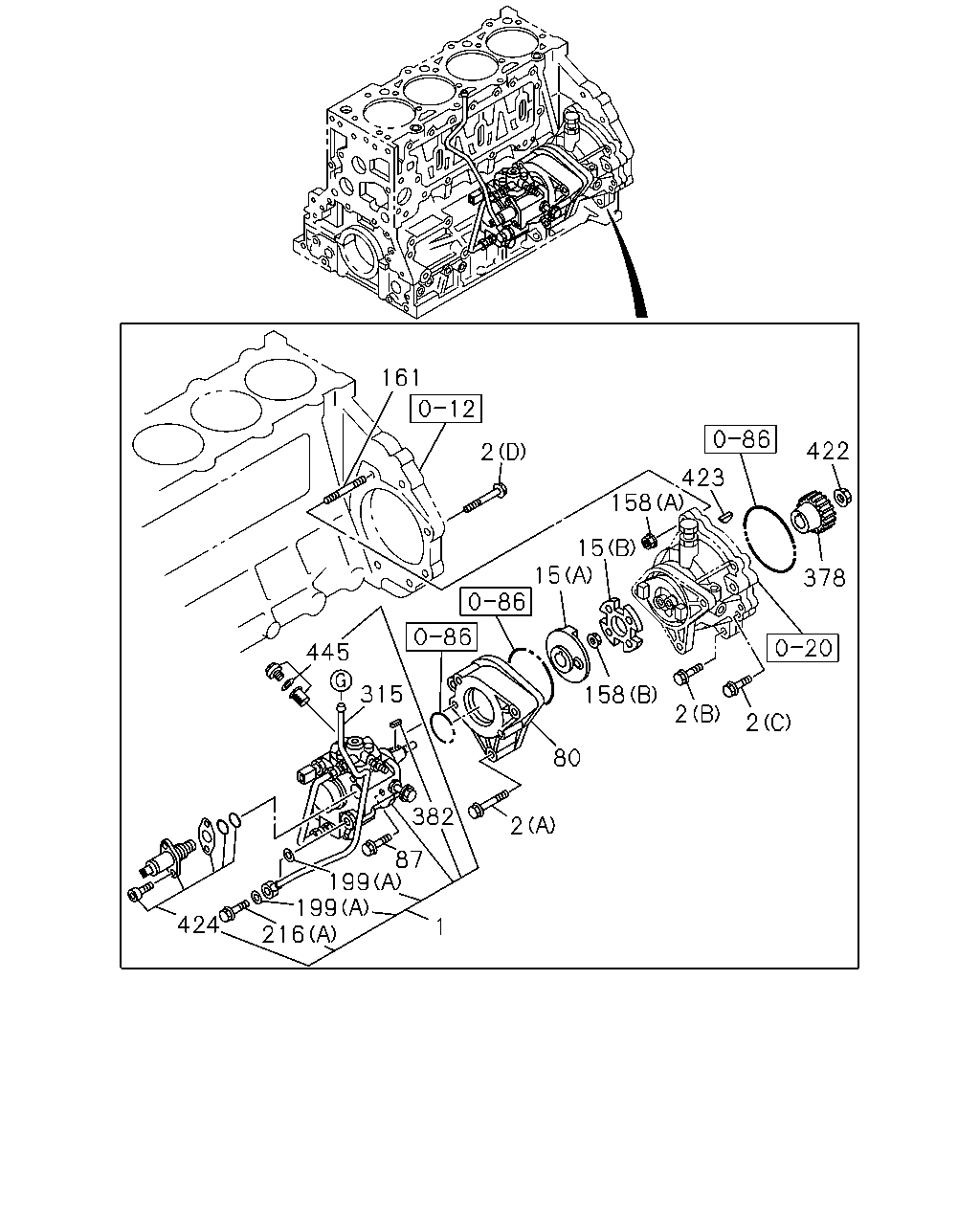

çizim 63232
424 216 1 199 87 199 382 80 315 158 2 2 15 158 423 378 422 15 2 161 445 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.306 PUMP ASM; INJ 8-97386-557-4 01 1 1010-1108 ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1109- ● ●
2 03.330 BOLT; INJ PUMP
00.685 (A) M10X60 FLANGE 		0-28051-060-0 03 1 1010-1108 ●
2 03.330 BOLT; INJ PUMP
00.685 (A) M10X60 FLANGE 		0-28051-060-0 03 1 1109- ● ●
2 03.330 BOLT; INJ PUMP
02.277 (B) M10X70 FLANGE 		0-28151-070-0 01 1 1010-1108 ●
2 03.330 BOLT; INJ PUMP
02.277 (B) M10X70 FLANGE 		0-28151-070-0 01 1 1109- ● ●
2 03.330 BOLT; INJ PUMP
00.206 (C) M12X70 FLANGE 		0-28151-270-0 01 1 1010-1108 ●
2 03.330 BOLT; INJ PUMP
00.206 (C) M12X70 FLANGE 		0-28151-270-0 01 1 1109- ● ●
2 03.330 BOLT; INJ PUMP
(D) M12X95 FLANGE 		8-94396-485-1 01 1 1010-1108 ●
2 03.330 BOLT; INJ PUMP
(D) M12X95 FLANGE 		8-94396-485-1 01 1 1109- ● ●
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1010-1108 ●
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1109- ● ●
15 03.340 COUPLING ASM; INJ PUMP
(B) 		8-97306-059-1 01 1 1010-1108 ●
15 03.340 COUPLING ASM; INJ PUMP
(B) 		8-97306-059-1 01 1 1109- ● ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1010-1108 ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1109- ● ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1010-1108 ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1109- ● ●
158 03.330 NUT; INJ PUMP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1010-1108 ●
158 03.330 NUT; INJ PUMP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1109- ● ●
158 03.330 NUT; INJ PUMP
07.529 (B) M14 FLANGE 		0-91180-114-0 01 1 1010-1108 ●
158 03.330 NUT; INJ PUMP
07.529 (B) M14 FLANGE 		0-91180-114-0 01 1 1109- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1010-1108 ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1109- ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1209- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1010-1108 ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1109- ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1010-1108 ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1109- ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 1209- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 1109- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1109- ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1109-1208 ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1209- ● ● ●
315 03.163 PIPE; FUEL,SUCTION 8-98126-334-0 01 1 1010-1108 ●
315 03.163 PIPE; FUEL,SUCTION 8-98126-334-0 01 1 1109- ● ●
378 03.330 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 1010-1108 ●
378 03.330 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 1109- ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1010-1108 ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1109-1201 ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202-1208 ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1209- ● ● ●
422 03.330 NUT; GEAR
06.172 M18 		8-97141-154-0 01 1 1010-1108 ●
422 03.330 NUT; GEAR
06.172 M18 		8-97141-154-0 01 1 1109- ● ●
423 03.162 KEY; GEAR
08.960 		9-08055-519-0 01 1 1010-1108 ●
423 03.162 KEY; GEAR
08.960 		9-08055-519-0 01 1 1109- ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-0 01 1 1010-1108 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1109-1208 ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1209- ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1010-1108 ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1109-1208 ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1209- ● ● ●

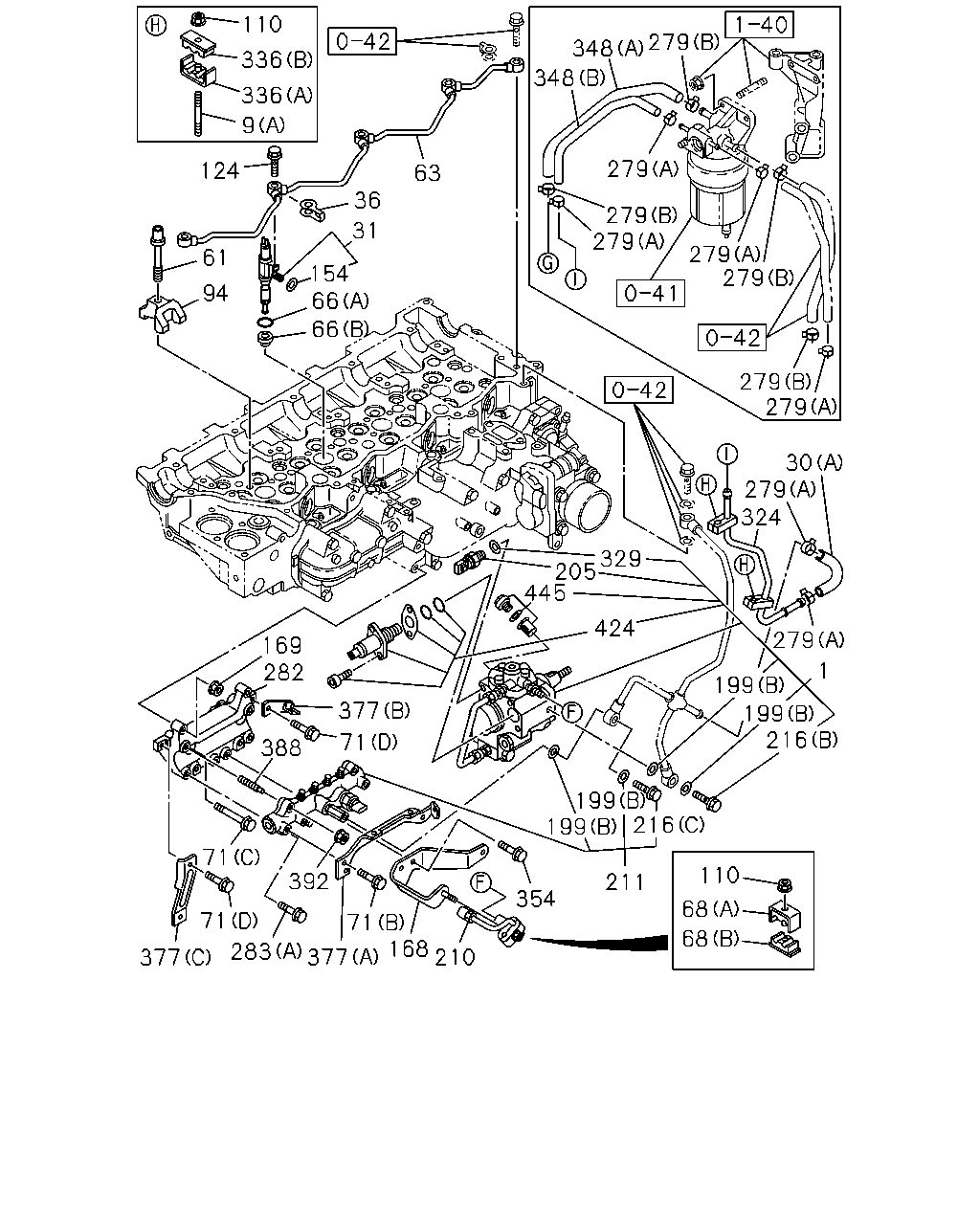

çizim 186945
110 124 61 94 336 63 348 348 279 279 279 279 279 279 279 279 30 324 279 199 199 216 110 68 68 211 199 354 210 168 71 377 283 392 71 71 377 71 282 377 388 169 199 216 424 205 445 66 66 154 31 36 1 336 9 279 329
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.306 PUMP ASM; INJ 8-97386-557-4 01 1 1010-1108 ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1109- ● ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1209- ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 1010-1108 ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 1109- ● ●
9 03.340 STUD; CLIP
03.278 (A) M6X40 L=50 		0-41010-640-0 02 1 1010-1108 ●
9 03.340 STUD; CLIP
03.278 (A) M6X40 L=50 		0-41010-640-0 02 1 1109- ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1010-1108 ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1109- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=110 		8-97377-894-0 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98025-994-2 01 1 1010-1108 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98025-994-2 01 1 1109- ● ●
31 03.332 NOZZLE ASM; INJ 8-98076-995-2 04 1 1209-1306 ●
31 03.332 NOZZLE ASM; INJ 8-98238-318-0 04 1 1307- ●
31 03.332 NOZZLE ASM; INJ 8-98160-061-1 04 1 1010-1108 ●
31 03.332 NOZZLE ASM; INJ 8-98160-061-3 04 1 1109- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1010-1108 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1109- ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1010-1108 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1109- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1010-1108 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1109- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-98181-540-0 04 1 1209- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (A) ID=23.3 		8-94173-412-0 04 1 1010-1108 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (A) ID=23.3 		8-94173-412-0 04 1 1109- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1 		8-98079-248-0 04 1 1010-1108 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1 		8-98079-248-0 04 1 1109- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1209-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-1 01 1 1010-1108 ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1109- ● ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-1 01 1 1010-1108 ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1109- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 10 1 1010-1108 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 10 1 1109-1405 ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ● ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1010-1108 ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1109- ● ●
71 03.162 BOLT; BRKT
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 1010-1108 ●
71 03.162 BOLT; BRKT
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 1109- ● ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1010-1108 ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1109- ● ●
71 03.162 BOLT; BRKT
04.686 (C) M8X60 FLANGE 		0-28050-860-0 02 1 1010-1108 ●
71 03.162 BOLT; BRKT
04.686 (C) M8X60 FLANGE 		0-28050-860-0 02 1 1109- ● ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1010-1108 ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1109- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1209- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 08 1 1010-1108 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 08 1 1109- ● ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1010-1108 ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1109- ● ●
154 03.332 GASKET; CONNECTOR
06.609 ID=11.0 		9-09561-111-0 04 1 1010-1106 ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1107-1108 ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1109- ● ●
168 03.890 BRACKET; FUEL PIPE 8-98096-204-0 01 1 1010-1108 ●
168 03.890 BRACKET; FUEL PIPE 8-98096-204-0 01 1 1109- ● ●
169 03.890 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1010-1108 ●
169 03.890 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1209- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1010-1108 ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1109- ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1010-1108 ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1109- ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1010-1108 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1109-1208 ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1209- ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1209- ●
210 03.330 PIPE; INJ,C/R 8-98159-133-1 01 1 1010-1108 ●
210 03.330 PIPE; INJ,C/R 8-98159-133-1 01 1 1109- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1010-1108 ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1109-1208 ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1209- ● ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 1209- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 1109- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1109- ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1109-1208 ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1209- ● ● ●
279 03.162 CLIP; FUEL HOSE
01.097 (B) ID=16 		8-97329-628-0 04 1 1010-1108 ●
279 03.162 CLIP; FUEL HOSE
01.097 (B) ID=16 		8-97329-628-0 04 1 1109- ● ●
279 03.162 CLIP; FUEL HOSE
01.153 (A) ID=11.5 		8-97375-638-0 06 1 1010-1108 ●
279 03.162 CLIP; FUEL HOSE
01.153 (A) ID=11.5 		8-97375-638-0 06 1 1109- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98147-694-0 01 1 1209- ●
282 03.163 BRACKET; COMMON RAIL 8-98106-661-1 01 1 1010-1108 ●
282 03.163 BRACKET; COMMON RAIL 8-98106-661-1 01 1 1109- ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 1209- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1209- ●
283 03.330 BOLT; COMMON RAIL
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1010-1108 ●
283 03.330 BOLT; COMMON RAIL
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1109- ● ●
324 03.330 PIPE; FUEL RETURN 8-98025-858-0 01 1 1010-1108 ●
324 03.330 PIPE; FUEL RETURN 8-98025-858-0 01 1 1109- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1010-1108 ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1109-1201 ● ●
336 03.163 CLIP; FUEL PIPE
01.531 (A) ID=8 & 9 L=25 		8-97603-522-0 02 1 1010-1108 ●
336 03.163 CLIP; FUEL PIPE
01.531 (A) ID=8 & 9 L=25 		8-97603-522-0 02 1 1109- ● ●
336 03.163 CLIP; FUEL PIPE
01.531 (B) ID=8 & 9 L=25 		8-97603-523-0 02 1 1010-1108 ●
336 03.163 CLIP; FUEL PIPE
01.531 (B) ID=8 & 9 L=25 		8-97603-523-0 02 1 1109- ● ●
348 03.163 HOSE; FUEL
(B) 		8-98087-960-0 01 1 1010-1108 ●
348 03.163 HOSE; FUEL
(B) 		8-98087-960-0 01 1 1109- ● ●
348 03.163 HOSE; FUEL
(A) 		8-98126-629-0 01 1 1010-1108 ●
348 03.163 HOSE; FUEL
(A) 		8-98126-629-0 01 1 1109- ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1010-1108 ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1109- ● ●
377 03.332 BRACKET; HARNESS
(A) 		8-98113-835-0 01 1 1010-1108 ●
377 03.332 BRACKET; HARNESS
(A) 		8-98113-835-0 01 1 1109- ● ●
377 03.332 BRACKET; HARNESS
(B) 		8-98114-440-0 01 1 1010-1108 ●
377 03.332 BRACKET; HARNESS
(B) 		8-98114-440-0 01 1 1109- ● ●
377 03.332 BRACKET; HARNESS
(C) 		8-98114-730-0 01 1 1010-1108 ●
377 03.332 BRACKET; HARNESS
(C) 		8-98114-730-0 01 1 1109- ● ●
388 03.332 STUD; RAIL
03.278 M8X35 L=53 		0-49140-835-0 02 1 1010-1108 ●
388 03.332 STUD; RAIL
03.278 M8X35 L=53 		0-49140-835-0 02 1 1109- ● ●
392 03.330 NUT; RAIL ASM
01.062 M8 FLANGE 		0-91180-108-0 02 1 1010-1108 ●
392 03.330 NUT; RAIL ASM
01.062 M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-0 01 1 1010-1108 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1109-1208 ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1209- ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1010-1108 ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1109-1208 ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1209- ● ● ●

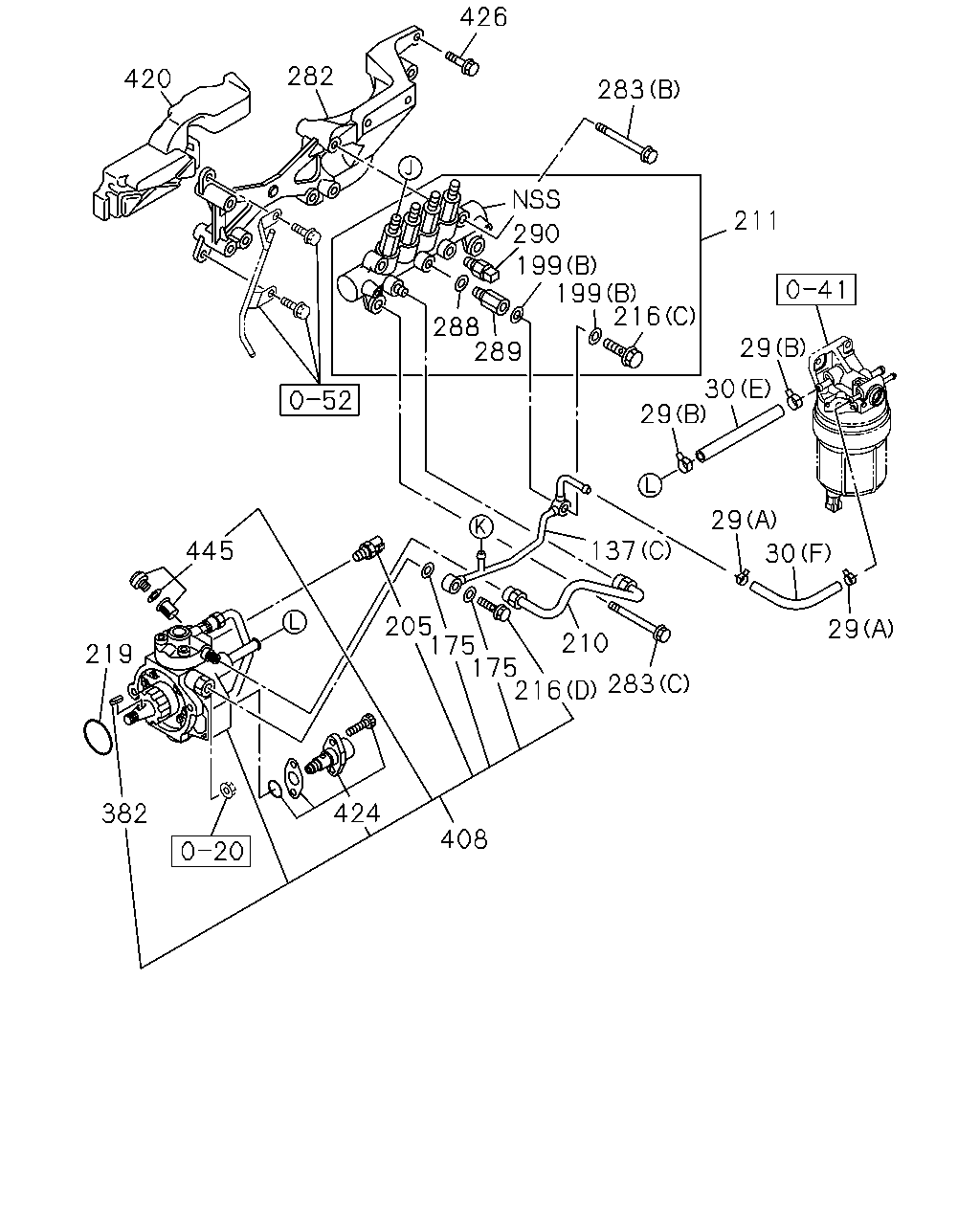

çizim 292030
29 30 29 137 210 283 216 175 175 205 445 219 424 408 382 29 30 29 211 283 426 282 290 199 199 216 288 289 420
BalonParca AdiParca NoAdetTipApplied Date A B C
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1209- ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 1209- ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=110 		8-97377-894-0 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98025-994-2 01 1 1010-1108 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98025-994-2 01 1 1109- ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1209- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1209- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1209- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1209- ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1209- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1209- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1010-1108 ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1109- ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1010-1108 ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1109- ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1010-1108 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1109-1208 ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1209- ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1209- ●
210 03.330 PIPE; INJ,C/R 8-98159-133-1 01 1 1010-1108 ●
210 03.330 PIPE; INJ,C/R 8-98159-133-1 01 1 1109- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1010-1108 ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1109-1208 ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1209- ● ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 1209- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 1109- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1109- ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1010-1108 ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1109-1208 ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1209- ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1209- ●
282 03.163 BRACKET; COMMON RAIL 8-98147-694-0 01 1 1209- ●
282 03.163 BRACKET; COMMON RAIL 8-98106-661-1 01 1 1010-1108 ●
282 03.163 BRACKET; COMMON RAIL 8-98106-661-1 01 1 1109- ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 1209- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1209- ●
283 03.330 BOLT; COMMON RAIL
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1010-1108 ●
283 03.330 BOLT; COMMON RAIL
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1109- ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1010-1108 ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1109-1208 ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1209- ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1010-1108 ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1109-1208 ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1209- ● ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1010-1108 ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1109-1208 ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1209- ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1010-1108 ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1109-1201 ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202-1208 ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1209- ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 1209- ●
420 03.340 RUBBER; SPACE,COMMON RAIL 8-98037-444-1 01 1 1209- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-0 01 1 1010-1108 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1109-1208 ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1209- ● ● ●
426 03.330 BOLT; BRACKET
04.686 M8X60 FLANGE 		0-28050-860-0 01 1 1209- ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1010-1108 ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1109-1208 ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1209- ● ● ●

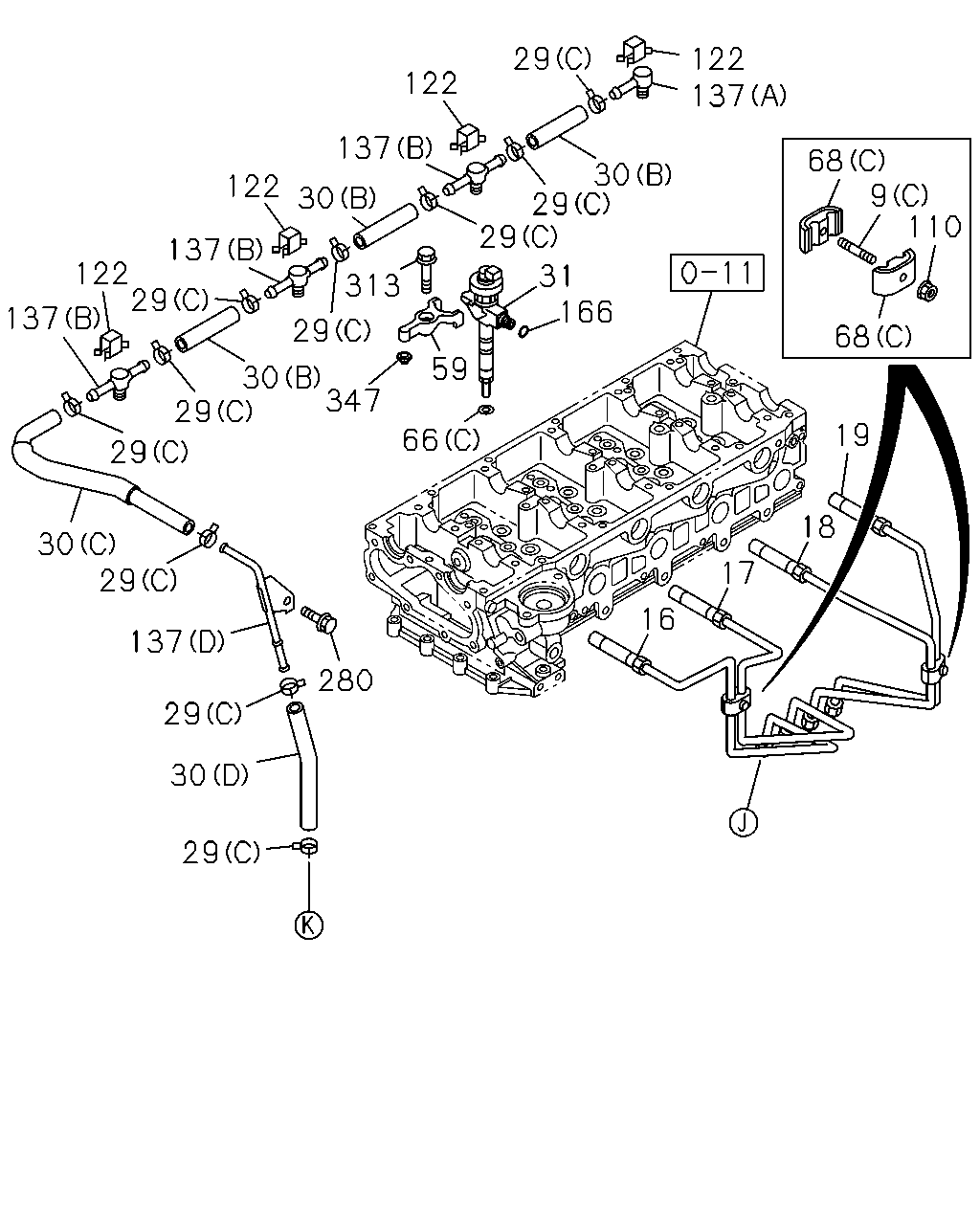

çizim 292152
110 68 9 68 137 122 29 122 137 29 29 30 31 166 59 66 347 19 18 17 16 280 29 30 29 137 29 30 29 29 30 29 313 137 122 30 122 137 29
BalonParca AdiParca NoAdetTipApplied Date A B C
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1209- ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 1010-1108 ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 1109- ● ●
9 03.340 STUD; CLIP
03.278 (A) M6X40 L=50 		0-41010-640-0 02 1 1010-1108 ●
9 03.340 STUD; CLIP
03.278 (A) M6X40 L=50 		0-41010-640-0 02 1 1109- ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1010-1108 ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1109- ● ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1209- ●
16 03.330 PIPE; INJ NO.1 8-98086-354-0 01 1 1010-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-352-0 01 1 1103-1108 ●
16 03.330 PIPE; INJ NO.1 8-98185-352-0 01 1 1109-1404 ● ●
16 03.330 PIPE; INJ NO.1 8-98271-218-0 01 1 1405-1502 ● ●
16 03.330 PIPE; INJ NO.1 8-98298-628-0 01 1 1503- ● ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1209- ●
17 03.330 PIPE; INJ NO.2 8-98086-355-0 01 1 1010-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-353-0 01 1 1103-1108 ●
17 03.330 PIPE; INJ NO.2 8-98185-353-0 01 1 1109-1404 ● ●
17 03.330 PIPE; INJ NO.2 8-98271-219-0 01 1 1405-1502 ● ●
17 03.330 PIPE; INJ NO.2 8-98298-629-0 01 1 1503- ● ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1209- ●
18 03.330 PIPE; INJ NO.3 8-98086-356-0 01 1 1010-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-354-0 01 1 1103-1108 ●
18 03.330 PIPE; INJ NO.3 8-98185-354-0 01 1 1109-1404 ● ●
18 03.330 PIPE; INJ NO.3 8-98271-220-0 01 1 1405-1502 ● ●
18 03.330 PIPE; INJ NO.3 8-98298-630-0 01 1 1503- ● ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1209- ●
19 03.330 PIPE; INJ NO.4 8-98086-357-0 01 1 1010-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-355-0 01 1 1103-1108 ●
19 03.330 PIPE; INJ NO.4 8-98185-355-0 01 1 1109-1404 ● ●
19 03.330 PIPE; INJ NO.4 8-98271-221-0 01 1 1405-1502 ● ●
19 03.330 PIPE; INJ NO.4 8-98298-631-0 01 1 1503- ● ●
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1209- ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 1209- ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=110 		8-97377-894-0 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1209- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98025-994-2 01 1 1010-1108 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98025-994-2 01 1 1109- ● ●
31 03.332 NOZZLE ASM; INJ 8-98076-995-2 04 1 1209-1306 ●
31 03.332 NOZZLE ASM; INJ 8-98238-318-0 04 1 1307- ●
31 03.332 NOZZLE ASM; INJ 8-98160-061-1 04 1 1010-1108 ●
31 03.332 NOZZLE ASM; INJ 8-98160-061-3 04 1 1109- ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1209- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-98181-540-0 04 1 1209- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (A) ID=23.3 		8-94173-412-0 04 1 1010-1108 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (A) ID=23.3 		8-94173-412-0 04 1 1109- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1 		8-98079-248-0 04 1 1010-1108 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1 		8-98079-248-0 04 1 1109- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1209-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-1 01 1 1010-1108 ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1109- ● ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-1 01 1 1010-1108 ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1109- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 10 1 1010-1108 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 10 1 1109-1405 ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1209- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 08 1 1010-1108 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 08 1 1109- ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1209- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1209- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1209- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1209- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1209- ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1209- ●
280 03.330 BOLT; CLIP,FUEL HOSE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1209- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 1209- ●
347 03.332 PIN 8-98165-035-0 04 1 1209- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
