0-33 — FAN AND FAN BELT (#76864) — 130 parça

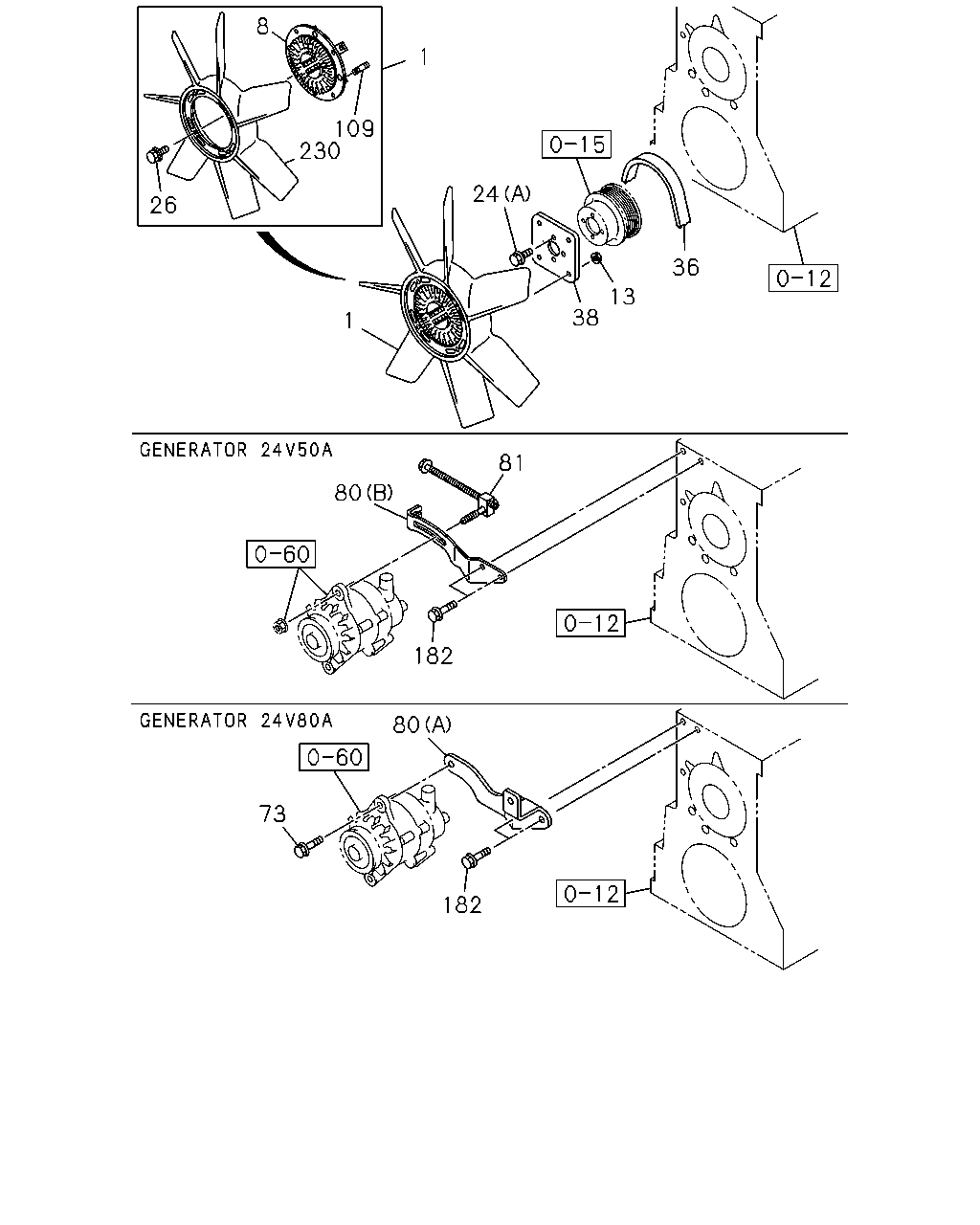

182 73 80 182 80 81 1 1 109 230 8 26 38 13 36 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.064 FAN; COOLING OD=450	8-97382-603-1	01	1	1209-	●
1	01.064 FAN; COOLING OD=510	8-98003-191-0	01	1	1010-1108		●
1	01.064 FAN; COOLING OD=510	8-98190-148-1	01	1	1109-		●	●
8	01.064 CLUTCH; COOLING FAN	8-98024-684-0	01	1	1209-	●
8	01.064 CLUTCH; COOLING FAN	8-98019-743-0	01	1	1010-1108		●
8	01.064 CLUTCH; COOLING FAN	8-98019-743-0	01	1	1109-		●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	1209-	●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1010-1108		●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1109-		●	●
24	01.062 BOLT; FAN 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	1209-	●
24	01.062 BOLT; FAN 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1209-	●
24	01.062 BOLT; FAN 08.900 (A) M8X18 FLANGE	0-28080-818-0	04	1	1010-1108		●
24	01.062 BOLT; FAN 08.900 (A) M8X18 FLANGE	0-28080-818-0	04	1	1109-		●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1010-1108		●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1109-1208		●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1209-	●	●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1006	8-97362-926-0	01	1	1209-	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1121	8-98038-423-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1121	8-98038-423-0	01	1	1109-		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1109-1208		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1209-		●	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1209-	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-102-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-102-0	01	1	1109-		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1109-1208		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1209-		●	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1209-	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-100-0	01	1	1209-	●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	1010-1108		●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	1109-		●	●
73	02.277 BOLT; GEN TO ADJ PLATE GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1010-1108		●
73	02.277 BOLT; GEN TO ADJ PLATE GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1109-		●	●
80	02.317 PLATE; ADJ 02.274 (C)	8-98039-816-1	01	1	1209-	●
80	02.317 PLATE; ADJ GENERATOR 24V50A(6QN) (B)	8-98035-085-0	01	1	1010-1108		●
80	02.317 PLATE; ADJ GENERATOR 24V50A(6QN) (B)	8-98035-085-1	01	1	1109-		●	●
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) 02.277 (A)	8-98036-550-1	01	1	1010-1108		●
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) 02.277 (A)	8-98036-550-1	01	1	1109-1507		●	●
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) (A)	8-98288-436-1	01	1	1508-		●	●
81	02.317 PIECE; SLIDING	8-97132-048-0	01	1	1209-	●
81	02.317 PIECE; SLIDING EXC. GENERATOR 24V80A(7YN)	8-98075-762-0	01	1	1010-1108		●
81	02.317 PIECE; SLIDING EXC. GENERATOR 24V80A(7YN)	8-98075-762-0	01	1	1109-		●	●
109	01.062 STUD; FAN CLU M6X18 L=27	0-41010-618-0	04	1	1209-	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1010-1108		●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1109-		●	●
182	01.062 BOLT; BRKT GENERATOR 24V80A(7YN) 09.173 M8X45 FLANGE	0-28050-845-0	02	1	1209-	●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1010-1108		●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1109-		●	●
230	01.055 FAN; COOLING	8-97330-207-0	01	1	1209-	●
230	01.055 FAN; COOLING	8-97367-381-0	01	1	1010-1108		●
230	01.055 FAN; COOLING	8-98190-058-0	01	1	1109-		●	●

147 147 144 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1006	8-97362-926-0	01	1	1209-	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1121	8-98038-423-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1121	8-98038-423-0	01	1	1109-		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1109-1208		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1209-		●	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1209-	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-102-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-102-0	01	1	1109-		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1109-1208		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1209-		●	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1209-	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-100-0	01	1	1209-	●
144	01.060 TENSIONER; DRIVE BELT GENERATOR 24V80A(7YN) 09.180 1-GROOVE	8-98031-811-1	01	1	1010-1108		●
144	01.060 TENSIONER; DRIVE BELT GENERATOR 24V80A(7YN) 09.180 1-GROOVE	8-98031-811-1	01	1	1109-		●	●
147	01.060 BOLT; BELT TENSIONER GENERATOR 24V80A(7YN) 03.417 M10X20 FLANGE	0-28151-020-0	03	1	1010-1108		●
147	01.060 BOLT; BELT TENSIONER GENERATOR 24V80A(7YN) 03.417 M10X20 FLANGE	0-28151-020-0	03	1	1109-		●	●

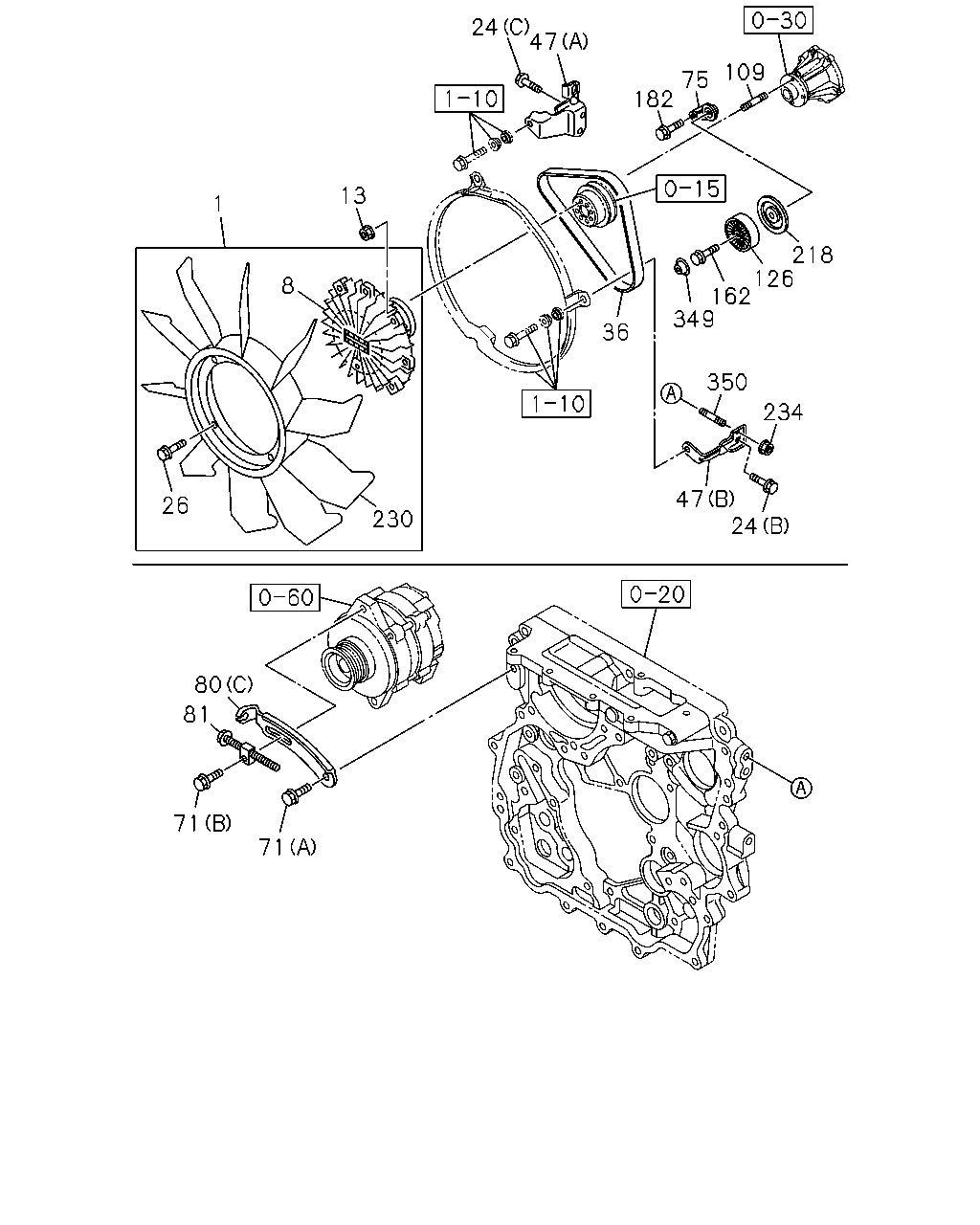

71 71 81 80 26 230 8 1 13 36 47 24 234 350 349 162 126 218 182 75 109 24 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.064 FAN; COOLING OD=450	8-97382-603-1	01	1	1209-	●
1	01.064 FAN; COOLING OD=510	8-98003-191-0	01	1	1010-1108		●
1	01.064 FAN; COOLING OD=510	8-98190-148-1	01	1	1109-		●	●
8	01.064 CLUTCH; COOLING FAN	8-98024-684-0	01	1	1209-	●
8	01.064 CLUTCH; COOLING FAN	8-98019-743-0	01	1	1010-1108		●
8	01.064 CLUTCH; COOLING FAN	8-98019-743-0	01	1	1109-		●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	1209-	●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1010-1108		●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1109-		●	●
24	01.062 BOLT; FAN 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	1209-	●
24	01.062 BOLT; FAN 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1209-	●
24	01.062 BOLT; FAN 08.900 (A) M8X18 FLANGE	0-28080-818-0	04	1	1010-1108		●
24	01.062 BOLT; FAN 08.900 (A) M8X18 FLANGE	0-28080-818-0	04	1	1109-		●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1010-1108		●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1109-1208		●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1209-	●	●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1006	8-97362-926-0	01	1	1209-	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1121	8-98038-423-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1121	8-98038-423-0	01	1	1109-		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1109-1208		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1209-		●	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1209-	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-102-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-102-0	01	1	1109-		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1010-1108		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1109-1208		●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1209-		●	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1209-	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-100-0	01	1	1209-	●
47	01.060 BRACKET; FAN (B)	8-97381-549-1	01	1	1209-	●
47	01.060 BRACKET; FAN (A)	8-98064-373-0	01	1	1209-1502	●
47	01.060 BRACKET; FAN (A)	8-98203-027-1	01	1	1503-	●
71	02.317 BOLT; ADJ PLATE,GEN 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	1209-	●
71	02.317 BOLT; ADJ PLATE,GEN 02.277 (B) M8X50 FLANGE	8-98050-130-0	01	1	1209-	●
75	01.062 BRACKET; IDLE PULLEY GENERATOR 24V80A(7YN)	8-97381-570-1	01	1	1209-	●
80	02.317 PLATE; ADJ 02.274 (C)	8-98039-816-1	01	1	1209-	●
80	02.317 PLATE; ADJ GENERATOR 24V50A(6QN) (B)	8-98035-085-0	01	1	1010-1108		●
80	02.317 PLATE; ADJ GENERATOR 24V50A(6QN) (B)	8-98035-085-1	01	1	1109-		●	●
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) 02.277 (A)	8-98036-550-1	01	1	1010-1108		●
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) 02.277 (A)	8-98036-550-1	01	1	1109-1507		●	●
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) (A)	8-98288-436-1	01	1	1508-		●	●
81	02.317 PIECE; SLIDING	8-97132-048-0	01	1	1209-	●
81	02.317 PIECE; SLIDING EXC. GENERATOR 24V80A(7YN)	8-98075-762-0	01	1	1010-1108		●
81	02.317 PIECE; SLIDING EXC. GENERATOR 24V80A(7YN)	8-98075-762-0	01	1	1109-		●	●
109	01.062 STUD; FAN CLU M6X18 L=27	0-41010-618-0	04	1	1209-	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1010-1108		●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1109-		●	●
126	01.062 PULLEY; IDLE GENERATOR 24V80A(7YN) 00.659	8-97371-903-1	01	1	1209-	●
162	01.062 BOLT; FAN CLU GENERATOR 24V80A(7YN) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1209-	●
182	01.062 BOLT; BRKT GENERATOR 24V80A(7YN) 09.173 M8X45 FLANGE	0-28050-845-0	02	1	1209-	●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1010-1108		●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1109-		●	●
218	01.062 COVER; IDLE PULLEY GENERATOR 24V80A(7YN)	8-98045-582-0	01	1	1209-	●
230	01.055 FAN; COOLING	8-97330-207-0	01	1	1209-	●
230	01.055 FAN; COOLING	8-97367-381-0	01	1	1010-1108		●
230	01.055 FAN; COOLING	8-98190-058-0	01	1	1109-		●	●
234	01.060 NUT; FAN BRKT 06.164 M8 FLANGE	5-09440-010-0	01	1	1209-	●
349	01.252 CAP; IDLE PULLEY GENERATOR 24V80A(7YN) 00.724	8-97386-240-0	01	1	1209-	●
350	02.317 STUD; FAN BRKT 01.428 M8X18 L=30	0-41010-818-0	01	1	1209-	●
