0-31 — THERMOSTAT AND HOUSING (#76862) — 57 parça

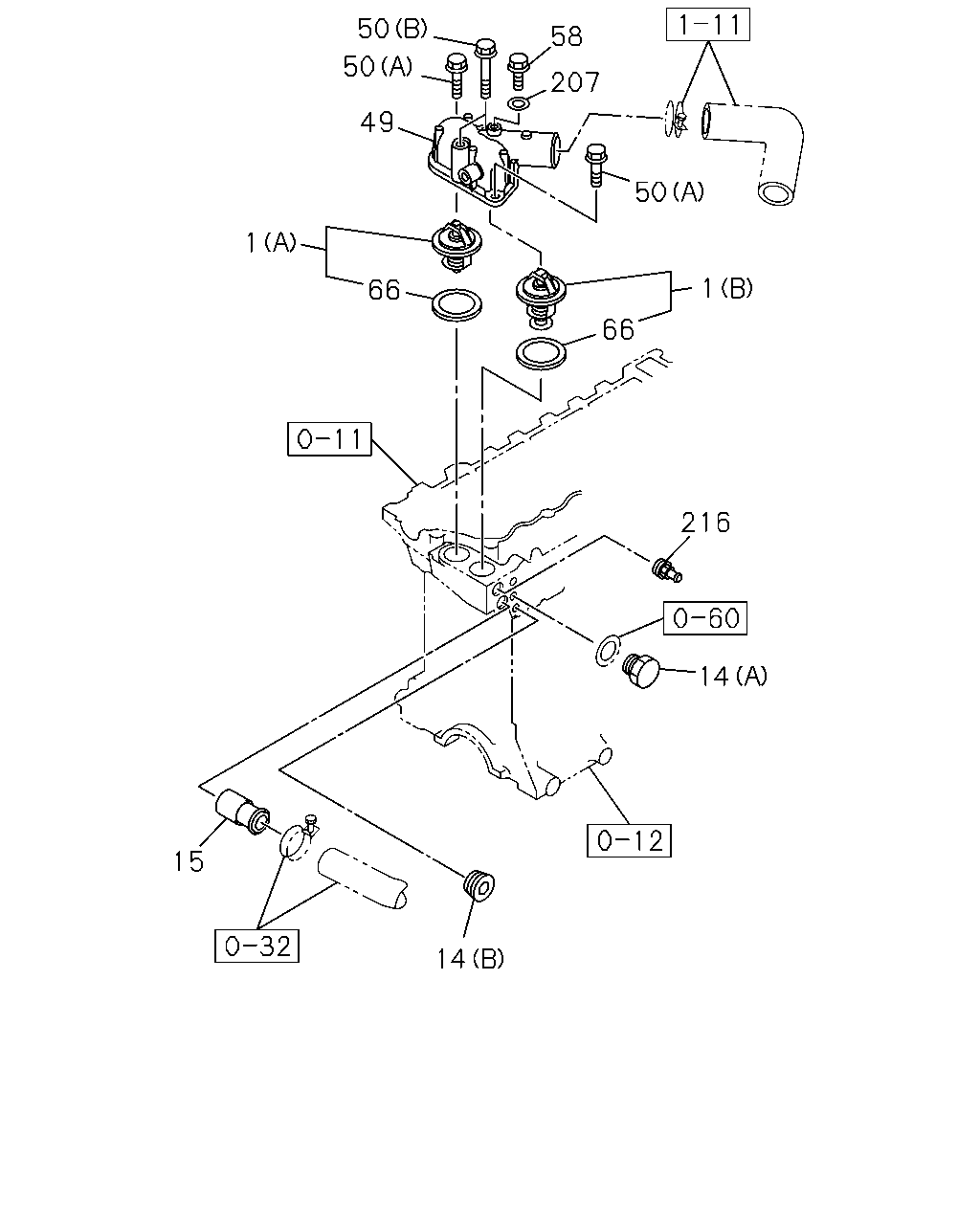

50 49 50 1 66 15 14 14 216 1 66 50 207 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.246 THERMOSTAT (C) 85 CELSIUS	8-98017-027-2	01	1	1209-	●
1	01.246 THERMOSTAT (A) 85 CELSIUS	8-97300-787-2	01	1	1010-1108		●
1	01.246 THERMOSTAT (A) 85 CELSIUS	8-97300-787-3	01	1	1109-		●	●
1	01.246 THERMOSTAT (B) 82 CELSIUS	8-97300-790-2	01	1	1010-1108		●
1	01.246 THERMOSTAT (B) 82 CELSIUS	8-97300-790-3	01	1	1109-		●	●
14	01.252 PLUG; SW 01.073 (B) PT3/8	5-09605-005-0	01	1	1010-1108		●
14	01.252 PLUG; SW 01.073 (B) PT3/8	5-09605-005-0	01	1	1109-		●	●
14	01.252 PLUG; SW 04.520 (A) M16X8 PLUG	9-09661-005-0	01	1	1010-1108		●
14	01.252 PLUG; SW 04.520 (A) M16X8 PLUG	9-09661-005-0	01	1	1109-		●	●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	1010-1108		●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	1109-		●	●
49	01.153 PIPE; WATER OUTLET	8-98074-754-0	01	1	1209-1404	●
49	01.153 PIPE; WATER OUTLET	8-98159-913-0	01	1	1405-	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	1010-1108		●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	1109-		●	●
50	01.252 BOLT; OUTLET PIPE 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1209-	●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1010-1108		●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1109-		●	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	1010-1108		●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	1109-		●	●
58	00.073 PLUG; WATER OUTLET PIPE 01.837 PT1/8	8-97369-552-1	02	1	1209-	●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	1010-1108		●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	1109-		●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98114-587-0	01	1	1209-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-97300-793-0	02	1	1010-1108		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-97300-793-0	02	1	1109-1501		●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-98280-281-0	02	1	1502-		●	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	1010-1108		●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	1109-1208		●	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	1209-	●	●	●
216	01.153 PIPE ASM; WATER,TURBOCHARGER RET	8-97358-699-0	01	1	1010-1108		●
216	01.153 PIPE ASM; WATER,TURBOCHARGER RET	8-97358-699-0	01	1	1109-		●	●

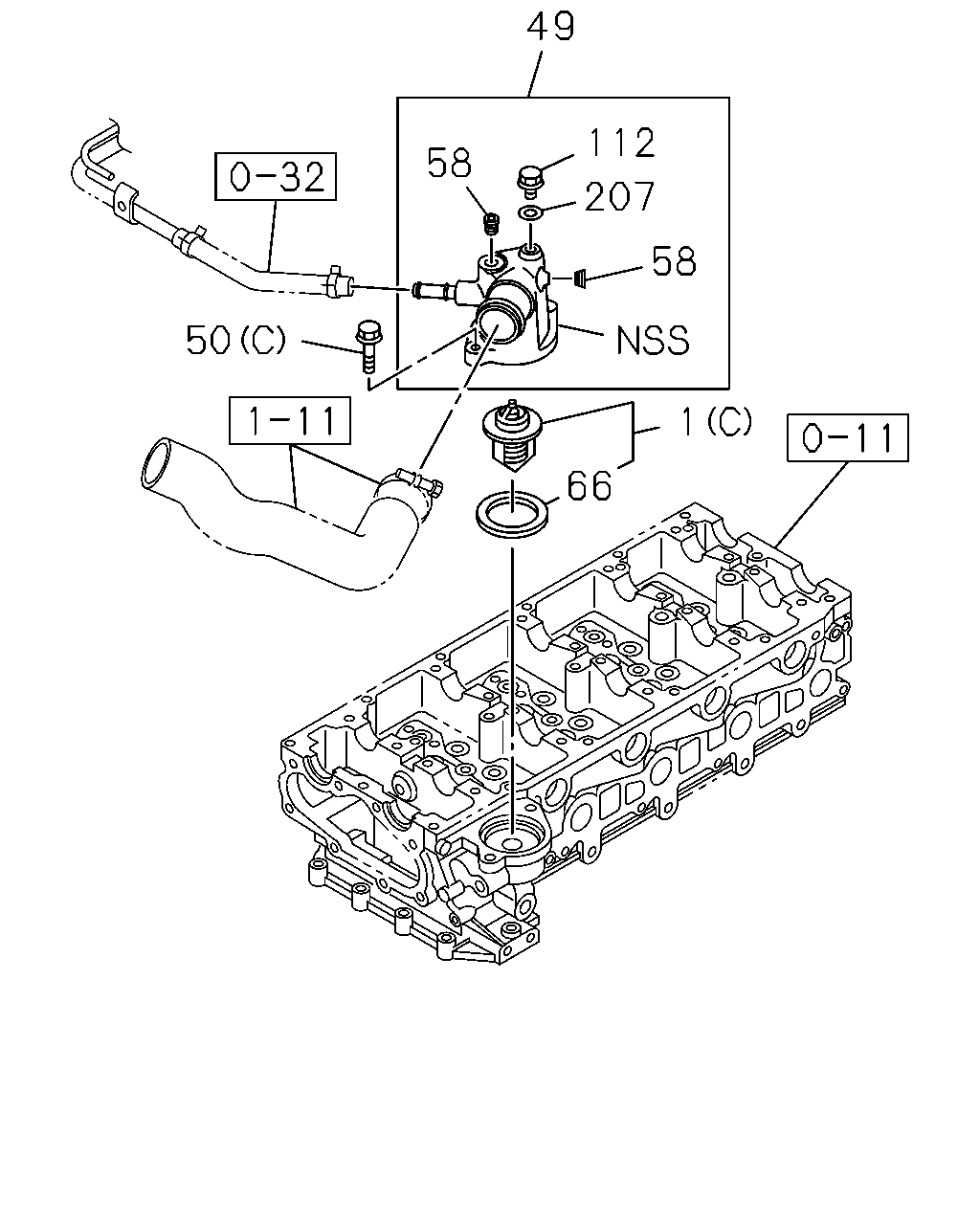

49 58 112 207 58 66 1 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.246 THERMOSTAT (C) 85 CELSIUS	8-98017-027-2	01	1	1209-	●
1	01.246 THERMOSTAT (A) 85 CELSIUS	8-97300-787-2	01	1	1010-1108		●
1	01.246 THERMOSTAT (A) 85 CELSIUS	8-97300-787-3	01	1	1109-		●	●
1	01.246 THERMOSTAT (B) 82 CELSIUS	8-97300-790-2	01	1	1010-1108		●
1	01.246 THERMOSTAT (B) 82 CELSIUS	8-97300-790-3	01	1	1109-		●	●
49	01.153 PIPE; WATER OUTLET	8-98074-754-0	01	1	1209-1404	●
49	01.153 PIPE; WATER OUTLET	8-98159-913-0	01	1	1405-	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	1010-1108		●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	1109-		●	●
50	01.252 BOLT; OUTLET PIPE 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1209-	●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1010-1108		●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1109-		●	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	1010-1108		●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	1109-		●	●
58	00.073 PLUG; WATER OUTLET PIPE 01.837 PT1/8	8-97369-552-1	02	1	1209-	●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	1010-1108		●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	1109-		●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98114-587-0	01	1	1209-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-97300-793-0	02	1	1010-1108		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-97300-793-0	02	1	1109-1501		●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-98280-281-0	02	1	1502-		●	●
112	01.251 PLUG 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1209-	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	1010-1108		●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	1109-1208		●	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	1209-	●	●	●
