◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#76860) — 68 parça

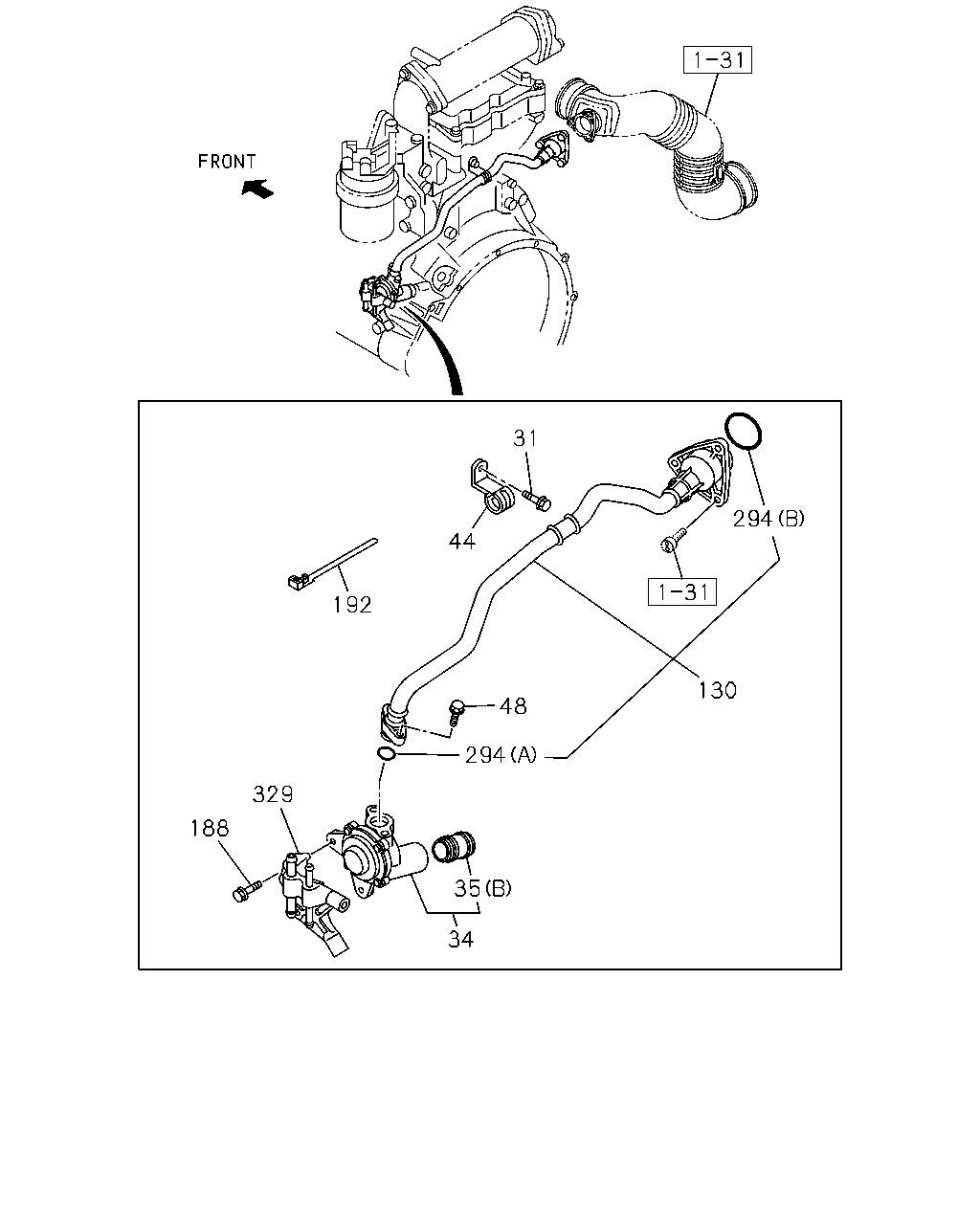

çizim 40667
31 44 294 130 48 294 35 34 329 188 192
BalonParca AdiParca NoAdetTipApplied Date A B
31 03.417 BOLT; HOSE CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1010-1102 ●
31 03.417 BOLT; HOSE CLIP
EXC. FRIGID ZONE(YL3) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1103-1108 ●
31 03.417 BOLT; HOSE CLIP
EXC. FRIGID ZONE(YL3) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1109- ● ●
34 03.415 VENTILATOR 8-98036-808-1 01 1 1010-1108 ●
34 03.415 VENTILATOR 8-98036-808-1 01 1 1109-1310 ● ●
34 03.415 VENTILATOR 8-98245-392-0 01 1 1311- ● ●
35 03.415 GASKET; VENTILATOR
FRIGID ZONE(YL3) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1103-1108 ●
35 03.415 GASKET; VENTILATOR
FRIGID ZONE(YL3) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1109- ● ●
35 03.415 GASKET; VENTILATOR
(B) 		8-98038-692-0 01 1 1010-1108 ●
35 03.415 GASKET; VENTILATOR
(B) 		8-98038-692-0 01 1 1109- ● ●
44 03.278 CLIP; HOSE,PCV
02.483 ID=20 H=23 L=27 		1-09700-861-0 01 1 1010-1102 ●
44 03.278 CLIP; HOSE,PCV
EXC. FRIGID ZONE(YL3) 02.483 ID=20 H=23 L=27 		1-09700-861-0 01 1 1103-1108 ●
44 03.278 CLIP; HOSE,PCV
EXC. FRIGID ZONE(YL3) 02.483 ID=20 H=23 L=27 		1-09700-861-0 01 1 1109- ● ●
48 03.278 BOLT; PIPE
FRIGID ZONE(YL3) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1103-1108 ●
48 03.278 BOLT; PIPE
FRIGID ZONE(YL3) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1109- ● ●
48 03.278 BOLT; PIPE
00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1010-1102 ●
48 03.278 BOLT; PIPE
EXC. FRIGID ZONE(YL3) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1103-1108 ●
48 03.278 BOLT; PIPE
EXC. FRIGID ZONE(YL3) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1109-1411 ● ●
48 03.278 BOLT; PIPE
00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1412- ● ●
130 03.278 PIPE; PCV 8-98036-533-1 01 1 1010-1102 ●
130 03.278 PIPE; PCV
EXC. FRIGID ZONE(YL3) 		8-98036-533-1 01 1 1103-1108 ●
130 03.278 PIPE; PCV
EXC. FRIGID ZONE(YL3) 		8-98036-533-1 01 1 1109- ● ●
188 01.780 BOLT; BRKT
00.206 M8X30 FLANGE 		0-28050-830-0 04 1 1010-1108 ●
188 01.780 BOLT; BRKT
00.206 M8X30 FLANGE 		0-28050-830-0 04 1 1109- ● ●
192 03.280 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 1010-1102 ●
192 03.280 CLIP; BAND
EXC. FRIGID ZONE(YL3) 03.162 L=140 		5-09707-031-1 01 1 1103-1108 ●
192 03.280 CLIP; BAND
EXC. FRIGID ZONE(YL3) 03.162 L=140 		5-09707-031-1 01 1 1109- ● ●
294 03.278 GASKET; PCV
01.550 (A) ID=17.8 		1-09623-588-0 01 1 1010-1102 ●
294 03.278 GASKET; PCV
EXC. FRIGID ZONE(YL3) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1103-1108 ●
294 03.278 GASKET; PCV
EXC. FRIGID ZONE(YL3) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1109- ● ●
294 03.278 GASKET; PCV
01.097 (B) ID=43.7 		9-09561-344-0 01 1 1010-1102 ●
294 03.278 GASKET; PCV
EXC. FRIGID ZONE(YL3) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1103-1108 ●
294 03.278 GASKET; PCV
EXC. FRIGID ZONE(YL3) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1109- ● ●
329 01.750 BRACKET; VENTILATOR 8-98036-160-0 01 1 1010-1010 ●
329 01.750 BRACKET; VENTILATOR 8-98171-059-0 01 1 1010-1108 ●
329 01.750 BRACKET; VENTILATOR 8-98171-059-0 01 1 1109- ● ●

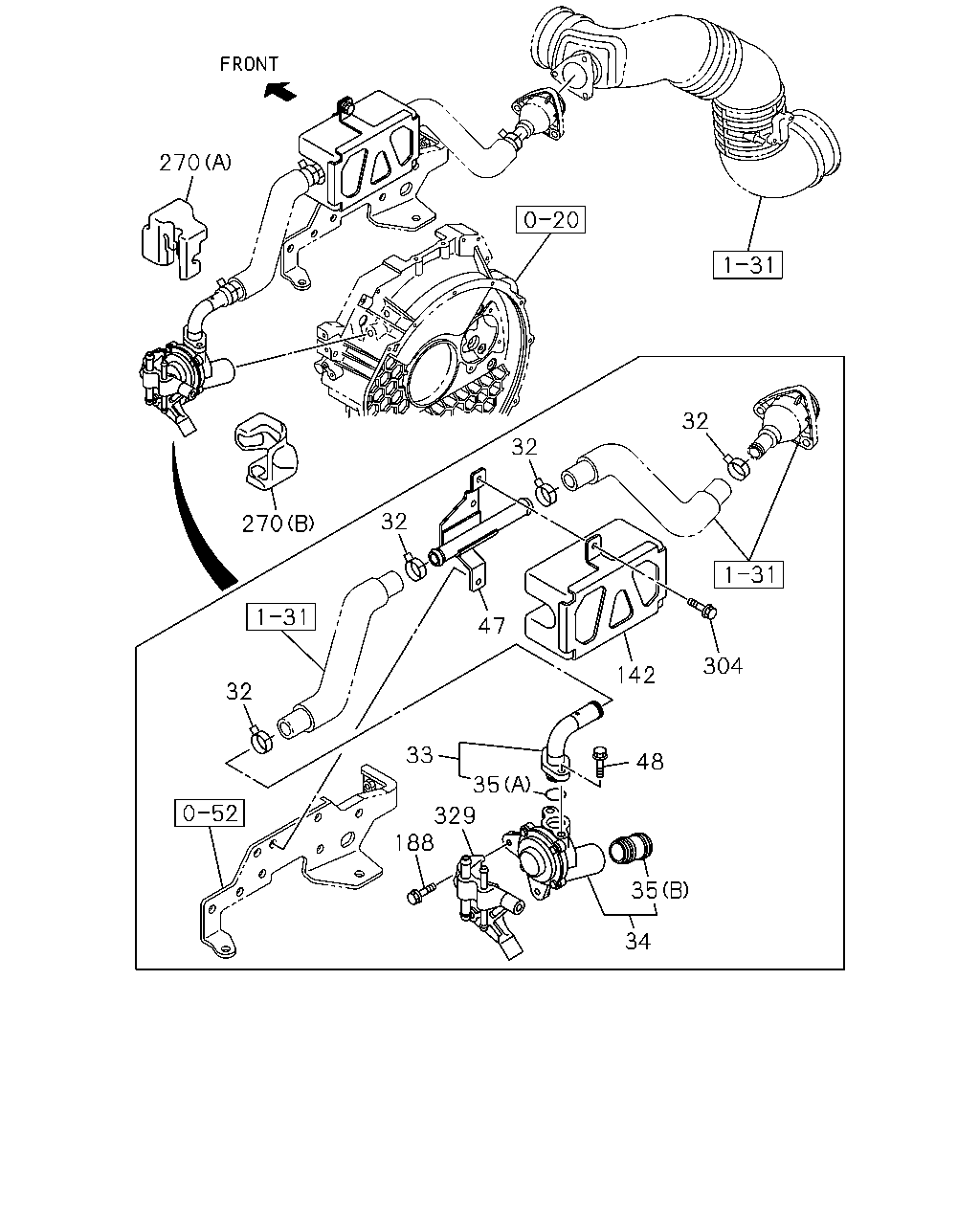

çizim 40787
270 270 32 32 32 304 142 47 33 32 35 329 188 48 35 34
BalonParca AdiParca NoAdetTipApplied Date A B
32 03.417 CLIP; VENT HOSE
FRIGID ZONE(YL3) 08.846 ID=21.7 		8-97203-074-0 04 1 1103-1108 ●
32 03.417 CLIP; VENT HOSE
FRIGID ZONE(YL3) 08.846 ID=21.7 		8-97203-074-0 04 1 1109- ● ●
33 03.278 PIPE; VENTILATOR
FRIGID ZONE(YL3) 		8-98075-640-1 01 1 1103-1108 ●
33 03.278 PIPE; VENTILATOR
FRIGID ZONE(YL3) 		8-98075-640-1 01 1 1109- ● ●
34 03.415 VENTILATOR 8-98036-808-1 01 1 1010-1108 ●
34 03.415 VENTILATOR 8-98036-808-1 01 1 1109-1310 ● ●
34 03.415 VENTILATOR 8-98245-392-0 01 1 1311- ● ●
35 03.415 GASKET; VENTILATOR
FRIGID ZONE(YL3) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1103-1108 ●
35 03.415 GASKET; VENTILATOR
FRIGID ZONE(YL3) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1109- ● ●
35 03.415 GASKET; VENTILATOR
(B) 		8-98038-692-0 01 1 1010-1108 ●
35 03.415 GASKET; VENTILATOR
(B) 		8-98038-692-0 01 1 1109- ● ●
47 03.278 PIPE ASM; PCV
FRIGID ZONE(YL3) 		8-98153-108-0 01 1 1103-1108 ●
47 03.278 PIPE ASM; PCV
FRIGID ZONE(YL3) 		8-98153-108-0 01 1 1109- ● ●
48 03.278 BOLT; PIPE
FRIGID ZONE(YL3) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1103-1108 ●
48 03.278 BOLT; PIPE
FRIGID ZONE(YL3) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1109- ● ●
48 03.278 BOLT; PIPE
00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1010-1102 ●
48 03.278 BOLT; PIPE
EXC. FRIGID ZONE(YL3) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1103-1108 ●
48 03.278 BOLT; PIPE
EXC. FRIGID ZONE(YL3) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1109-1411 ● ●
48 03.278 BOLT; PIPE
00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1412- ● ●
142 01.745 COVER; PCV
FRIGID ZONE(YL3) 		8-98153-109-0 01 1 1103-1108 ●
142 01.745 COVER; PCV
FRIGID ZONE(YL3) 		8-98153-109-0 01 1 1109- ● ●
188 01.780 BOLT; BRKT
00.206 M8X30 FLANGE 		0-28050-830-0 04 1 1010-1108 ●
188 01.780 BOLT; BRKT
00.206 M8X30 FLANGE 		0-28050-830-0 04 1 1109- ● ●
270 01.750 COVER; VENTILATOR
FRIGID ZONE(YL3) (A) 		8-98152-829-0 01 1 1103-1108 ●
270 01.750 COVER; VENTILATOR
FRIGID ZONE(YL3) (A) 		8-98152-829-0 01 1 1109- ● ●
270 01.750 COVER; VENTILATOR
FRIGID ZONE(YL3) (B) 		8-98152-830-0 01 1 1103-1108 ●
270 01.750 COVER; VENTILATOR
FRIGID ZONE(YL3) (B) 		8-98152-830-0 01 1 1109- ● ●
304 03.275 BOLT; COVER
FRIGID ZONE(YL3) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1103-1108 ●
304 03.275 BOLT; COVER
FRIGID ZONE(YL3) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1109- ● ●
329 01.750 BRACKET; VENTILATOR 8-98036-160-0 01 1 1010-1010 ●
329 01.750 BRACKET; VENTILATOR 8-98171-059-0 01 1 1010-1108 ●
329 01.750 BRACKET; VENTILATOR 8-98171-059-0 01 1 1109- ● ●
