Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#7686) — 483 parça

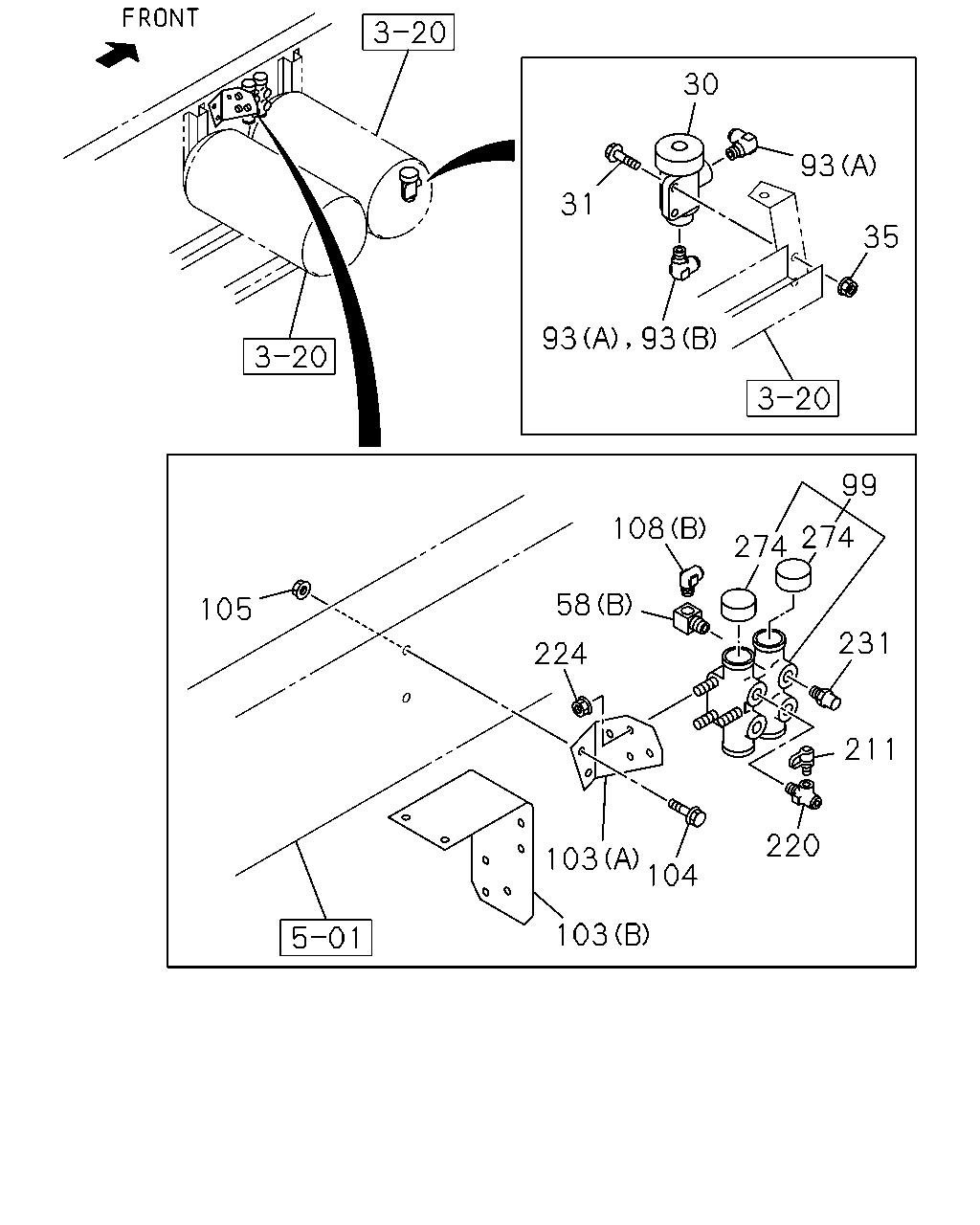

30 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	9902-0003	●
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	0004-	●
30	GOVERNOR; AIR CONT AIR DRYER<PS7>	1-48350-063-0	01	1	0004-		●
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	9902-9904	●
240	REPAIR KIT; AIR CONT GOV PARKING BRAKE VALVE LEVER TYPE<W48>	1-85576-303-0	01	1	9905-0003	●
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	0004-	●
240	REPAIR KIT; AIR CONT GOV AIR DRYER<PS7>	1-85576-303-0	01	1	0004-		●

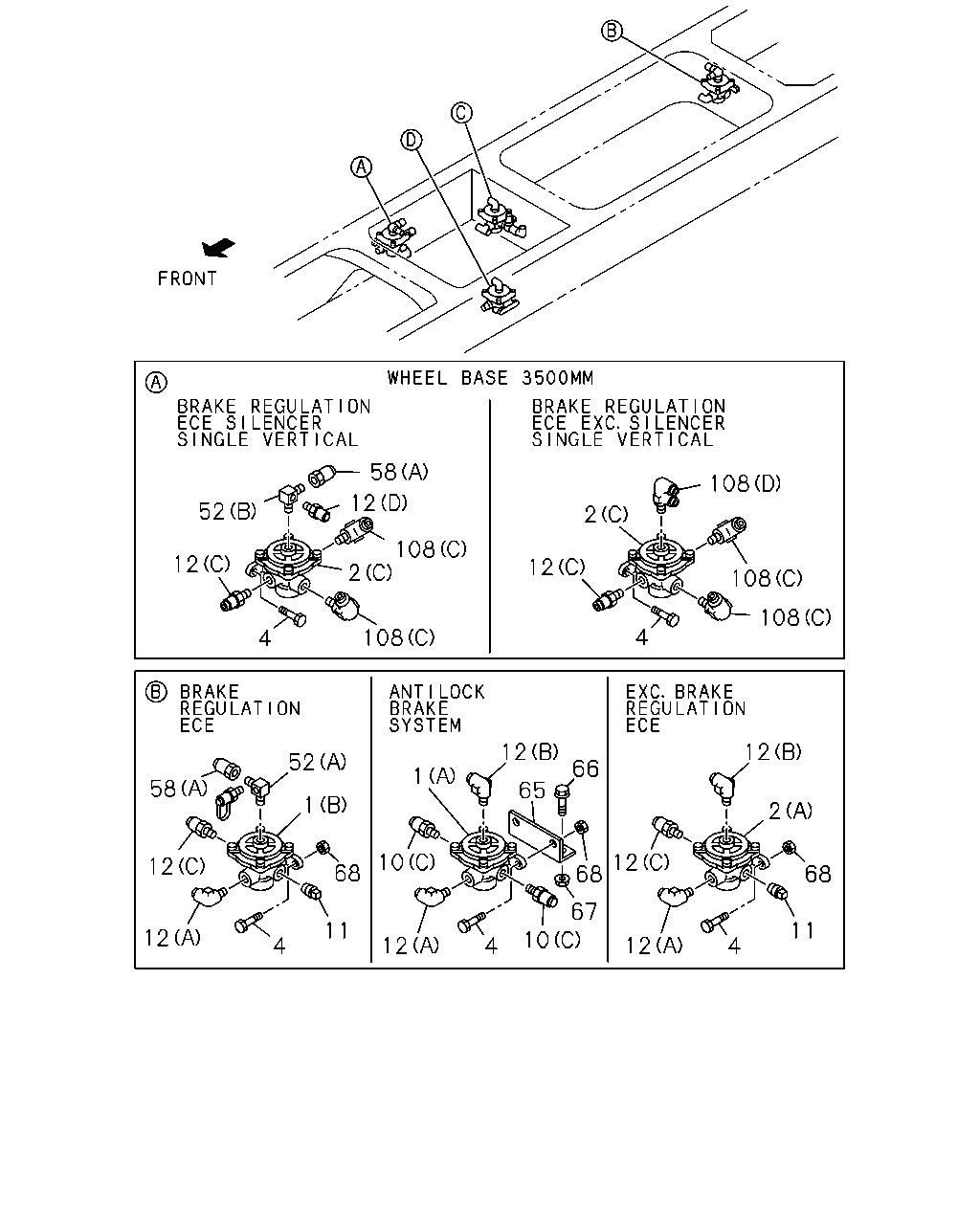

58 108 12 52 2 108 2 12 12 108 108 4 108 4 12 12 2 66 1 58 65 1 2 10 12 12 68 68 68 67 10 11 11 12 12 12 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9902-9903	●
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9904-9904	●
1	VALVE; RELAY RWD RR WHEEL BASE 3500MM(35W) (A)	1-48210-278-0	01	1	9904-9904	●
1	VALVE; RELAY RWD RR BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	9905-0003	●
1	VALVE; RELAY RWD RR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48210-278-0	01	1	9905-0003	●
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	9905-0003	●
1	VALVE; RELAY RWD RR BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	0004-	●
1	VALVE; RELAY RWD RR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48210-278-0	01	1	0004-	●
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0004-	●
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	0004-		●
1	VALVE; RELAY RWD RR BRAKE REGULATION ECE<TDV> (B)	1-48210-500-0	01	1	9902-	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	9905-0003	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0004-	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) (A)	1-48210-278-0	01	1	0004-		●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48210-143-0	01	1	9905-0003	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48210-143-0	01	1	0004-	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) (B)	1-48210-143-0	01	1	0004-		●
2	VALVE; RELAY WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	9902-	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	9902-9905	●
4	BOLT; RELAY VLV TO BRKT EXC. ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28681-035-0	02	1	9906-0003	●
4	BOLT; RELAY VLV TO BRKT EXC. ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28681-035-0	02	1	0004-	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0004-		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X25 FLANGE	0-28681-025-0	02	1	9906-	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9904	●
10	CONNECTOR WHEEL BASE 3500MM(35W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9904	●
10	CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●
10	CONNECTOR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●
10	CONNECTOR (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9902-9904	●
10	CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-	●
10	CONNECTOR (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9902-9904	●
10	CONNECTOR BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9902-9904	●
10	CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-9905	●
10	CONNECTOR (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-9905	●
10	CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-0003	●
10	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-0003	●
10	CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-	●
10	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-	●
10	CONNECTOR (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-		●
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	9906-	●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9905-0003	●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0004-	●
10	CONNECTOR WHEEL BASE 3200MM(32W) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0004-		●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9905-0003	●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0004-	●
10	CONNECTOR WHEEL BASE 3200MM(32W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0004-		●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-0003	●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-	●
10	CONNECTOR WHEEL BASE 3200MM(32W) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-		●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9905-0003	●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●
10	CONNECTOR WHEEL BASE 3200MM(32W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-		●
10	CONNECTOR WHEEL BASE 3500MM(35W) (H)	1-09656-446-0	01	1	9902-9904	●
10	CONNECTOR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (H)	1-09656-446-0	01	1	9905-	●
10	CONNECTOR WHEEL BASE 3500MM(35W) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9904	●
10	CONNECTOR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (I) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-	●
10	CONNECTOR WHEEL BASE 3500MM(35W) (J) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9902-9904	●
10	CONNECTOR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (J) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9905-	●
10	CONNECTOR WHEEL BASE 3500MM(35W) (K)	1-09661-126-0	01	1	9902-9904	●
10	CONNECTOR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (K)	1-09661-126-0	01	1	9905-	●
11	PLUG BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	9902-9904	●
11	PLUG PT1/2	9-09204-521-0	01	1	9905-9905	●
11	PLUG EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	9906-0003	●
11	PLUG EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	0004-	●
11	PLUG PT1/2	9-09204-521-0	01	1	0004-		●
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9902-9904	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-0003	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0004-	●	●
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-0003	●
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-	●
12	CONNECTOR; RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9902-9904	●
12	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-0003	●
12	CONNECTOR; RELAY VLV WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-0003	●
12	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> BRAKE REGULATION ECE<TDV> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9902-9907	●
12	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9908-	●
52	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9902-	●
52	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9902-9907	●
52	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9908-	●
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0007	●
58	ADAPTER WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0007	●
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●
58	ADAPTER WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●
58	ADAPTER WHEEL BASE 3200MM(32W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9905-0003	●
58	ADAPTER WHEEL BASE 3200MM(32W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	0004-	●	●
58	ADAPTER WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9905-0003	●
58	ADAPTER WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0004-	●
58	ADAPTER WHEEL BASE 3200MM(32W) (C) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0004-		●
58	ADAPTER WHEEL BASE 3500MM(35W) (B)	1-09660-778-1	01	1	9902-	●
65	BRACKET; RELAY VLV RR ANTILOCK BRAKE SYSTEM(BFA)	1-47477-856-1	01	1	9906-	●
66	BOLT; BRKT,RELAY VLV RR ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE	0-28681-030-0	02	1	9906-	●
67	NUT; BRKT,RELAY VLV RR ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91150-210-0	02	1	9906-	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0004-	●	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-0003	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9904	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9902-9904	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-0003	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-0003	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0004-	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0004-	●
108	CONNECTOR; ELBOW (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0004-		●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> EXC. SILENCER SINGLE VERTICAL<N28> (D) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9902-9907	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (D) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9908-	●

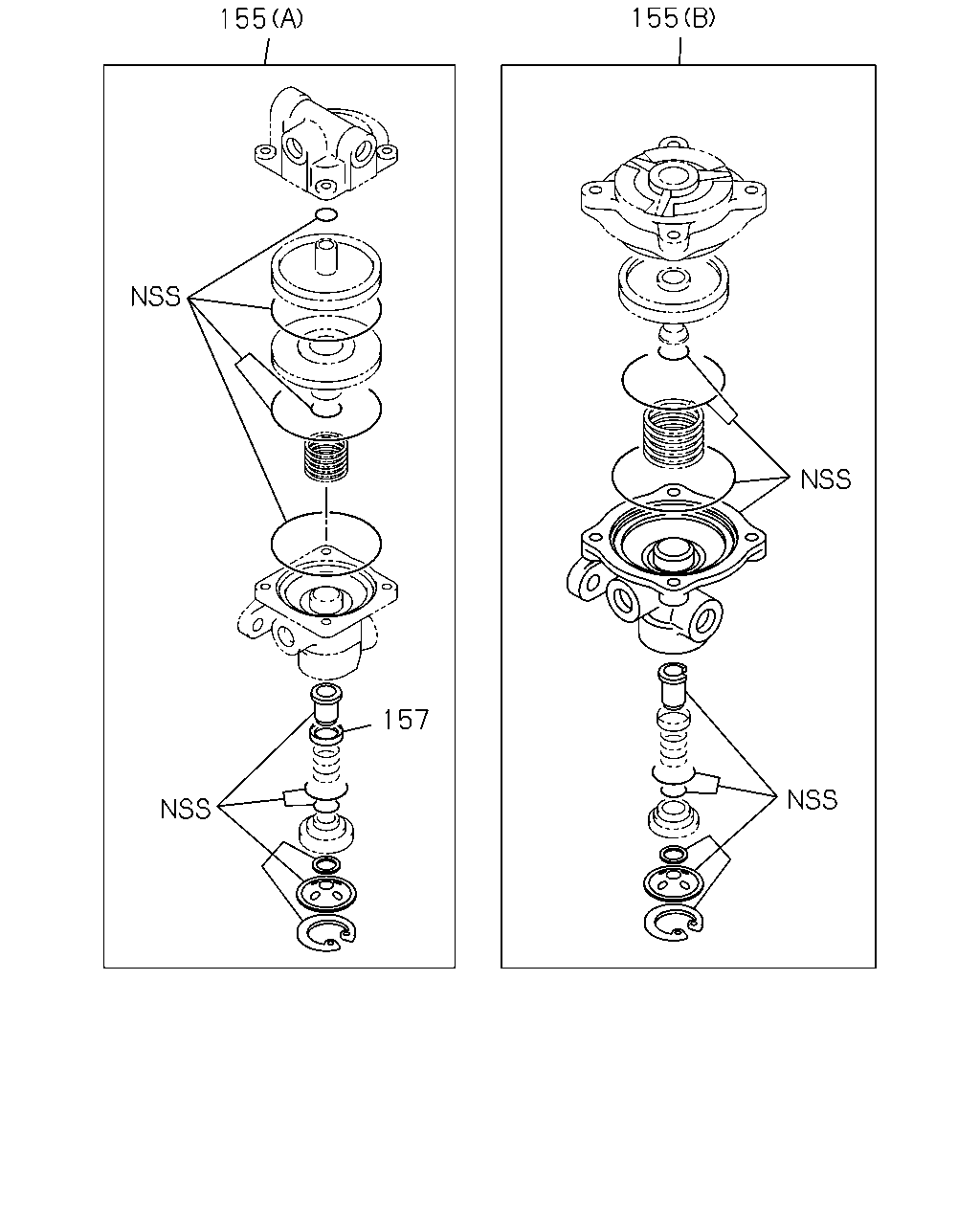

155 155 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	9902-9904	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	01	1	9902-9904	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	01	1	9902-9904	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-85576-033-0	01	1	9905-9907	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	01	1	9905-9907	●
155	REPAIR KIT; RELAY VALVE PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-85576-033-0	01	1	9905-9907	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	9905-9907	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 3500MM(35W) (B)	1-85576-033-0	01	1	9905-9907	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-85576-033-0	01	1	9908-0003	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	01	1	9908-0003	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 3500MM(35W) (B)	1-85576-033-0	01	1	9908-0003	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0004-	●	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	01	1	0004-	●	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	01	1	0004-	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-85576-035-0	01	1	9905-0003	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-85576-035-0	01	1	0004-	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 3200MM(32W) (A)	1-85576-035-0	01	1	0004-		●
157	RETAINER; VALVE	1-48213-002-0	01	1	9902-9904	●
157	RETAINER; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	9902-9904	●
157	RETAINER; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	9902-9904	●
157	RETAINER; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48213-002-0	01	1	9905-9907	●
157	RETAINER; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	9905-9907	●
157	RETAINER; VALVE PARKING BRAKE VALVE LEVER TYPE<W48>	1-48213-002-0	01	1	9905-9907	●
157	RETAINER; VALVE	1-48213-002-0	01	1	9905-9907	●
157	RETAINER; VALVE WHEEL BASE 3500MM(35W)	1-48213-002-0	01	1	9905-9907	●
157	RETAINER; VALVE	1-48213-002-0	01	1	9908-0003	●
157	RETAINER; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48213-002-0	01	1	9908-0003	●
157	RETAINER; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	9908-0003	●
157	RETAINER; VALVE WHEEL BASE 3500MM(35W)	1-48213-002-0	01	1	9908-0003	●
157	RETAINER; VALVE	1-48213-002-0	01	1	0004-	●	●
157	RETAINER; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0004-	●	●
157	RETAINER; VALVE BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48213-002-0	01	1	0004-	●
157	RETAINER; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0004-	●
157	RETAINER; VALVE	1-48213-002-0	01	1	0004-		●

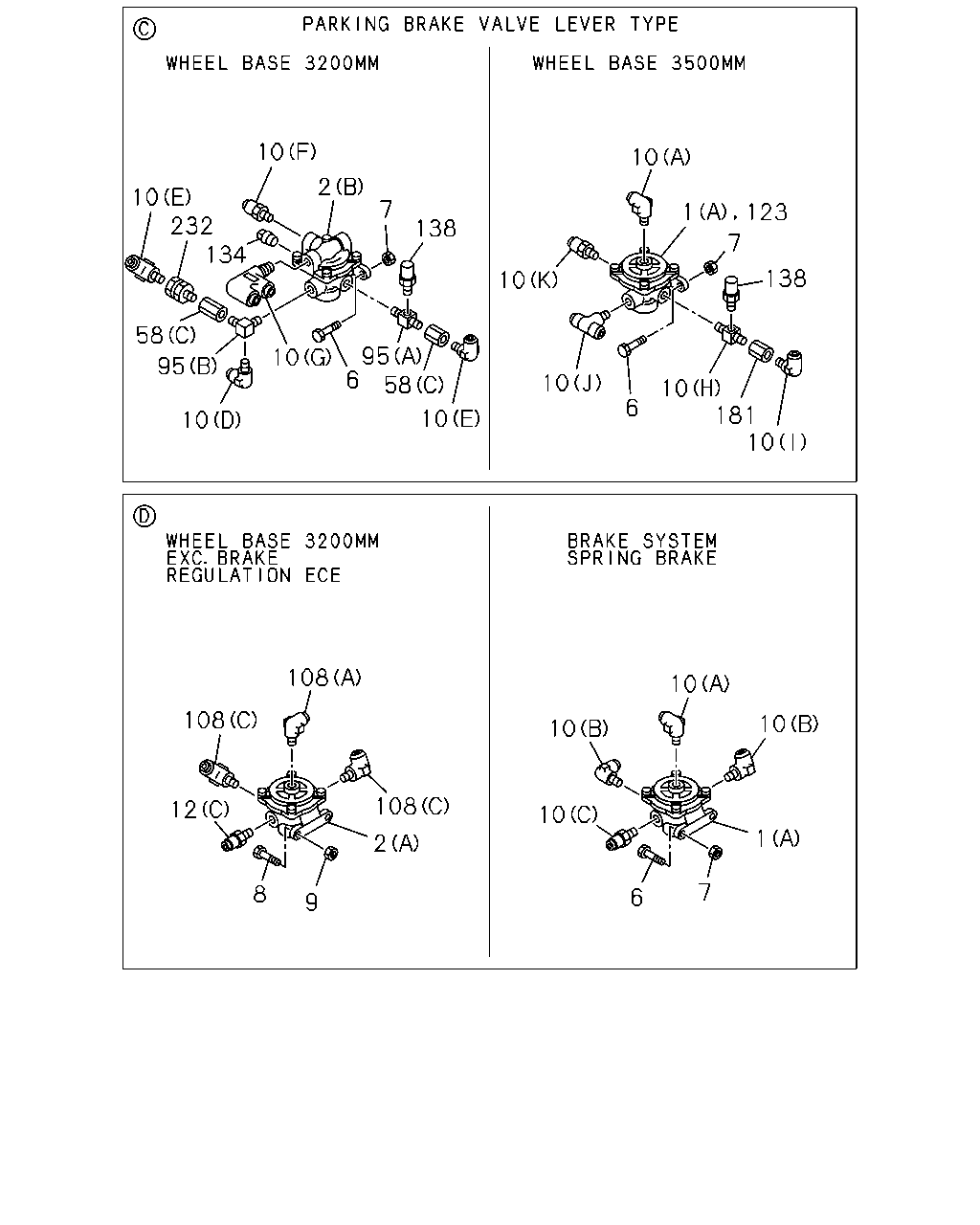

10 10 2 10 232 134 7 123 1 138 7 138 10 58 95 6 58 10 95 10 10 181 10 6 10 10 108 10 108 10 10 108 12 10 1 2 7 8 6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9902-9903	●
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9904-9904	●
1	VALVE; RELAY RWD RR WHEEL BASE 3500MM(35W) (A)	1-48210-278-0	01	1	9904-9904	●
1	VALVE; RELAY RWD RR BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	9905-0003	●
1	VALVE; RELAY RWD RR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48210-278-0	01	1	9905-0003	●
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	9905-0003	●
1	VALVE; RELAY RWD RR BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	0004-	●
1	VALVE; RELAY RWD RR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48210-278-0	01	1	0004-	●
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0004-	●
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	0004-		●
1	VALVE; RELAY RWD RR BRAKE REGULATION ECE<TDV> (B)	1-48210-500-0	01	1	9902-	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	9905-0003	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0004-	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) (A)	1-48210-278-0	01	1	0004-		●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48210-143-0	01	1	9905-0003	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48210-143-0	01	1	0004-	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) (B)	1-48210-143-0	01	1	0004-		●
2	VALVE; RELAY WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	9902-	●
6	BOLT; VLV M10X35 FLANGE	0-28681-035-0	02	1	9902-9904	●
6	BOLT; VLV M10X35 FLANGE	0-28681-035-0	02	1	9902-9904	●
6	BOLT; VLV PARKING BRAKE VALVE LEVER TYPE<W48> M10X35 FLANGE	0-28681-035-0	02	1	9905-0003	●
6	BOLT; VLV BRAKE SYSTEM SPRING BRAKE(BCR) M10X35 FLANGE	0-28681-035-0	02	1	9905-0003	●
6	BOLT; VLV PARKING BRAKE VALVE LEVER TYPE<W48> M10X35 FLANGE	0-28681-035-0	02	1	0004-	●
6	BOLT; VLV BRAKE SYSTEM SPRING BRAKE(BCR) M10X35 FLANGE	0-28681-035-0	02	1	0004-	●
6	BOLT; VLV M10X35 FLANGE	0-28681-035-0	02	1	0004-		●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	04	1	9902-9904	●
7	NUT; RELAY VLV BRAKE SYSTEM SPRING BRAKE(BCR) M10 FLANGE	0-91150-210-0	04	1	9905-	●
7	NUT; RELAY VLV PARKING BRAKE VALVE LEVER TYPE<W48> M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
7	NUT; RELAY VLV PARKING BRAKE VALVE LEVER TYPE<W48> M10 FLANGE	0-91150-210-0	02	1	0004-	●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0004-		●
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	9902-0003	●
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	0004-	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	0004-	●	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9904	●
10	CONNECTOR WHEEL BASE 3500MM(35W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-9904	●
10	CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●
10	CONNECTOR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●
10	CONNECTOR (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9902-9904	●
10	CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-	●
10	CONNECTOR (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9902-9904	●
10	CONNECTOR BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9902-9904	●
10	CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-9905	●
10	CONNECTOR (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-9905	●
10	CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-0003	●
10	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-0003	●
10	CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-	●
10	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-	●
10	CONNECTOR (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-		●
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	9906-	●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9905-0003	●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0004-	●
10	CONNECTOR WHEEL BASE 3200MM(32W) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0004-		●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9905-0003	●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0004-	●
10	CONNECTOR WHEEL BASE 3200MM(32W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0004-		●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-0003	●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-	●
10	CONNECTOR WHEEL BASE 3200MM(32W) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-		●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9905-0003	●
10	CONNECTOR WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-	●
10	CONNECTOR WHEEL BASE 3200MM(32W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0004-		●
10	CONNECTOR WHEEL BASE 3500MM(35W) (H)	1-09656-446-0	01	1	9902-9904	●
10	CONNECTOR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (H)	1-09656-446-0	01	1	9905-	●
10	CONNECTOR WHEEL BASE 3500MM(35W) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9904	●
10	CONNECTOR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (I) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-	●
10	CONNECTOR WHEEL BASE 3500MM(35W) (J) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9902-9904	●
10	CONNECTOR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (J) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9905-	●
10	CONNECTOR WHEEL BASE 3500MM(35W) (K)	1-09661-126-0	01	1	9902-9904	●
10	CONNECTOR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (K)	1-09661-126-0	01	1	9905-	●
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9902-9904	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-0003	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0004-	●	●
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-0003	●
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-	●
12	CONNECTOR; RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9902-9904	●
12	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-0003	●
12	CONNECTOR; RELAY VLV WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-0003	●
12	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0004-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> BRAKE REGULATION ECE<TDV> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9902-9907	●
12	CONNECTOR; RELAY VLV WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9908-	●
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0007	●
58	ADAPTER WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0007	●
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●
58	ADAPTER WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●
58	ADAPTER WHEEL BASE 3200MM(32W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9905-0003	●
58	ADAPTER WHEEL BASE 3200MM(32W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	0004-	●	●
58	ADAPTER WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9905-0003	●
58	ADAPTER WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0004-	●
58	ADAPTER WHEEL BASE 3200MM(32W) (C) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0004-		●
58	ADAPTER WHEEL BASE 3500MM(35W) (B)	1-09660-778-1	01	1	9902-	●
95	UNION; AIR VLV WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-09656-446-0	01	1	9905-0003	●
95	UNION; AIR VLV WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-09656-446-0	01	1	0004-	●
95	UNION; AIR VLV WHEEL BASE 3200MM(32W) (A)	1-09656-446-0	01	1	0004-		●
95	UNION; AIR VLV WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09656-672-0	01	1	9905-0003	●
95	UNION; AIR VLV WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09656-672-0	01	1	0004-	●
95	UNION; AIR VLV WHEEL BASE 3200MM(32W) (B)	1-09656-672-0	01	1	0004-		●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-0003	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9904	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9902-9904	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-0003	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-0003	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0004-	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0004-	●
108	CONNECTOR; ELBOW (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0004-		●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> EXC. SILENCER SINGLE VERTICAL<N28> (D) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9902-9907	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (D) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9908-	●
123	CONNECTOR; PARKING VLV WHEEL BASE 3500MM(35W)	1-48210-278-0	01	1	9902-9903	●
134	PLUG; RELAY VALVE WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> PT1/2	9-09204-521-0	01	1	9905-0003	●
134	PLUG; RELAY VALVE WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> PT1/2	9-09204-521-0	01	1	0004-	●
134	PLUG; RELAY VALVE WHEEL BASE 3200MM(32W) PT1/2	9-09204-521-0	01	1	0004-		●
138	SWITCH; RELAY VALVE WHEEL BASE 3500MM(35W)	1-48340-057-0	01	1	9902-9904	●
138	SWITCH; RELAY VALVE PARKING BRAKE VALVE LEVER TYPE<W48>	1-48340-057-0	01	1	9905-0003	●
138	SWITCH; RELAY VALVE PARKING BRAKE VALVE LEVER TYPE<W48>	1-48340-057-1	01	1	0004-	●
138	SWITCH; RELAY VALVE WHEEL BASE 3200MM(32W)	1-48340-057-1	01	1	0004-		●
181	ADAPTER; PRESSURE SW WHEEL BASE 3500MM(35W) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9902-9904	●
181	ADAPTER; PRESSURE SW WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9905-	●
232	VALVE; CHECK WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48320-013-1	01	1	9905-0003	●
232	VALVE; CHECK WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48320-013-2	01	1	0004-	●
232	VALVE; CHECK WHEEL BASE 3200MM(32W)	1-48320-013-2	01	1	0004-		●

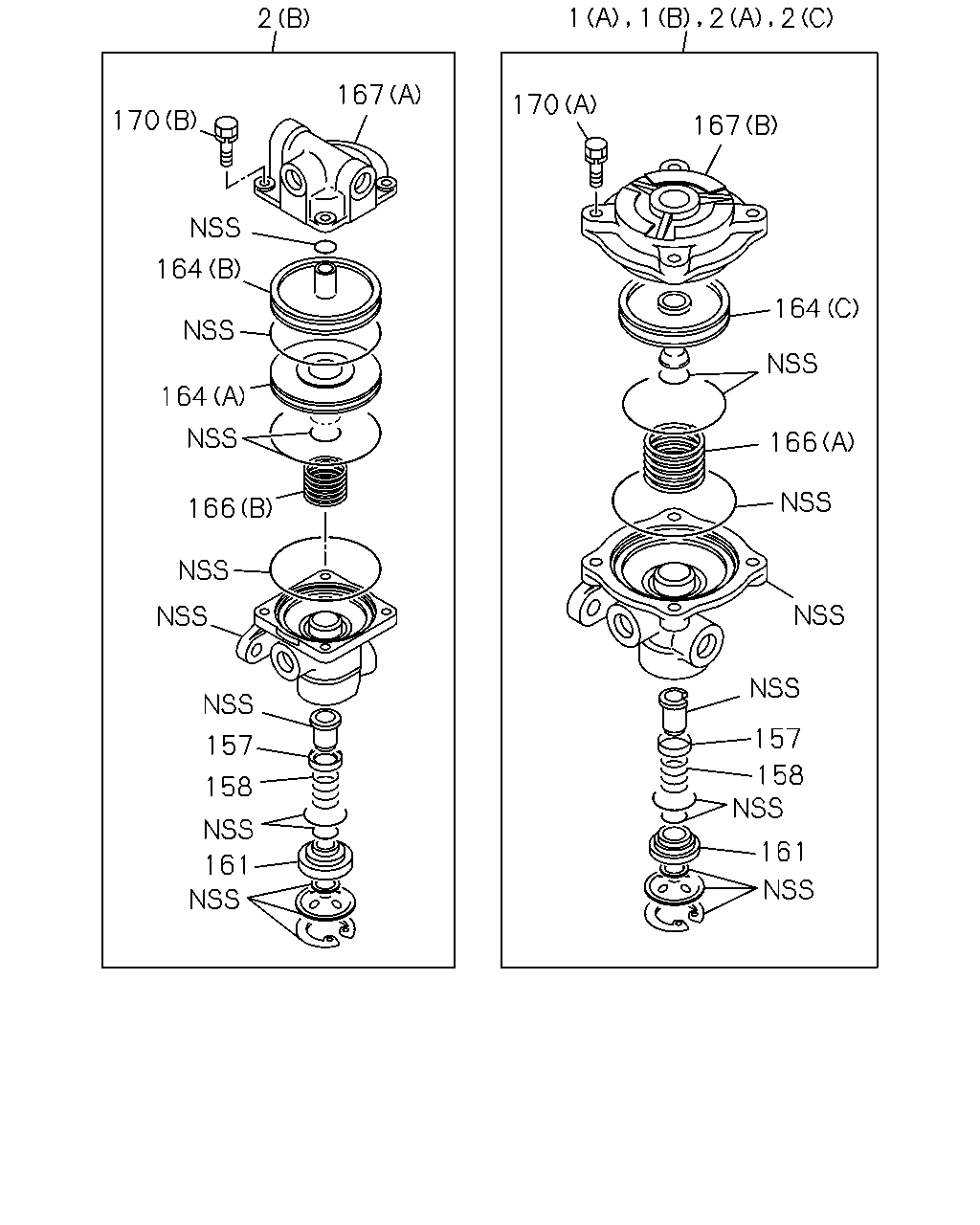

2 1 2 167 170 170 167 164 164 164 166 166 157 157 158 158 161 161 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9902-9903	●
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9904-9904	●
1	VALVE; RELAY RWD RR WHEEL BASE 3500MM(35W) (A)	1-48210-278-0	01	1	9904-9904	●
1	VALVE; RELAY RWD RR BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	9905-0003	●
1	VALVE; RELAY RWD RR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48210-278-0	01	1	9905-0003	●
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	9905-0003	●
1	VALVE; RELAY RWD RR BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	0004-	●
1	VALVE; RELAY RWD RR WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48210-278-0	01	1	0004-	●
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0004-	●
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	0004-		●
1	VALVE; RELAY RWD RR BRAKE REGULATION ECE<TDV> (B)	1-48210-500-0	01	1	9902-	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	9905-0003	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0004-	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) (A)	1-48210-278-0	01	1	0004-		●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48210-143-0	01	1	9905-0003	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48210-143-0	01	1	0004-	●
2	VALVE; RELAY WHEEL BASE 3200MM(32W) (B)	1-48210-143-0	01	1	0004-		●
2	VALVE; RELAY WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	9902-	●
157	RETAINER; VALVE	1-48213-002-0	01	1	9902-9904	●
157	RETAINER; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	9902-9904	●
157	RETAINER; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	9902-9904	●
157	RETAINER; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48213-002-0	01	1	9905-9907	●
157	RETAINER; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	9905-9907	●
157	RETAINER; VALVE PARKING BRAKE VALVE LEVER TYPE<W48>	1-48213-002-0	01	1	9905-9907	●
157	RETAINER; VALVE	1-48213-002-0	01	1	9905-9907	●
157	RETAINER; VALVE WHEEL BASE 3500MM(35W)	1-48213-002-0	01	1	9905-9907	●
157	RETAINER; VALVE	1-48213-002-0	01	1	9908-0003	●
157	RETAINER; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48213-002-0	01	1	9908-0003	●
157	RETAINER; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	9908-0003	●
157	RETAINER; VALVE WHEEL BASE 3500MM(35W)	1-48213-002-0	01	1	9908-0003	●
157	RETAINER; VALVE	1-48213-002-0	01	1	0004-	●	●
157	RETAINER; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0004-	●	●
157	RETAINER; VALVE BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48213-002-0	01	1	0004-	●
157	RETAINER; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0004-	●
157	RETAINER; VALVE	1-48213-002-0	01	1	0004-		●
158	SPRING; VALVE	1-47819-089-0	01	1	9902-9904	●
158	SPRING; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-47819-089-0	01	1	9902-9904	●
158	SPRING; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-47819-089-0	01	1	9902-9904	●
158	SPRING; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-47819-089-0	01	1	9905-9907	●
158	SPRING; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-47819-089-0	01	1	9905-9907	●
158	SPRING; VALVE PARKING BRAKE VALVE LEVER TYPE<W48>	1-47819-089-0	01	1	9905-9907	●
158	SPRING; VALVE	1-47819-089-0	01	1	9905-9907	●
158	SPRING; VALVE WHEEL BASE 3500MM(35W)	1-47819-089-0	01	1	9905-9907	●
158	SPRING; VALVE	1-47819-089-0	01	1	9908-0003	●
158	SPRING; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-47819-089-0	01	1	9908-0003	●
158	SPRING; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-47819-089-0	01	1	9908-0003	●
158	SPRING; VALVE WHEEL BASE 3500MM(35W)	1-47819-089-0	01	1	9908-0003	●
158	SPRING; VALVE	1-47819-089-0	01	1	0004-	●	●
158	SPRING; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-47819-089-0	01	1	0004-	●	●
158	SPRING; VALVE BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48>	1-47819-089-0	01	1	0004-	●
158	SPRING; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-47819-089-0	01	1	0004-	●
158	SPRING; VALVE	1-47819-089-0	01	1	0004-		●
161	GUIDE; VALVE	1-48129-014-0	01	1	9902-9904	●
161	GUIDE; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	9902-9904	●
161	GUIDE; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	9902-9904	●
161	GUIDE; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48129-014-0	01	1	9905-9907	●
161	GUIDE; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	9905-9907	●
161	GUIDE; VALVE PARKING BRAKE VALVE LEVER TYPE<W48>	1-48129-014-0	01	1	9905-9907	●
161	GUIDE; VALVE	1-48129-014-0	01	1	9905-9907	●
161	GUIDE; VALVE WHEEL BASE 3500MM(35W)	1-48129-014-0	01	1	9905-9907	●
161	GUIDE; VALVE	1-48129-014-0	01	1	9908-0003	●
161	GUIDE; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48129-014-0	01	1	9908-0003	●
161	GUIDE; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	9908-0003	●
161	GUIDE; VALVE WHEEL BASE 3500MM(35W)	1-48129-014-0	01	1	9908-0003	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0004-	●	●
161	GUIDE; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	0004-	●	●
161	GUIDE; VALVE BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48129-014-0	01	1	0004-	●
161	GUIDE; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	0004-	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0004-		●
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	9902-9904	●
164	PISTON; RELAY VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C)	1-48219-071-0	01	1	9902-9904	●
164	PISTON; RELAY VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C)	1-48219-071-0	01	1	9902-9904	●
164	PISTON; RELAY VALVE BRAKE SYSTEM SPRING BRAKE(BCR) (C)	1-48219-071-0	01	1	9905-9907	●
164	PISTON; RELAY VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C)	1-48219-071-0	01	1	9905-9907	●
164	PISTON; RELAY VALVE PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-48219-071-0	01	1	9905-9907	●
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	9905-9907	●
164	PISTON; RELAY VALVE WHEEL BASE 3500MM(35W) (C)	1-48219-071-0	01	1	9905-9907	●
164	PISTON; RELAY VALVE BRAKE SYSTEM SPRING BRAKE(BCR) (C)	1-48219-071-0	01	1	9908-0003	●
164	PISTON; RELAY VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C)	1-48219-071-0	01	1	9908-0003	●
164	PISTON; RELAY VALVE WHEEL BASE 3500MM(35W) (C)	1-48219-071-0	01	1	9908-0003	●
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	0004-	●	●
164	PISTON; RELAY VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C)	1-48219-071-0	01	1	0004-	●	●
164	PISTON; RELAY VALVE WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> BRAKE REGULATION ECE<TDV> (C)	1-48219-071-0	01	1	0004-	●
164	PISTON; RELAY VALVE WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48219-032-0	01	1	9905-0003	●
164	PISTON; RELAY VALVE WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48219-032-0	01	1	0004-	●
164	PISTON; RELAY VALVE WHEEL BASE 3200MM(32W) (A)	1-48219-032-0	01	1	0004-		●
164	PISTON; RELAY VALVE WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48219-047-0	01	1	9905-0003	●
164	PISTON; RELAY VALVE WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48219-047-0	01	1	0004-	●
164	PISTON; RELAY VALVE WHEEL BASE 3200MM(32W) (B)	1-48219-047-0	01	1	0004-		●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9902-9904	●
166	SPRING; PISTON WHEEL BASE 3500MM(35W) (A)	1-47819-090-0	01	1	9902-9904	●
166	SPRING; PISTON BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-47819-090-0	01	1	9905-0003	●
166	SPRING; PISTON WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A)	1-47819-090-0	01	1	9905-0003	●
166	SPRING; PISTON PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47819-090-0	01	1	9905-0003	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9905-0003	●
166	SPRING; PISTON WHEEL BASE 3500MM(35W) (A)	1-47819-090-0	01	1	9905-0003	●
166	SPRING; PISTON WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A)	1-47819-090-0	01	1	0004-	●	●
166	SPRING; PISTON EXC. BRAKE REGULATION ECE<TDV> (A)	1-47819-090-0	01	1	0004-	●	●
166	SPRING; PISTON BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-47819-090-0	01	1	0004-	●
166	SPRING; PISTON WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47819-090-0	01	1	0004-	●
166	SPRING; PISTON BRAKE REGULATION ECE<TDV> (A)	1-47819-165-0	01	1	9902-	●
166	SPRING; PISTON WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (A)	1-47819-165-0	01	1	9902-	●
166	SPRING; PISTON WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48219-048-0	01	1	9905-0003	●
166	SPRING; PISTON WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48219-048-0	01	1	0004-	●
166	SPRING; PISTON WHEEL BASE 3200MM(32W) (B)	1-48219-048-0	01	1	0004-		●
167	COVER; VALVE (B)	1-48219-070-0	01	1	9902-9904	●
167	COVER; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (B)	1-48219-070-0	01	1	9902-9904	●
167	COVER; VALVE WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (B)	1-48219-070-0	01	1	9902-9904	●
167	COVER; VALVE BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48219-070-0	01	1	9905-9907	●
167	COVER; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (B)	1-48219-070-0	01	1	9905-9907	●
167	COVER; VALVE PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48219-070-0	01	1	9905-9907	●
167	COVER; VALVE (B)	1-48219-070-0	01	1	9905-9907	●
167	COVER; VALVE WHEEL BASE 3500MM(35W) (B)	1-48219-070-0	01	1	9905-9907	●
167	COVER; VALVE BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48219-070-0	01	1	9908-0003	●
167	COVER; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (B)	1-48219-070-0	01	1	9908-0003	●
167	COVER; VALVE WHEEL BASE 3500MM(35W) (B)	1-48219-070-0	01	1	9908-0003	●
167	COVER; VALVE (B)	1-48219-070-0	01	1	0004-	●	●
167	COVER; VALVE WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (B)	1-48219-070-0	01	1	0004-	●	●
167	COVER; VALVE WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> BRAKE REGULATION ECE<TDV> (B)	1-48219-070-0	01	1	0004-	●
167	COVER; VALVE WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48219-050-1	01	1	9905-0003	●
167	COVER; VALVE WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48219-050-1	01	1	0004-	●
167	COVER; VALVE WHEEL BASE 3200MM(32W) (A)	1-48219-050-1	01	1	0004-		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9902-9904	●
170	SCREW; COVER TO BODY WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	04	1	9902-9904	●
170	SCREW; COVER TO BODY WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	04	1	9902-9904	●
170	SCREW; COVER TO BODY BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48219-039-0	04	1	9905-9907	●
170	SCREW; COVER TO BODY WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	04	1	9905-9907	●
170	SCREW; COVER TO BODY PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48219-039-0	04	1	9905-9907	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9905-9907	●
170	SCREW; COVER TO BODY WHEEL BASE 3500MM(35W) (A)	1-48219-039-0	04	1	9905-9907	●
170	SCREW; COVER TO BODY BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48219-039-0	04	1	9908-0003	●
170	SCREW; COVER TO BODY WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	04	1	9908-0003	●
170	SCREW; COVER TO BODY WHEEL BASE 3500MM(35W) (A)	1-48219-039-0	04	1	9908-0003	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0004-	●	●
170	SCREW; COVER TO BODY WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	04	1	0004-	●	●
170	SCREW; COVER TO BODY WHEEL BASE 3500MM(35W) PARKING BRAKE VALVE LEVER TYPE<W48> BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	04	1	0004-	●
170	SCREW; COVER TO BODY WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48219-041-0	04	1	9905-0003	●
170	SCREW; COVER TO BODY WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48219-041-0	04	1	0004-	●
170	SCREW; COVER TO BODY WHEEL BASE 3200MM(32W) (B)	1-48219-041-0	04	1	0004-		●

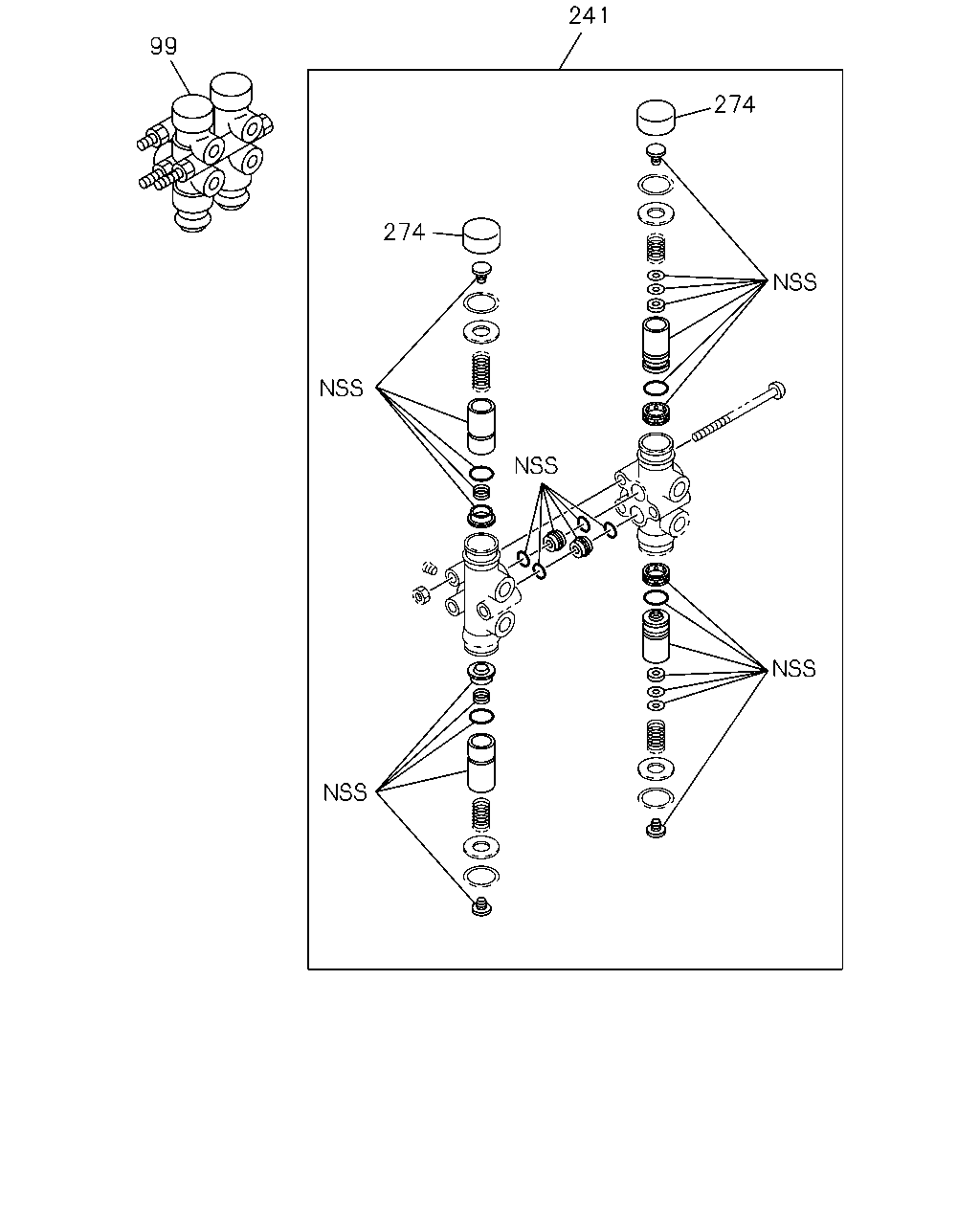

241 99 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
99	VALVE; PROTECTION	1-48110-114-4	01	1	9902-0003	●
99	VALVE; PROTECTION	1-48110-114-5	01	1	0004-	●	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	9902-9904	●
241	REPAIR KIT; PROTECTION VALVE PARKING BRAKE VALVE LEVER TYPE<W48>	1-85576-224-0	01	1	9905-0003	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0004-	●	●
274	COVER; DUST	1-48119-450-0	02	1	9902-9904	●
274	COVER; DUST PARKING BRAKE VALVE LEVER TYPE<W48>	1-48119-450-0	02	1	9905-0003	●
274	COVER; DUST	1-48119-450-0	02	1	0004-	●	●

30 93 31 35 93 93 99 108 274 274 58 105 231 224 211 220 103 104 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	9902-0003	●
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	0004-	●
30	GOVERNOR; AIR CONT AIR DRYER<PS7>	1-48350-063-0	01	1	0004-		●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9902-0003	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	0004-	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0007	●
58	ADAPTER WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0007	●
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●
58	ADAPTER WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●
58	ADAPTER WHEEL BASE 3200MM(32W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9905-0003	●
58	ADAPTER WHEEL BASE 3200MM(32W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	0004-	●	●
58	ADAPTER WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9905-0003	●
58	ADAPTER WHEEL BASE 3200MM(32W) PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0004-	●
58	ADAPTER WHEEL BASE 3200MM(32W) (C) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0004-		●
58	ADAPTER WHEEL BASE 3500MM(35W) (B)	1-09660-778-1	01	1	9902-	●
93	CONNECTOR; GOV WHEEL BASE 3200MM(32W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0003	●
93	CONNECTOR; GOV WHEEL BASE 3200MM(32W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0004-	●
93	CONNECTOR; GOV WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0004-		●
93	CONNECTOR; GOV WHEEL BASE 3200MM(32W) (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-0003	●
93	CONNECTOR; GOV WHEEL BASE 3200MM(32W) (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0004-	●
93	CONNECTOR; GOV WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0004-		●
93	CONNECTOR; GOV WHEEL BASE 3500MM(35W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9902-	●
99	VALVE; PROTECTION	1-48110-114-4	01	1	9902-0003	●
99	VALVE; PROTECTION	1-48110-114-5	01	1	0004-	●	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 3200MM(32W) (A)	1-47478-351-1	01	1	9905-0003	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 3200MM(32W) (A)	1-47478-351-1	01	1	0004-	●	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 3500MM(35W) (B)	1-47478-407-0	01	1	9902-	●
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28680-830-0	02	1	9902-0003	●
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28680-830-0	02	1	0004-	●	●
105	NUT; BRKT,VALVE WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	02	1	9905-0003	●
105	NUT; BRKT,VALVE WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-0003	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-		●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9904	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0003	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0004-	●	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9902-9904	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-0003	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-0003	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0004-	●
108	CONNECTOR; ELBOW WHEEL BASE 3200MM(32W) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0004-	●
108	CONNECTOR; ELBOW (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0004-		●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> EXC. SILENCER SINGLE VERTICAL<N28> (D) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9902-9907	●
108	CONNECTOR; ELBOW WHEEL BASE 3500MM(35W) BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (D) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9908-	●
211	CONNECTOR; TEST WHEEL BASE 3500MM(35W)	1-47459-013-0	01	1	9902-	●
211	CONNECTOR; TEST BRAKE REGULATION ECE<TDV>	1-47459-013-0	01	1	9902-	●
220	CONNECTOR; 3WAY WHEEL BASE 3500MM(35W)	1-09661-027-0	01	1	9902-	●
224	NUT; PROTECTION VALVE WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	03	1	9905-0003	●
224	NUT; PROTECTION VALVE WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	03	1	0004-	●	●
231	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	9905-0003	●
231	CONNECTOR; NYLON TUBE WHEEL BASE 3200MM(32W) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0004-	●	●
231	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9902-	●
274	COVER; DUST	1-48119-450-0	02	1	9902-9904	●
274	COVER; DUST PARKING BRAKE VALVE LEVER TYPE<W48>	1-48119-450-0	02	1	9905-0003	●
274	COVER; DUST	1-48119-450-0	02	1	0004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
