◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#76857) — 84 parça

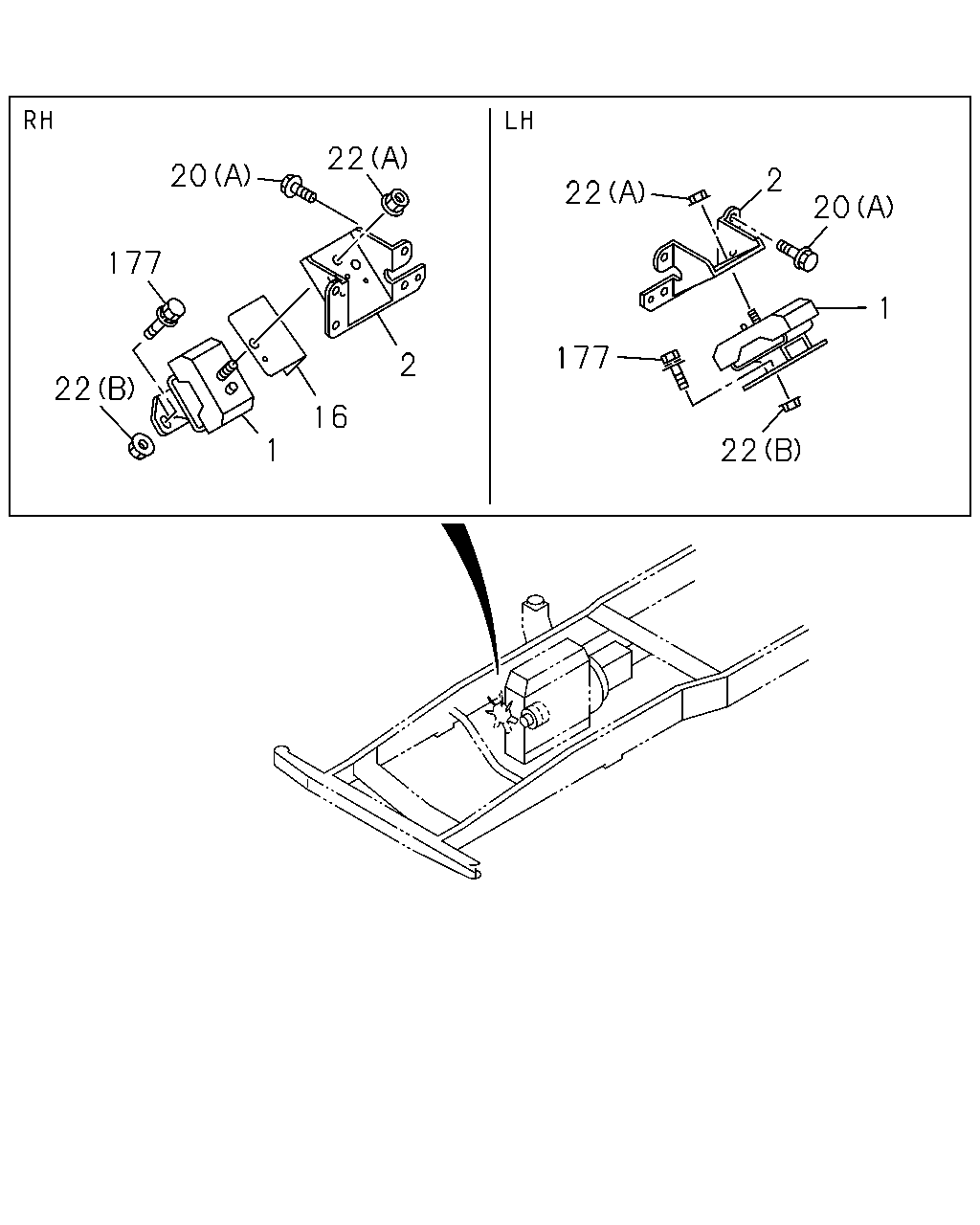

çizim 186942
20 177 22 1 16 2 22 22 177 22 20 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-000-0 01 1 1209- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-001-0 01 1 1209- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97387-250-2 01 1 1010-1108 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97387-250-2 01 1 1109-1112 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-633-0 01 1 1201- ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98061-232-0 01 1 1010-1108 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98061-232-0 01 1 1109-1112 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-634-0 01 1 1201- ● ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1209- ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1209- ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1010-1108 ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1109- ● ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-97209-564-0 01 1 1010-1108 ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-97209-564-0 01 1 1109- ● ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1209- ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1209- ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1209- ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1209- ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 03 1 1209- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 1010-1108 ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 1109- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 1209- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 1010-1108 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 1109- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 1010-1108 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 1109- ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1010-1108 ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1109- ● ●

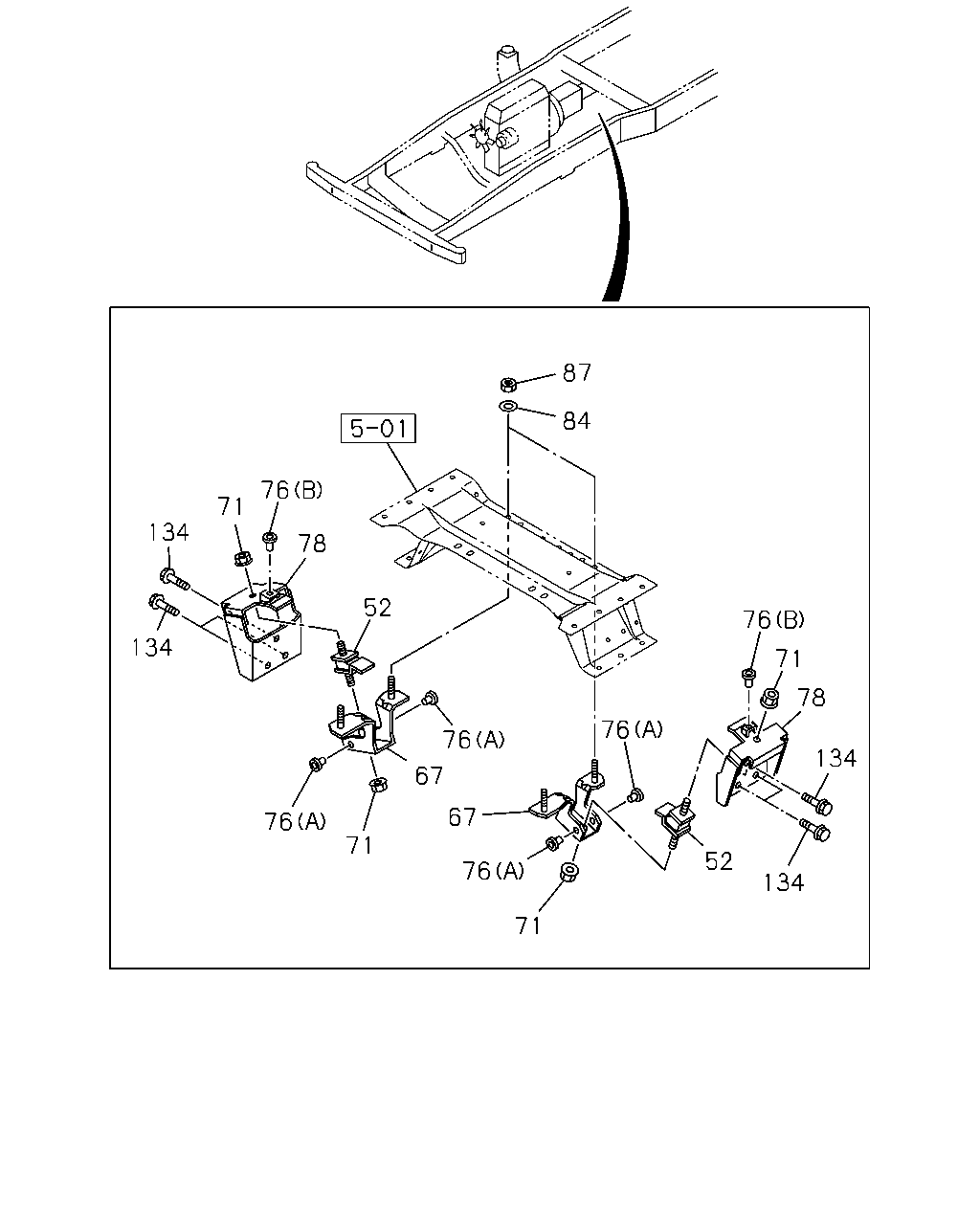

çizim 292018
134 134 71 76 78 52 76 71 67 76 67 76 71 76 52 134 134 78 71 76 87 84
BalonParca AdiParca NoAdetTipApplied Date A B C
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97039-277-0 02 1 1109- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1010-1208 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY6S(RST) 		8-94111-903-1 02 1 1209- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1209- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-324-1 01 1 1209- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-325-1 01 1 1209- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97180-457-0 01 1 1109- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97180-458-0 01 1 1109- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97255-776-1 01 1 1010- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97255-778-1 01 1 1010- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1010-1108 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1109-1208 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1209- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1010-1108 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1109-1208 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1209- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1010-1108 ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1109-1208 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1209- ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-98037-082-1 01 1 1209- ●
78 00.029 BRACKET; ENG MTG,RR 8-98037-083-1 01 1 1209- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97211-475-0 01 1 1109- ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97234-719-0 01 1 1109- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97255-756-1 02 1 1010- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1010-1108 ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1109- ● ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 1010-1108 ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 1109- ● ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1010-1108 ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1109- ● ● ●

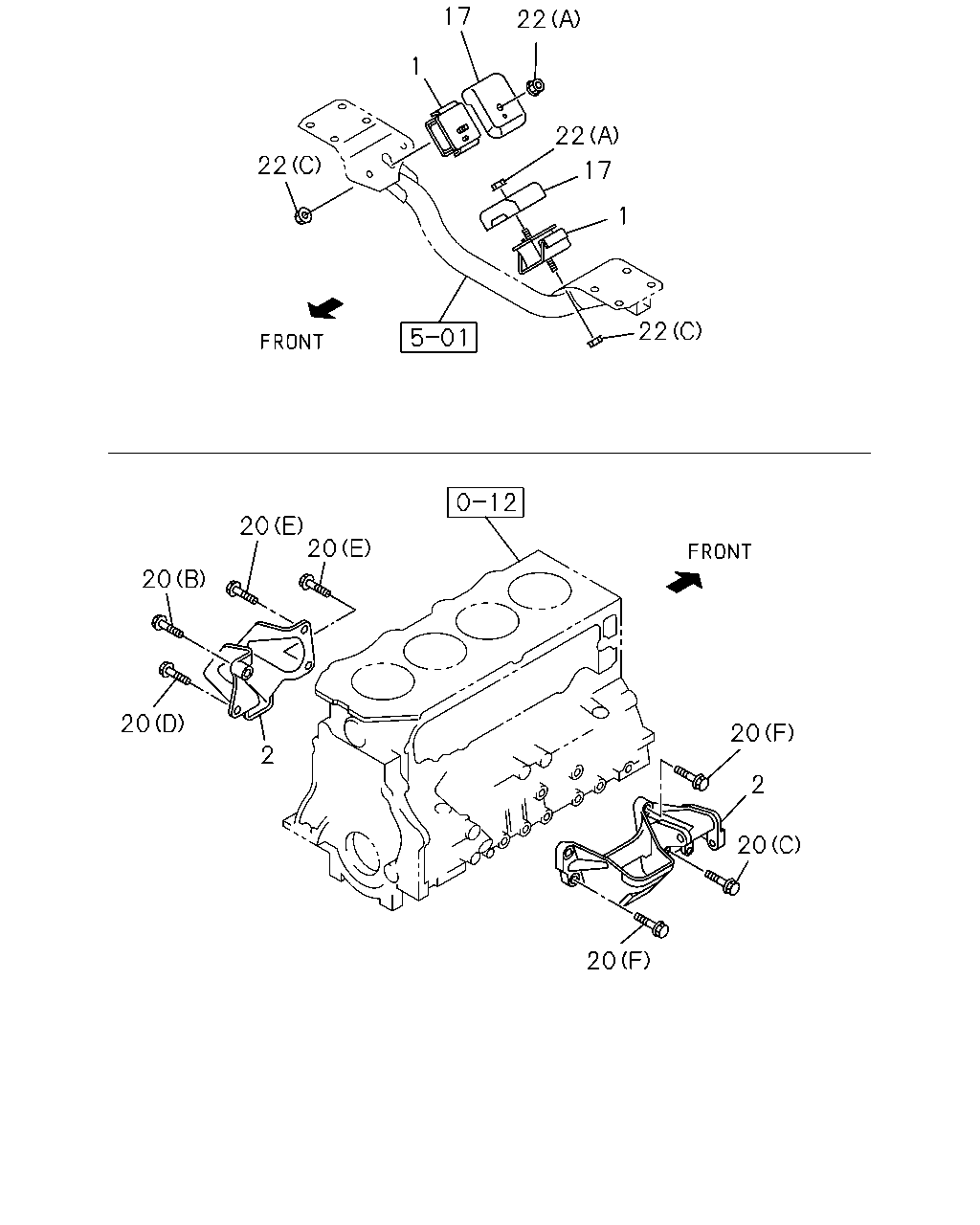

çizim 292019
22 1 17 22 22 17 1 22 20 20 20 2 20 20 2 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-000-0 01 1 1209- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-001-0 01 1 1209- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97387-250-2 01 1 1010-1108 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97387-250-2 01 1 1109-1112 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-633-0 01 1 1201- ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98061-232-0 01 1 1010-1108 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98061-232-0 01 1 1109-1112 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-634-0 01 1 1201- ● ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1209- ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1209- ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1010-1108 ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1109- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 1209- ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 1209- ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1209- ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1209- ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1209- ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1209- ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 03 1 1209- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 1010-1108 ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 1109- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 1209- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 1010-1108 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 1109- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 1010-1108 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 1109- ● ● ●
