◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#76856) — 209 parça

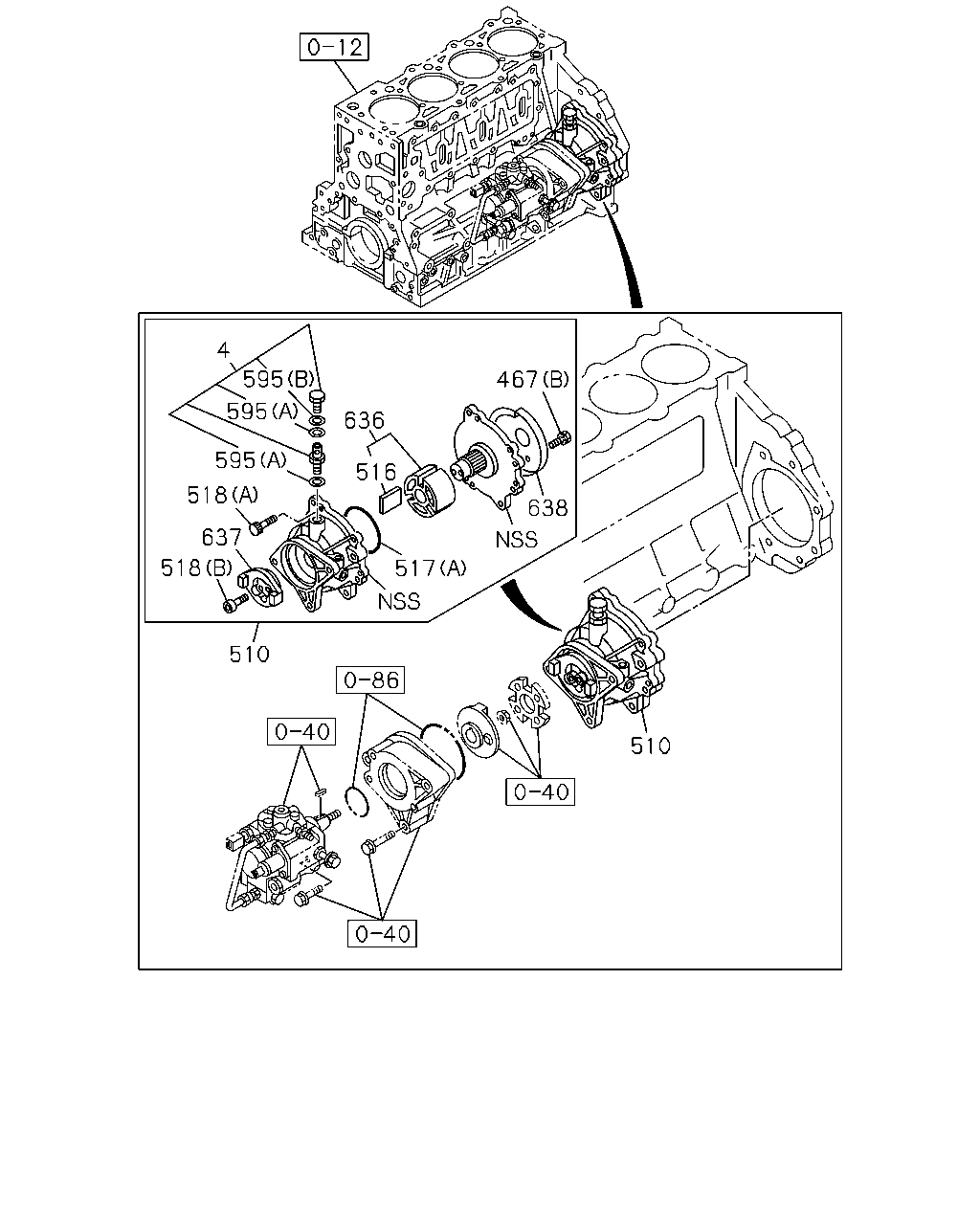

çizim 38230
4 595 595 595 518 637 518 510 636 516 517 467 638 510
BalonParca AdiParca NoAdetTipApplied Date A B C
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1010-1108 ●
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1109-1208 ● ●
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1209- ● ● ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 1010-1108 ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 1109- ● ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 1010-1108 ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 1109- ● ●
510 04.895 PUMP ASM; VACUUM 8-98162-748-0 01 1 1209-1311 ●
510 04.895 PUMP ASM; VACUUM 8-98251-764-0 01 1 1312- ●
510 04.895 PUMP ASM; VACUUM
03.306 		8-97388-589-6 01 1 1010-1108 ●
510 04.895 PUMP ASM; VACUUM
03.306 		8-97388-589-6 01 1 1109- ● ●
516 04.895 VANE; VAC PUMP 8-98051-275-0 03 1 1209- ●
516 04.895 VANE; VAC PUMP 8-98051-279-0 03 1 1010-1108 ●
516 04.895 VANE; VAC PUMP 8-98051-279-0 03 1 1109- ● ●
517 04.895 GASKET; VAC PUMP
(B) ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98049-522-0 01 1 1209-1311 ●
517 04.895 GASKET; VAC PUMP
(B) ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98251-769-0 01 1 1312- ●
517 04.895 GASKET; VAC PUMP
00.206 (C) ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09566-271-0 01 1 1209- ●
517 04.895 GASKET; VAC PUMP
(A) 		8-98051-280-0 01 1 1010-1108 ●
517 04.895 GASKET; VAC PUMP
(A) 		8-98051-280-0 01 1 1109- ● ●
518 04.895 BOLT; VAC PUMP
(C) 		8-98049-523-0 03 1 1209- ●
518 04.895 BOLT; VAC PUMP
01.531 (A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 1010-1108 ●
518 04.895 BOLT; VAC PUMP
01.531 (A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 1109- ● ●
518 04.895 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 1010-1108 ●
518 04.895 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 1109- ● ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1010-1108 ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1109-1208 ● ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1209- ● ● ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1010-1108 ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1109-1208 ● ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1209- ● ● ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98049-520-0 01 1 1209- ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 1010-1108 ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 1109- ● ●
637 00.206 COUPLING; VAC PUMP 8-98051-278-0 01 1 1010-1108 ●
637 00.206 COUPLING; VAC PUMP 8-98051-278-0 01 1 1109- ● ●
638 00.206 PLATE KIT; VAC PUMP 8-98051-276-0 01 1 1010-1108 ●
638 00.206 PLATE KIT; VAC PUMP 8-98051-276-0 01 1 1109- ● ●

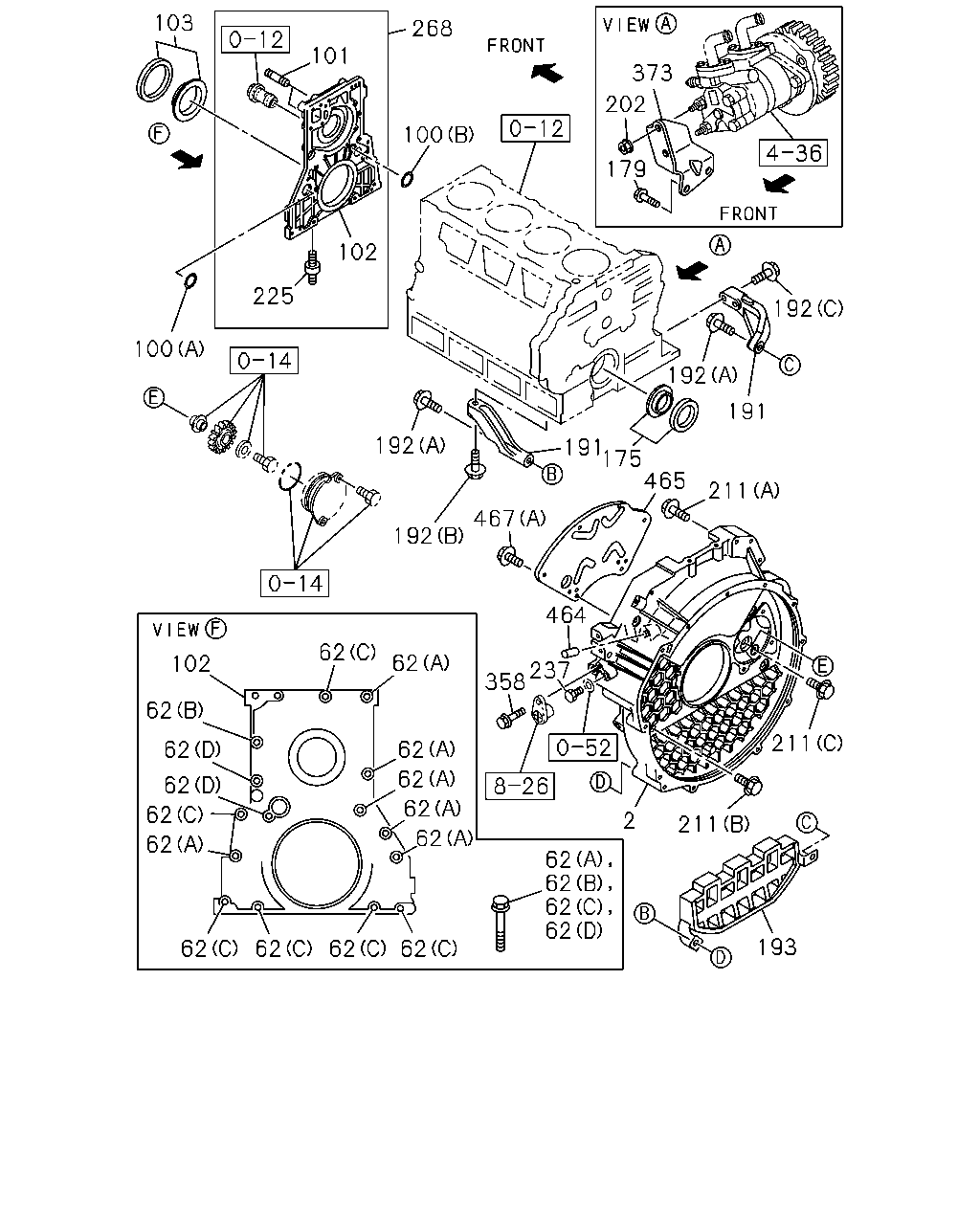

çizim 186941
373 202 179 192 192 191 211 465 175 191 467 192 192 464 237 358 62 62 62 62 62 62 62 62 211 193 211 62 62 62 62 62 102 62 62 62 62 100 225 102 100 268 101 103 2 62 62
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.683 HOUSING; FLYWHEEL 8-97381-492-3 01 1 1209-1310 ●
2 00.683 HOUSING; FLYWHEEL 8-98252-203-0 01 1 1311- ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-3 01 1 1010-1108 ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-5 01 1 1109- ● ●
62 00.206 BOLT; COVER
03.162 (E) M6X20 FLANGE 		0-28650-620-0 04 1 1209- ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 1010-1108 ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 1109- ● ●
62 00.206 BOLT; COVER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1010-1108 ●
62 00.206 BOLT; COVER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1010-1108 ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1109- ● ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1010-1108 ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1109- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 1010-1108 ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 1109- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 1010-1108 ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 1109- ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1010-1108 ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1109- ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1010-1108 ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1109- ● ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1109- ● ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 1010-1108 ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1109- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98158-110-0 01 1 1209- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1010-1108 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1109- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1209- ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1010-1108 ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1109- ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.417 M10X20 FLANGE 		0-28151-020-0 02 1 1010-1108 ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.417 M10X20 FLANGE 		0-28151-020-0 02 1 1109- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 1010-1108 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 1109- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1010-1108 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1109- ● ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 1010-1108 ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 1109- ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 1010-1108 ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 1109- ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 1010-1108 ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 1109- ● ●
193 01.428 SPACER; STAY TO OIL,PAN 8-97259-536-0 01 1 1010-1108 ●
193 01.428 SPACER; STAY TO OIL,PAN 8-97259-536-0 01 1 1109- ● ●
202 00.206 NUT; BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1209- ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1010-1108 ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●
211 00.669 BOLT; HSG
09.003 (D) M12X35 FLANGE 		0-28651-235-0 06 1 1209- ●
211 00.669 BOLT; HSG
00.683 (E) M12X25 		5-09000-227-0 03 1 1209- ●
211 00.669 BOLT; HSG
00.862 (F) M10X43 		9-09606-535-0 01 1 1209- ●
211 00.669 BOLT; HSG
00.029 (A) M10X40 FLANGE 		0-28751-040-0 01 1 1010-1108 ●
211 00.669 BOLT; HSG
00.029 (A) M10X40 FLANGE 		0-28751-040-0 01 1 1109- ● ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1010-1102 ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103-1108 ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1109- ● ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 02 1 1010-1108 ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 02 1 1109- ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1010-1108 ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1109- ● ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 1010-1108 ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 1109- ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1109- ● ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 1010-1108 ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-2 01 1 1109- ● ●
358 00.206 BOLT; ADAPTER
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1010-1108 ●
358 00.206 BOLT; ADAPTER
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1109- ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97149-333-0 01 1 1010-1108 ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97149-333-0 01 1 1109- ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 1010-1108 ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 1109- ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 1010-1108 ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 1109- ● ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 1010-1108 ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 1109- ● ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 1010-1108 ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 1109- ● ●

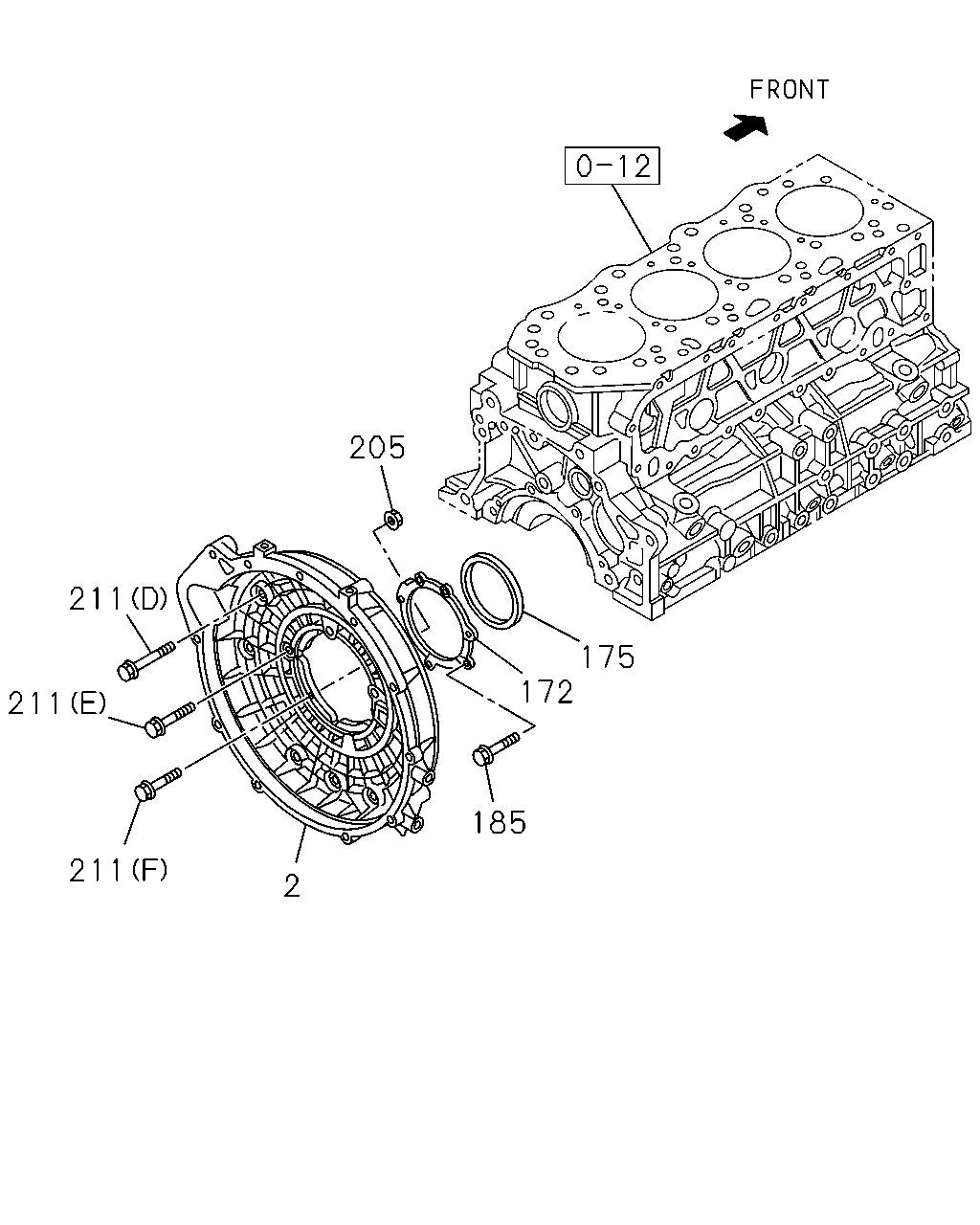

çizim 292147
205 175 172 185 2 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.683 HOUSING; FLYWHEEL 8-97381-492-3 01 1 1209-1310 ●
2 00.683 HOUSING; FLYWHEEL 8-98252-203-0 01 1 1311- ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-3 01 1 1010-1108 ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-5 01 1 1109- ● ●
172 00.137 RETAINER; CR/SHF 8-97379-826-0 01 1 1209- ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1209- ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1010-1108 ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1109- ● ●
185 00.727 BOLT; RET TO C/BL
06.216 M8X25 FLANGE 		0-28650-825-0 05 1 1209- ●
205 00.669 NUT; HSG
04.085 M10 FLANGE 		0-91180-210-0 01 1 1209- ●
211 00.669 BOLT; HSG
09.003 (D) M12X35 FLANGE 		0-28651-235-0 06 1 1209- ●
211 00.669 BOLT; HSG
00.683 (E) M12X25 		5-09000-227-0 03 1 1209- ●
211 00.669 BOLT; HSG
00.862 (F) M10X43 		9-09606-535-0 01 1 1209- ●
211 00.669 BOLT; HSG
00.029 (A) M10X40 FLANGE 		0-28751-040-0 01 1 1010-1108 ●
211 00.669 BOLT; HSG
00.029 (A) M10X40 FLANGE 		0-28751-040-0 01 1 1109- ● ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1010-1102 ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103-1108 ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1109- ● ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 02 1 1010-1108 ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 02 1 1109- ● ●

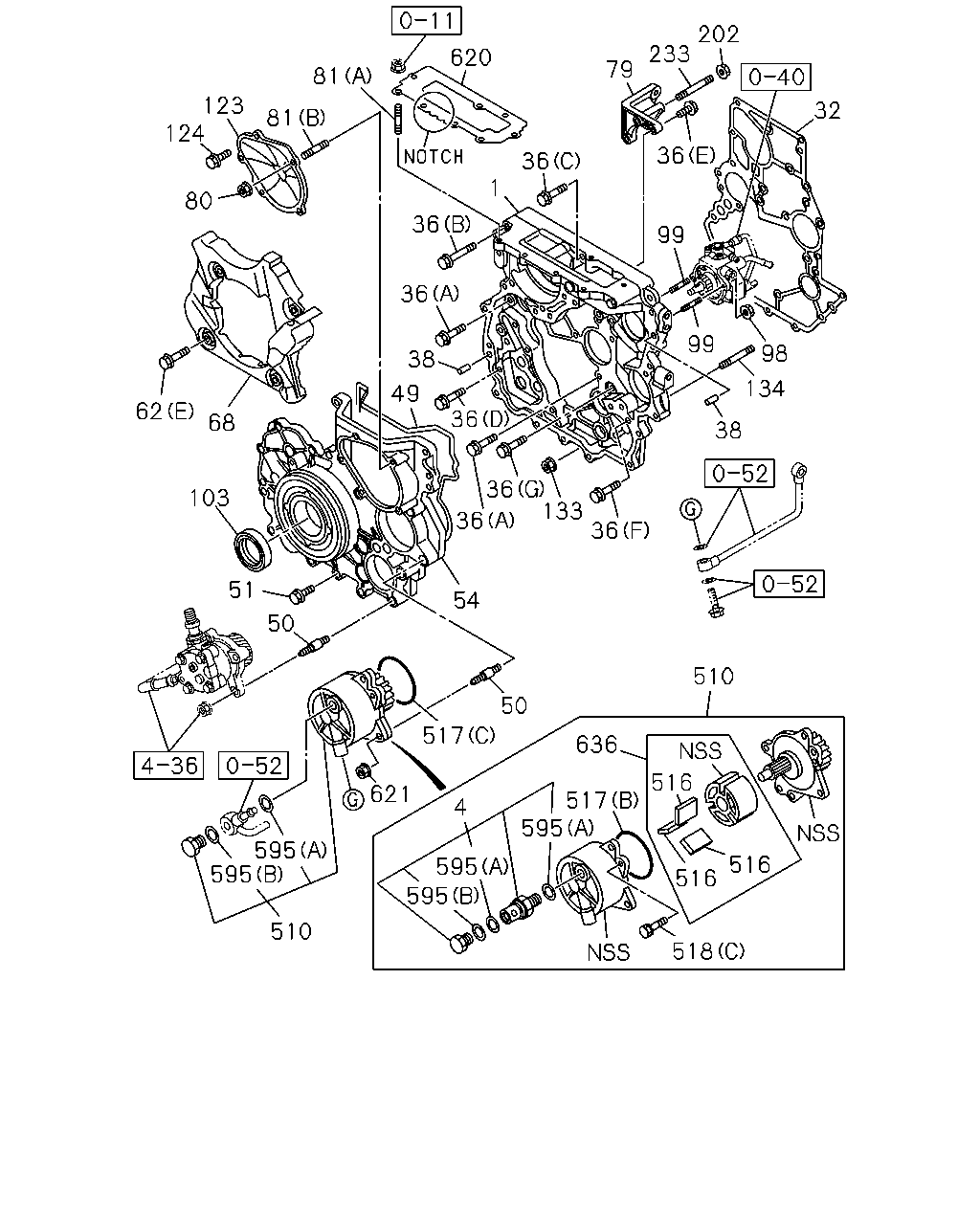

çizim 292149
620 81 81 123 124 80 68 62 103 54 36 36 36 133 510 516 636 595 517 517 4 595 595 621 595 595 510 50 51 1 36 36 36 38 49 36 79 233 202 36 99 99 134 98 38 32 516 518 516
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.206 CASE; TIMING GEAR 8-98074-747-1 01 1 1209- ●
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1010-1108 ●
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1109-1208 ● ●
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1209- ● ● ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-221-2 01 1 1209- ●
36 00.206 BOLT; GEAR CASE
02.343 (G) M8X16 FLANGE 		0-28050-816-0 01 1 1209- ●
36 00.206 BOLT; GEAR CASE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1209- ●
36 00.206 BOLT; GEAR CASE
03.162 (C) M8X35 FLANGE 		0-28050-835-0 01 1 1209- ●
36 00.206 BOLT; GEAR CASE
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1209- ●
36 00.206 BOLT; GEAR CASE
04.686 (B) M8X60 FLANGE 		0-28050-860-0 01 1 1209- ●
36 00.206 BOLT; GEAR CASE
06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 1209- ●
36 00.206 BOLT; GEAR CASE
03.403 (E) M8X30 FLANGE 		0-28650-830-0 03 1 1209- ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1209- ●
49 00.206 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97945-298-0 01 1 1209- ●
50 00.206 STUD
M8X27,M8X14 L=64.5 		8-97354-808-2 06 1 1209- ●
51 00.206 BOLT; GEAR CASE COVER 8-97354-697-1 14 1 1209- ●
54 00.206 COVER; GEAR CASE 8-98165-119-1 01 1 1209-1405 ●
54 00.206 COVER; GEAR CASE 8-98253-700-1 01 1 1406- ●
62 00.206 BOLT; COVER
03.162 (E) M6X20 FLANGE 		0-28650-620-0 04 1 1209- ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 1010-1108 ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 1109- ● ●
62 00.206 BOLT; COVER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1010-1108 ●
62 00.206 BOLT; COVER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1010-1108 ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1109- ● ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1010-1108 ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1109- ● ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98009-466-3 01 1 1209-1409 ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98245-226-0 01 1 1410- ●
79 00.219 BRACKET; GEAR CASE COVER 8-98107-106-0 01 1 1209- ●
80 00.206 NUT; COVER
01.540 M6 FLANGE 		0-91180-206-0 02 1 1209- ●
81 00.206 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 		0-41010-616-0 02 1 1209- ●
81 00.206 STUD; GEAR CASE COVER FIX
00.413 (A) M8X30 L=48 		0-49140-830-0 02 1 1209- ●
98 00.206 NUT; STUD,INJ PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1209- ●
99 00.206 STUD; INJ PUMP
M8X30 L=41 		8-97369-449-0 02 1 1209- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98158-110-0 01 1 1209- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1010-1108 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1109- ● ●
123 00.206 COVER; TIMING,LWR 8-98158-145-0 01 1 1209- ●
124 00.206 BOLT; TIMING COVER
09.242 M6X16 FLANGE 		0-28050-616-0 03 1 1209- ●
133 00.206 NUT; TIMING GEAR CASE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1209- ●
134 00.669 STUD; TIMING GEAR CASE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1209- ●
202 00.206 NUT; BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1209- ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1010-1108 ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●
233 00.669 STUD; BRKT
03.275 M8X71 L=83 		8-98017-063-0 01 1 1209- ●
510 04.895 PUMP ASM; VACUUM 8-98162-748-0 01 1 1209-1311 ●
510 04.895 PUMP ASM; VACUUM 8-98251-764-0 01 1 1312- ●
510 04.895 PUMP ASM; VACUUM
03.306 		8-97388-589-6 01 1 1010-1108 ●
510 04.895 PUMP ASM; VACUUM
03.306 		8-97388-589-6 01 1 1109- ● ●
516 04.895 VANE; VAC PUMP 8-98051-275-0 03 1 1209- ●
516 04.895 VANE; VAC PUMP 8-98051-279-0 03 1 1010-1108 ●
516 04.895 VANE; VAC PUMP 8-98051-279-0 03 1 1109- ● ●
517 04.895 GASKET; VAC PUMP
(B) ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98049-522-0 01 1 1209-1311 ●
517 04.895 GASKET; VAC PUMP
(B) ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98251-769-0 01 1 1312- ●
517 04.895 GASKET; VAC PUMP
00.206 (C) ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09566-271-0 01 1 1209- ●
517 04.895 GASKET; VAC PUMP
(A) 		8-98051-280-0 01 1 1010-1108 ●
517 04.895 GASKET; VAC PUMP
(A) 		8-98051-280-0 01 1 1109- ● ●
518 04.895 BOLT; VAC PUMP
(C) 		8-98049-523-0 03 1 1209- ●
518 04.895 BOLT; VAC PUMP
01.531 (A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 1010-1108 ●
518 04.895 BOLT; VAC PUMP
01.531 (A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 1109- ● ●
518 04.895 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 1010-1108 ●
518 04.895 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 1109- ● ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1010-1108 ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1109-1208 ● ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1209- ● ● ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1010-1108 ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1109-1208 ● ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1209- ● ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH 		8-97328-828-2 01 1 1209- ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH 		8-97331-631-2 01 1 1209- ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH 		8-97331-632-2 01 1 1209- ●
621 00.207 NUT; VAC PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 1209- ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98049-520-0 01 1 1209- ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 1010-1108 ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
