0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#76855) — 156 parça

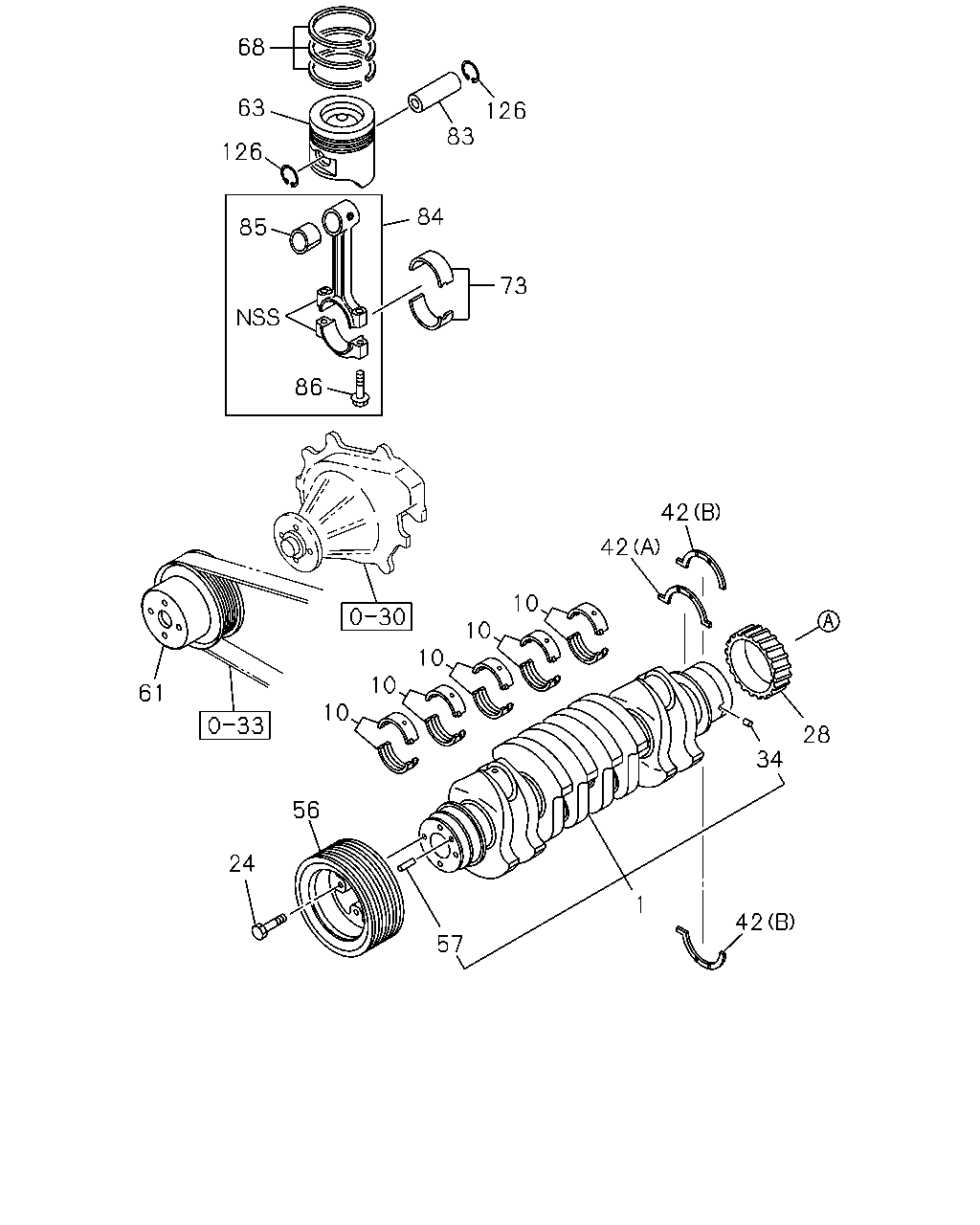

68 63 126 85 86 73 84 83 126 42 42 10 10 10 10 10 56 24 61 57 1 34 28 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1209-1409	●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-	●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	1010-1108		●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	1109-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1010-1108		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1109-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1010-1108		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1109-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1010-1108		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1109-		●	●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	1010-1108		●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	1109-		●	●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1209-	●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1010-1108		●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1109-		●	●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1209-	●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1010-1108		●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1109-		●	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1209-	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1010-1108		●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1109-		●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1010-1108		●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1109-		●	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98154-943-1	01	1	1209-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1010-1108		●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1109-		●	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	1010-1108		●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	1109-		●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1209-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1010-1108		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1109-		●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98043-703-0	04	1	1209-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98043-704-0	04	1	1209-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98043-705-0	04	1	1209-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-0	04	1	1010-1108		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1109-1411		●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	08	1	1412-		●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1209-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1010-1108		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1109-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1209-	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1010-1108		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1109-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1010-1108		●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1109-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1209-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1010-1108		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1109-		●	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1209-	●
84	00.603 ROD ASM; CONN	8-98018-425-2	04	1	1010-1108		●
84	00.603 ROD ASM; CONN	8-98018-425-3	04	1	1109-		●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1209-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1010-1108		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1109-		●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1209-	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1010-1108		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1109-		●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1209-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1010-1108		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1109-		●	●

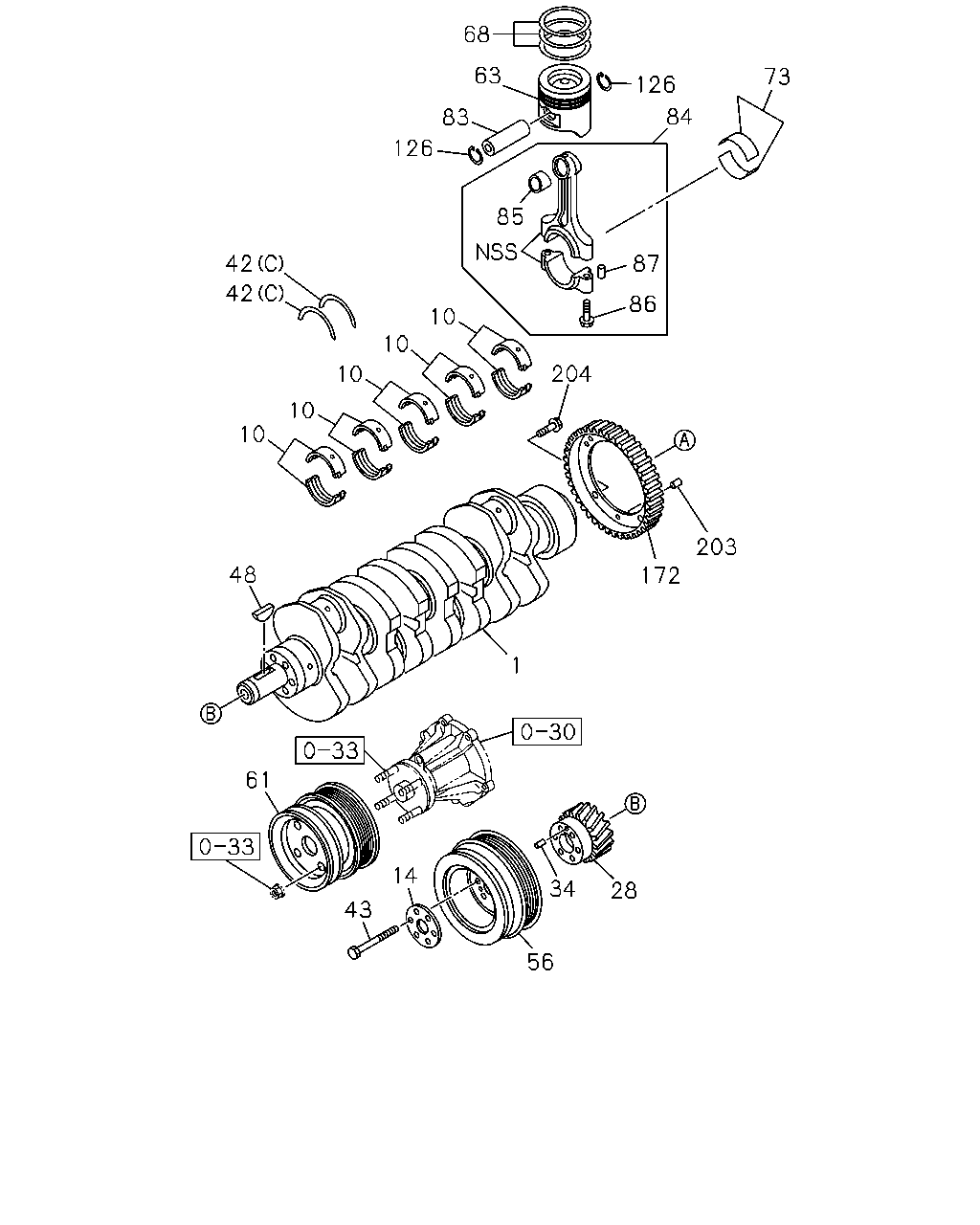

56 28 34 14 43 1 172 203 204 10 10 10 10 10 48 61 42 42 126 83 63 68 85 87 86 84 73 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1209-1409	●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-	●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	1010-1108		●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	1109-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1209-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1010-1108		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1109-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1010-1108		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1109-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1010-1108		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1109-		●	●
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1209-	●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1209-	●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1010-1108		●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1109-		●	●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1209-	●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1010-1108		●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1109-		●	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1209-	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1010-1108		●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1109-		●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1010-1108		●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1109-		●	●
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1209-	●
48	00.662 KEY; WOODRUFF,CR/SHF 00.729	8-94201-641-0	01	1	1209-	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98154-943-1	01	1	1209-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1010-1108		●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1109-		●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1209-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1010-1108		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1109-		●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98043-703-0	04	1	1209-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98043-704-0	04	1	1209-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98043-705-0	04	1	1209-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-0	04	1	1010-1108		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1109-1411		●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	08	1	1412-		●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1209-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1010-1108		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1109-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1209-	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1010-1108		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1109-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1010-1108		●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1109-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1209-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1010-1108		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1109-		●	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1209-	●
84	00.603 ROD ASM; CONN	8-98018-425-2	04	1	1010-1108		●
84	00.603 ROD ASM; CONN	8-98018-425-3	04	1	1109-		●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1209-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1010-1108		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1109-		●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1209-	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1010-1108		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1109-		●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1209-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1209-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1010-1108		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1109-		●	●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1209-	●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	1209-	●
204	01.150 BOLT; ROTOR 02.383 M6X10	8-98038-343-0	03	1	1209-	●

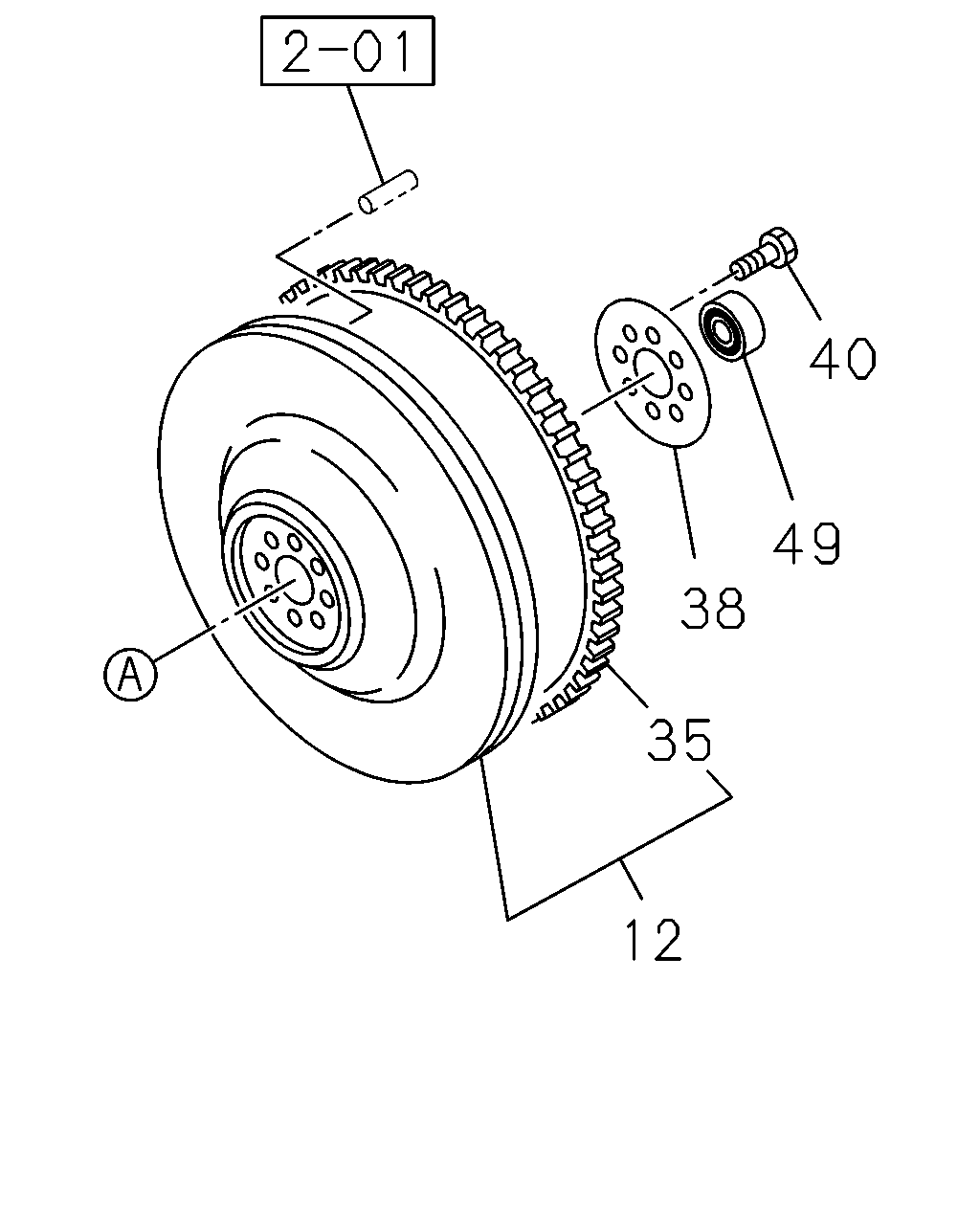

40 49 38 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	00.666 FLYWHEEL	8-98148-063-1	01	1	1209-	●
12	00.666 FLYWHEEL	8-97326-227-2	01	1	1010-1108		●
12	00.666 FLYWHEEL	8-97326-227-2	01	1	1109-		●	●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1010-1108		●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1109-1208		●	●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1209-1410	●	●	●
35	00.673 GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=138	8-97046-366-1	01	1	1411-	●	●	●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1209-	●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1010-1108		●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1109-		●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1209-	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1010-1108		●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1109-		●	●
49	00.669 BEARING; PILOT	8-97325-153-0	01	1	1209-	●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	1010-1108		●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	1109-		●	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1010-1108		●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1109-		●	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-166-0	01	1	1209-	●
